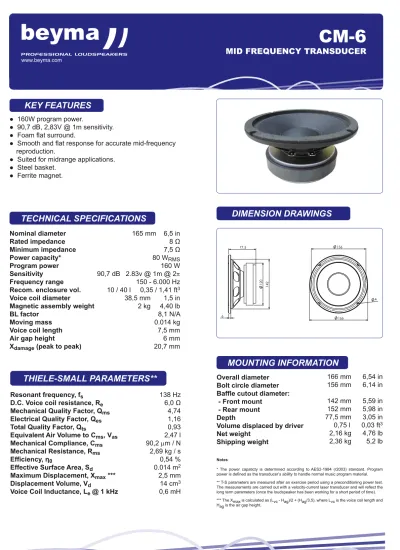

KEY FEATURES
THIELE-SMALL PARAMETERS**
Notes:
* The power capaticty is determined according to AES2-1984 (r2003) standard. Program power is defined as the transducer’s ability to handle normal music program material.
** T-S parameters are measured after an exercise period using a preconditioning power test.
The measurements are carried out with a velocity-current laser transducer and will reflect the long term parameters (once the loudspeaker has been working for a short period of time).
*** The Xmax is calculated as (Lvc - Hag)/2 + (Hag/3,5), where Lvc is the voice coil length and Hag is the air gap height.
TECHNICAL SPECIFICATIONS
Nominal diameter Rated impedance Minimum impedance Power capacity*
Program power Sensitivity Frequency range Recom. enclosure vol.
Voice coil diameter
Magnetic assembly weight BL factor
Moving mass Voice coil length Air gap height
X damage (peak to peak)
165 mm 6,5 in 8 Ω 7,5 Ω 80 W RMS 160 W 90,7 dB 2.83v @ 1m @ 2π 150 - 6.000 Hz 10 / 40 l 0,35 / 1,41 ft 3 38,5 mm 1,5 in 2 kg 4,40 lb 8,1 N/A 0.014 kg 7,5 mm 6 mm 20,7 mm
MOUNTING INFORMATION
Overall diameter Bolt circle diameter Baffle cutout diameter:
- Front mount - Rear mount Depth
Volume displaced by driver Net weight
Shipping weight
166 mm 6,54 in 156 mm 6,14 in 142 mm 5,59 in 152 mm 5,98 in 77,5 mm 3,05 in 0,75 l 0,03 ft 3 2,16 kg 4,76 lb 2,36 kg 5,2 lb
DIMENSION DRAWINGS
Resonant frequency, f s D.C. Voice coil resistance, R e Mechanical Quality Factor, Q ms Electrical Quality Factor, Q es Total Quality Factor, Q ts
Equivalent Air Volume to C ms , V as Mechanical Compliance, C ms Mechanical Resistance, R ms Efficiency, η 0
Effective Surface Area, S d
Maximum Displacement, X max ***
Displacement Volume, V d
Voice Coil Inductance, L e @ 1 kHz
138 Hz 6,0 Ω 4,74 1,16 0,93 2,47 l 90,2 µm / N
2,69 kg / s 0,54 % 0.014 m 2 2,5 mm 14 cm 3 0,6 mH
CM-6
MID FREQUENCY TRANSDUCER
● 160W program power.
● 90,7 dB, 2,83V @ 1m sensitivity.
● Foam flat surround.
● Smooth and flat response for accurate mid-frequency reproduction.
● Suited for midrange applications.
● Steel basket.
● Ferrite magnet.
FREE AIR IMPEDANCE CURVE
FREQUENCY RESPONSE AND DISTORTION
Polígono Industrial Moncada II ▪ C/. Pont Sec, 1c ▪ 46113 MONCADA - Valencia (Spain)
▪ Tel.: (34) 96 130 13 75 ▪ Fax: (34) 96 130 15 07 ▪ http://www.beyma.com ▪ E-mail: beyma@beyma.com ▪ LOW & MID FREQUENCY TRANSDUCER
www.beyma.com
CM-6
MID FREQUENCY TRANSDUCER
1 1/1 1
[Hz]
[Ω]
Note: On axis frequency response measured with loudspeaker standing on infinite baffle in anechoic chamber, 1W @ 1m
