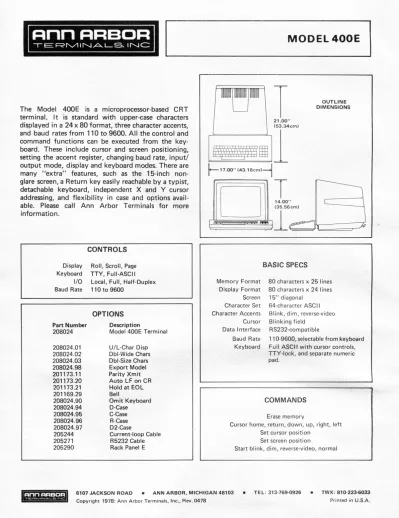

The Model 400E is a microprocessor-based CRT terminal. It is standard with upper-case characters displayed in a 24 x 80 format, three character accents, and baud rates from 110 to 9600. All the control and command functions can be executed from the key- board. These include cursor and screen positioning, setting the accent register, changing baud rate, input/
output mode, display and keyboard modes. There are many "extra" features, such as the 15-inch non- glare screen, a Return key easily reachable by a typist, detachable keyboard, independent X and Y cursor addressing, and flexibility in case and options avail- able. Please call Ann Arbor Terminals for more information.
Display Keyboard 1/0 Baud Rate
Part Number 208024 208024.01 208024.02 208024.03 208024.98 201173.11 201173.20 201173.21 201169.29 208024.90 208024.94 208024.95 208024.96 208024.97 205244 205271 205290
CONTROLS
Roll, Scroll, Page TTY, Full-ASCII Local, Full, Half-Duplex 110 to 9600OPTIONS
DescriptionModel 400E Terminal U/L-Char Disp Dbl-Wide Chars Dbl-Size Chars Export Model Parity Xmit Auto LF on CR Hold at EOL Bell
Om it Keyboard D-Case
C-Case R-Case D2-Case
Current-loop Cable R5232 Cable Rack Panel E
Memory Format Display Format Screen Character Set Character Accents Cursor Data Interface Baud Rate Keyboard
BASIC SPECS .
OUTLINE DIMENSIONS
80 characters x 25 lines 80 characters x 24 lines 15" diagonal
64-character ASCII Blink, dim, reverse-video Blinking field
RS232-compatible
110-9600, se~ectable from keyboard Full ASCII with cursor controls,
_TTY~lock, and separate numeric
pad.
COMMANDS
Erase memoryCursor home, return, down, up, right, left Set cursor position
Set screen position
Start blink, dim, reverse-video, normal
6107 JACKSON ROAD • ANN ARBOR, MICHIGAN 48103 • TEL: 313-769-0926 • TWX: 810-223-6033 Copyright 1978: Ann Arbor Terminals, Inc., Rev. 0478 Printed in U.S.A.
