Publisher’s version / Version de l'éditeur:
Cement and Concrete Research, 1, 1, pp. 13-25, 1971-01
READ THESE TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS WEBSITE. https://nrc-publications.canada.ca/eng/copyright
Vous avez des questions? Nous pouvons vous aider. Pour communiquer directement avec un auteur, consultez la
première page de la revue dans laquelle son article a été publié afin de trouver ses coordonnées. Si vous n’arrivez pas à les repérer, communiquez avec nous à PublicationsArchive-ArchivesPublications@nrc-cnrc.gc.ca.
Questions? Contact the NRC Publications Archive team at
PublicationsArchive-ArchivesPublications@nrc-cnrc.gc.ca. If you wish to email the authors directly, please see the first page of the publication for their contact information.
NRC Publications Archive
Archives des publications du CNRC
This publication could be one of several versions: author’s original, accepted manuscript or the publisher’s version. / La version de cette publication peut être l’une des suivantes : la version prépublication de l’auteur, la version acceptée du manuscrit ou la version de l’éditeur.
For the publisher’s version, please access the DOI link below./ Pour consulter la version de l’éditeur, utilisez le lien DOI ci-dessous.
https://doi.org/10.1016/0008-8846(71)90080-9
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at
Microstructure of calcium silicate hydrates
Ciach, T. D.; Gillott, J. E.; Swenson, E. G.; Sereda, P. J.
https://publications-cnrc.canada.ca/fra/droits
L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.
NRC Publications Record / Notice d'Archives des publications de CNRC:
https://nrc-publications.canada.ca/eng/view/object/?id=c8c174b7-f27b-4c26-b5dc-3361dfb1e767 https://publications-cnrc.canada.ca/fra/voir/objet/?id=c8c174b7-f27b-4c26-b5dc-3361dfb1e767CEMENT
and
CONCRETE RESEARCH.Vol. 1 ,
pp. 13-25, 1971. Pergamon P r e s s , I n c .
P r i n t e d i n t h e United S t a t e s .
MICROSTRUCTURE O F CALCIUM SILICATE HYDRATES* T . D . C i a c h , J . E . G i l l o t t , E . G . Swenson and P. J. S e r e d a Division of Building R e s e a r c h , National R e s e a r c h Council of C a n a d a
(Communicated by D . M. Roy) ABSTRACT
M o r p h o l o g i c a l and m i c r o s t r u c t u r a l c h a n g e s with t i m e of a h y d r a t - ing C3S paste::* w e r e studied by e l e c t r o n m i c r o s c o p y and x - r a y d i f f r a c t i o n . P r o d u c t s c o n s i s t e d of a m o r p h o u s m a t e r i a l , c r u m p l e d f o i l s , f i b r o u s p a r t i c l e s and p l a t e s . T h e p l a t e s a p p e a r t o have a n underlying m e s h s t r u c t u r e of i n t e r l o c k i n g f i b r e s , t h e s p a c e be
-
tween t h e s e having been f i l l e d with a l i m e - r i c h c a l c i u m s i l i c a t e h y d r a t e o r with c a l c i u m hydroxide. T h e p l a t y m o r p h o l o g y o c c u r s f o r t h e s i l i c a t e h y d r a t e s a s w e l l a s f o r c a l c i u m hydroxide. T h i s study included a l s o p o r t l a n d c e m e n t p a s t e to allow a c o m p a r i s o n with t h e C3S s y s t e m . C o n c l u s i o n s a r e given r e g a r d i n g m e c h a n i c a l p r o p e r t i e s of t h e s e c e m e n t i n g s y s t e m s .SOMMAIRE
L e s c h a n g e m e n t s d a n s l e t e m p s d e l a m o r p h o l o g i e e t de l a m i c r o - s t r u c t u r e d u r a n t l ' h y d r a t i o n d'une pbte de C,S ont 6t6 t t u d i t s a u m i c r o s c o p e Clectronique e t p a r d i f f r a c t i o n X. L e s p r o d u i t s c o m p r e n a i e n t d e s m a t 6 r i a u x a m o r p h e s , d e s f e u i l l e s f r o i s s t e s , d e s p a r t i c u l e s f i b r e u s e s e t d e s p a i l l e t t e s . C e s p a i l l e t t e s a v a i e n t une s t r u c t u r e de m a i l l e s de f i b r e s e n c l e n c h g e s e t l ' e s p a c e e n t r e l e s f i b r e s paral't r e m p l i d'une f o r m e de s i l i c a t e de c a l c i u m hydratC r i c h e e n c h a u x ou d'hydroxyde de c a l c i u m . L a m o r p h o - logie en p a i l l e t t e s a l i e u a u s s i bien d a n s l e s s i l i c a t e s h y d r a t t s que d a n s l'hydroxyde de c a l c i u m . C e t t e Ctude c o m p r e n d Cgale- m e n t l a pbte de c i m e n t p o r t l a n d afin de p e r m e t t r e une c o m p a r a i -
son a v e c l e syst'eme de C3S. L e s c o n c l u s i o n s sont t i r 6 e s c o n c e r n a n t l e s p r o p r i C t e s m 6 c a n i q u e s de c e s s y s t k m e s d e c i m e n t a t i o n . :: P r e s e n t e d a t t h e C e m e n t S y m p o s i u m of t h e A m e r i c a n C e r a m i c Society, 72 Annual Meeting P h i l a d e l p h i a , M a y 1970. $::Standard c e m e n t n o m e n c l a t u r e i s u s e d ; e . g. C3S = 3CaO.Si0, ; W/C = w a t e r : c e m e n t r a t i o by weight.
1 4
M I C R O S T R U C T U R E , C A L C I U M - S I L I C A T E - H Y D R A T E , M O R P H O L O G Y
Vol. 1 , No. 1
Introduction
T h e o b j e c t of t h e p r e s e n t w o r k i s t o e l u c i d a t e t h e m i c r o s t r u c t u r e an$ n a t u r e of t h e h y d r a t i o n p r o d u c t s of p o r t l a n d c e m e n t , t h e chief component of which i s c a l c i u m s i l i c a t e h y d r a t e . T h i s m i c r o s t r u c t u r e i s thought t o be. a k e y t o a b e t t e r u n d e r s t a n d i n g of the p h y s i c a l and m e c ' h a h i c a l p r o p e r t i e s of t h e c e m e n t .
M a n y a u t h o r s ( 1
-
20) have studied the s t r u c t u r e and m o r p h o l o g y of CSH ( c a l c i u m s i l i c a t e h y d r a t e ) . S o m e have p r e s e n t e d evidence f o r t h e s e m i c r y s - t a l l i n e f i b r o u s f o r m s of the h y d r a t i o n p r o d u c t s , and o t h e r s ( 5-
7 ) have d i s - c u s s e d the f i b r o u s p a r t i c l e s which a p p e a r a s b u n d l e s , a g g r e g a t e s , and s o m e - t i m e s a s s h e e t s having a n i n t e r l o c k i n g s t r u c t u r e o r i e n t e d in t h r e e d i r e c t i o n s a t a n angle of about 60". But n e i t h e r t h e i n t e r r e l a t i o n between t h e v a r i o u s o b s e r v e d s h a p e s of p a r t i c l e s , n o r t h e i r r o l e i n t h e f o r m a t i o n of t h e f i n a l m i c r o s t r u c t u r e of h a r d e n e d p a s t e , have been e s t a b l i s h e d . T h e f i n a l f o r m of t h e m i c r o s t r u c t u r e of c e m e n t p a s t e a f t e r long h y d r a t i o n t i m e , a p p e a r i n g a s c l e a v e d t a b u l a r m a s s e s h a s often b e e n identified a s c a l c i u m hydroxide.R e c e n t w o r k i n t h e l a b o r a t o r i e s of DB@RC h a s involved t h e s t u d y of t h e c h a n g e s i n m o r p h o l o g y of t h e h y d r a t i o n p r o d u c t s of the v a r i o u s p u r e c o n - s t i t u e n t s , singly and i n c o m b i n a t i o n s , a s w e l l a s of c e m e n t p a s t e . A s p a r t of t h i s s t u d y t r i e t h a n o l a m i n e and o t h e r compounds w e r e included t o o b s e r v e the e f f e c t s of a d d i t i v e s on p o r t l a n d c e m e n t . T h i s p a p e r i s c o n c e r n e d with m i c r o - s t r u c t u r e ; a s e p a r a t e s e r i e s of p a p e r s will d e a l with s p e c i f i c m o r p h o l o g i c a l c h a n g e s o c c u r r i n g with d i f f e r e n t c o m b i n a t i o n s of the c o n s t i t u e n t s . E x p e r i m e n t a l M e t h o d s C h a n g e s with t i m e i n t h e m o r p h o l o g y and n a t u r e of t h e h y d r a t i o n p r o d u c t s of c e m e n t and C3S p a s t e , of 0. 5 w a t e r t o c e m e n t r a t i o , w e r e studied by e l e c t r o n m i c r o s c o p y , x - r a y and e l e c t r o n d i f f r a c t i o n . T h e m i c r o s t r u c t u r e w a s examined a t d i f f e r e n t i n t e r v a l s of h y d r a t i o n .from 5 m i n u t e s t o 6 m o n t h s . The hydration w a s stopped by t r e a t i n g the s a m p l e
with a c e t o n e a t - 1 8 ° C and d r y i n g i n vacuum. S i n g l e - s t a g e r e p l i c a s f r o m the f r e s h l y b r o k e n s u r f a c e s of c e m e n t and C3S p a s t e w e r e m a d e using t h e
Vol
.
1,
No.
1MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE, MORPHOLOGY
p l a t i n u m - c a r b o n technique ( 1
-
5 ) . The m i c r o s t r u c t u r e of 6 - m o n t h - o l d s a m - p l e s w a s m o r e c l e a r l y r e v e a l e d by etching t h e s a m p l e s u r f a c e with ethylene glycol. T h e effect of etching on h y d r a t i o n p r o d u c t s w a s a l s o studied by x - r a y d i f f r a c t i o n .R e s u l t s
In p o r t l a n d c e m e n t p a s t e t h e i n i t i a l p r o d u c t s of h y d r a t i o n a r e a m o r - phous -looking thin f o i l s and f i b r o u s p a r t i c l e s ( F i g . 1 ) . T h e s e p r o d u c t s a p p e a r m a i n l y on the s u r f a c e of u n h y d r a t e d g r a i n s , filling i n void s p a c e s a s t h e y g r o w . T h e f i b r e s b r i d g e u n h y d r a t e d g r a i n s , often m e e t i n g a t about 6 0 " a n g l e s ( F i g . 2 ) , and c r e a t i n g a n i n t e r l o c k i n g m e s h . S p a c e between f i b r e s b e c o m e s f i l l e d in s o t h a t t h e f i n a l p r o d u c t s a r e p l a t e s with m a r k e d c l e a v a g e ( F i g ; 3 ) . S u r f a c e s of t h e p l a t e s often r e v e a l t h e u n d e r l y i n g f i b r o u s s t r u c t u r e . T h i s p a p e r w i l l a t t e m p t t o e s t a b l i s h t h e r e l a t i o n between t h e i n i t i a l p r o d u c t s ,
a p p e a r i n g a s f i b r e s and thin s h e e t s , and the f i n a l , t a b u l a r , m a s s i v e s t r u c t u r e . It w a s believed t h a t the v i t a l s t e p s i n t h e f o r m a t i o n of t h e f i n a l m i c r o - s t r u c t u r e of p o r t l a n d c e m e n t would be b e s t r e v e a l e d by studying t h e e s s e n t i a l c o n s t i t u e n t s individually. F o r t h i s r e a s o n t h e f o r m a t i o n of t h e m i c r o s t r u c - F I G . 1 F I G . 2 C e m e n t p a s t e , W/C = 0. 5, 3 d a y s C e m e n t p a s t e , W/C = 0 . 5, 3 d a y s h y d r a t i o n . F i b r o u s h y d r a t i o n p r o d - h y d r a t i o n . F i b r o u s p a r t i c l e s f o r m - u c t s with i n t e r l o c k i n g a r r a n g e m e n t . ing c r i s s - c r o s s connection between
1 6
Vol.1 ,
No.1
MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE,
MORPHOLOGY
F I G . 3 F I G . 4
C e m e n t p a s t e , W/C = 0. 5, 28 days C3S p a s t e , W/C = 0 . 5 , 7 days hydration. Close - t e x t u r e d , t a b u l a r , hydration. S e m i c r y s t a l l i n e f i b r e s m a s s i v e s t r u c t u r e composed of of c a l c i u m s i l i c a t e h y d r a t e covering p l a t e s which show cleavage and unhydrated g r a i n s .
s t r i a t e d a p p e a r a n c e
F I G . 5 F I G . 6
C3S p a s t e , W/C = 0. 5, 1 m o n t h C3S p a s t e , W/C = 0. 5, 1 m o n t h hydration. Hydration product show- hydration. Hydration products show- ing cleavage and p a r a l l e l cleavage ing f i b r o u s s t r u c t u r e m e r g i n g into f a c e ; the interlocking a r r a n g e m e n t p l a t e s m a d e up of f i b r e s i n t e r s e c t i n g of f i b r e s in t h i s f a c e i s evident. a t a p p r o x i m a t e l y 60" a n g l e s .
Vol.
1 ,
No. 1 17 MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE,MORPHOLOGY
t u r e d u r i n g the h y d r a t i o n i n C,S p a s t e w a s studied i n g r e a t d e t a i l and the e s s e n t i a l o b s e r v a t i o n s a r e p r e s e n t e d h e r e . D u r i n g t h e f i r s t 7 d a y s of h y d r a t i o n , t h e s u r f a c e of the C3S g r a i n s b e - c a m e c o v e r e d by r a d i a t i n g f i b r o u s p a r t i c l e s of c a l c i u m s i l i c a t e h y d r a t e ( F i g . 4 ) . T h e s e f o r m e d a n i n t e r l o c k i n g m e s h i n the s p a c e between g r a i n s . A s t i m e of h y d r a t i o n i n c r e a s e d , t h e f i b r o u s s t r u c t u r e developed into a p l a t y f o r m ( F i g s . 5 and
6 )
s i m i l a r in a p p e a r a n c e to t h a t o b s e r v e d i n c e m e n t ( F i g . 3 ) , although t h e f i b r o u s s t r u c t u r e of t h e p l a t e s i n C3S p a s t e w a s c l e a r - e r than t h a t s e e n in p o r t l a n d c e m e n t . T h e t r i a n g u l a r d i s p o s i t i o n of the f i b r e s i s c l e a r l y s e e n in F i g u r e6.
A f t e r6
m o n t h s ' h y d r a t i o n , t h e p a s t e d i s p l a y e d a m a s s i v e t a b u l a rs t r u c t u r e w i t h platy and o c c a s i o n a l l y f i b r o u s h y d r a t i o n p r o d u c t s between l e s s well-defined m a s s e s which a p p e a r e d like p s e u d o m o r p h s of g r a i n s of C3S ( F i g . 7 ) . E t c h i n g of t h i s t a b u l a r m a t e r i a l f o r h r w i t h ethylene g l y c o l r e v e a l e d t e x t u r a l d e t a i l s . A s shown i n F i g u r e 8 the a p p e a r a n c e w a s s t r i k - ingly s i m i l a r t o t h a t of C 3 S i n e a r l y s t a g e s of h y d r a t i o n ( F i g . 4 ) . P l a t y h y d r a t i o n p r o d u c t s c o r r o d e d by g l y c o l d i s p l a y e d a pseudohexagonal f o r m r e s u l t i n g f r o m t h e i r u n d e r l y i n g f i b r o u s s t r u c t u r e ( F i g s 9 and 10). F o r c o m p a r i s o n a s t u d y w a s m a d e of a n e t c h e d s u r f a c e of n a t u r a l t o b e r m o r i t e f r o m Skye. It showed t h a t the g l y c o l a l s o a t t a c k e d the n a t u r a l c r y s t a l l i n e f o r m of c a l c i u m s i l i c a t e h y d r a t e and r e v e a l e d t h e pseudohexagonal platy
s t r u c t u r e ( F i g . 1 1 ) .
X - r a y d i f f r a c t o g r a m s showed t h a t the g l y c o l r e a c t e d w i t h a l l t h e h y d r a t - ion p r o d u c t s of C,S although a t d i f f e r e n t r a t e s . P e a k s a t t r i b u t e d t o both Ca(OH), and C -S-H w e r e m a r k e d l y weakened; s o m e of t h e p e a k s , p a r t i c u l a r l y t h o s e a t about 3.07A, w e r e b r o a d e n e d . T h i s m a y have b e e n the r e s u l t of s m a l l c r y s t a l l i t e s i z e , o r i n t e r n a l r e s i d u a l s t r e s s i n the c r y s t a l s , o r of both. E t c h i n g a p p e a r s to have d e c r e a s e d t h e c r y s t a l l i n i t y of t h e m a t e r i a l w h i c h
r e m a i n e d a f t e r glycol t r e a t m e n t ( F i g . 1 2 ) .
In a s t u d y c o n c e r n e d w i t h the effect of t r i e t h a n o l a m i n e additive on t h e m o r p h o l o g y of C,S h y d r a t i o n p r o d u c t s , i t w a s o b s e r v e d t h a t the s t e p s i n the d e v e l o p m e n t of m i c r o s t r u c t u r e w e r e m o r e c l e a r l y defined; t h e e s s e n t i a l
Vol.
1 ,
No.
1
MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE,
MORPHOLOGY
FIG. 7 FIG. 8
C3S p a s t e , W/C = 0. 5, 6 m o n t h s h y d r a - C,S p a s t e , W/C = 0. 5, 6 m o n t h s tion. M a i n h y d r a t i o n p r o d u c t i s m a s - h y d r a t i o n . E t c h e d with glycol
$
h o u r .s i v e t a b u l a r s t r u c t u r e showing s t r o n g P l a t y f o r m of h y d r a t i o n p r o d u c t d i s
-
p a r a l l e l c l e a v a g e . T h e t a b u l a r m a s s e s p l a y s f i b r o u s m o r p h o l o g y . connect t o g e t h e r l e s s d e f i n e d m a s s e s a p p e a r i n g a s p s e u d o m o r p h s of u n h y d r a - t e d g r a i n s . FIG.9
F I G . 10 C,S p a s t e , W/C = 0. 5, 6 m o n t h s C3S p a s t e , W/C = 0. 5, 6 m o n t h s h y d r a t i o n . E t c h e d with g l y c o l$
h y d r a t i o n . E t c h e d with g l y c o l h o u r . h o u r . P s e u d o h e x a g o n a l p l a t e s I n t e r g r o w i n g f i b r e s of h y d r a t i o n c o m p o s e d of i n t e r l o c k i n g f i b r e s p r o d u c t a r e s e e n f o r m i n g the t a b u l a r m e e t i n g a t about 60". m a s s e s .Vol. 1 , No. 1
MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE,
MORPHOLOLY

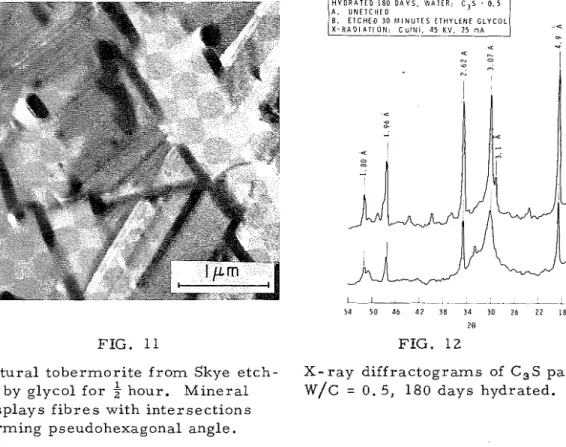

FIG. 11 - 5 4 5 0 4 6 4 2 3 8 3 4 3 0 26 2 2 1 8 14 20 F I G . 12 N a t u r a l t o b e r m o r i t e f r o m Skye e t c h - X - r a y d i f f r a c t o g r a r n s of C3S p a s t e , 1 e d by glycol f o r
z
h o u r . M i n e r a l W/C = 0. 5, 180 d a y s h y d r a t e d . d i s p l a y s f i b r e s with i n t e r s e c t i o n s f o r m i n g pseudohexagonal angle. f e a t u r e s a r e p r e s e n t e d h e r e t o add t o t h e u n d e r s t a n d i n g of t h e m i c r o s t r u c - t u r e of c e m e n t p a s t e . A full r e p o r t on t h i s study will b e p r e s e n t e d l a t e r .T h e p r o d u c t s d u r i n g t h e e a r l y s t a g e s of h y d r a t i o n of C,S with t r i e t h a n o l a m i n e additive w e r e r a d i a t i n g f i b r e s and s h e e t s of f i b r o u s s t r u c t u r e between u n h y d r a t e d g r a i n s ( F i g . 13). T h e m o r p h o l o g y w a s v e r y s i m i l a r t o t h a t shown in F i g u r e 10. T h e f i b r o u s t e x t u r e of t h e u n o r i e n t e d i n t e r g r o w i n g p l a t e s i s shown v e r y c l e a r l y i n F i g u r e 14. A f t e r about 1 m o n t h of h y d r a t i o n t h e f i b r o u s t e x t u r e w a s s t i l l v i s i b l e on the s u r f a c e of p l a t e s , which s o m e - t i m e s d i s p l a y e d pseudohexagonal m o r p h o l o g y ( F i g s . 1 5 and 16). F i g u r e 17 shows m o s t c l e a r l y how t h e f i b r o u s h y d r a t i o n p r o d u c t s f o r m e d t h e p l a t e s . The p l a t e s had p a r a l l e l o r i e n t a t i o n and w e r e s t a c k e d t o f o r m t h e t a b u l a r m a s s e s .
F r o m t h e s e r e s u l t s i t i s c l e a r t h a t t h e pseudohexagonal m o r p h o l o g y r e s u l t e d f r o m t h e t r i a n g u l a r d i s p o s i t i o n of the f e l t e d f i b r e s of c a l c i u m s i l - i c a t e h y d r a t e . T h e p l a t y m o r p h o l o g y would s e e m t o have been t h e r e s u l t of infilling between f i b r e s .
Vol. 1 , No.
1
20
M I C R O S T R U C T U R E , C A L C I U M - S I L I C A T E - H Y D R A T E
,
M O R P H O L O G Y
FIG. 1 3 F I G . 14
C3S p a s t e , with 0 . 570 t r i e t h a n o l a m i n e , C3S p a s t e w i t h 0 . 5% t r i e t h a n o l a m i n e , W/C = 0 . 5, 1 day hydration. M a i n hy- W/C = 0. 5 , 2 d a y s hydration. Hy- d r a t i o n product a p p e a r s a s r a d i a t i n g d r a t i o n p r o d u c t s a p p e a r a s i n t e r g r o w - f i b r e s and u n o r i e n t e d i r r e g u l a r s h e e t s ing p l a t e s o r s h e e t s composed of (which s o m e t i m e s d i s p l a y f i b r o u s t e x - i n t e r l o c k i n g f i b r o u s s t r u c t u r e . t u r e ) between unhydrated g r a i n s .
F I G . 1 5 FIG. 16
C3S p a s t e with 0 . 5% t r i e t h a n o l a m i n e , C B S p a s t e with 0. 5% t r i e t h a n o l a m i n e , W/C = 0. 5, 2 m o n t h s hydration. Fi- W / C = 0. 5, 2 m o n t h s hydration. Hy- b r ~ u s h ~ d r a t i o n p r o d u c t s f o r m t h e u n - d r a t i o n p r o d u c t s s h o w f i b r o u s t e x t u r e d e r l y i n g s t r u c t u r e of p l a t e s which in and pseudohexagonal morphology. t u r n a r e s t a c k e d a s p a r a l l e l l a y e r s
Vol. 1, No. 1
2
1
M I C R O S T R U C T U R E , C A L C I U M - S I L I C A T E - H Y D R A T E , M O R P H O L O G Y
FIG. 17 C,S p a s t e with 0. 5% t r i e t h a n o l a m i n e , W/C = 0. 5, 3 m o n t h s hydration. Hydration p r o d u c t s d i s p l a y a n i n t e r l o c k i n g m e s h of f i b r e s giving a p s e u d o - hexagonal p l a t e m o r p h o l o g y t o t h e c a l c i u m s i l i c a t e h y d r a t e . T r i e t h a n o l a m i n e a c c e l e r a t e d t h e h y d r a t i o n of C,S. P r e s e n t w o r k showed t h a t when t h i s additive i s u s e d it a l s o c a u s e d t h e m o r p h o l o g y of t h e h y d r a t i o n p r o d u c t s t o b e m o r e c l e a r l y defined.2 2
Vol.1 ,
No.
1
MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE,
MORPHOLOGY
D i s c u s s i o n
M a n y o t h e r w o r k e r s have o b s e r v e d and r e p o r t e d t h e v a r i o u s f o r m s of h y d r a t i o n p r o d u c t s of p o r t l a n d c e m e n t and C3S, d e s c r i b e d a s c r u m p l e d f o i l s , f i b r o u s p a r t i c l e s and p l a t e s , but n o evidence h a s b e e n p r e s e n t e d t o show the i n t e r r e l a t i o n between t h e m and t h e s t e p s involved i n t h e f o r m a t i o n of t h e f i n a l m i c r o s t r u c t u r e . T h i s study t a k e s evidence f r o m t h e h y d r a t i o n of p o r t l a n d
c e m e n t p a s t e , C3S, and C3S with t r i e t h a n o l a m i n e p a s t e t o provide t h i s m i s s
-
ing link. The i n i t i a l h y d r a t i o n p r o d u c t s of C3S f o r m e d i n t h i s condition w e r e v e r y p o o r l y c r y s t a l l i z e d c a l c i u m s i l i c a t e h y d r a t e s i n t h e f o r m of c r u m p l e d f o i l s , f i b r o u s p a r t i c l e s and p l a t e s . T h e s e f o r m s w e r e m o s t often o b s e r v e d and r e p o r t e d when p o r t l a n d c e m e n t and C3S g r a i n s w e r e allowed t o h y d r a t e i n e x c e s s w a t e r (1.- 10).In t h e e a r l y s t a g e s of h y d r a t i o n t h e u n h y d r a t e d g r a i n s of c e m e n t o r C3S a r e r e a d i l y identified. When h y d r a t i o n i s n e a r l y c o m p l e t e d t h e s p a c e o c c u p - i e d by unhydrated g r a i n s s e e m s to be r e p l a c e d by p s e u d o m o r p h s ( F i g . 7 ) of n o p a r t i c u l a r distinguishable morphology; t h e y m a y w e l l be c o m p o s e d of t h e s a m e m a t e r i a l t h a t f i l l s the s p a c e between the i n t e r l o c k i n g f i b r o u s p a r t i c l e s .
C e m e n t i t i o u s m a t e r i a l between p s e u d o m o r p h s and g r a i n s of p a r t l y h y d r a t e d c e m e n t o r C,S c o n s i s t s of t a b u l a r m a s s e s c o m p o s e d of platy h y d r a - tion p r o d u c t s ( F i g s . 3 , 7, 1 5 and 1 6 ) . B e c a u s e of i t s m o r p h o l o g y and c l e a v - a g e t h i s h a s commonly b e e n r e g a r d e d a s Ca(OH),
.
A s shown by t h e p r e s e n t w o r k ( F i g . 1 7 ) , h o w e v e r , t h e s e p l a t e s a p p e a r t o have a n u n d e r l y i n g p s e u d o - hexagonal m e s h s t r u c t u r e of i n t e r l o c k i n g o r f e l t e d f i b r e s . T h e s e f i b r e s f r e q u e n t l y i n t e r s e c t one a n o t h e r with a n a p p r o x i m a t e i s o s c e l e s - t r i a n g l e type of a r r a n g e m e n t . The s p a c e between f i b r e s b e c o m e s f i l l e d with a n a p p a r e n t l y a m o r p h o u s m a t e r i a l c o m p o s e d of e i t h e r a l i m e - r i c h f o r m of c a l c i u m s i l i c a t e h y d r a t e o r c a l c i u m hydroxide. The infilling m a t e r i a l w a s g e n e r a l l y m o r e s u s c e p t i b l e t o etching by glycol t h a n w e r e t h e f i b r e s . The above evidence t h a t t h e C -S-H m a t e r i a l h a s varying f o r m s and m o r p h o l o g y and even d i f f e r e n t r e s p o n s e t o etching by glycol, l e a d s t o t h e c o n c l u s i o n t h a t the h y d r a t i o n p r o d - u c t s cannot be r e g a r d e d a s s e p a r a t e c r y s t a l l i n e p h a s e s of f i x e d s t o i c h i o m e t r i c c h e m i c a l composition, but r a t h e r , a r e s o l i d solutions of c a l c i u m s i l i c a t eVol.
1 ,
No. 1
MICROSTRUCTURE,
CALCIUM-SILICATE-HYDRATE,
MORPHOLOGY
i d e a s p r e s e n t e d by T a y l o r ( 1 2 ) and the evidence of D. M . Roy (13) showing that the C a / s i r a t i o v a r i e s within the hydrated product.
Morphological evidence that the hydration products a r e of poor c r y s - tallinity i s supported by x - r a y and e l e c t r o n diffraction data. Only ab -plane reflections w e r e detected f r o m the calcium s i l i c a t e h y d r a t e s . The absence of a definite c - a x i s spacing f o r the calcium silicate h y d r a t e s suggests that C a , OH and H 2 0 m a y be held in s h e e t s of CSH of variable thickness and poor crystallinity. Analogous situations a r e known in s o m e of the clay m i n e r a l s where monoclinic and t r i c l i n i c s t r u c t u r e s of pseudohexagonal s y m m e t r y e x i s t
The s a m e morphological f o r m of c a l c i u m s i l i c a t e hydrate a s found in the products of C,S hydration was a l s o found in hydrated cement. This s y s t e m i s , however, m u c h m o r e complex because of the m o r e v a r i a b l e composition.
F r o m the standpoint of m e c h a n i c a l p r o p e r t i e s of hydrated c e m e n t , the m i c r o s t r u c t u r e of the cementing s y s t e m i s r e a l l y a composite m a t e r i a l i n which a f i b r o u s network i s imbedded in an amorphous m a t e r i a l . Such a
s t r u c t u r e should provide a m a t e r i a l having v e r y good m e c h a n i c a l p r o p e r t i e s ; the high c o m p r e s s i v e s t r e n g t h of the dense (low p o r o s i t y ) hydrated cement m a y well be a reflection of t h i s . It would be expected that the t e n s i l e s t r e n g t h of such a composite would be high a l s o , but such i s not the c a s e and g e n e r a l l y the t e n s i l e s t r e n g t h i s only 1/10 that of the c o m p r e s s i v e strength. To account f o r t h i s , the work p r e s e n t e d h e r e shows that the m a s s e s of the cementing m a t e r i a l appearing a s t a b u l a r s t r u c t u r e s a r e not usually interconnected with
e a c h other but r a t h e r a r e joined t o a r e a s r e p r e s e n t i n g the o r i g i n a l unhydrated g r a i n s (pseudomorphs, e t c . ), s o that what might be c o n s i d e r e d a s i n t e r p a r t i - cle connections m u s t be defined a s m a t e r i a l that apparently l a c k s the r e i n - f o r c e m e n t of the f i b r e s .
Conclusions
The m o s t i m p o r t a n t conclusions f r o m the p r e s e n t work a r e a s follows: 1. T h e m a i n products of C,S hydrated under t h e s e conditions cannot be r e
-
g a r d e d a s c r y s t a l l i n e components of s t o i c h i o m e t r i c c h e m i c a l composition; rather, they a r e solid solutions of c a l c i u m s i l i c a t e h y d r a t e s and calcium hydroxide.Y o l . 1 ,
No.
1
MICROSTRUCTURE, CALCIUM-SILICATE-HYDRATE, MORPHOLOGY
2 . A p l a t y m o r p h o l o g y i s n o t a r e l i a b l e c r i t e r i o n f o r t h e identification of Ca(OH), a s a h y d r a t i o n p r o d u c t b e c a u s e t h e f i n a l m o r p h o l o g y of c a l c i u m s i l i c a t e h y d r a t e s i s a l s o p l a t e -like.
3. T h e , p l a t e s of c a l c i u m s i l i c a t e h y d r a t e a r e b a s e d upon a s k e l e t a l s t r u c t u r e of f i b r e s which have a pseudohexagonal a r r a n g e m e n t .
4. T h e s a m e p l a t y m o r p h o l o g y of c a l c i u m s i l i c a t e h y d r a t e i s a l s o found i n h y d r a t e d c e m e n t p a s t e .
5. T h e h y d r a t i o n p r o d u c t s , a s s e m b l e d i n t o t a b u l a r s t r u c t u r e s , a c t a s c e m e n t i n g a g e n t s , fir s t between a d j a c e n t u n h y d r a t e d g r a i n s and s u b s e q u e n t l y b e t w e e n p s e u d o m o r p h s w h e r e u n h y d r a t e d g r a i n s had been. 6. T h e p s e u d o m o r p h s s e e m t o have no definite m o r p h o l o g i c a l s t r u c t u r e ; t h e y a r e s u s p e c t e d t o h a v e a c o m p o s i t i o n s i m i l a r t o t h a t of t h e infilling m a t e - r i a l . 7. T h e c e m e n t i n g s y s t e m c o n s i s t s of a c o m p o s i t e m a t e r i a l i n which a f i b r o u s n e t w o r k i s e m b e d d e d i n a n a m o r p h o u s m a t r i x (infilling m a t e r i a l ) . T h i s m a t e r i a l i t s e l f i s e x p e c t e d t o h a v e e x c e l l e n t m e c h a n i c a l p r o p e r t i e s ; t h e i n t e r p a r t i c l e c o n n e c t i o n s , h o w e v e r , s e e m t o be m a d e u p of t h e p s e u d o m o r p h s of t h e infilling m a t e r i a l ( m a t r i x ) a n d do n o t have t h e r e i n f o r c e m e n t of t h e f i b r e s . Acknowledgements
We acknowledge g r a t e f u l l y t h e invaluable c o n t r i b u t i o n of M r . E . Quinn i n p r e p a r i n g r e p l i c a s f r o m t h e s a m p l e s f o r e l e c t r o n m i c r o s c o p i c e x a m i n a t i o n . T O P o r t l a n d C e m e n t A s s o c i a t i o n f o r supplying t h e p u r e c o n s t i t u e n t s of c e m e n t we a r e a l s o m o s t g r a t e f u l .
T h i s p a p e r i s a contribution f r o m t h e D i v i s i o n of Building R e s e a r c h , National R e s e a r c h C o u n c i l of Canada. and i s published w i t h t h e a p p r o v a l of the D i r e c t o r of t h e Division.
R e f e r e n c e s
1. J . J . C o m e r and J . W. T u r l e y . J . appl. P h y s .
-
26,
346 (1955).2. S. B r u n a u e r , D. L. K a n t r o and L. E . Copeland. J . A m . c h e m . S O C . , 80, 761 (1958).
Vol. 1, No. 1
M I C R O S T R U C T U R E , C A L C I U M - S I L I C A T E - H Y D R A T E , M O R P H O L O G Y
3. S . B r u n a u e r and S . A . G r e e n b e r g . C h e m . of C e m e n t , P r o c . F o u r t h Int. Symp.
,
Washington, D . C .,
1960 (NBC M o n o g r a p h 4 3 , p. 135, 1962).4. A. G r u d e m o . C h e m . of C e m e n t , P r o c . F o u r t h Int. S y m p . , W a s h - ington, D. C . , 1960 (NBC M o n o g r a p h 43, p. 61 5, 1962).
5. L . E . Copeland and E . G. Shulk. J . R e s . Dev. L a b s P o r t l d C e m . A s s .
-
4 , 2 ( 1 9 6 2 ) .6. H. F. W. T a y l o r . T h e C h e m i s t r y of C e m e n t s . A c a d e m i c P r e s s , London, New York ( 1 9 6 4 ) .
7. A. G r u d e m o . K. t e k . H6gsk. H a n d l . , T r a n s . Royal I n s t . of T e c h n . , Stockholm, Sweden,
-
242 (1965).8. S. B r u n a u e r . P r o c . E i g h t h Conf. S i l i c a t e s I n d u s t r y , B u d a p e s t (1966). 9. L . E . Copeland, E . B o d o r , T . N. Chang and C . H. W e i s e , J . R e s .
Dev. L a b s P o r t l d C e m . A s s . ,
-
9, 61 (1967). 10. J . G. M . d e Jong. T h e I n t e r a c t i o n of T r i c a l c i u r n S i l i c a t e and T r i c a l c i u r n Aluminate d u r i n g t h e i r H y d r a t i o n . P h . D. T h e s i s , T e c h n i s c h e ~ 8s c h o l , Eindhoven ( 1 9 6 8 ) . ~ e 11. L . E . C o p e l a n d a n d D . L . K a n t r o . F i f t h I n t . S y m p . o n t h e c h e m . of C e m e n t , Tokyo, 11, 387 (1968).-
12. H. F. W. T a y l o r . F i f t h Int. Symp. on the C h e m . of C e m e n t , Tokyo,
It,
1 (1968).-
13. M. W. G r u t z e c k and D. M . Roy. N a t u r e , L o n d . , 2 2 3 , 492 (1969). 14. R . B . W i l l i a m s o n . J . C r y s t a l Growth, 3, 787 (1968).-
15. R . B. W i l l i a m s o n . S c i e n c e , N. Y.,
164,
549 (1969). 16. S. C h a t e r j i and J . W. J e f f e r y . N a t u r e , L o n d . ,209,
1233 (1967). 17. H. E . Schwiete and U. Ludwig. P r o c . E i g h t h Conf. S i l i c a t e s I n d u s t r y ,B u d a p e s t , p. 285 (1966).
18. Ch. W. L e n t z . Symp. S t r u c t . of P o r t . C e m e n t P a s t e and C o n c r e t e , Washington, D.C., S p e c . Rep. High. R e s . B d . ,
90,
p. 269 (1966). 19. T . D. C i a c h and E . G. Swenson, S u b m i t t e d t o J . of C e m . and C o n c r .R e s .
20. S. Diamond. P r o c . T h i r d Annual Conf. on Scanning E l e c t r o n M i c r o - s c o p y , Symp. LIT R e s e a r c h I n s t . , C h i c a g o , I l l i n o i s , p. 385 (1970).
