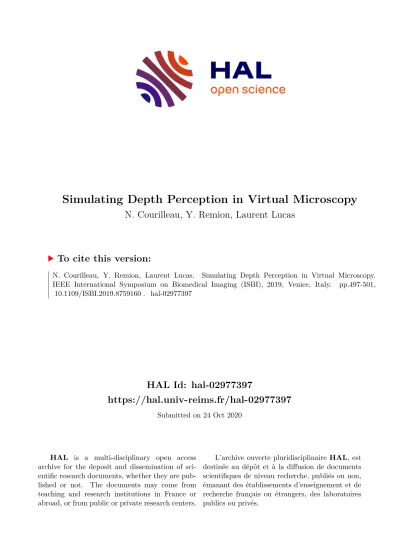

HAL Id: hal-02977397
https://hal.univ-reims.fr/hal-02977397
Submitted on 24 Oct 2020
HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
Simulating Depth Perception in Virtual Microscopy
N. Courilleau, Y. Remion, Laurent Lucas
To cite this version:
N. Courilleau, Y. Remion, Laurent Lucas. Simulating Depth Perception in Virtual Microscopy.
IEEE International Symposium on Biomedical Imaging (ISBI), 2019, Venice, Italy. pp.497-501,
�10.1109/ISBI.2019.8759160�. �hal-02977397�
SIMULATING DEPTH PERCEPTION IN VIRTUAL MICROSCOPY N. Courilleau
1, 2, Y. Remion
1, and L. Lucas
11. Universit´e de Reims Champagne-Ardenne, CReSTIC EA3804, France 2. Neoxia, France
ABSTRACT
3D datasets production capacity in bioimaging has widely evolved in recent years. This trend also results in a growing de- mand of more suitable display procedures. In this paper, we propose a new virtual microscopy approach aiming at recovering the third dimension, in order to get closer to analogue microscopes. For this purpose, we rely on multi-view autosteroscopic display with off-centered parallel virtual cameras to ensure 3D perception for a more realistic user experience. Also, this approach handles very large volume data size thanks to an out-of-core data management structure which offers interactive navigation by using complete GPU algorithms.
Index Terms—Virtual microscopy, 3D display, GPU rendering.
1. INTRODUCTION
Nowadays, the volume of 3D datasets tends to increase in nearly all application fields. Such an observation is especially true with the current image acquisition technologies used in biology [1]. De- spite the large amount of generated data, efficient visualization tools are needed to improve three-dimensional structures understanding.
Among the possible methods available to overcome this problem, virtual microscope is a tool of choice in the biological field.
A virtual microscope could be defined as a system simulating the observation of microscopic samples on a computer. It aims to mimic a conventional microscope, enabling observation, navigation [2, 3], and annotation of virtual slides [4]. The latest virtual microscopy developments [5, 6, 7] have addressed the issue of huge data size.
However, as of today, another crucial issue has not been considered:
users were frustrated by the availability of only one single plain fo- cus, and the induced loss of three dimensional perception [8]. To improve the user experience quality and to recover the depth per- ception, we propose to use autostereoscopic display [9] for the 3D visualization [10, 11]. To complete the system, we allow the users to freely navigate and zoom in or zoom out in the whole volume rather than in a single slide.
To address this problem, we rely on an out-of-core data manage- ment architecture to handle the large volume of data. In most cases, a resolution level pyramid is created where each level is subdivided into data blocks (bricks). Conversely to tree based structures (like Gigavoxels [12]) that can lead to deep tree traversal to access data, we focus our work on the method proposed by Hadwigeret al.[13].
They provide a virtual memory approach with a multi-level, multi- resolution page table mechanism. Validated with a concrete applica- tion with interactive exploration of petascale volumes by Beyeret al.
This work is supported by the French national funds (PIA2’ program) under contract No. P112331-3422142 (3DNS project). We would like to thank the three clusters (Cap Digital and Systematic for ICT and Medicen for Health) that support this project.
[14], this structure offers constant access time between all resolution levels.
Inspired by this out-of-core method, we propose a visualization- driven approach which generates stereoscopic multi-view frames on GPU in interactive time. The aim is to recover the depth perception in a most realistic way with the use of off-centered parallel virtual cameras focused on a shared point of interest.
A brief overview of the system and data access is provided in section 2. After a detailed description of our virtual microscope approach in section 3), experimental results are presented and dis- cussed in section 4. Finally, section 5 provides concluding remarks and perspective works.
2. SYSTEM OVERVIEW
The proposed system fully runs on GPUs [15] and is composed of the virtual microscope and the out-of-core data management. The whole pipeline is calledvisualization-driven. According to the cam- era position given by the virtual microscope, data is accessed us- ing the out-of-core data manager. We base our approach on the one proposed by Hadwigeret al. [13]. The data is represented with a multi-resolution bricked pyramid and addressed using a virtualized page table hierarchy. When a chunck of data is missing in the hi- erarchy, a brick request is raised and handled by the CPU. Bricks are then loaded from its own cache or a mass storage to the GPU.
This method allows to get the data on-demand and to address very large volume of data. The whole process is triggered by the virtual microscope depending on the required data.
Data addressing.The voxel access is performed using a virtual volume representation. A pair[l, p]is composed to get through the virtualization hierarchy. The level of detail is determined bylwhile p∈[0,1)3is the 3D normalized coordinate vector of the requested voxel position. Using normalized coordinate vector allows the use of the hardware trilinear interpolation. Finally, the pair[l, p]is sent to the GPU out-of-core memory manager which sends back three possible answers: the requested voxel itself, anemptystatus if the brick contains no values, orunmapped, warning the system that the brick is not in cache and needs to be fetched.
3. VIRTUAL MICROSCOPY
The notion of depth perception is usually lost in conventional 2D virtual microscopy. In this work, we provide an approach to recover this perception somehow available with genuine microscopy of thick slices. To achieve this goal, we use multi-view autostereoscopic dis- plays. Such displays rely onN multi-view images shot according to a specific geometry implying off-centered parallel cameras. The number of viewsN is directly dependent on the display. In our ap- plication, the multi-view image generation follows three steps: i)
(a) (b)
Fig. 1. Representation of the top and side views of the virtual scene and camera geometry. (a) top view, (b) left side view (with the top view as reference). For both views, the volume is represented on the top and the camera focal pointsFiand sensors are at the bottom.
Off-centered parallel cameras are used with a common point of interestI.Ii0is the projection ofIon the viewigiven the focal pointFi. The lineFi, Iis the line of viewiimplyingIi0∈(Ii0I).
projecting the volume slices on theNviews according to the specific multi-camera geometry,ii)applying an alpha blending algorithm in the associated view for each slice projection, andiii)compositing theNviews,i.e.creation of the final multi-view image.
The specific geometry implies thatNaligned cameras with par- allel optical axes and camera line of view converge in a single 3D point (I in Fig. 1). We chose to align theN cameras along the volumex-axis for two reasons: to get volume slices parallel to the sensors and the views, and to get the view lines parallel to the camera baseline, therefore parallel to the volumex-axis. The convergence pointI must be displayed at the center of the display. The views are captured in a rectangular region of interest (ROI) of the sensor which is centered on the line of view intersecting each pointIi0(Fig.
1). This implies that slices are projected on views according to a ROI which is also centered on the camera line of view. Thus, projecting a given volume slice on a view relies on identifying the involved slice ROI projection on the view ROI.
3.1. Views generation
The first step of the pipeline begins with the determination of all the parameters required to project the volume slices on the views. In or- der to meet autostereoscopic multi-view requirements, each virtual camera must aim at a shared point of interestIwhose projections are centered in each of theNview (Fig. 1), numberedi∈[0, N−1].
Ii0isI projection (Fig. 2). As shown on figure 2, a viewihas a W ×H size, implying that the screen space coordinates ofIi0 are always[H2,W2]. Considering that a slicesis projected on a view i, each pixel coordinates of this view are[Usi, Vsi]. Identification of the slicesROI projected on the viewirelies on the geometric
Fig. 2. Screen space representation. A view is considered as a rectangular ROI in the camera sensor. On this figure, the view has a W×Hsize (display size), and is centered atIi0around the camera line of view. Msi0 is the projection of the pointMson the view at coordinates[Usi, Vsi]whereirefers to thei-th view andsthe slice in whichMslies.
relation between the space coordinates of voxelsMsand the pixel coordinates[Usi, Vsi]of their projectionMsi0 in the viewi. Let con- sider the shooting geometry is set: I,Fiare chosen as well as the focal lengthf(Fig. 1). The calculation of the relation betweenMs
spacial coordinates andMsi0 then rely onfand the coordinates of I = [Ix, Iy, Iz]andFi = [Fix, Fiy, Fiz]. Because the pointI is not necessarily aligned on the cameraioptical axis, its projectionIi0
is shifted fromPithe orthographic projection ofFi. These shifts,
calledβiforx-axis andδifory-axis. In a first step, they allow to calculate theIi0= [Iix+βi, Iiy+δi,−d−f]coordinates knowing thatIi0FikFiI:
[βi, δi] =
((Fix−Ix)×d+If
z
(Fiy−Iy)×d+If
z
(1) wheredstands for the camera – volume distance onz-axis andf for the focal length. Because[βi, δi]are related to the viewiand its focal point, they need to be calculated only once for a view.
Once this step is done, the projectionMsi0 ofMs = [x, y, zs] on the viewican be computed. This new step consists of finding Msi0 pixel coordinates. Starting withMsi0 = [Fix+αi(x), Fiy+ γi(y),−d−f]space coordinates and knowing thatMsi0 FikFiMs, [αi(x), γi(y)]are calculated as follow:
[αi(x), γi(y)] =
((Fix−x)×d+zf
s
(Fiy−y)×d+zf
s
(2) Finally, the pixel coordinates[Usi, Vsi]ofMsi0 are recovered.
Based on figure 2,[Usi, Vsi]are expressed as follow:
[Usi, Vsi] = (W
2 +βi−αi(x)
H
2 +δi−γi(y) (3) Equations (3) express theMsi0 pixel coordinates fromMsspace coordinates. Reverting those equations will result in expressing the space coordinates[x, y, zs]in slicesof any pixel of the viewi:
[x, y] =
(Fix−(W2 +βi−Usi)×d+zfs
Fiy−(H2 +δi−Vsi)×d+zfs (4) The focal point Fi and[βi, δi]are known and have been cal- culated previously. The sizesW and H are related to the display definition. Note thatzs is thez-axis coordinate of the slicespro- jected on the viewi. Once[x, y]are calculated, their values must be normalized to be used in the addressing structure (see Sec. 2).
Thanks to GPU threading, and texture handling, equations (4) are used to compute each pixel[Usi, Vsi]∈[0, W)×[0, H)in a ded- icated thread by alpha blending (see Sec. 3.2) of its previous value and the 3D interpolation of slicesat[x, y].
Multi-camera geometry. A shooting geometry is required to fit the display geometry and to ensure non-distorted 3D perception.
This is the reason why off-centered parallel geometry is needed.
Moreover, non-distorted 3D perception implies homothetic connec- tion display and camera geometry. The display geometry implies N off-centered (or favorite) user eyes positionsOi lying in front of the screen. They are aligned with the display lines at a distance Dfrom the screen. Those eyes positions are spread by the average human binocular distance (b= 65 mm). The display and camera ge- ometries are compared according to the eyesOi– centre of display C, and the focal pointsFi– convergence pointIrelative positions.
Non-distorted 3D perception requiresOiCkFiI withi ∈ [0, N).
Knowing the display geometry (Fig. 3):
Oi=
(i−N2)b 0 0
andC=
0 Cy
D
Assuming the convergence point I and the focal lengthf are chosen by the user, this leads to:
[Fix, Fiy] =
(Ix+ (i−N2)b×d+IDz Iy−Cy×d+IDz
Fig. 3. User favorite position in front of the display. TheOiare the focal points of the user favorite eyes positions. These points are aligned on thex-axis, shifted by the average binocular distanceb (65 mm). The display is positioned at a distanceDfrom the user.
x + x + x =
filter 0 image 0 filter 1 image 1 filter 2 image 2
Fig. 4.Multiplexing filters application.[16]
Slice selection. The most important slice is the one containing the point of interest. Consequently, the sliceIz is always projected on the first view. However, the slices projected on the other views need to be determined. In order to recover the depth perception, we use the slice behindIz. Determining which slice to consider can be done using a parameter∆z. For a viewi, the associated slice will bes=Iz+i×∆z. The choice of∆zvalue is at user’s discretion.
Nevertheless, the data characteristics need to be studied to select the best value for∆z(see Sec. 4).
3.2. Alpha generation
The alpha generation is performed using a two-step process. First, the pixels of each view are assigned an alpha value. This step can be compared to a standard classification where, for instance, four classes could be used: background, interest tissues, non-interest tis- sues, and artefacts. The user defines an alpha value for each class, and each pixel will be assigned the apha value corresponding to its closest class alpha value. What is noteworthy is that the choice of the classification algorithm to use will have an impact on the result quality, as well as on the computational time needed to classify all pixels
Once the alpha values are set, an alpha blending process is per- formed, consisting in applying a back-to-front alpha blending fol- lowing the painter’s algorithm. This process determines the contri- bution of the back views, according to a certain amount, in the front views. The depth perception is therefore recreated.
3.3. Compositing
The compositing is the final step of the pipeline, providing a final multi-view frameF. This frame is generated using theNpre-build viewsVi, and is composed by using filtering masksMon the views (Fig. 4). These masks are binary filters (Mi ={0,1}3[Z2]), and determine, for all views, which color components will contribute to the final frame composition. This step can be expressed asFc = P
iVicMicwherec ∈ {R, G, B}. The filtering masks mechanism is dependent of the display. This process may differ, and take more or less computing time, depending on the used hardware.
Fig. 5. Multi-view frame generated. Example resulting from the histological volume.
4. RESULTS AND DISCUSSION The experiments were made using three different datasets:
• (a) A114histological slices stack of a mouse brain with a resolution of64000×50000RGBA pixels (1.459 TB);
• (b) A2160×2560×1072volume with grayscale 16 bits voxels (11 GB) of a primate hippocampus from a light sheet microscope;
• (c) A645blockface slices stack of the mouse brain (a) with a resolution of823×202RGBA pixels (428 MB).
The dataset (a) is the proof of concept of our system (Fig. 5).
The dataset (b) demonstrates that our system can be applied to dif- ferent modalities. Finally, the dataset (c) is used to compare the result with the dataset (a), acknowledging the former has a strongest anisotropy than the latter. The display used was a HD (16:10) au- tosteroscopic 8-views display with a1920×1200viewport and re- quiring a distance – display of2 m. The same test scenario was applied on the three datasets, and consists of a zoom-in, a pan nav- igation, then a navigation in the stacks. Table 1 shows the average time recorded to generate a complete multi-view frame.
(a) (b) (c) Generate frame 11 12 7
Set alpha 8 5 8
Alpha blending 5 5 6
Compositing 5 5 5
Sum 29 27 26
Table 1. Average rendering time in milliseconds of a frame for three different datasets.
Multi-view frame generation. The first noticeable fact is the independence between the frame rendering time and the volume data size or the acquisition modality. Considering the time allowed to other required processes (out-of-core data management) the method offers a real-time navigation with an average of 30 fps. In the pre- sented test, the rendering pipeline was performed at each frame to simulate the worst case scenario in which this needs to be done every time. Nevertheless, in concrete situation, the whole pipeline should be triggered only when a change is detected in the camera position.
The first step recorded is the volume projection on the views only.
The average time to generate the views was around 11-12ms. The dataset (c) took less time to project because of its size, as the vol- ume did not fill entirely the views. In fact, on pixels in the outside
borders of the views, we try to project information that is outside the volume. In that case, we are outside the bound of normalized vol- ume sizes and there is no need to continue to process the projection;
therefore the frame are generated faster.
Theset alphastep consists in computing the Euclidean distance between the voxels and different clusters. In the tests, we used five clusters computed beforehand using a k-means algorithm. The choice in the classification algorithm is of importance: the computa- tion runtime can affect the time to render a view, therefore the navi- gation fluidity. The difference noticed in the results is related to the data type differences between the volumes. While the dataset (b) uses grayscale pixels, the others use RGBA pixels. Therefore, the pixels assignment is performed faster on (b) than (a) and (c).
Depth perception. As stated in section 3.1, the value∆z is of importance in the proposed method, as a non optimal value may induce an uncomfortable visualization. During the tests, we noticed that the differences between two slices were small in the dataset (b).
The depth perception was recovered by using∆z= 3. However, this also underlines that visualizing a grayscale works better with high- contrast or color data. An extra step may be required to colorize the data via LUTs. The extreme case happened with the dataset (a). As expected, the volume anisotropy was significant and required to use a∆z <1. Depending on∆z value, the number of slices the user can see in a multi-view frame may be drastically reduced, however the final result is softened. Having∆< 1is possible because we are addressing the data using normalized coordinates. The used out- of-core data structure relies on the GPU texture memory and allows trilinear interpolations. However, misusing this value may reduce the depth effect and in turn make the approach irrelevant. Yet, the data anisotropy is an important factor to consider when using this approach.
Camera positioning.In the given approach, the views are posi- tioned on the same plane as the slices. This could be improved using an orbital camera. One could be able to analyse the volumes in a different view angle. However, the data anisotropy would be a major concern and would require a better alternative than simply using a
∆zparameter.
To test our method, an autostereoscopic display was used, where the user has to move in front of the display to move inside the multi- view frame. With current technologies, it could be interesting to use the same approach on tablet devices, as it may be more convenient for the user to move the device left and right than to move in front of a screen. Finally, all tests were performed and assessed by the authors. The method is ready for statistical studies with the end- users, using lightsheet or histological datasets and using different parameters.
5. CONCLUSION
We introduced a proof of concept to virtualize a microscope using off-centered parallel cameras and an autostereoscopic display. With the help of current GPUs, this approach allows the user to interac- tively navigate through multi-resolution images. This allows data visualization similar to an analogue microscope visualization by re- covering the depth perception. Taking advantage of the out-of-core data management, the proposed approach works independently of the data size, fromMBto severalTB. In addition, the concept of- fers a similar user experience accross different volume modalities, without significant differences in rendering time. In the future, the development of an approach offering the ability to use an orbital cameras would be of great benefits to this method.
