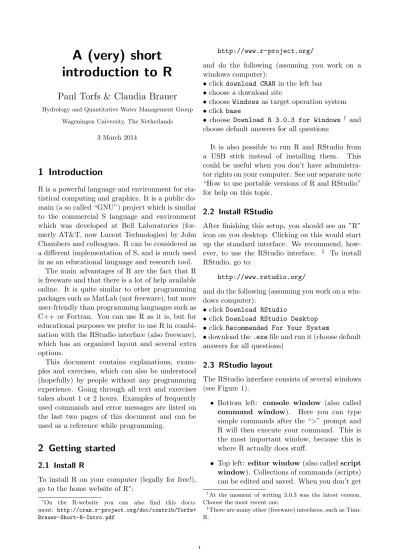

A (very) short introduction to R

(1)

A (very) short introduction to R

Paul Torfs & Claudia Brauer

Hydrology and Quantitative Water Management Group Wageningen University, The Netherlands

3 March 2014

1 Introduction

R is a powerful language and environment for statistical computing and graphics. It is a public do- main (a so called “GNU”) project which is similar to the commercial S language and environment which was developed at Bell Laboratories (for- merly AT&T, now Lucent Technologies) by John Chambers and colleagues. R can be considered as a different implementation of S, and is much used in as an educational language and research tool.

The main advantages of R are the fact that R is freeware and that there is a lot of help available online. It is quite similar to other programming packages such as MatLab (not freeware), but more user-friendly than programming languages such as C++ or Fortran. You can use R as it is, but for educational purposes we prefer to use R in combination with the RStudio interface (also freeware), which has an organized layout and several extra options.

This document contains explanations, examples and exercises, which can also be understood (hopefully) by people without any programming experience. Going through all text and exercises takes about 1 or 2 hours. Examples of frequently used commands and error messages are listed on the last two pages of this document and can be used as a reference while programming.

2 Getting started

2.1 Install R

To install R on your computer (legally for free!), go to the home website of R^∗:

∗On the R-website you can also find this document: http://cran.r-project.org/doc/contrib/Torfs+

Brauer-Short-R-Intro.pdf

http://www.r-project.org/

and do the following (assuming you work on a windows computer):

• clickdownload CRANin the left bar

• choose a download site

• chooseWindows as target operation system

• clickbase

• choose Download R 3.0.3 for Windows ^† and choose default answers for all questions

It is also possible to run R and RStudio from a USB stick instead of installing them. This could be useful when you don’t have administra- tor rights on your computer. See our separate note

“How to use portable versions of R and RStudio”

for help on this topic.

2.2 Install RStudio

After finishing this setup, you should see an ”R”

icon on you desktop. Clicking on this would start up the standard interface. We recommend, how- ever, to use the RStudio interface. ^‡ To install RStudio, go to:

http://www.rstudio.org/

and do the following (assuming you work on a windows computer):

• clickDownload RStudio

• clickDownload RStudio Desktop

• clickRecommended For Your System

•download the.exefile and run it (choose default answers for all questions)

2.3 RStudio layout

The RStudio interface consists of several windows (see Figure 1).

• Bottom left: console window (also called command window). Here you can type simple commands after the “>” prompt and R will then execute your command. This is the most important window, because this is where R actually does stuff.

• Top left: editor window (also calledscript window). Collections of commands (scripts) can be edited and saved. When you don’t get

†At the moment of writing 3.0.3 was the latest version.

Choose the most recent one.

‡There are many other (freeware) interfaces, such as Tinn- R.

(2)

Figure 1 The editor, workspace, console and plots windows in RStudio.

this window, you can open it with File → New→ R script

Just typing a command in the editor window is not enough, it has to get into the command window before R executes the command. If you want to run a line from the script window (or the whole script), you can click Run or pressCTRL+ENTERto send it to the command window.

• Top right: workspace / history window.

In the workspace window you can see which data and values R has in its memory. You can view and edit the values by clicking on them. The history window shows what has been typed before.

• Bottom right: files / plots / packages / help window. Here you can open files, view plots (also previous plots), install and load packages or use the help function.

You can change the size of the windows by drag- ging the grey bars between the windows.

2.4 Working directory

Yourworking directory is the folder on your computer in which you are currently working. When

you ask R to open a certain file, it will look in the working directory for this file, and when you tell R to save a data file or figure, it will save it in the working directory.

Before you start working, please set your working directory to where all your data and script files are or should be stored.

Type in the command window:

setwd("directoryname"). For example:

> setwd("M:/Hydrology/R/")

Make sure that the slashes are forward slashes and that you don’t forget the apostrophes (for the rea- son of the apostrophes, see section 10.1). R is case sensitive, so make sure you write capitals where necessary.

Within RStudio you can also go toTools / Set working directory.

2.5 Libraries

R can do many statistical and data analyses. They are organized in so-called packages or libraries.

With the standard installation, most common packages are installed.

To get a list of all installed packages, go to the packages window or typelibrary()in the console

(3)

window. If the box in front of the package name is ticked, the package is loaded (activated) and can be used.

There are many more packages available on the R website. If you want to install and use a package (for example, the package called “geometry”) you should:

• Install the package: click install packages in the packages window and type geometry or type install.packages("geometry") in the command window.

• Load the package: check box in front of geometry or type library("geometry") in the command window.

3 Some first examples of R commands

3.1 Calculator

R can be used as a calculator. You can just type your equation in the command window after the

“>”:

> 10^2 + 36

and R will give the answer [1] 136

ToDo

Compute the difference between 2014 and the year you started at this university and divide this by the difference between 2014 and the year you were born. Multiply this with 100 to get the percentage of your life you have spent at this university. Use brackets if you need them.

If you use brackets and forget to add the closing bracket, the “>” on the command line changes into a “+”. The “+” can also mean that R is still busy with some heavy computation. If you want R to quit what it was doing and give back the “>”, pressESC(see the reference list on the last page).

3.2 Workspace

You can also give numbers a name. By doing so, they become so-called variables which can be used later. For example, you can type in the command window:

> a = 4

You can see thataappears in the workspace window, which means that R now remembers what a is.^§ You can also ask R what a is (just type a ENTERin the command window):

> a [1] 4

or do calculations witha:

> a * 5 [1] 20

If you specify aagain, it will forget what value it had before. You can also assign a new value to ausing the old one.

> a = a + 10

> a [1] 14

To remove all variables from R’s memory, type

> rm(list=ls())

or click “clear all” in the workspace window. You can see that RStudio then empties the workspace window. If you only want to remove the variable a, you can typerm(a).

ToDo

Repeat the previous ToDo, but with several steps in between. You can give the variables any name you want, but the name has to start with a letter.

3.3 Scalars, vectors and matrices

Like in many other programs, R organizes numbers inscalars (a single number – 0-dimensional), vectors (a row of numbers, also called arrays – 1-dimensional) and matrices (like a table – 2- dimensional).

Theayou defined before was a scalar. To define a vector with the numbers 3, 4 and 5, you need the function^¶c, which is short for concatenate (paste together).

b=c(3,4,5)

Matrices and other 2-dimensional structures will be introduced in Section 6.

§Some people prefer te use<- instead of = (they do the same thing). <- consists of two characters, < and -, and represents an arrow pointing at the object receiving the value of the expression.

¶See next Section for the explanation of functions.

(4)

3.4 Functions

If you would like to compute the mean of all the elements in the vectorb from the example above, you could type

> (3+4+5)/3

But when the vector is very long, this is very bor- ing and time-consuming work. This is why things you do often are automated in so-calledfunctions.

Some functions are standard in R or in one of the packages. You can also program your own functions (Section 11.3). When you use a function to compute a mean, you’ll type:

> mean(x=b)

Within the brackets you specify thearguments.

Arguments give extra information to the function.

In this case, the argument x says of which set of numbers (vector) the mean should computed (namely of b). Sometimes, the name of the argument is not necessary: mean(b)works as well.

ToDo

Compute the sum of 4, 5, 8 and 11 by first com- bining them into a vector and then using the functionsum.

The function rnorm, as another example, is a standard R function which creates random sam- ples from a normal distribution. Hit the ENTER key and you will see 10 random numbers as:

1 > rnorm(10)

2 [1] -0.949 1.342 -0.474 0.403

3 [5] -0.091 -0.379 1.015 0.740

4 [9] -0.639 0.950

•Line 1 contains the command: rnormis the function and the 10 is an argument specifying how many random numbers you want — in this case 10 numbers (typingn=10instead of just 10would also work).

• Lines 2-4 contain the results: 10 random numbers organised in a vector with length 10.

Entering the same command again produces 10 new random numbers. Instead of typing the same text again, you can also press the upward arrow key (↑) to access previous commands. If you want 10 random numbers out of normal distribution with mean 1.2 and standard deviation 3.4 you can type

> rnorm(10, mean=1.2, sd=3.4)

showing that the same function (rnorm) may have different interfaces and that R has so callednamed arguments (in this casemeanandsd). By the way, the spaces around the “,” and “=” do not matter.

Comparing this example to the previous one also shows that for the function rnorm only the first argument (the number 10) is compulsory, and that R gives default values to the other so-called optional arguments.^k

RStudio has a nice feature: when you type rnorm( in the command window and press TAB, RStudio will show the possible arguments (Fig. 2).

3.5 Plots

R can make graphs. The following is a very simple^∗∗ example:

1 > x = rnorm(100)

2 > plot(x)

• In the first line, 100 random numbers are assigned to the variable x, which becomes a vector by this operation.

• In the second line, all these values are plotted in the plots window.

ToDo

Plot 100 normal random numbers.

4 Help and documentation

There is a large amount of (free) documentation and help available. Some help is automatically installed. Typing in the console window the command

> help(rnorm)

gives help on the rnorm function. It gives a de- scription of the function, possible arguments and the values that are used as default for optional arguments. Typing

> example(rnorm)

kUse the help function (Sect. 4) to see which values are used as default.

∗∗See Section 7 for slightly less trivial examples.

(5)

Figure 2 RStudio shows possible arguments when you pressTABafter the function name and bracket.

gives some examples of how the function can be used.

An HTML-based global help can be called with:

> help.start()

or by going to the help window.

The following links can also be very useful:

• http://cran.r-project.org/doc/manuals/

R-intro.pdf A full manual.

• http://cran.r-project.org/doc/contrib/

Short-refcard.pdfA short reference card.

• http://zoonek2.free.fr/UNIX/48_R/all.

html

A very rich source of examples.

• http://rwiki.sciviews.org/doku.php A typical user wiki.

• http://www.statmethods.net/

Also called Quick-R. Gives very productive direct help. Also for users coming from other programming languages.

• http://mathesaurus.sourceforge.net/

Dictionary for programming languages (e.g. R for Matlab users).

• Just using Google (type e.g. “R rnorm” in the search field) can also be very productive.

ToDo

Find help for the sqrt function.

5 Scripts

R is an interpreter that uses a command line based environment. This means that you have to type commands, rather than use the mouse and menus.

This has the advantage that you do not always have to retype all commands and are less likely to get complaints of arms, neck and shoulders.

You can store your commands in files, the so- called scripts. These scripts have typically file names with the extension.R, e.g. foo.R. You can open an editor window to edit these files by click- ingFile and NeworOpen file... ^††.

You can run (send to the console window) part of the code by selecting lines and pressing CTRL+ENTER or clickRun in the editor window. If you do not select anything, R will run the line your cursor is on. You can always run the whole script with the console command source, so e.g.

for the script in the filefoo.R you type:

> source("foo.R")

You can also click Run all in the editor window or type CTRL+SHIFT + S to run the whole script at once.

ToDo

Make a file calledfirstscript.Rcontaining R- code that generates 100 random numbers and plots them, and run this script several times.

6 Data structures

If you are unfamiliar with R, it makes sense to just retype the commands listed in this section. Maybe you will not need all these structures in the begin- ning, but it is always good to have at least a first glimpse of the terminology and possible applica- tions.

6.1 Vectors

Vectors were already introduced, but they can do more:

††Where also the optionsSaveandSave asare available.

(6)

1 > vec1 = c(1,4,6,8,10)

2 > vec1

3 [1] 1 4 6 8 10

4 > vec1[5]

5 [1] 10

6 > vec1[3] = 12

7 > vec1

8 [1] 1 4 12 8 10

9 > vec2 = seq(from=0, to=1, by=0.25)

10 > vec2

11 [1] 0.00 0.25 0.50 0.75 1.00

12 > sum(vec1)

13 [1] 35

14 > vec1 + vec2

15 [1] 1.00 4.25 12.50 8.75 11.00

•In line 1, a vector vec1is explicitly constructed by the concatenation functionc(), which was introduced before. Elements in vectors can be addressed by standard [i] indexing, as shown in lines 4-5.

• In line 6, one of the elements is replaced with a new number. The result is shown in line 8.

• Line 9 demonstrates another useful way of con- structing a vector: theseq()(sequence) function.

• Lines 10-15 show some typical vector oriented calculations. If you add up two vectors of the same length, the first elements of both vectors are summed, and the second elements, etc., leading to a new vector of length 5 (just like in regular vector calculus). Note that the functionsumsums up the elements within a vector, leading to one number (a scalar).

6.2 Matrices

Matrices are nothing more than 2-dimensional vectors. To define a matrix, use the function matrix:

1 mat=matrix(data=c(9,2,3,4,5,6),ncol=3)

2 > mat

3 [,1] [,2] [,3]

4 [1,] 9 3 5

5 [2,] 2 4 6

The argument data specifies which numbers should be in the matrix. Use eitherncol to specify the number of columns or nrow to specify the number of rows.

ToDo

Put the numbers 31 to 60 in a vector named P and in a matrix with 6 rows and 5 columns named Q. Tip: use the function seq. Look at the different ways scalars, vectors and matrices are denoted in the workspace window.

Matrix-operations are similar to vector operations:

1 > mat[1,2]

2 [1] 3

3 > mat[2,]

4 [1] 2 4 6

5 > mean(mat)

6 [1] 4.8333

• Elements of a matrix can be addressed in the usual way: [row,column] (line 1).

• Line 3: When you want to select a whole row, you leave the spot for the column number empty (the other way around for columns of course).

• Line 5 shows that many functions also work with matrices as argument.

6.3 Data frames

Time series are often ordered in data frames. A data frame is a matrix with names above the columns. This is nice, because you can call and use one of the columns without knowing in which position it is.

1 > t = data.frame(x = c(11,12,14),

2 y = c(19,20,21), z = c(10,9,7))

3 > t

4 x y z

5 1 11 19 10

6 2 12 20 9

7 3 14 21 7

8 > mean(t$z)

9 [1] 8.666667

10 > mean(t[["z"]])

11 [1] 8.666667

• In lines 1-2 a typical data frame called t is constructed. The columns have the names x, y and z.

• Line 8-11 show two ways of how you can select the column calledzfrom the data frame called t.

(7)

ToDo

Make a script file which constructs three random normal vectors of length 100. Call these vectorsx1,x2andx3. Make a data frame called t with three columns (called a, b and c) containing respectively x1, x1+x2 and x1+x2+x3.

Call the following functions for this data frame:

plot(t) and sd(t). Can you understand the results? Rerun this script a few times.

6.4 Lists

Another basic structure in R is a list. The main advantage of lists is that the “columns” (they’re not really ordered in columns any more, but are more a collection of vectors) don’t have to be of the same length, unlike matrices and data frames.

1 > L = list(one=1, two=c(1,2),

2 five=seq(0, 1, length=5))

3 > L

4 $one

5 [1] 1

6 $two

7 [1] 1 2

8 $five

9 [1] 0.00 0.25 0.50 0.75 1.00

10 > names(L)

11 [1] "one" "two" "five"

12 > L$five + 10

13 [1] 10.00 10.25 10.50 10.75 11.00

• Lines 1-2 construct a list by giving names and values. The list also appears in the workspace window.

•Lines 3-9 show a typical printing (after pressing L ENTER).

•Line 10 illustrates how to find out what’s in the list.

• Line 12 shows how to use the numbers.

7 Graphics

Plotting is an important statistical activity. So it should not come as a surprise that R has many plotting facilities. The following lines show a simple plot:

> plot(rnorm(100), type="l", col="gold")

Hundred random numbers are plotted by connect- ing the points by lines (the symbol between quotes after the type=, is the letter l, not the number 1) in a gold color.

Another very simple example is the classical statistical histogram plot, generated by the simple command

> hist(rnorm(100))

which generates the plot in Figure 3.

Histogram of rnorm(100)

rnorm(100)

Frequency

−3 −2 −1 0 1 2

05101520

Figure 3 A simple histogram plot.

The following few lines create a plot using the data frametconstructed in the previous ToDo:

1 plot(t$a, type="l", ylim=range(t),

2 lwd=3, col=rgb(1,0,0,0.3))

3 lines(t$b, type="s", lwd=2,

4 col=rgb(0.3,0.4,0.3,0.9))

5 points(t$c, pch=20, cex=4,

6 col=rgb(0,0,1,0.3))

ToDo

Add these lines to the script file of the previous section. Try to find out, either by experiment- ing or by using the help, what the meaning is of rgb, the last argument of rgb,lwd,pch,cex.

To learn more about formatting plots, search forparin the R help. Google “R color chart” for a pdf file with a wealth of color options.

To copy your plot to a document, go to the plots window, click the “Export” button, choose the nicest width and height and clickCopy orSave.

(8)

8 Reading and writing data files

There are many ways to write data from within the R environment to files, and to read data from files.

We will illustrate one way here. The following lines illustrate the essential:

1 > d = data.frame(a = c(3,4,5),

2 b = c(12,43,54))

3 > d

4 a b

5 1 3 12

6 2 4 43

7 3 5 54

8 > write.table(d, file="tst0.txt",

9 row.names=FALSE)

10 > d2 = read.table(file="tst0.txt",

11 header=TRUE)

12 > d2

13 a b

14 1 3 12

15 2 4 43

16 3 5 54

• In lines 1-2, a simple example data frame is constructed and stored in the variabled.

• Lines 3-7 show the content of this data frame:

two columns (called a and b), each containing three numbers.

• Line 8 writes this data frame to a text file, calledtst0.txtThe argumentrow.names=FALSE prevents that row names are written to the file.

Because nothing is specified about col.names, the default option col.names=TRUEis chosen and column names are written to the file. Figure 4 shows the resulting file (opened in an editor, such as Notepad), with the column names (aandb) in the first line.

• Lines 10-11 illustrate how to read a file into a data frame. Note that the column names are also read. The data frame also appears in the workspace window.

ToDo

Make a file called tst1.txt in Notepad from the example in Figure 4 and store it in your working directory. Write a script to read it, to multiply the column calledg by 5 and to store it as tst2.txt.

Figure 4 The files tst0.txt of section 8 (left) and tst1.txt from the ToDo below (right) opened in two text editors.

9 Not available data

ToDo

Compute the mean of the square root of a vector of 100 random numbers. What happens?

When you work with real data, you will encounter missing values because instrumentation failed or because you didn’t want to measure in the weekend. When a data point isnot available, you write NAinstead of a number.

> j = c(1,2,NA)

Computing statistics of incomplete data sets is strictly speaking not possible. Maybe the largest value occurred during the weekend when you didn’t measure. Therefore, R will say that it doesn’t know what the largest value of jis:

> max(j) [1] NA

If you don’t mind about the missing data and want to compute the statistics anyway, you can add the argument na.rm=TRUE (Should I remove the NAs? Yes!).

> max(j, na.rm=TRUE) [1] 2

10 Classes

The exercises you did before were nearly all with numbers. Sometimes you want to specify something which is not a number, for example the name of a measurement station or data file. In that case you want the variable to be a character string instead of a number.

(9)

An object in R can have several so-called classes. The most important three are numeric, character and POSIX (date-time combinations).

You can ask R what class a certain variable is by typing class(...).

10.1 Characters

To tell R that something is a character string, you should type the text between apostrophes, other- wise R will start looking for a defined variable with the same name:

> m = "apples"

> m

[1] "apples"

> n = pears

Error: object ‘pears’ not found

Of course, you cannot do computations with character strings:

> m + 2

Error in m + 2 : non-numeric argument to binary operator

10.2 Dates

Dates and times are complicated. R has to know that 3 o’clock comes after 2:59 and that February has 29 days in some years. The easiest way to tell R that something is a date-time combination is with the function strptime:

1 > date1=strptime( c("20100225230000",

2 "20100226000000", "20100226010000"),

3 format="%Y%m%d%H%M%S")

4 > date1

5 [1] "2010-02-25 23:00:00"

6 [2] "2010-02-26 00:00:00"

7 [3] "2010-02-26 01:00:00"

• In lines 1-2 you create a vector with c(...).

The numbers in the vectors are between apostrophes because the function strptime needs character strings as input.

•In line 3 the argument formatspecifies how the character string should be read. In this case the year is denoted first (%Y), then the month (%m), day (%d), hour (%H), minute (%M) and second (%S). You don’t have to specify all of them, as long as the format corresponds to the character string.

ToDo

Make a graph with on the x-axis: today, Sin- terklaas 2014 and your next birthday and on the y-axis the number of presents you expect on each of these days. Tip: make two vectors first.

11 Programming tools

When you are building a larger program than in the examples above or if you’re using someone else’s scripts, you may encounter some programming statements. In this Section we describe a few tips and tricks.

11.1 If-statement

The if-statement is used when certain computations should only be done when a certain condition is met (and maybe something else should be done when the condition is not met). An example:

1 > w = 3

2 > if( w < 5 )

3 {

4 d=2

5 }else{

6 d=10

7 }

8 > d

9 2

• In line 2 a condition is specified: w should be less than 5.

• If the condition is met, R will execute what is between the first brackets in line 4.

•If the condition isnot met, R will execute what is between the second brackets, after the else in line 6. You can leave the else{...}-part out if you don’t need it.

•In this case, the condition is met anddhas been assigned the value 2 (lines 8-9).

To get a subset of points in a vector for which a certain condition holds, you can use a shorter method:

1 > a = c(1,2,3,4)

2 > b = c(5,6,7,8)

3 > f = a[b==5 | b==8]

4 > f

5 [1] 1 4

(10)

• In line 1 and 2 two vectors are made.

• In line 3 you say that f is composed of those elements of vector a for which b equals 5 or b equals 8.

Note the double =in the condition. Other conditions (also called logical or Boolean operators) are<,>,!=(6=),<= (≤) and>=(≥). To test more than one condition in one if-statement, use & if both conditions have to be met (“and”) and |if one of the conditions has to be met (“or”).

11.2 For-loop

If you want to model a time series, you usually do the computations for one time step and then for the next and the next, etc. Because nobody wants to type the same commands over and over again, these computations are automated in for-loops.

In a for-loop you specify what has to be done and how many times. To tell “how many times”, you specify a so-called counter. An example:

1 > h = seq(from=1, to=8)

2 > s = c()

3 > for(i in 2:10)

4 {

5 s[i] = h[i] * 10

6 }

7 > s

8 [1] NA 20 30 40 50 60 70 80 NA NA

• First the vectorhis made.

•In line 2 an empty vector (s) is created. This is necessary because when you introduce a variable within the for-loop, R will not remember it when it has gotten out of the for-loop.

• In line 3 the for-loop starts. In this case, i is the counter and runs from 2 to 10.

•Everything between the curly brackets (line 5) is processed 9 times. The first timei=2, the second element of h is multiplied with 10 and placed in the second position of the vector s. The second time i=3, etc. In the last two runs, the 9^th and 10^th elements of h are requested, which do not exist. Note that these statements are evaluated without any explicit error messages.

ToDo

Make a vector from 1 to 100. Make a for-loop which runs through the whole vector. Multiply the elements which are smaller than 5 and larger than 90 with 10 and the other elements with 0.1.

11.3 Writing your own functions

Functions you program yourself work in the same way as pre-programmed R functions.

1 > fun1 = function(arg1, arg2 )

2 {

3 w = arg1 ^ 2

4 return(arg2 + w)

5 }

6 > fun1(arg1 = 3, arg2 = 5)

7 [1] 14

8

•In line 1 the function name (fun1) and its arguments (arg1 and arg2) are defined.

•Lines 2-5 specify what the function should do if it is called. The return value (arg2+w) is shown on the screen.

•In line 6 the function is called with arguments 3 and 5.

ToDo

Write a function for the previous ToDo, so that you can feed it any vector you like (as argument). Use a for-loop in the function to do the computation with each element. Use the standard R function length in the specification of the counter. ^a)

aActually, people often use more for-loops than necessary. The ToDo above can be done more easily and quickly without a for-loop but with regular vector- computations.

(11)

12 Some useful references

12.1 Functions

This is a subset of the functions explained in the R reference card.

Data creation

•read.table: read a table from file. Arguments:

header=TRUE: read first line as titles of the columns; sep=",": numbers are separated by commas;skip=n: don’t read the first nlines.

• write.table: write a table to file

• c: paste numbers together to create a vector

•array: create a vector, Arguments: dim: length

• matrix: create a matrix, Arguments: ncol and/or nrow: number of rows/columns

• data.frame: create a data frame

• list: create a list

• rbind and cbind: combine vectors into a matrix by row or column

Extracting data

• x[n]: then^th element of a vector

• x[m:n]: them^th ton^th element

• x[c(k,m,n)]: specific elements

• x[x>m & x<n]: elements between mand n

• x$n: element of list or data frame named n

• x[["n"]]: idem

• [i,j]: element ati^th row and j^th column

• [i,]: rowi in a matrix Information on variables

• length: length of a vector

• ncol ornrow: number of columns or rows in a matrix

• class: class of a variable

• names: names of objects in a list

• print: show variable or character string on the screen (used in scripts or for-loops)

• return: show variable on the screen (used in functions)

• is.na: test if variable isNA

• as.numeric or as.character: change class to number or character string

• strptime: change class from character to date-time (POSIX)

Statistics

• sum: sum of a vector (or matrix)

• mean: mean of a vector

• sd: standard deviation of a vector

• maxormin: largest or smallest element

•rowSums(orrowMeans,colSumsandcolMeans):

sums (or means) of all numbers in each row (or column) of a matrix. The result is a vector.

• quantile(x,c(0.1,0.5)): sample the 0.1 and 0.5^th quantiles of vector x

Data processing

• seq: create a vector with equal steps between the numbers

• rnorm: create a vector with random numbers with normal distribution (other distributions are also available)

• sort: sort elements in increasing order

• t: transpose a matrix

• aggregate(x,by=ls(y),FUN="mean"): split data set x into subsets (defined by y) and com- putes means of the subsets. Result: a new list.

• na.approx: interpolate (in zoo package). Ar- gument: vector with NAs. Result: vector without NAs.

• cumsum: cumulative sum. Result is a vector.

•rollmean: moving average (in thezoopackage)

• paste: paste character strings together

• substr: extract part of a character string Fitting

• lm(v1∼v2): linear fit (regression line) between vectorv1 on the y-axis andv2on the x-axis

• nls(v1∼a+b*v2, start=ls(a=1,b=0)): non- linear fit. Should contain equation with variables (here v1 and v2 and parameters (here a and b) with starting values

• coef: returns coefficients from a fit

• summary: returns all results from a fit Plotting

• plot(x): plot x (y-axis) versus index number (x-axis) in a new window

• plot(x,y): plot y (y-axis) versus x(x-axis) in a new window

• image(x,y,z): plot z (color scale) versus x (x-axis) and y(y-axis) in a new window

• lines or points: add lines or points to a previous plot

•hist: plot histogram of the numbers in a vector

• barplot: bar plot of vector or data frame

• contour(x,y,z): contour plot

• abline: draw line (segment). Arguments: a,b for intercept a and slopeb; or h=y for horizontal line at y; orv=x for vertical line atx.

• curve: add function to plot. Needs to have an

(12)

xin the expression. Example: curve(x^2)

• legend: add legend with given symbols (lty or pch and col) and text (legend) at location (x="topright")

• axis: add axis. Arguments: side – 1=bottom, 2=left, 3=top,4=right

• mtext: add text on axis. Arguments: text (character string) and side

• grid: add grid

• par: plotting parameters to be specified before the plots. Arguments: e.g. mfrow=c(1,3)):

number of figures per page (1 row, 3 columns);

new=TRUE: draw plot over previous plot.

Plotting parameters

These can be added as arguments toplot,lines, image, etc. For help seepar.

• type: "l"=lines,"p"=points, etc.

• col: color – "blue","red", etc

• lty: line type – 1=solid, 2=dashed, etc.

• pch: point type –1=circle,2=triangle, etc.

• main: title - character string

• xlaband ylab: axis labels – character string

• xlimand ylim: range of axes – e.g. c(1,10)

• log: logarithmic axis – "x","y" or"xy"

Programming

• function(arglist){expr}: function definition: do expr with list of arguments arglist

• if(cond){expr1}else{expr2}: if-statement:

if cond is true, then expr1, elseexpr2

• for(var in vec) {expr}: for-loop: the countervarruns through the vectorvecand does expr each run

• while(cond){expr}: while-loop: while cond is true, do expr each run

12.2 Keyboard shortcuts

There are several useful keyboard shortcuts for RStudio (see Help →Keyboard Shortcuts):

•CRL+ENTER: send commands from script window to command window

• ↑ or ↓ in command window: previous or next command

• CTRL+1, CTRL+2, etc.: change between the windows

Not R-specific, but very useful keyboard shortcuts:

• CTRL+C, CTRL+X and CTRL+V: copy, cut and

paste

• ALT+TAB: change to another program window

• ↑,↓,← or→: move cursor

•HOMEorEND: move cursor to begin or end of line

• Page Up or Page Down: move cursor one page up or down

•SHIFT+↑/↓/←/→/HOME/END/PgUp/PgDn: select

12.3 Error messages

• No such file or directory or Cannot change working directory

Make sure the working directory and file names are correct.

• Object ‘x’ not found

The variable x has not been defined yet. Define xor write apostrophes if xshould be a character string.

• Argument ‘x’ is missing without default You didn’t specify the compulsory argumentx.

• +

R is still busy with something or you forgot closing brackets. Wait, type }or)or pressESC.

• Unexpected ’)’ in ")" or Unexpected ’}’

in "}"

The opposite of the previous. You try to close something which hasn’t been opened yet. Add opening brackets.

• Unexpected ‘else’ in "else"

Put the else of an if-statement on the same line as the last bracket of the “then”-part: }else{.

• Missing value where TRUE/FALSE needed Something goes wrong in the condition-part (if(x==1)) of an if-statement. Isx NA?

• The condition has length > 1 and only the first element will be used

In the condition-part (if(x==1)) of an if- statement, a vector is compared with a scalar. Is xa vector? Did you meanx[i]?

• Non-numeric argument to binary operator You are trying to do computations with something which is not a number. Use class(...) to find out what went wrong or useas.numeric(...) to transform the variable to a number.

•Argument is of length zeroorReplacement is of length zero

The variable in question is NULL, which means that it is empty, for example created by c().

Check the definition of the variable.
