Webs in Agroecosystems
Ahmadou Sow, Julien Haran, Laure Benoit, Maxime Galan, Thierry Brevault
To cite this version:
Ahmadou Sow, Julien Haran, Laure Benoit, Maxime Galan, Thierry Brevault. DNA Metabarcoding
as a Tool for Disentangling Food Webs in Agroecosystems. Insects, MDPI, 2020, 11 (5), pp.294.
�10.3390/insects11050294�. �hal-02862056�
Article
DNA Metabarcoding as a Tool for Disentangling Food
Webs in Agroecosystems
Ahmadou Sow1,*, Julien Haran2,3, Laure Benoit2,3, Maxime Galan3,4 and Thierry Brévault5,6
1 Département de Biologie Animale, Faculté des Sciences et Techniques, Université Cheikh Anta Diop, Dakar, Senegal
2 CIRAD, UMR CBGP, F-34398 Montpellier, France; julien.haran@cirad.fr (J.H.); laure.benoit@cirad.fr (L.B.) 3 CBGP, INRAE, CIRAD, IRD, Institut Agro, Université de Montpellier, F-34988 Montpellier, France;
maxime.galan@inra.fr
4 INRA, UMR CBGP, F-34398 Montpellier, France
5 CIRAD, UPR AIDA, Centre de recherche ISRA-IRD, Dakar, Senegal; thierry.brevault@cirad.fr 6 AIDA, Univ Montpellier, CIRAD, F-34398 Montpellier, France
* Correspondence: s_ahmadou@yahoo.fr
Received: 24 March 2020; Accepted: 5 May 2020; Published: 11 May 2020
Abstract: Better knowledge of food webs and related ecological processes is fundamental to understanding the functional role of biodiversity in ecosystems. This is particularly true for pest regulation by natural enemies in agroecosystems. However, it is generally difficult to decipher the impact of predators, as they often leave no direct evidence of their activity. Metabarcoding via high-throughput sequencing (HTS) offers new opportunities for unraveling trophic linkages between generalist predators and their prey, and ultimately identifying key ecological drivers of natural pest regulation. Here, this approach proved effective in deciphering the diet composition of key predatory arthropods (nine species.; 27 prey taxa), insectivorous birds (one species, 13 prey taxa) and bats (one species; 103 prey taxa) sampled in a millet-based agroecosystem in Senegal. Such information makes it possible to identify the diet breadth and preferences of predators (e.g., mainly moths for bats), to design a qualitative trophic network, and to identify patterns of intraguild predation across arthropod predators, insectivorous vertebrates and parasitoids. Appropriateness and limitations of the proposed molecular-based approach for assessing the diet of crop pest predators and trophic linkages are discussed.
Keywords: conservation biological control; trophic network; intra-guild predation; arthropod diets; feces analysis; DNA sequencing; millet-based agroecosystem
1. Introduction
Crop pests cause substantial economic losses to agricultural production and thus threaten the increase of crop productivity needed to achieve long-term food and nutrition security [1,2]. In addition, excessive reliance on chemicals to control crop pests is not sustainable, and innovations relying on ecologically-based approaches are urgently needed. Conserving functional biodiversity and related ecosystem services, especially by controlling pests using their natural enemies, offers new avenues to tackle challenges for the sustainable intensification of food production systems [3–5]. Predation of crop pests by generalist predators, including arthropods and vertebrates, is a major component of natural pest control [6]. A particularly important trait of most generalist predators is that they can colonize crops early in the season by first feeding on alternative prey [7,8]. However, the breadth of the “generalist” diet entails some drawbacks for pest control, such as intra-guild predation [6,9,10].
A tuned diagnosis of diet breadth in generalist predators, including predation of non-pest prey, is thus needed to better disentangle food webs (e.g., exploitation competition and apparent competition) and ultimately to identify key drivers of natural pest control in agroecosystems. However, the importance of generalist predators in the food web is generally difficult to assess, due to the ephemeral nature of individual predator–prey interactions [9,11]. The only conclusive evidence of predation results from direct observation of prey consumption, identification of prey residues within predators’ guts [9], and analyses of regurgitates [12] or feces [13]. Metabarcoding via high-throughput sequencing (HTS) offers new opportunities for deciphering trophic linkages between predators and their prey within food webs [14,15]. Compared to traditional, time-consuming methods, such as microscopic or serological analyses, the development of DNA metabarcoding allows the identification of prey species without prior knowledge of the predator’s prey range. In addition, metabarcoding can also be used to characterize a large number of species in a single PCR reaction, and to analyze several hundred samples simultaneously [16]. Such an approach is increasingly used to explore the functional diversity and structure of food webs in agroecosystems [15,17–20]. Like other molecular-based approaches, metabarcoding only gives qualitative results on the presence/absence of prey species in the gut or fecal samples [21]. However, this knowledge of the identity of prey consumed by predators of the same species in a given environment enables a “pragmatic and useful surrogate for truly quantitative information” [22].
In the present study, we used metabarcoding as a tool for identifying prey species from arthropods and fecal samples of insectivorous vertebrates involved in the natural regulation of insect pests in a millet-based agroecosystem in Senegal. The analysis of DNA sequences enabled us to reconstruct a trophic network in sampled millet fields, from the diagnosis of diet composition of main predatory arthropods and insectivorous vertebrates. Millet-based agroecosystems are particularly relevant for the study of complex processes of natural regulation of crop pests, because of the existence of a diverse set of natural enemy communities in these agroecosystems, including arthropod predators, parasitoids, and insectivorous vertebrates [23–28]. In addition, millet production relies on pest regulation by natural enemies, in the absence of any insecticide application by farmers. Appropriateness and limitations of the proposed molecular approach for assessing the diet of crop pest predators and reconstructing trophic networks in a given agroecosystem are discussed in the light of the results.
2. Materials and Methods
2.1. Field Sampling
Arthropod predators and fecal samples of insectivorous vertebrates were collected during the 2018 growing season in two (2 km-distant) millet fields (or in the vicinity for birds and bats) located in the “peanut basin” in Senegal (Bambey, 14◦43’0.79” N; 16◦30’5.56” O). Ground-crawling arthropod predators (i.e., ants and carabid beetles) were collected daily for a two-week period in millet fields at the panicle stage, using dry pitfall traps (12-cm diameter, 14-cm depth). In all, 20 traps separated by at least 4 m were installed in each field along four transects, to avoid interference between traps. Plant-dwelling arthropods (e.g., earwigs, bugs and spiders) were collected during the same period, with a mouth or a backpack aspirator (Bioquip Products, Compton, CA, USA). In all, 256 arthropod specimens belonging to nine species were collected (Table1). They were individually stored at −20◦
C for at least 24 h, to avoid regurgitation (the most important source of cross-contamination [12,29]), then conserved in 90% ethanol for subsequent DNA analysis. A plastic tarpaulin was placed under two neem trees, Azadirachta indica, for the village weaver bird, Ploceus cucullatus (Passeriformes, Ploceidae), and four palm trees, Borassus aethiopum, for the Mauritian tomb bat, Taphozous mauritianus (Chiroptera, Emballonuridae). Fecal samples were collected five times (26 August, 4–11–16–25 September) during the millet reproductive stage. A total of 92 samples for birds and 80 for bats were individually collected using clean cotton buds and placed in 2-mL microtubes filled with silica-gel granules to absorb moisture and prevent the development of molds and DNA degradation.

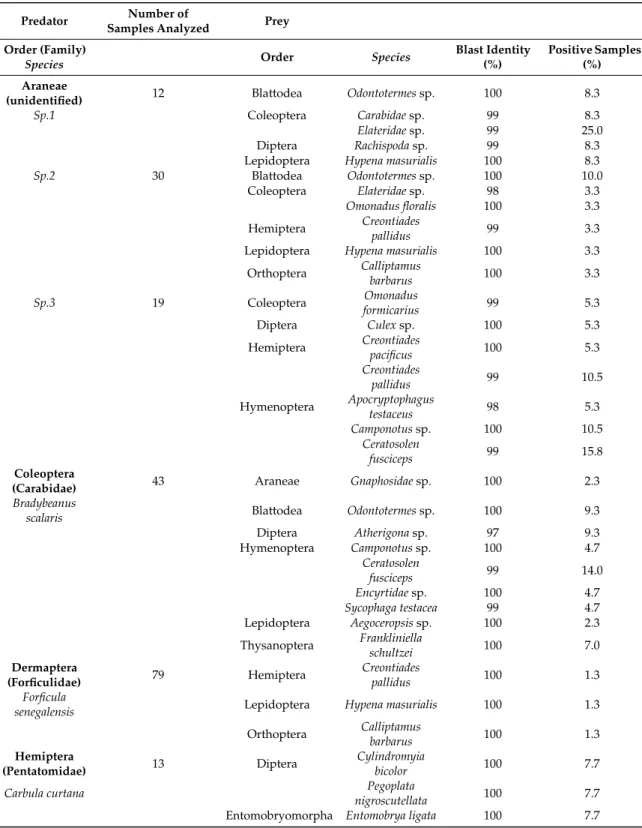

Table 1.Taxa and number of positive samples of prey species detected from nine arthropod predator taxa (n= 256) collected from millet fields in Senegal.
Predator Number of
Samples Analyzed Prey Order (Family)
Species Order Species
Blast Identity (%)
Positive Samples (%) Araneae
(unidentified) 12 Blattodea Odontotermes sp. 100 8.3
Sp.1 Coleoptera Carabidae sp. 99 8.3
Elateridae sp. 99 25.0
Diptera Rachispoda sp. 99 8.3
Lepidoptera Hypena masurialis 100 8.3
Sp.2 30 Blattodea Odontotermes sp. 100 10.0
Coleoptera Elateridae sp. 98 3.3
Omonadus floralis 100 3.3 Hemiptera Creontiades
pallidus 99 3.3
Lepidoptera Hypena masurialis 100 3.3 Orthoptera Calliptamus barbarus 100 3.3 Sp.3 19 Coleoptera Omonadus formicarius 99 5.3 Diptera Culex sp. 100 5.3 Hemiptera Creontiades pacificus 100 5.3 Creontiades pallidus 99 10.5 Hymenoptera Apocryptophagus testaceus 98 5.3 Camponotus sp. 100 10.5 Ceratosolen fusciceps 99 15.8 Coleoptera
(Carabidae) 43 Araneae Gnaphosidae sp. 100 2.3 Bradybeanus
scalaris Blattodea Odontotermes sp. 100 9.3
Diptera Atherigona sp. 97 9.3 Hymenoptera Camponotus sp. 100 4.7 Ceratosolen fusciceps 99 14.0 Encyrtidae sp. 100 4.7 Sycophaga testacea 99 4.7 Lepidoptera Aegoceropsis sp. 100 2.3 Thysanoptera Frankliniella schultzei 100 7.0 Dermaptera (Forficulidae) 79 Hemiptera Creontiades pallidus 100 1.3 Forficula
senegalensis Lepidoptera Hypena masurialis 100 1.3
Orthoptera Calliptamus barbarus 100 1.3 Hemiptera (Pentatomidae) 13 Diptera Cylindromyia bicolor 100 7.7
Carbula curtana Pegoplata
nigroscutellata 100 7.7
Table 1. Cont. Predator Number of
Samples Analyzed Prey Order (Family)
Species Order Species
Blast Identity (%) Positive Samples (%) Hemiptera (Anthocoridae) Orius maxidentex 40 Hemiptera Creontiades pacificus 100 5.0 Creontiades pallidus 99 7.5
Lepidoptera Amyna axis 100 2.5
Ephestia kuehniella 100 2.5
Hypena masurialis 100 2.5
Masalia nubila 97 2.5
Hymenoptera
(Formicidae) 15 Hemiptera Carbula sp. 97 6.7
Monomorium sp. Creontiades pallidus 99 6.7 Hymenoptera Apocryptophagus testaceus 98 6.7 Ceratosolen fusciceps 99 6.7 Cryptanusia sp. 98 13.3
Pachycondyla sp. 5 Coleoptera Bradybaenus
scalaris 100 60.0
Lepidoptera Aegoceropsis sp. 100 20.0
Prey detected from arthropod predators with a> 97% threshold of correspondence with our own reference database (Sow et al., 2018), BOLD or GenBank. All predator species were identified by specialists, except spiders (in progress).
2.2. DNA Extraction
DNA of the arthropod specimens was extracted using the EZ–10 96-well plate DNA Kit (Biobasic Inc., Toronto, Canada). Here, the whole arthropod bodies were used for DNA extraction because arthropod gut dissection is very time-consuming and increases contamination risk [29,30]. The external body parts were wiped with cotton wool previously soaked in 10% bleach before extraction. All extractions were carried out according to the manufacturer’s protocol and by non-destructive lysis, corresponding to individual incubation overnight in a mixture of 300 µL of animal cell lysis solution and 20 µL of Proteinase K at 55◦C in an oven, with stirring.
DNA of fecal samples was extracted using a NucleoSpin 96 Plant II kit (Macherey-Nagel), according to slight modifications recommended by Zarzoso-Lacoste et al. (2018) [31]. This kit provides the best compromise between throughput DNA isolation (up to 192 samples in parallel), price and sequencing success for predators and prey [14]. All fecal samples (n= 172 including 80 bird and 92 bat samples) were frozen at −80◦C and bead-beaten for 2 × 30 s at 30 Hz on a Tissue Lyser (Qiagen) using a 5-mm stainless steel bead, then extracted.
2.3. PCR and Illumina Sequencing
A 133 bp fragment of cytochrome c oxidase I (COI mini-barcode, [32]) was amplified from arthropods and fecal samples using the primers and two-step PCR protocol previously described by Galan et al. (2018) [14], then sequenced on a MiSeq Illumina platform (Illumina, San Diego, CA, USA), using two independent runs for arthropods and vertebrate fecal samples. This short mini-barcode was shown to effectively discriminate arthropod species in millet-based agroecosystems [28]. It also offered
the advantage of amplifying degraded DNA or rare DNA. In addition, Corse et al. (2019) [33] and Tournayre et al. (2019) [34] showed that primers used to amplify this mini-barcode were among the best over dozens of COI primer sets tested in silico. Several negative controls (n= 10) were included, according to recommendations made by Galan et al. (2016) [35], such as: (i) negative controls for DNA extraction (NCext), (ii) negative controls for PCR (NCpcr), (iii) negative controls for indexing
(NCindex: unused dual-index combinations), (iv) positive controls for PCR (PCpcr) and (v) positive controls for indexing (PCalien: DNA from beluga whale—Delphinapterus leucas—used to estimate the read misassignment frequency). We performed three technical replicates on each DNA extract of fecal and arthropod samples in order to control PCR stochasticity for rare DNA targets and to validate positive results [36].
A first amplification step of the short 133 bp COI fragment was carried out using two universal primers. For arthropods, primers (MG-LCO1490 50-ATTCHACDAAYCAYAARGAYATYGG-30 and MG-univ-R 50- ACTATAAAARAAAYTATDAYAAADGCRTG-30) adapted by Galan et al. (2018) [14] from the original primer sets designed by Gillet et al. (2015) [32] were used. For vertebrate feces, primers (MG2-LCO1490 50
-TCHACHAAYCAYAARGAYATYGG-30
and MG2-univ-R 50-ACYATRAARAARATYATDAYRAADGCRTG-30) adapted by Tournayre et al. (2019) [34], were used (the bases in bold indicate the modifications to improve the primers). PCR reactions were carried out in a final volume of 10 µL containing 5 µL of Multiplex Master Mix (Qiagen, Hilden, Germany), 0.5 µM of each primer and 2 µL of DNA. PCR conditions in this first step consisted of initial denaturation at 95◦C for 15 min followed by 40 cycles of denaturation at 94◦C for 30 s, hybridization at 45◦C for 45 s and extension at 72◦C for 30 s, and a final extension step at 72◦C for 10 min. A second PCR step was performed to add individual-specific multiplexing tags (called index i5 and index i7), consisting of short 8-bp sample-specific sequences and the Illumina adapters (called P5 and P7) at the 5’ ends of each amplified DNA fragment to the first PCR. As all the PCR products were mixed together (multiplexing) for MiSeq sequencing, indexes made it possible to identify the origin of sequences and reassign them to each sample (demultiplexing). This second PCR was carried out in a total volume of 10 µL containing 5 µL of Multiplex kit (Qiagen, Hilden, Germany), 0.7 µM of each primer, and 2 µL of products from the first PCR for each sample. PCR conditions consisted of an initial denaturation step at 95◦C for 15 min followed by 8 cycles of denaturation at 95◦C for 40 s, hybridization at 55◦C for 45 s and extension at 72◦C for 60 s, and a final extension step at 72◦C for 10 min.
The volume-to-volume mix of all the PCR products (4 µL per sample) was screened based on fragment length resulting from excision on 1.5% agarose gel. The pool of specific PCR products was cut to the expected size (328 bp corresponding to the size of the amplicon, including the gene-specific primers, sequencing primers, indexes and adaptors) under UV light. The resulting library was purified with the NucleoSpin Gel & PCR Clean-Up purification kit (Macherey-Nagel, Düren, Germany), quantified by quantitative PCR (KAPA kit, Kapa Biosystems, Waltham, MA, USA), then sequenced on a MiSeq sequencer with a 500v2 kit (Illumina, San Diego, CA, USA).
2.4. Sequence Analysis
Raw data from the Illumina MiSeq were deposited in the Zenodo data repository [37]. The paired-end sequencing data from the Illumina MiSeq system were processed using the method described by Sow et al. (2019) [27]. We processed the paired-end sequencing data from the Illumina MiSeq system with the FROGS pipeline [38]. We preliminarily used a home-made script available at Dryad data repository [39] to merge pair sequences into contigs with FLASH v. 1.2.11 [40], and trim primers with cutadapt v. 1.9.1 [41]. This script is particularly useful when using FROGS on data produced with primers that vary in size between reads, which is not covered by the pre-process step of FROGS. In our study, size variation in primers resulted from the addition of heterogeneity spacers in adapters during the library construction to shift the reading frame [42]. In FROGS, we then filtered sequences by length (expected value of 133b ± 10b), dereplicated sequences, removed chimeras using the algorithm of Edgar et al. (2011) [43] implemented in VSEARCH v. 1.1.3 and clustered sequences with SWARM v. 1.3.0 using a local clustering threshold using the default d-value (d= 1) [44].
Taxonomic affiliations for each OTU (Operational Taxonomic Unit) were returned using a previously constructed reference database [28]. The database consisted of 234 sequences of 658 bp of the mitochondrial cytochrome c oxidase 1 from species involved in the trophic web of the millet head
miner (MHM, key millet pest) in Senegal [28]. Sequences absent from our database were compared by NCBI Blast+ on public databases (BOLD Systems v. 3 [45], and GenBank [46]). The identification was considered as ‘valid’ from a similarity threshold of 97 to 100%. Below that threshold, the OTUs were considered unidentified. Filtering for false positives was carried out as proposed by Galan et al. (2016) [35]. In short, we discarded positive results associated with sequence counts below two OTU-specific thresholds, which checked respectively for cross-contamination between samples (using, respectively, twelve and six negative controls for the arthropod samples and vertebrate fecal samples) and incorrect assignment due to the generation of mixed clusters on the flowcell during Illumina sequencing, using a false index-pairing rate for each PCR product of 0.02%, based on estimates from Galan et al. (2016) [35] (see Table S1). For each sample, OTUs found in at least two of the three PCR replicates were considered positive, and OTUs found in only one of the three PCR replicates were removed. This strategy is the best compromise between eliminating false positives and conserving low-biomass prey [47]. Lastly, for each identified prey, the number of sequences obtained for each PCR replicate from a sample were summed.
3. Results
3.1. Sequence Analyses
We conducted Illumina MiSeq run to sequence 256 arthropod samples. In all, 4,333,970 reads were generated (mean = 16,929.57, SD = 3264.68) and, after sequence filtering, 4,274,516 reads (mean= 16,697.35; SD = 3262.51) remained. In all, 516 OTUs corresponding to environmental contaminations, chimera, pseudogenes and sequences for which no relevant match was obtained were also excluded from the analysis. Here, sequences of one pest, the millet head miner, Heliocheilus albipunctella (Lepidoptera, Noctuidae), were deleted after filtering due to critical contamination of part of the negative controls (NCext and NCpcr) for this taxon. On the 181 remaining OTUs, 91 OTUs were identified to species or genus level using our own reference database and public reference databases (Table S2). We then conducted another Illumina MiSeq run to sequence 172 vertebrate fecal samples (92 from bats, 80 from birds). In all, 2,085,699 reads were generated (mean= 11,630.30; SD= 5744.10) and, after sequence filtering, 1,957,455 reads (mean = 11,380.55; SD = 5240. 57) remained. In all, 894 unidentified OTUs and 28 OTUs corresponding to environmental contaminations, such as sequences of rodents, lizards (Gama gama), and humans, were also excluded from the analysis. Of the 522 remaining OTUs, 154 OTUs were identified to species or genus level (Table S3). The raw and filtered tables of abundance for these two sequencing runs are available in the Zenodo data repository (see link in Supplementary Materials).
3.2. Diet Composition of Predatory Arthropods
After assigning the identified OTUs as species, 27 arthropod prey taxa were identified from the nine arthropod predators (n= 256) sampled from millet fields (Table1). The diet of predatory arthropods was assessed only on 25.4% (range 4.0–58.3) of the total number of samples tested. Among positive samples, most reads belonged to predatory arthropods themselves (97.8% of the reads obtained) and their diets were described only on 2.2% (range 0.1–7.0) of total reads obtained (Figure1A). The mean number of prey taxa detected per sample was the highest in carabid beetles (1.1, range 0–4), ants (0.5, range 0–3) and spiders (0.4, range 0–2) and the lowest in the remaining predators including anthocorid bugs (0.2, range 0–2), pentatomid bugs (0.2, range 0–2), and earwigs (0.04, range 0–1) (Figure1B). Across predatory arthropods, a high diversity of arthropod preys was observed in spiders (14 species belonging to 11 families and seven orders), carabid beetles (nine species belonging to eight families and six orders), ants (seven species belonging to six families and four orders), and anthocorid bugs (six taxa belonging to five families and two orders). In contrast, the diversity of prey species identified in earwigs (three species belonging to three families and three orders) and pentatomid bugs (three species belonging to three families and two orders) was relatively low. Lepidoptera (detected on
six of nine predators tested), Hemiptera (detected on five of nine predators tested), Diptera (detected on four of nine predators tested) and Coleoptera (detected on four of nine predators tested) were the most common insect prey taxa detected from predatory arthropods (Figure2).
Insects 2020, 11, x FOR PEER REVIEW 7 of 19
Figure 1. (A) Proportion of sequences attributed to predators themselves (arthropods, bats and birds) or its preys. (B) Mean number of prey taxa detected in arthropod guts or fecal samples of insectivorous vertebrates. IC: 95% confidence interval. n: number of samples.
.
Figure 2. Diet composition of predatory arthropods inferred from DNA sequences (identified at genus or species level) detected. Occurrence of prey taxa is the cumulated number of OTUs identified.
3.3. Diet Composition of Insectivorous Vertebrates
Figure 1.(A) Proportion of sequences attributed to predators themselves (arthropods, bats and birds) or its preys. (B) Mean number of prey taxa detected in arthropod guts or fecal samples of insectivorous vertebrates. IC: 95% confidence interval. n: number of samples.
Insects 2020, 11, x FOR PEER REVIEW 7 of 19
Figure 1. (A) Proportion of sequences attributed to predators themselves (arthropods, bats and birds) or its preys. (B) Mean number of prey taxa detected in arthropod guts or fecal samples of insectivorous vertebrates. IC: 95% confidence interval. n: number of samples.
.
Figure 2. Diet composition of predatory arthropods inferred from DNA sequences (identified at genus or species level) detected. Occurrence of prey taxa is the cumulated number of OTUs identified.
3.3. Diet Composition of Insectivorous Vertebrates
Figure 2.Diet composition of predatory arthropods inferred from DNA sequences (identified at genus or species level) detected. Occurrence of prey taxa is the cumulated number of OTUs identified.
3.3. Diet Composition of Insectivorous Vertebrates
In all, 110 insect prey taxa were identified from fecal samples of insectivorous birds and bats (Table2). Diet of birds and bats was assessed on 13.8 (11 out of 80) and 93.0% (86 out of 92) of samples tested, respectively. Few reads belonged to insect prey (10.5%) in bird fecal samples, whereas most reads belonged to insect prey (61.0% of the reads obtained) in bat fecal samples (Figure1A). A lower diversity of prey species was observed in fecal samples of birds (0.4, range 0–4) compared to that of bats (5.0, range 0–16) (Figure1B).
Table 2.Taxa and number of positive samples of prey species detected in feces of two major insectivorous vertebrates collected in the surrounding environment of millet fields in Senegal.
Predator Number of
Samples Prey Order (Family)
Species Orders Family Species
Blast Identity (%)
Postive Samples (%) Chiroptera
(Emballonuridae) 92 Blattodea Macrotermes subhyalinus 100 2.17
Taphozous mauritianus Odontotermes sp. 100 2.72
Coleoptera Philonthus discoideus 98 1.09
Diptera Chrysomya marginalis 99 3.26
Hemiptera Anisops sardeus 100 2.17
Campylomma sp. 100 16.30
Creontiades pacificus 100 1.09 Creontiades pallidus 99 3.99
Hymenoptera Perilampus sp. 100 1.09
Lepidoptera Achyra coelatalis 99 38.04
Achyra nudalis 100 13.04 Acontia gratiosa 100 3.26 Acontia sp. 100 3.26 Adisura bella 100 11.41 Adoxophyes thoracica 99 3.26 Agrius convolvuli 100 3.26 Amyna axis 100 9.78 Ancylosis nubeculella 100 7.61 Anomis flava 100 3.80 Antheua simplex 99 3.26 Asota heliconia 98 1.63 Bastilla angularis 100 1.09 Brachynemata sp. 99 1.09 Cadra sp. 100 1.09 Caryocolum petrophila 99 1.09 Cerastis rubricosa 98 2.17 Chrysodeixis acuta 100 1.09 Condica capensis 100 3.26 Coniesta ignefusalis 100 1.09 Daphnis nerii 100 1.09 Deltote sp. 98 1.09 Duponchelia fovealis 100 2.17 Ebertidia haderonides 98 1.09 Ectopatria sp. 100 1.09 Ericeia inangulata 99 2.17 Franclemontia interrogans 99 1.09 Garella nilotica 100 5.43 Grammodes stolida 100 13.04 Helicoverpa armigera 99 3.26 Helicoverpa assulta 100 15.22 Heliocheilus albipunctella 100 7.61 Hippotion gracilis 100 2.17 Hyles sp. 100 3.26 Hypena holophaea 100 1.09 Hypena laceratalis 100 4.35 Hypena masurialis 100 4.35
Table 2. Cont. Predator Number of
Samples Prey Order (Family)
Species Orders Family Species
Blast Identity (%) Postive Samples (%) Isturgia disputaria 100 3.26 Isturgia pulinda 100 4.35 Lamoria imbella 100 3.26 Lepidoptera 100 1.09 Leucania commoides 100 1.09 Leucania sp. 98 1.09 Lophocrama phoennicochlora 100 1.09 Marasmia poeyalis 100 4.35 Maurilia sp. 98 1.09 Morosaphycita oculiferella 98 2.17 Mythimna sp. 100 7.61 Noctuidae 100 7.61 Ortaliella palaestinensis 97 1.09 Pasiphila derasata 100 1.09 Pericyma sp. 100 1.09 Phazaca theclata 100 2.17 Polydesma umbricola 100 1.09 Polypogon fractalis 100 1.09 Psilopleura vittata 99 1.09 Pyrausta sp. 100 1.09 Rhabdophera exarata 99 2.17 Rhesala moestalis 100 2.17 Scoliopteryginae sp 100 2.17 Scopelodes sericea 98 1.09 Scopula adelpharia 100 1.63 Sesamia calamistis 100 8.70 Sphingomorpha chlorea 100 1.09 Spodoptera cilium 100 4.35 Spodoptera exigua 100 7.61 Spodoptera littoralis 100 1.09 Spodoptera sp. 100 2.17 Spoladea recurvalis 100 10.87 Stegasta sp. 98 1.09 Sympis rufibasis 99 1.09 Tegostoma sp. 100 8.70 Theclinae 97 1.09 Thylacoptila paurosema 100 4.35 Thysanopyga cermala 99 1.09 Traminda neptunaria 100 1.09 Trichoplusia ni 100 10.87 Trigonodes hyppasia 100 3.26 Trisuloides sp. 99 1.09 Uraba lugens 98 2.17 Vanessa cardui 100 1.09 Neuroptera Chrysoperla sp 98 1.09 Mallada signatus 98 4.35 Plesiochrysa atalotis 99 1.09
Orthoptera Acheta domesticus 99 2.17
Arcotylus longipes 99 1.09 Gryllus bimaculatus 100 5.43 Gryllus campestris 98 1.09 Locusta migratoria 100 1.09 Oecanthus pellucens 99 1.09 Oedaleus decorus 99 3.73 Oedaleus sp. 98 1.09 Stenohippus maculifemur 99 1.09 Trilophidia conturbata 99 1.45
Table 2. Cont. Predator Number of
Samples Prey Order (Family)
Species Orders Family Species
Blast Identity (%)
Postive Samples (%) Passeriformes
(Ploceidae) 80 Coleoptera Elateridae 99 1.25
Ploceus cucullatus Dermaptera Forficula senegalensis 100 6.25 Diptera Bryophaenocladius sp. 100 1.25
Hemiptera Carbula sp. 98 1.25
Hymenoptera Pachycondyla sp. 100 2.5
Perilampus sp. 100 1.25
Pristomerus pallidus 100 1.25 Lepidoptera Heliocheilus albipunctella 100 2.5
Lepidoptera 98 1.25
Pelopidas mathias 100 2.5
Scoliopteryginae sp 100 1.25 Sphingomorpha chlorea 100 2.5
Spodoptera cilium 100 1.25
Prey detected in fecal samples of insectivorous vertebrates with a>97% threshold of correspondence with our own reference database [28], BOLD or Genbank.
In bird fecal samples, 13 species distributed in six orders were identified (Table2, Figure3A). Most prey species belonged to Lepidoptera (six species belonging to three families) and Hymenoptera (three species belonging to three families), but Coleoptera (one species), Dermaptera (one species), Diptera (one species) and Hemiptera (one species) were also identified. Earwigs (Forficula senegalensis) were the most frequent prey species detected from bird fecal samples (6.3% of positives samples). Among herbivorous species, most were crop pests (e.g., H. albipunctella). In bat fecal samples, most prey species were Lepidoptera (81 species belonging to 15 families), but Orthoptera (10 species belonging to two families), Hemiptera (four species belonging to two families), Neuroptera (three species belonging to one family), Blattodae (two species belonging to one family), Coleoptera (one species), Diptera (one species), and Hymenoptera (one species) were also detected (Table2, Figure3A). Among Lepidopterans, species mainly belonged to Noctuidae (32.1% of prey taxa) followed by Erebidae (22.2%), Crambidae (9.9%) and Geometridae (8.8%). Two Crambidae species belonging to the genus Achyra (A. coelatalis and A. nudalis) were the most frequently observed, with 51% of positive samples. Among phytophagous species for which host plants have been documented, 63% were crop pests. For both insectivorous vertebrates, composition of prey species differed according to sampling date (Figure3B).

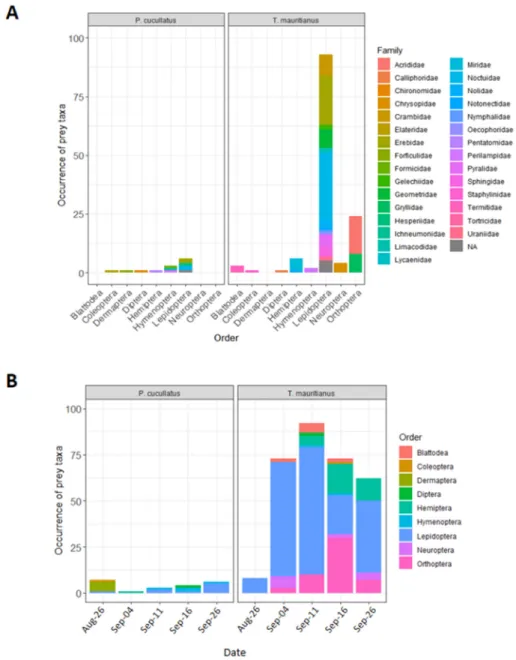

Figure 3. (A) Diet composition of insectivorous birds (Ploceus cucullatus) and bats (Taphozous
mauritianus) inferred from DNA sequences detected in fecal samples. (B) Diet composition as a
function of sampling date throughout the reproductive stage of millet. Occurrence of prey taxa is the cumulated number of OTUS identified from fecal samples.
3.4. Qualitative Trophic Network and Interactions
Qualitative trophic networks were designed based on diet composition of arthropod and vertebrate predators. Two main patterns of intraguild predation were identified: arthropod predators vs. arthropod predators, and insectivorous vertebrates vs. arthropod predators (Figure 4).
Figure 3.(A) Diet composition of insectivorous birds (Ploceus cucullatus) and bats (Taphozous mauritianus) inferred from DNA sequences detected in fecal samples. (B) Diet composition as a function of sampling date throughout the reproductive stage of millet. Occurrence of prey taxa is the cumulated number of OTUS identified from fecal samples.
3.4. Qualitative Trophic Network and Interactions
Qualitative trophic networks were designed based on diet composition of arthropod and vertebrate predators. Two main patterns of intraguild predation were identified: arthropod predators vs. arthropod predators, and insectivorous vertebrates vs. arthropod predators (Figure4).
Figure 4. (A) Qualitative trophic networks of arthropod and vertebrate predators collected from a millet-based agroecosystem in Senegal. Arrows represent biomass flow between predators and preys. (B) Intraguild interactions. Arthropod predators: 1: Araneae sp.1. 2: Araneae sp.2. 3: Araneae sp.3. 4:
Bradybeanus scalaris. 5: Camponotus sp. 6: Carabidae sp. 7: Carbula curtana. 8: Carbula sp. 9: Chrysoperla
sp. 10: Creontiades pacificus. 11. Creontiades pallidus. 12: Encyrtidae sp. 13: Forficula senegalensis. 14:
Gnaphosidae sp. 15: Mallada signatus. 16: Monomorium sp. 17. Orius maxidentex. 18: Pachycondyla sp. 19: Philonthus discoideus. 20: Plesiochrysa atalotis. Parasitoids of arthropods: 21: Cylindromyia bicolor. 22: Pegoplata nigroscutellata. 23: Perilampus sp. 24: Pristomerus pallidus. Insectivorous vertebrates: 25: Ploceus cucullatus. 26: Taphozous mauritianus.
4. Discussion
In food web ecology, “who eats whom” is a fundamental issue for gaining a better understanding of the complex trophic interactions existing between pests and their natural enemies within a given ecosystem [11,48]. Results here provided bring essential data for characterizing the functional diversity and structure of the food web associated with a couple of millet fields in Senegal. The dietary analysis of arthropod and vertebrate predators enables the identification of key predators involved in the natural control of arthropod pests and gives insights into the breadth of their diet (generalist vs. specialist) and intraguild predation.
4.1. Taxonomic Affiliation and Diet Analysis
The reliability of biological information provided by metabarcoding mostly depends on the arbitrary measures taken to limit PCR bias, which may lead to misinterpretations. In this study, non-arbitrary filters for false positive results were applied as recommended by Galan et al. (2018) [14]. A proportion of 65% of the OTUs obtained after filtering could not be identified using either conventional databases such as BOLD and Genbank or our reference database [28]. This limitation generated false negative results, as it was not possible to detect the occurrence of species not included in the reference databases, mostly because African entomofauna is still poorly documented. The trophic network obtained was thus constructed from 35% of the identified OTUs. However, some unidentified OTUs might be pseudogenes or non-target sequences that would not be referenced within an exhaustive database. The reconstitution of food webs by metabarcoding depends on the ability to identify the majority of sequences of interest, which in turn mainly depends on the
Figure 4. (A) Qualitative trophic networks of arthropod and vertebrate predators collected from a millet-based agroecosystem in Senegal. Arrows represent biomass flow between predators and preys. (B) Intraguild interactions. Arthropod predators: 1: Araneae sp.1. 2: Araneae sp.2. 3: Araneae sp.3. 4: Bradybeanus scalaris. 5: Camponotus sp. 6: Carabidae sp. 7: Carbula curtana. 8: Carbula sp. 9: Chrysoperla sp. 10: Creontiades pacificus. 11. Creontiades pallidus. 12: Encyrtidae sp. 13: Forficula senegalensis. 14: Gnaphosidae sp. 15: Mallada signatus. 16: Monomorium sp. 17. Orius maxidentex. 18: Pachycondyla sp. 19: Philonthus discoideus. 20: Plesiochrysa atalotis. Parasitoids of arthropods: 21: Cylindromyia bicolor. 22: Pegoplata nigroscutellata. 23: Perilampus sp. 24: Pristomerus pallidus. Insectivorous vertebrates: 25: Ploceus cucullatus. 26: Taphozous mauritianus.
4. Discussion
In food web ecology, “who eats whom” is a fundamental issue for gaining a better understanding of the complex trophic interactions existing between pests and their natural enemies within a given ecosystem [11,48]. Results here provided bring essential data for characterizing the functional diversity and structure of the food web associated with a couple of millet fields in Senegal. The dietary analysis of arthropod and vertebrate predators enables the identification of key predators involved in the natural control of arthropod pests and gives insights into the breadth of their diet (generalist vs. specialist) and intraguild predation.
4.1. Taxonomic Affiliation and Diet Analysis
The reliability of biological information provided by metabarcoding mostly depends on the non-arbitrary measures taken to limit PCR bias, which may lead to misinterpretations. In this study, non-arbitrary filters for false positive results were applied as recommended by Galan et al. (2018) [14]. A proportion of 65% of the OTUs obtained after filtering could not be identified using either conventional databases such as BOLD and Genbank or our reference database [28]. This limitation generated false negative results, as it was not possible to detect the occurrence of species not included in the reference databases, mostly because African entomofauna is still poorly documented. The trophic network obtained was thus constructed from 35% of the identified OTUs. However, some unidentified OTUs might be pseudogenes or non-target sequences that would not be referenced within an exhaustive database. The reconstitution of food webs by metabarcoding depends on the ability to identify the majority of sequences of interest, which in turn mainly depends on the completeness of the reference
databases and on the resolution of the minibarcode used (i.e., using several genes, see [15,47,49]). In this study, 133 bp of COI was used as a very resolutive fragment for most arthropods [28,32] and vertebrates [14].
Technical replications, which showed a high proportion of stochastic positive results, are also necessary to limit PCR bias in metabarcoding, increase the detection of low biomass taxa, and thus reduce subsequent underestimation of predation [47]. The instability with PCR replicates was mainly observed in arthropod predators. This was probably related to the presence of a large quantity of DNA of the analyzed predator itself, which decreased the detectability of prey. On the contrary, prey DNA was present in large quantities in the fecal samples of insectivorous vertebrates. These differences of DNA amplification between arthropod and vertebrate predators may also result from PCR bias due to primers [33]. These observations highlight the importance of considering enough specimens and including biological replicates. At last, it is important to note that DNA-based techniques cannot detect cannibalism, which may be substantial in some predators [50].
In this study, DNA extraction from the whole body of predatory arthropods could lead to possible contamination by the exoskeleton (i.e., DNA outside the body) of these arthropods. Nevertheless, precautions were taken to avoid potential external contamination of arthropod samples by systematically individualizing samples during field sampling and avoiding regurgitation by placing “living” samples at −20◦C before storage in alcohol [51]. Critical contamination of the sequence of the millet head miner (MHM, millet pest) during the MiSeq sequencing run on predatory arthropods is another limitation of this study. However, generalist predators of the MHM have been extensively documented [23,24,28,52]. Here, the main objective was to identify alternative prey of predatory arthropods, diet composition of insectivorous vertebrates, and extent of intra-guild predation in the studied agroecosystem.
4.2. Diet Composition of Predatory Arthropods
The “generalist” diet was confirmed for all tested predatory arthropods. However, the degree of polyphagy differed across species. More diversity of prey taxa was observed from “true predators” including spiders, carabid beetles, anthocorid bugs, and ants (except Pachycondula sp., likely due to the low number of samples). These predators preyed on a wide array of arthropod orders (27 prey taxa belonging to 18 families and 9 orders were identified). Spiders [53–55], carabid beetles [17,56–58], anthocorid bugs [59], and ants [60] are considered as effective biological control agents in several
crops. Their diet composition showed the presence of crop pests (e.g., Lepidoptera, Hemiptera, and Thysanoptera), but also non-pest arthropods (e.g., wasps, beetles). The anthocorid predatory bug, Orius maxidentex, preyed on four Lepidopteran prey taxa, including Ephestia kuehniella and Masalia nubila, which are secondary pests of pearl millet [23,61]. Carabid beetles preyed also on two important pests of sorghum and maize, namely the common blossom thrips (Frankliniella schultzei, Thripidae) and shoot flies (Atherigona sp., Muscidae). The diet composition of earwigs, F. senegalensis (Forficulidae), and pentatomid bugs, C. curtana (Pentatomidae), supported their facultative predator status. However, the beneficial status of these omnivorous insects, often secondary pests, has often been controversial [62]. Populations of earwigs mainly feed on millet pollen [52] to which they add insects (here, one Lepidopteran species and two mirid bugs) during their breeding period. Due to its high abundance in millet fields and the non-limitative quantity of pollen for millet pollination, this species should be considered as beneficial for pearl millet. This is probably also the case for C. curtana which generally feeds on millet grains but can also prey on small arthropods. Like ‘true predators’ that can persist on crops in the absence or low density of target pests by feeding on alternative prey, these omnivore arthropods (namely ‘false predators’) can persist in the absence of prey by feeding on plants, enabling them to maintain high populations before pest arrival.
4.3. Diet Composition of Insectivorous Vertebrates
The analysis of DNA from fecal samples of the Mauritian tomb bat revealed a diet mainly composed of moths (79% of total species detected), as shown by Kingdon (1974) [63], of which two
species of the genus Achyra were dominant (81 out of 103 prey taxa). The majority of Lepidopteran pests identified are among the most economically important crop pests in Senegal, including armyworms (Spodoptera spp., see [64–66]) and earworms (Helicoverpa armigera, see [67]). As expected, DNA of the main pest of pearl millet, the millet head miner, was detected (8% of positive samples). The Mauritian tomb bat contributes to the regulation of many nocturnal millet pests because, unlike arthropod predators and birds, insectivorous bats can feed on a large quantity of individuals (up to 16 prey taxa detected in a single sample), thus limiting egg-laying on millet panicles. In addition, the activity of insectivorous bats has been shown to be strongly correlated with the abundance of arthropods in agricultural systems [68]. The species is characterized by very effective hunting aptitudes, including
excellent vision, nocturnal hunting, echolocation of prey, and fast flight [69,70], which make it an excellent predator of noctuid moths. Our field observations revealed that this generalist predator was able to hunt under public lights in villages, in addition to its ability to hunt in total darkness or to perform hovering flights to catch insects on millet panicles [26]. The diet analysis of bats revealed a seasonal fluctuation of prey diversity (richness), with a particular increase at the early reproductive stage of millet (heading).
The diet of village weaver birds was also composed of a diversity of arthropods. Of the 13 arthropod species identified, Lepidopterans were the most common species (6 out of 13 prey taxa), followed by earwigs (23.3% of positive samples). This is consistent with observations made by Bruggers et al. (1985) [71], who reported that adults feed mainly on insects to which they add seeds of wild plants. Unlike Mauritian tomb bats, which are solitary and strictly insectivorous, village weavers are omnivorous and gregarious [72]. Seasonal fluctuation of prey composition was also observed in village weaver birds, with a particular shift from Dermaptera to Lepidoptera during the reproductive stage of millet. Comprehensive analysis of diet composition in time should include chicks that feed exclusively on insects [71]. Colonies of village weavers settled a few weeks in the study area for breeding, from emergence to maturity of millet panicles [26]. More research is needed to better understand the migratory flow of these insectivorous vertebrates in and beyond Senegal, and its importance in terms of ecosystem services such as pest control.
4.4. Qualitative Trophic Network and Interactions
Our approach also provided information on interactions between natural enemies, particularly asymmetric intraguild predation. Diet analyses revealed predation across generalist arthropod predators [e.g., spiders (sp.1) and ants (Pachycondula sp.) feeding on carabids (B. scalaris) and predation of carabids on spiders belonging to the family Gnaphosidae)] or between parasitoids and arthropod predators (e.g., C. curtana parasitized by Cylindromyia bicolor). Our results showed that the Mauritian tomb bat fed on three Neuropteran species, and the village weavers frequently fed on earwigs and ants. Such intra-guild predation could affect the overall abundance of natural enemies and thus biological control of phytophagous arthropods [73,74]. However, according to a meta-analysis conducted by Mooney et al. (2010) [75], this relation does not necessarily extend to insectivorous vertebrates. Authors showed that effects of insectivorous vertebrates on predatory and phytophagous arthropods were positively correlated and that, although insectivorous vertebrates fed as intraguild predators, strongly reducing arthropod predators, they nevertheless suppressed herbivores and indirectly reduced plant damage. Such effects were strongest on arthropods and plants in communities with abundant arthropod predators and strong intraguild predation.
The parasitoid, Pristomerus pallidus and the hyerparasitoid, Perilampus sp. (see [28]), were also detected in the gut content of birds. It is, however, probable that those birds fed on already parasitized Lepidoptera larvae. This illustrates the ability of metabarcoding to identify unexpected interactions between natural enemies.
5. Conclusions
Better knowledge of food webs and related ecological processes is fundamental for understanding the functional role of biodiversity in ecosystems [76]. This is particularly true in agroecosystems to promote environment-friendly models for crop protection inspired by natural pest control [77]. However, it is generally difficult to decipher the impact of predators in food webs, as they often leave no direct evidence of their activity. In this study, a metabarcoding approach enabled us to reconstruct qualitative trophic networks from field sampling of generalist predators. This approach proved effective in detecting preys in arthropods and feces of birds and bats. Key information on the diet breadth and preference of predators, trophic linkages within food web, including intra-guild predation, and potential apparent competition, were also provided. Such a qualitative approach should, however, be supplemented with quantitative assessments, such as spatio-temporal abundance or predation rates [25] to identify predators contributing to the suppression of the pest population and to validate the relevance of such an ecosystem service for sustainable pest management. There is also a need to improve our knowledge on the life system of key natural enemies (e.g., resource requirements and dispersal), so that specific conservation measures, such as habitat management, can be designed to promote their impact as part of biological control strategies.
Supplementary Materials: The following are available online athttp://www.mdpi.com/2075-4450/11/5/294/s1, Table S1: Objectives and impacts of the data filtering steps (TCC, TFA, PCR replicate) on the number of samples, OTUS, and sequences in the abundance table. Table S2: Summarized abundance tables from 256 arthropod predators after filtering; Table S3: Summarized abundance tables from 92 bat and 80 bird fecal samples after filtering. The complete raw and filtered tables of abundance for these two sequencing runs are available in the Zenodo data repository (http://doi.org/10.5281/zenodo.3752026).
Author Contributions:Conceptualization, A.S., T.B., and J.H.; methodology, A.S., L.B. and M.G.; formal analysis, A.S. and L.B.; data curation, A.S., and L.B.; writing—original draft preparation, A.S.; writing—review and editing, T.B., J.H., L.B. and M.G.; visualization, A.S.; supervision, T.B. and J.H. All authors have read and agreed to the published version of the manuscript.
Funding:This work was undertaken as part of, and funded by, the CGIAR Research Program on Grain Legumes and Dryland Cereals (Program FP3-3.3, Managing functional biodiversity and crop pests) and supported by CGIAR Fund Donors. It was also funded by CIRAD (Action incitative) and IFS grant No D/5906-1 (International Foundation for Science, Sweden).
Acknowledgments:We are grateful to the genotoul bioinformatics platform Toulouse Midi-Pyrénées, and Sigenae group for providing help and computing resources thanks to Galaxy instancehttp://sigenae-workbench.toulouse.
inra.fr. Data used in this work were partly produced through the genotyping and sequencing facilities of ISEM
(Institut des Sciences de l’Evolution, Montpellier, France) and LabEx Centre Méditerranéen Environnement Biodiversité. We wish to acknowledge Abhijin Adiga for proof-reading the text.
Conflicts of Interest:The authors declare no conflict of interest.
References
1. Maxmen, A. Crop pests: Under attack. Nature 2013, 501, S15–S17. [CrossRef] [PubMed]
2. Savary, S.; Willocquet, L.; Pethybridge, S.J.; Esker, P.; McRoberts, N.; Nelson, A. The global burden of pathogens and pests on major food crops. Nat. Ecol. Evol. 2019, 3, 430–439. [CrossRef] [PubMed]
3. Begg, G.S.; Cook, S.M.; Dye, R.; Ferrante, M.; Franck, P.; Lavigne, C.; Lövei, G.L.; Mansion-Vaquie, A.; Pell, J.K.; Petit, S.; et al. A functional overview of conservation biological control. Crop Prot. 2017, 97, 145–158.
[CrossRef]
4. Gurr, G.M.; Van Emden, H.F.; Wratten, S.D. Habitat manipulation and natural enemy efficiency: implications for the control of pests. In Conservation Biological Control; Elsevier: San Diego, CA, USA, 1998; pp. 155–183. 5. Wyckhuys, K.A.G.; Lu, Y.; Morales, H.; Vazquez, L.L.; Legaspi, J.C.; Eliopoulos, P.A.; Hernandez, L.M.
Current status and potential of conservation biological control for agriculture in the developing world. Biol. Control 2013, 65, 152–167. [CrossRef]
6. Symondson, W.O.C.; Sunderland, K.D.; Greenstone, M.H. Can Generalist Predators Be Effective Biocontrol Agents? Annu. Rev. Entomol. 2002, 47, 561–594. [CrossRef]
7. Harwood, J.D.; Obrycki, J.J. The role of alternative prey in sustaining predator populations. In Proceedings of the Second International Symposium on Biological Control of Arthropods, Davos, Switzerland, 12–16 September 2005; pp. 453–462.
8. Harwood, J.D.; Desneux, N.; Yoo, H.J.S.; Rowley, D.L.; Greenstone, M.H.; Obrycki, J.J.; O0Neil, R.J. Tracking the role of alternative prey in soybean aphid predation by Orius insidiosus: A molecular approach. Mol. Ecol. 2007, 16, 4390–4400. [CrossRef]
9. Furlong, M.J. Knowing your enemies: Integrating molecular and ecological methods to assess the impact of arthropod predators on crop pests. Insect Sci. 2015, 22, 6–19. [CrossRef]
10. Jonsson, M.; Wratten, S.D.; Landis, D.A.; Gurr, G.M. Recent advances in conservation biological control of arthropods by arthropods. Biol. Control 2008, 45, 172–175. [CrossRef]
11. Pompanon, F.; Deagle, B.E.; Symondson, W.O.C.; Brown, D.S.; Jarman, S.N.; Taberlet, P. Who is eating what: Diet assessment using next generation sequencing. Mol. Ecol. 2012, 21, 1931–1950. [CrossRef]
12. Waldner, T.; Traugott, M. DNA-based analysis of regurgitates: A noninvasive approach to examine the diet of invertebrate consumers. Mol. Ecol. Resour. 2012, 12, 669–675. [CrossRef]
13. Bohmann, K.; Monadjem, A.; Noer, C.L.; Rasmussen, M.; Zeale, M.R.K.; Clare, E.; Jones, G.; Willerslev, E.; Gilbert, M.T.P. Molecular Diet Analysis of Two African Free-Tailed Bats (Molossidae) Using High Throughput Sequencing. PLoS ONE 2011, 6, e21441. [CrossRef] [PubMed]
14. Galan, M.; Pons, J.-B.; Tournayre, O.; Pierre, É.; Leuchtmann, M.; Pontier, D.; Charbonnel, N. Metabarcoding for the parallel identification of several hundred predators and their prey: Application to bat species diet analysis. Mol. Ecol. Resour. 2018, 18, 474–489. [CrossRef] [PubMed]
15. Paula, D.P.; Linard, B.; Crampton-Platt, A.; Srivathsan, A.; Timmermans, M.J.T.N.; Sujii, E.R.; Pires, C.S.S.; Souza, L.M.; Andow, D.A.; Vogler, A.P. Uncovering Trophic Interactions in Arthropod Predators through DNA Shotgun-Sequencing of Gut Contents. PLoS ONE 2016, 11, e0161841. [CrossRef]
16. Taberlet, P.; Coissac, E.; Pompanon, F.; Brochmann, C.; Willerslev, E. Towards next-generation biodiversity assessment using DNA metabarcoding. Mol. Ecol. 2012, 21, 2045–2050. [CrossRef] [PubMed]
17. Firlej, A.; Doyon, J.; Harwood, J.D.; Brodeur, J. A Multi-Approach Study to Delineate Interactions Between Carabid Beetles and Soybean Aphids. Environ. Entomol. 2013, 42, 89–96. [CrossRef] [PubMed]
18. Kartzinel, T.R.; Chen, P.A.; Coverdale, T.C.; Erickson, D.L.; Kress, W.J.; Kuzmina, M.L.; Rubenstein, D.I.; Wang, W.; Pringle, R.M. DNA metabarcoding illuminates dietary niche partitioning by African large herbivores. Proc. Natl. Acad. Sci. USA 2015, 112, 8019–8024. [CrossRef]
19. Lopes, C.M.; De Barba, M.; Boyer, F.; Mercier, C.; da Silva Filho, P.J.S.; Heidtmann, L.M.; Galiano, D.; Kubiak, B.B.; Langone, P.; Garcias, F.M. DNA metabarcoding diet analysis for species with parapatric vs. sympatric distribution: A case study on subterranean rodents. Heredity 2015, 114, 525. [CrossRef]
20. Mollot, G.; Duyck, P.-F.; Lefeuvre, P.; Lescourret, F.; Martin, J.-F.; Piry, S.; Canard, E.; Tixier, P. Cover Cropping Alters the Diet of Arthropods in a Banana Plantation: A Metabarcoding Approach. PLoS ONE 2014, 9, 1–9.
[CrossRef]
21. Greenstone, M.H.; Payton, M.E.; Weber, D.C.; Simmons, A.M. The detectability half-life in arthropod predator–prey research: What it is, why we need it, how to measure it, and how to use it. Mol. Ecol. 2014, 23, 3799–3813. [CrossRef]
22. Symondson, W.O.; Harwood, J.D. Special issue on molecular detection of trophic interactions: Unpicking the tangled bank. Mol. Ecol. 2014, 23, 3601–3604. [CrossRef]
23. Bhatnagar, V.S. Conservation and encouragement of natural enemies of insect pests in dryland subsistence farming: Problems, progress and prospects in the Sahelian zone. Int. J. Trop. Insect Sci. 1987, 8, 791–795.
[CrossRef]
24. Gahukar, R.T. Insect pests of earl millet in West Africa. Trop. Pest Manag. 1984, 30, 142–147. [CrossRef] 25. Soti, V.; Thiaw, I.; Debaly, Z.M.; Sow, A.; Diaw, M.; Fofana, S.; Diakhate, M.; Thiaw, C.; Brévault, T. Effect of
landscape diversity and crop management on the control of the millet head miner, Heliocheilus albipunctella (Lepidoptera: Noctuidae) by natural enemies. Biol. Control 2019, 129, 115–122. [CrossRef]
26. Sow, A.; Seye, D.; Faye, E.; Benoit, L.; Galan, M.; Haran, J.; Brévault, T. Birds and bats contribute to natural regulation of the millet head miner in tree-crop agroforestry systems. Crop Prot. 2020, 105127. [CrossRef] 27. Sow, A.; Brévault, T.; Benoit, L.; Chapuis, M.-P.; Galan, M.; Coeur D’acier, A.; Delvare, G.; Sembène, M.;
Haran, J. Deciphering host-parasitoid interactions and parasitism rates of crop pests using DNA metabarcoding. Sci. Rep. 2019, 9, 1–12. [CrossRef] [PubMed]
28. Sow, A.; Brévault, T.; Delvare, G.; Haran, J.; Benoit, L.; Coeur d’Acier, A.; Galan, M.; Thiaw, C.; Soti, V.; Sembène, M. DNA sequencing to help identify crop pests and their natural enemies in agro–ecosystems: The case of the millet head miner Heliocheilus albipunctella (Lepidoptera: Noctuidae) in sub-Saharan Africa. Biol. Control 2018, 121, 199–207. [CrossRef]
29. King, R.A.; Read, D.S.; Traugott, M.; Symondson, W.O.C. INVITED REVIEW: Molecular analysis of predation: A review of best practice for DNA-based approaches. Mol. Ecol. 2008, 17, 947–963. [CrossRef]
30. Pons, J. DNA-based identification of preys from non-destructive, total DNA extractions of predators using arthropod universal primers. Mol. Ecol. Notes 2006, 6, 623–626. [CrossRef]
31. Zarzoso-Lacoste, D.; Jan, P.-L.; Lehnen, L.; Girard, T.; Besnard, A.-L.; Puechmaille, S.J.; Petit, E.J. Combining noninvasive genetics and a new mammalian sex-linked marker provides new tools to investigate population size, structure and individual behaviour: An application to bats. Mol. Ecol. Resour. 2018, 18, 217–228.
[CrossRef]
32. Gillet, F.; Tiouchichine, M.-L.; Galan, M.; Blanc, F.; Némoz, M.; Aulagnier, S.; Michaux, J.R. A new method to identify the endangered Pyrenean desman (Galemys pyrenaicus) and to study its diet, using next generation sequencing from faeces. Mamm. Biol. Z. Für Säugetierkd. 2015, 80, 505–509. [CrossRef]
33. Corse, E.; Tougard, C.; Archambaud-Suard, G.; Agnèse, J.-F.; Messu Mandeng, F.D.; Bilong Bilong, C.F.; Duneau, D.; Zinger, L.; Chappaz, R.; Xu, C.C. One-locus-several-primers: A strategy to improve the taxonomic and haplotypic coverage in diet metabarcoding studies. Ecol. Evol. 2019, 9, 4603–4620. [CrossRef] 34. Tournayre, O.; Leuchtmann, M.; Filippi-Codaccioni, O.; Trillat, M.; Piry, S.; Pontier, D.; Charbonnel, N.; Galan, M. In silico and empirical evaluation of twelve COI & 16S metabarcoding primer sets for insectivorous diet analyses. bioRxiv 2019, 742874. [CrossRef]
35. Galan, M.; Razzauti, M.; Bard, E.; Bernard, M.; Brouat, C.; Charbonnel, N.; Dehne-Garcia, A.; Loiseau, A.; Tatard, C.; Tamisier, L.; et al. 16S rRNA Amplicon Sequencing for Epidemiological Surveys of Bacteria in Wildlife. mSystems 2016, 1, e00032-16. [CrossRef]
36. Robasky, K.; Lewis, N.E.; Church, G.M. The role of replicates for error mitigation in next-generation sequencing. Nat. Rev. Genet. 2014, 15, 56–62. [CrossRef]
37. Sow, A.; Haran, J.; Benoit, L.; Galan, M.; Brévault, T. DNA Metabarcoding as a Tool for Disentangling Food Webs in Agroecosystems. Available online: https://zenodo.org/record/3752026#.XrZMDJl5tPY (accessed on 14 April 2020).
38. Escudié, F.; Auer, L.; Bernard, M.; Mariadassou, M.; Cauquil, L.; Vidal, K.; Maman, S.; Hernandez-Raquet, G.; Combes, S.; Pascal, G. FROGS: Find, Rapidly, OTUs with Galaxy Solution. Bioinformatics 2017, 34, 1287–1294.
[CrossRef] [PubMed]
39. Sow, A.; Brévault, T.; Benoit, L.; Chapuis, M.-P.; Galan, M.; Coeur D’Acier, A.; Delvare, G.; Sembène, M.; Haran, J. Data from: Deciphering host-parasitoid interactions and parasitism rates of crop pests using DNA metabarcoding. Dryad Dataset 2019. [CrossRef]
40. Magoˇc, T.; Salzberg, S.L. FLASH: Fast length adjustment of short reads to improve genome assemblies. Bioinforma. Oxf. Engl. 2011, 27, 2957–2963. [CrossRef]
41. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet.journal 2011, 17, 10–12. [CrossRef]
42. Fadrosh, D.W.; Ma, B.; Gajer, P.; Sengamalay, N.; Ott, S.; Brotman, R.M.; Ravel, J. An improved dual-indexing approach for multiplexed 16S rRNA gene sequencing on the Illumina MiSeq platform. Microbiome 2014, 2, 6.
[CrossRef] [PubMed]
43. Edgar, R.C.; Haas, B.J.; Clemente, J.C.; Quince, C.; Knight, R. UCHIME improves sensitivity and speed of chimera detection. Bioinforma. Oxf. Engl. 2011, 27, 2194–2200. [CrossRef]
44. Mahé, F.; Rognes, T.; Quince, C.; de Vargas, C.; Dunthorn, M. Swarm: Robust and fast clustering method for amplicon-based studies. PeerJ 2014, 2, e593. [CrossRef] [PubMed]
45. Ratnasingham, S.; Hebert, P.D. BOLD: The Barcode of Life Data System (www.barcodinglife.org). Mol. Ecol. Notes 2007, 7, 355–364. [CrossRef] [PubMed]
46. Clark, K.; Karsch-Mizrachi, I.; Lipman, D.J.; Ostell, J.; Sayers, E.W. GenBank. Nucleic Acids Res. 2016, 44, D67–D72. [CrossRef] [PubMed]
47. Alberdi, A.; Aizpurua, O.; Gilbert, M.T.P.; Bohmann, K. Scrutinizing key steps for reliable metabarcoding of environmental samples. Methods Ecol. Evol. 2017, 9, 134–147. [CrossRef]
48. Valentini, A.; Pompanon, F.; Taberlet, P. DNA barcoding for ecologists. Trends Ecol. Evol. 2009, 24, 110–117.
[CrossRef]
49. Corse, E.; Meglécz, E.; Archambaud, G.; Ardisson, M.; Martin, J.-F.; Tougard, C.; Chappaz, R.; Dubut, V. A from-benchtop-to-desktop workflow for validating HTS data and for taxonomic identification in diet metabarcoding studies. Mol. Ecol. Resour. 2017, 17, e146–e159. [CrossRef]
50. Gagnon, A.-È.; Doyon, J.; Heimpel, G.E.; Brodeur, J. Prey DNA detection success following digestion by intraguild predators: Influence of prey and predator species. Mol. Ecol. Resour. 2011, 11, 1022–1032.
[CrossRef]
51. Greenstone, M.H.; Weber, D.C.; Coudron, T.A.; Payton, M.E.; Hu, J.S. Removing external DNA contamination from arthropod predators destined for molecular gut-content analysis. Mol. Ecol. Resour. 2012, 12, 464–469.
[CrossRef]
52. Boukary, I.B.; Tourneur, J.-C.; Gingras, J. Life cycle of Forficula Senegalensis Serv. (Dermaptera: Forficulidae) and its relationship to the development of bulrush millet in the Sudanese-Sahelian zone of Niger. Can. Entomol. 1996, 128, 831–838. [CrossRef]
53. Cotes, B.; González, M.; Benítez, E.; De Mas, E.; Clemente-Orta, G.; Campos, M.; Rodríguez, E. Spider communities and biological control in native habitats surrounding greenhouses. Insects 2018, 9, 33. [CrossRef] 54. Pfannenstiel, R.S. Spider predators of lepidopteran eggs in south Texas field crops. Biol. Control 2008, 46,
202–208. [CrossRef]
55. Quan, X.; Wu, L.; Zhou, Q.; Yun, Y.; Peng, Y.; Chen, J. Identification of predation by spiders on the diamondback moth Plutella xylostella. Bull. Insectology 2011, 64, 223–227.
56. Hanson, H.I.; Palmu, E.; Birkhofer, K.; Smith, H.G.; Hedlund, K. Agricultural Land Use Determines the Trait Composition of Ground Beetle Communities. PLoS ONE 2016, 11, e0146329. [CrossRef] [PubMed]
57. King, R.A.; Vaughan, I.P.; Bell, J.R.; Bohan, D.A.; Symondson, W.O.C. Prey choice by carabid beetles feeding on an earthworm community analysed using species- and lineage-specific PCR primers. Mol. Ecol. 2010, 19, 1721–1732. [CrossRef] [PubMed]
58. Kromp, B. Carabid beetles in sustainable agriculture: A review on pest control efficacy, cultivation impacts and enhancement. Agric. Ecosyst. Environ. 1999, 74, 187–228. [CrossRef]
59. Hernandez, L.M.; Stonedahl, G.M. A review of the economically important species of the genus Orius (Heteroptera: Anthocoridae) in East Africa. J. Nat. Hist. 1999, 33, 543–568. [CrossRef]
60. Philpott, S.M.; Armbrecht, I. Biodiversity in tropical agroforests and the ecological role of ants and ant diversity in predatory function. Ecol. Entomol. 2006, 31, 369–377. [CrossRef]
61. Vercambre, B. Raghuva spp. et Masalia sp., chenilles des chandelles du mil en zone sahelienne. Agron. Trop. 1978, 33, 62–79.
62. Maselou, D.A.; Perdikis, D.C.; Sabelis, M.W.; Fantinou, A.A. Use of plant resources by an omnivorous predator and the consequences for effective predation. Biol. Control 2014, 79, 92–100. [CrossRef]
63. Kingdon, J. East African Mammals: An Atlas of Evolution in Africa; Academic Press: Chicago, IL, USA, 1974. 64. Brévault, T.; Ndiaye, A.; Badiane, D.; Bal, A.B.; Sembène, M.; Silvie, P.; Haran, J. First records of the fall
armyworm, Spodoptera frugiperda (Lepidoptera: Noctuidae), in Senegal. Entomol. Gen. 2018, 37, 129–142.
[CrossRef]
65. Durocher-Granger, L.; Rwomushana, I.; Cole, S.; Babendreier, D.; Huesing, J.E.; Jepson, P.C.; Eddy, R.; Prasanna, B.M. Fall armyworm (FAW) on sorghum in Senegal. In Pest management decision guides; CABI: Wallingford, UK, 2018.
66. Durocher-Granger, L.; Babendreier, D.; Huesing, J.E.; Jepson, P.C.; Eddy, R.; Prasanna, B.M. Fall armyworm (FAW) on maize in Senegal. In Pest management Decision Guides; CABI: Wallingford, UK, 2018.
67. Diatte, M.; Brevault, T.; Sylla, S.; Tendeng, E.; Sall-Sy, D.; Diarra, K. Arthropod pest complex and associated damage in field-grown tomato in Senegal. Int. J. Trop. Insect Sci. 2018, 38, 243–253. [CrossRef]
68. Kunz, T.H.; de Torrez, E.B.; Bauer, D.; Lobova, T.; Fleming, T.H. Ecosystem services provided by bats. Ann. N. Y. Acad. Sci. 2011, 1223, 1–38. [CrossRef]
69. Dengis, C.A. Taphozous mauritianus. Mamm. Species 1996, 1–5. [CrossRef]
70. Fenton, M.B. The foraging behaviour and ecology of animal-eating bats. Can. J. Zool. 1990, 68, 411–422.
71. Bruggers, R.L.; Jaeger, M.E.; Jaeger, M.M. Tisserins gendarmes (Ploceus cucullatus abyssinicus) et tisserins masqués (Ploceus intermedius intermedius) munis d’émetteurs radio et de rubans dans une colonie de nidification du Sud de l’Ethopie. Oiseaux Rev. Fr. Ornithol. 1985, 55, 81–92.
72. Collias, N.E.; Collias, E.C. The behaviour of the West African Village Weaver Bird. Ibis 1970, 112, 457–480.
[CrossRef]
73. Finke, D.L.; Denno, R.F. Predator diversity and the functioning of ecosystems: The role of intraguild predation in dampening trophic cascades. Ecol. Lett. 2005, 8, 1299–1306. [CrossRef]
74. Finke, D.L.; Denno, R.F. Intraguild Predation Diminished in Complex-Structured Vegetation: Implications for Prey Suppression. Ecology 2002, 83, 643–652. [CrossRef]
75. Mooney, K.A.; Gruner, D.S.; Barber, N.A.; Bael, S.A.V.; Philpott, S.M.; Greenberg, R. Interactions among predators and the cascading effects of vertebrate insectivores on arthropod communities and plants. Proc. Natl. Acad. Sci. USA 2010, 107, 7335–7340. [CrossRef]
76. Duffy, J.E.; Cardinale, B.J.; France, K.E.; McIntyre, P.B.; Thébault, E.; Loreau, M. The functional role of biodiversity in ecosystems: Incorporating trophic complexity. Ecol. Lett. 2007, 10, 522–538. [CrossRef] 77. Brévault, T.; Clouvel, P. Pest management: Reconciling farming practices and natural regulations. Crop Prot.
2019, 115, 1–6. [CrossRef]
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
