REVERSE ENGINEERING FOR INDUSTRIAL-ENVIRONMENT CAD MODELS

Tecgraf – PUC-Rio rtoledo@tecgraf.puc-rio.br

Bruno L ´evy

ALICE - LORIA - INRIA levy@inria.fr

Jean-Claude Paul

Institute of Computer Aided Design - Tsinghua University Paul@tsinghua.edu.cn

ABSTRACT

Industrial-environment CAD models are commonly represented by triangular meshes, which do not pre-serve original information about implicit surfaces used during design. The reverse-engineering algo-rithms presented in this paper focus on reconstruct-ing implicit information, recoverreconstruct-ing original data. We propose two different approaches, a numerical one and an original topological approach. We ex-plore specificities found in CAD meshes to achieve high effectiveness, reconstructing 90% of informa-tion from massive models (with millions of triangles) after few minutes of processing.

KEYWORDS

reverse engineering, CAD models, shape retrieval, surface recovery, model reconstruction, topological algorithms

1. INTRODUCTION

Modeling and simulation of complex industrial vironments are difficult tasks for designers and en-gineers. There are several different domains in this context: oil industries (platforms and refineries), transport industries (airplanes and ships), industrial plant architecture, and so forth. Even though they involve similar kinds of tasks, each domain is quite different, and as a consequence there is a multitude of software applications.

Industrial-environment models are mainly composed of multiple sequences of pipes, cable trays and other technical networks, which are basically combina-tions of simple primitives (e.g., cylinders, cones and torus slices). Each application has its own

inter-nal data format and different ways to manipulate the primitives. For instance, even a simple cylinder can be stored in different ways: as two points and a ra-dius, as a circle extrusion, as a segment revolution or even as a tessellated approximation. The most com-mon way to export data is through a triangular mesh (actually, the only one found in all software). One of the reasons for using triangles as data format is rendering, since current graphics cards are optimized for triangle rendering (which has been the case for the last ten years).

However, representing simple primitives by tessel-lated approximations is clearly not the best solution for many reasons:

• Even using a very high resolution, tessellation is always an approximation. Losing the original in-formation about the primitives may result in inac-curate simulation and coarse reconstruction. For example, during visualization, there will always be a detailed zoom at which one can see a faceted silhouette instead of a smooth one.

• It causes much higher memory consumption: while simple cylinder can be stored with 7 floating-point numbers (i.e., the 3D coordinates of two points and the radius) when it is tessel-lated with 8 vertices in both extremities it takes up about 400 bytes (to store topological informa-tion, vertex position and normal).

• Another issue is an ambiguity problem; for exam-ple, an 8-sided cylinder could be a representation of a circular cylinder or a pipe with really 8 faces. Tessellation presents a clear tradeoff between qual-ity and simplicqual-ity. The more qualqual-ity is demanded, the larger number of triangles required for the

rep-resentation. However, an excessive number of trian-gles should be avoided for multiple reasons: mem-ory consumption for storage, CPU/GPU transference overloading and performance downgrading for visu-alization.

On the other hand, if we have the original informa-tion on the primitives, we can generate the discretiza-tion only when necessary. Moreover, it is possible to control the discretization level, which is useful for visualization and numerical simulations (e.g., stress analysis).

In this paper we present an algorithm to retrieve higher-order geometric primitives from a tessellated database by means of a reverse-engineering method. We start by showing that classical numerical meth-ods are not well suited for this kind of data (Section 3), even after some improvement (Section 3.2), and then we propose a novel topological method (Sec-tion 4). Our implementa(Sec-tion is highly efficient, re-covering 90% of original polygons in some massive industrial models after a few minutes of automatic processing (see results in Section 5).

2. RELATED WORK AND CONTEXT

Several applications make use of Implicit Surface Re-covery: surface reconstruction, geometry enhance-ment, reverse engineering, model-based recognition and geometry simplification. For this reason, implicit surface recovery has been the subject of multiple re-search work in the last years (Petitjean, 2002; Werghi et al., 1999; Y.Y. et al., 1996; Lukacs et al., 1997; Wu & Kobbelt, 2005; Ohtake et al., 2003; Ohtake et al., 2005). Typically, the input consists of a dense 3D point set obtained after a three-dimensional scanning of an object. However, some methods consider poly-gon meshes as input information, which is our case. In our application, we are only concerned with manu-factured objects for our reverse-engineering process. Usually, objects composed by mechanical pieces can be well described by patches of planes, cones, spheres, cylinders and toroidal surfaces (Thompson et al., 1999). According to Nourse et al. (Nourse et al., 1980) and Requicha et al. (Requicha & Voel-cker, 1982), 95% of industrial objects can be de-scribed by these implicit patches (or 85% if toroidal patches are not allowed). Thus, our recovery algo-rithm focuses on finding the equations of the original implicit surfaces used to describe the object.

Petitjean (Petitjean, 2002) lists the four main tasks usually found in recovery algorithms:

estimation: computes the local surface geometry using differential parameters such as normal and cur-vature;

segmentation: responsible for dividing the origi-nal data into subsets, each one probably forming a unique geometric primitive;

classification: this step decides in which surface type a subset should be included (cylinder, torus, cone or some other); and

reconstruction: finds the surface parameters to cor-rectly fit the input data.

The estimation step can be seen as a preprocessing stage for segmentation and classification. In this step, local properties are computed for the whole original data set. Using topological information from the in-put data, different methods are capable of comin-puting these properties. In general, the properties we are in-terested in are: normal (n), principal curvature direc-tions (e1, e2) and principal curvature values (k1, k2).

Based on differential geometry principles (do Carmo, 1976), the estimation methods vary significantly, and there is no consensus on the most appropriate way to approximate geometric local properties (Petitjean, 2002).

Segmentationand classification steps are closely re-lated. In an ideal case, the classification step would clearly benefit from a correct segmentation output. In this case, when trying to find which surface best represents the segment, the algorithm would not suf-fer from disturbing neighboring data. But, unfortu-nately, both tasks are rarely executed in a perfect se-quence. In general, they are executed simultaneously rather than sequentially.

The segmentation step is commonly executed us-ing region-based approaches. There are different region-based strategies found in the literature: re-gion growing(Lukacs et al., 1997), split-and-merge (Parvin & Medioni, 1986) and region clustering (Wu & Kobbelt, 2005). In some of these strategies, seg-mentation is done in combination with the classifica-tion step (Werghi et al., 1999).

Classificationis the last difficult task in recovery al-gorithms, since reconstruction is almost a straight-forward procedure, provided all the previous steps were well executed.

In this paper, we introduce two recovery strategies used in our application. The first one, described in

Section 3, is more similar to conventional surface-recovery approaches. The second one, in Section 4, is more industrial-CAD data driven, and is deeply based on specificities found in our input data. In order to understand the characteristics present in industrial-environment data, we enumerate the de-tails and important points of this data type.

2.1. Industrial-Environment CAD Models

Ideally, the tessellated representation should never be the only option to access industrial data sets. In practice, however, this is not the case, and triangle meshes are frequently the only data representation available. One reason is that triangle meshes are currently the lingua franca in computer visualization and mesh representation. The multitude of software in the numerous CAD areas also contributes to the lack of another common representation or data type. Reverse engineering typically uses scanned data as input. In this kind of data, there is a dense set of points laid down on objects surfaces. However, the data we are dealing with presents a different situ-ation, since they were generated without any scan-ning or capturing step. Although both types of data are composed by point sets (and additional topology information), we can list some different characteris-tics found in industrial tessellated software-generated data (or CAD data):

1. CAD data have sparser samples in the point set when compared to scanned data. For example, a cylinder patch can contain only 12 vertices in its bor-der.

2. The vertices are regularly distributed in tessel-lated CAD data. For instance, in most cases, the ver-tices of a tubular structure will be located on a set of circles (or rings), like a backbone and vertebrae. This regularity can also be observed in the topology; for example, in a cylinder, edges are aligned with the axis.

3. Besides regularity, the vertices also have a precise location. This means, for example, that if a set of ver-tices is expected to be lying on the same plane, then this will be the case, except for a very small thresh-old.

4. There is a partial segmentation, with some ob-jects separated from one another. For instance, two different pipelines are separated objects in the data,

although each one is still composed by different patches (cylinders, cones and tori) that were not yet split.

This last characteristic is a significant advantage of our data set. However, characteristic (1) is a draw-back that disturbs traditional recovery algorithms. In Section 3 we explain a numerical approach for sur-face recovery that tries to overcome this problem. On the other hand, characteristics (2) and (3) are an advantage that we have explored in our topological methoddescribed in Section 4.

3. NUMERICAL METHOD

In this section we approach the classification step, which is the third step in conventional recovery algo-rithms (estimation, segmentation, classification and reconstruction). In Subsection 3.2 we focus on how to overcome the sparse characteristic of CAD indus-trial data that disturbs conventional classification. Let us consider that the normal ~ni of each vertex vi

was already computed in the estimation step and that the segmentation step was already successfully exe-cuted. Now we have a set of surface meshes, each one corresponding to a higher-order geometric prim-itive. In the classification step we want to verify which of these meshes correspond to quadric sur-faces. As explained in (Werghi et al., 1999) we can execute a least square fitting to find out the coeffi-cients that determine the quadric equation.

Although some authors suggest a specific search for each quadric surface (Fitzgibbon et al., 1997; Petit-jean, 2002), we adopted the strategy of starting by fitting the 10 coefficients (9 in practice) of generic quadrics and then classifying each surface as one of the expected types (cylinder, cone, sphere, etc.). Our quadric recovery procedure follows the se-quence:

Step I quadric fitting (by least-square fitting) Step II quadric classification (by evaluating the quadric coefficients)

Step III reconstruction (by extracting main direc-tions and by projecting input vertices)

3.1. Quadric Fitting (Step I)

We want to find the quadric surface that best fits the input point-set already segmented. In standard

quadric fitting, the adequacy is measured by evaluat-ing the minimum distance between the point set and the quadric. The goal is to find the quadric surface Q parameterized by 10 coefficients (see Equation 2) that best describes the point set. For a point set with n 3D points pi = (xi, yi, zi), we want the solution of

the following system of linear equations:

f (xi, yi, zi) = 0, 0 > i ≥ n (1)

f (x, y, z) = Ax2+ 2Bxy + 2Cxz + 2Dx + (2) Ey2+ 2F yz + 2Gy +

Hz2+ 2Iz + J = 0 or using 4 × 4 symmetric matrix Q:     x y z 1     T     A B C D B E F G C F H I D G I J     Q     x y z 1     = 0 (3)

For dense point clouds, n is much larger than the number of degrees of freedom (9 for quadrics) and the above system is overdetermined. The system is solved by using least-squares fitting to globally min-imize the distance between the points and the surface. We can write the system above (Equations 1 and 2) in matrix form (Ax = b):

             x12 x22 · · · xn2 2x1y1 2x2y2 · · · 2xnyn 2x1z1 2x2z2 · · · 2xnzn 2x1 2x2 · · · 2xn y12 y22 · · · yn2 2y1z1 2y2z2 · · · 2ynzn 2y1 2y2 · · · 2yn z12 z22 · · · zn2 2z1 2z2 · · · 2zn              T             A B C D E F G H I              =     1 1 .. . 1    

We want to minimize the residual error r = Ax − b, so we solve x for the least-squares equation AT_{Ax = A}T_{b. This can be done using the}

Cholesky factorization. (Note that the 10th quadric coefficient (J ) is actually a constant so setting the right hand to 1 is equivalent to fixing J = −1.) Unfortunately, in our application the point cloud is not dense. For example, a cylinder candidate

seg-?

Figure 1 Top: The 16 vertices (in red) of a cylinder in a CAD model are used for fitting a quadric in the reverse-engineering process. That is not much information, and may result in ambigu-ity. For example, the vertices can be fitted by a cylinder (bottom left) or by a cone (bottom right).

ment can have about 12 vertices with multiple align-ments, yielding an underdetermined system of equa-tions with many possible soluequa-tions. For instance, ei-ther a cylinder or a cone can fit the vertices of a typi-cal CAD cylinder (see Figure 1). Therefore, we need more equations to provide our system with more in-dependent information.

3.2. Improving Numerical Fitting

In order to feed the linear system in Equation 1 with additional information, we have used the vertices normal vector. To do so, we have added extra equa-tions to fit the quadric surface normal to the normal

~

ni of each vertex. Thus, for each vertex, three new

equations (corresponding to x, y and z components of the normal) were inserted in the system respecting the rule: ~ n =  df dx, df dy, df dz  (4) df dx = 2Ax + 2By + 2Cz + 2D = ~ni.x df dy = 2Bx + 2Ey + 2F z + 2G = ~ni.y df dz = 2Cx + 2F y + 2Hz + 2I = ~ni.z

With this improvement, the number of equations is 4n instead of n and we can converge to a single best solution (in least-squares sense). Figure 2 shows the final system of equations. Once again, we want to minimize the residual error of this new system of equations. This is done by solving ATAx =

                      x12 2x1y1 2x1z1 2x1 y12 2y1z1 2y1 z12 2z1 2x1 2y1 2z1 2 0 0 0 0 0 0 2x1 0 0 2y1 2z1 2 0 0 0 0 2x1 0 0 2y1 0 2z1 2 x22 2x2y2 2x2z2 2x2 y22 2y2z2 2y2 z22 2z2 2x2 2y2 2z2 2 0 0 0 0 0 0 2x2 0 0 2y2 2z2 2 0 0 0 0 2x2 0 0 2y2 0 2z2 2 .. . ... ... ... ... ... ... ... ... xn2 2xnyn 2xnzn 2xn yn2 2ynzn 2yn zn2 2zn 2xn 2yn 2zn 2 0 0 0 0 0 0 2xn 0 0 2yn 2zn 2 0 0 0 0 2xn 0 0 2yn 0 2zn 2                       4n×9              A B C D E F G H I              9 =                       1 ~ n1.x ~ n1.y ~ n1.z 1 ~ n2.x ~ n2.y ~ n2.z .. . 1 ~ nn.x ~ nn.y ~ nn.z                       4n

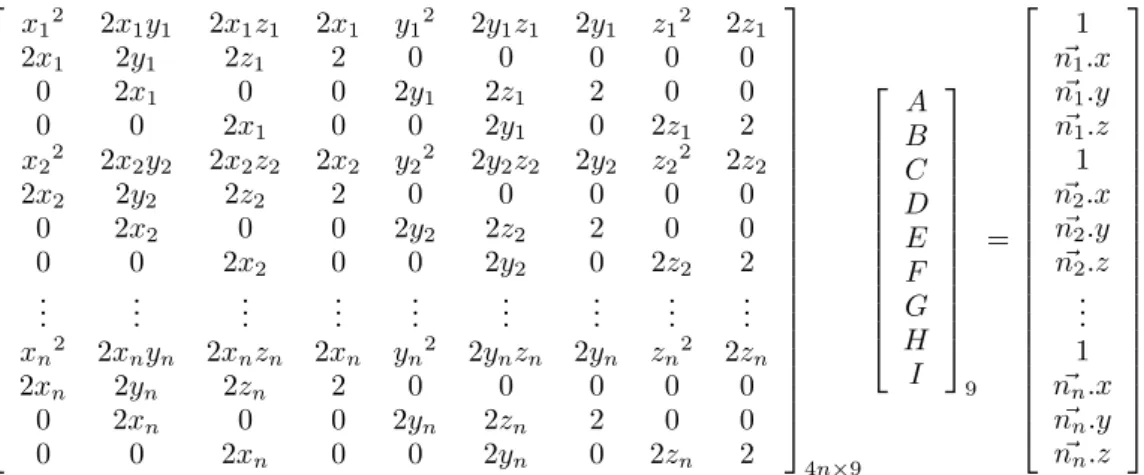

Figure 2 Improving numerical fitting. For each vertex, three new equations corresponding to normal components were inserted in the system of equations.

AT_{b with the Cholesky factorization.}

3.3. Classification (Step II)

Based on the quadric coefficients [A, · · · , J ] com-puted in the previous step, we can find out what kind of quadric surface these coefficients determine. In our case, we are searching for simple surfaces such as cylinders, cones and spheres. Our classification is partially based on the quadric geometric invariants (Y.Y. et al., 1996). For this purpose, we need to eval-uate the upper-left three-by-three matrix R extracted from the quadric matrix Q:

R =

" _{A B C}

B E F

C F H

#

, whereRi,j = Qi,j (1<i,j≤3)

The eigenvalues and the determinant of R are fun-damental for quadric classification. The eigenvectors will be also explored in the next step, reconstruction.

3.4. Reconstruction (Step III)

The input of this step is a mesh representing a surface segment already detected as one of the quadrics we are interested in. The expected output are the exact parameters that can be used to reconstruct this sur-face segment.

Let us take the cylinder as an example. We are inter-ested in a higher-level representation of the cylinder consisting of the two extreme 3D points P1 and P2

and the cylinder radius r.

First of all, using the eigenvalues and eigenvectors it is possible to find the cylinder’s main direction ~v.

As-suming that the quadric coefficients describe a cylin-der, the matrix R3×3contains two identical

eigenval-ues and one null eigenvalue. The eigenvector associ-ated with the null eigenvalue indicates the cylinder’s main direction.

After obtaining cylinder direction, it is necessary to compute at least one point lying on the cylin-der’s main axis to completely describe it. To find this point we solve a very simple system of equations. Given the implicit function c(P ) = [PxPyPz1]Q[PxPyPz1]T, in which the zero-set

de-fines a cylinder, the derivative of the function is null if and only if P is a point on the cylinder’s main axis:

c0(P ) = [0, 0, 0], if and only if P ∈ cylinder axis.

So we can set the following system of equations:

dc dx = 0, dc dy = 0, dc dz = 0

Any point P0 satisfying the above system is on the

cylinder’s main axis.

So, up to this point, we have obtained P0and ~v

defin-ing the cylinder’s axis. But we still need to find out the extreme points P1and P2 and the radius r.

By projecting all the vertices vi of the original mesh

on the main axis parametrically defined by P0+ t~v,

P1 = P0+ N min i=1(~v · (vi− P0)) P2 = P0+ N max i=1(~v · (vi− P0))

and the radius r can be computed by:

r = N X i=0 k (~v × (vi− P0)) k N k ~v k .

Sections 5.1 and 5.2 show some results obtained with this numerical method.

3.5. Normal dependency

The use of normal equations has improved the re-sults for recovering quadrics from CAD meshes. We have tested this algorithm with segmented pieces of industrial CAD models (see Section 5). However, for non-segmented data, a problem related to the normal computation may appear.

The normal at each vertex is obtained by comput-ing the average normal of neighbor faces durcomput-ing the estimation phase. Therefore, a vertex shared by a cylinder and a torus will not be perpendicular to the cylinder axis as we should expect (see Figure 3)1. Even if the normal information is already available in the original data (as in the PowerPlant data set), the normals are not precise (see Figure 3(right)), and they were also probably computed using the average of normal faces. This problem disturbs our classifi-cationalgorithm and it would also disturb standard segmentationalgorithms, which are heavily normal dependent (Petitjean, 2002).

The next section shows a new approach, which is not based on numerical fitting.

4. TOPOLOGICAL METHOD

Drawbacks of the numerical approach (such as seg-mentation difficulties, heavy normal dependency and the complexity of tori fitting (Lukacs et al., 1997)) motivated us to search for alternative ideas about how to extract higher-order primitive information. The regularity found in the input data encouraged us to investigate the topological approach.

Our algorithm is exclusively designed to segment tubes composed of cylinders, truncated cones and

1

In other words, the normal vectors of vertices forming cir-cular sections (rings) should lie in the plane containing the ring. See Section 4 for more information about rings.

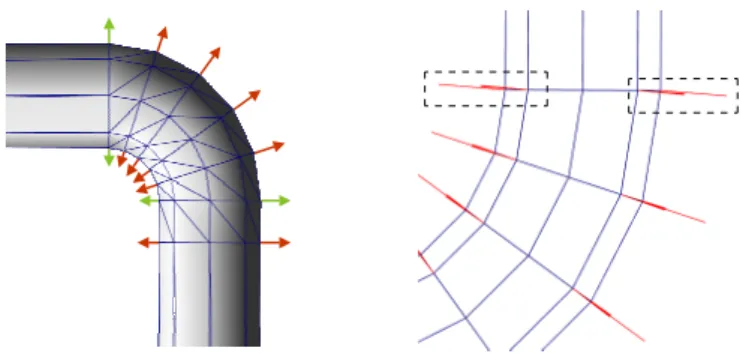

Figure 3 Normal estimation problem. Left: For a tubular mesh with fixed radius, one should expect the normals of vertices in rings (circu-lar sections) to have a perpendicu(circu-lar direction to the ring’s normal. Even for rings separat-ing two different primitives (e.g., a torus and a cylinder) the normals (in green) should re-spect a perpendicular direction. Right: How-ever, the normal estimation of a vertex uses the average of neighboring faces, resulting in nor-mals not perpendicular to the ring’s direction (in red).

“elbows” (elbows correspond to torus slices, shown in green in Figure 4). The basic idea is to find all circular regular sections (the rings) and their connec-tivity. By verifying consecutive rings we can trivially determine if they fit one of these three higher-order primitives. Speed is one of the advantages of this method over traditional numerical approaches for re-verse engineering. Numerical approaches are very appropriate for rough data input (for example, ob-tained by scanner). In our case, however, we exploit the fact that the data are almost constantly regular and can be easily traversed by executing a simple cut-and-find algorithm.

Our method is based on a mesh traversal consisting of three steps described in the following subsections.

4.1. Ring detection

Rings are identified in the mesh as coplanar loops of six vertices or more, equidistant to their center. See Figure 4(a). By traversing mesh topology we identify them in sequence.

4.2. Tube segmentation and classification

Rings are grouped into primitives (see Figure 4(c)) according to their radii and normal vector:

• cylinders: correspond to a pair of rings with the same normal and radius;

(b)

(a) (c)

Figure 4 (a) Identification of coplanar loops (rings) by traversing the mesh. (b) We estimate the prop-erties of each ring: centerC, radiusrand nor-mal vector. (c) Segmentation and classifica-tion are done by evaluating consecutive rings. Reconstruction of the higher-order primitives is obtained by evaluating ring properties.

• cone sections: correspond to a pair of rings with the same normal and different radii;

• elbows: correspond to a set of rings with the same radius, and with co-normals radiating from the same point (see yellow lines in Figure 4(c)). For a consecutive pair of rings, R1 and R2, we first

verify if their centers and their normals are copla-nar; if this is not the case, it is not an elbow. Then, we find the radiation point (see red points in the same figure) as the intersection point be-tween three planes: the plane just tested, the plane containing R1 and the plane containing R2. This

way, the co-normal of a ring is the vector linking the radiation point and the center. (Note that we accept torus slices with up to 180 degrees, other-wise they will be cut into two.)

4.3. Primitive reconstruction

Once the set of rings corresponding to each primitive is determined, it is straightforward to find the param-eters of the primitive from the loop centers and radii. The centers of the extreme sections (P1 and P2) of

each primitive are simply the centers of the first and last corresponding rings. The radii are also deter-mined from the loops. For elbows, the center C is the intersection of the co-normals (shown in yellow in Figure 4(c)). Each primitive is then completely determined by a small set of parameters:

• cylinder: P1, P2, r

• cone: P1, P2, r1, r2

Figure 5 Top:P40 Oil-Platform model used on tests in Section 5.1.Bottom:PowerPlant model used on tests in Sections 5.2 and 5.3.

• elbow: P1, P2, C, r

After our reverse-engineering algorithm is applied to the database, the result is a set of higher-order primi-tives (cylinders, cones, elbows) and a set of polygons for the other objects.

5. RESULTS AND APPLICATIONS

We have used two data sets in our tests: PowerPlant (PP), with 13 million triangles, and Oil Platform P40 from Petrobras, with 27 million triangles (see Figure 5). We have tested both numerical and topological approaches. The first one has no cutting algorithm, so, in its case, we have restricted the tests to some examples where most of primitives were already sep-arated (Sections 5.1 and 5.2).

The times were taken using an AMD Athlon(TM) XP 3800+ 2.41GHz with 2GB of memory.

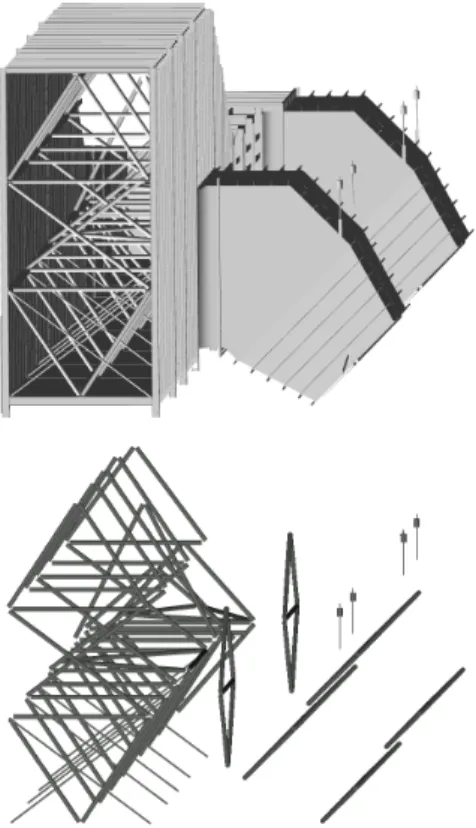

Figure 6 Part of an oil platform model made of 446 dif-ferent meshes (top). There are several tes-sellated cylinders around the model sample (middle). Our numerical algorithm has recov-ered the higher-order information about the cylinders, so we can obtain their original para-metric information (bottom).

5.1. Numerical approach for Helicopter Landing on P40 Oil-Platform

In the example shown in Figure 6, there are 446 sep-arated meshes. Some of them define the interior of the sample model, which contains symbols (“P 40” and “H”) and other geometric forms; and most of the meshes around the model are the tessellated cylinders we are interested in.

With the numerical approach for reverse engineering described in Section 3 we have successfully recov-ered the 436 cylinders in this model. The execution time was 6.11 seconds for the entire recovery pro-cess, which includes fitting, classification and recon-struction.

5.2. Numerical and Topological

approaches for Sections 17 and 18 on PowerPlant

In Section 17 almost all the cylinders are disjointed meshes in the original data. They appear in the model

Figure 7 PowerPlant piece of data (Section 17, Part b, g1). 118 cylinders are found (bottom) from the original data (top). In this piece, there are mainly structural cylinders instead of pipes. As a consequence, they are already seg-mented.

more as structural objects than as pipes (see Figure 7). This is an important issue because our numerical algorithm does not segment the model.

Table 1 shows the results. Compared with the topo-logical method, the numerical approach misses some cylinders (there are 901 found with the topological method against 871 with the numerical approach). They are probably some not-segmented meshes that are undetectable by our numerical approach.

Section 18 of PowerPlant is exclusively composed by cylinders and tori. These data were completely recovered by the topological reverse engineering. However, the numerical approach faced two prob-lems: there is no torus detection and the not-segmented cylinders could not be found. Another significant difference between both methods is effi-ciency. While the numerical method executed the re-verse engineering in almost two minutes, the topo-logical one took less than two seconds.

Data set PP – Section 17 PP – Section 18

(triangles ∆) (251,184) (167,012)

method numer. topo. numer. topo.

cylinders found 871 901 2214 2674

tori found 0 0 0 858

recovery time 9.53s 2.84s 110.62s 1.43s unrecognized ∆ 236,864 203,958 129,540 0

effectiveness 5.7% 18.8% 22.43% 100%

Table 1 Numerical and topological reverse-engineering approaches for Sections 17 and 18 of the Pow-erPlant. The topological approach has better performance and effectiveness.

5.3. Topological approach for the entire PowerPlant

We have applied the topological algorithm, based on ring traversal, to the PowerPlant data. The data are distributed in 21 sections and Section 1 is the largest, containing about 3.5 million triangles corresponding to 30% of the model.

We have tested the reverse-engineering method over the entire PowerPlant. Table 2 shows the numbers for each data section. For each one we have measured: Original Data: the number of triangles and the size of a ply file that records the data.

Reverse Engineering: the execution time for the topological reverse-engineering method.

Unrecovered Data: the same kind of information as in Original Data. The unrecovered data are mainly box walls and floors and very few primitives not found (see effectiveness below).

Recovered Primitives: the number of the three ba-sic primitives (cylinder, cone and torus) and the memory space computed as: 4 ∗ (7 ∗ cylinders + 8 ∗ (cones) + 10 ∗ (tori)).

There are some specific but relevant information about the sections:

• Sections 1, 2, 15, 18, 19 and 20 were exclusively composed by tubes. As a consequence, they were 100% recovered. See Table 2.

• The number of triangles in Section 12 does not match the number available in the UNC home-page from where the PowerPlant was down-loaded. There might be an error either in our load-ing algorithm or in their homepage.

Figure 8 PowerPlant Section 1, with about 60,000 primitives recovered from 3,500,000 triangles.

• The external part of the chimney in Section 16 was found after a manual cutting of its base. This is the only case of assisted recovering on Power-Plant.

Effectiveness

From the sum row (Σ) in Table 2 we can observe that 90% of the PowerPlant was recovered as cylinders, cones and tori

_{(unrecovered triangles)}

(original triangles) ≈ 10%

. Most of the unrecovered data were objects that can-not be directly described by implicit surfaces (for ex-ample, boxes and walls). However, our algorithm missed some surfaces that should be described im-plicitly. Figure 9 shows the most common cases. Un-fortunately, in our implementation, if a tube contains one of the objects in Figure 9 the whole pipe is not recovered.

Section Original Data Rev. Eng. Unrecovered Data Recovered Primitives Effect. triangles mem. time triangles mem. cylinders cones tori mem. recovered

# (KB) (sec.) (KB) (KB) rate (%) 1 3429528 119213 24,03 0 0 31372 20 26546 1895 100% 2 161568 5955 1,23 0 0 1795 0 1205 96 100% 3 382062 14406 3,75 41836 1125 4061 629 2038 210 89% 4 55178 2675 0,70 22136 1076 771 12 154 27 60% 5 222728 9196 2,09 28629 1691 2589 593 1021 129 87% 6 55300 2410 0,78 18945 790 804 96 80 28 66% 7 98592 5519 1,26 53075 3485 1391 0 2 38 46% 8 152586 6013 1,40 9270 525 1664 30 972 84 94% 9 121862 6253 2,40 35901 1434 2773 0 6 76 71% 10 197120 11472 3,09 161401 9862 636 20 0 18 18% 11 133398 8692 1,95 114352 7185 674 0 0 18 14% 12 360872 13755 3,93 38067 1392 3678 493 2034 195 89% 13 114334 4360 1,15 8616 239 1312 185 659 67 92% 14 248432 15748 3,73 212635 13127 507 2 18 14 14% 15 1141240 34777 9,00 1632 90 13656 0 8183 693 100% 16 365970 22739 5,34 291864 18271 970 2 68 29 20% 17 251184 15638 2,84 203958 12451 901 0 0 24 19% 18 167012 6465 1,43 0 0 2674 0 858 106 100% 19 2650680 89245 18,48 0 0 22433 6 19607 1379 100% 20 2415976 86556 17,51 0 0 22940 24 18908 1366 100% 21 17356 986 0,26 8702 58 300 0 0 8 50% Σ 12742978 482073 106,35 1251019 72801 117901 2112 82359 6507 90.18%

Table 2 Reverse engineering over the power plant sections.

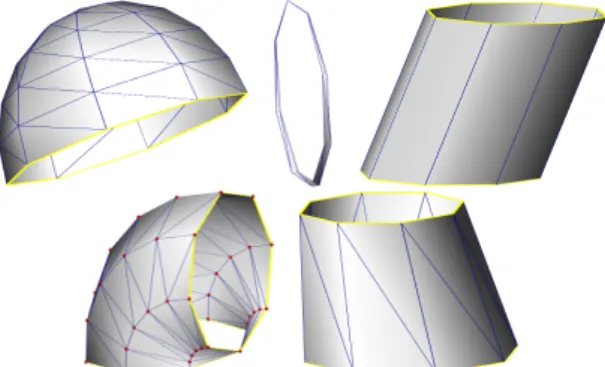

Figure 9 Some of the missing data in our recovery al-gorithm: half-sphere; very thin torus section; sheared cylinder section; torus section with a singular vertex (this happens when the torus radii have the same value, it is called horn torus); and sheared cone.

Efficiency

In our tests, before executing reverse engineering, the data was already in memory, thus we did not consider

the time of loading and topology creation in the col-umn Rev. Eng. of Table 2. We have measured the ex-ecution time including deleting the recovered meshes from original data. By deleting them, we are able to correctly save the unrecovered data after execution. In Figure 10 we plot the relation (triangles×time) of all 21 sections (the deleting column in Table 2). As expected, the recovery algorithm’s performance is linearly proportional to the number of triangles. We were able to process more than 100 thousand tri-angles per second:

12, 742, 9784

106.35s ≈ 120, 0004/s. Memory Reduction

The meshes that were completely converted to prim-itives represent 11,491,959 triangles in 409,272 KB. After recovering them to higher-order primitives they

time (in seconds) 0 5 10 15 20 25 0 500000 1000000 1500000 2000000 2500000 3000000 3500000 triangles

Figure 10 Performance for recovering the 21 sections of the PowerPlant. The algorithm’s perfor-mance is linearly proportional to the number of triangles.

were reduced to 6,507 KB. The reduction factor is 98.41%.

1 −409, 272

6, 507 = 0.9841

However, if we consider that 1,251,019 triangles were not converted and they still use 72,801 KB of memory, the reduction factor becomes 83.54%, which still is an expressive rate.

1 −482, 073

79, 308 = 0.8354

6. CONCLUSION AND FUTURE WORK

The insertion of equations that fit the normals im-proved the numerical recovery process of sparse ver-tices. However, the results shown here were success-ful exclusively over disjoint sets of meshes. On the other hand, we have observed that regularity is a pos-itive characteristic in this kind of input data. For this reason, we have developed the topological approach, which is well adapted to the specificity of such data. The topological recovery procedure converts 90% of the original data of industrial models. The memory space of recovered data is reduced to at most 2% (98% of reduction). This is a consequence of com-pact implicit representation used for recovered prim-itives. If we consider the remaining 10% of unre-covered triangles, industrial models such as oil plat-forms and power plants can be stored in about 15% of their original data size. This expressive reduction in storage can contribute to rendering performance. Transferring information from CPU memory to GPU

memory and then to vertex processing are expensive operations. Through special GPU primitives (see (Toledo & Levy, 2004)), these steps are alleviated, increasing the frame rate.

The tests done with the topological method have demonstrated its efficiency. The positive points of this method are simplicity and execution speed. The ring-traversal implementation is simple and robust for regular CAD meshes. Only a few minutes were necessary to entirely recover the high-order primi-tives in the PowerPlant data (13 million triangles), considering the model already loaded in memory. A very important point in recovering CAD data is how to separate the higher-order recovered primitives from the rest. As shown in our results, for models with mixed data (pipes and boxes, for example), we were able to split both types of primitives (implicit surfaces and triangle meshes) without losing infor-mation.

However, there are some limitations to the topo-logical approach. This method only extracts three types of higher-order primitives: cylinders, trun-cated cones and tori. Other implicit surfaces, such as spheres, although not as numerous as tubes and pipes, may also appear in industrial environments. We propose the use of the numerical approach, ex-plained in Section 3, right after running the topologi-cal algorithm. This procedure enables the recovery of quadric surfaces that are already segmented in-side the model and that were not found in topological step.

Another problem related to CAD mesh recovery is ambiguity. Without any additional information, we cannot ensure that a faceted piece is an approxima-tion of a round one or an exact representaapproxima-tion of the original piece. For example, in Figure 11, the octag-onal piece on the left should not be represented by a perfect cylinder, but by an octagonal mesh. This is an intrinsic issue when recovering CAD models. In a perfect scenario, round implicit surfaces, such as cylinders, should not have the tessellated represen-tation as their unique information, but unfortunately this is often the case.

We also suggest for future work extending our topo-logical technique to other possible implicit primi-tives. For example, in our testes we have missed some sheared cylinders and sheared cones. CSG primitives (Constructive Solid Geometry) are com-plex primitives, formed by Boolean combination of simple ones, that can also be the subject of study.

-

-@ @

@

Figure 11 An octagonal piece (left) should be repre-sented by an octagonal mesh (center). Ide-ally, the recovery algorithm should not sub-stitute the tessellated model for a perfect cylinder (right), but it cannot identify it without extra input information. This is an intrinsic issue when recovering CAD data.

Finally, another open issue is the application of the topological recovery strategy to data sets different from the industrial-environment domain.

ACKNOWLEDGEMENTS

To Petrobras, for allowing the publication of this pa-per and for supporting part of the present work. To Paulo Ivson, for helping in tuning the algorithm for Petrobras platform models.

REFERENCES

do Carmo, M. (1976).Differential Geometry of Curves and Surfaces. Prentice Hall.

Fitzgibbon, A. W., Eggert, D. W., & Fisher, R. B. (1997). High-level CAD model acquisition from range im-ages. Computer-aided Design, 29(4), pp. 321–330. Lukacs, G., Marshall, A., & Martin, R. R. (1997).

Geo-metric least-squares fitting of spheres, cylinders, cones and tori.

Nourse, B., Hakala, D. G., Hillyard, R., & Malraison, P. (1980). Natural quadrics in mechanical design. Auto-fact West, 1, pp. 363–378.

Ohtake, Y., Belyaev, A., & Alexa, M. (2005). Sparse low-degree implicit surfaces with applications to high quality rendering, feature extraction, and smoothing. In SGP ’05: Proceedings of the 2005 Eurograph-ics/ACM SIGGRAPH symposium on Geometry pro-cessing: Eurographics Association.

Ohtake, Y., Belyaev, A., Alexa, M., Turk, G., & Seidel, H.-P. (2003). Multi-level partition of unity implicits. ACM Trans. Graph., 22(3), pp. 463–470.

Parvin, B. & Medioni, G. (1986). Segmentation of range images into planar surfaces by split and merge. In CVPR ’86: In Proc. of International Conference on Computer Vision and Pattern Recognition (CVPR ’86): pp. 415–417.

Petitjean, S. (2002). A survey of methods for recover-ing quadrics in triangle meshes. ACM Comput. Surv., 34(2), pp. 211–262.

Requicha, A. A. G. & Voelcker, H. B. (1982). Solid mod-eling: a historical summary and contemporary assess-ment. IEEE Computer Graphics and Applications, 2, pp. 9–22.

Thompson, W., Owen, J., de St. Germain, H., Stark, S., & Henderson, T. (1999). Feature-based reverse engi-neering of mechanical parts. pp.˜57.

Toledo, R. & Levy, B. (2004). Extending the graphic pipeline with new gpu-accelerated primitives. In 24th International gOcad Meeting, Nancy, France. Also presented in Visgraf Seminar 2004, IMPA, Rio de Janeiro, Brazil.

Werghi, N., Fisher, R., Ashbrook, A., & Robertson, C. (1999). Faithful recovering of quadric surfaces from 3d range data.

Wu, J. & Kobbelt, L. (2005). Structure recovery via hybrid variational surface approximation. Computer Graph-ics Forum (Proceedings of EurographGraph-ics ’04), (3), pp. 277–284.

Y.Y., C., A.Y.C., N., & H.T., L. (1996). Geometric feature detection for reverse engineering using range imaging. Journal of Visual Communication and Image Repre-sentation, 7, pp. 205–216.
