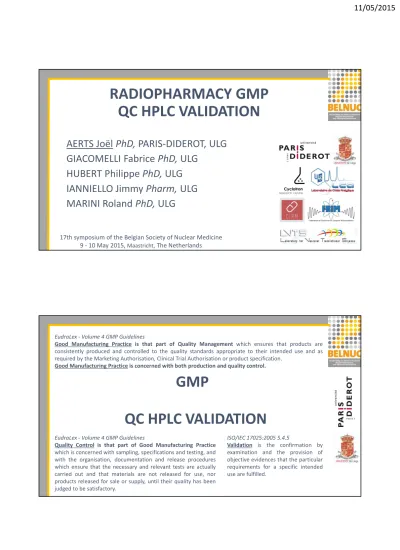

RADIOPHARMACY GMP
QC HPLC VALIDATION
AERTS Joël PhD, PARIS-DIDEROT, ULG
GIACOMELLI Fabrice PhD, ULG
HUBERT Philippe PhD, ULG
IANNIELLO Jimmy Pharm, ULG
MARINI Roland PhD, ULG
17th symposium of the Belgian Society of Nuclear Medicine 9 - 10 May 2015, Maastricht, The Netherlands
GMP
QC HPLC VALIDATION
EudraLex - Volume 4 GMP Guidelines
Good Manufacturing Practice is that part of Quality Management which ensures that products are
consistently produced and controlled to the quality standards appropriate to their intended use and as required by the Marketing Authorisation, Clinical Trial Authorisation or product specification.
Good Manufacturing Practice is concerned with both production and quality control.
EudraLex - Volume 4 GMP Guidelines
Quality Control is that part of Good Manufacturing Practice
which is concerned with sampling, specifications and testing, and with the organisation, documentation and release procedures which ensure that the necessary and relevant tests are actually carried out and that materials are not released for use, nor products released for sale or supply, until their quality has been judged to be satisfactory.
ISO/IEC 17025:2005 5.4.5
Validation is the confirmation by
examination and the provision of objective evidences that the particular requirements for a specific intended use are fulfilled.
GMP
PRODUCTION
Finished Product Raw Material FACILITIES OPERATORS MethodsQUALITY CONTROL
SAMPLES RESULTS FACILITIES OPERATORS Methods SAMPLING VALIDATION concerns METHODS QUALIFICATION concerns FACILITIES & OPERATORSSome references
• ISO/IEC 17025 General requirements for the competence of testing
and calibration laboratories
• ISO 5725 Accuracy (trueness and precision) of measurement
methods and results
• ICH Q2 Validation of Analytical procedures
Q2A: terminology ; Q2B: methodology
• Directive 96/23/CE and decision 2002/657/CE
• EDQM Technical Guide for the elaboration of monographs, 2011
• STP PHARMA PRATIQUES, 13, 3, 2003 Validation of quantitative
Criteria (ISO 17025)
• Specificity• Accuracy = trueness + precision Total error = bias + variance
• Precision • Repeatability
• Intermediate precision
• Limit of detection (LOD) and Limit of quantification (LOQ)
• Assay range
• Linearity (results vs conct.) <> response function (signal vs conct.)
Response function (calibration curve)
Concentration Concentration
Criteria to be evaluated
Types of test
Criteria Identification Assay
Impurity Limit Test
Impurity Quantitation
Specificity YES YES YES YES
Accuracy YES YES
Repeatability YES YES
Intermediate precision YES YES
Limit of Detection LOD YES YES
Limit of Quantification LOQ YES
Linearity YES YES
Assay Range YES YES
Identification
3 important rules for the validation of
analytical methods
• Validation covers all operations of the methods from sampling (volume or weight) to generation of results (including
mathematical transformations of data).
• Validation covers a finite range of concentration: extrapolation outside the range is not allowed.
• Validation is matrix specific. A new validation must be performed for each new matrix.
Validation of Eur. Pharm. methods ?
• The pharmacopoeial methods given in monographs and general chapters have been validated in accordance with accepted scientific practice and current recommendations on analytical validation. Unless otherwise stated in the monograph or general chapter, validation of the test methods by the analyst is not required.
• When implementing a pharmacopoeial method, the user must assess whether and to what extent the suitability of the method under the actual conditions of use needs to be demonstrated according to relevant monographs, general chapters and quality systems.
Accuracy profile as decision tool
STP PHARMA PRATIQUES, 13, 3, 2003 Validation of quantitative analytical procedure,
Harmonization of approaches, Hubert P. et al.
λ
= acceptance
limit
19
F-FDG limit test in
18F-FDG
• FLUDEOXYGLUCOSE (18F) INJECTION, European Pharmacopeia 8,
01/2014:1325: MAX: 0.5 mg/V V= maximum injected volume
• Liquid chromatography
- Dionex ICS3000 with autosampler - Detection: amperometry (30°C)
- Colonne Dionex Carbopac PA10 (25°C) - 1mL/min 100mM NaOH
- Conditionnement: 1M NaOH every 3 injections
Criteria to be evaluated
EP01/2014:1325
Types of test
Criteria Identification Assay
Impurity Limit Test
Impurity Quantitation
Specificity YES YES YES YES
Accuracy YES YES
Repeatability YES YES
Intermediate precision YES YES
Limit of Detection LOD YES YES
Limit of Quantification LOQ YES
Linearity YES YES
Assay Range YES YES
19
F-FDG limit test in
18F-FDG
FDM 6.17 FDG 7.02 ClDG 7.62 System Suitability:Minimum resolution for FDM / FDG = 1.5
Calculated: 1.6
Quantitation at low concentration
Types of test
Criteria Identification Assay
Impurity Limit Test
Impurity Quantitation
Specificity YES YES YES YES
Accuracy YES YES
Repeatability YES YES
Intermediate precision YES YES
Limit of Detection LOD YES YES
Limit of Quantification LOQ YES
Linearity YES YES
Assay Range YES YES
PHASE 1 : organization
• Description of the analytical method• Information on product to assay and analytical system (HPLC, GC…) • Protocols for samples preparation
• CS: calibration samples = solution of product in a suitable solvent • VS: validation samples = solution of product in the real matrix
• Concentration levels for CS et VS
• Validation plan. Ex. 3 days/1op or 2 days/2op
• Criteria to be evaluated
PHASE 2 : preparation of CS
Bulk 1 dilutions 1 Bulk 2 dilution 2 Bulk p dilution p SERIES (days)Example: preparation of CS for FDG
µg/mL 50 25 10 5 0.5 LOQ 19F-FDG in water
PHASE 3 : preparation of VS
Bulk dilutions Matrix Loading 50 25 10 5 µg/mL 19F-FDG in matrix
Results of injections of series
Relationship between the introduced and the back-calculated amounts
Linear Regression Through 0 fitted with the level 0.5 only calibration curve
19
F-FDG limit test in
18F-FDG
• FLUDEOXYGLUCOSE (18F) INJECTION, European Pharmacopeia 8,
01/2014:1325: MAX: 0.5 mg/V V= maximum injected volume
• Liquid chromatography
- Dionex ICS3000 with autosampler - Detection: amperometry (30°C)
- Colonne Dionex Carbopac PA10 (25°C) - 1mL/min 100mM NaOH
- Conditionnement: 1M NaOH every 3 injections
