Boukharfane, Radouan and Parsani, Matteo and Bodart, Julien Characterization of pressure fluctuations within a controlled-diffusion blade boundary layer using the equilibrium wall-modelled LES. (2020) Scientific Reports, 10 (1). 1-19. ISSN 2045-2322
within a controlled‑diffusion
blade boundary layer using
the equilibrium wall‑modelled LeS
Radouan Boukharfane
1*, Matteo parsani
1& Julien Bodart
2in this study, the generation of airfoil trailing edge broadband noise that arises from the interaction of turbulent boundary layer with the airfoil trailing edge is investigated. the primary objectives of this work are: (i) to apply a wall‑modelled large‑eddy simulation (WMLeS) approach to predict the flow of air passing a controlled‑diffusion blade, and (ii) to study the blade broadband noise that is generated from the interaction of a turbulent boundary layer with a lifting surface trailing edge. this study is carried out for two values of the Mach number, Ma∞= 0.3 and 0.5, two values of the
chord Reynolds number, Re= 8.30 × 105
and 2.29× 106
, and two angles of attack, AoA =4◦ and 5
◦ . To examine the influence of the grid resolution on aerodynamic and aeroacoustic quantities, we
compare our results with experimental data available in the literature. We also compare our results with two in‑house numerical solutions generated from two wall‑resolved LeS (WRLeS) calculations, one of which has a DnS‑like resolution. We show that WMLeS accurately predicts the mean pressure coefficient distribution, velocity statistics (including the mean velocity), and the traces of Reynolds tensor components. Furthermore, we observe that the instantaneous flow structures computed by the WMLeS resemble those found in the reference WMLeS database, except near the leading edge region. Some of the differences observed in these structures are associated with tripping and the transition to a turbulence mechanism near the leading edge, which are significantly affected by the grid resolution. The aeroacoustic noise calculations indicate that the power spectral density profiles obtained using the WMLeS compare well with the experimental data.
The noise generated by the flow of air passing over a lifting surface is a major issue for a wide range of engineer-ing applications. Examples include the noise generated by propellers, rotors, wind turbines, fans, wengineer-ings, and hydrofoils. Even in the absence of disturbances in the incoming stream, an airfoil can generate noise due to an unsteady turbulent boundary layer and wake, or through interactions with the lifting surface, particularly near the trailing edge region. This so-called self-noise or trailing edge noise is a major contributor to the overall noise generated by rotating machines and, in general, defines the lower bound of noise1. Reducing self-noise
is challenging and requires an accurate and efficient method for describing and understanding the sources of noise near the trailing edge region. During recent decades, a variety of computational methods and theoreti-cal models have been developed to predict the noise generated by unsteady flows passing over fixed or moving surfaces2. These approaches can be subdivided into three classes: semi-empirical, direct, and hybrid methods.
The semi-empirical method, based on a set of acoustic data, is the most widely adopted for acoustic prediction when realistic aircraft designs must be used. However, the accuracy of the semi-empirical method is limited to standard flight conditions, and cannot be used for aircraft with unconventional airfoil profiles or operating conditions3. In contrast, the direct method uses a fully numerical method for both acoustic propagation and
1Computer Electrical and Mathematical Science and Engineering Division (CEMSE), Extreme Computing Research Center (ECRC), King Abdullah University of Science and Technology (KAUST), Thuwal 23955-6900, Saudi Arabia. 2ISAE-Supaero, BP 54032, 31055 Toulouse Cedex 04, France. *email: radouan.boukharfane@kaust.edu.sa
turbulence simulation and thus can provide accurate and reliable noise predictions4. However, these high-fidelity
methods are prohibitively expensive and memory-intensive when used as a design and optimization tool. Hybrid methods offer an attractive compromise in terms of accuracy and computational cost because they combine (i) fluid dynamic calculations in the near field to resolve unsteady near-flowfields and (ii) the acoustic analogy for the propagation of sound to the far field5. Currently, the most popular method used for the aeroacoustic analogy
is based on Ffowcs Williams and Hal’s seminal work6.
The power of model-based noise prediction depends on high spatial and temporal turbulent flow statistics, such as the length scales, spanwise and streamwise correlation length scales, degree of anisotropy, and acoustic spectral shape, which must be known a priori. large-eddy simulation (LES) is a promising high-fidelity approach that resolves the majority of energetic eddies in a turbulent flow while accounting for the effect of unresolved motions by subgrid scale (SGS) models7,29. Wall-resolved large-eddy simulation (WRLES) is extremely
expen-sive because it must resolve the small but energetic structures in the near-wall region of the boundary layer. For instance, Terracol and Manoha8 employed 2.6 billion grid cells and six million core hours in their WRLES for
a three-element airfoil with a chord Reynolds number of Re = 1.23 × 106 . Because the small-scale energetic
structures near the surface must be accurately captured, a large fraction of the cells in a typical computational domain are used to resolve the near-wall region of the boundary layer. Choi and Moin9 showed that the number
of cells needed to resolve the inner layer (defined as y+= yuτ/ν <100 , where y is the wall-normal direction)
scales to Re13/7 , which is a nearly quadratic dependence on the Reynolds number. The cost of a DNS calculation
is even more prohibitive as the grid size scales to Re37/149. A more affordable alternative to DNS and WRLES
calculations is provided by the so-called wall-modeled LES (WMLES). This technique resolves large-scale flow structures in the outer region of the boundary layer only and models the effect of near-wall turbulence using a Reynolds-averaged Navier–Stokes (RANS) type model in the inner part of the boundary layer10,11. In contrast
to detached eddy simulation (DES) methods12, which typically treat the entire attached boundary layer with a
RANS approach, WMLES resolves most parts of the boundary layer with LES.
Bodart and Larsson13 used WMLES to achieve good agreement with the experimental data for the
flow-field statistics of a McDonnell–Douglas 30P/30N multi-element airfoil at Re = 9 × 106 and estimated that the
computational cost was reduced by two orders of magnitude compared to WRLES. Kawai and Larsson14 used
a WMLES approach to simulate a supersonic flat-plate boundary layer at a Reynolds number based on the boundary layer thickness of Reδ= 6.1 × 105 and a free-stream Mach number of Ma∞= 1.69 . They obtained a
converged and predictive solution when compared with experimental results under the same flow conditions. George and Lele15 also performed WMLES to predict self-noise at a Reynolds number ranging from 1.0 × 106 to
1.5× 106 . In addition, they investigated the capability of the equilibrium WMLES10 to predict the flow around a wind turbine airfoil under stalled conditions, a NACA0012 airfoil in the near-stall regime, and a NACA64-618 airfoil in the post-stall regime.
All these applications using the WMLES approach highlight the potential of this emerging methodology for predicting aerodynamic and aeroacoustic fields and solving canonical problems. Less is known about using WMLES in complex flows, especially for the study of sound generation.
The present work has been carried out within the SCONE (Simulation of Contra Rotating Open Rotor and fan broadband NoisE with reduced order modeling) project16, which is part of the FP7 Clean Sky Joint Undertaking
of the European Union that aims to investigate the noise generated by CROR/UHBR fan technologies and to achieve optimal noise reduction. Since it is difficult to experimentally measure flow pressure fluctuations on a surface without significantly affecting its motion, we instead employed a computational approach. Accurately predicting the airfoil self-noise generated by the interaction of a turbulent boundary layer with an airfoil trailing edge will provide enhanced inputs for current semi-analytic models. For this reason, the first objective of the SCONE project is to describe the flow over a controlled-diffusion blade with the ultimate aim to develop ‘quiet’ CROR and UHBR engines. The blade section geometry used here was originally part of an air-conditioning unit developed by Valeo that we slightly re-designed to impose a load on it similar to that of a CROR blade. We carried out the simulations for different values of Mach number ( Ma∞= 0.3 and 0.5), Reynolds number
( Re = 8.30 × 105 and 2.29 × 106 ), and angle of attack (AoA = 4◦ and 5◦ ). The configuration was a replica of the
experiments performed within the CRORTET Clean Sky project, the computational results of which are com-pared to this study. Note that experimental aerodynamic data alone are not sufficient to provide the boundary layer parameters needed to normalize the wall-pressure spectra obtained in the experiment, which highlights the importance of LES for robust wall pressure modeling.
Numerical simulations of high Reynolds and Mach number flows around a controlled diffusion airfoil, which provide wall-pressure statistics, are scarce in the literature. However, to the best of our knowledge, convection velocity profiles and cross-spectra or coherence functions have not been analyzed in any previous studies that have used a WMLES approach. Therefore, our understanding of the multivariate statistics of the wall-pressure fluctuations induced by the interaction of a turbulent boundary layer and airfoil trailing edge in such flow condi-tions is still quite limited and thus needs to be improved.
This study represents a first step towards a deeper quantitative investigation of the effect of the Reynolds number, the angle of attack, and the upstream Mach number on the chord-wise development of the boundary layer characteristics of a controlled-diffusion blade. To this end, we use the compressible WMLES approach to compute the flowfield passing over a lifting surface. We validate the WMLES results against experimental data. In addition, we evaluate the efficacy of the WMLES approach for predicting the noise generated by a blade and investigate the source of noise and its generation mechanisms.
Favre filtered) value. The variables are either spatially filtered or ensemble-averaged quantities depending on the use of LES or RANS equations. The latter model is used for the wall-model part. It is assumed that both the filtered stress tensor ˘τij and the filtered heat flux ˘Qj can be expressed in a way similar to their instantaneous
counterparts, but applied to filtered quantities
where µ is the molecular viscosity that has a power-law dependence on temperature
The parameter in (2) is the molecular thermal conductivity, Pr = µcP/ is the molecular Prandtl number kept
constant at 0.7, and Sijd= Sij− δijS ij/3 is the deviatoric part of the rate-of-strain tensor, which is defined as Sij= (∂ Ui/∂xj+ ∂ Uj/∂xi)/2 , where δij is the Kronecker delta symbol. The other parameters µt and t in (2) are the turbulent eddy viscosity and conductivity, respectively. The LES solution is formally defined everywhere in the computational domain, and the wall-model equations are solved on a separate embedded grid near the wall. The only difference between the LES and the wall-model equations is in the computation of µt and t . In
the LES framework, µt= µSGS and t= SGS are the SGS eddy viscosity and conductivity, respectively. Note
that the isotropic part of the modeled turbulent stress tensor is neglected in (2). This is often the case in the LES approach for low Mach number flows. The same assumption is made in the zero-equation RANS modeling context, but is less justified.
equilibrium wall‑model.
The equilibrium wall-model is derived from the compressible Reynolds-aver-aged Navier–Stokes equations with the boundary layer scaling approximations and neglecting unsteady and con-vective terms such as pressure gradient. The equilibrium model essentially relies on a grid resolution based on the outer layer requirements using the largest scales of the boundary layer thickness. The inner layer lies within the first cells normal to the wall and its behavior is modeled through the momentum wall normal flux. A typical resolution is about 20 cells per turbulent boundary layer thickness, δ , in each spatial direction10. However, in thisstudy, a fundamental question arises when considering the pressure fluctuations that are responsible for noise generation. In fact, to the best of our knowledge, there are no studies in the literature that guarantee that using a WMLES approach with a resolution of 20 cell per δ results in an accurate prediction of the turbulent structures responsible for the pressure fluctuations and hence, that can achieve an overall discretization that can predict the noise sources. However, because the location of the maximum pressure fluctuations is within the outer layer, this resolution appears to generate reasonable and satisfying results. The verification of this assumption is one of the primary goals of this paper.
In the following, we briefly review the equilibrium model used herein combined with the WMLES approach. Hereafter, we use the subscript “ wm ” to denote a quantity at the wall. Thus, given the instantaneous magnitude of the wall-parallel velocity U|| and the instantaneous temperature T in the LES at height x2= lwm perpendicular
to the wall, we estimate the instantaneous wall shear stress vector τw,i by solving the following system using two
ordinary differential equations (ODEs)10
where the wall-model eddy viscosity is taken as
(2) τij= 2(µ + µt) Sij d , Qj= −( + t)∂ T ∂xj , (3) µ= µ0( T /T0)0.76. (4) d dx2 µ+ µt,wm dU|| dx2 =0, (5) d dx2 cP µ Pr+ µt,wm Prt,wm dT dx2 = −dxd 2 µ+ µt,wmU dU|| dx2 ,
The values of the constants appearing (5) and (6) are κ = 0.41 , A+= 17 and Prt,wm= 0.9 . For compressible flows,
the scaled distance from the wall in the Van Driest damping factor ( x+
2 in (6)) is computed using a semi-local
scaling given by x+
2 = x2√ρ|τw|17. These two coupled ODEs are solved using the tridiagonal matrix or Thomas
algorithm (TDMA) applied in a segregated manner, i.e., by alternating TDMA sweeps of the momentum and energy equations with updated eddy-viscosity µt,wm in between. The pressure is assumed to be constant in the
x2 direction and is obtained from the LES solution at the exchange location, while the density is computed using
the temperature via the equation of state.
One major difficulty in the parallel implementation of the model for unstructured grids is when the boundary condition for the wall-stress model (exchange location) and the wall location are located on different processors in terms of the domain decomposition associated with parallel computations. This issue is fixed by linking each wall face with its exchange location during the pre-processing step using parallel communicators, which are then used during the computation. This last point is important in terms of numerical errors that can arise within the first cell of the LES mesh. Indeed, these errors may significantly decrease the accuracy of the solution even though the model is correct. The recommended choice of the exchange location above the wall boundary is typi-cally ∼ 0.1δ14. The grid spacing in the wall normal direction must be smaller than the resolution needed for fully
turbulent simulations, which is a limitation of the WMLES approach for transitional flow. In fact, the typical wall normal grid spacings for WMLES based on turbulent boundary layer thickness, δ , might be too coarse to resolve the pre-transitional laminar boundary layer and its instability. Park and Moin18 reported that, for WMLES in
transitional cases, at least the size of the first grid cell near the wall �x+
2 <20 is required to marginally resolve
the integral length scales of the pressure-producing eddies near the wall. However, when using such a fine wall normal spacing, it may not always be possible to have the LES input taken at a distance even close to ∼ 0.1δ19.
In the present study, because the flows are often transitional, the exchange location is taken at least three cells away from the wall, which lies at approximately 0.08–0.1δ.
computational setup.
The compressible Navier–Stokes equations are solved numerically using the mas-sively parallel CharLESX solver. This solver implements a cell-centered finite volume scheme that is minimallydissipative. The Euler flux is computed by a blend of a non-dissipative central scheme and a dissipative upwind scheme
where the blending parameter 0 ≤ fαf ≤ is precomputed based on the local grid quality. To avoid numerical
instabilities, the dissipative upwind-flux contribution is significant only in the region of relatively poor grid quality20. Indeed, the proportion of the upwind flux f
αf is not a static parameter, but it scales with the local
departure of the global advection matrix (constructed with the central scheme) from a skew-symmetric matrix. For all the grids used in this study, the upwind proportion is less than 1.5% ( fαf <0.015 ) in the regions with
non-zero Reynolds stresses. Thus, the small-scale near-wall eddies and the large eddies passing through the separated shear layer, which are important in the dynamics of the separating and reattaching mechanisms, are largely unaffected by the numerical dissipation.
The numerical method is formally second-order accurate in space, although it achieves fourth-order accuracy on a uniform mesh containing only hexahedral cells. Time integration is performed using a third-order low-storage Rung–Kutta–Wray scheme21. Unresolved turbulent scales are modeled using the constant-coefficient
Vreman subgrid scale model22.
The computational grid around the controlled-diffusion airfoil is topologically an O-type mesh due to the round leading and trailing edges, with boundary layer clustering at the airfoil walls. The boundary layer cluster-ing blocks are structured blocks, whereas the rest are unstructured to allow for a quick outward coarsencluster-ing. The computational grid is also equipped with wake blocks with a large angle of opening. Note that independently of the angle of attack to be simulated, the blocks are not rotated; hence, the mesh is not changed, as the inlet velocity angle is instead adapted. The computational domain extends 20c in both the streamwise, x1 , and wall-normal, x2 ,
directions, to allow for a velocity inlet boundary condition to act as free-stream (see Fig. 1). Unphysical numerical reflections at the computational boundaries are avoided by the choice of appropriate boundary conditions. Char-acteristic boundary conditions are used at all inflow and outflow boundary conditions23,24. At the airfoil surface,
an adiabatic, no-slip condition is applied. Periodic boundary conditions are imposed in the spanwise direction. Although there are no experimental data dealing with the spanwise correlation length, Grebert et al.25 found
in their WRLES that a spanwise extent Lx3 of at least 2δmax showed reasonable agreement with experimental data for an accurate estimate of the correlation length ℓz.
Three flow conditions from the matrix of computation proposed by the SCONE project16 are studied here, and
their details are summarized in Table 1. For C∗,c1 cases, the resolution level is very similar to the standard DNS resolution criteria26,27; see Table 2. For these simulations, the mesh resolution quality was also verified by Pope’s
criterion27, which monitors the quantity IQ
k= K/(K + KSGS) , where K and KSGS are the resolved and the
SGS turbulent kinetic energies, respectively. On the one hand, the resolved turbulent kinetic energy is evaluated as K = (U′2 1 + U ′2 2 + U ′2 3 )/2 , where U ′
i is the root-mean square (RMS) value of fluctuating part of the
veloc-ity component Ui . On the other hand, the SGS turbulent kinetic energy is estimated by KSGS= (νt/(CM�))2 ,
where νt is the kinematic turbulent viscosity, CM a constant set to 0.06928, and is estimated as the cubic root of
(6) µt,wm= κ ρ|τw| x2 1− exp −x + 2 A+ 2 . (7) F= 1 V ∂V F q · dS = f∈faces (1− fαf)FCENTRAL+ fαfFUPWIND,
(a)
(b)
(c)
Figure 1. (a) Grid topology of the computational domain; WRLES mesh detail: (b) leading edge; (c) trailing
edge and near wake.

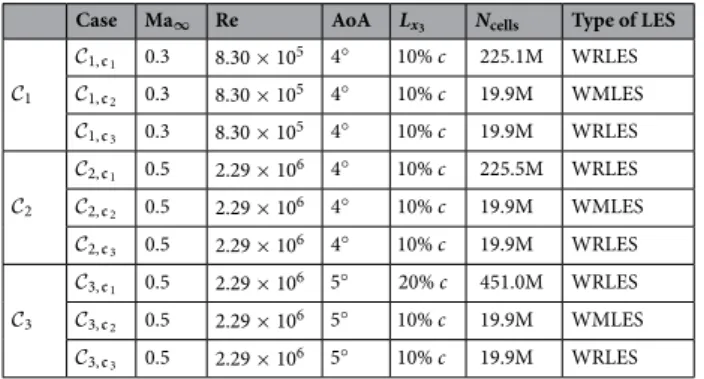

Table 1. Grid spacing, resolution on the blade surface, and description of the main parameters used in the
computations.
Case Ma∞ Re AoA Lx3 Ncells Type of LES
C1 C1,c1 0.3 8.30× 105 4◦ 10% c 225.1M WRLES C1,c2 0.3 8.30× 105 4◦ 10% c 19.9M WMLES C1,c3 0.3 8.30× 105 4◦ 10% c 19.9M WRLES C2 C2,c1 0.5 2.29× 10 6 4◦ 10% c 225.5M WRLES C2,c2 0.5 2.29× 106 4◦ 10% c 19.9M WMLES C2,c3 0.5 2.29× 106 4◦ 10% c 19.9M WRLES C3 C3,c1 0.5 2.29× 106 5◦ 20% c 451.0M WRLES C3,c2 0.5 2.29× 106 5◦ 10% c 19.9M WMLES C3,c3 0.5 2.29× 106 5◦ 10% c 19.9M WRLES
Table 2. Grid spacing and resolution along the blade surface and description of the main parameters used for
the WRLES computations.
Case x+ y+ z+ t C1,c1 ≤ 28.01 ≤ 1.02 13.21 1.54× 10−5 C2,c1 ≤ 28.28 ≤ 1.12 13.24 2.68× 10−5 C3,c1 ≤ 26.86 ≤ 1.22 14.23 2.88× 10−5
the elements volume. For the grids indicated in Table 2, we found that IQk≥ 0.94 for the three WRLES cases,
which means that the resolution level is close to that of a DNS mesh.
With the wall-model configuration, no near-wall streaks can be captured. In fact, the friction momentum flux is imposed by the model. Therefore, there is no need to follow any resolution requirement imposed by these structures. Note that when considering the x2 direction, for example, the number of points remain essentially
unchanged compared to WRLES. Instead, the first cell close to the wall increases in size. This ensures a proper resolution in the outer layer and drastically increases the time step because of the Courant–Friedrichs–Lewy (CFL) limit, which is directly dependent on this length scale. The overall cost ratio between the WRLES and the WMLES simulations is close to 50. The grid resolution used for the WMLES is chosen to resolve the flow scales in the outer layer and thus, the grid spacing is scaled by the local boundary layer thickness. As a consequence, the mesh does not strongly depend on the Reynolds number. As indicated in Table 2, the same grid is used for all WMLES computations. The cases labeled with C⋆,c3 all have the same grid resolution but the wall-model is not activated to investigate its effect at an iso-mesh resolution. The grid distributions in wall units for these computa-tions along the chord are shown in Fig. 2. The grid sizes for all the WMLES cases have x1≈ x3 . In order to
capture the boundary layer transition on the upper surface of the blade and achieve as smooth a flow as possible at the airfoil trailing edge, the grid spacing in the wall normal direction is fine, i.e., y+ is less than 20 for the
three cases. To allow errors due to the subgrid modeling and numerics to be made arbitrarily small, as shown in the study by Kawai and Larsson14, five grid points ( l
wm= y5 ) off the wall in the LES mesh are matched to the
wall-model top boundary in this work. The variations of the height of the exchange location in viscous units are included in Fig. 2d. In the present study, the local wall-model layer thickness is set to a maximum of 4 times the local wall-normal grid-spacing and a user-defined minimum thickness lud . The effects of the exchange location
on the flow field, especially on the velocity profiles, will be investigated in future simulations.
Finally, it is important to emphasize that for the WMLES calculations, the non-dimensional time-step size �t= �t⋆U
∞/c (where the superscripts ⋆ denote dimensional quantities) is larger due to the coarse grid
resolu-tion near the wall, and approximately two orders of magnitude bigger than that used for the WRLES computa-tions. Furthermore, the maximum CFL number is ∼ 0.4.
Results
In this section, we simultaneously: (i) investigate the generation of airfoil trailing edge broadband noise that arises from the interaction of a turbulent boundary layer with an airfoil trailing edge and (ii) study the perfor-mance of the equilibrium boundary layer wall-model presented in “Equilibrium wall-model”. Describing a flow as it passes a controlled-diffusion blade is challenging because it involves complex physical processes: laminar separation, turbulent transition, turbulent reattachment, and turbulent separation near the trailing edge on the suction side. We compare our numerical results with the experimental database generated within the framework of the CRORTET Clean Sky project29.
0.0
0.2
0.4
0.6
0.8
1.0
0
50
100
150
200
x
1/c
∆
x
+C
1,c2C
2,c2C
3,c2 (a)0.0
0.2
0.4
0.6
0.8
1.0
0
50
100
150
200
x
1/c
∆
z
+C
1,c2C
2,c2C
3,c2 (b) 0.0 0.2 0.4 0.6 0.8 1.0 0 5 10 15 20 x1/c ∆ y + C1,c2 C2,c2 C3,c2 (c) 0.0 0.2 0.4 0.6 0.8 1.0 0 20 40 60 80 x1/c l + wm C1,c2 C2,c2 C3,c2 (d)flow topology.
The three-dimensional features of vortex structures and their breakdown processes in the laminar-turbulent transition region near the leading edge are visualized by the instantaneous iso-surfaces of the second invariant of velocity gradient tensor, Q = (ω2+ 2SijSij)/4 , in Fig. 3. The Q iso-surfaces are colored by
streamwise velocity to approximately identify the height of these vortex structures. According to the definition of
Q-criterion, a vortical structure is identified in a region with positive Q, i.e, a region where vorticity overcomes
the strain.
A fully laminar boundary layer is present on the lower (pressure) side up to the trailing edge of the airfoil, as well as a transitional and turbulent boundary layer on the upper (suction) side. A transition from a laminar to a turbulent state occurs in the shear layer resulting from the flow separation in the leading edge region, which results in the massive generation of vorticity downstream of the leading edge, with large vortices shed from the suction side of the airfoil. However, some smaller vortices still remain attached to the wall and roll over the airfoil suction side, grazing the trailing edge. As the curvature of the controlled-diffusion airfoil changes, the adverse pressure gradient leads to an increase of the boundary layer thickness. At the trailing edge, the laminar bound-ary layer coming from the pressure side destabilizes into a small vortex-shedding. This Von Kármán street then interacts with the fully turbulent vortical structures issuing from the upper side.

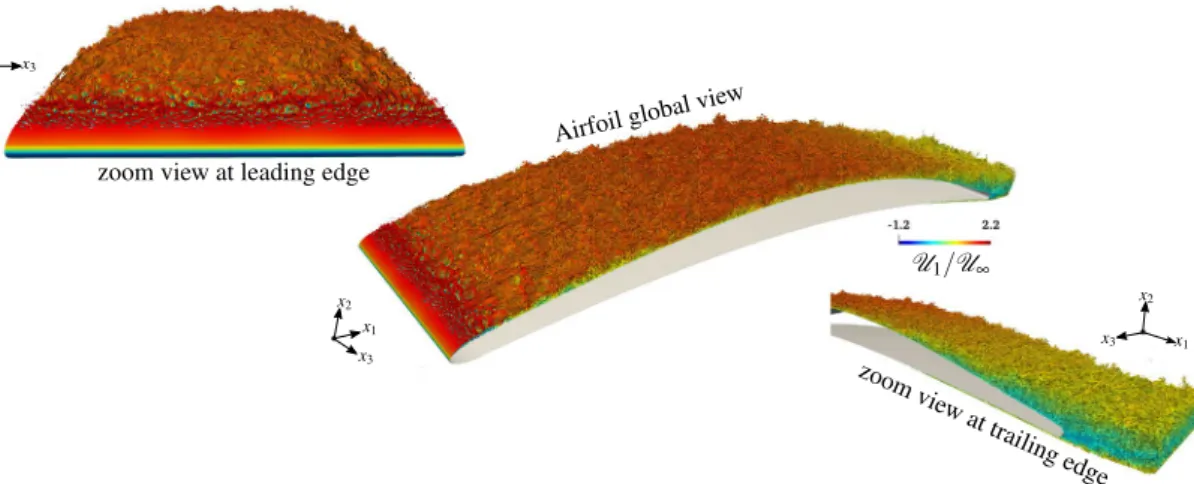

Figure 4 depicts the level of vorticity and the size of turbulent structures in the flow at the same instant for all three C1 simulations. We observe that the vorticity and the vortex shedding is more intense for the C1,c1 case (i.e., the WRLES) than for C1,c2 and C1,c3 cases. Furthermore, in the C1,c1 case, many more structures are resolved. The nature of the developed turbulent structures is broadly influenced by the size and the structure of the recirculation bubble near the leading edge (see Fig. 4). Furthermore, the WMLES (i.e., the C1,c2 case) does not show a laminar separation, and the flow becomes turbulent without the clear 2D vortex breakdown, as is shown in the C1,c1 and C1,c
3 cases. Indeed, the vortices are first generated very close to the wall due to the flow instability induced by the sudden increase in the wall shear stress τw (which is fed into the LES as flux boundary conditions) by activating
µt,wm in the wall-model at the leading edge. As shown in Fig. 5, by increasing both the Reynolds and the Mach
numbers, the flow topology observed in the former case C1 is also reproduced in the C2 case, and we can see that,
even when the flow seems to be similar at x1/c > 0.2 , the processes that reach the turbulent state are completely
different. The comparison of the WMLES results with the reference WRLES configuration (the C2,c1 case) indi-cates that the equilibrium dynamic wall-model does not adequately capture the formation of two-dimensional intermittent laminar separation vortices, which are induced by the gradual adverse pressure gradient near the leading edge. Therefore, the wall-model failure directly translated into an incorrect estimate of the momentum flux and thus a different boundary layer thickening. This interesting feature is presented in Fig. 6, which shows that the wall-model simulation cannot capture the leading edge bubble properly. In fact, the laminar part of the boundary layer is treated with a wall-model, which enhances the friction and hence leads to an artificial growth of the boundary layer. Therefore, because the turbulent boundary layer has a weaker resistance against separa-tion, the separation occurs earlier. For a very small recirculation region as in the current cases, the wall-model pushes the flow to recover a turbulent boundary layer. This numerical behavior is problematic and is the cause of the very small size of the recirculation region. However, the vortical structures at the trailing edge and the wake are similar to the reference WRLES case; see Figs. 4 and 5.
Mean flow profiles.
In Fig. 7, we present the time- and spanwise-averaged pressure coefficient, CP ,com-puted as (8) CP =�P � − P∞ 1 2ρ∞U∞2 ,
Figure 3. Topology of the flow described by the Q-criterion ( Qc2/U2
∞∼ 950 ) colored by the normalized
longitudinal instantaneous velocity U1/U∞ for the C3,c1 case for which Ma∞= 0.5 , Re = 2.29 × 10
6 and
Figure 4. Topology of the flow described by the Q-criterion ( Qc2/U2
∞∼ 950 ) and colored by the normalized
longitudinal instantaneous velocity U1/U∞ for the C1 cases for which Ma∞= 0.3 , Re = 8.30 × 105 and
AoA= 4.
Figure 5. Topology of the flow described by the Q-criterion ( Qc2/U2
∞∼ 950 ) and colored by the normalized
longitudinal instantaneous velocity U1/U∞ for the C2 cases for which Ma∞= 0.5 , Re = 2.29 × 106 and
where P is the time- and spanwise-averaged wall pressure and P∞ is the reference pressure taken at the outlet
boundary. The whole pressure side of the blade is subjected to a favorable pressure gradient and the boundary layer is completely attached. On the suction side, the separation bubble creates a strong pressure drop close to the leading edge and large fluctuations of the wall shear stress are observed in the reattachment region. Downstream of the separation bubble, the mean pressure increases slightly up to mid-chord, then an adverse pressure gradient is observed up to the trailing edge. The mean flow features described in the previous section are recovered quantitatively with the numerical results, with a slight mismatch for CP at the beginning of the
separation zone. The results obtained with the WMLES approach are very close to the results of the reference WRLES configuration. However, note that the discrepancies observed at the leading edge are not surprising since our numerical simulations do not account for the jet shear layers and the possible introduction of the free-stream turbulence that are present in the experiments30. We observe a small difference in the leading edge
region between the WRLES and WMLES cases. However, we found very good agreement between the WMLES calculation and the reference WRLES for the surface pressure coefficient near the trailing edge region, and we found significant improvements between the iso-resolution configurations C3,c2 (with the wall-model) and C3,c3 (without the wall-model). Therefore, we can conclude that the WMLES approach is particularly suitable for the estimation of the leading edge turbulent boundary layer characteristics. At this stage, we must acknowledge that the accurate prediction of CP is a common finding in most external aerodynamics calculations. This result is
most probably attributed to the outer-layer nature of the mean pressure, which appears to be less sensitive to the flow details of the near-wall turbulence31.
The profiles of the mean velocity normal to wall U⊥ are shown in Fig. 8 for the cases C1 and C2 . The profiles
of the case C3 are roughly similar to the case C2 ; unless otherwise stated, only the results of C2 are shown. The
velocity profiles show almost no deviation compared to the reference WRLES. The relative errors of the three mean velocities are less than 2% for the five locations considered. The turbulent boundary layer over the airfoil is about 10–20 mm thick, which, with our grid resolution, results in roughly 20–40 points per boundary later thickness, δ . Assuming that the flow at a given station can be approximated by a local canonical zero-pressure-gradient turbulent boundary layer, the expected error in the mean velocities can be estimated as εm= 0.4�/δ
(with an isotropic grid size), which yields values of 2% for the current grid resolutions. The previous estimation
Figure 6. Visualization of the mean flow velocity sign for WRLES cases (left column) and WMLES cases (right
is strictly valid for the zero-pressure-gradient turbulent boundary layer and, as such, it should be understood only as representative of the errors in complex geometries. However, this estimation provides a useful reference for the expected performance of WMLES in the absence of 3D and non-equilibrium effects for the current grid resolutions.
In Fig. 9, the Reynolds stress component at five different locations are also plotted. The trend followed by all the stress components is correctly captured, although their magnitudes are systematically underpredicted by ∼ 18% . In fact, they present a slight deviation consistent with the modeling approach, which supports a limited fraction of the turbulent fluctuations. This behavior is typical for WMLES, which usually tends to overestimate the streamwise fluctuations while underestimating the transverse components. This is a direct effect of the grid resolution; the turbulent flow cannot carry identical turbulent structures in the near-wall region, which affects the Reynolds stress structures. However, the difference in the Reynolds stresses is mainly localized in a narrow

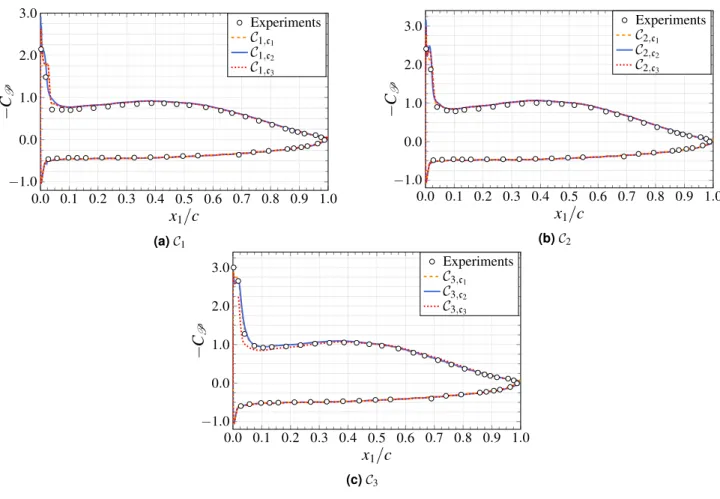

Figure 7. Comparison of the time-averaged pressure coefficient distribution.
Figure 8. Mean streamwise velocity ( U⊥/U∞ ) as a function of wall-normal distance at x1/c= 0.1 , 0.3, 0.5, 0.7
region very close to the wall. Thus, it should not significantly affect the pressure fluctuations whose maximum value is located further away from the solid wall. The prediction capability of the WMLES reduces close to the trailing edge for the streamwise component of Reynolds stress. Note that at iso-resolution, the resolved Reynolds stress computed by WMLES are in good agreement with the reference WRLES simulations compared to the case where the wall-model is not activated.
In Fig. 10, the mean wall-parallel velocity profiles on the suction side are presented in log scale. The most basic wall-models are based on analytical laws that provide a direct link between the velocity normal to the wall U⊥ at a certain wall distance x2 and the wall-shear stress τw= ρUτ2 . The most widely used law is the Reichardt law-of-the-wall32:
with U+
⊥ = U⊥/Uτ and y+= yUτ/ν . Although this law is dedicated to equilibrium flows, it should be
appli-cable to out-of-equilibrium flows as long as the input position is chosen below the end of the log-layer region. The constant κ and C are the same than those of the typical von Kármán classical law of the wall33
Both analytical approaches are compared in Fig. 10. Notice that the wall-parallel velocity component profiles show a fast increasing boundary layer thickness after 50% of the chord, due to a strong adverse pressure gradi-ent on the blade. At x1/c= 0.9 , the flow is nearly at the edge of the separation, but is still attached ( ∂P /∂x2 is
positive). All WMLES profiles show quite a large log-region, which collapse on the Reichardt law-of-the-wall for y+≤ 300 . If the wall-model input is chosen below that threshold, the equilibrium wall-model in this study
appears to be sufficient. Nagib and Chauhan34 have emphasized the non-universality of the Kármán constant κ
through various experiments on canonical flows and showed that FPG leads to higher values of κ while adverse (9) U+ ⊥ = 1 κln(1+ y +κ)+ C−1 κln(κ) 1− e−y+11 −y + 11e −y+11 , (10) U+ ⊥ = 1 κln(y +)+ C.
Figure 9. Resolved Reynolds shear stress profiles as a function of wall-normal distance at x1/c= 0.1 , 0.3, 0.5,
0.7 and 0.9. Each plot is separated by a horizontal offset of 0.03.

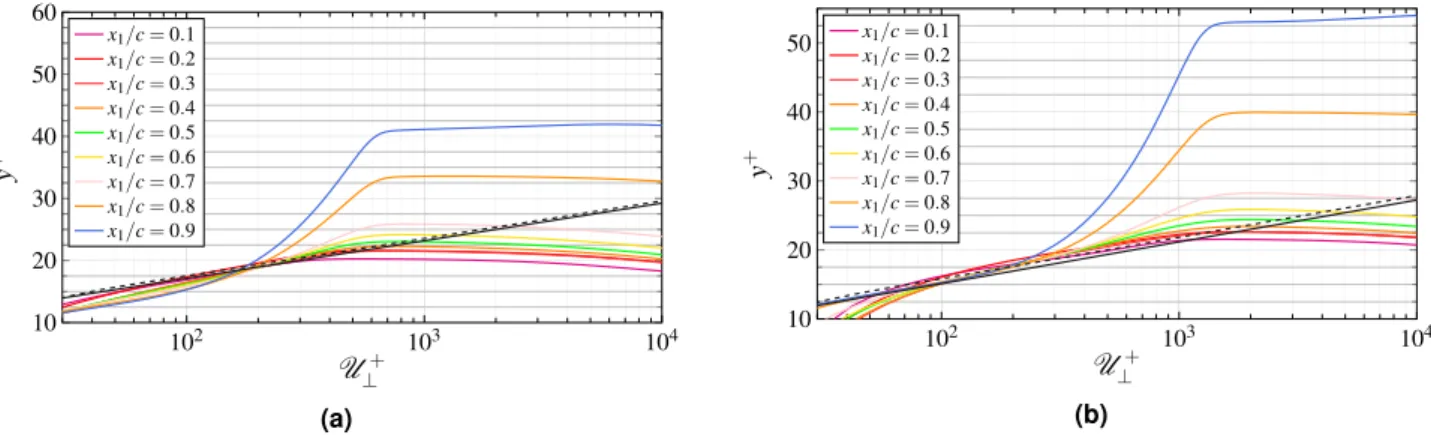

Figure 10. Profiles of the mean wall tangential velocity along wall-normal distance. The dashed line
corresponds to the Reichardt law of the wall and the solid line to the classical law of the wall. The case C3 shows
pressure gradient gives lower κ . They also showed that the constant C can be negative. Therefore, the compara-bility between our results and the two proposed analytical approaches could be improved by finding an optimal choice of κ and C values.

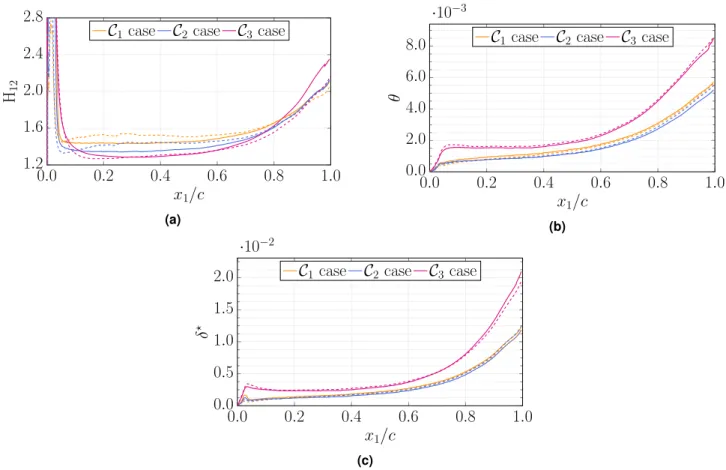

In Fig. 11, we show the variation of the shape factor ( H12= δ⋆/θ ), the momentum thickness θ , and the
displacement thickness δ⋆ against the chordwise distance x
1/c along the aerofoil upper surface. In the case of
aerofoil flows, the traditional definition of boundary layer parameters as used for flat plates must be adapted to be consistent with the spatially varying potential flow. In the present study, the definitions used for the displace-ment thickness δ⋆ and the momentum thickness θ follow the recommendation of Wagner et al.35. Near the leading
edge, the flow is laminar and the shape factor is approximately 2.6 for C∗,c1 cases, which is a typical value of the Blasius profile, while the C∗,c2 cases feature a higher value ∼ 2.9 (zoom not shown). The displacement thickness reaches a local maximum in the region of the separation bubble while the momentum thickness is nearly zero, which results in a very large shape factor. Downstream of the reattachment region ( x1/c≃ 0.03 for all cases), the
shape factor decreases abruptly, and then close to the mid-chord where there is close to a zero pressure gradient, a plateau is observed at ∼ 1.5 for C1 , 1.35 for C2 and ∼ 1.28 for C3 , which is smaller than the typical value of the
Klebanoff profile H12≃ 1.4 observed for turbulent boundary layers). Along the second half of the chord, both
the two thicknesses and the shape factor increase because of the adverse pressure gradient. A larger difference is observed between C2 and C3 . Those differences depend both on the Reynolds number and the pressure gradient36.
Acoustic field.
Analyzing the divergence of the velocity field is particularly useful to delineate the sources and the strength of the acoustic waves in the flow field. An instantaneous picture of the field of ∇ · U on the midspan plane is shown in Figs. 12 and 13 along with contours of iso-entropy s = log(P /ργ) . The C3
simula-tion is found to be qualitatively similar to the C2 simulation. Two major acoustic source regions can be visually
identified: the trailing edge and the transition/reattachment zones on the upper surface. Contrary to the study of Wu et al.37, the near wake does not appear to contribute significantly to the self-noise. The
transition/reat-tachment noise source appears to be even stronger than the trailing edge noise for this flow configuration. This is likely caused by the high local Mach number due to the strong flow acceleration near the leading edge where the blade curvature is higher. An additional sound source is visible near the leading edge on the suction side of the lifting surface. This sound source is mainly caused by the massively accelerated vortex structures near the leading edge38. The transition/reattachment noise source radiates mostly downstream as it is shielded by the
upper blade surface (with only a slight diffraction at the leading edge), whereas the trailing edge source shows an anti-symmetric pattern on each side of the blade, as expected from classical trailing edge noise theories39. Note
Figure 11. Variations of shape factor H12 , momentum thickness θ , and displacement thickness δ⋆ with
chordwise distance x1/c between WRLES computations (solid lines, cases C∗,c1 ) and WMLES computations (dashed lines, cases C∗,c2).
the existence of a noise source near the trailing edge. The vortical structures in the turbulent boundary layer pass the trailing edge and generate sound. Visually, the WMLES approach seems to reproduce a qualitatively similar acoustic source field to the reference WRLES simulations. For the higher Mach number cases C2–C3 , we notice
a stronger radiation in the presence of the separating shear layer, which generate additional noise sources and affect the propagation of acoustic waves upstream by the refraction through the separated shear layer. The sec-ondary source, at higher frequency (closer wave fringes), appears less on the suction side, near the leading edge, close to the reattachment point of the recirculation bubble when using WMLES, which results from the fact that the current equilibrium WMLES does not show properly the laminar separation.
Frequency spectra of surface pressure fluctuations.
Here we assess the capability of wall-modeled LES to predict surface pressure fluctuations on the suction side of the airfoil surface at x1/c= 0.976 , as shownin Fig. 14. The frequency spectra of pressure fluctuations (PSD) as well as the cross-spectral and auto-spectra have been estimated numerically based on the Welch method of periodogram40, which minimizes the variance
of the PSDs estimator41. The overall pressure signals from our computations, extracted from probes that are
placed in the first wall-normal cell along the airfoil, are subdivided into Ns/16 sub-blocks, where Ns
repre-sents the number of pressure recordings of each case. We adopt the Welch method combined with a Hanning window throughout the spectral analysis while using a FFT. The overlapping of the sub-blocks is set to 50%. The frequency spectrum is then obtained by averaging the periodograms of all the sub-blocks. The normalized sampling frequency is set to 3,000, i.e., we collect 3,000 pressure signals per each probe and convective time scale. The PSD is plotted as a function of the streamwise location and the normalized frequency (or Strouhal number St = fc/U∞ ). The trailing edge noise displays a low frequency broadband spectrum with most of the
energy of the signal below St = 9 . The PSD of each case features noticeable differences, as indicated by the slopes that are superimposed onto each dimensionless PSD. In general, the WMLES is found to underpredict the spectral level of the experimental data by 2–4 dBs in the low to intermediate range of frequency. The high range of frequency of the experimental pressure spectra is more accurately captured by the WMLES compared the reference WRLES’s. The most striking finding in this figure is that at iso-resolution, WMLES cases are in better agreement than the cases without the wall-model, mainly at the low frequency range. Overall, all of the spectra in Fig. 14 demonstrate that the broadband content is predicted reasonably well by the WMLES, which provides a good baseline study to assess and quantify noise prediction. The tonal peaks that arise from the experimental spectra on Fig. 14 are attributable to acoustically untreated duct models of the wind-tunnel facility. Moreover, the observed disparities at low Strouhal number may be partly caused by the installation effects of the experi-ment that are not accounted for in the numerical simulations, but also to a lack of statistical convergence of the WRLES spectra as a result of the time series being short.
The wall-pressure statistics computed from the time-domain analysis are deduced from the temporal pressure cross-correlation calculated as
(11) Ra,b(ξ1, 0, ξ3, τ )= �P′(x1, 0, x3, t)P′(x1+ ξ1, 0, x3+ ξ3, t+ τ )�,
where P′ is the surface pressure fluctuations, a and b represent two arbitrary points on the airfoil separated
by distance ξ1 , ξ3 in the streamwise and spanwise directions, respectively. The brackets �·� indicate an ensemble
average. The time delay between two signals τ is normalized on the chord c, and the inflow velocity U∞ . The
effect of streamwise separation is depicted in Fig. 15. The cross-correlation Ra,b(ξ1, 0, 0, τ ) is computed using
the probe located at x1/c= 0.975 as a reference for the computation of correlation with upstream probes that
are separated by ξ1 . We note the diminution of the correlation between the two signals with increasing
separa-tion between the signals. The decreasing peak of cross-correlasepara-tion is due to the change in the pressure signature in the turbulent boundary layer, since the greater the distance between the probes, the greater the distance over which the structures can change and evolve, which yields a lower correlation between the pressure signals. For the WMLES cases, we notice that the pressure signals are correlated over a larger separation distance, and thus for a higher time delay relative to the reference WRLES configurations. This can be explained by the fact that the structures evolve less rapidly when using the wall model, i.e., the structures are constrained by using the wall-model, leading to much lower correlation value of Ra,b(ξ1, 0, 0, τ ).
Using the function Ra,b(ξ1, 0, 0, τ ) , it is possible to estimate the value of convection velocity of the vortical
structures Uc(ξ1) as a function of the separation distance ξ1 in the streamwise direction between probes as
where τ Uedge/δ⋆ max represents the time lag, which corresponds to the maximum of the cross-correlation
Ra,b(ξ1, 0, 0, τ ) between two pressure signals separated by a normalized distance ξ1/δ⋆.
In Fig. 16, the normalized convection velocity is extracted as a function of the longitudinal separation ξ1 ,
taken as the reference probe located at x1/c= 0.978 , for both the reference WRLES and WMLES computation.
The convective velocity ranges from 0.55 · U∞ to 0.80 · U∞ with an apparent dependency on the Reynolds
number or angle of attack. WMLES seems to cause a higher streamwise convective velocity Uc with respect to
the baseline WRLES configuration.
(12) Uc(ξ1) Uedge = ξ1/δ⋆ τ Uedge/δ⋆ max ,
cross‑spectral density and coherence.
One of the main quantities generally used to describe wall-pres-sure statistics is the cross-spectral density in the spanwise direction, which is defined bywhere P′ is the time FFT transform of the fluctuated wall pressure. The complex conjugate is denoted by ·∗ .
According to the coherence function, which is used to indicate the strength of the relation between the pressure fluctuations at two separate locations as the frequency varies, as the disturbed flow is convected in the streamwise (13) ŴPaPb(ξ1, 0, ξ3, ω)= � P′∗(x1, 0, x3, ω), P′(x1+ ξ1, 0, x3+ ξ3, ω)�,
Figure 15. Cross-correlation functions of the simulated surface pressure fluctuations on the
or in the spanwise direction, it is possible to express the cross-spectrum in non-dimensional form. Hence, the coherence function can be expressed as
where ŴPaPa , ŴPbPb are the pressure auto-spectra at the two positions a and b, respectively. The different ana-lytical expression coherence functions proposed in the literature are a function of the angular frequency ω (or equivalently the Strouhal number St = ωδ/uτ ), and normalized with respect to ξ3 and Uc , which are computed
from the cross-correlation functions.
Despite its simplicity, the Corcos model42 is still extensively used in many practical applications, since it
provides a simple analytical form and clear physical significance. This model is based on the assumption that the correlation lengths in both the streamwise and spanwise directions are statistically independent, and thus the coherence takes the form
where kc= ω/Uc is the convective wavenumber. In the formulation, α1 and α3 are constants that measure the loss
of coherence in the streamwise and spanwise directions, for which different values can be found in the literature. A second semi-empirical model, which is an extension of the Corcos model, has been proposed by Efimtsov43
and improved by Salze et al.44. This model explicitly considers the compressibility effects by introducing a number
of additional tunable constants. The coherence function is expressed for this model, according to the multiplica-tive hypothesis (cf. (15)), as
where 1 and 3 are the correlation lengths in the streamwise ( �1= Uc/ωα1 ) and spanwise direction
( �3= Uc/ωα3 ), respectively. For a free stream Mach number below 0.75, the spanwise correlation length is
modeled as follows44 (14) γa,b(ξ1, 0, ξ3, ω)= |ŴPaPb (ξ1, 0, ξ3, ω)| ŴPaPa(ω)ŴPbPb(ω), (15) γa,b(ξ1, 0, ξ3, ω)= e−α1kc|ξ1|e−α3kc|ξ3|e−α1kcξ1, (16) γa,b(ξ1, 0, ξ3, ω)= e−|ξ1|/�1e−|ξ3|/�3e−α1kcξ1, (17) �3 δ = � a4 ωξ3 Uc δ ξ3 �2 + � a5uUτc �2 �ωξ 3 Uc δ ξ3 �2 +�a5 a6 uτ Uc �2 −1/2 ,
Figure 16. Convection velocity as a function of ξ1 , normalized by the chord. Reference probes used for the
where the empirical parameters a4,5,6 are adjustable through proper fit of experimental or numerical data.
Accord-ing to Palumbo45, the Efimtsov–Salze’s constant a
4 constrains the amplitude of mid- to high-frequency coherence
lengths, similar to the constants in the Corcos model. The frequency at which the Efimtsov–Salze model breaks away from the Corcos model is governed by the parameter a5 , while the low-frequency roll off is controlled by
the parameter a6.
The major limitations of the Salze–Efimtsov model are the tunable constants a4,5,6 , which generally depend
on the Mach and Reynolds numbers, as well as on the separation distance. These parameters are estimated in this study at x1/c= 0.976 by fitting the coherence data points obtained from the reference WRLES configurations,
by means of a nonlinear least-squares optimization procedure. The coefficients thus obtained in the range of Mach numbers considered are a4= 0.47 , a5= 17.80 and a6= 1.0 . We depict in Fig. 17 the spanwise coherence
length at different locations close to the trailing edge for the three cases. We see that the collapse of the curves for both the Corcos or Salze–Efimtsov models is achieved at high frequencies for all the tested computations at x1/c= 0.976 . We obtain less satisfactory agreement between the theoretical predictions and the numerical data
far upstream x1/c= 0.976 (for which the parameters of Salze–Efimtsov model are computed). Nevertheless,
by comparing spectra obtained for the two locations x1/c= 0.909 and x1/c= 0.976 , it can be concluded that
very close to the trailing edge, the wall-pressure statistics are well established and almost stationary justifying the use of radiation models based on a wall-pressure statistics at a single point close to the trailing-edge46,47.
The Salze–Efimtsov model predicts the peak in coherence lengths and compares reasonably well to the Corcos model. The Salze–Efimtsov also achieves a much better agreement with the present simulated dataset at lower frequencies. The lack of agreement for the Corcos model at low frequencies is predicted, since the Corcos model is not suited for this range of frequencies.
Moreover, good agreement between the predictions of the Salze–Efimtsov model and the numerical data is obtained in all cases. Unlike the Corcos approximation, the Salze–Efimtsov model is able to provide a good agreement in the low-frequency range of the coherence functions, especially at x1/c= 0.976 for all the matrix
computation. We note that the comparison of coherence length distribution at Re = 2.29 × 106 between both
models and the simulated results is better than the case Re = 8.30 × 105 , suggesting a Reynolds number
depend-ence of the shape of these models. We can also see that the WMLES curves fit the referdepend-ence WRLES computations reasonably well, regardless of the studied case.
conclusion
The prohibitive computational cost of resolving the inner region of turbulent boundary layers prevents using the WRLES approach to study high-Reynolds number turbulent flows in complex geometries. However, using the wall-modeled LES approach can reduce this computational cost. The major objective of this work was to evalu-ate the feasibility and accuracy of the WMLES approach for the prediction of broadband noise generevalu-ated by a controlled-diffusion blade. To this end, we carried out detailed comparisons between the results obtained with the equilibrium WMLES approach, experimental measurements, and the wall-resolved LES reference solutions. LES with wall-modeling accurately predicted the pressure coefficient distribution, velocity statistics (including the mean velocity), and the trace of Reynolds tensor components. We also found that, for the wall-modeled LES cases, the instantaneous flow structures resembled those observed in the reference wall-resolved LES, except near the leading edge region. In addition, the boundary layer thickness, displacement thickness, and momentum thickness along the airfoil chord showed a convergent behavior towards those obtained using the wall-resolved LES. Surface pressure fluctuations, which act as the sources of the broadband noise at the far-field, were also extracted in the form of surface pressure spectral densities along the airfoil chord for both the wall-modeled LES and wall-resolved LES calculations. Our results indicate that the pressure spectral density profiles from the wall-modeled LES compare well with the experimental profiles. Furthermore, we found that wall-modeled LES is more comparable with the experimental data in the high-frequency region than the WRLES reference case. The convection velocity showed an increase towards an asymptotic value as the separation distance, ξ1 , increased,
and we found that the WMLES results overestimated the WRLES computations. We compared the spanwise correlation length to the Corcos42 model, which assumes a frequency-independent correlation length, and the
Salze–Efimtsov model44, which, in contrast, introduces a frequency dependence. We found both WMLES and
WRLES computations compare well with both models over the higher range of frequency, which accounted reasonably well for the effects of the pressure gradients. Nevertheless, the Salze–Efimtsov model was in bet-ter agreement with the computational results for the lower range of frequency, but two paramebet-ters needed to be tuned. Overall, the equilibrium WMLES presents an interesting approach to (i) investigate in more detail the turbulent pressure field induced by turbulent boundary layer over the controlled-diffusion airfoil, and (ii) advance the development of new versions of trailing edge noise models on coarser grids, which is needed for fast simulations in industrial design.
Received: 3 March 2020; Accepted: 15 July 2020
References
1. Wright, S. E. The acoustic spectrum of axial flow machines. J. Sound Vib. 45, 165–223 (1976).
2. Robison, R. A. V. & Peake, N. Noise generation by turbulence-propeller interaction in asymmetric flow. J. Fluid Mech. 758, 121–149 (2014).
3. Moriarty, P. & Migliore, P. G. Semi-empirical Aeroacoustic Noise Prediction Code for Wind turbines (National Renewable Energy Laboratory, Golden, 2003).
4. Sandberg, R. D. & Sandham, N. D. Direct numerical simulation of turbulent flow past a trailing-edge and the associated noise generation. J. Fluid Mech. 596, 353–385 (2008).
5. Redonnet, S. Aircraft noise prediction via aeroacoustic hybrid methods—development and application of ONERA tools over the last decade: some examples. AerospaceLab 1–16 (2014).
6. Ffowcs, W. & Hall, L. H. Aerodynamic sound generation by turbulent flow in the vicinity of a scattering half plane. J. Fluid Mech.
40, 657–670 (1970).
7. Envia, E. et al. An assessment of current fan noise prediction capability. In 14th AIAA/CEAS Aeroacoustics Conference, 2991 (2008). 8. Terracol, M. & Manoha, E. Wall-resolved large eddy simulation of a highlift airfoil: detailed flow analysis and noise generation
study. In 20th AIAA/CEAS Aeroacoustics Conference, 3050 (2014).
9. Choi, H. & Moin, P. Grid-point requirements for large eddy simulation: Chapman’s estimates revisited. Phys. Fluids 24, 011702 (2012).
10. Larsson, J., Kawai, S., Bodart, J. & Bermejo-Moreno, I. Large eddy simulation with modeled wall-stress: recent progress and future directions. Mech. Eng. Rev. 3, 15–00418 (2016).
11. Bodart, J., Larsson, J. & Moin, P. Large eddy simulation of high-lift devices. In 21st AIAA Computational Fluid Dynamics Confer-ence, 2013–2724 (2013).
12. Spalart, P. R. Detached-eddy simulation. Annu. Rev. Fluid Mech. 41, 181–202 (2009).
13. Bodart, J. & Larsson, J. Wall–modeled large eddy simulation in complex geometries with application to high-lift devices. Annual Research Briefs, Center for Turbulence Research, Stanford University 37–48 (2011).
14. Kawai, S. & Larsson, J. wall-modeling in large eddy simulation: length scales, grid resolution, and accuracy. Phys. Fluids 24, 015105 (2012).
15. George, K. J. & Lele, S. K. Large eddy simulation of airfoil self–noise at high Reynolds number. In 22nd AIAA/CEAS Aeroacoustic Conference, vol. 30 (2016).
16. Commission, E. Simulations of CrOr and fan broadband NoisE with reduced order modelling (2020). https ://cordi s.europ a.eu/ proje ct/id/75554 3.
17. Trettel, A. & Larsson, J. Mean velocity scaling for compressible wall turbulence with heat transfer. Phys. Fluids 28, 026102 (2016). 18. Park, G. I. & Moin, P. An improved dynamic non-equilibrium wall-model for large eddy simulation. Phys. Fluids 26, 37–48 (2014). 19. Mettu, B. R. & Subbareddy, P. K., Modeling non-equilibrium effects in wall modeled LES of high-speed flows. In AIAA Aviation
2019 Forum, 3699 (2019).
20. Khalighi, Y., Ham, F., Nichols, J., Lele, S. & Moin, P. Unstructured large eddy simulation for prediction of noise issued from tur-bulent jets in various configurations. In 17th AIAA/CEAS Aeroacoustics Conference, 2886 (2011).
21. Wray, A. A. Minimal Storage Time Advancement Schemes for Spectral Methods Vol. 202 (NASA Ames Research Center, California, 1990).
22. Vreman, A. W. An eddy-viscosity subgrid-scale model for turbulent shear flow: algebraic theory and applications. Phys. Fluids 16, 3670–3681 (2004).
23. Bogey, C. & Bailly, C. Three-dimensional non-reflective boundary conditions for acoustic simulations: far field formulation and validation test cases. Acta Acust. United Acust. 88, 463–471 (2002).
prediction. In 25th AIAA/CEAS Aeroacoustics Conference, 2720 (2019).
36. Cousteix, J. Aérodynamique: Turbulence et Couche Limite (Cépaduès-Editions, Toulouse, 1989).
37. Wu, H., Sanjose, M., Moreau, S. & Sandberg, R. D. Direct numerical simulation of the self–noise radiated by the installed controlled-diffusion airfoil at transitional Reynolds number. In 25th AIAA/CEAS Aeroacoustics Conference, 3797 (2018).
38. Sano, A., Abreu, L. I., Cavalieri, A. V. G. & Wolf, W. R. Trailing-edge noise from the scattering of spanwise-coherent structures. Phys. Rev. Fluids 4, 094602 (2019).
39. Doolan, C. J. & Moreau, D. J. A review of airfoil trailing edge noise with some implications for wind turbines. Int. J. Aeroacoust.
14, 811–832 (2015).
40. Solomon, O. M. Jr. PSD computations using Welch’s method. STIN 92, 23584 (1991).
41. Di Marco, A., Camussi, R., Bernardini, M. & Pirozzoli, S. Wall pressure coherence in supersonic turbulent boundary layers. J. Fluid Mech. 732, 445–456 (2013).
42. Corcos, G. The structure of the turbulent pressure field in boundary-layer flows. J. Fluid Mech. 18, 353–378 (1964).
43. Efimtsov, B. Characteristics of the field of turbulent wall pressure-fluctuations at large Reynolds-numbers. Sov. Phys. Acoust. USSR
28, 289–292 (1982).
44. Salze, É., Bailly, C., Marsden, O., Jondeau, E. & Juvé, D. An experimental characterisation of wall pressure wavevector-frequency spectra in the presence of pressure gradients. In 20th AIAA/CEAS Aeroacoustics Conference, 2014–2909 (2014).
45. Palumbo, D. Determining correlation and coherence lengths in turbulent boundary layer flight data. J. Sound Vib. 331, 3721–3737 (2012).
46. Amiet, R. K. Noise due to turbulent flow past a trailing-edge. J. Sound Vib. 47, 387–393 (1976).
47. Roger, M. & Moreau, S. Back-scattering correction and further extensions of Amiets trailing-edge noise model. Part 1: theory. J. Sound Vib. 286, 477–506 (2005).
Acknowledgements
The authors acknowledge the computing resources provided by the Barcelona Supercomputing Center (PRACE (16th call) award 2017174204), and the Supercomputing Laboratory and the Extreme Computing Research Center at KAUST. The first author benefited from interesting discussions with Professors Laurent Joly and Marc C. Jacob.
Author contributions
J.B. conceived the study. R.B. generated the numerical database and the post-prcessing of the numerical results. J.B. particpated in the design of the model. R.B. and J.B analysed the data. R.B. wrote the manuscript with sup-port from M.P. and J.B. M.P. was in charge of overall direction and planning.
competing interests
The authors declare no competing interests.
Additional information
Correspondence and requests for materials should be addressed to R.B. Reprints and permissions information is available at www.nature.com/reprints.
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and
institutional affiliations.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International
License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creat iveco mmons .org/licen ses/by/4.0/.
