Influence of local mechanical loadings paths on the oxidation assisted crack initiation of alloy 718

(1)

To link to this article

: DOI:10.1016/j.msea.2011.11.030

URL:

http://dx.doi.org/10.1016/j.msea.2011.11.030

This is an author-deposited version published in:

http://oatao.univ-toulouse.fr/

Eprints ID: 5462

To cite this version:

Ter-Ovanessian, Benoît and Poquillon, Dominique and Cloué, Jean-Marc

and Andrieu, Eric Influence of local mechanical loadings paths on the

oxidation assisted crack initiation of alloy 718.

(2011) Materials Science

and Engineering A, vol. 533 . pp. 43-49. ISSN 0921-5093

O

pen

A

rchive

T

oulouse

A

rchive

O

uverte (

OATAO

)

OATAO is an open access repository that collects the work of Toulouse researchers

and makes it freely available over the web where possible.

Any correspondence concerning this service should be sent to the repository

administrator:

staff-oatao@listes.diff.inp-toulouse.fr

(2)

Influence

of

local

mechanical

loading

paths

on

the

oxidation

assisted

crack

initiation

of

alloy

718 Benoît

Ter-Ovanessian

a,b,∗

,

Dominique

Poquillon

b

,

Jean-Marc

Cloué

a

,

Eric

Andrieu

b

a_AREVA,_AREVA_NP_10,_rue_J._Récamier,₆₉₄₅₆_Lyon_Cedex_06,_France

b_Université_de_Toulouse,_CIRIMAT,_{INP/UPS/CNRS,}_{INP-ENSIACET,}_4,_allée_Emile_Monso_-_BP₄₄₃₆₂_-₃₁₀₃₀_TOULOUSE_Cedex_4,_France

Keywords: Ni-basedsuperalloys Environment-assistedcracking Portevin-LeChâteliereffect Finiteelementsimulation

a

b

s

t

r

a

c

t

Athightemperatures,alloy718,likemanyothernickel-basedsuperalloys,issensitivetoan oxidation-assistedintergranularcrack(OAIC)growthmechanism.Formerstudieshavepointedoutthatevenif intergranularoxidationstilloccurred,intergranularcrackinitiationwasinhibitedduetospecific mechan-icalloadingswhichwereidentifiedasPortevin-LeChâtelier(PLC)plasticinstabilities.Inthepresentwork, keyparameterstriggeringcrackinitiationorPLCinstabilitiesinthe[550–700◦_C]_temperature_range_were

determinedforthestudiedgradebymeansoftensiletestsonsmoothspecimens.Then,inordertoassess theapplicabilityofsuchafindingatascalecompatiblewiththematerialmicrostructure,adedicated ten-sileV-shapedspecimenwasdesignedtogeneratedifferentsurfaceandsub-surfacestrainandstrainrate histories.Thankstoadualapproachbasedontheobservationofcrackinitiationlocationonthisspecific experimentalspecimentogetherwithassociatedFEcalculations,thecriticalmechanicalloadingpaths inducingOAICinitiationhavebeenspecified.Thus,assumingthatthemetallurgicalstateishomogenous atthestructurescale,amappingofintergranularcrackinitiationisthenobtainable.

1. Introduction

Alloy 718is known tobe sensitiveto anoxidation assisted intergranular crack (OAIC) growth mechanism at temperatures closetothoseencountered industriallyfor turbo machinedisks (650◦_C-air)_[1–9]_._Recent_work_[6–9]_,_{investigating}_the_detrimental

effectofoxidationonthelifespanandthemechanicalbehaviour ofalloy718, hasdemonstratedthat duringtensile testscarried outunder syntheticairat a 400–600◦_C _temperature_range _and

ata5×10−7s−1to10−1s−1 strainraterange,thedisappearance oftheintergranularbrittleareaonthefracturesurface systemati-callycorrespondedtotheoccurrenceofPortevin-LeChâtelier(PLC) phenomenon.Moreover,thesame testscarried outunderinert atmospheresystematicallyexhibitedafullytransgranularductile fracture mode,whatever theplasticflow regimewas.Although theoccurrenceofplasticinstabilities(jerkyflow, orPortevin-Le Châtelierphenomenon),andmoregenerallydynamicstrainageing (DSA)duringplasticflowofalloy718forsuchrangeof temper-atureiscommonlyobserved[10–13],differenthypothesesabout theirimpactonoxidationassistedintergranularcrackgrowthwere

∗ Correspondingauthorat:UniversitédeToulouse,CIRIMAT,INP/UPS/CNRS, INP-ENSIACET,4,alléeEmileMonso-BP44362-31030TOULOUSECedex4,France. Tel.:+33534323449;fax:+33534323498.

E-mailaddress:benoit.terovanessian@ensiacet.fr(B.Ter-Ovanessian).

proposed[6–9].Amongthem,Fournieretal.[6],suggestedthatthe correlationbetweenthedisappearanceoftheintergranular frac-turemodewiththeoccurrenceofPLCinstabilitieswaslinkedto thestronglocalizationofthestraininthePLCbandsgivingriseto theductilefracturemode.Garatetal.[7],establishedan experi-mentalmapincludingdeformationmodes(DSA–PLC)andfracture modesforalargerangeofstrainratesandtemperatures.Fromthese results,theauthorssuggestedthatthepropagationofatypeCPLC band,whichisinitiatedinareasofhighstrain/stresslocalization likegrainboundariesor,atanotherscale,intheplastic zoneat thetipofapropagatingdefect,couldmodifythelocalstress dis-tribution.Thus,iftheplasticzoneinfrontofadefectisextended enoughtoincludeseveralgrains,itbecomespossiblethattherate ofthestressredistributionduetotheinstabilityoccurrenceinduces eitherachangeinthecrackpathoracrackarrest,hencepreventing intergranularcrackpropagation.

Furthermore,themicrostructureofalloy718isknownto gen-erateahighpropensitytoconcentratetheshearingalongafewslip planespergrainleadingtonoticeabledeformationheterogeneity. Whendealingwithintergranularcrackinitiationatthesurfaceof suchamaterial,thelocalizationofcrackinitiationsitesremains anopenquestion.Asallofthesurface/sub-surfacegrain bound-ariesexhibitedintergranularoxidation,theanswermightbefound inthereleaseofgraintograinstrainincompatibilitiesatthefree surfaceofthepolycrystalwhereonlysomegrainboundarieskeep highstresslevelssusceptibletoinitiateanintergranularcrackor

(3)

Table1

Chemicalcompositionofas-receivedalloy718[wt.%].

Al C Co Cr Cu Fe Mn Mo Ni Nb+Ta Si Ti

0.48 0.034 0.022 18.3 0.009 Bal. 0.046 3.04 53.69 5.17 0.031 1.05

Fig.1.Geometryoftensilespecimensaftercoldstamping(dimensionsinmm).

tobereleasedbyPLCinstabilities.Thistypeofapproachassumes thatthemechanicalbehaviouratthesurfaceofthematerialisnot verydifferentfromthebulk.Inordertoassessthevalidityofthe approach,adedicatedtensileV-shapedspecimenwasdesignedto generatesurfaceandsub-surfacestrainandstrainrategradientsat ascalecompatiblewiththematerialmicrostructure.Moreover,the improvementofthemechanicalbehaviourcharacterizationofthis V-shapedtensilespecimen[8,14]highlightedthemainadvantages ofthisspecificgeometryinstudyingstrainratedependenceofcrack initiation.Indeed,thisgeometryenablestocontroltheamountof materialattheapexoftheVsubmittedtotheimposedstrainrate

[14].Asaresult,therequiredloadingconditionsforcrack initia-tionorforPLCbandsgenerationareexpectedtobeonlyfulfilled locally.Previously,Deleumeetal.[14]alreadyprovedthat,ona globalscale,tensiletests’mechanicalresponseandfiniteelements modellingwereingoodagreementforasimilargeometry. How-ever,fromthispreliminarystudy,itappearednecessarytoobtaina completedescriptionandevaluationofstrainandstrainrate gradi-ents’distributionallalongthetensiletestinordertobebetterable toexplainthelocalizationofintergranularcracksobservedatthe endofthemechanicaltests.Thepurposeofthepresentstudyisto providethiskeyinformationat600◦_C_in_order_to_accurately_analyze

theroleoflocalloadingpaths(i.e.:criticalstrain,criticalstrainrate, plasticflowmode,etc.)onintergranularcrackinitiationbehaviour ofalloy718.

2. Materialandexperimentalprocedures

Thematerialsusedinthisstudywereobtainedthrougha dou-blemeltingprocess:vacuuminductionmeltingpluselectrodeslag remelting.Thenominalcompositionoftheevaluatedheatisgiven inTable1.

Thecastingotwashotandcoldrolleddowntostripsof0.3mm ofthickness,followedbyasolutionannealingheattreatmentat 1050◦_C_for_one_hour_ended_by_air_quenching._Thin_tensile

speci-mensweremachinedfromtheannealedstrips.Then,whilestillat anannealedmetallurgicalstate,V-shapedhumpspecimenswere formedfromtensilespecimens,bycoldstampingwithaspecific stainlesssteeldye(Fig.1).

V-shapedspecimensandconventionaltensilespecimenswere thenheattreatedinanargonatmospherefollowingthe conven-tional aeronautical route: holdat 720◦_C _– ₈_h, _cooling ₅₀◦_C/h

downto620◦_C,_hold_at₆₂₀◦_C_–₈_h_and_final_air_cooling_to_room

temperature. Such heat treatment aims at precipitating and

stabilizingthehardeningphasesg′_(Ni₃_Al,_average_size₅₀_nm)_and

g′′(Ni3Nb,averagesize15nm×50nm).

All the mechanical tensile tests were performed on a hard electro-mechanicaltensilemachinewithcontrolleddisplacement rate,outfittedwithanenvironmentalchamber,aradiationfurnace andalaserextensometer.Twodifferenttypesoftensiletestswere carriedoutonthinflatconventionalspecimensundersyntheticair orargoninthe550–700◦_C_temperature_range_for_different_imposed

strainratesin the10−5_s−1_,₁₀−1_s−1 _range. _The_first_ones_were

carriedoutuntilfailurewhereasthesecondonesconsistedin inter-ruptedtestsatagivenplasticstrain.Afterbeingtested,gagelength and/orfracturesurfaceswereexaminedwithaLEO435VP scan-ningelectronmicroscope(SEM).Thepurposeoftheconventional tensiletestsonthinflatspecimenswastoestablishthe mechan-icalbehaviourofthatspecificgradeatthesetemperaturesandto determinethethresholdvalueofdisappearance/appearanceofthe PLCphenomenon.Thepurposeofthetensiletestsinterruptedata givenplasticstrainwastoevaluatethecriticalcumulatedplastic strainnecessarytoobservecrackinitiation.Forsuchinterrupted tests,tensilespecimenswereheatedthenloadeduntilthewanted plasticstrainwasreached,thenunloadedandfinallycooleddown. Then,SEMobservationsalongthegagelengthallowedtodetect crackinitiation.

Ontheotherhand,tensiletestshavebeencarriedoutin sim-ilartestingconditionsonV-shapedspecimens.Sometestswere carriedout uptofailure but othertestswereinterrupted for a givenloadcorrespondingtoagivenmaximalplasticstrainatthe tipoftheV.Thepurposewastodeterminethelocalized mechan-icalbehaviourofthisspecificgeometry,withoutincreasingstress triaxiality.

Forbothtensilespecimens,themicrostructurewas character-izedbyequiaxedfullyrecrystallizedsmallgrains(ASTMgrainsize number=8–9)withrandomgrainboundariesandbythepresence ofsomeNb/Ticarbiderows.Fig.2showsthatthemicrostructureis homogeneousallacrosstheVspecimenthicknesseveninthemost deformedparts.

Becauseofthecoldstampingofthespecimen,workhardening intheV-shapedisestimatedbygeometricalconsiderationstoan averagevalueof13%.Inordertoevaluatetheroleofthiswork hard-eningonthesubsequentbehaviouroftheV-shapedspecimenfor OAICtests,tensiletestswerecarriedoutontensilespecimenwhich werepre-strainedeitherat12%or20%atroomtemperatureinthe solutionannealedstatebeforebeingagedhardened.The mechan-icalresponseobtained,showedthatthemechanicalbehaviour,at 600◦_C,_was_not_{significantly}_modified_by_the_previous_work

hard-ening.Therefore,onlyoneflowrulemaybeusedtocharacterize thewholebehaviouroftheVshapedspecimen.

FiniteelementcalculationswereperformedwithCast3mfinite elementcode[http://www-cast3m.cea.fr],inordertodetermine the local stress and strain tensor fields scale and distribu-tion in the V-shaped specimen throughout the tensile tests. Becauseofthegeometry(symmetryandwidth)ofthespecimen, the simulation was carried out using plane strain hypothe-sis and a 2D mesh (8node-quadratic elements, corresponding to 9mm×9mm) of half of the specimen. For calculations, the flow rule wasdescribed byan isotropic elastoplastic mechani-calbehaviour.Indeed,inCast3mcode,thismechanicalbehaviour with non-linear hardeningenables to fit the true stress–strain curve.

(4)

Fig.2.DetailsofthemicrostructureattheapexofaVshapedtensilespecimenaftertheformingprocessandtheageingheattreatment.

Asafirstresultfromthintensiletests,intheinvestigatedrange of strain rates, the mechanical behaviour at 600◦_C _in _the _DSA

regimedidnotsignificantlydependonthestrainrate(Fig.3); there-fore,onlyatime-independentconstitutiveequationwasrequired forfiniteelementcalculationstomodelthematerialbehaviourin thesamples.

AsimulationwascarriedoutopeningtheVsampleuntilthe appliedloadreached60N.Fromthisstepbystepsimulationup to60N, differentlocalstainrates arededucedforthedifferent displacementratesasdetailedinSection3.

3. Results

3.1. Tensiletestsonthintensilespecimens

Tensiletestswerecarriedoutunderairenvironmentat600◦_C

onconventionalthintensilespecimeninordertodeterminethe mechanicalbehaviourofthisgrade,forinstancestrainrate sensi-tivityoftheflowstress.Theresultsobtained,whicharedetailed inFig.3,indicatethattheflowstresswasnotreallymodifiedby

Fig.3.Mechanicalpropertiesanddeformationmodesofstudiedmaterialsat600◦_C

fromconventionaltensiletestscarriedoutfordifferentstrainratesundersynthetic air.

thestrainratewhiletheductilitywas.Thefactthattheflowstress isnot(orfew)sensitivetostrainrateisnotsurprisingintheDSA regimewhilethebehaviouroftheductilityseemstobespecificto thestudiedcase.Indeed,contrarytotypeAorBPLCphenomenon

[15–19],theoccurrenceoftypeCPLCphenomenonisassociated withanincreaseoftheductility[18,19].Besides,suchmechanical propertieswereobtainedfromtensiletestscarriedoutunderairfor anarrowdomainofstrainrates.Forhigherstrainrates,adecrease oftheductilitycouldbeobserved.

Moreover,thescanningofthestrainrateevidencedthe thresh-oldvalueofdisappearance/appearanceofthePLCphenomenon, which, in the present case, is in between 2.5×10−4_s−1 _and

3.5×10−4s−1.Inaddition,forthegradestudied,Fig.4showsthe obtainedmapintermsofplasticflowandrupturemodesovera widerrangeoftemperature.Aspreviousworkhasalready demon-strated[6–9],thesethresholdvaluescorrespondedtoatransition inthefracturemodeunderairenvironment.

Furthermore, while PLC occurred, whatever the strain rate domainwas,theserrationsproducedloaddropsbelowthegeneral levelofthestress–straincurveandtheamplitudeoftheserrations wasratherconstant[7,9–13].BothfeaturescharacterizedthetypeC ofPLCphenomenon,accordingtoRodriguez’sdefinition[19].This

Fig.4. Mapoftheruptureandplasticflowmodesofthestudiedgradeinthe [550–700◦_C]_temperature_range_–_in_italics:_the_cumulated_necessary_deformation

(5)

Fig.5. Comparisonofthepredictedandtherealglobalmechanicalresponseofthe specimentestedat600◦_C.

typeiscommonlyassociatedwithanaudibleemissionandwith therandomnucleationofdeformationbandsallalongthe speci-mengage[9,12,13,19].Thecriticalplasticstrainfortheonsetof PLCinstabilitieswasestimatedtobebetween0.20%and0.60%for theentirePLCdomain.Finally,intheDSAregime,thankstothe interruptedtensiletestsatvariouslevelsofplasticstrainandSEM examinationsofthegagelength,aplasticstrainthresholdvaluefor theoccurrenceofcrackinitiationwasdetermined.Forthetested strainratesbelowthetransitionstrainrate,atleast1.5%andatmost 3%ofcumulatedplasticstrainseemednecessaryforcrackinitiation (initalicsinFig.4).

3.2. TensiletestsonV-shapedspecimens:experimentsandglobal FEmodelling

UptofailuretensiletestsonV-shapedspecimenswere prelimi-narilyperformedinordertoacquiretheentiremechanicalresponse

of the specimen for different displacement rates of 0.2mm/s, 0.02mm/sand0.002mm/sat600◦_C._Indeed,_as_during_the_tensile

testthestrainrateschangedfromplacetoplaceduetothespecimen geometry;itismoreaccuratetocharacterizethetestsbyusingthe imposeddisplacementrate.Tensiletestscarriedoutat0.2mm/s and0.02mm/sledtoatotalopeningupoftheVfollowed bya transgranularductilefracture.Conversely,tensiletestscarriedout at0.002mm/swerecharacterizedbyaprematurefailureoccurring beforetheentireopeningoftheVassociatedwithamixedmodeof fracturewithintergranularbrittleandtransgranularductileareas. Complementaryinterruptedtensile testswereperformedtill theappliedloadreached60Nwithtwoimposeddisplacementrates (0.02mm/sand 0.002mm/s)inordertoassesstheabilityofthe finiteelementcalculationswiththechosenconstitutiveequations toreproducetherealmechanicalbehaviourofthespecimen.FE simulationandrealmechanicalresponsesforbothtestsare pre-sentedinFig.5.Itisworthnotingthatthecurvesillustratingthe appliedloadasafunctionofdisplacementareverysimilar.These resultsareevenmoreconvincingastheymakesenseinanother useofthemodeltodescribethelocalaspectsofthemechanical fields,stepbystep,especiallystrainandstrainratedistributionas thetensiletestproceeds.

Meanwhile,SEMexaminationsofthegagelengthforboth dis-placementratesrevealedthatforinterruptedtestscarriedoutat 0.002mm/s,cracksinitiated at∼180mm,∼220mmand260mm fromtheapexoftheV,whileforinterruptedtestscarriedoutat 0.02mm/s,nocrackwasdetected.Fig.6aandbillustratessomeof theSEMobservationsaftersuchaninterruptedtest.

3.3. Finiteelementmodellingoflocalmechanicalstates

Duringtheloading,theVtipisprogressivelyopened.Thus,the innerpartoftheVissubmittedtotensionandisgraduallystrained. Previouswork[14]hasalreadyfocusedonthestraingradientand itsevolutionduringtensiletestsintheapexofsuchaspecimen. Duringtheopening,aslongastheanglechangesbetweenthearms

(6)

Fig.7. TotalandplasticstrainindirectionxattheintradosoftheVasafunctionof theappliedload.Thedistancexisgivenfromthesample’splaneofsymmetry.

oftheVremainsmall,anelasticapproachcanbeusedtoaccessthe strainevolutioninthetipoftheV[8,14].However,whenplastic strainingoccurs,ittendstobelocalizedatthetipoftheVandits contributiontototaldeformationbecomesrapidlylargerthanthe elasticone.Forthestudiedspecimengeometry,plasticstrain con-tributiontothetotaldeformationbecomeshigherthantheelastic strain,oncetheappliedloadreachesF=36N(seeFig.7).Increasing theloadtendstolocalizetheplasticstrainmoreandmoreintheV, asshownbytheshapeofthecurvesinFig.7.

Byconsideringanelasticapproachandforagivendisplacement rate,thestrainrateatthetipoftheVisinitiallylowerthantheone obtainedwithaconventionaltensileflatsample.Thisbehaviourcan bemodelledbysimplegeometricalconsiderations[8,14].However whenconsideringplasticstraincontribution,thepreviouselastic approachisnolongerabletodescribethelocalstrainrateevolution asthetensiletestproceeds.Togofurtherintheanalysis,simulated strainrateevolutionsasafunctionofbothlocationand displace-mentratearepresentedinFigs.8and9.Thecurvesshowthatthe strainrateincreasesprogressivelyfromtheinitialvaluetoaplateau whosevaluedependsonthepositionoftheareaofinterest.Then, whenopeningtheV,thestressdistributionintheintradossurface changessothatfinallythetipoftheVreachesastrainratewhich tendstoreducethecrackinitiationprobabilityinthisarea.

Changingtheloadingratechangesthelocalstrainratebutdue totheinsignificantstrainratesensitivityofthematerialinthese mechanical testingconditions,theshape oftherangeof curves remainsalmostunchangedwhateverthedisplacementrateis.For

Fig.8.Totalstrain–strainratepathfollowedbyseveralareasofinterestlocated atthetipoftheVforagivendisplacementrate(0.02mm/s).PLC/DSAboundaryis superimposedwithcumulatednecessarystraintoinitiateintergranularcracks.

Fig.9.Totalstrain–strainratepathfollowedbyseveralareasofinterestlocatedat thetipoftheVforagivendisplacementrate(0.002mm/s).PLC/DSAboundaryis superimposedwithcumulatednecessarystraintoinitiateintergranularcracks.

each case, differentmaps showingstrain–strain rate paths fol-lowedbythemateriallocatedintheapexoftheVcaneasilybe calculated. On thesemaps,the strainrateinterval demarcating thedisappearance/appearancetransitionofthePLCphenomenon togetherwiththecriticalplasticstrainintervalweresuperimposed (inFigs.8and9)inordertopointouttheboundaryoftheareainside whichthedamagingconditionsatthistemperaturearefulfilled.An interruptedtensiletesthasbeencarriedoutat0.02mm/suptoan appliedloadof60N.Thesemechanicaltestingconditions repro-ducethesimulationconditionspresentedinFig.8.Aspreviously mentioned,finite elementcalculationsconcludedthatthe dam-agingconditionswereneverfulfilledontheentireVsincestrain ratesquicklyreachedthePLCinstabilitiesdomainbefore cumulat-ingthecriticalplasticstraintoinitiateintergranularcracks.Thefact thatnocrackwasdetectedonthegagelengthofthetested spec-imencorroboratesthefiniteelementcalculations.Finally,italso explainswhythetestscarriedoutuptoruptureat0.02mm/sgave risetoafullyductilefracture.Conversely,foraninterruptedtensile testcarriedoutat0.002mm/s,associatedwithFig.9,thefinite ele-mentcalculationspredictthatthecrackinitiationmayoccurovera wideareacentredat250mmfromtheapexoftheV.Observations ofcracksinitiatedat∼180mm,∼220mmand260mmfromtheV apexonthecorrespondinginterruptedtensiletestspecimen(see

Fig.6),seemtoprovethatexperimentalresultsandsimulationsare ingoodagreementandconsequentlythatthespecimengeometry isusefulininvestigatingcrackinitiationconditionsinalloy718. 4. Discussion

ElastoplasticisotropicmodelusedforFEcalculationsaccurately leadstoalocalmappingofplasticstrainandstrainrateoftheV thicknessorofitsextremesurface.Indeed,theareaofinterestin thisstudyisaboundarylayeratthetipoftheVwhosethicknessisof therangeofthemicrostructuresize,onwhichdamaging phenom-enaarebeforehandmodelledatamacroscopicscale.Thestriking factthattheprobabilitydomainofcrackinitiationevidencedbyFE calculationsandmacroscopicexperimentaldataexactlymatches thecracklocalizationfromSEMobservationsonthegagelength oftheinterruptedtensiletestsimpliesthatrandomphenomena generallyobservablemacroscopically,likeDSA/PLCphenomenaor ruleofdamageaccumulation,maybelocalized,inthepresentcase, atthesurfacelayeroftheVstructure.Indeed,theseexperiments confirmnotonlytherelevancyoftheuseofsuchgeometryforOAIC concerns,butalsothepossibilityofatranspositionofloading condi-tionsinducingOAIConthescaleofaconventionaltensilespecimen

(7)

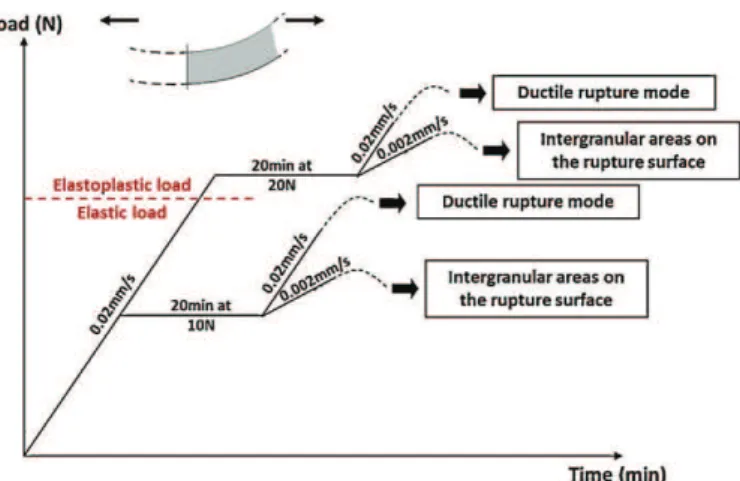

Fig.10.SchematicloadingpathsandresultsoftensiletestscarriedoutonV-shaped specimensat600◦_C_under_synthetic_air.

tothescaleoftheinnersurfaceofthetipoftheV-shapedone. Thus,thankstothistransposition,themechanicalkeyparameters responsibleforOAICmaybedemonstratedandcharacterized.

Theeffectoftheenvironment,intermsofintergranular oxida-tionandweakeningreactions,isalreadyprovedtobeanecessary, butnot a sufficientcomponent, ofthedamagingprocess [1–9]. However,ifallof thegrainboundariesareoxidized,therole of localstresses,cumulatedstrain,andstrainratestillraises ques-tionsabouttheiractionsandinteractionsinthedamagingprocess. Thepresentresultstendtominimizethedirectroleofthestresses onOAICconcernsforalloy718andconversely,emphasizetherole ofstrainrateandplasticity.Firstly,therupturemodemap(Fig.4) correlatedwithFig.2,showedthatforsimilarflowstresses,the rupturemodechangesprincipallyasafunctionofthedeformation mode,i.e.: thestrainraterelatingtopureDSAorPLC instabili-ties.Secondly,toactivateOAICmechanisms,acriticalplasticstrain accumulationseemstoberequired.Therefore,ifthisplasticstrain isnotcumulatedthankstoaslowstrainrate-DSAflowmode-crack initiationdoesnotoccur.

Inordertounderstandandtrytodissociatetheeffectsoftime andplasticityfromthestrainrateroleontheOAICprocess, comple-mentarytestswerecarriedout.Aschematicrepresentationofthese newexperimentsispresentedinFig.10.V-shapedtensile speci-menswereloadedat10N(elasticload)or20N,whichisclosed totheelastoplasticthresholdoftheVstructure,witha displace-mentrateof0.02mm/sandmaintainedrespectivelyatthisloadfor 20min.Then,aftereachloaddwell,specimensweretestedupto ruptureatdisplacementratesof0.02mm/sor0.002mm/s.Fracture surfaceswereobservedbySEM.

Thefactthatforeachtensiletestperformedat0.02mm/safter theloaddwell,thefracturesurfaceis totallytransgranular duc-tilewhilefortensiletestsperformedat0.002mm/saftertheload dwell,thefracture surfaceexhibitsintergranular areas, demon-stratesthattheroleofthestrainrateisnotentirelyatemporalor diffusionalroleandthattheplasticitycomponentmustbetaken into account. Therefore, from a mechanistic point of view,the intergranularweakeningof thematerial isnot due tothe sim-plediffusionofreactivespeciesfromthecoreofthegraintothe grainboundariesorfromtheaggressiveenvironmenttothegrain boundaries,butseemstoberelatedtothehighlevelofgrainto grainstrainincompatibilitiesand/ortointeractionsbetween plas-ticityandmobilespecies.Previouswork[9]demonstratedthatfor tensiletestscarriedout,insimilartestingconditionsthanthose presentedin thispaper,onalow interstitialcontentalloywith similarmechanicalproperties,thetransitionDSAregimetoPLC instabilitieswasnolongerrelatedtoamodificationofthe frac-turemodewhichremainedtransgranular.Theseresultsstrongly

suggestthatinterstitialsspeciesplayafirstorderroleintheOAIC process.

Suchinteractionsbetweendislocationsandsolutespeciesare knowntooccurduringDSAandPLCregimes[10,15–24]in intersti-tialorsubstitutionalalloys.However,inthecaseofage-hardenable alloys,anotherparametermustbetakenintoaccounttorealize DSA/PLCregimes:thehardeningprecipitates.Indeed,precipitates haveasignificanteffectonthedislocationmobilityandonthe char-acteristicsofthepinning/pinningoffeffect(characteristicdistance, characteristictime,etc.)[23,25].Besides,someauthorsproposed thatduringthepiningofdislocationsonhardeningprecipitates, someinteractions in terms of migration orattraction/repulsion mayoccurbetweenprecipitatesandinterstitialsspeciesdragged bydislocationsthusimpactingplasticflowandinterstitialsspecies distributionrespectively[10,11,24].Knowing thespecificitiesof theDSAregimeandofthetypeCPLCphenomenoninsuch age-hardenablealloys,anintergranularembrittlementprocessbased ona strain-inducedsegregationmechanism mightbeproposed toexplain ourresults. Mostlikely,in thepureDSAregime (no serrations),dislocationsareassumedtodriftthroughgrain bound-ariesinterstitialspecieswhichmightreactwithoxygenproduced andtransportedbyintergranularoxidationprocess.Suchreactions betweensegregatedcarbonandoxygenatgrainboundarieshave alreadybeensuggestedbyBricknellandWoodford[26,27]during hightemperatureoxidationofnickel.Conversely,theoccurrence ofPLCbandsisassumedtotrapinterstitialspeciesinthegrainsby pinning/pinningoffeffectonthehardeningphases.Consequently, duringtheOAICdamagingprocess,twofactorsareidentifiedto berequired:asufficientcumulatedplasticstrainforcrack initia-tionandacriticalcontentofdraggedreactivespecies.Therefore, ifpreviousconsiderationsweretakenintoaccount,thisdamaging processestablishedonconventionaltensiletestsmaybeinvoked tooccurnearbythesurfaceofspecimenandbringbackapossible explanationforthelocalmechanicalloadingpathdependenceof OAIC.

5. Conclusions

Thankstoa dualapproach basedona specificexperimental specimenandonassociatedFEcalculations,thepresentstudyhas shownthatmechanicalloadingconditionsinducingOAIC initia-tionrandomlyobservedonconventionaltensiletestsanddefined intermsofstrainrateandthresholdvalueofplasticstrainmay belocalizedandfulfilledinadelimitedarea–tipoftheV-shaped specimen.DuetothecloseagreementbetweenFEcalculationsand mechanicaltestinginthisstudy,macroscopickeyparametersmay henceforthbediscussedonapolycrystalscale,liketheeffectof localstressorlocalstrainaccumulation.

Moreover,thegeometricalandmechanicalspecificitiesofthe V-shapedspecimen,inrelationtoFEresults,makethatdesigna usefulandrelevanttoolinunderstandingtheinfluenceofthe local-izationofgradientsofstrainandstrainrateintheOAICprocess. Theadaptationofthespecificgeometricalparameters ofthe V-shapedspecimen,associatedwithFEcalculations,makespossible tocoveralargerrangeofstrainrateandtoaccesssmootherstrain gradientsandstrainrateandthentomaketheunderstandingof thefactorsimpactingOAICsusceptibilityconcrete.Finally,allthis workdoneonconventional tensiletestsandonV-shaped spec-imens,associatedwithcalculationtools,maybeusedtofurther developstructurelifespanassessment.

Acknowledgement

TheauthorswouldliketoacknowledgetheAREVA-NPCompany foritsfinancialsupport.

(8)

References

[1] P.Valerio,M.Gao,R.P.Wei,ScriptaMetall.Mater.30(1994)1269–1274. [2]R.Molins,G.Hochstetter,J.C.Chassaigne,E.Andrieu,ActaMater.45(1997)

663–674.

[3]E.Andrieu,A.Pineau,J.Phys.IV9(1999)3–11. [4]J.Pedron,A.Pineau,Mater.Sci.Eng.56(1982)143–156.

[5]R.P.Wei,C.Miller,Z.Huang,G.W.Simmons,D.G.Harlow,Eng.Fract.Mech.76 (2009)715–727.

[6]L.Fournier,D.Delafosse,T.Magnin,Mater.Sci.Eng.A316(2001)166–173. [7] V.Garat,J.-M.Cloué,D. Poquillon,E.Andrieu,J.Nucl. Mater.375(2008)

p.95–p.101.

[8] J.Deleume,PhDthesis,INPToulouse,France,2007.

[9]B.Ter-Ovanessian,J.Deleume,J.M.Cloué,E.Andrieu,Mater.Sci.Forum595–598 (2008)951–958.

[10]W.Chen,M.C.Chaturvedi,Mater.Sci.Eng.A229(1997)163–168.

[11] M.L.Weaver,C.S.Hale,Superalloys718,625,706andVariousDerivatives,TMS, 2001,pp.421–432.

[12] S.Nalawade,M.Sundararaman,J.B.Singh,R.Kihore,V.Amit,Superalloy718 andDerivatives,TMS,2010,pp.809–823.

[13]J. Kumar, A. Kumar, V. Kumar, Mater. Sci. Eng. A 528 (2011) 4009–4013.

[14]J.Deleume,D.Poquillon,V.Garat,J.M.Cloué,E.Andrieu,Corros.Sci.50(2008) 737–743.

[15]D.Wagner,J.C.Moreno,C.Prioul,J.M.Frund,B.Houssin,J.Nucl.Mater.300 (2002)178–191.

[16]J.Belotteau,C.Berdin,S.Forest,A.Parrot,C.Prioul,Mater.Sci.Eng.A526(2009) 156–165.

[17]L.P.Kubin,Y.Estrin,J.Phys.III1(1991)929–943. [18] S.L.Mannan,Bull.Mater.Sci.16(1993)561–582. [19]P.Rodriguez,Bull.Mater.Sci.6(1984)653–663. [20] A.H.Cottrell,B.A.Bilby,Proc.Phys.Soc.A62(1949)49–62. [21]A.VanDenBeukel,ActaMetall.28(1980)965–969. [22] R.Mulford,U.Kocks,ActaMetall.27(1979)1125–1134. [23]D.M.Riley,P.G.McCormick,ActaMetall.25(1977)181–185. [24] R.Hayes,W.Hayes,ActaMetall.30(1982)1295–1301.

[25]D.Thevenet,M.Mliha-Touati,A.Zeghloul, Mater.Sci. Eng. A266 (1999) 175–182.

[26]R.Bricknell,D.Woodford,ActaMetall.30(1982)257–264. [27] R.Bricknell,D.Woodford,ScriptaMater.23(1989)599–601.
