Direct numerical simulation of flexible molecules and data-driven molecular conformation

Science Arts & Métiers (SAM)

is an open access repository that collects the work of Arts et Métiers Institute of

Technology researchers and makes it freely available over the web where possible.

This is an author-deposited version published in:

https://sam.ensam.eu

Handle ID: .

http://hdl.handle.net/10985/18396

To cite this version :

Amine AMMAR, Francisco CHINESTA - Direct numerical simulation of flexible molecules and

datadriven molecular conformation Comptes Rendus Mecanique Vol. 347, n°11, p.743753

-2019

Any correspondence concerning this service should be sent to the repository

Administrator :

archiveouverte@ensam.eu

Direct

numerical

simulation

of

flexible

molecules

and

data-driven

molecular

conformation

Amine

Ammar

a

,

∗

,

Francisco

Chinesta

b

a_{LAMPA@ArtsetMétiersParisTech,2,boulevardduRonceray,BP93525,49035Angerscedex01,France}

b_{ESIGroupChair@PIMM,ArtsetMétiersInstituteofTechnology,CNRS,CNAM,HESAMUniversity,151boulevarddel’Hôpital,75013Paris,} France

a

b

s

t

r

a

c

t

Keywords:

Flexiblemolecules Directnumericalsimulation Moleculardynamics Suspension Deep-learning

The present work aims at performing a molecular dynamics modeling of suspensions composedofflexiblelinearmolecules.Moleculesarerepresentedbyaseriesofconnected beads,whosedynamicsisgovernedbythreepotentials:theextensionpotentialaffecting theelongationofsegmentsconnectingconsecutivebeads,theonegoverningthemolecule bendingandfinallytheLennard-Jonesdescribingtheinteractionofnon-consecutivebeads. Apopulationofnon-interactingmoleculesissimulatedinelongationandshearflowsfor different flow and molecule parameters. The flow-induced conformation is analyzed in the different considered situations. Finally a model for predicting the evolution ofthe populationconformationwillbeobtainedbyusingdeep-learning.

1. Introduction

Polymersandviscoelasticfluidscanbedescribed atdifferentscales,deeplydiscussedinmanybooks,amongthem [1] [2]. The molecularscale (see [3] [4] and the referencestherein) precedesthe one ofkinetic theory wherethemolecules individualityisreplacedbyascalardistributionfunction–DF–involvingaseriesofconformationalcoordinates[2].Most ofkinetic theory modelsrepresentmolecules asmulti-bead-rod ormulti-bead-springs idealizations,usually coarsenedby using theend-to-end vector to reduce thedimensionality ofthe conformational space[5]. The resulting modelswere in generalsolvednumericallybyusingBrownianandstochasticnumericaltechniquesforcircumventingtheso-calledcurseof dimensionalitythatthehigh-dimensionalityoftheconformationspaceentails[6] [7].

In[8] and[9] authorsconsiderGaussianchainscombinedwiththeLangevinequationforbetteraccountforthemolecular conformation.Worksattainingtheatomicscalearequitescare,beingtheresultingmodelsdifficulttoextendtolargerscales [10–14].

The presentworkaims atperforming a moleculardynamics modelingofsuspensions composedof flexiblemolecules. Suchadescriptionscalehasasmainadvantagethefinerepresentationofthemolecularconfigurations,finerthantheones attainablewhenusingcoarserdescriptions(e.g.kinetictheorydescriptions).Themaindrawbackwhenusingtheseextremely finedescriptions concerns thecomputational cost.However, tohaveaccessto therealbehavior andevaluate thevalidity of coarserdescriptions, high fidelitysimulations atthe finestscale seems compulsory. Moreover, assoon as an accurate approximationofthemicroscopicphysicsisattainedandavailable,itcouldbethenintroducedintocoarserdescriptions.

*

Correspondingauthor.

Fig. 1. Molecule schema.

When describingfinely moleculesasa seriesofconnectedbeads,thewholemolecular conformationstronglydepends on thechoiceofthepotentialsusedforderiving theforcestobe introducedintothemotionequation atthebeadslevel. Different potentials are in general considered: (i) the one describing the extension of the inter-beads segment; (ii) the one describing themolecule bending mechanism,that is expressedateach beadfromits two neighbors;andfinally (iii) the weak interaction (Lennard-Jones) between non-neighborbeads. The evaluation of the population conformation with respecttothedifferentavailablechoiceofpotentialsandinparticulartheirintensityisofmajorinteresttobetterdescribe rheological features. Inthepresentwork andwithoutloss ofgeneralityof theproposed methodologywe considerdilute suspensions,thatallowsneglectingtheinteractionofbeadsbelongingtodifferentmolecules.

Our modelassumes linearmolecules composed ofbeads atwhich, other than the potentialsjustdiscussed, also acts Brownian events representingthe action ofthe moleculesof solventin which themolecule is assumedbe immersed. A population ofnon-interacting molecules is simulated in elongation and shear flows for different flow and molecule pa-rameters. The flow-induced conformation is analyzed in the different considered situations and some statistical outputs extracted.

Finally a modelfor predicting theevolution of the populationconformation willbe obtainedby using deep-learning, deeplyusedinavarietyofapplications,assystemcontrol[15,16] anddynamicalsystems[17] forcitingfew.

2. Fine-scalediscretesimulation

Thefinescalesimulationisperformedbyrepresentingthemoleculeasaseriesofconnectedbeadswhereforcesapply, thelastderivedfromdifferentpotentialsaswellasthebombardmentofsolventmolecules.

Aspreviously discussedweareconsideringthreedifferentpotentialsresponsibleofthreedifferentdeformation mecha-nisms:theLennard-Jonespotential VLJ _{isusedtodescribetheinter-beadsinteractions (ofnon-neighborbeads), andother}

two potentials, VE _{and V}B_{,are used to describe the molecule segments elongationsand chainbending respectively, see}

Fig.1.

Thus,thetotalpotentialreads

V

=

M



j=1 N−1



i=1 V_iE_,i+1;j

+

M



j=1 N−1



i=2 V_iB_−1,i,i+1;j

+

M



j=1 N



i=1 N



k=1 V_iLJ_,k;j

χ

ik;j (1)

where

M

isthenumberofmoleculesinthepopulation, j referstothemoleculechaininthatpopulation,andi referstothe consideredbeadcomposingit,i

=

1

,

. . . ,

N

(with

N

thenumberofbeadscomposingthemolecularchain).Finallywedefine acharacteristicfunctionfordescribingthebeaddirectneighborhood:

χ

ik

=

1 if

|

i

−

k

|

>

1 and

χ

ik

=

0 if

|

i

−

k

|

≤

1

TheLennard-Jonespotentialreads

V_iLJ_,k

=

4

ε



σ

dik



12

−



σ

dik



6



(2)

withdik

= ||

xk

−

xi

||

thedistancebetweenbeads

B

i and

B

k,located atpositions xi andxk respectively, and



and

σ

the twousualparametersinvolvedintheLennard-Jonespotential.

Theelongationpotentialisgivenby

V_iE_,i+1

=

KE 2



1

−

di j deq



2 (3)

wheredeq istheequilibriumdistancebetweentwosuccessivebeads,distanceatwhichthepotentialreachesits minimum

(andconsequentlytheassociatedforcevanishes).Inthepreviousexpression KE reflectsthepotentialintensity.

Thebendingpotentialbetweenthreesuccessivebeads

V_iB_−1,i,i+1

=

KB 2



θ

i−1,i,i+1

− θ

eq



2 (4)

where

θ

i−1,i,i+1 istheangledefinedbyvectorsjoiningbeads i

−

1

,

i andi

,

i

+

1 with

θ

eq theangleatequilibrium. Inour

studyweconsider

θ

eq

=

70

.

5◦ (thatcorrespondstotheanglebetweentwoconsecutivecarbone-carbonebonds).Again,the

potentialintensityisdescribedfromKB.

The force applyingat each bead related to thesethree molecule deformation mechanisms results from the potential derivativeaccordingto

FI_i

= −

∂

V

∂

xi

(5)

Therearetwootherforcesactingonthebead.First,theonerelatedtothefluiddragFD_i.Letv

(

x

)

bethefluidvelocityat positionx,assumedunperturbedbytherodspresence,thedragforcereads

F_iD

= ξ(

v

(

xi

)

− ˙

xi

)

(6)

wherexi

˙

denotesthevelocityofbead

B

i.

FinallyaBrownianforceisalsoconsideredemulatingthesolventbombardment,andisexpressedfrom

FBrow_i

=

√

2D dt Wi (7)

whereD denotesthediffusioncoefficient,dt thecalculationtimestepandWiarandomvariablewithzeromeanandunit standarddeviation.

Thelinearmomentumbalanceinvolvingbead

B

ireads

Fi

=

FDi

+

FiI

+

FBrowi

=

m ai (8)

withtheparticleaccelerationai

=

ddtx˙i

=

d2_x

i

dt2.

Asecond-ordertimeintegrationschemeisconsidered,consistingof

⎧

⎪

⎪

⎪

⎨

⎪

⎪

⎪

⎩

an_i+1

=

Fni m xn_i+1

=

xn_i

+ ˙

xn_i

t

+

1₂ai

(

t

)(

t

)

2

˙

xn_i+1

= ˙

xn_i

+

1₂

an_i

+

an_i+1



t (9)

wherethesuperscriptn referstothetimestep,tn

=

n

t.

Priortoproceedwiththetimeintegration,equationsarerewrittenindimensionlessform,byconsideringascharacteristic variables – length:

σ

– energy:

ε

– mass:m – velocity:

√

ε

/

m – acceleration:

ε

/(

m

σ

)

– time:

σ

√

m

/

ε

– diffusion:

σ

−3



5 m

whichallowswritingthedimensionlessmodelinwhich,forthesakeofclarity,wedonotchangethenotationfor designat-ingthedimensionlessvariables.

Thus,weobtain

⎧

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎨

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎪

⎩

V_iLJ_,j

=

4



_d1 i j



12

−

1 di j



6



V_iE_,i+1

=

KˆE 2

1

−

di j deq



2 VB i−1,i,i+1

=

ˆ KB 2

(θ

i−1,i,i+1

− θ

eq

)

2 F_iI

= −

∂_∂xV i F_iD

= ˆξ(

v

(

xi

)

− ˙

xi

)

FBrow_i

=



2D

ˆ

dt W



i Fi

=

ai (10) whereK

ˆ

E

=

K_{ε ,}E K

ˆ

B

=

K_{ε ,}B

ˆξ = ξ√

ε

m

/

σ

,D

ˆ

=

D

σ

3



m 5 anddt



=

dt σ



 m.

Fig. 2. Initial conformation and its evolution when subjected to elongation. 3. Results

Inthe numericalresultsreportedinthepresentsection weassumedasequilibriumdistancebetweentwoconsecutive beadstheoneassociatedwiththeLennard-Jones(dimensionless)potential,i.e.deq

=

21/6.Inordertoavoidlargefluctuations

ofthemoleculelengthweassumeaquitelargeelongationstiffness K

ˆ

E

=

10000 andabendingpotential K

ˆ

B

=

1000.

Inordertoderiverheologicalproperties(basedonthemolecularconformation),alargeenoughpopulationofmolecules must be considered, allowing one to compute accurate statistics. In the cases reported in the present paper

M

=

1000 chainsinvolving

N

beads,

N

=

100,andconsequently99 inter-beadsegments areconsidered.Inallcasesthedimensionless diffusionanddragcoefficientswereassumedtakingunitvalues.

Twosimplerheologicalflowswereaddressed,elongationalandsimpleshearflows,bothexpressedfromthe dimension-lesseffectivestrainrate



˙

,leadingtothefollowingdimensionlessvelocityfields:

– elongationalflow, v

=

⎛

⎝

vvxy vz

⎞

⎠ =

⎛

⎜

⎝

˙

x

−

1 2



˙

y

−

1 2

z

˙

⎞

⎟

⎠

(11)

– simpleshearflow,

v

=

⎛

⎝

vvxy vz

⎞

⎠ =

⎛

⎝

z

˙

0 0

⎞

⎠

(12)

wherethreevaluesof



˙

willbeevaluated:(i)



˙

=

5;(ii)



˙

=

1,and(iii)



˙

=

0

.

2.

Theinitialstateconsistsofthe

M

=

1000moleculesgeneratedrandomly.Forthatpurposethefirstbeadofeachchainis placeatpointx1.Thenthesecondbeadisrandomlyplacedatpointx2 byensuring



x2

−

x1



=

deq.The thirdbeadisplace

atpointx3ensuringnowthetwoconditions:(i)



x3

−

x2



=

deqand(ii)L



12L23

= θ

eq,withLi,i+1

=

xi+1

−

xi.Theprocedure continuesuntilplacingthefinalbead.

Byproceedinglikethis,thereistheriskthatbeadsinthesamemoleculeapproachtoomuch.Thus,beforeapplyingthe flow,themoleculespopulationissubjectedtotheLennard-Jonespotentialtoensurethefulfillmentoftheexcludedvolume. Fig.2depictstheinitialmoleculeconformationandthen,theonethatresultsfromitselongation.

3.1. Casestudies

Inwhatfollowsdifferentanalysesareperformedbyvaryingtheflowanditsintensity(elongationandsimpleshear,with

˙



=

5 and



˙

=

0

.

2).Eachsimulationleadstoafigurecomposedof8subfigures,each onerepresenting(toptobottom,left toright):

– representation ofthe molecules population wherethe molecule barycentre is placed at theorigin ofthe coordinate system;

– averageofthedifferentmoleculesegmentsjoiningconsecutivebeads(from1to

N

−

1); – theorientationtensorcalculatedbydefining

u_ij_,i+1

=

L j i,i+1



L_ij_,i+1



(13)

where j referstheconsideredmoleculeinthepopulation, j

=

1

,

. . . ,

M,

andi theconsideredbead,i

=

1

,

. . . ,

N

−

1,from whichtheorientationtensorwrites

S

=

1

M

M



j=1 N−1



i=1 u_ij_,i+1

⊗

u_ij_,i+1 (14)

– theconformationtensorC computedfromtheend-to-endvectorL₁j_,N accordingto

C

=

1

M

M



j=1 L₁j_,N

⊗

L₁j_,N (15)

– the distributionofu_ij_,i+1 ontheunit sphere(notedasDFinthefigure),eachvector beingassociatedwithaGaussian distributionforsmoothingtherepresentation;

– asimilarrepresentationbutnowconcerningonlytheend-to-endvectorsu₁j_,N; – averageofthesegmentsofallmoleculeswiththeassociatedstandarddeviation;

– averageofsegmentslocatedatthemoleculeendsandatthecenterwiththeirassociatedstandarddeviations.

3.2. Discussion

Figs.3and4concernelongation.Itcanbenoticedthatcentralsegmentsareveryelongated,withafinallengththatat highelongationdoublestheoneofsegmentslocatedatthemoleculesextremities.Whendecreasingtheelongationintensity central segments become lessextended,andthe end-to-end conformationremains alignedwiththe elongation, however the segments orientation distribution exhibits a particular annular distribution whose radius depends on the elongation intensity.

Figs.5and6concernshearflow.Segmentshaveapproximatelythesamelengthatthealmoststeadystate.Anovershoot is noticed at the central segments during the transient regime. At highshear rates the distribution concentrate at two regions(4bysymmetry)thatattenuateswhendecreasingtheshearrate.

3.3. Derivingamodeloftheconformationevolution

Asdiscussedintheintroductionsection directnumericalsimulations areveryexpensivefromthecomputationalpoint ofview,andinthatcaseequationsdescribingtheconformationevolutiondepending ontheconformationandtheapplied flowkinematicsseemspreferable.

Asthiskindofmodelisquitedifficulttoobtain,hereweproposeusingdeep-learningtechniquesforthatpurpose.The conformationevolutionisassumedevolvingaccordingto

dC

dt

=

f

(

C

,

∇

v

)

(16)

withthevelocitygradientgivenby

∇

v

=

⎛

⎜

⎝

∇

v11

∇

v12 0 0

−

∇v11 2 0 0 0

−

∇v11 2

⎞

⎟

⎠

(17)

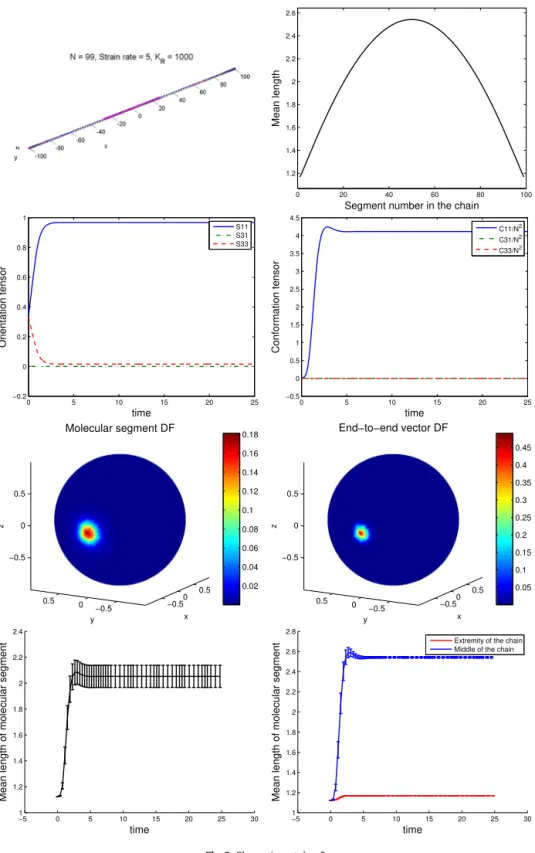

Fig. 3. Elongation at˙=5.

Weelaboratedaneuralnetwork–NN–involvingtwohiddenlayersof20neurons,beingtheinputsthe6components ofthe(symmetric)conformationtensorandthetwocomponentsofthevelocitygradient

∇

v11and

∇

v12,beingtheoutputs

thesixcomponentsoftimederivativeoftheconformationtensor.

Werestricttomoleculescomposedof20beads,i.e.

N

=

20,withthelowerbendingstiffness K

ˆ

R

=

100.600flowinduced

conformations aresimulatedbychoosingrandomlyboth gradientofvelocitycomponents,accordingwiththe 101.4(ω−0.5), where

ω

isarandomvariableuniformlydistributedintheinterval

[

0

,

1

]

.Thischoiceallowsensuringvaluesoftheeffective strainrateintheinterval

(

0

.

2

,

5

)

,coveredalmostuniformlyinthelogarithmicscale.

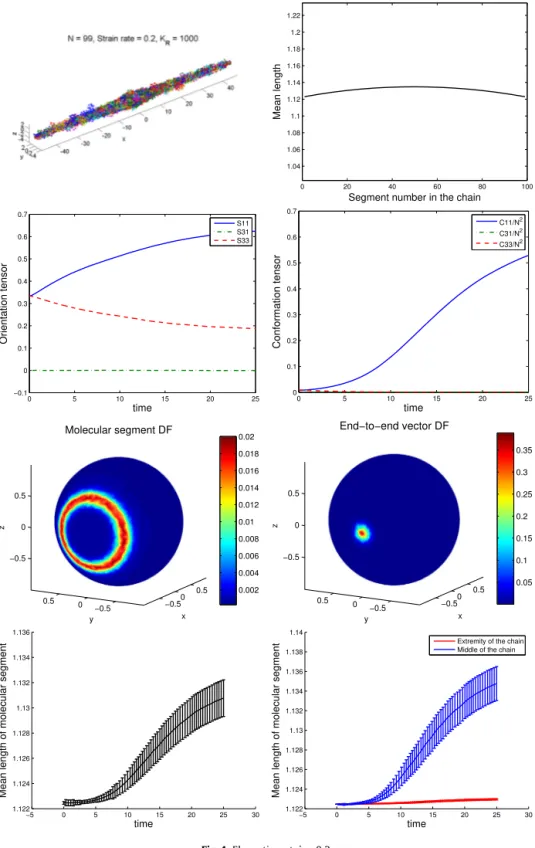

Fig. 4. Elongation at˙=0.2.

When theneural network extractthe internal weights,the solutionis computedagainfordifferentvalues ofvelocity gradient,randomly chosen,inorder tocomparethe directnumericalsolutionwiththeneural-network predictions.Fig.7 comparesboth conformationpredictions.The conformationalpredictions arequalitativelyinagreementwiththeones de-rivedfromdirectnumericalsimulations,howeverquantitativelysomegapsarenoticed.Forreducingthem,differentroutes exist: consideralternative networks, increasing thenumber ofhidden layers orthe numberof nodes(neurons) inthose layers.However,thosechoicesaredetrimentalwithrespecttothetrainingefficiency.AdeepercomprehensionofNNseems necessaryforbetterrepresentingthesubjacentphysics,tobetterperformpredictionswhilekeepingasreducedaspossible

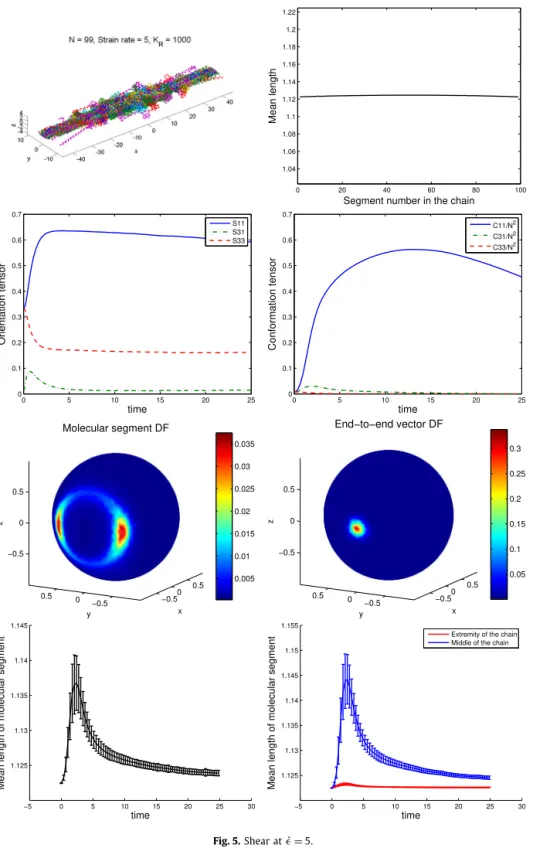

Fig. 5. Shear at˙=5.

the trainingneeds (it isimportanttonote thatdirect numericalsimulationsthat servefortraining theNNareextremely expensivefromthecomputationalviewpoint).

4. Conclusion

In this paper, we proposed a direct numerical simulation of a suspension of non-interacting flexible molecules, and evaluated theflowinduced conformation.Simulationsprovethattheconformationcanexhibitunexpectedfeatures,asthe annulardistributionofthemolecularsegmentsorientation.

Fig. 6. Shear at˙=0.2.

Thesecondcontributionofthepresentworkconcernsthederivationofanevolutionequationfortheso-called conforma-tiontensor,that isexpecteddescribingtherheologicalfindings,byusingartificialintelligencetechniques,andinparticular deep-learning.Ithasbeenprovedthatthelearnedmodelallowsderivingveryaccuratepredictionsforflowsdifferingfrom theonesconsideredinthelearningstage(neuralnetworkconstruction).

The obtentionof richerexpressions of theconformation evolutionin generaltransient andcomplexflows, as well as the conformation / flow kinematics coupling through an adequate constitutive equation, constitute the main works in progress.

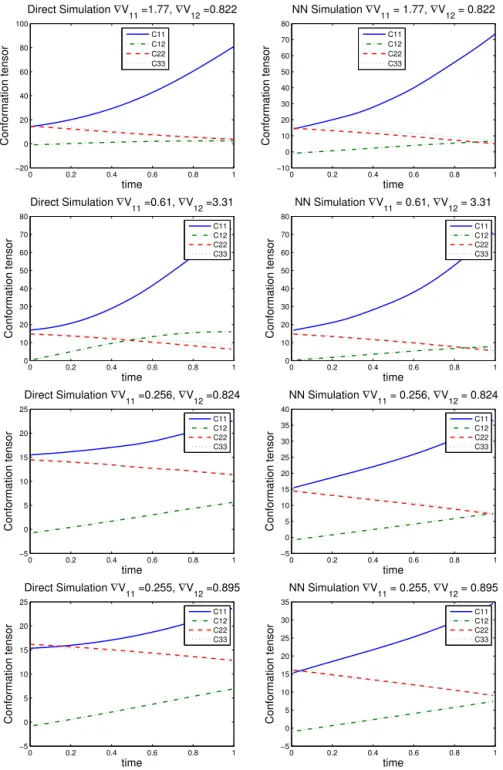

Fig. 7. Comparing direct numerical solutions (left) and neural-network based prediction (right). Acknowledgements

TheauthorsgratefullyacknowledgetheANR(“Agencenationaledelarecherche”,France)foritssupportthroughproject AAPG2018DataBEST.

References

[1]C.Binetruy,F.Chinesta,R.Keunings,FlowsinPolymers,ReinforcedPolymersandComposites.AMultiscaleApproach,SpringerBriefs,Springer,2015.

[2]F.Chinesta,E.Abisset,AJourneyAroundtheDifferentScalesInvolvedintheDescriptionofMatterandComplexSystems,SpringerBriefs,Springer, 2017.

[3]G.Ianniruberto,G.Marrucci,Flow-inducedorientationandstretchingofentangledpolymers,Philos.Trans.R.Soc.Lond.A361(2003)677–688.

[5]R.B.Bird,C.F.Curtiss,R.C.Armstrong,O.Hassager,DynamicsofPolymericLiquids,Vol.2:KineticTheory,JohnWiley&Sons,1987.

[6]M.Somasi,B.Khomami,N.J.Woo,J.S.Hur,E.S.G.Shaqfeh,Browniandynamicssimulationsofbead-rodandbead-springchains:numericalalgorithms andcoarse-grainingissues,J.Non-Newton.FluidMech.108 (1–3)(2002)227–255.

[7]G.Venkiteswaran,M.Junk,A QMCapproachfor highdimensionalFokker-Planckequationsmodellingpolymericliquids,Math.Comput.Simul.68 (2005)43–56.

[8]R.Winkler,P.Reineker,L.Harnau,Modelsandequilibriumpropertiesofstiffmolecularchains,J.Chem.Phys.101 (9)(1994)8119–8129.

[9]L. Harnau,R. Winkler, P. Reineker, Dynamicstructure factor ofsemiflexible macromolecules indilute solution,J. Chem. Phys. 104 (16)(1996) 6255–6258.

[10]W.Paul,G.Smith,D.Yoon,Staticanddynamicpropertiesofan-C100H202meltfrommoleculardynamicssimulations,Macromolecules30(1997) 7772–7780.

[11]T.Kreer,J.Baschnagel,M.Mueller,K. Binder,MonteCarlosimulationoflong chainpolymermelts:crossover fromRousetoreptationdynamics, Macromolecules34(2001)1105–1117.

[12]S.Krushev,W.Paul,G.Smith,Theroleofinternalrotationalbarriersinpolymermeltchaindynamics,Macromolecules35(2002)4198–4203.

[13]M.Bulacu,E.vanderGieesen,Effectofbendingandtorsionrigidityonself-diffusioninpolymermelts:amolecular-dynamicsstudy,J.Chem.Phys. 123(2005)114901.

[14]M.O.Steinhauser,Staticanddynamicscalingofsemiflexiblepolymerchains–amoleculardynamicssimulationstudyofsinglechainsandmeltsMech, Time-Depend.Mater.12(2008)291–312.

[15]M.Tanaskovic,L.Fagiano,C.Novara,M.Morari,Data-drivencontrolofnonlinearsystems:anon-linedirectapproach,Automatica75(2017)1–10.

[16]T.Duriez,S.Brunton,B.R.Noack,MachineLearningControl-TamingNonlinearDynamicsandTurbulence,Springer,2017.
