Structural imperfections in additive manufacturing perceived from the X-ray micro-tomography perspective

(1)

HAL Id: hal-01525748

https://hal.archives-ouvertes.fr/hal-01525748

Submitted on 28 May 2020

HAL is a multi-disciplinary open access

archive for the deposit and dissemination of

sci-entific research documents, whether they are

pub-lished or not. The documents may come from

teaching and research institutions in France or

abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est

destinée au dépôt et à la diffusion de documents

scientifiques de niveau recherche, publiés ou non,

émanant des établissements d’enseignement et de

recherche français ou étrangers, des laboratoires

publics ou privés.

Structural imperfections in additive manufacturing

perceived from the X-ray micro-tomography perspective

Hedi Nouri, Sofiane Guessasma, Sofiane Belhabib

To cite this version:

Hedi Nouri, Sofiane Guessasma, Sofiane Belhabib. Structural imperfections in additive manufacturing

perceived from the X-ray micro-tomography perspective. Journal of Materials Processing Technology,

Elsevier, 2016, 234, pp.113 - 124. �10.1016/j.jmatprotec.2016.03.019�. �hal-01525748�

(2)

a_Mines_Douai,_Department_of_Polymers_and_Composites_Technology_&_Mechanical_Engineering_(TPCIM),₉₄₁_Rue_Charles_Bourseul,_CS_10838,₅₉₅₀₈_Douai,

France

b_Ecole_Nationale_{d’Ingénieurs}_de_Sfax,_Laboratoires_des_Systèmes_{Electromécaniques,}_Route_Soukra_Km_3,_BPW₃₀₃₈_Sfax,_Tunisia c_INRA,_UR1268_{Biopolymères}_Interactions_Assemblages,_F-44300_Nantes,_France

d_LUNAM_Université_Nantes_Angers_Le_Mans,_CNRS,_GEPEA,_UMR_6144,_IUT_de_Nantes,₂_Avenue_du_Professeur_Jean_Rouxel,₄₄₄₇₅_Carquefou_Cédex,_France

a

r

t

i

c

l

e

i

n

f

o

Articlehistory:

Received13November2015

Receivedinrevisedform17March2016 Accepted20March2016

Availableonline22March2016 Keywords:

Additivemanufacturing AcrylonitrileButadieneStyrene X-raymicro-tomography Fuseddepositionmodelling Structuralanisotropy

a

b

s

t

r

a

c

t

OurconcernistorevealtheextentofstructuralimperfectionsofAdditiveManufacturing(AM)by consid-ering3DimagingtechniquebasedonX-raymicro-tomography.BlocksofAcrylonitrileButadieneStyrene (ABS)polymerareprocessedusingFusedDepositionModelling(FDM)withdifferentprinting orienta-tions.Imageanalysisisappliedtothestacksof3Dprintedblockstoquantifystructuralattributessuch asporositycontentandconnectivity.

TheresultsshowthatporeconnectivityrepresentsthemostimportantstructuralcharacteristicofFDM. Theadoptedcommercialsolutionisabletoproduceacceptableporositycontentsbelow6%regardless oftheprintingorientation.Finiteelementresultsindicatethepresenceofexpectedtransverse symme-try.Theexaminationoftheextentofsuchanisotropyisinwellagreementwiththeobservedstructural imperfectionsmainlytheporositycontent.However,thesepredictionsdonotmatchthewide varia-tionsinmechanicalperformancedescribedintheliterature.Thefiniteelementanalysisguidesthenext researchsteptowardsquantificationoftheimperfectbondingnaturebetweenfilamentsinFDM.

1. Introduction

AdditiveManufacturing(AM)ispresentedby(Zhaietal.,2014)

asthesecondindustrialrevolutionofthisepoch.Theauthorsshow

thatthis termis justiﬁedbythewideimpacttriggeredbysuch

technologyonmodernsociety, allowingmostlyanyone tobea

designer.

AMisnowattractinganimateddebatesindifferentdisciplines

of research.Huang et al. (2013) point out two major concerns

thatneedfurtherinvestigation:energyandhealthfootprints.For

instance,varioushealthcare productscan bepersonalisedusing

additivemanufacturingsuchasimplants, safetyequipmentand

otherproductsrelated to tissue engineering.The sameauthors

(Huang etal.,2013)showthepositive impactofAMonenergy

demandwithtwomaindrivingfactors,namelyreductionand

efﬁ-ciency.Thisimpactisjustiﬁedbytheabilitytodesign products

of alower energy consumption usinglimited amountof

mate-rialsand ﬂuids.All these aspects are expected toimprove the

∗ Correspondingauthor.

E-mailaddress:soﬁ[email protected](S.Guessasma).

environmental impact and product life time. Kietzmann et al.

(2015)showthatsomeofthesedebatesarerelatedtoethicaland

legalissuesdrivenbythenewroleofconsumerinthemarket.This

isillustratedbytheoppositionbetweencompanyinnovationeffort

andconsumercreativityforthedesignproductsthathavecertain

conformity.Versatiletechniquesofadditivemanufacturingareable

toshortenfabricationstepstoonemainbetweentheCADdesign

andtherealpart.AsshowninthereviewworkofPhamandGault

(1998),thereducednumber ofmanufacturingsteps,fora large

numberofAMprocesses,isavectorforenhancingthe

competi-tivenessandanopengatewayforoptimisingmanufacturingcost.

ThiscomeswithacertaincostasdetailedinthesurveybyYanand

Gu(1996),whichpointsoutthelimitedperformance,lackof

accu-racyandshortwindowformaterialselection.Alltheseaspectsare

nowamajorresearchareainAM.Forinstance,recentadvances

in electronbeammelting showa largepotentialtocontrol the

porousstructurein3Dprintedcellularmaterials(Lietal.,2016).

Suchﬁnecontrolofthemicrostructureallowsthedevelopmentof

functionallygradedmaterialsthatpresentadvantageousbiological

functionssuchasosteoblastinbioengineeringapplications(Nune

etal.,2016a,b,2014).

http://dx.doi.org/10.1016/j.jmatprotec.2016.03.019

(3)

Researchliteratureonthesubjectagreesthattheprimary

char-acteristicofadditivemanufacturingistheabilitytodesigncomplex

geometries.Beckeretal.(2005)showthatthisisarealopportunity

torethinkthedesignwithoutbeingboundedbythetooling

con-strain.FuseddepositionmodellingFDMisonethepopularwayof

additivemanufacturing.TheearlyreviewonthesubjectbyPham

andGault(1998)categorisesFDMasliquid-basedadditive

manu-facturing.Turneretal.(2014)describeFDMasatypicalextrusion

process,wheretheﬁlamentofthefeedmaterialisswipedfromthe

supportcartridgeusingdrivingwheels.Thematerialisforcedto

theliquidstateusingaliqueﬁerandthefusedmaterialﬂowsfrom

theprintingtiptothemodellingbase.Thistipisabletomove

rela-tivelytotheprintingbaseinthethreedimensionalspace.Mostof

theprintedmaterialsusingFDMarepolymers(mainlyAcrylonitrile

ButadieneStyreneorABS,PolylacticacidorPLA).Recently,Carneiro

etal.(2015)demonstratethefeasibilityofusingpolypropyleneas

apolymercandidateinFDMstartingfromtheﬁlamentextrusion

stepandendingtothesmallsizepartcharacterisation.

Theresultoflyingdownofthefusedmatterinsuccessive

lay-ersisthedevelopmentofanisotropicstructuring.Ahnetal.(2002)

showastrongcorrelationbetweentherasterangleandthetensile

propertiesofABS.Theauthorsshowthattensilestrengthcanvary

inawiderange(from2.5to20MPa)dependingoninter-ﬁlament

crossingandorientation.Leeetal.(2007)showthatfailuremodes

undercompressionaredistinct dependingonthechoiceofAM

technology.Shafferetal.(2014)showthatimproved

macromolecu-larcrosslinkinginFDM-basedthermoplasticsystemsisachievable

usinggammaradiation.Theauthorshighlightadirectconsequence

onincreasedtoughnessof studiedpolymers.Thesecontributors

(Shaffer et al.,2014)conﬁrmthat tensile responsesof PLA and

ABS samples are sensitive to printing orientation. The optimal

responsecorrespondstothemaximumalignmentofﬁlamentin

theloadingdirection.Inaddition,theresultsofthesameauthors

indicatehighersensitivityofABScomparedtoPLAtomechanical

anisotropy.Theliteratureworkisconstantlyexhibitingattempts

toreduceanisotropyissuesby,forexample,optimisingthepart

orientationorapplyingpost-processingtoimprovecross-linking.

Carneiroetal.(2015)showthat,besidesthepartorientation

pre-vailingeffect,theinﬁlldegreehasalsoastrongeffectontensile

properties of PP and PP based composites.Thrimurthulu et al.

(2004)suggesttheuseofoptimisationstrategybasedongenetic

algorithmtoachieveoptimaldepositionorientationwithreduced

stair-caseeffectandminimumsupportmaterial.Strategiesalsoare

appliedtoreducediscontinuitiesbyconsideringmorecontinuous

modesofprinting.Chakrabortyetal.(2008)argueonthe

bene-ﬁtsofusingcurvedlayerFDMtoimprovetheprocessingofcurved

structuressuchasthin shell-typeparts. Theauthorsshow that

thereductionofthestair-caseeffectandsmoothﬁnishingsurface

stateareimportantoutcomesoftheproposedFDMstrategy.Choi

etal.(2011)presentamodiﬁedcommercialset-upwith

capabili-tiesofverticallayering.Theauthorsclaimthatthismodiﬁedset-up

allowsmoreﬂexibilitybyreducingthedependencetothebuilding

direction.Foralargenumberofthesecontributions,theoptimal

designinAMisconductedfromanengineeringviewpoint,by

focus-ingonprocessparameterdriveneffects.Forinstance,Galantucci

etal.(2008)focusonoptimisingmanufacturingtimeandcostwith

respecttoshapefactorssuchastheinternalangle,rasterandshell

width.Inareviewpaper,Mohamedetal.(2015)showthattheFDM

optimisationreliesonbuildingorientation,layerthicknessandtool

pathparameters.Theauthorsrefertotheliteratureworktorelate

theseinﬂuentialparameterstosurfaceroughness,partdeposition

imprecision,buildingtime,andpartperformance.

Betteractionstowardstheoptimaldesigncanbedrivenbymore

fundamentalunderstandingofthenatureandextentofthedefects

inducedbyAM.Thankstotherecentadvancesin3Dimage

tech-niques,itisnowpossibletoachieveaclearpictureofthetextureand

defectextentatthemicrostructurescale(Bakeretal.,2012;Maire

andWithers,2014;MizutaniandSuzuki,2012).Thisisillustratedin theworkofMostefaietal.(2015),whichsuggeststheuseofX-ray

micro-tomographytoachievemicrostructuralarrangementin

het-erogeneouscementiteouscomposite.Thispicturecanbeevenmore

accurateifananticipationofthemicrostructuralperformanceis

includedthroughcomputationalanalysis(Moreno-Atanasioetal.,

2010).ThisisconductedintheworkofAyadietal.(2015),where

theauthorsareabletocombineﬁniteelementanalysisandX-ray

micro-tomographyimagingtopredicttheelasticitybehaviourof

polymericcomposites.Thesetwotypesofanalysis,namelyX-ray

micro-tomographyand ﬁnite elementcomputation arebrought

togetherinthisresearchcontributiontogainmorefundamental

knowledgeabouttheprocess-induceddefects.

Indeed,X-raymicro-tomographyisused,inthisstudy,to

quan-tifythedefectsinthethree-dimensionalspace.Partoftheanalysis

isthedeterminationoftheporousstructureandrelatedattributes.

The3Dimagesareconvertedintoﬁniteelementmodeltocapture

theeffectofprocess-induced defectsonthemechanical

perfor-manceoftheprinted parts.Thisstudyfocuses onABSpolymer

blocksthatareprintedusingacommercialFDMsolution.

2. Experimentallayout

TheABSpolymerisdeliveredbyCADvisioncompany

(Guyan-court, France) under the reference P430XL ABS. The additive

manufacturingisbasedoncommercialsolutionoffuseddeposition

modellingmanufacturing.ProcessingisperformedusinguPrintSE

3Dprinter fromStratasys.Thisprinting technologyisequipped

withtwotipsof254␮mindiametereachforthedepositionofABS

andadissolvablesupport.CuboidsofABS(30×30×30)mm3_are

printedusingdifferentorientationswithrespecttothemodelling

base.Orientationisrepresentedbytheangle␪,wherethe

follow-ingchoicesaremade0◦,30◦,45◦,60◦,and90◦(Fig.1).TheStlﬁles

oftheCADmodelsaretransformedintotoolpathsusingbuilt-in

software(CatalystEX).DuetothesimplicityoftheCADmodel,the

softwareplanssolublesupportattheﬁrstlayerstopreventstrong

bondingtothebase.

X-raymicro-tomographycharacterisationoftheprinted

sam-ples is conducted using an UltraTom X-ray ␮-CT system. The

acquisition parameters are: voltage 60KV, current intensity

480␮A,voxelsize30␮m,continuousmodeacquisition,resolution

of2DradiographicImages1920×3536pixelswithvariandetector

focusedonascintillatingmaterial,1440radiographicimages.

Weneedtomentionthattheaccuracyof3Dimaging

acquisi-tionreliesonthevoxelsizewhichiseighttimessmallerthanthe

printingtipdiameter.Stacksrepresentingtheacquiredvolumesare

builtfromthecollectionofradiographicimagesusingtheﬁltered

back-projectionalgorithm(X-ActsoftwarefromRx-Solutions).The

imageacquisitionandthestackassemblingrequirelessthan30min

percondition.Thevoxelnumberperstackvariesisoftheorderof

onebillion.

Theclearseparationbetweenthesolid andairphasesallows

thesuccessfulapplicationofvarietiesofimageoperators,which

arecodedusingtheprogrammingenvironmentofImageJ(http://

imagej.nih.gov/ij/,NationalInstituteofHealth)softwarefromthe

publicdomain.Inparticular,automaticthresholdingisappliedto

greylevel stackstoachieve binaryimagesrepresentingair and

densephases.Floodingisappliedtoseparatethebackgroundfrom

theairphase.Floodingisbasedontheﬂoodﬁllingtoolavailablein

ImageJ.SincethecontouroftheacquiredABSblockisclosed,wedid

notusesophisticatedcontourdetectionalgorithmssuchlike

wrap-pingdeveloped in(Mamloukand Guessasma,2013)toseparate

accuratelythebackgroundfromthefeatureofinterest.Flooding

(4)

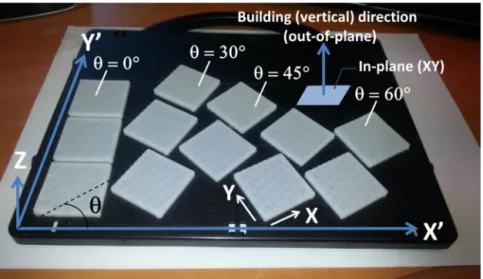

Fig.1.Illustrationofthepartorientationanddeﬁnitionoftheprintingangle␪.

neighbouringpixelswhichhavethesamegreylevelareattributed

anintermediategreylevelof128.Theprocessisextendedtoall

slicesoftheimage.Asaresult,thebackgroundappearsdistinctfrom

theporousandsolidphases.Notethatthisoperationispossible

becauseprintingofABSisrealisedusingaﬁlledcontour.

Pore size distribution is obtained using granulometry

tech-nique(Guessasmaetal.,2008).Thesizedistributiondetermination

is based on a growingstructural element that scans the stack

with a regular step. Each time a feature of size less than the

sizeofthestructuringelementisdetected,itiseliminatedfrom

theforeground.Thiscorrespondingsizefrequencyisincremented

accordingly.Thecomputationtimemaybesigniﬁcanttoassessthe

poresizedistribution.Indeed,a largenumberof scanningsteps

isneededtoscanthestack.Thisprocessisrepeatedforeachsize

increment(onevoxel)ofthestructuringelement,whichrequires

additional savingof intermediate stacks.The last iteration

cor-respondstothelargestdetectedfeaturein theforeground.This

algorithmworksthusasanumericalsievingtechnique.

Granulom-etrytechniqueisefﬁcienttomeasuretheporepolydispersitybut

ithardlyestimatesporeconnectivity.Thislastfeatureiscaptured

from3Dlabellingtechnique.Sinceporesareviewedascollection

ofvoxels,theyareconnectediftheysharecommonfaces,edgesor

corners.Poreconnectivitycanbeassessedfromanalysisofporosity

volumedistribution.3Dlabelling techniqueallowsthe

determi-nationofthelargestconnectedfeatureusingface,edgeorcorner

connectivitydeﬁnedbytheoperator.Iftwovoxelsbelongingtotwo

globularporosities(oridentiﬁedasdistinctfeaturesfrom

granu-lometryanalysis)shareafaceoranedge,theseareconsideredas

partofthesamefeature.Ameasureofporeconnectivitywouldbe

toscalethelargestconnectedfeaturewithrespecttothesumof

alllabelledfeatures.Theratio(largestfeaturevolume/totalpore

networkvolume)islargeforahighlyconnectedporenetwork.One

maynoticethatthisratioisaboundedquantity(between0and

1),whichmakesiteasiertorankporeconnectivityofprintedABS

blocksasfunctionofprintingangle␪.

Labellingisperformedusing26connectivityschemeinwhich

voxelsbelongtothesamefeatureiftheysharefaceorcornerin

common.Withthislastprocess,informationaboutpore

connectiv-itycanbegainedbyscalingthelargestporevolumewithrespectto

thetotalvolumeofavailableporosity.Itiscommontoﬁndinthe

literaturepercolationanalysisbasedonlowerconnectivityscheme

suchasfaceconnectivity.Fromtheperspectiveofrelatingpore

con-nectivityresultstoelasticityconstants;suchschemewillbetoo

restrictive.Indeed,iftwoporesareconnectedthroughanedge,

openingandthuslocalisationoccursevenifloadingislimited.The

useoffaceconnectivityreducestheconnectivitytotheﬁrst

neigh-boursandobviouslyaffectsthemagnitudeofporepercolation.This

effectisfurtherinvestigated.Granulometryand3Dlabellingare

timeconsumingtechniqueespeciallyforlargestacks.Thesize

dis-tributiondeterminationoftheporousnetworkisthemostresource

consumingtechniqueevenifthedevelopedalgorithmisoptimised

intermsofmemoryandCPU(CentralProcessingUnit)

manage-ment.Indeed,thedurationofprocessingvariesfrom2daysto5

daysperstackonworkstationequippedwith24-coreXeonCPU

E5-2620and192GBofRAM.

Severalstructuralattributesaremeasuredfromtheprocessed

images.Theporositycontentisdeterminedusingtheexpression

f (%)=100×

n×m×l i=1 ı 1 i(gi) /

n×m×l i=1 ı 2 j

gj

(1) where ı1_i(0)=1;ı1_i (128)=0;ı1_i(255)=0 (2) and ı2 j(0)=1;ı2j (128)=0;ı2j(255)=1 (3)

andf (%) is theporosity volumepercentage,ıi istheKronecker

function,whichdependsonthegreylevelg_iassociatedtovoxeli;

n,mandlarethedimensionsoftheX-rayimageinX,YandZ

direc-tions,respectively.Z-axisisthebuilding-updirectionassociatedto

the3DprintedABSsamples.

Inadditiontotheoverallporositycontentf (%),theaxial

con-tributionsareaccountedtomeasuretheanisotropyinferredtothe

process.Theaverageporositycontentpercross-sectionareais

plot-tedagainsttheslicenumber.Forexample,theporositycontentin

thedirectionofsamplegrowthf_z(i) ataparticularslicenumberi

reads f_z(i)=100×

(i)×n×m j=(i−1)×n×m+1ı 1 j

gj

/

(i)×n×m k=(i−1)×n×mı 2 k(gk)

(4)

Thescatteroftheporositycontentinthesamedirectionıfzis

calculatedusingthedeﬁnitionofthestandarddeviation

ıfz(%)=

1/l

×

l i=1

f_z(i)−

l i=1fz(i) /l

2 (5)

(5)

Thelargest porosity levelMxf is alsomeasured in allspace

directionsfromthestatisticsonallavailablecross-sections.In

Z-direction,thisimplies

Mxfz=Maxli=1(fz(i)) (6)

where Mxfz is the peakporosity level measuredin Z-direction.

EquivalentexpressionscanbederivedforMxfxandMxfy.

Poreconnectivityismeasuredusing

(%)=100×MaxN

i=1

V_p(i)

/

N

i=1Vp(i) (7)

where istheporeconnectivitypercentage,V_p(i) isthevolume

associatedtothelabelledporei,Nisthetotalporenumber.

Weperformboth26-connectivity(26)and6-connectivity(6)

analysistocomparethelossofporeconnectivitywhenonlyﬁrst

nearestvoxelneighboursareused.

3. Modellingtechnique

ThepurposeoftheFiniteelementanalysisistoquantifythe

effectofmicrostructuralimperfectionsbylookingatthestressand

strainﬁeldsfordifferentprintingorientations.Ansysmulti-physics

commercialpackage(ANSYSInc.,Canonsburg,PA,USA)isusedfor

allﬁniteelementcomputations.Theacquiredstacksareimported

asregularmeshesusingvoxeltoelementconversion(Ayadietal.,

2015).Themodelsizeisproportionaltotheimageresolution.Itis

adaptedtoallowcomputationstobeperformedunderhundredsof

millionsofdegreesoffreedom.Thelimitedcomputationresources

(timeandmemoryrequirement)imposetheloweringoftheimage

resolutionbyafactor3_such_that

3₌_N

/N0 (8)

whereN0andNarethetotalnumberofvoxelsintheoriginaland

newimages.

Theresolutioncoarseningcanbefurtherdeﬁnedusing

dimen-sionsn,mandloftheX-rayoriginalimages

N=

n/

×

m/

×

l/

(9)

Finiteelementcomputationsareconductedusingacoarsening

fac-torof0.25(3₌_1/64).

All ﬁnite element computations are conducted exclusively

usingtheabovementionedcoarseningfactor.However,structural

attributessuchasphasecontentandporeconnectivityare

deter-minedforalargeintervalofcoarseningfactors(≥0.025)upto

theoriginalresolution(=1).Changeofthephasecontentand

poreconnectivitymayoccurasaresultoftheresolution

degrada-tion.Theaccuracyofthevoxeltoelementconversionischecked

bymonitoringphasecontentandporeconnectivityvariationfora

decreasingresolution.

Meshingreliesonstructuralelementsdeﬁnedby8nodesand

threestructuraldisplacementspernodeinX,YandZdirections.The

elementsizeof120␮misstillsmallerthanthetipdiameterofthe

3Dprinter.Computationsareperformedbasedonafullstackforall

orientationsbutalsoonsubstacksrepresentingfractionsfromthe

fullvolume.Croppingisrealisedinbothlateral(X,Y)andbuilding

(Z)directions.Thenewz-dimensioninnormalsamplingusing

z=˛×Z|˛=0.1,...,1.0 (10)

Tenlevelsareused,andthesecorrrespondto30ﬁniteelement

evaluations per orientation. In these computations, remaining

dimensionsXandYofeachdomainarekeptatthefullscale.

Forlateralsampling,asimilarexpressionisused

x=ˇ×X|ˇ=0.1,...,1.0

y=ˇ×Y|ˇ=0.1,...,1.0 (11)

ThesamenumberoflevelsisusedandtheZdimensioniskept

atfullscale.

Themodelsizevariesdependingonsamplingfromfew

thou-sandstofewdozensofmillionsofdof(i.e.,degreesoffreedom).

Isotropicelasticmaterialmodelisimplementedforthedense

ABSphase(ES=1.54GPa,␯S=0.35,whereESisYoung’smodulus

and␯SisPoisson’scoefﬁcient).

Periodicboundary conditions are usedto predictstress and

straindistributionsintheprintedblocksinthreeloadingdirections

X,YandZ.

Regularmeshingallowsusinghomologuenodestoapply

peri-odic boundary conditions. Homologue nodes are identiﬁed for

opposedfacesas

Ri1j1k1=Ri2j2k2+D|D=Dx,Dy,Dz (12)

whereRandDarevectors,themagnitudeandorientationofD

areassociatedtooneofthephysicaldimensionsoftheacquired

volume,i1,j1,k1,i2,j2,k2areindicesrelatedtovoxellocationsR

intheimage.

Constraintsequationscanbeexpressedusing

Ui1j1k1=Ui2j2k2+U (13)

whereUrepresentsnodaldisplacementvector,Uisaconstant

vec-tor,nodessatisfyingtheconstraintequationsaredeterminedusing

equation(12).

Sinceboundaryconditionsareappliedasconstrainequations

(couplingequations),thestrainand displacementﬁeldsarenot

knowninadvanceatlateralfaces.Whensolvingtheelasticity

prob-lem,thesequantitiesbecomeavailableforallnodesincludingthose

belongingtothelateralfaces.Theaverageoflateraldisplacements

forallnodesbelongingtotheexternalsurfaces(thoseassociated

tothecroppedvolume)isusedtocomputePoisson’sratiosatany

samplingratio.

In addition,Young’smoduliare derived fromnodalreaction

forcesknowingtheimposeddisplacementwhereasPoisson’sratios

are determinedfrom theaveragedisplacement oflateral faces.

ThreeYoung’smoduli(EX,EYandEZ)andsixPoisson’sratios(␯yx,

␯zx,␯xy,␯zy,␯xz,and␯yz.where␯ijreferstothelateralexpansion

ini-directionforanimposedcompressioninj-direction)are

com-putedforeachrun.Thecomputationdurationperloadingpoint

reaches2hperformedon24-coreXeonCPUE5-2620workstation

equippedwith192GBofRAM.

4. Resultsanddiscussion

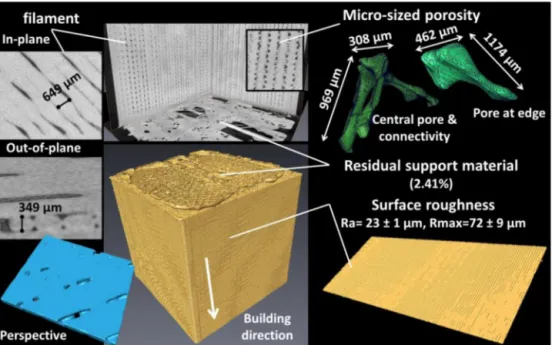

Fig.2showsqualitativelythetypeofdefectsidentiﬁedfrom

X-raymicro-tomographyanalysis.Onthetoprightside,typical

poremorphologyisshown.Dimensionsoftheorderofhundreds

of microns and even millimetric scale porosities are identiﬁed.

Thesearecharacterisedbylargearmsrepresentingthe

connec-tivitysharedwithotherglobularporosities.Onthebottomright

side,topographyofexternalsurfacesisexposed.Bothaverageand

maximumroughnessarealsogiven.

ThecentralviewsareinnerandouterperspectivesoftheABS

block.The leftside shows closeviews ofthe ﬁlament

arrange-ments.Twodistinctdimensionsarehighlightedfortheﬁlament

arrangementinFig.2:out-of-plane(Z-axis)isthebuilding

direc-tionassociatedtotheverticalsampling.Thein-planedimension

(XYplane)isrelatedtothelayingdownplane,whichisrepresented

inmanystudiesbytherasterangleor,inthisstudy,referredbythe

printingangle␪.

Despite removalefforts, someresidualsupportmaterial still

adherestothe3DABSstructure.Theresidualrepresentsfew

per-centoftheacquired volumebut coversa largesurfacearea. In

thebuilding direction,the boundingbox created at the

(6)

Fig.2.Characteristicdimensionsofmicrostructuraldefectsinducedby3Dprinting.

in Fig.2)formbecause of theabrupt change in pathdirection

anddeceleration oftheprintingtip.Thealternation ofﬁlament

pathsrevealsdifferentcrossingsituationswherelargeconnectivity

betweenporositiesislikelytoappear(centralporeinFig.2).The

mismatchbetweensuccessivecontours(lackofcohesionbetween

successivelayers)isthecauseoftheobservedsurfacetopography,

whichistypicalofpartsrealisedusingFDM.Bothaverageand

max-imumroughnessvaluesarewellbelowtheprintingtipsize.This

issymptomaticofthelackofcohesionbetweencontiguous

ﬁla-ments(out-of-planeviewofﬁlamentinFig.2).Thein-planeview

oftheﬁlamentarrangement(leftuppersketchinFig.2)showsthat

thelateralﬁlamentexpansiondoesnotguaranteelateralcontinuity

overtwoorthreetypicaldimensions(threetimesthediameterof

theprintingtip).Discontinuityisthendrasticallyenhancedbythe

successivelayerscreatingconnectedporositiesalongthebuilding

direction(centralviewinFig.2).Theout-of-planeviewofthe

lay-ingdownshowsmorphologicalmodiﬁcationsexperiencedbythe

ﬁlament.Thechangeconcernsthecircularsectionwhichappears

aselliptical.Thesmallesttransversedimensioniscapturedinthe

buildingdirection,which meansthat theshape modiﬁcation is

drivenbythestretchingoftheﬁlamentcombinedtothe

gravita-tionalactionofthefollowinglayers.Theaverageratiobetweenthe

transversedimensionsoftheellipticalﬁlamentis326±17␮mfor

out-of-planeover586±80␮mforin-plane,whichiscloseto0.56.

Contiguousﬁlamentsformalsoaneck.Thelimitedextensionof

theneckisthesourceoftheporousmorphologyhighlightedinthe

sameﬁgure.Neckingrepresentstheconnectingpartbetween

ﬁla-ments.Theresultofthelackofcohesion,whichcanbeestimatedby

theextensionoftheneck,createstheroughnessdiscussedearlier.

Fig.3showsperspectiveviewsoftheporousnetworkinABS

blocksasfunctionofprintingorientation.Thelightgreylevel

rep-resentstheporosityarrangementintheprintedABSblock.3Dviews

areillustratedasfunctionoftheprintingangle(␪).Ontheleftside,

perspectiveviewsareorganisedtoillustratetheporosity

arrange-mentthroughtheverticaldirection(buildingdirection).Theimages

ontherightsidearetopviewsthatillustratethein-plane

arrange-mentoftheporosity network.Thisporousnetworkreﬂectsthe

quality of adhesionbetween contiguous ﬁlaments described in

Fig.2.

Indeed,theregulararrangementofporosityfollowsthepath

crossingofﬁlamentasfollows:+45◦/−45◦_,₊₇₅◦_/₋₁₅◦_,₊₉₀◦_/+0◦_,

Table1

PorositystatisticsfromanalysisofX-ray␮-tomographyofprintedABSsamplesas functionofprintingangle.

␪(◦) f (%) ıfx ıfy ıfz Mxfx Mxfy Mxfz 26(%) 6(%) 0 5.07 3.01 2.95 0.97 20.94 18.78 10.39 85.04 79.54 30 4.57 2.21 2.24 1.09 20.13 23.69 9.87 76.60 75.10 45 6.12 7.04 6.33 1.11 45.29 44.84 11.13 62.11 61.84 60 4.51 2.26 2.32 1.00 17.09 18.70 9.41 71.68 69.32 90 4.84 1.97 2.70 1.16 11.68 15.23 9.82 78.33 74.49

+15◦/−75◦_,_and_again₊₄₅◦_/₋₄₅◦ _for_␪₌₀◦_,₃₀◦_,₄₅◦_,₆₀◦ _and₉₀◦_,

respectively.Thechangeoforientationoftheporousnetwork coin-cideswiththeangleincrement.

Thealternationofthelayersfollowsalogicof45◦/−45◦_for_␪₌₀◦_.

Layersrotateby30◦ aboutthebuildingdirectionforeachangle increment.

Resolutioncoarseningeffectsonbothporecontentand connec-tivityareexploredinFig.4.

Porecontentisstableupagainstresolutionloweringdownto

acoarseningfactorof0.1.Thismeansthatscalingeachdimension

oftheoriginalimagetoitsonetenthdoesnotaffectthe

predic-tionofelasticityconstants.Theseareexclusivelydependentonthe

phasecontent.Poreconnectivityresitsresolutionloweringdown

toacoarseningfactorof0.4.Sinceallcomputationsofstructural

attributes areconducted at full resolution ( =1), connectivity

resultsarerepresentativeofthe3Dprintingeffect.

Theexaminationoftheporositylevelasfunctionofsample

ori-entationindicatesslightdifferences(standarddeviationof0.66%)

betweenstudiedconﬁgurations(Table1).

Thelargestporositylevelisobtainedfor3Dprinting

conﬁgura-tionswith␪=45◦.TheresultssummarisedinTable1demonstrate

thattheporositylevelisacceptable(<6.2%)forallsituations.

How-ever,thescatterinporositylevelsmeasuredinallspacedirections

(ıfx,ıfy,ıfz)indicatesa stronganisotropy(Table1).The largest

scatterinporosity levelisobserved inx-and y-directions.This

scatter represents, in the average or irrespective of the

orien-tation, 63%, 64% and 22% of the average porosity level in X-,

Y-andZ-directions,respectively.Thesmallﬂuctuationof

poros-ity measured in the building direction (22%) compared to the

remainingdirectionsis anevidenceofahigherhomogeneityin

(7)

conﬁgurationcorrespondsto␪=45◦,wheretheporosity

ﬂuctua-tionsinx-andy-directionsarethelargestones.

Fig.5depictstheaxialproﬁlesofporositycontentinmainspace

directionsasfunctionoforientationangle(␪).Theseproﬁlesdepict

howtheporousnetworkisarrangedinparticulardirection.These

Fig.3.3Dviewsshowingtheporousnetworkasfunctionofprintingangle␪. Poros-ityislabelledwithalightgreylevel.

Fig.4.Effectsofresolutioncoarseningonporeconnectivityandcontent.

Fig.5. Axialporositylevelsasfunctionofsampleorientationangle(␪)in(a)X-,(b) Y-and(c)Z-directions.

(8)

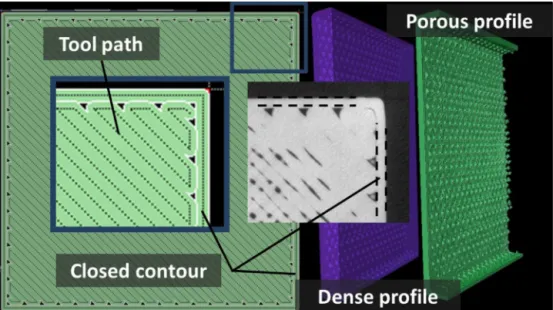

Fig.6.ToolpathgenerationlogicillustratingtheclosecontourinXYplane(perponducilartothebuildingdirection)incomparisonwiththemicrostructuralrenderingatthe borderoftheprintedABS.

Fig.7.Relationshipbetweenporeconnectivityandporositycontent.

proﬁlesarethusinformativeofanyanisotropytakingplaceacross

thelayersofprintedABS.

Thisinformation isnotaccessiblethroughaveragequantities

depictedinTable1.Inaddition,axialproﬁlesallowtherankingof

suchanisotropybecauseofmarkeddifferencesbetweenprinting

anglesindifferentspacedirections.Fig.5ashowstheporosity

con-tentproﬁleinX-directionforallprintingangles.AtypicalU-form

illustratesthetypeofanisotropyexhibitedbytheaxialporosity

distribution(Fig.5a). Theaxialproﬁleofporosity contentin

Y-directionlookssimilarfromtheheterogeneityviewpoint(Fig.5b).

Bothproﬁlesrepresentinsomewaythein-planeporosity

arrange-ment,which is differentfromtheout-of-plane proﬁle(Fig. 5c).

Thedifferenceisrelatedtothefactthatporositycontentislarger

than3% atmost Zpositions (Fig.5c)while porosity contentin

anyin-planepositionalternates betweentheground valueand

largerlevels(Fig.5aandb).Despitethesedifferences,allproﬁles

presentlimitedporositylevelsatbothends,whicharefollowed

bylargepeaks.Thecorrespondingabscissapositionscorrespond

totheprintedpartskinorenvelope.Theabsenceofporosityat

theseparticularpositionsindicatesthepresenceofathin dense

bandsurroundingtheprintedfeature.Thegenesisofthisbandis

relatedtothelogicbehindthetoolpathgeneration(Fig.6).Indeed,

Fig.6designatesqualitativelythetypeofgeometricalanisotropy

associatedtotheporousnetwork.Withinthisband(markedwith

dashlinesinFig.6),noporosityisdetectedinatypicalthickness

varyingbetween360␮mand780␮m.Theclosecontourconfersto

theprintedstructuremechanicalstabilitytotheskinandensures

compactness.This comesat a costascan bededucedfromthe

microstructuralanalysis(Fig.6).Filamentpathmismatchcreates

alackofspaceﬁllingrepresentedbylimitedextensionofﬁlament

necking.Thus,largeporositiesfollowimmediatelythedense

con-tour,whose effectisreﬂectedbytheobservedporosity content

peaksinFig.5.These peaksvaryinintensitydependingonthe

printingangle␪.Theformedporosityundertheskinhasalarge

connectivityandatypicalformshowninFig.2(edgeporosity).

Theporositypeakisassociatedtothelayingdownmismatch

whentheprintingtipchangesrapidlythepathdirectiontowards

thenextpass.So,thelargestporositylevelsinaxialproﬁles

corre-spondtothealterationofmaterialdepositionattheboundaries.The

peakofporositycontentcanbeaslargeas45%(Fig.5aandb)asalso

showninTable1.InX-andY-directions,similarhighﬂuctuations

ofporosityproﬁlesareobserved(Fig.5aandb).Thelowest

ﬂuctua-tionsinporosityareobservedinthebuildingdirection(Fig.5c).

For allcases,axial ﬂuctuationsinporosity areassociatedtothe

defectsinducedbycrossedoralignedﬁlaments.Amongallstudied

conﬁgurations,␪=45◦achievesthehighestlevelsofporosity

ﬂuc-tuations.Indeed,thecorrespondingaxialproﬁleofporositycontent

inFig.5apresentspeaksofabout20%(ifexcludingthelargestpeaks

associatedtotheskin).Thelargestlevelsdonotexceed10%for

theremainingprintingangles. Asimilarcommentgoesalsofor

theotherin-planeaxialproﬁlesshowninFig.5b.Theout-of-plane

proﬁles(Fig.5c)stillshowthesamerankingbutthedifferenceis

secondarycomparedtothein-planeaxialproﬁles.Mostofthese

peaksarebelow8%for␪=45◦whereasthesearesmallerthan6%

fortheremainingprintingangles.

Thelargeﬂuctuations inporosityproﬁleobservedfor␪=45◦

contrast with the results of pore connectivity summarised in

Table1.Indeed,theformerorientationiscorrelatedtothe

low-estporeconnectivityamongallpossibleorientations.Thelargest

poreconnectivityisobtainedfortheangles0◦and90◦.Eq.(7)

sug-geststhatporeconnectivityresults(Table1)canbeduetoeither

achangeofthevolumeofthelargestpore,ortoadifferent

(9)

Fig.8. Stresscomponent␴YYcontourplotsofatfullscale(␣=1.0)asfunctionofprintingangle␪.

edges.Ifporeconnectivityisonlydrivenbytheincreaseofporosity

content,alineardecreasingtrendshouldbeobtained.Theplotof

theporeconnectivityasfunctionofporositycontent(Fig.7)shows

thatthisisnottrueforalmostprintingangles.Thetrendismore

paraboliceveniffaceconnectivity(6)isused.Thistrendsuggests

thatporeconnectivityismorerelatedtothevolumevariationof

thelargestconnectedpore.

Theresultsoffaceconnectivity(6)showthatthisschemeis

responsibleforthelossofabout2.69%ofporeconnectivityasshown

inTable1.Thisresultindicatesthatthislossisminorandconﬁrms

thatmostoftheporositiesareconnectedthroughvoxelfaces.

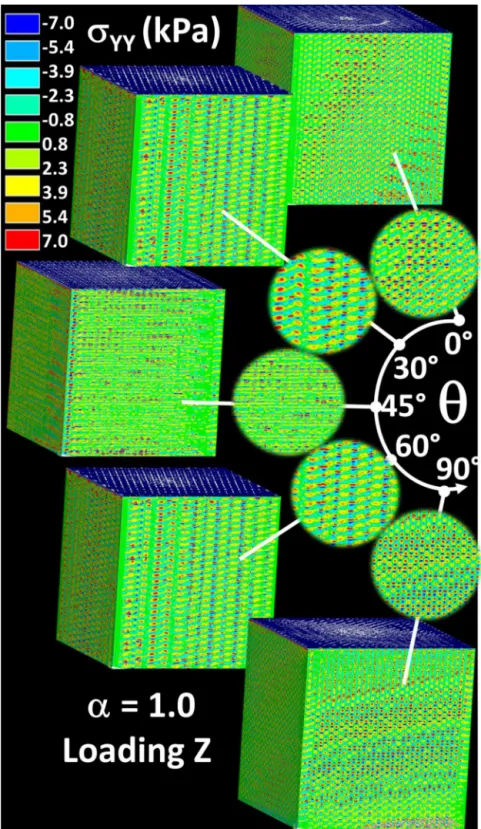

Fig.8 illustrates thenodal solutions correspondingtostress

component␴YYrelatedtofullscale(␣=␤=1)loadedinthebuilding

direction.Thewaytheporousnetworkaffectsthestress

distribu-tionis,atthesametime,qualitativeandquantitativeinformation.

Thisinformationisretrievablethroughthemagnitudeand

distribu-tionofstressinthecontourplots(Figs.8and9).Ifthisinformation

isretrievedasfunctionofprintingangleandsamplingratio,the

effectofprocessinducedimperfectionsonelasticitybehaviourof

printedABSiscaptured.

Thestressﬁeldsrevealheterogeneousdistributionaffectedby

(10)

Fig.9.Effectofverticalsamplingonstresscomponentcontourplots(ontheright␴ZZforloadinginlateraldirection−Yand␣=0.7)fordifferentprintingangles␪.Onthe

leftstresscomponent␴XXatfullscale(␪=60◦,␣=1.0,loadinginbuildingdirection−Z)isalsoillustrated.

Table2

Statisticalanalysisofelasticityresponseof3DprintedABS.Min,AVE,STDareminimum,averageandstandarddeviationoperators.

␪(◦₎ _Lateral_{sampling—␤} _Vertical_{sampling—␣}

0 30 45 60 90 0 30 45 60 90 (EX) 0.97 0.94 0.96 0.96 0.96 0.99 0.99 0.99 0.99 0.99 (EY ) 0.96 0.94 0.96 0.96 0.97 0.99 0.99 0.99 0.99 0.99 (EZ) 0.98 0.97 0.97 0.98 0.99 0.99 0.99 0.99 0.99 0.99 ı (EX) 1.13 1.88 1.06 1.18 1.21 0.43 0.29 0.36 0.22 0.25 ı (EY ) 1.21 1.76 0.93 1.36 1.09 0.43 0.35 0.29 0.28 0.25 ı (EZ) 0.63 0.99 0.66 0.58 0.48 0.49 0.36 0.28 0.27 0.24

ω (EX,EY,EZ) 1.04 1.04 1.03 1.03 1.04 1.02 1.01 1.02 1.01 1.02

(EX,EY ) 0.13 0.38 0.23 0.50 0.27 0.05 0.23 0.10 0.36 0.09 (xy,yx) 0.13 0.38 0.20 0.50 0.27 0.03 0.24 0.10 0.41 0.09 (xz,yz) 0.04 0.14 0.04 0.16 0.02 0.00 0.03 0.04 0.02 0.02 (zx,zy) 0.12 0.35 0.21 0.54 0.27 0.03 0.24 0.16 0.48 0.09 ı(xy) 0.09 0.75 0.48 0.52 0.20 0.05 0.19 0.19 0.15 0.06 ı(zy) 0.51 0.76 0.41 0.63 0.40 0.21 0.29 0.21 0.24 0.18 ı(yx) 0.20 0.83 0.64 0.35 0.19 0.05 0.14 0.25 0.10 0.04 ı(zx) 0.43 0.88 0.55 0.48 0.52 0.20 0.17 0.29 0.18 0.20 ı(xz) 0.16 0.24 0.22 0.22 0.15 0.08 0.07 0.06 0.04 0.04 ı(yz) 0.12 0.27 0.25 0.20 0.14 0.09 0.04 0.04 0.05 0.05

revealeddistributionsshowalternationofcompressiveand ten-sionstresses(Figs.8and9).Whensubjectedtouniaxialloading,

compressivestressesdeveloparoundporeedgesalignedwiththe

loadingdirectionandtensilestresseselsewhere.Crackinitiation

islikelytooccurfromtheporositycontoursundertensionasa

resultoflocalisation.Sinceﬁniteelementcomputationisbasedon

meshingofX-raystacks,thestressdistributionhighlightsthusthe

signatureofporositymorphologyandconnectivity.

The alternation of compressive and tensile stresses differs

signiﬁcantlydependingontheprintingorientationbutmarked

dif-ferencesintermsofmagnitudearenotobserved.Stresslocalisation

isexpectedtoinducesigniﬁcantdamagepercolation.Thisis

evi-dencedbythealigneddomainsofisostressinparticulardirections.

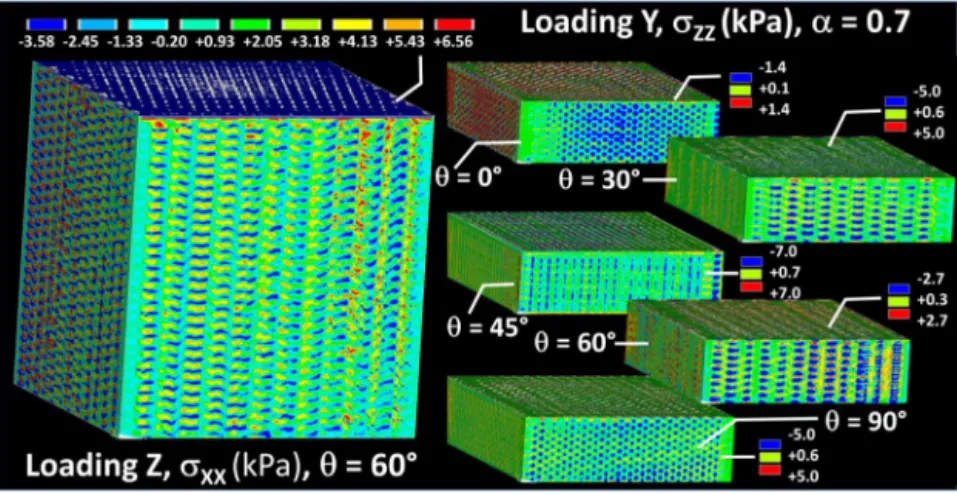

Fig.9 showsthepredictedstressdistributionsfora constant

verticalsamplingalongthebuildingdirection(␣=0.7).

Ontherightside,stresscomponent␴ZZiscomparedfordifferent

printinganglesforthesameverticalsampling(␣=0.7).Alternation

ofcompressiveandtensionstressesareevidencedforallprinting

angles.Themagnitudesoftheminimumandmaximumstress

lev-elsareadaptedtoshowthespatialperiodicityoftheheterogeneous

stressﬁeld.Thestressheterogeneityismarkedbyaregular

alter-nationoflowandlargestresslevels,whichisacharacteristicof

theprintingprocess.Theselevelsfollowtheporousarrangement

sincetheporositycontoursareregionsoflargerstresslevelsand

stresslocalisation.Thisconﬁrmstheroleoflocalheterogeneities

thataffectthespatialdistributionofstressﬁeld.Periodicityofthe

stressﬁeldiscorrelatedtotheorientationoftheprintedblockand

variesdependingontheprintingangle.Theperiodicityofthestress

distributionisalsopreservedthroughalargerangeofvertical

sam-pling.OntherightsideinFig.9,stresscomponent␴XXissuedfora

loadinginZ-directionatthefullscale(␣=1)exhibitsimilar

charac-teristicswiththestressdistributionsontherightside(␪=30◦and

␪=60◦).Thehighestheterogeneityisthusobtainedequivalentlyby

loadingthesampleinXorYdirectionsandissuingthecomponent

␴ZZorbyloadingthesamestructureinZ-directionandissuingthe

components␴XXor␴YY.Allstressdistributionsconﬁrmalsothat

theaverageintensitydoesnotdiffertoomuchfromoneprinting

angletoanother.Thisisalsoexpectedfromtheanalysisofporosity

contentinTable1.

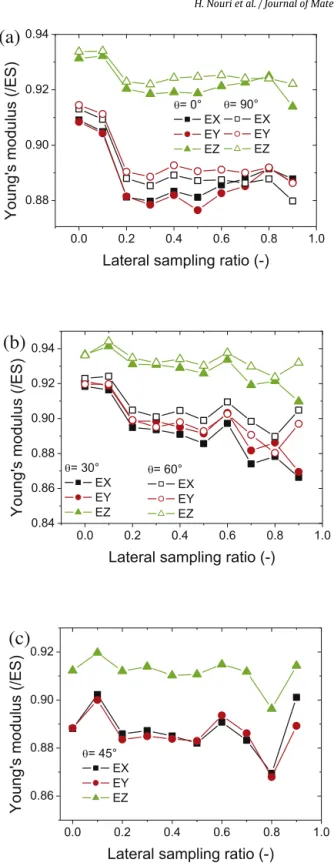

Fig.10comparesthepredictedtendenciesforYoung’s

modu-lusinallspacedirectionsasafunctionoforientationandsampling

foranincreasinglateral(␤)directions.Young’smodulitrendsare

scaledwithrespecttoYoung’s modulusof theas-receivedABS

material.Anoveralltrendshowingalternationoflowerandhigher

Young’smoduliishighlighted.Thisjaggedvariationofall

inves-tigatedYoung’smodulicomponentsistobecorrelatedwiththe

spatialperiodicityofthedefectsasattestedbytheporosity

pro-ﬁlesinFig.5.However,suchalternationappearstobeoflimited

magnitudeasattestedbythequantity (−)

(11)

Fig.10.Effectoflateralsamplingratio(␤)onYoung’smoduliforallprintingangles (␪).

wherethesubscriptsreferstoanysamplinginlateral(_␤)orvertical

(␣)directions.

SimilarexpressionsarederivedforEYandEZforbothlateral

andnormalsamplingratiosasfollows

(EY )=Min (EY_∀s) /Max (EY∀s) (15)

(EZ)=Min (EZ_∀s) /Max (EZ∀s) (16)

wheretheintensitiesof (EX), (EY ) and (EZ) areshown in

Table2.

InFig.10,thepredictedtendenciesshowqualitatively

similar-itiesbetweentendenciesinXandYdirections,whichmeansthat

reasonablytherelationship(EX≈EY )holdsforanyorientationand

samplingsituation.

Qualitativeanalysisoftheseresultsshowsatransverseisotropy

perceivable for all orientations more particularly for ␪=45◦

( (EX,EY ) inTable2).Indeed,Fig.10cshowsthatYoung’s

mod-uliEXandEYhave theclosesttrends.For theremainingcurves

(Fig.10aandb),thetendenciesexhibitedbyEZisdistinctforall

lateralsamplingratios.Thepredictedtransverseisotropyis

quan-titativelyconﬁrmedfromthesmallscatter(≤0.40%)betweenEX

andEYexpressedusingthequantity (EX,EY )

(EX,EY )=100×STD (EX_∀s,EY∀s) /AVE (EX∀s,EY∀s) (17)

Theextentofthetransverseisotropyisalsolimitedforallstudied

cases,whichisrevealedfromthequantity

ω (EX,EY,EZ)=AVE (EX_∀s,EY∀s) /EZ∀s (18)

Inthefullrangeofsampling,thevariationofallengineering

constantsincluding Young’s moduliis expressed usinganother

quantityıwhichwritesasfollows

ı()=100×STD(_∀s)/AVE(∀s)|=EX,EY ,EZ,

xy,zy,vyx,zx,xz,yz (19)

Thisquantityseemstobealsolimited(␦<2%)forall

compo-nentsEX,EYandEZirrespectiveoforientationandtypeofsampling

(Table2).

SimilarresponsesareshowninFig.11forPoisson’sratios(␯yx,

␯zx,␯xy,␯zy,␯xz,and␯yz)resultingfromthecombinationoflateral

samplingandorientation.

Theexaminationofalltrendsconﬁrmsminorjaggedvariations

ofPoisson’scoefﬁcientswithrespecttolateralsamplingratiolike

intheformercase(Fig.10).Similarlytotheformerexpression

relat-ingin-planeYoung’smodulicomponentsEXandEY,thepredicted

transverseisotropyisalsoquantiﬁedusingthequantities

(xy,yx)=100×STD(_xy∀s,yx∀s)/AVE(xy∀s,yx∀s) (20)

(xz,yz)=100×STD(_xz∀s,yz∀s)/AVE(xz∀s,yz∀s) (21)

And

(zx,zy)=100×STD(_zx∀s,zy∀s)/AVE(zx∀s,zy∀s) (22)

ThetrendsinFig.11showthatthefollowingrelationshipscan

bededuced

xy≈yx;xz≈yz;zx≈zy (23)

ThevalidityofallequalitiesinEq.(23)againstsample

orienta-tionisillustratedinTable2bytheanalysisofthequantities(xy,

yx),(xz,yz)and(zx,zy)forbothsamplingtypes.These

quan-titiesarebelow0.60%, conﬁrmingthetransverseisotropy inall

casesirrespectiveofsamplingratios(␣and␤).

IntensityofPoisson’scoefﬁcientsshowninFig.11areoflimited

variationasconﬁrmedbythequantitiesı(xy),ı(yx),ı(xz),ı(zx),

ı(yz)andı(zy).

5. Conclusions

X-raymicro-tomographyrevealsthat fuseddeposition

mod-ellingresultsinlargemodiﬁcationofABSﬁlamentgeometry.The

in-planelayingdownofthefusedmaterialisnotcontinuous.

Con-tiguousﬁlamentsexhibitevidentlackofcohesionrunningthrough

themillimetrescale.Thisisalimitingfactoragainstgeometry

accu-racy.Thecircularcross-sectionofABSﬁlamenttransformstoan

(12)

Fig.11.Effectoflateralsampling(␤)onPoisson’sratiosforallprintingangles(␪).

amountofporosityoflessthan6.2%isnotlimitingforthedesign

rather than poreconnectivity which is, inthe bestcase, above

62%.Thiscanbeaseriousissueforthemechanicalperformance

atrupturepoint.Therelativestabilityofallcomputedengineering

constantsagainstsamplingresultsfromthecombinationofsmall

porositycontentandregularityofitsspatialarrangement.Thisis

supportedbythesimilaritiesoftheheterogeneousstress

distri-butionsandlowscatterofengineeringconstants(lessthan1%for

bothYoung’smoduliandPoisson’sratios)predictedforlargerange

oflateralandverticalsamplings.

Theauthorsbelievethatthelargeconnectivityintheporous

networkand thelackof cohesionbetweenﬁlamentsin printed

materialsneedtoberelatedtostressand strainlocalisationfor

acknowledgetheInternationalCampusonSafetyand

Intermodal-ityinTransportation(CISIT),theNord-Pas-de-CalaisRegionandthe

EuropeanCommunity(FEDERfunds)forpartlyfundingtheX-ray

tomographyequipment.

References

Ahn,S.H.,Montero,M.,Odell,D.,Roundy,S.,Wright,P.K.,2002.Anisotropic materialpropertiesoffuseddepositionmodelingABS.RapidPrototyp.J.8, 248–257.

Ayadi,A.,Nouri,H.,Guessasma,S.,Roger,F.,2015.Anoriginalapproachtoassess elasticpropertiesofashortglassﬁbrereinforcedthermoplasticcombining X-raytomographyandﬁniteelementcomputation.Compos.Struct.125, 277–286.

Baker,D.R.,Mancini,L.,Polacci,M.,Higgins,M.D.,Gualda,G.A.R.,Hill,R.J.,Rivers, M.L.,2012.AnintroductiontotheapplicationofX-raymicrotomographytothe three-dimensionalstudyofigneousrocks.Lithos148,262–276.

Becker,R.,Grzesiak,A.,Henning,A.,2005.Rethinkassemblydesign.Assembly Autom.25,262–266.

Carneiro,O.S.,Silva,A.F.,Gomes,R.,2015.Fuseddepositionmodelingwith polypropylene.Mater.Des.83,768–776.

Chakraborty,D.,Reddy,B.A.,Choudhury,A.R.,2008.Extruderpathgenerationfor curvedlayerfuseddepositionmodeling.Comput.AidedDes.40,235–243.

Choi,J.W.,Medina,F.,Kim,C.,Espalin,D.,Rodriquez,D.,Stucker,B.,Wicker,R., 2011.Developmentofamobilefuseddepositionmodelingsystemwith enhancedmanufacturingﬂexibility.J.Mater.Process.Technol.211,424–432.

Galantucci,L.M.,Lavecchia,F.,Percoco,G.,2008.Studyofcompressionproperties oftopologicallyoptimizedFDMmadestructuredparts.CIRPAnn.Manuf. Technol.57,243–246.

Guessasma,S.,Babin,P.,DellaValle,G.,Dendievel,R.,2008.Relatingcellular structureofopensolidfoodfoamstotheirYoung’smodulus:ﬁniteelement calculation.Int.J.SolidsStruct.45,2881–2896.

Huang,S.H.,Liu,P.,Mokasdar,A.,Hou,L.,2013.Additivemanufacturingandits societalimpact:aliteraturereview.Int.J.Adv.Manuf.Technol.67,1191–1203.

Kietzmann,J.,Pitt,L.,Berthon,P.,2015.Disruptions,decisions,anddestinations: entertheageof3-Dprintingandadditivemanufacturing.BusHoriz.58, 209–215.

Lee,C.S.,Kim,S.G.,Kim,H.J.,Ahn,S.H.,2007.Measurementofanisotropic compressivestrengthofrapidprototypingparts.J.Mater.Process.Technol. 187,627–630.

Li,S.,Zhao,S.,Hou,W.,Teng,C.,Hao,Y.,Li,Y.,Yang,R.,Misra,R.D.K.,2016.

FunctionallygradedTi-6Al-4Vmesheswithhighstrengthandenergy absorption.Adv.Eng.Mater.18,34–38.

Maire,E.,Withers,P.J.,2014.QuantitativeX-raytomography.Int.Mater.Rev.59, 1–43.

Mamlouk,H.,Guessasma,S.,2013.Finiteelementsimulationofthecompression behaviourofairybreakfastcereals.InnovFoodSci.Emerg.19,190–203.

Mizutani,R.,Suzuki,Y.,2012.X-raymicrotomographyinbiology.Micron43, 104–115.

Mohamed,O.A.,Masood,S.H.,Bhowmik,J.L.,2015.Optimizationoffused depositionmodelingprocessparameters:areviewofcurrentresearchand futureprospects.Adv.Manuf.3,42–53.

Moreno-Atanasio,R.,Williams,R.A.,Jia,X.,2010.CombiningX-ray microtomographywithcomputersimulationforanalysisofgranularand porousmaterials.Particuology8,81–99.

Mostefai,N.,Hamzaoui,R.,Guessasma,S.,Aw,A.,Nouri,H.,2015.Microstructure andmechanicalperformanceofmodiﬁedhempﬁbreandshivmortars: discoveringtheoptimalformulation.Mater.Des.84,359–371.

NationalInstituteofHealth.NIH,MD,USA.http://imagej.nih.gov/ij/. Nune,K.C.,Misra,R.D.K.,Gaytan,S.M.,Murr,L.E.,2014.Biologicalresponseof

next-generationof3DTi-6Al-4Vbiomedicaldevicesusingadditive manufacturingofcellularandfunctionalmeshstructures.J.Biomater.Tissue Eng.4,755–771.

(13)

Nune,K.,Kumar,A.,Misra,R.,Li,S.,Hao,Y.,Yang,R.,2016a.Osteoblastfunctionsin functionallygradedTi-6Al-4Vmeshstructures.J.Biomater.Appl.30(8), 1182–1204.

Nune,K.C.,Kumar,A.,Murr,L.E.,Misra,R.D.K.,2016b.Interplaybetween self-assembledstructureofbonemorphogeneticprotein-2(BMP-2)and osteoblastfunctionsinthree-dimensionaltitaniumalloyscaffolds:stimulation ofosteogenicactivity.J.Biomed.Mater.Res.A104,517–532.

Pham,D.T.,Gault,R.S.,1998.Acomparisonofrapidprototypingtechnologies.Int.J. Mach.ToolManuf.38,1257–1287.

Shaffer,S.,Yang,K.J.,Vargas,J.,DiPrima,M.A.,Voit,W.,2014.Onreducing anisotropyin3Dprintedpolymersviaionizingradiation.Polymer55, 5969–5979.

Thrimurthulu,K.,Pandey,P.M.,Reddy,N.V.,2004.Optimumpartdeposition orientationinfuseddepositionmodeling.Int.J.Mach.ToolManuf.44,585–594.

Turner,B.N.,Strong,R.,Gold,S.A.,2014.Areviewofmeltextrusionadditive manufacturingprocesses:I.Processdesignandmodeling.RapidPrototyp.J.20, 192–204.

Yan,X.,Gu,P.,1996.Areviewofrapidprototypingtechnologiesandsystems. Comput.AidedDes.28,307–318.

Zhai,Y.W.,Lados,D.A.,Lagoy,J.L.,2014.AdditiveManufacturing:Making ImaginationtheMajorLimitation.JOM66,808–816.
