A Six-Dof Epicyclic-Parallel Manipulator

Chao Chen, Thibault Gayral, Stéphane Caro, Damien Chablat, Guillaume

Moroz, Sajeeva Abeywardena

To cite this version:

Chao Chen, Thibault Gayral, Stéphane Caro, Damien Chablat, Guillaume Moroz, et al.. A Six-Dof

Epicyclic-Parallel Manipulator. Journal of Mechanisms and Robotics, American Society of Mechanical

Engineers, 2012, 4 (4), �10.1115/1.4007489�. �hal-00684803�

A Six-Dof Epicyclic-Parallel Manipulator

Chao Chen∗

Department of Mechanical and Aerospace Engineering Monash University

Victoria, Australia1 Email: chao.chen@monash.edu

Thibault Gayral1,2

Institut de Recherche en Communications et Cybern ´etique de Nantes ´

Ecole Centrale de Nantes

Nantes, France2

Email: thibault.gayral@ens-cachan.org

St ´ephane Caro2_{, Damien Chablat}2_{, Guillaume Moroz}2

Email: _{{stephane.caro; damien.chablat; guillaume.moroz}@irccyn.ec-nantes.fr}

Sajeeva Abeywardena1

Email: sajeeva.abeywardena@monash.edu

A new six-dof epicyclic-parallel manipulator with all actu-ators allocated on the ground is introduced. It is shown that the system has a considerably simple kinematics relation-ship, with the complete direct and inverse kinematics anal-ysis provided. Further, the first and second links of each leg can be driven independently by two motors. The serial and parallel singularities of the system are determined, with an interesting feature of the system being that the parallel singu-larity is independent of the position of the end-effector. The workspace of the manipulator is also analyzed with future applications in haptics in mind.

Keywords: parallel manipulator, epicyclic system,

kinematics, workspace

1 Introduction

There are a large number of parallel manipulators which have been reported over the past three decades. They can be divided into three-dof, four-dof, five-dof and six-dof parallel manipulators [1–4]. In three-dof parallel manipulators, there are dof translational parallel manipulators [5–7], three-dof rotational parallel manipulators [8, 9] and others [10, 11]. Among the four-dof parallel manipulators, examples include the four-DOF four-URU parallel mechanism [12] and the McGill Sch¨onflies-motion generator [13]. There are also five-dof parallel manipulators, such as 3T2R parallel manip-ulators [14, 15]. For six-dof manipmanip-ulators, the number of all

∗_{All correspondence should be addressed to this author}

possible structures can be extremely large [16]. Six-legged six-dof parallel manipulators, such as the Gough-Stewart platform, have high stiffness and accuracy but suffer from a small workspace and limb interference. Three-legged six-dof manipulators were introduced to overcome this workspace limitation and do not suffer from the same limb interference as their six-legged counterparts [17]. However, to achieve six-dof with only three legs requires actuators to be mounted on the moving limbs, thus increasing the mass and inertia of the moving parts. A number of three-legged manipulators have been reported, such as [18–24], however, very few of them have all actuators allocated on the ground, [20, 23, 24] being some examples. Cleary and Brooks [20] used a differ-ential drive system, Lee and Kim [23] used a gimbal nism and Monsarrat and Gosselin [24] used five-bar mecha-nisms as input drivers to allow for all actuators to be mounted on the base of a three-legged six-dof parallel mechanism.

This paper proposes a new design of a six-dof three-legged parallel manipulator with all base mounted actuators, the Monash Epicyclic-Parallel Manipulator (MEPaM). The design is achieved by utilising the advantages of two-dof planetary belt systems, namely transmitting power from a base-mounted actuator to a moving joint. By mounting ac-tuators on the base, the mass and inertia of the moving links is greatly reduced resulting in a lightweight six-dof parallel manipulator.

This paper is organized as follows. Section 2 describes the concept design and provides solutions to the direct and

Fig. 1. Virtual model of MEPaM (one leg is hidden for clarity)

inverse kinematics problems for the manipulator. The sin-gularities of MEPaM are analysed in Section 3 and its workspace in Section 4. Finally, the first prototype and future applications of MEPaM are briefly discussed in Section 5.

2 Concept Design

The proposed six-dof parallel manipulator is illustrated in Fig. 1. There are three identical planetary-belt mecha-nisms, each having two-dof driven by two motors. The driv-ing planes of the planetary systems form an equilateral trian-gle. The output of the subsystem is an arm attached to the planet, Lever Arm B. There is a cylindrical joint attached to an end of this arm, perpendicular to the corresponding driv-ing plane. A triangular end-effector is connected to the three cylindrical joints via universal joints on its vertices.

The planetary belt-pulley system shown in Fig. 1 has a transmission ratio of 1, providing two-dof movement in a flat plane. The carrier, Lever Arm A, is driven by a lower motor via a short stiff belt, while the sun pulley is driven by the upper motor. This motion is transmitted to the planet pulley via a long stiff belt. The arm attached to the planet is therefore driven by these two motors and hence, the end-effector controlled by six motors.

2.1 Direct Kinematics

The problem of direct kinematics is to find the position and orientation of the end effector, given the position of all the controlled joints. There are six motors all together, so there are six angles to be specified, i.e.θ1a,θ1b,θ2a,θ2b,θ3a

andθ3b. There are also three pairs of angles indicating the

angles of the carrier and the planet denotedθ1c,θ1p,θ2c,θ2p,

θ3candθ3p. Fig. 2 shows the planetary belt-pulley

transmis-sion. According to Fig. 2, we have

A1x= w + d1cosθ1c+ d2cosθ1p (1a)

A1z= w + d1sinθ1c+ d2sinθ1p (1b)

where (w,w) is the Cartesian coordinate vector of the sun

cen-Fig. 2. The belt-pulley transmission

Fig. 3. The end-effector connecting toA1,A2, andA3

ter. Due to the planetary transmission, we have θ1b− θ1c

θ1p− θ1c

= 1 (2)

Given a proper reference forθ1a, we should haveθ1c=

θ1a. Therefore, Eqn. (2) can be written asθ1p= θ1b. This

indicates that the motions of the carrier and the planet can be independently controlled by Motor 1A and Motor 1B, re-spectively. Eqns. (1) can be further written as

Aix= w + d1cosθia+ d2cosθib (3a)

Aiz= w + d1sinθia+ d2sinθib (3b)

for i = 1, 2, 3.

With the actuators locked, the manipulator has a struc-ture equivalent to that of the 3PS manipulator analysed by Parenti-Castelli and Innocenti [25], the difference being that

MEPaM is a six-dof manipulator with six actuators allocated on the base as opposed to the three-dof, three actuator 3PS manipulator. Nevertheless, it is still an important task to for-mulate the steps necessary to find the strokes of the three cylindrical joints, li for i= 1, 2, 3, upon the geometric

con-straints on the triangular platform. The frame assignment for the driving planes as well as the end-effector are shown in Fig. 3. Three fixed frames,

F

₁,

F

₂ and

F

₃, are attached to the base in an equilateral triangle formation, while a mov-ing frame

F

₄is attached to the triangular end effector of side length d3. aiand biare the Cartesian coordinate vectors of

points Aiand Bi, respectively. An upper-left index is used to

indicate in which frame the vector is expressed. Since each cylindrical joint is perpendicular to the corresponding plane, we have 1_b 1=   A1x l1 A1z  , 2b2=   A2x l2 A2z  , 3b3=   A3x l3 A3z   (4)

From Fig. 3, the transformation matrices between frames

F

₁,

F

_2and

F

_{3are given by}

1 2T=23T=31T=    cos(2π/3) −sin(2π/3) 0 d0 sin(2π/3) cos(2π/3) 0 0 0 0 1 0 0 0 0 1   

Hence, the positions of all the vertices can be trans-formed into

F

₁, i.e.,

1_b

i=1iTibi (5)

for i = 2, 3. The geometric constraints on the device are given by

k1_b

i−1bjk2= d32 (6)

for i = 1, 2, 3 and j = i+ 1 (mod 3).

The constraint equations, Eqns. (6), contain only three variables li, i= 1, 2, 3, and can be further written in the form:

D2l22+ D1l2+ D0= 0 (7a)

E2l32+ E1l3+ E0= 0 (7b)

F2l32+ F1l3+ F0= 0 (7c)

where Dj, Ej, Fj( j = 0, 1, 2) are functions of l1, l2and l1

re-spectively, as well as d3, Aixand Aiz(i= 1, 2, 3).

By means of dialytic elimination [26], the system of equations (7) can be reduced to a univariate polynomial of

order four in the variable l1:

G4l14+ G3l13+ G2l12+ G1l1+ G0= 0 (8)

where the coefficients Gk (k= 0...4) are given in the

Ap-pendix. Note that for the 3PS structure analysed by Parenti-Castelli and Innocenti [25], the univariate polynomial was of order eight. Once Eqn. (8) has been solved for l1,

substitu-tion of the result into Eqns. (7) will allow for determinasubstitu-tion of l2 and l3. The complexity of Eqns. (6) is relatively low

as compared to the direct kinematics problem in most six-dof parallel manipulators. Solutions of li for i= 1, 2, 3 can

be used to evaluate the position and orientation of the end-effector. The position of the end-effector is simply the origin of

F

₄, given by1b1= [ A1x l1 A1z]T. The orientation of

the end-effector is given by

1 4Q= [ i j k ] where i= 1_b 2−1b1 k1_b 2−1b1k j= ( 1_b 3−1b1) − iiT(1b3−1b1) k(1_b 3−1b1) − iiT(1b3−1b1)k k_{= i × j} (9)

Therefore, the direct kinematics of MEPaM is solved.

2.2 Inverse Kinematics

The problem of inverse kinematics is to find the six input angles, given the position and orientation of the end-effector, i.e. 1_o

4 and14Q. The Cartesian coordinate vectors of the

vertices of the moving platform, denoted B1, B2and B3, are

given by: 1_b i=1o4+14Q4bi (10) for i = 1,2,3, where4b1= [ 0 0 0]T,4b2= [ d3 0 0]T, and4b3= [ d3/2 √ 3d3/2 0 ]T.

Upon Eqns. (3), we can readily find the motor inputs, i.e. θiaandθibfor i= 1, 2, 3. First, the Eqns. (3) are re-written

as

αi1− d1cosθia= d2cosθib (11a)

αi2− d1sinθia= d2sinθib (11b)

whereαi1= Aix−w and αi2= Aiz−w for i = 1,2,3. Then Aix

and Aizare found from Eqn. (4) which requires substituting

Eqn. (10) into Eqn. (5) to solve for the component values. Squaring Eqns. (11) and adding the resultants yields a single

equation in one variable for eachθia:

βi− 2d1αi1cosθia− 2d2αi2sinθia= 0 (12)

whereβi= αi12+αi22+d12−d22for i= 1, 2, 3. By using the

half angle formulae, eq. (12) becomes a quadratic equation in tan(θia/2) with solution

tanθia 2 = 4d1αi2± q 16d12(αi12+ αi22) − 4βi2 2(βi+ 2d1αi1) (13)

for i= 1, 2, 3. Knowing θiaallows for the calculation ofθib

with the use of eqs. (11):

tanθib=

αi2− d1sinθia

αi1− d1cosθia

(14)

for i= 1, 2, 3. Hence, the inverse kinematics problem has

been solved. From Eqn. (13), it can be seen that there are two possible solutions for each arm which indicates that gen-erally there are two possible configurations (working modes) of each arm for any pose of the end-effector.

3 Singularity Analysis

The singularities of the manipulator can be found from the determinant of the serial and parallel Jacobian matrices, JSand JP, respectively [27]. The Jacobian matrices satisfy

the following relationship:

JSΘ = J˙ Pt (15)

where ˙Θ is the vector of active joint rates and t is the twist of the moving platform.

3.1 Serial Singularities

The serial Jacobian matrix can be obtained by differen-tiating Eqn. (3) with respect to time, which yields:

JS=   J1 02_×2 02_×2 02_×2 J2 02_×2 02_×2 02_×2 J3   where Ji= −d1sinθia −d2sinθib d1cosθia d2cosθib

The serial singularities occur when the determinant of

JSis null, namely, −(d1d2)3 3

∏

i=1 sinθia− θib  = 0

Hence, the serial singularities occur when θia− θib= 0 or π

In such configurations, the arms of the planetary gear sys-tems are either fully extended or folded. This result is as expected, since when the arms are in such an arrangement the moving platform can no longer move in the direction of the arms and thus loses one dof.

3.2 Parallel Singularities

Whilst the parallel singularities of the manipulator can be determined from the parallel Jacobian matrix, an alter-native means is able to provide geometric insight into their meaning. A geometric condition for the manipulator singu-larities is obtained by means of Grassmann-Cayley Algebra with the actuation singularities being able to be plotted in the manipulator’s orientation workspace.

Grassmann-Cayley Algebra (GCA), also known as ex-terior algebra, was developed by H. Grassmann as a calcu-lus for linear varieties operating on extensors with the join and meet operators. The latter are associated with the span and intersection of vector spaces of extensors. Extensors are symbolically denoted by Pl¨ucker coordinates of lines and characterized by their step. In the four-dimensional vec-tor space V associated with the three-dimensional projective space P3, extensors of step 1, 2 and 3 represent points, lines and planes, respectively. They are also associated with sub-spaces of V , of dimension 1, 2 and 3, respectively. Points are represented with their homogeneous coordinates, while lines and planes are represented with their Pl¨ucker coordi-nates. The notion of extensor makes it possible to work at the symbolic level and therefore, to produce coordinate-free al-gebraic expressions for the geometric singularity conditions of spatial parallel manipulators (PMs). For further details on GCA, the reader is referred to [28–32].

3.2.1 Wrench System of MEPaM

The actuated joints of MEPaM are the first two revolute joints of each leg. The actuation wrench ˆτi

01 corresponding

to the first revolute joint of the ith leg is reciprocal to all the twists of the leg, but to the twist associated with its first revo-lute joint. Likewise, the actuation wrench ˆτi

02corresponding

to the second revolute joint of the ith leg is reciprocal to all the twists of the leg, but to the twist associated with its sec-ond revolute joint. As a result,

ˆ τ1 01=  u b1× u  , ˆτ2 01=  v b2× v  , ˆτ3 01=  w b3× w  (16)

Fig. 4. The actuation forces applied on the moving platform of MEPaM and ˆ τ1 02=  z b1× z  , ˆτ2 02=  z b2× z  , ˆτ3 02=  z b3× z  (17)

In a non-singular configuration, the six actuation wrenches ˆτ1

01, ˆτ102, ˆτ201, ˆτ202, ˆτ301and ˆτ302, which are illustrated

in Fig. 4, span the actuation wrench system of MEPaM. As MEPaM does not have any constraint wrenches, its global wrench system amounts to its actuation wrench, namely,

WMEPaM= span(ˆτ101, ˆτ102, ˆτ201, ˆτ202, ˆτ301, ˆτ302) (18)

The legs of MEPaM apply six actuation forces to its moving-platform. Its global wrench system is a six-system. A par-allel singularity occurs when the wrenches in the six-system become linearly dependent and span a k-system with k< 6.

3.2.2 Wrench Graph of MEPaM in P3

The six actuation wrenches ˆτ1

01, ˆτ102, ˆτ201, ˆτ202, ˆτ301and ˆτ302

form a basis of the global wrench system WMEPaM. Those

wrenches are represented by six finite lines in P3_{. To obtain}

the six extensors of MEPaM’s superbracket, twelve projec-tive points on the six projecprojec-tive lines need to be selected, i.e. two points on each line. The extensor of a finite line can be represented by either two distinct finite points or one finite point and one infinite point since any finite line has one point at infinity corresponding to its direction.

B1, B2and B3are the intersection points of ˆτ101and ˆτ102,

ˆ τ2

01and ˆτ202, ˆτ301 and ˆτ302, respectively. Let b1, b2and b3

de-note the homogeneous coordinates of points B1, B2and B3,

respectively. As shown in Fig. 4, ˆτ1

02, ˆτ202and ˆτ302 are

paral-lel and intersect at the infinite planeΠ∞at point z= (z, 0)T,

which corresponds to the Z direction. ˆτ1

01 is along vector u

and intersects at the infinite planeΠ∞ at point u= (u, 0)T.

ˆ τ2

01is along vector v and intersects at the infinite planeΠ∞at

point v= (v, 0)T_{. ˆτ}3

01is along vector w and intersects at the

infinite planeΠ∞at point w= (w, 0)T. Let x= (x, 0)T and

y= (y, 0)T_{. As vectors u, v and w are normal to vector z,}

points u, v, w, x and y are aligned at the infinite plane Π∞.

Fig. 5. The wrench graph of MEPaM

The actuation forces can be expressed by means of the six projective points b1, b2, b3, u, v and w as follows: ˆτ101≡

b1u, ˆτ102≡ b1z, ˆτ201≡ b2v, ˆτ202≡ b2z, ˆτ301≡ b3w and ˆτ302≡

b3z. As a result, the wrench graph of MEPaM is as shown in

Fig. 5.

3.2.3 Superbracket of MEPaM

The rows of the backward Jacobian matrix of a par-allel manipulator are the Pl¨ucker coordinates of six lines in P3. The superjoin of these six vectors in P5corresponds to the determinant of their six Pl¨ucker coordinate vectors up to a scalar multiple, which is the superbracket in GCA

Λ(V(2)_{) [33]. Thus, a singularity occurs when these six}

Pl¨ucker coordinate vectors are dependent, which is equiva-lent to a superbracket equal to zero.

From Fig. 5, MEPaM’s superbracket SMEPaMcan be

ex-pressed as follows:

SMEPaM= [b1u b1z b2v b2z b3w b3z] (19)

This expression can be developed into a linear combination of 24 bracket monomials [16,34], each one being the product of three brackets of four projective points. A simplified ex-pression of MEPaM’s superbracket was obtained by means of a graphical user interface recently developed in the

frame-work of the ANR SIROPA project [35], namely,

SMEPaM= [b1b2z b3]



[b1u z b2][v w b3z]

−[b1u z v][b2w b3z] (20)

3.2.4 Geometric Conditions for MEPaM’s Singularities

Let Π1 be the plane passing through point B1 and

spanned by vectors u and z. Let Π3 be the plane passing

through point B3 and spanned by vectors w and z. Let

L

1

be the intersection line of planesΠ1andΠ3. Let

L

2be the

line passing through point B2and along v. From Eq. (20),

MEPaM reaches a parallel singularity if and only if at least one of the two following conditions is verified:

1. The four points of the tetrahedron of corners B1, B2, B3

and z are coplanar, namely, the moving platform is ver-tical as shown in Fig. 6;

2. The lines

L

_1and

L

_{2intersect as shown in Fig. 7.}

Fig. 6. A singular configuration of MEPaM: its moving platform is vertical

These two conditions yield directly the relation satis-fied by the parallel singularities in the orientation workspace, specifically,

−1 + 2Q22+ 2 Q32

Q22+ Q32+ Q42− 1
Q42= 0 (21)

where variables(Q2, Q3, Q4), a subset of the quaternions

co-ordinates, represent the orientation space. The quaternions represent the orientation of the moving-platform with a rota-tion axis s and an angleθ. The relation between the quater-nions, axis and angle representation can be found in [36]:

Q1= cos(θ/2), Q2= sxsin(θ/2)

Q3= sysin(θ/2), Q4= szsin(θ/2) (22)

Fig. 7. A singular configuration of MEPaM: lines

L

_{1 and}

L

₂

inter-sect -1.0 -0.5 0.0 0.5 1.0 Q2 -1.0 -0.5 0.0 0.5 1.0 Q3 -1.0 -0.5 0.0 0.5 1.0 Q4

Fig. 8. The parallel singularities of MEPaM in its orientation workspace

where s2x+ s2y+ s2z = 1 and 0 ≤ θ ≤ π.

It is evident that Eqn. (21) depends only on the orien-tation variables (Q2, Q3, Q4). This means that the parallel

singularities do not depend on the position of the centroid of the moving platform. Hence, the parallel singularities of MEPaM can be represented in its orientation workspace only, characterized with the variables(Q2, Q3, Q4) as shown

4 Workspace of MEPaM

Due to the mechanical design of MEPaM, the orienta-tion and posiorienta-tional workspaces can be studied separately. In-vestigations found that the size and shape of the orientation workspace of MEPaM depend only on the orientation of the legs and the physical limitations of the U-joints. The posi-tional workspace can be directly deduced from the possible motions of the epicyclic transmissions.

4.1 Orientation Workspace

The regular orientation workspace of MEPaM was cho-sen to be 360-40-80◦in a Azimuth, Tilt and Torsion (φ, θ, σ) co-ordinate frame, as illustrated in Fig. 9. This workspace was chosen with regards to future use of MEPaM in haptic applications. The U-joints attached to each corner of the plat-form can only be bent to an angle up to 45◦due to physical limitaions. The reachable orientation workspace of MEPaM can be calculated by discretizing the orientation workspace and verifying if the two following conditions, which take into account the U-joints angles limitation, are verified for each leg i= 1, 2, 3: |yi.ui| ≥ √ 2 2 and |yi.z4| ≤ √ 2 2 (23)

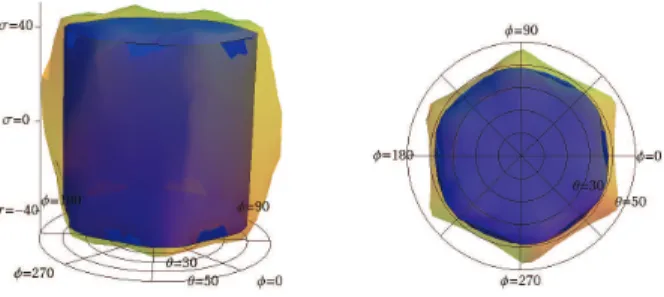

The regular (blue) and reachable (yellow) orientation workspaces of MEPaM are plotted in Fig. 10. It can be seen that the reachable orientation workspace perfectly fits the specified requirements. Moreover, all the orientations that can be reached by the moving platform are singularity-free. This implies that the physical limitations of the U-joints are sufficient in order to not reach a parallel singularity and to stay in the required workspace. Thus, attention to these two points in the control loop of the manipulator need not be considered.

Fig. 9. Co-ordinate frame for Azimuth (φ), Tilt (θ) & Torsion (σ) an-gles_{[φ(z) → θ(y) → σ(z}∗)]

4.2 Positional Workspace

For symmetrical reasons, the regular positional

workspace was defined as a cylinder of diameter and height

Dw for the center point of the triangular platform. The

Fig. 10. Regular (blue) and Reachable (yellow) orientation workspaces with respect to the (φ,θ,σ) Azimuth, Tilt & Torsion an-gles

positional requirement of each epicyclic transmission is thus a square of side length Dw, drawn in blue in Fig. 11.

However, in order for the device to be able to perform rota-tions whilst being at a border of the positional workspace, an offset needed to be considered, as shown in red in Fig. 11. Simulation showed that this offset can be approximated

by the value of 3₈d3. Hence, the positional requirement

of each epicyclic transmission is a square of side length

L= Dw+3₄d3. The lever arms A and B were then designed

in order for MEPaM to have the best accuracy and force capability over its entire workspace.

Fig. 11. Regular positional workspace of MEPaM and positional re-quirements of the epicyclic transmissions

5 Conclusions

A new six-dof epicyclic-parallel manipulator with all ac-tuators mounted on the base, MEPaM, was introduced. The kinematic equations of the manipulator were presented and the singularities analysed. An interesting feature of the ma-nipulator is that the parallel singularity is independent on the position of the end-effector. MEPaM was designed in such a way that the physical limits of the U-joints prevent the end effector from reaching the parallel singularities within its workspace.

Acknowledgments

The authors would like to acknowledge the support of Monash ESGS 2010, the ISL-FAST Program 2010, the French Agence Nationale de la Recherche (Project “SiRoPa”, Singularit´es des Robots Parall`eles), the French Ministry for Foreign Affairs (MAEE) and the French Min-istry for Higher Education and Research (MESR) (Project PHC FAST).

References

[1] Merlet, J., 2006. Parallel Robots. Springer, Dordrecht. [2] Kong, X., and Gosselin, C., 2007. Type Synthesis of

Parallel Mechanisms. Springer-Verlag, Berlin.

[3] Gogu, G., 2008. Structural Synthesis of Parallel

Robots, Part 1: Methodology. Springer.

[4] Gogu, G., 2009. Structural Synthesis of Parallel

Robots, Part 2: Translational Topologies with Two and Three Degrees of Freedom. Springer.

[5] Clavel, R., 1988. “Delta, a fast robot with parallel ge-ometry”. In Proceedings of the lnternational Sympo-sium on Industrial Robots, pp. 91–100.

[6] Tsai, L., Walsh, G., and Stamper, R., 1996. “Kinemat-ics of a novel three dof translational platform”. In Pro-ceedings of the 1996 IEEE International Conference on Robotics and Automation, pp. 3446–3451.

[7] Gregorio, R. D., 2000. “Closed-form solution of the po-sition analysis of the pure translational 3-RUU parallel mechanism”. In Proceedings of the 8th Symposium on Mechanisms and Mechanical Transmissions, pp. 119– 124.

[8] Gosselin, C., 1993. “On the kinematic design of spheri-cal 3-dof parallel manipulators”. International Journal

of Robotics Research, 12(4), pp. 394–402.

[9] Gregorio, R. D., 2001. “Kinematics of a new spherical parallel manipulator with three equal legs: the 3-URC wrist”. Journal of Robotic Systems, 18(5), pp. 213–219. [10] Liu, X., Wang, J., and Pritschow, G., 2005. “A new family of spatial 3-dof fully-parallel manipulators with high rotational capability”. Mechanism and Machine

Theory, 40(4), pp. 475–494.

[11] Liu, X., Wang, J., Wu, C., and Kim, J., 2009. “A new family of spatial 3-dof parallel manipulators with two translational and one rotational dofs”. Robotica, 27(2), pp. 241–247.

[12] Zhao, T., and Huang, Z., 2000. “A novel spatial four-dof parallel mechanism and its position analysis”.

Me-chonicai Science and Technology, 19(6), pp. 927–929.

[13] Morozov, A., and Angeles, J., 2007. “The

me-chanical design of a novel Sch¨onflies-motion genera-tor”. Robotics and Computer-Integrated

Manufactur-ing, 23(1), pp. 82–93.

[14] Huang, Z., and Li, Q. C., 2002. “General method-ology for type synthesis of lower mobility symmet-rical parallel manipulators and several novel manipu-lators”. International Journal of Robotics Research, 21(2), pp. 131–146.

[15] Li, Q., Huang, Z., and Herv´e, J., 2004. “Type synthesis

of 3R2T 5-dof parallel mechanisms using the Lie group of displacements”. IEEE Transactions on Robotics and

Automation, 20(2), pp. 173–180.

[16] Ben-Horin, P., and Shoham, M., 2006. “Singularity condition of six-degree-of-freedom three-legged paral-lel robots based on Grassmann-Cayley algebra”. IEEE

Transactions on Robotics, 22(4), pp. 577–590.

[17] Dash, A. K., Chen, I.-M., Yeo, S. H., and Yang, G., 2004. “Instantaneous kinematics and singularity anal-ysis of three-legged parallel manipulators”. Robotica, 22(02), pp. 189–203.

[18] Behi, F., 1988. “Kinematic analysis for a six-degree-of-freedom 3-PRPS parallel mechanism”. IEEE Journal of

Robotics and Innovation, 4(5), pp. 561–565.

[19] Kohli, D., Lee, S., Tsai, K., and Sandor, G., 1988. “Ma-nipulator configurations based on rotary-linear (r-l) ac-tuators and their direct and inverse kinematics”.

Jour-nal of Mechanisms, Transmissions, and Automation in Design, 110(4), pp. 397–404.

[20] Cleary, K., and Brooks, T., 1993. “Kinematic anal-ysis of a novel 6-dof parallel manipulator”. In IEEE International Conference on Robotics and Automation, pp. 708–713.

[21] Byun, Y., and Cho, H. S., 1997. “Analysis of a novel 6-dof, 3-PPSP parallel manipulator”. The International

Journal of Robotics Research, 16(6), pp. 859–872. [22] Simaan, N., Glozman, D., and Shoham, M., 1998.

“De-sign considerations of new six degrees-of-freedom

par-allel robots”. In IEEE International Conference on

Robotics and Automation, pp. 1327–1333.

[23] Lee, S.-U., and Kim, S., 2006. “Analysis and opti-mal design of a new 6 dof parallel type haptic device”. In IEEE/RSJ International Conference on Intelligent Robots and Systems, 2006, pp. 460 –465.

[24] Monsarrat, B., and Gosselin, C., 2003. “Workspace analysis and optimal design of a 3-leg 6-dof parallel platform mechanism”. IEEE Transactions on Robotics

and Automation, 19(6), December, pp. 954 – 966.

[25] Parenti-Castelli, V., and Innocenti, C., 1990.

“Di-rect displacement analysis for some classes of spa-tial parallel mechanisms”. In Proceedings of the 8th CISM-IFTOMM Symposium on Theory and Practice of Robots and Manipulators, pp. 126–130.

[26] Angeles, J., 2007. Fundamentals of Robotic

Me-chanical Systems: Theory, Methods, and Algorithms. Springer, New York.

[27] Gosselin, C., and Angeles, J., 1990. “Singularity anal-ysis of closed-loop kinematic chains”. IEEE

Transac-tions on Robotics and Automation, 6(3), pp. 281–290. [28] White, N. L., 1975. “The bracket ring of a

combinato-rial geometry I”. Transactions of the American

Mathe-matical Society, 202, pp. 79–95.

[29] White, N. L., 1983. “The bracket of 2-extensors”.

Con-gressus Numerantium, 40, pp. 419–428.

[30] Kanaan, D., Wenger, P., Caro, S., and Chablat, D., 2009. “Singularity analysis of lower-mobility parallel manipulators using Grassmann-Cayley algebra”. IEEE

[31] Caro, S., Moroz, G., Gayral, T., Chablat, D., and Chen, C. “Singularity analysis of a six-dof parallel manip-ulator using Grassmann-Cayley algebra and Gr¨obner bases”. In Symposium on Brain, Body and Machine, Montreal, QC., Canada, November 10-12, 2010. [32] Amine, S., Kanaan, D., Caro, S., and Wenger, P., 2010.

“Constraint and singularity analysis of lower-mobility parallel manipulators with parallelogram joints”.

Pro-ceedings of the ASME 2010 International Design En-gineering Technical Conferences, Montreal, Quebec, Canada, August 15-18.

[33] White, N. L., 2005. “Grassmann-Cayley algebra and robotics applications”. Handbook of Geometric

Com-puting, Part VIII, pp. 629–656.

[34] McMillan, T., and White, N., 1991. “The dotted

straightening algorithm”. Journal of Symbolic

Compu-tation, 11, pp. 471–482.

[35] Amine, S., Masouleh, M., Caro, S., Wenger, P., and Gosselin, C., 2011. “Singularity analysis of the 4-RUU parallel manipulator based on Grassmann-Cayley al-gebra and Grassmann geometry”. Proceedings of the

ASME 2011 International Design Engineering Techni-cal Conferences, Washington, DC, USA, August 28-31. [36] Khalil, W., and Dombre, E., 2004. Modeling,

Identifi-cation and Control of Robots. Kogan Page Science.

Appendix A: Direct Kinematics Coefficients

The coefficients of the univariate polynomial Eqn. (8) are: G4= 9(A1z2− A1zA2z− A1zA3z+ A2z2− A2zA3z+ A3z2)2 G3= 12 √ 3A1xA2z4− 12 √ 3A1z4A2x− 12 √ 3A1xA3z4 + 12√3A1z4A3x− 24 √ 3A2xA3z4+ 24 √ 3A2z4A3x − 6√3A1z4d0− 24 √ 3A2z4d0+ 12 √ 3A3z4d0 + 66√3A1zA2z3d0+ 48 √ 3A1z3A2zd0 − 42√3A1zA3z3d0− 24 √ 3A1z3A3zd0 − 6√3A2zA3z3d0+ 30 √ 3A2z3A3zd0 + 36√3A1xA1z2A2z2− 36 √ 3A1xA1z2A3z2 − 72√3A1z2A2xA3z2+ 72 √ 3A1z2A2z2A3x − 36√3A2xA2z2A3z2+ 36 √ 3A2z2A3xA3z2 − 72√3A1z2A2z2d0+ 36 √ 3A1z2A3z2d0 − 18√3A2z2A3z2d0− 18 √ 3A1xA2z2d32 + 18√3A1xA3z2d32− 18 √ 3A2xA2z2d32 + 18√3A2xA3z2d32− 18 √ 3A2z2A3xd32 + 18√3A3xA3z2d32+ 27 √ 3A2z2d0d32 − 27√3A3z2d0d32− 36 √ 3A1xA1zA2z3 − 24√3A1xA1z3A2z+ 36 √ 3A1xA1zA3z3 + 24√3A1xA1z3A3z− 12 √ 3A1zA2xA2z3 + 12√3A1xA2zA3z3− 12 √ 3A1xA2z3A3z + 60√3A1zA2xA3z3− 60 √ 3A1zA2z3A3x + 48√3A1z3A2xA3z− 48 √ 3A1z3A2zA3x + 12√3A1zA3xA3z3+ 36 √ 3A2xA2zA3z3 + 12√3A2xA2z3A3z− 12 √ 3A2zA3xA3z3 − 36√3A2z3A3xA3z− 36 √ 3A1xA1zA2zA3z2 + 36√3A1xA1zA2z2A3z− 36 √ 3A1zA2xA2zA3z2 + 36√3A1zA2xA2z2A3z− 36 √ 3A1zA2zA3xA3z2 + 36√3A1zA2z2A3xA3z+ 54 √ 3A1zA2zA3z2d0 − 54√3A1zA2z2A3zd0+ 36 √ 3A1xA1zA2zd32 − 36√3A1xA1zA3zd32+ 36 √ 3A1zA2xA2zd32 − 36√3A1zA2xA3zd32+ 36 √ 3A1zA2zA3xd32 − 36√3A1zA3xA3zd32− 54 √ 3A1zA2zd0d32 + 54√3A1zA3zd0d32 G2= a012− a01a10− a01a11b10− 2a01a20b01+ 6a00b102 + 2a01a20b10− 2a01a21b00+ a01a21b102− 4a00b00 + 3a01a30b00+ 3a01a30b01b10− 3a01a30b102 − 3a01b00b10+ a01b103+ 4a01b00b01+ 4a01b103 − 8a01b00b10− 4a01b01b102+ a102+ 2a10a11b01 − a10a20b01− a10a20b10− a10a21b00− a10a21b01b10 + a10a30b00− 4a10a30b00− 2a10a30b012+ 4a10b00b01 + a10a30b102− 2a10b00b10+ 2a10a30b01b10− a10b01b102 + 6a10b00b01− 3a10b00b10+ 6a10b00b10+ 3a10b012b10 − 3a10b01b102− a10b103+ 2a12a10b00− a02a10b10 + a112b00− a11a20b00− a11a20b01b10− a11a21b00b10 − 4a11a30b00b01+ 2a11a30b00b10+ 2a11b002− a00a11 + a11a30b01b102− a11b00b102− a11b01b103+ 2a202b00 + 3a11b002+ 6a11b00b01b10− 3a11b00b102+ a202b012 + 4a20a21b00b01− 2a20a30b00b01− 2a20a30b00b10 − a20a30b012b10+ a20b002+ 2a20b00b01b10+ a20b002 − 6a20b002− 6a20b00b012+ 4a20b00b01b10+ 2a20b00b102 + a20b012b102− a12a20b00b10− 2a02a20b00− 2a00a20 + a02a20b102+ a00a20− 2a21a30b00b01b10+ a212b002 − a21a30b002+ a21b002b10− 6a21b002b01+ 2a21b002b10 + 2a21b00b01b102− 2a00a21b01+ 2a00a21b10+ 3a302b002 + 3a302b00b012− 6a30b002b01− 3a30b002b01− 4a00b102 − 3a30b002b10− 3a30b00b012b10− a00a12b10+ 2a00a02 − 2a12a30b002+ a12a30b00b102+ 3a02a30b00b10+ 4b003 + 3a00a30b01− a02a30b103− 3a00a30b10+ 3a00a30b10 + 2b003+ 3b002b01b10− 3a00b00− 3a00b01b10+ 3a00b102 + 6b002b012+ 3a12b002b10+ 2a02b002+ 4a00b00+ a02b104 + 2a00b012− a12b00b103− 4a02b00b102− 8a00b01b10

G1= b01a102− a10a20b00− b01a10a20b10+ 2a10a30b00b10 − 4b01a10a30b00+ b01a10a30b102+ 3a10b002− b01a10b103 − 3a10b00b102+ 6b01a10b00b10+ 2a10b002− a10b00b102 − a21a10b00b10+ 2a11a10b00− a01a10b10− a00a10 + 2b01a202b00− a20a30b002− 2b01a20a30b00b10− a30b003 + 2a20b002b10− 6b01a20b002+ 2b01a20b00b102+ 2a00a01 + a20b002b10+ 2a21a20b002− a11a20b00b10− 2a00b01a20 − 2a01a20b00+ a01a20b102+ 2a00a20b10+ 3b01a302b002 − 3b01a30b002b10− 2a30b003− a21a30b002b10+ b003b10 − 2a11a30b002+ a11a30b00b102+ a00b103+ 4b012b003 + 3a00a30b00− a01a30b103− 3a00a30b102+ 3a01a30b00b10 + 3a00b01a30b10− 2a21b003+ a21b002b102+ 3a11b002b10 + 2a01b002− a11b00b103− 4a01b00b102+ 4a00b01b00 − 8a00b00b10+ a01b104− 4a00b01b102− 3a00b00b10 + 4a00b103− 2a00a21b00+ a00a21b102− a00a11b10 G0= a002− a00a10b10− 2a00a20b00+ a00a20b102+ a00b104 + 3a00a30b00b10− a00a30b103+ 2a00b002− a30b003b10 − 4a00b00b102− a10a20b00b10− 2a10a30b002+ a20b002b102 + 3a10b002b10+ a10a30b00b102− a10b00b103+ a202b002 − a20a30b002b10− 2a20b003+ a302b003+ a102b00+ b004 where a00= c002− c00c10d10− 2c00d00+ c00d102+ c102d00 − c10d00d10+ d002 a01= 2d00d01+ c102d01− c00c10− 2c00d01+ 2c00d10 − c10d00− c10d01d10 a02= c102− c10d01− d10c10+ d012+ 2d00+ c00− 2c00 a03= 2d01− c10 a10= 2c00c01+ c01d102− c00d10− c01c10d10− 2c01d00 + 2c10d00− d00d10 a11= 2c01d10− c01c10− 2c01d01− c00+ 2c10d01− d00 − d01d10 a12= c01− d01− 2c01+ 2c10− d10 a20= c012− c01d10+ d00+ d102− c10d10+ 2c00− 2d00 a21= d01− c01− c10− 2d01+ 2d10 a30= 2c01− d10 b00= A1x2+ A1xA2x− 2A1xd0+ A1z2− 2A1zA2z+ A2x2 − A2xd0+ A2z2+ d02− d32 b01= − √ 3A2x b10= √ 3A1x− √ 3d0 c00= A2x2+ A2xA3x− 2A2xd0+ A2z2− 2A2zA3z+ A3x2 − A3xd0+ A3z2+ d02− d32 c01= − √ 3A3x c10= √ 3A2x− √ 3d0 d00= A1x2+ A1xA3x− A1xd0+ A1z2− 2A1zA3z+ A3x2 − 2A3xd0+ A3z2+ d02− d32 d01= √ 3A3x− √ 3d0 d10= − √ 3A1x
