Incorporating Named Entity Recognition into the
Speech Transcription Process
Mohamed Hatmi, Christine Jacquin, Emmanuel Morin, Sylvain Meigner
To cite this version:
Mohamed Hatmi, Christine Jacquin, Emmanuel Morin, Sylvain Meigner. Incorporating Named Entity
Recognition into the Speech Transcription Process. Proceedings of the 14th Annual Conference of the
International Speech Communication Association (Interspeech’13), Aug 2013, Lyon, France.
pp.3732-3736. �hal-00843211�
Incorporating Named Entity Recognition into the Speech Transcription
Process
Mohamed Hatmi
1, Christine Jacquin
1, Emmanuel Morin
1, Sylvain Meignier
21
LINA, University of Nantes, France,
2LIUM, University of Le Mans, France
{mohamed.hatmi, christine.jacquin, emmanuel.morin}@univ-nantes.fr sylvain.meignier@lium.univ-lemans.fr
Abstract
Named Entity Recognition (NER) from speech usually involves two sequential steps: transcribing the speech using Automatic Speech Recognition (ASR) and annotating the outputs of the ASR process using NER techniques. Recognizing named enti-ties in automatic transcripts is difficult due to the presence of transcription errors and the absence of some important NER clues, such as capitalization and punctuation. In this paper, we describe a methodology for speech NER which consists of in-corporating NER into the ASR process so that the ASR sys-tem generates transcripts annotated with named entities. The combination is achieved by adapting ASR language models and pre-annotating the pronunciation dictionary. We evaluate this method on ESTER2 corpus, and show significant improvements over traditional approaches.
Index Terms: Named Entity Recognition, Automatic Speech Recognition, language modeling, ASR vocabulary
1. Introduction
Named Entity Recognition (NER) from speech is mainly per-formed by transcribing speech and then applying NER tech-niques to transcripts. The Person, Organization and Location names are the main lexical units to be located and classified. NER systems are generally categorized into whether they are based on symbolic or learning methods [1]. Both types of sys-tems are adapted to fit in with the characteristics of automatic speech transcripts. NER systems have to face the problems of graphic ambiguity (lack of capitalization), segmentation ambi-guity (lack of punctuation), and speech disfluencies [2, 3]. This deprives the exploitation of some vital NER features. Moreover, automatic speech transcripts are noisy due to Automatic Speech Recognition (ASR) errors and out-of-vocabulary (OOV) prob-lems. ASR errors occurring in words constituting the named entities or in their word context have a direct impact on the NER performance [4]. Previous work to improve speech NER has focused on ASR outputs. It has included restoring punctu-ation and capitalizpunctu-ation in transcripts [5], incorporating indica-tive OOV words and ASR confidence features [6, 7, 8], or using intermediate ASR outputs such as N-best hypothesis [9] and word lattices [10] instead of only relying on 1-best hypothesis. Few studies have focused on NER at the ASR level [11]. In this work, we propose to go upstream into the speech tran-scription process and directly integrate the NER task so that the ASR system generates transcripts annotated with named enti-ties. Our hypothesis is that we can assign a priori named-entity tags to certain words at the ASR level since ASR vocabulary is closed. The words that are not in this closed vocabulary will
not appear in transcripts. In fact, ASR vocabulary words are selected from the corpora used to train ASR language mod-els. These corpora are composed of small quantities of man-ual transcriptions of speech and relatively larger quantities of newspaper archives. The content has to be comparable to the domain targeted by the ASR process. Therefore, named enti-ties encountered in automatic transcripts should have the same tags and limits as in the training corpora of language models. Thus, annotating these corpora using a state-of-the-art entity recognizer will allow to determine the candidate named-entity tags for certain ASR vocabulary entries (for example, pre-tagging ”Obama” as a person). Named-entity recognizers give good performance on well-written texts. Retraining ASR language models using the annotated corpora will constrain the ASR system to generate syntactically correct output annotated with named entities.
This paper is organized as follows: Section 2 briefly discusses the prior work in the field of speech NER. Section 3 describes the LIUM speech transcription system used in this work. Sec-tion 4 presents the corpus used for evaluaSec-tion. Section 5 presents the method to integrate NER into the ASR process. Section 6 reports experimental results, while section 7 con-cludes and presents future work.
2. Related work
Three main approaches exist in the literature to improve speech NER. The first is to incorporate ASR features into the NER tag-ger. In [7], an ASR confidence feature is employed to indicate whether each word has been correctly recognized. Automatic transcriptions tagged with named entities are used to model ASR errors. The goal is to reject named entities with ASR er-rors thereby increasing NER precision. Experiments show a gain in precision of 7.46 %. Recent work [8] has proposed to include features indicative OOV words. A CRF-based tagger exploits the output of an OOV detector in order to identify and ignore regions containing incorrectly transcribed named enti-ties. This allows an improvement in F-measure from 58.5 to 60.7 %. The second approach consists of exploiting intermedi-ate ASR outputs in order to broaden the search space. In [9], an NER system based on maximum entropy is used to anno-tate the N-best ASR hypothesis. Then a weighted voting based on ASR and NER scores is made to select the most probable named entities, even if they do not occur in the 1-best ASR hy-pothesis. Experimental results show an improvement of 1.7 % in F-measure. Other work [10] has proposed directly to recog-nize named entities in the word lattice. The used named entity grammars integrate the words belonging to the ASR lexicon and
exploit the whole ASR word lattice in order to extract the N-best list of named entity hypotheses. The ASR and NER scores are attached to each named entity hypothesis. Experimental results show an improvement of 1 % in F-measure. The third approach consists of annotating named entities at the ASR level by us-ing an extremely large vocabulary lexicon [11]. Named entities are incorporated as compound words into the lexicon and the language model. This considerably increases the size of the vo-cabulary (1.8 million words). A one-pass ASR system is used to transcribe the annotated named entities. 500 Japanese spoken queries for a question-answering system are used for evaluation. Results shows an improvement of 2.4 % in F-measure. As in [11], we propose to integrate the NER task directly into the speech transcription process instead of dealing with ASR outputs. However, the fundamental difference in our approach is that the NER task is performed at the word level. This results a wider coverage of named entities mainly for entities composed of common nouns like amount and time names and a better con-trol of the size of the vocabulary. In addition, we work with a multi-pass ASR system using limited vocabulary size. The re-sults we have obtained are compared with those of a state-of-the-art NER system.
3. The LIUM speech transcription system
The LIUM speech transcription system for the French news [12, 13] is based on the CMU Sphinx system. Many dis-tributed tools in the CMU Sphinx open-source package have been supplemented and adapted to improve the transcription performance. The transcription process is based on multi-pass decoding involving five passes:
• The first pass uses a trigram language model and an acoustic model corresponding to the gender and the bandwidth.
• The second pass applies a Constrained Maximum-Likelihood Linear Regression (CMLLR) transformation for each speaker based on the best hypotheses generated by the first pass, and word-graphs are generated using SAT and Minimum Phone Error (MPE) acoustic models and CMLLR transformations.
• The third pass rescores the word-graphs of the second pass using a full triphone context with a better acoustic precision, particularly in inter-word areas. New word-graphs are generated.
• The fourth pass updates the linguistic scores of the new word-graphs using a quadrigram language model. • The last pass transforms the word-graphs of the fourth
pass to a confusion network, and generates the 1-best hypothesis.
3.1. Acoustic models
The acoustic models for 35 phonemes and 5 kinds of fillers are trained using 240 hours of transcribed French news from ES
-TER1 & 2 campaigns [14] [15]. Models for the first pass are composed of 6,500 tied states. Models for other passes are com-posed of 7,500 tied states.
3.2. Vocabulary
The vocabulary is built by generating a unigram model as a linear interpolation of unigram models trained on corpora pre-sented in Table 1. The linear interpolation was optimized on the
ESTER2 development corpus in order to minimize the perplex-ity of the interpolated unigram model. Then, the first 122,981 probable words from this language model were extracted.

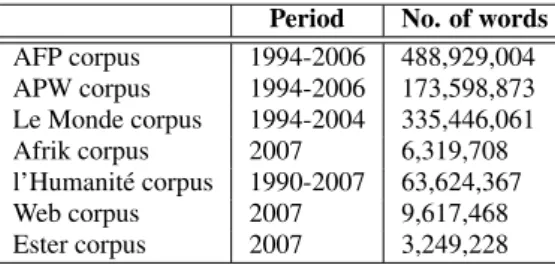

Table 1: Training corpora used to create ASR langage models Period No. of words AFP corpus 1994-2006 488,929,004 APW corpus 1994-2006 173,598,873 Le Monde corpus 1994-2004 335,446,061 Afrik corpus 2007 6,319,708 l’Humanit´e corpus 1990-2007 63,624,367 Web corpus 2007 9,617,468 Ester corpus 2007 3,249,228 3.3. Language models
The trigram and quadrigram backoff language models are trained on corpora presented in Table 1 with modified Kneser-Ney smoothing using SRILM toolkit [16]. No cut-off is ap-plied on trigrams and quadrigrams. The linear interpolation is optimized on the ESTER 2 development corpus. The mod-els are composed of 122,981 unigrams, 29,042,901 bigrams, 162,038,928 trigrams and 376,037,558 quadrigrams.
4. Corpus description
To carry out the experiments, we used the ESTER2 test corpus available in two modalities:
• The audio resources containing 26 French broadcasts, recorded from January to February 2008. Most of these are the news from four different sources: France Inter, Radio France International (RFI), Africa 1 and TVME. • The textual resources consisting of manual transcriptions
of audio resources (72,534 words). Named entities were annotated manually according to a taxonomy consisting of 7 main categories: Person, Location, Organization, Human Product, Amount, Time and Function. There are 5,123 named entities in these manual transcriptions. This corpus is divided into two parts, the development part (DevPart corpus) which is used to adjust some parameters (10 broadcasts) and the test part (TestPart corpus) which is used to evaluate our approach (16 broadcasts).
5. Integrating NER into the ASR process
The proposed method relies on the fact that ASR vocabu-lary is known and closed. The ASR language models trained with this vocabulary represent a mirror of which can appear in automatic transcripts. Thus, named entities encountered in transcripts should keep the same tags as those encountered in the data used to train language models. When dealing with ASR outputs, NER performance is greatly affected by both ASR errors and the lack of punctuation and capitalization. To avoid these problems, we propose to annotate named entities at ASR level. Integrating ASR and NER processes allows the ASR system to generate transcripts annotated with named en-tities. Then the basic recognition problem becomes to find the most likely sequence of words tagged with named entities (( ˆW, ˆE)= (w1, e1), (w2, e2), (w3, e3), ..., (wk, ek)) given a se-quence of sounds (X = x1, x2, x3, ..., xp):
(cW , bE) = arg max
w P(W, E|X) (1)
To achieve this, we have relied on the LIUM speech transcrip-tion system described in Sectranscrip-tion 2. This system shows 19.2 % of Word Error Rate (WER) on the Ester 2 test corpus. We used the same acoustic models as the base system.
5.1. Corpora annotation
We first annotated automatically the corpora used to create ASR language models and presented in Table 1 with named entities. For that, we used the named entity tagger LIANE[3]. This tagger is based on a combination of a generative and a discrim-inative model. At first, a Hidden Markov Model (HMM) based model is used to predict part-of-speech tags. Then a Conditional Random Field (CRF) based model is used to effectively anno-tate named entities. Graphical features have been exploited to boost LIANEperformance. The reason we chose this system is because it obtained the best results during the ESTER2 French evaluation campaign on automatic transcriptions. LIANE ob-tained 23.9 % of Slot Error Rate (SER) [17] on manual tran-scriptions and 51.6 % of SER on automatic trantran-scriptions (17.83 % of WER) [14].
We then encoded named entities in BI notation. BI notation identifies the boundaries and the category tags of phrases that make up the named entities: words outside of named entities are not tagged, while the first word in a named entity is tagged with ”entity-tag-B” for the beginning, and further named entity words are tagged with ”entity-tag-I” for the inside. The position allows to distinguish boundaries when several named entities of the same category are listed side by side.
Here is an example of the application of the BI notation: Il est vingt-time-B heures-time-I `a Paris-location-B. Le journal, Denis-person-B Astagneau-person-I. (It is twenty-time-B hours-time-I in Paris-location-B. The journal, Denis-person-B Astagneau-person-I.) 5.2. Vocabulary annotation
In order to annotate the ASR vocabulary of the baseline LIUM system, we assigned to each vocabulary word all the tags it appears with in annotated corpora. Tags include the cate-gory tag and the location of the word within the named en-tity. For instance, the tags ”washington-location-B”, ”wash-ington-location-I”, ”washington-organization-B”, ”washing-ton-organization-I”, person-B”, ”washington-person-I” are associated to ”washington”. Words not belonging to any named entity are not tagged. In the final, the vocabulary size has increased from 122,981 to 503,192 words.
However, the NER system produces some annotation errors. Words constituting the erroneous-tagged named entities are in-corporated into the vocabulary.
In order to select the optimal annotated vocabulary, we relied on the hypothesis that the erroneous tags occur much less fre-quently than the correct tags of a target word in annotated cor-pora. For example, the adjective ”footballistique” (footballing) appears 88 times without any tag and just once as a person (foot-balistique-person-B) because of one annotation error. There-fore, we retrained a unigram model as a linear interpolation of unigram models using the annotated vocabulary (503,192 words). Interpolation weights were optimized by minimizing the perplexity on the manually-annotated ESTER2 development corpus encoded with BI notation. The first N most likely anno-tated words appearing in the corpora are retained. In the exper-iments we carried out, N has been varied according to the word probabilities.
5.3. Pronunciation dictionary adaptation
Pronunciation dictionary adaptation consists of assigning one or more pronunciation variants to the selected annotated words. Adding tags has no effect on the pronunciation. Annotated words retain the same pronunciations without tags in the base pronunciation dictionary. For instance, ”nn an tt” for ”nantes-location-I” and ”nantes-organization-B”.
5.4. Language models adaptation
Once the annotated vocabulary selected, we retrained the lan-guage models in order to constrain the ASR system to gener-ate syntactically correct transcripts annotgener-ated with named en-tities. Language models also serves to select the appropriate tagged word when the word has several potential tags. We therefore recreated the trigram and the quadrigram backoff lan-guage models for each corpus augmented with named entity tags (the same corpora presented in Table 1). No cut-off was ap-plied. The linear interpolation was optimized on the ESTER2 manually-annotated development corpus encoded in BI nota-tion.
5.5. Annotated vocabulary selection
We used the DevPart corpus in order to adjust the size of the annotated vocabulary and to select the most likely annotated words. The size N of the vocabulary is selected according to the word probabilities.
The WER has a direct impact on the NER performance [4]. So we started by evaluating the effect of integrating NER into the ASR process on the ASR performance. In order to precisely evaluate the ASR performance, named-entity tags have been re-moved from the transcriptions provided by the LIUM system integrating NER.
Figure 1: Effect of the choice of the annotated vocabulary on the transcription quality computed on the DevPart corpus
Figure 1 shows the WER obtained for different sizes N of the annotated vocabulary. Using the baseline ASR vo-cabulary (N = 122,981 words), the LIUM system shows a WER of 16.88 %. With all the annotated vocabulary (N = 503,192 words), the WER increases by 1 %. Reducing the size of the annotated vocabulary allows to decrease slightly the WER. We conclude that incorporating the NER task into the speech transcription process does not affect the transcrip-tion quality in a significant way.
The evaluation of the NER performance is performed using the SER and the F-measure. The SER combines the different types of error: substitutions, deletions, and insertions. The F-measure combines precision and recall.
thresh-Figure 2: Effect of the choice of the annotated vocabulary on NER quality computed on the DevPart corpus
olds of the annotated vocabulary size. In any case, the an-notated vocabulary covers all the words appearing in the base vocabulary. Using all the annotated vocabulary, the system shows 51.23 % of SER and 63 % of F-measure. Filtering the erroneous-tagged words enables a continual improvement of NER performance.
The optimal annotated vocabulary is composed of 211,576 words. The models obtained using this vocabulary are com-posed of 211,576 unigrams, 16,3047,041 bigrams, 163,047,041 trigrams and 377,272,219 quadrigrams. The system shows 17.38 % of WER, 48.56 % of SER and 65 % of F-measure.
6. Results
We evaluated our approach on the TestPart corpus using the op-timal annotated vocabulary found.
Table 2: Word error rates of LIUM system before and after in-tegrating NER computed on the TestPart corpus
WER (%) NE WER (%) Baseline LIUM 20.23 23.12 LIUM with NER 21.17 25.98
Table 2 shows the WER before and after integrating the NER and ASR processes. We can observe that by adapting the lan-guage models and pronunciation dictionary, the overall WER increases by 0.94 %. For named entities, the WER increases by 2,86 %. Of the 6,114 words constituting the named enti-ties, 4,525 words were correctly transcribed by the two LIUM system versions. Many of the named-entity transcription errors concern names of people (around 48 % of WER for both sys-tems).
To evaluate the contribution of integrating NER directly into the ASR process, we have, on the one hand, decoded the test data using LIUM base system and annotated the obtained tran-scriptions using LIANENER tagger. On the other hand, we have decoded the test data using LIUM system augmented with named entity information. The transcriptions obtained are di-rectly annotated with named entities. Table 3 shows the NER performance obtained using the classical approach (LIUM then LIANE) and the proposed approach (LIUM with NER). We can see that by integrating NER and ASR processes, there is an im-provement of about 5 % in terms of SER and F-measure over the baseline system (LIANE). We can also observe an improve-ment in NER precision with a gain of about 6 %. We notice that
Table 3: NER results before and after integrating NER com-puted on the TestPart corpus (F: F-measure, P: precision, R: recall).
SER (%) F (%) P (%) R (%) LIUM then LIANE 54.01 58 64.5 52.76 LIUM with NER 49.22 63 70.32 57.59
Table 4: NER results by category.
LIUM then LIANE LIUM with NER
SER (%) SER (%) Person 69.90 64.76 Organization 76.64 71.56 Location 60.19 54.46 Function 65.33 50.17 Product 112.5 97.92 Amount 53.21 51.28 Time 57.44 55.38
LIANEshows 54.12 % of SER and 58 % of F-measure on the output of LIUM-with-NER system after removing the named-entity tags. Table 3 indicates NER results by category. The results show an improvement for different categories.
Although the transcription quality decreases slightly, integrat-ing NER into the speech transcription process allows to per-form better recognition of named entities. We attribute this gain to the fact that assigning a priori tags to named entities enables the labelling of named entities to be controlled even if there are ASR errors in context words. For example, the tag ”UNESCO-organization-B” is associated to ”UNESCO” because it always appears with this tag in annotated corpora. ”UNESCO” will appear as an organization (UNESCO-organization-B) in auto-matic transcripts, whatever its context.
Aside from named entity transcription errors that we do not deal with in this work, we distinguish two main reasons of annota-tion errors:
• Duplication of some errors committed by the NER sys-tem in the training corpora used to create ASR language models, in spite of filtering a large number of erroneous-tagged words. This concerns, in particular, the names of product and organization.
• Presence of some named entities that are infrequent or do not appear in the training corpora. The constituting words of these named entities are not annotated in the annotated vocabulary. This represents a major disadvan-tage of this approach, mainly when it comes to dealing with a dynamic domain that requires frequent updating of the annotation of named entities.
7. Conclusions
We have proposed a method for speech NER that integrates ASR and NER processes by pre-annotating ASR language mod-els and pronunciation dictionary. We have shown that this adap-tation does not greatly affect the ASR performance and pro-vides improvements in NER performance. Future work will concentrate on improving ASR language models and filtering erroneous named entity tags in ASR vocabulary. We also intend to exploit the word lattice in order to reduce transcription errors concerning named entities.
