MULTIOBJECTIVE ENGINEERING DESIGN OPTIMIZATION PROBLEMS: A SENSITIVITY ANALYSIS APPROACH
Oscar Brito Augusto
1*, Fouad Bennis
2and Stephane Caro
3Received August 5, 2011 / Accepted July 20, 2012
ABSTRACT. This paper proposes two new approaches for the sensitivity analysis of multiobjective design optimization problems whose performance functions are highly susceptible to small variations in the design variables and/or design environment parameters. In both methods, the less sensitive design alternatives are preferred over others during the multiobjective optimization process. While taking the first approach, the designer chooses the design variable and/or parameter that causes uncertainties. The designer then associates a robustness index with each design alternative and adds each index as an objective function in the optimization problem. For the second approach, the designer must know, a priori, the interval of variation in the design variables or in the design environment parameters, because the designer will be accepting the interval of variation in the objective functions. The second method does not require any law of probability distribution of uncontrollable variations. Finally, the authors give two illustrative examples to highlight the contributions of the paper.
Keywords: multiobjective optimization, Pareto-optimal solutions, sensitivity analysis.
1 INTRODUCTION
Many engineering design problems are multiobjective by nature, because they often involve more than one design objective to be optimized. These design objectives impose potentially conflicting requirements on the technical and economic performance of a given system. A designer must formulate an optimization problem with multiple objectives if he/she wishes to study the trade-offs that exist between these conflicting objectives and to explore their design options.
Multiobjective engineering design problems often have design parameters with uncontrollable variations due to noise or uncertainties. Such variations can affect outcomes significantly, such as the performances of objective functions and/or the feasibility of the Pareto optimal solutions.
*Corresponding author
1Escola Polit´ecnica da Universidade de S˜ao Paulo – E-mails: oscar.augusto@poli.usp.br / obaugust@usp.br 2 ´Ecole Centrale de Nantes, Institut de Recherche en Communications et Cybern´etique de Nantes
– E-mail: fouad.bennis@ec-nantes.fr
A robust optimal solution is as good as possible with regard to the objective functions, and it offers the lowest possible sensitivity to variations in design variables and design parameters. In practice, all engineering designs are sensitive to uncertainties that can arise from manufactur-ing operations, variations in material properties, the operatmanufactur-ing environment and other reasons. Moreover, non-robust designs can be expensive to produce or to operate and can fail frequently in service.
Figure 1 illustrates the solution of a single-objective robust optimization problem. The perfor-mance function f (x) is minimum when the design variable x is equal to xopt. However, the
sensitivity of f (x) to variations in xopt is significant. Indeed, 1 fopt, which depicts the range
of variations in f (x) for a given range of variations in x around xopt, is large. On the contrary,
xr obis a local minimum of function f (x), and the sensitivity of f (x) to variations in xr obis very
small. Indeed, 1 fr ob, which depicts the range of variations in f (x) for a given range of
varia-tions in x around xr ob, is small. In fact, 1 fr ob < 1fopt. Accordingly, xr ob is a good solution
to the single-objective robust optimization problem. In the case of a multiobjective optimization problem, a robust optimum solution may be located in the neighborhood of the Pareto front. Such a solution should have as little sensitivity as possible to uncertainties, because it cannot violate any constraint and/or acceptable known variations in design objectives in the presence of uncer-tainties. In this context, the purpose of this paper is to define a methodology to help the designer choose one or several robust optimum solution(s) when he/she must address a multiobjective robust design optimization problem.
Figure 1 – A robust solution vs. an optimal solution.
First, the authors provide the formulations of a multiobjective optimization problem, a robust design problem and a multiobjective robust optimization problem. Then, a robustness index based on the sensitivity first order Jacobian of the objective functions is introduced, and the Pareto robustness concept is defined to deal with a multiobjective robust optimization problem.
Then, two illustrative examples highlight the paper’s contributions. Finally, the conclusions are discussed.
Nomenclature
fi(X) i th objective function
f(X) vector of objective functions
gj(X) j th inequality constraint function K K T Karush-Khun-Tucker
Js global sensitivity Jacobian matrix
Jx sensitivity Jacobian matrix related to the design variables Jp sensitivity Jacobian matrix related to the design parameters
k number of objective functions
m number of inequality constraint functions
n number of decision variables
q number of design parameters
pi i th design parameter
p vector of design parameters
pi n f,psup lower and upper bounds of the design parameters
R(v) robustness index associated with the design variables X and the parameters p S feasible region in the decision space
S sensitivity of the objective function
S diagonal matrix with the singular values in the singular value decomposition U unitary matrix, expressed in the function space, in the singular value decomposition v vector joining the design variables X and the parameters p
V unitary matrix expressed in the decision space in the singular value decomposition
xi i th decision variable
xi average of the ith decision variable included in the optimal set
X decision or design variables vector
X∗ non-dominated solution of a multiobjective optimization problem Xi n f,Xsup lower and upper bounds in the decision space
λj weighting factor for the j th inequality constraint gradient in the K K T condition
1xio interval of a known uniformly distributed variation of the i th design variable
1pio interval of a known uniformly distributed variation of the i th design parameter
1fio acceptable variation in the i th objective function due to 1v uncertainties
λ vector of λj s
σi standard deviation for the i th decision variable included in the optimal set
ωi weighting factor for the i th objective function gradient in the K K T condition
ω vector of ωi s ∇ gradient operator
2 Definitions of problems
In this section, the formulations of (i) a multiobjective optimization problem, (ii) a robust design problem and (iii) a multiobjective robust optimization problem are given.
2.1 Multiobjective optimization problem
A general multiobjective optimization problem attempts to find the design variables X that opti-mize a vector objective function f(X) over the feasible design space S. The determination of a set of non-dominated solutions, the Pareto optimum solutions or non-inferior solutions X∗ can achieve a compromise among several objective functions. The problem formulation is defined as follows:
minimize: f(X) (1a)
subject to: gi(X)≤ 0, i = 1, 2, . . . m. (1b)
Xinf≤ X ≤ Xsup (1c)
where f(X) = f1,f2,f3, . . . , fkT : Rn → Rk, with fi(X) : Rn → R as a vector with the
values of objective functions to be minimized. X is the vector that contains the design variables, also called decision variables, defined in the space Rn. Xinfand Xsupare respectively the lower
and upper bounds of the design variables. gi(X) : Rn → R represents the ithinequality
con-straint function. Equations (1b) and (1c) define the region of feasible solutions, S, in the decision variable space. The constraints gi(X) are “less than or equal” functions in view of the fact that
“greater or equal” functions may be converted to the first type if they are multiplied by minus 1. Similarly, the problem deals with the “minimization” of functions fi(X), given that function
“maximization” can be transformed into the former by multiplying it by minus 1.
2.1.1 Pareto optimal solution
The notion of optimum in the context of solving multiobjective optimization problems is known as “Pareto optimal”. A solution is said to be Pareto optimal if there is no alternative to improving one objective without worsening at least one other, that is, the feasible point X∗Sis Pareto optimal when there is no other feasible point X ∈ S so ∀i, j, fi(X)≤ fi(X∗)with strict inequality in at
least one condition, fj(X) < fj(X∗).
Due to the conflicting nature of the objective functions, the Pareto optimal solutions are usually scattered in the region S, a consequence of the solutions being unable to minimize the objective functions simultaneously. Solving the optimization problem achieves a set of Pareto optimal solutions defined in the decision space, after which an image of the objective functions, along with the Pareto front, is calculated over the set of optimal solutions.
In general, solving a multiobjective optimization problem is not as simple as solving any scalar problem. According to Schaffer (1985), Goldberg (1989) and Deb (2001), evolutionary algo-rithms are usually best suited to determining the Pareto front.
2.1.2 Necessary conditions for Pareto optimality
Optimizing the multiobjective problems that are expressed by Eqs. (1a-1c) are of general char-acter, because the equations represent the problem of single-objective optimization when k = 1. According to Miettinen (1998), as in single-objective optimization problems, the solution X∗∈ S
for the Pareto optimality must satisfy the Karush-Kuhn-Tucker condition, expressed as:
k X i =1 ωi∇ fi(X∗)+ m X j =1 λj∇gj(X∗)= 0 (2a) λjgj(X∗)= 0 (2b) λj ≥ 0 (2c) ωi ≥ 0; k X i =1 ωi = 1 (2d)
where ωiis the weighting factor, positive, for the gradient of the i th objective function, calculated
at point X∗, ∇ fi(X∗). λj represents the weighting factor for the gradient of the j th inequality
constraint function ∇gj(X∗). It is zero when the associated constraint function is not active, i.e.,
gj(X∗) <0.
It should be emphasized that the set of Eqs. (2a) to (2d) form the necessary conditions for X∗to be Pareto optimal.
2.2 Robust design problem
The concept of robust design was first used by Taguchi (1993). He introduced the concept of parameter design to improve the quality of a product whose manufacturing process involves significant variability or noise. Robust design aims at minimizing the sensitivity of performance to variations without controlling the causes of these variations. In the last decades, several authors contributed to the formulation and the improvement of robust design problems.
To deal with robustness, a set of design parameters p = p1,p2,p3, . . .pqT should be
consid-ered. Those parameters cannot be adjusted by the designer and are thus uncontrollable, such as the cost of the steel used in ship construction. The design variables
X=x1,x2,x3, . . .xn T
can also be subjected to uncontrollable variations for the reasons of manufacturing errors, wear-ing or other uncertainties, although their nominal value is fixed.
A general multiobjective robust design optimization problem aims to find the design variables that optimize a vector objective function, f(X, p), and to minimize its range of variations 1f(X, p) =1 f1, 1f2, 1f3, . . . 1fk
T
over the feasible design space S. The determination of a set of non-dominated solutions achieves a compromise among several objective functions that
consider variations in the design variables and parameters. Calling vT =XTpT, the problem
formulation can be defined as follows:
minimize: f(X, p), (3a) 1f(X, p) over X=x1,x2,x3, . . .xn T (3b) subject to: gi(X, p)+ 1gi(X, p)≤ 0, i = 1, 2, . . . m. (3c) Xinf≤ X ≤ Xsup (3d)
v− 1vinf≤ v ≤ v + 1vsup (3e)
All sets of equation (3) are general for search robust solutions of multiobjective optimization problems.
Sundaresan et al. (1993) developed a procedure that incorporates uncertainties in design vari-ables and variations in constraints due to these uncertainties. Chase et al. (1996) presented the direct linearization method for tolerance analyses of 2D and 3D mechanical assemblies. Chen
et al. (1996) studied two broad categories of problems, namely, (i) Type 1 problems, which
minimize variations in performance caused by variations in noise factors (uncontrollable param-eters), and (ii) Type 2, which minimize variations in performance caused by variations in control factors (design variables). Ben-Tal and Nemirovski (1998, 2002) proposed a study of convex optimization problems for which the data, in the present notation p, is not specified exactly. Instead, the data are known only to belong to a given uncertainty set. They developed models for uncertain Linear, Conic Quadratic and Semidefinite programming problems. Kalsi et al. (2001) introduced a technique to reduce the effects of uncertainty and incorporated flexibility in the design of complex engineering systems involving multiple decision makers. Parkinson (2000) used a deterministic method of robust design to determine the optimum nominal dimensions of an assembly in order to improve the assembly quality. Bertsimas et al. (2004) have proposed a robust constrained optimization method for linear programming problems where the matrix of coefficients belongs to a known uncertainty set that is bounded. They have shown that this kind of problem is still linear programming. Bertsimas and Sim (2004) also focused on linear pro-gramming problems, seeking to reduce the level of conservatism of the robust solutions in terms of probabilistic bounds of constraint violations. They have shown that their method retains the advantages of the linear framework and offers full control over the degree of conservatism for every constraint. Thus, their method provides a probabilistic guarantee that the robust solution will be feasible with high probability.
The solutions of the presently proposed methods will always be feasible, and all nominal values of problem parameters, p, are known. For the first method, described in section 3.1, no additional information is needed to search the less sensitive solutions under variations of p and eventually variations in the decision variables X. For the second method, described in the section 3.2, these variations must be bounded. Both of these methodologies can be incorporated in any nonlinear multiobjective optimization algorithm.
In the next section, the authors propose a simplified approach to searching for less sensitive alternatives when solving multiobjective optimization problems.
3 A SIMPLIFIED MULTIOBJECTIVE ROBUST OPTIMIZATION PROBLEM
Given that a robust optimal solution is as good as possible with regard to the objective functions and that it is as least sensitive as possible to variations in design variables and design parameters, this section presents two methods where robust design alternatives are preferred over others during the multiobjective optimization process.
First, the designer chooses only the design variables and/or design parameters that are subject to variations. With this information, a Robustness Index is associated with each design alternative. This index is added as one more function to be optimized. In the second approach, the designer accepts variations in the performance functions, limited in fixed intervals, knowing a priori the range of variations in the design variables and in the design parameters.
Assuming that f is of class C2in v, one can expand Eq. (3a) in the neighborhood of the point v0
and keep only the linear terms. Then, the following equation can be obtained:
δf= Jsδv+ e(kδvk2) (4a)
δvT =δXTδpT (4b)
Jx = ∂f/∂X (4c)
Jp= ∂f/∂p (4d)
Js =JxJp (4e)
where k ∙ k2denotes the Euclidian norm operator and e(v) an error function. Js is the global
sensitivity Jacobian matrix, and it describes the effect of the variations in design variables and design parameters to the performance functions. δX and δp are the variations in the design variables and in the design parameters, respectively. Jx is the (k × n) sensitivity Jacobian matrix
of f(v) with respect to X, and Jpis the (k × q) sensitivity Jacobian matrix of f(v) with respect
to p, respectively. If variations in the design variables are not considered, then Js = Jp. If
variations in design parameters are not considered, then Js = Jx.
Ignoring the error in Eq. (4a), an approach to a robust solution is defined as one that is as least sensitive as possible to any variations in the decision variables and design parameters in its neigh-borhood. Considering 1v as a closed normalized unit hyper-sphere centered at point v in the Euclidean space Rn+q, i.e., k1vk2 = 1, then Js is a linear application that maps the
hyper-sphere in a hyper-ellipsoid in the normalized function space, centered in f(v) and described by the variations 1f(v) ∈ Rk. In Figure 2, three design alternatives are checked for their sensitivity in the decision variable space. Since the local perturbation in the neighborhood of point A causes a large modification in the objective values, this alternative may not be as robust as the alternative B, because the latter does not bring on a large change in objective values, even in the presence of a local perturbation in its vicinity.
Suppose that point C in Figure 2 belongs to the Pareto set and that its image is on the Pareto front. If any constraint function is not active at this point, then the hyper-ellipsoid collapses one of its axes. Being a Pareto solution, point C satisfies Eq. (2a), and the objective function gradients are linearly dependent. Consequently, the variations in the performance functions occur only along the tangent to the Pareto front.
Figure 2 – The sensitivity Jacobian matrix transforms a unitary radius ball in the decision space into an ellipsoid in the function space.
3.1 Robustness index
The geometrical interpretation of Eq. (4a) can help one to define a Robustness Index in order to qualify a design alternative with regard to its robustness. The sensitivity Jacobian matrix can be decomposed by means of the singular value decomposition as follows:
Js = USVT (5)
where U is a k-by-k orthogonal matrix, S is a k-by-(k + q) diagonal matrix with non-negative real numbers and VTdenotes the transposition of V, which is a (n + q)-by-(k + q) orthogonal
matrix. The diagonal entries of S are known as the singular values of Js. The singular value
decomposition is a generalization of the decomposition of the eigenvalues and eigenvectors, and this decomposition is applied to a square matrix. If λiis an eigenvalue of JsJTs, then the singular
value σi =√λi. As a geometrical interpretation, the non-zero singular values, σi, are the lengths
of the semi-axes of the hyper-ellipsoid represented in Figure 2, and the related vectors in U are the directions of these semi axes in the Rkspace.
Let S be the sensitivity of the objective functions to variations δv. S can be defined as the ratio of the Euclidean norm of variations in the objective functions, namely kδfk2, and the Euclidean
singular value σminand the largest singular value σmaxof its global sensitivity Jacobian matrix, Js, namely,
σmin≤ S = kδfk2
kδvk2 ≤ σmax
(6) Equation (6) shows that the lower σmax is, the lower the upper bound of S will be.
Accord-ingly, the Euclidean norm of Js, that is, its maximum singular value, can be used as a relevant
Robustness Index:
R(v) = σmax (7)
R(v) makes sense if and only if the terms of Jsare normalized, that is, if they have the same unit.
Indeed, the singular values of Jscannot be compared if their units are different.
To illustrate the use of such a proposition, let us consider the following unconstrained minimiza-tion problem with two funcminimiza-tions defined in R2space:
minimize: f1(x1,x2)= c(−2, 2) + c(2, 2) + c(0, −2), (8a)
f2(x1,x2)= c(0, 0) (8b)
with c(a, b) = − exp − x1− a 2 2 − x2− b 2 2! (8c)
These two functions are illustrated in Figure 3.

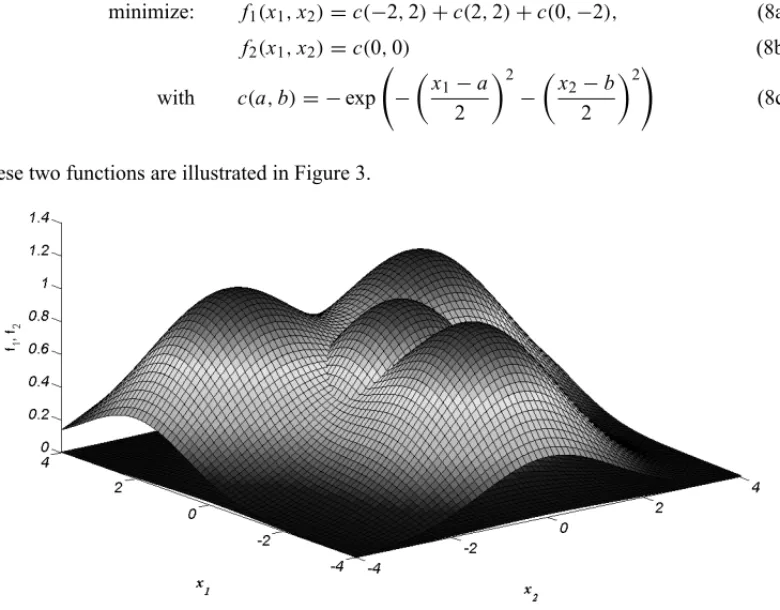

Figure 3 – Superimposed plot of exponential functions− f1(x1,x2)and − f2(x1,x2).
To find the non-dominated points, the Pareto dominance concept was applied to 5,000 randomly generated points over the interval (x1,x2)∈ [−4, 4]. The approximation of the Pareto set and the
Pareto front are illustrated in Figures 4(a) and 4(b), respectively. In addition, Figure 4(a) shows the plots for the contours of both functions. The Pareto set is comprised of line segments that connect the minima of f1(x1,x2)to the minima of f2(x1,x2).
Figure 4 – Nominal approximations of the Pareto set and Pareto front for minimization of the exponential functions f1(x1,x2)and f2(x1,x2).
To search robust solutions, the authors applied the robust multi-objective optimization procedure by adding the robustness index, as defined by Eq. (7), as a third objective function. The robust problem can be written as
minimize: f1(x1,x2)= c(−2, 2) + c(2, 2) + c(0, −2) and (9a)
f2(x1,x2)= c(0, 0); and (9b)
f3(x1,x2)= R(x1,x2)= σmax (9c)
with c(a, b) = − exp − x1− a 2 2 − x2− b 2 2! (9d)
The non-dominated points are shown in Figure 5. Clouds of points lie both near the nominal Pareto set and far away from it. In the specific problem, both functions are nearly flat in those regions. Accordingly, the robustness indexes for these points are very low, placing them as non-dominated although their function values are non-optimal compared to those near the nominal Pareto set.
Given the flat regions in Figure 3, one can conclude that the robustness index, when included in the multi-objective optimization problem as an additional objective function to be minimized, permits the location of the less sensitive non-dominated alternatives. Moreover, it naturally dis-perses the nominal Pareto front of the original problem, causing the decision-making process to become even more difficult.
To overcome this difficulty, the authors suggest in the next section a complementary approach to dealing with robustness in multi-objective optimization problems.
Figure 5 – Non-dominated alternatives for the multi-objective robust optimization problem of the exponen-tial functions f1(x1,x2), and f2(x1,x2)and the robustness index R(x1,x2).
3.2 Optimum with acceptable variations in the objective function
To use this approach, the designer should know the bounds of variations in the design variables and in the design parameters, which are
|δv| = 1v0 (10)
The designer also accepts a tolerance for the variations in the objective functions, which are
|δf|acc= 1f0 (11)
but he/she wants to keep all the constraints with consequent variations inside their initial bounds. For such conditions, the authors propose a robust multiobjective optimization prob-lem as follows:
minimize: f(v) (12a) over X subject to: gi(v)+ 1gi(v)≤ 0, i = 1, 2, . . . m. (12b) |δf(v)| − 1f0≤ 0 (12c) Xinf≤ X ≤ Xsup (12d) with |δv| = 1v0 (12e)
By using this approach, one can state the optimization problem with two exponential objective functions as:
minimize: f1(x1,x2)= c(−2, 2) + c(2, 2) + c(0, −2) and (13a)
f2(x1,x2)= c(0, 0) (13b)
subject to: |δ(x1,x2)| − 1 f10≤ 0 (13c)
|δ f2(x1,x2)| − 1 f20 ≤ 0 (13d)
1(x1,x2)0= 0.1 (13e)
with c(a, b) = − exp − x1− a 2 2 − x2− b 2 2! (13f) where the acceptable function variations are set to 1 percent without loss of generality, and they include variations in the design variables that are equal to 10 percent of their nominal value. Figure 6 shows the Pareto optimal solutions plotted in the design space and the Pareto front approximation obtained by using the random walk over the design space.
Considering the acceptable values used, the robust Pareto front is less performing than the nom-inal one.
In the classical sensitivity analysis, the problems may have data (p, in the present notation) that are not specified exactly and are only known to belong to a given uncertainty set.
With the proposed methods, one can approach the engineering design optimization problem while considering the effects of uncertainty. The idea behind these methods is to consider that some data relating to engineering problems have variations around their nominal values. More-over, the problems’ data cannot be implemented exactly even if the data are certain and an optimal solution X∗can be computed exactly.
4 APPLICATIONS
This section presents two engineering examples to demonstrate the proposed multiobjective ro-bust optimization. The first problem deals with the design of a vibrating platform. This prob-lem includes six design variables with one being combinatorial; it also has five constraints and two uncontrollable parameters. This example should highlight the influence of the discrete variable in the robust search. The second problem deals with the conceptual design of a ship.
Figure 6 – Non-dominated points for the robust multi-objective optimization problem of the exponential objective functions f1(x1,x2), and f2(x1,x2)with 1(x1,x2)0= 0.1 and 1 f10= 1 f20= 0.01.
It contains six design variables, 21 constraints and three uncontrollable parameters, and it repre-sents a more realistic problem that naval architects are likely to face.
To solve both problems, one will need a method to find the Pareto front for multiobjective op-timization problems. The most widespread method in the literature is the genetic algorithm. Originally proposed by Holland (1975) for applications engaged with control theories, it was accepted quickly into numerous areas of engineering and science. Coello (2010) maintains an updated list of publications involving the genetic algorithm.
Many versions of genetic algorithms have served as meta-algorithms in the literature. The one that appears in this work was adapted from Deb et al. (2000), which is the Non-dominated Sort-ing Genetic Algorithm, version II (NSGA II). This version is easy to use and depends on only two parameters: the number of chromosomes in the population and the number of generations that this population will evolve. With each evolution, the non-dominated solutions in the population converge toward the Pareto optimal solutions.
4.1 Problem 1: design of a vibrating platform
To illustrate the proposed robust approach, the authors present the engineering problem adapted from Gunawan and Azarm (2005).
This problem aims to optimize the design of a platform modeled as a pinned-pinned sandwich beam with a vibrating motor on top, as shown in Figure 7. The platform has three layers (an inner layer, two middle layers sandwiching the inner layer and two outer layers sandwiching the inner and middle layers) of material. The layers must be comprised of three different materials that are named A, B and C, and the choice of materials for the layers must be mutually exclu-sive so that two layers do not use the same material. However, the thickness of some layers can be null.
Figure 7 – Engine support platform.
The properties of the materials are shown in Table T1. In this table, ρ is the mass density, E is Young’s modulus and c is the material cost per volume. The objectives are to minimize the total material cost used in such a platform and to maximize its natural frequency by controlling five sizing variables (continuous) and one combinatorial variable (discrete). The sizing variables are the width of the platform (b), the length of the beam (L) and the thicknesses of the three layers (d1, d2and d3). The thicknesses of the middle and outer layers are represented as the difference
between two sizing variables (e.g., the thickness of the middle layer is equal to (d2− d1)).
The combinatorial variable is the choice of materials for the layers (M). Since there are three possible material types, there are six possibilities for M (starting from the inner layer outward): {A, B, C}, {A, C, B}, {B, A, C}, {B, C, A}, {C, A, B} and {C, B, A}. The platform design is subjected to five constraints: the maximum weight of the platform and the lower and upper limits on the thickness of the middle and outer layers. The optimization formulation for this example is shown in Eq. (14). The notations (ρ1, ρ2, ρ3), (E1,E2,E3)and (c1,c2,c3)refer to
the density, Young’s modulus and the material cost for the inner, middle and outer layers of the platform, respectively. The lower and upper bounds for the sizing variables are 0.05 ≤ d1≤ 0.5,
0.2 ≤ d2≤ 0.5, 0.2 ≤ d3≤ 0.6, 0.35 ≤ b ≤ 0.5 and 3 ≤ L ≤ 6. maximize: fn= π 2L2 s E I μ (14a) minimize: cost = 2bLc1d1+ c2(d2− d1)+ c3(d3− d2) (14b) subject to: g1= μL − 2800 ≤ 0 (14c) g2= d1− d2≤ 0 (14d) g3= d2− d1− 0.15 ≤ 0 (14e) g4= d2− d3≤ 0 (14f) g5= d3− d2− 0.01 ≤ 0 (14g) with E I = 2b 3 E1d 3 1+ E2 d23− d13 + E3 d33− d23 (14h) μ= 2bρ1d1+ ρ2(d2− d1)+ ρ3(d3− d2) (14i)
Table T1 – Properties of the beammaterials. Material A Material B Material C ρ kg/m3
100.0 2770 7780
E(G Pa) 1.6 70 200
c m3 500.0 1500 800
It is assumed that there are uncontrollable variations in the density of material A (ρA)and cost of
material B (cB), and the optimum solutions must be as minimally sensitive as possible to these
variations. Moreover, the designer wants to obtain the robust Pareto solutions to this problem for the nominal parameter values ρA= 100 kg/m3and cB= 1500 $/m3.
The variations in the parameters affect the two objective functions and the platform weight, and this effect is incorporated in the constraint function g1. To take into account the feasibility of the
robust search process, the following constraint functions were added.
g6= |1cost| − 1cost0≤ 0 (15a)
g7= |1 f n| − 1 f n0≤ 0 (15b)
g8= g1+ |1g1| ≤ 0 (15c)
where, for the sensitivity requirements, the acceptable relative variations in objective functions
1f n0
fn and
1cost0
cost were arbitrarily set in the values shown in Figure 8 with maximum variation
for the parameters of material A defined by 1ρA
ρA =
1cA
cA = 0.05. The variation related to the
constraints expressed in Eqs. (15a-15c) were calculated for the extreme points of the interval composed by the parameter with its variation.
In Figures (8a-8b), the nominal Pareto set of the problem (without the uncontrollable variations) and the Pareto set obtained using the robust approach are displayed. When the robustness index is considered as the third objective function, the non-dominated points (square points) are dispersed over the function space, barely touching the nominal Pareto front. Therefore, the nominal Pareto front is not robust.
As expected, if the nominal solution is not robust, then different Pareto fronts will be obtained, because the acceptable variations in objective functions are modified. Table T2 shows the statis-tics for the results with different levels of these acceptable variations. This table displays some notable facts. First, in each Pareto set, all alternatives resulted with the same material sequence order. Second, the material order in the nominal Pareto set is from the cheapest to the most expensive material as well as from the inner, thicker layer to the external, thinner layer, respec-tively, which was also expected. Third, the platform cost variation due to maximum variations in material A is more relevant than the frequency variation, so one can say that the nominal Pareto front is robust from the point of view of natural frequency. Fourth, the nominal Pareto set has the platform cost variation at an average value of 4.51 percent with a standard deviation of 0.21 percent, which means that this set will be changed and the nominal Pareto front will be moved to a less performing region if the acceptable level of cost variations is set to the lower values,
as shown in Figures (8c-8d). Finally, as long as the order of the material in the platform layers’ cross section is acting as a design variable, the robust Pareto fronts will exhibit the behavior shown in Figure 8c. The fronts with a relatively small variation in restrictive acceptable cost will fall in a better region than the fronts with more flexible bounds.
Figure 8 – Nominal and robust Pareto fronts of the platform design problem.
Table T2 – Statistics for design cases varying 1 fio/fiand material code as free design variable.
dv → b(m) L(m) d1(m) d2(m) d3(m) Material 1fn/fn(%) 1cost/cost(%) 1fio↓ b σb L σL d1 σd1 d2 σd2 d3 σd3 code ∗ 1fn σ1f n 1cost σ1cost nominal 0.35 2% 3.00 0% 0.33 29% 0.35 30% 0.35 31% 2 0.55 0.48 4.51 0.21 1% 0.35 0% 3.00 0% 0.17 44% 0.28 17% 0.28 17% 4 0.00 0.00 0.00 0.00 2% 0.35 0% 3.00 0% 0.23 56% 0.30 23% 0.31 23% 3 0.05 0.06 0.80 0.82 3% 0.35 0% 3.00 0% 0.18 59% 0.26 17% 0.27 17% 3 0.08 0.08 1.09 0.99 4% 0.35 0% 3.00 0% 0.25 17% 0.28 16% 0.28 17% 2 0.20 0.02 3.99 0.01
Furthermore, the proposed sensitivity approach is useful for characterizing robust Pareto fronts. With this approach, one can easily achieve the robust Pareto front. This approach does not require stochastic treatment for obtaining the variations, and it does not need a probability distribution for the variations in the design variables and design parameters.
4.2 Problem 2: preliminary design of a bulk carrier
The second application of the developed methodology is the preliminary design of a bulk carrier. The design of a vessel is not a trivial task. For decades, this problem has been handled in two ways. Some designers have adjusted a known design so that it meets new requirements, and others have relied on simplified mathematical models controlled by an optimization algorithm, which allow them to obtain the optimal solution based on previously established technical or economic criteria.
This work considers the second alternative with the aid of the mathematical model for designing bulk carriers, which was developed by Pratyush and Yang (1998) and presented in detail in Au-gusto et al. (2012) study. The model comprises a set of functions that define the vessel attributes. These functions constrain the design variables of the objective functions to be optimized as well as the space of these design variables. These functions characterize the technical and economic performance of the ship and allow designers to evaluate each design alternative. The economic performance of the ship refers to its annual unitary transportation cost and its annual transported cargo, and the technical performance of the ship refers to the functions of the vessel’s design vari-ables, including length, beam, depth, draft, block coefficient and speed, which are respectively (L, B, D, T , Cb and VK). Pratyush and Yang chose to minimize the annual transportation cost,
maximize the amount of annual cargo and minimize the vessel’s weight. The present work chose the optimization of the first two with no loss of generality. These two functions are conflicting, as shown in Figures 9 and 10.
The authors applied the proposed multiobjective robust optimization to the ship’s design in order to consider the isolated variation in each design variable and in each design parameter for the two approaches. First, the Robustness Index was added as a third objective function to the original bi-objective optimization problem. Then, the variations relative to the nominal value of the design variable and to the design parameter were arbitrarily preset at 1xio = 1 percent and 5 percent, respectively, and the consequent variations of the objective functions were limited to 1 fio and arbitrarily set at values ranging from 1 percent to 4 percent relative to their resultant or nominal values, depending on the case.
Figure 9 displays the results for the robust optimization related to the uncontrollable variations in each design variable. Each figure displays the nominal (non-robust) Pareto front, the robust Pareto front considering the Robustness Index as the third objective function to be minimized and the Pareto front considering different levels of acceptable variations in the objective functions as an effect of a design variable’s uncontrollable variation around its nominal value.
Figure 9 – Nominal and robust Pareto fronts for the minimization of transportation cost (CT) and
maxi-mization of annual transported cargo ( AC), allowing isolated variations in the design variables of (L, B, D, T , Cb and VK).
Figure 10 shows the results for robust optimization related to variations in the arbitrarily chosen design parameters, namely round trip, fuel oil price and handling rate, since they can affect negatively the performance functions, depending on the uncertainties of their nominal values.
Figure 10 – Nominal and robust Pareto fronts for the minimization of transportation cost (C T ) and maxi-mization of annual transported cargo ( AC), allowing isolated variations in the design parameters of round trip, fuel oil price and handling rate.
Each figure shows the nominal (non-robust) Pareto front, the robust Pareto front considering the Robustness Index as the third objective function to be minimized and the Pareto front considering different levels of acceptable objective function variations due to an arbitrary parameter variation interval of 1pio = 5 percent around the parameter’s nominal value.
From both figures, it can be seen that variations in problem variables and problem parameters impact the extension and the performance of objective functions. More important is that the variation with the most impact in the nominal Pareto front is associated with the handling rate (HR) parameter, according to the results shown in Figure (10d). Due to this parameter, whose
nominal value is set to 8,000 t/day, the nominal Pareto front is very sensitive. For acceptable levels of variations in objective functions over the interval 1 fio ∈ [1%, 3%], the respective Pareto fronts practically collapse to a single solution in each respective front. This single solution will be partially robust if the acceptable levels of variations are higher, namely 1 fio = 4 percent, when compared to those observed in the results obtained with uncontrollable variations in the design variables and other design parameters.
Therefore, this parameter plays an important role in the design process, because its impact on the objective functions can degrade drastically the performance of the designed ship.
5 CONCLUSIONS
Most engineering design problems are multiobjective and contain antagonistic objective func-tions. To solve such problems, many researchers developed methods that helped them to search for a general solution. They have frequently elected to use evolutionary methods to locate a set of solutions of multiobjective optimization problems. These algorithms provide a discrete picture of the Pareto front in the function space.
This paper introduced a new concept of a sensitivity index to perform multiobjective robust design optimizations, mainly when performance functions are highly sensitive to the variations in the design variables and in the design parameters.
To introduce the concept, the authors presented formulations of a multiobjective optimization problem, a robust design problem and a multiobjective robust optimization problem. A robust-ness index was introduced in order to classify the nominal Pareto front as either non-sensitive robust or not. This robustness index is based on the singular values of the sensitivity Jacobian matrix involving the objective functions, and it is considered an additional function to be mini-mized in the optimization problem. If the nominal Pareto front is not robust, then the new front, in view of the robustness index, will be scattered in the function space.
In addition, this paper proposed a supplementary method for searching for the robust Pareto front in instances where the design variables and design parameters have known uncontrollable variations bounded in single intervals and the designer will accept a range of these variations in the objective functions. During this search for optimal solutions, the designer constrains varia-tions in objective funcvaria-tions to the acceptable intervals. The feasibility of the nominal problem is maintained once the effects of the variations in the constraint functions are considered.
Finally, two examples illustrated the contributions of the paper. First, the proposed method was applied to the design of an engine support platform, a problem with two objective functions, six design variables, five constraints and uncontrollable variations in the design parameters of material cost and material density. Then, a preliminary ship design, a problem with six design variables, two objective functions and twenty-one constraints, was conducted in a robust condi-tion considering uncontrollable variacondi-tions in the design variables and in the design parameters. The authors concluded that the nominal optimal set is not robust, because one of the ship’s de-sign parameters (the port handling rate) had a de-significant impact on the performance of the good
under design. Given the results of both illustrations, the proposed methodology appears to be a simple and useful tool for conducting robust engineering designs.
REFERENCES
[1] AUGUSTOO, BENNIS F & CAROS. 2012. A new method for decision making in multi-objective optimization problems. Pesquisa Operacional, in press.
[2] BEN-TAL A & NEMIROVSKI A. 1998. Robust convex optimization. Mathematics of Operations
Research, 23(4): 769–805.
[3] BEN-TAL A & NEMIROVSKI A. 2002. Robust optimization – Methodology and applications.
Mathematical Programming, 92(3): 453–480.
[4] BERTSIMASD, PACHAMANOVAD & SIMM. 2004. Robust linear optimization under general norms.
Operations Research Letters, 32: 510–516.
[5] BERTSIMASD & SIMM. 2004. The price of robustness. Operations Research, 52(1): 35–53. [6] CARO S, BINAUD N & WENGER P. 2008. Sensitivity analysis of planar parallel manipulators.
Proceedings of ASME Design Engineering Technical Conferences, August 3-6, New York, NY, U.S.
[7] CHASEK, GAOJ, MAGLEBYSP & SORENSENCD. 1996. Including geometric feature variations in tolerance analysis of mechanical assemblies. IIE Transactions, 28: 795–807.
[8] CHENW, ALLENJK, TSUIK-L & MISTREEF. 1996. A procedure for robust design: minimizing variations caused by noise factors and control factors. ASME Journal of Mechanical Design, 118: 478–485.
[9] COELLOCAC. 2010. List of references on evolutionary multiobjective optimization. http://www.lania.mx/∼ccoello/EMOO/EMOObib.html. Last accessed April 24, 2010.
[10] DEB K, AGRAWAL S, PRATAB A & MEYARIVAN T. 2000. A fast elitist non-dominated sorting genetic algorithm for multiobjective optimization. Technical Report 200001 NSGA-II, KanGAL. [11] DEBK. 2001. Multiobjective Objective Optimization using Evolutionary Algorithms. San Francisco:
Wiley & Sons, Ltd.
[12] GIASSI A, BENNIS F & MAISONNEUVE JJ. 2004. Multidisciplinary design optimization and robust design approaches applied to concurrent design. International Journal of Structural and
Multidisciplinary Optimization, ISSMO, 28: 356–371.
[13] GOLDBERG D. 1989. Genetic Algorithms in Search and Machine Learning. Reading: Addison Wesley.
[14] GUNAWAN S & AZARM S. 2005. Multiobjective robust optimization using a sensitivity region concept. Structural Multidisciplinary Optimization, 29: 50–60.
[15] HOLLANDJ. 1975. Adaptation in Natural and Artificial Systems. Ann Arbor: University of Michigan Press.
[16] KALSIM, HACKERK & LEWISK. 2001. A comprehensive robust design approach for decision trade-offs in complex systems design. ASME Journal of Mechanical Design, 121: 1–10.
[18] PARKINSONDB. 2000. The application of a robust design method to tolerancing. ASME Journal of
Mechanical Design, 22: 149–154.
[19] PRATYUSHS & YANGJB. 1998. Multiple Criteria Decision Support in Engineering Design. New York: Springer.
[20] SCHAFFERJD. 1985. Multiple objective optimization with vector evaluated genetic algorithms. In: Proceedings of the First International Conference on Genetic Algorithms and their Applications [edited by J.J. Grefenstette], Psychology Press, 93–100.
[21] SUNDARESANS, ISHIIK & HOUSERDR. 1993. A robust optimization procedure with variations on design variables and constraints. Advances in Design Automation, 1: 379–386.
[22] TAGUCHIG. 1993. On Robust Technology Development: Bringing Quality Engineering Upstream. New York: ASME Press.
