Mobility of bidisperse mixtures during bedload transport
R´emi Chassagne∗ and Philippe Frey Univ. Grenoble Alpes, INRAE, IRSTEA,
UR ETNA, 38000 Grenoble, France Rapha¨el Maurin
IMFT, Univ. Toulouse, CNRS - Toulouse, France Julien Chauchat
Univ. Grenoble Alpes, LEGI, CNRS UMR 5519 - Grenoble, France (Dated: September 3, 2020)
Abstract
The flow of segregated bidisperse assemblies of particles is of major importance for geophysical flows and bedload transport in particular. In the present paper, the mobility of bidisperse segre-gated particle beds was studied with a coupled fluid discrete element method. Large particles were initially placed above small ones and it was observed that, for the same flow conditions, the bedload transport rate is higher in the bidisperse configuration than in the monodisperse one. Depending on the Shields number and on the depth of the interface between small and large particles, different transport phenomenologies are observed, ranging from no influence of the small particles to small particles reaching the bed surface due to diffusive remixing. In cases where the small particles hardly mix with the overlying large particles and for the range of studied size ratios (r < 4), it is shown that the increased mobility is not a bottom roughness effect, that would be due to the reduction of roughness of the underlying small particles, but a granular flow effect. This effect is analyzed within the framework of the µ(I) rheology and it is demonstrated that the buried small particles are more mobile than larger particles and play the role of a “conveyor belt” for the large particles at the surface. Based on rheological arguments, a simple predictive model is proposed for the additional transport in the bidisperse case. It reproduces quantitatively the DEM results for a large range of Shields numbers and for size ratios smaller than 4. The results of the model are used to identify four different transport regimes of bidisperse mixtures, depending on the mecha-nism responsible for the mobility of the small particles. A phenomenological map is proposed for bidisperse bedload transport and, more generally, for any granular flow on an erodible bed.
I. INTRODUCTION
In mountain rivers, the sediment bed is generally composed of a large range of grain sizes. This polydispersity leads to size segregation, which is largely responsible for our limited ability to predict sediment flux [1–3]. When segregating, small particles infiltrate the bed by kinetic sieving, falling down in holes formed by the matrix [4], and large particles rise to the bed surface [5], resulting in inversely graded beds [6] which can be observed both in flume experiments and in the field. In 1914, Gilbert [7] was one of the first to observe experimentally that the introduction of finer sediments leads to an increase of sediment mobility. This has then been extensively studied due to strong implications for sediment transport and fluvial morphology [3, 8, 9]. The mobility of granular assemblies is also a key question in the study of several geophysical flows such as debris flows, pyroclastic flows, snow avalanches and dune behavior. This, together with industrial applications, has led the granular community to study the influence of the slope [10–12], basal friction [13, 14], total volume [15] and polydispersity [16–19] on particle mobility.
Size segregation is often identified as the main mechanism responsible for the increased mobility of a polydisperse bed. In laboratory experiments with natural materials, Bacchi et al. [20] showed that, due to kinetic sieving, small particles smooth the bed roughness and make the above large particles more mobile. In bedload transport laboratory experiments with a bidisperse bed, Dudill et al. [3] observed that the finer particles, after having infil-trated the first layers, drastically increased the sediment mobility. With two dimensional discrete element method simulations (DEM), Linares-Guerrero et al. [17] measured the run-out distance of dry bidisperse granular avalanches. They observed an increased mobility of the avalanche due to the presence of small particles segregating at the base of the granular flow and acting as a lubrication layer. Similarly, Lai et al. [19] with DEM and laboratory experiments of granular collapse with fractal size distributions, observed the formation of a basal small particle layer increasing the total mobility. It seems therefore that size segre-gation, and in particular the formation of a small particle layer below large ones, plays an important role in the increased mobility process. Despite the few studies presented above, there is still no clear understanding of the physical mechanisms responsible for the increased mobility.
The dimensionless transport rate, or Einstein parameter, defined as Q∗s = Qs
((ρp/ρf − 1)gd3)1/2, (1) is related to the dimensionless fluid bed shear stress, or Shields number, defined as
θ = τ
f b
(ρp− ρf)gd, (2)
where Qs is the transport rate per unit width, ρp (resp. ρf) is the particle density (resp. fluid density), g is the gravity constant, d is the bed surface particle diameter and τbf is the fluid bed shear stress. Considering their physical meaning and the link with the transported granular layer, the representative diameter for both the Shields and the Einstein numbers should be taken as the surface layer particle diameter. It is classically chosen as the median surface diameter d50or d84(84% of the sediment is smaller than d84) [21]. However, literature review [3, 17, 19, 20] underlines the importance of the depth structure in the mobility of the granular bed and, in particular, the influence of buried small particles. Therefore, understanding the impact of the bed depth structure on transport laws is of particular importance for an accurate description and prediction of turbulent bedload transport.
While bedload transport has been mainly studied from the perspective of hydrodynamics, the present analysis illustrates the necessity to consider bedload as a granular phenomenon [2] and to describe the depth behaviour of the granular bed. In this paper, the mobility problem is therefore investigated from a granular perspective in the framework of the µ(I) rheology [22–24]. For dense granular flows, the dry inertial number I is the only dimensionless parameter controlling the system, where
I = d ˙γ
pPp/ρp, (3)
with ˙γ the shear rate and Pp the granular pressure. The shear to normal granular stress ratio µp therefore depends only on the inertial number as
µp(I) = τ p Pp = µ1+ µ2− µ1 I0/I + 1 , (4)
where τp is the granular shear stress and µ
1, µ2 and I0 are empirical coefficients fitted on dry experimental data. This rheology has been derived in monodisperse configurations and extended to bidisperse configurations in two dimensions [25] and three dimensions [26]. In a recent work, Maurin et al. [27] studied the rheology of dense granular flows during bedload
transport using a coupled fluid-DEM model. Despite the presence of water, they showed that the dry inertial number is still the controlling parameter. They found the µ(I) rheology to be valid in bedload transport over a wider range of inertial numbers and proposed another set of parameters than the one proposed by GDR Midi [22] with µ1 = 0.35, µ2 = 0.97 and I0 = 0.69.
In the present paper, the mobility of bidispersed already segregated beds is studied from a granular perspective, considering coupled fluid-DEM simulations of turbulent bedload transport. This allows us to explain the modified mobility of a granular bed as a function of the granular depth structure, and to predict the sediment transport rate for polydisperse bedload transport.
The numerical model is presented in section II. The bed mobility is explored in section III. Results are analysed within the µ(I) rheology framework in section IV and an explanation for the increased mobility is presented. Based on rheological arguments, a simple predic-tive model for the additional transport is derived and compared with DEM simulations in section V. Finally the results are discussed in section VI.
II. NUMERICAL MODEL AND SETUP
Our numerical model is a three dimensional discrete element method (DEM) using the open source code YADE [28] coupled with a one-dimensional (1-D) turbulent fluid model. It has been derived and validated with particle-scale experiments [29] in [30] and extended to bi-disperse configurations in [31]. It is briefly presented here but the interested reader should refer to Maurin et al. [30] for more details on the model and its validation. The DEM is a Lagrangian method based on the resolution of contacts. The inter-particle forces are modelled by a spring-dashpot system [32] of stiffness kn in parallel with a viscous damper coefficient cn (corresponding to a restitution coefficient of en= 0.5) in the normal direction; and a spring of stiffness ks associated with a slider of friction coefficient µg = 0.4 in the tangential direction. The values of kn and ks are computed in order to stay within the rigid grain limit [30, 33]. The particles are additionally submitted to gravity, fluid buoyancy and turbulent drag force [30]. Considering a particle p, the buoyancy force is defined as
fbp = −πd p3
6 ∇P f
and the drag force as fDp = 1 2ρ fπdp2 4 CD||u f xp − vp|| ufxp− vp , (6)
where dp denotes the diameter of particle p, uf
xp is the mean fluid velocity at the position
of particle p, Pxfp is the hydrostatic fluid pressure at the position of particle p and vp is
the velocity of particle p. The drag coefficient takes into account hindrance effects [34] as CD = (0.4 + 24.4/Rep)(1 − φ)−3.1, with φ the packing fraction and Rep = ||ufxp − vp||dp/νf
the particle Reynolds number, νf being the kinematic viscosity.
At transport steady state, the total granular phase (of small and large particles) only has a streamwise component with no main transverse or vertical motion. In such a case, the 3-D volume averaged equation for the fluid velocity reduces to a 1-D vertical equation in which the fluid velocity is only a function of the wall-normal component, z, and is aligned with the streamwise direction (see [35]) as
ρf(1 − φ) ∂uf x ∂t = ∂Sxz ∂z + ∂Rxz ∂z + ρf(1 − φ)gx− nf p fx s , (7)
where ρf is the density of the fluid, Sxz is the effective fluid viscous shear stress of a Newto-nian fluid of viscosity νf. Rxz is the turbulent fluid shear stress based on an eddy viscosity concept
Rxz = ρf(1 − φ)νt ∂ufx
∂z . (8)
The turbulent viscosity νt follows a mixing length approach that depends on the integral of the solid concentration profile to account for the presence of particles [36]
νt= l2m| ∂ufx ∂z |, lm(z) = κ Z z 0 φmax− φ(ζ) φmax dζ, (9)
with κ = 0.41 the Von-Karman constant and φmax = 0.61 the maximum packing of the granular medium (random close packing). The term nffp
x
s
represents the momentum transfer associated with the interaction forces between fluid and particles. It is computed as the horizontal solid-phase average of the momentum transmitted by the drag force to each particle.
The fluid model is classical in sediment transport [30, 35, 37–40] and is only closed using a mixing length model and a closure for the drag force formulation. The latter are usual in the literature, and it has been shown in [30, 41] that the results obtained in terms of

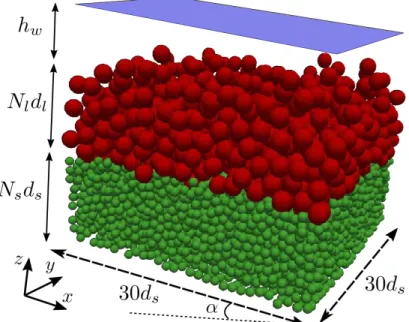

Figure 1: A typical numerical setup. Initially Nl layers of large particles (dl = 6 mm) are deposited by gravity on Ns layers of small particles (ds = 3 mm). The fluid of depth hw
flows by gravity due to the slope angle α and entrains particles.
granular behavior are very weakly sensitive to the fluid closure adopted.
The numerical setup is presented on figure 1. In the following, subscripts l and s denote quantities for large and small particles respectively. Initially, small particles of diameter ds = 3 mm and large particles of diameter dl = 6 mm are deposited by gravity over a rough fixed bed made of small particles. The size of the 3-D domain is 30ds×30dsin the horizontal plane in order to have converged average values [30] and is periodic in the streamwise and spanwise direction. The number of particles of each class is assimilated to a number of layers, Ns and Nl. They represent in terms of particle diameter the height that would be occupied by the particles if the packing fraction was exactly φmax = 0.61, the maximal packing fraction. Equivalently, at rest, the volume occupied by large particles (resp. small particles) is 0.61 × 30dl× 30dl× Nldl(resp. 0.61 × 30dl× 30dl× Nsds). Therefore, specifying Nl and Ns gives the number of particles in each class. The height of the bed at rest is thus defined by H = Nsds+ Nldl. The bed slope is fixed to 10% (α = 5.7◦), representative of mountain streams. Since this study mainly focuses on cases where the bed surface is composed of only large particles, the Shields number definition is based on the large particle diameter as θ = τf/((ρp− ρf)gdl), where τf = ρfghwsin(α) is the fluid bed shear stress, with
(a) (b) (c)
Figure 2: Illustration of some considered configurations. (a) Nl= 2, (b) Nl = 4, (c) monidisperse case
hw the water depth. Simulations were performed for Shields numbers ranging from 0.1 to 1, i.e. from a few isolated particles transported at the bed surface to a ten grain thick mobile layer. Note that turbulent suspension never occured in our simulations. For each value of the Shields number, several configurations were considered with a varying number of layers of large particles Nl = 1, 2, 3 and 4 which will be compared with a monodisperse large particle configuration considered as a reference case (see figure 2). In each case Ns varied in order to keep the bed height H constant equal to H = 8.5dl for θ ≤ 0.5, H = 10.5dl for 0.5 < θ ≤ 0.7 and H = 16.5dl for larger Shields numbers. This increase in the bed thickness was necessary in order to ensure an erodible bed bottom boundary condition. The origin of the vertical axis is set at the top of the particle bed at rest. The interface position, describing the transition between large and small particles, is therefore defined geometrically as zi = −Nldl.
At the beginning of each simulation, the fluid flows by gravity and sets particles into motion. After approximately 20 seconds, a dynamical equilibrium is achieved between the fluid flow and the transport of sediment. The results are then time-averaged over a 280s time period to ensure converged results. A mixed layer forms at the interface between small and large particles resulting from an equilibrium between diffusion and size segregation. The present study focuses on the relation between the fluid forcing and sediment transport once the steady state is achieved. Similarly to the Shields number, the Einstein parameter is defined with the large particle diameter as Q∗s = Qs/ (ρp/ρf − 1)gd3l
0.5
, where Qs = R
zφv p
xdz is the transport rate per unit width, and vxp is the bulk streamwise particle velocity. The horizontal averaged concentration of small (resp. large) particles is defined as φs (resp.
φl). By definition, the two concentrations sum to φ the total granular concentration,
φs+ φl = φ. (10)
III. ENHANCED MOBILITY DUE TO BIDISPERSITY
(a) (b)

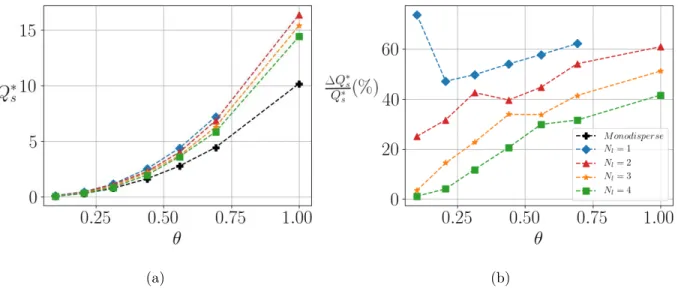

Figure 3: (a) Solid transport rate as a function of the Shields number for all simulations. (b) Increased transport rate in percentage compared with monodisperse configuration.
In figure 3a is plotted the steady state dimensionless solid transport rate as a function of the Shields number. In all configurations, the dimensionless transport rate increases with the Shields number. The transport rate is remarkably stronger in all bidisperse configurations with respect to the monodisperse case, evidencing enhanced particle mobility. Figure 3b shows the bidisperse transport relative to monodisperse configurations, increasing up to 50%. The increase of transport is almost linear with the Shields number and is stronger when the number of layers of large particles Nl is small. Indeed, for a lower Nl, small particles are closer to the surface (see figure 2) and are more likely to influence transport. This indicates that the depth of the interface between large and small particles, zi, plays a role in the transport efficiency. At low Shields numbers and for Nl= 4, almost no increase of transport is observed. In that case, the interface position is too deep to affect the bed mobility, and the bidisperse bed behaves as if it were monodisperse. Overall, without modification of the fluid forcing, a substantial increase of transport is observed just by changing the particle
size in the bed depth profile.
(a) θ ∼ 0.2, Nl= 4 (b) θ ∼ 0.45, Nl= 2 (c) θ ∼ 0.55, Nl= 1
Figure 4: Transport profiles of each class of particles for different configurations and Shields numbers. The transport profile of the large particles in the monodisperse case for the same Shields number is also plotted for comparison. Note changes in the abscissa scale.
To expand the transport description, the local transport rate of each class of particle is defined as qi
s(z) = φi(z)vxp(z), where φi(z) is the concentration of particle class i = l, s. Figure 4 shows the local transport rate depth profile of each class of particles for different typical configurations. The transport rate of large particles in the monodisperse case is also plotted in black dashed line for comparison. For θ ∼ 0.2 and Nl = 4 (figure 4a), almost no increase of transport (∼ 4%) is observed, and the small particles are barely transported. Increasing the Shields number, figure 4b shows that the small particles are transported but remain buried in the bed. When comparing the transport rate profile of small particles with the monodisperse configuration (dashed line), the small particle transport is higher than the large one at the same depth. The same observation is true for the overlying large particles. The total transport, being the sum of both the small and large particle transport, is therefore much higher in the bidisperse case than in the monodisperse case. For θ ∼ 0.55 and Nl = 1 (figure 4c) the transport of small particles is even stronger and small particles are present up to the bed surface, while they remained buried in the previous configuration (figure 4b). It is therefore possible to draw two main conclusions. First, the observed increase of transport is a direct consequence of the mobility of the small particles. Second, even the large particle transport is significantly higher than in the monodisperse case.
large particles remain well separated, with small particles buried deep in the bed (figure 4a, b). On the other hand, small and large particles are mixed at the surface (figure 4c). The width of the transition between small and large particles depends on the relative importance of segregation over diffusion, the ratio of which can be defined as the Peclet number Pe [31]. If diffusion is strong enough compared to segregation, small buried particles can reach the surface. To characterise the surface state, the surface diameter is computed as the mean particle diameter above z = 0 as
dsurf = R+∞ 0 φs(z)ds+ φl(z)dldz R+∞ 0 φs(z) + φl(z)dz . (11)
The non-dimensional surface diameter is set between 0 (only small particles at surface) and 1 (only large particles) with the following transformation
¯
dsurf = dsurf − ds dl− ds
. (12)
Figure 5 shows in scatter plot the value of the surface diameter as a function of the Shields number and the number of layers of large particles. The domain is clearly separated into two parts deliminated by the dashed line. Above the dashed line, the bed surface is only composed of large particles while below it is composed of a mixture of both small and large particles. For a given value Nl, there exists a transition Shields number θt(Nl) which separates a monodisperse from a bidisperse bed surface. For θ < θt, diffusion is weak compared to segregation, while for θ > θt it is strong enough to move small particles up to the bed surface. This therefore indicates that the Peclet number Pe depends on the Shields number. In addition θtincreases with Nl. Indeed, when Nl increases, the transition depth zi between small and large particles is deeper in the bed and diffusion needs to be even stronger for the small particles to reach the surface. For Nl = 4 the surface is always composed of large particles. There is no doubt that increasing again the Shields number will eventually bring small particles at the surface. Two simulations for Nl = 0.5 have also been plotted for illustration. By definition in these cases, the bed surface is necessarily composed of a mixture of large and small particles.
In cases where the surface is composed of a mixture of small and large particles (below the dashed line), the increased transport can be attributed to a fluid effect. Indeed, at constant fluid shear stress, the ratio between the drag force contribution and the buoyant weight is inversely proportional to the diameter, so that the transport rate is a priori higher
Figure 5: Mean surface diameter as a function of the Shields number and the large particle number of layers. The dashed line shows the transition between a large particle surface
state to a mixture surface state.
for a mixture surface state. In cases where the small and large particles are well separated (above the dashed line), the increased transport rate cannot be attributed to a fluid effect. Indeed the length over which the fluid shear stress is fully transferred to the granular bed is much smaller than the grain size (see [42], [12]), and it is verified in appendix A that it is indeed fully transferred to the granular bed below z = 0. The increased transport is therefore necessarily due to a granular process. In the next section, the study focuses only on the configurations where small and large particles are well separated and where the bed surface is composed only of large particles. The granular process responsible for the increase of mobility is investigated through a mechanical analysis of the granular bed properties.
IV. INTERPRETATION AS A GRANULAR PROCESS
The granular stress tensor can be computed from the DEM. Considering a horizontal slice of volume V , the granular stress tensor is calculated as [43, 44]
σijp = −1 V X p∈V mpvi0pv0pj − 1 V X c∈V ficbcj, (13)
where the sum is performed over the ensemble of particles p and contacts c inside the volume V , vk0p= vpk− hvkpis is the k component of the spatial velocity fluctuation of particle p, fc is the interaction force at contact c on particle α by particle β and bc= xβ− xα is the branch
vector. Due to the one dimensional structure of the flow, Maurin et al. [27, 41] showed that, in the steady state bedload configuration, σp
zz = T r(σp)/3 and the only non diagonal term which is non null is σp
xz. The granular stress can therefore be described by only two scalar parameters which are the granular pressure Pp = σzzp and the shear stress τp = σpxz.
Figure 6a compares, for θ ∼ 0.45, the monodisperse and the bidisperse (Nl = 2) com-ponents of the stress tensor. The pressure and the shear stress exhibit the same behavior in the monodisperse and bidisperse configurations. For the same forcing, the response of the bed in terms of granular stresses is therefore the same whatever the constitution of the bed. However, the transport profiles (figure 4b) show that the bidisperse bed is more mobile than the monodisperse one. This means that the dynamical response is dependent on the bed composition. This is analysed within the framework of the µ(I) rheology, relat-ing the friction coefficient µp = τp/Pp to the inertial number I. The diameter to consider in the expression of the inertial number (3) is the local volume-averaged diameter [25, 26] d = φsds+ φldl (which simplifies to d = dl in the monodisperse case). Following GDR Midi [22], the rheology of dense granular flows can be seen as follows. If µp ≤ µ
1, where µ1 is the static friction coefficient, no motion is observed and I = 0. If µp > µ1, there exists a one to one correspondence between the friction cofficient µp and the inertial number I.
The friction coefficient is plotted in figure 6b and, as expected from the similarity of the granular stress profiles (figure 6a), it is the same in the bidisperse and the monodisperse configuration. As a consequence, the inertial number profiles should be the same in both configurations and that is indeed the case as observed in figure 6c. The dashed line ( ), defines a depth z1 such that µp(z1) = µ1, the theoretical transition between static and dense granular flows. The dashed-dotted line ( ) shows the interface depth zi between small and large particles.
Figure 6d shows the bulk particle velocity for both configurations. For µ < µ1 or equiv-alently z < z1, the inertial number and the velocity are indeed small but not exactly zero. This is due to non-local effects, that the µ(I) rheology is not able to capture [45, 46]. It corresponds to a quasi-static flow, or creeping regime, in which the velocity is exponentially decreasing into the bed ([47], [31]). In order to understand the increased mobility in the bidisperse configuration, the quasi-static regime is assumed to have a negligible impact on transport and is not considered in this study. For z > z1, as the friction coefficient is similar
(a) (b) (c) (d)

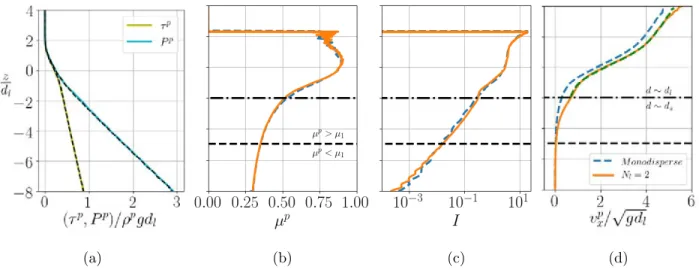

Figure 6: Comparison of the monodisperse (dotted line) and the bidisperse Nl= 2 (full line) configuration for θ ∼ 0.45. (a) Pressure and shear stress profiles, (b) friction coefficient profiles, (c) inertial number profiles and (d) velocity profiles. The dotted green
line corresponds to a translation of ∆v = 0.383√gdl of the monodisperse velocity profile (blue dotted line). The lower horizontal line at z1 ( ) separates the quasi-static regime from the flowing dense regime. The upper horizontal line at zi ( ) shows the transition
from small to large particles in the bidisperse configuration.
in both configurations (see figure 6b), the inertial number is also supposed to be the same
Ib = Im, (14)
where subscript b (resp. m) denotes the bidisperse (resp. monodisperse) configuration. For z1 < z < zi, the particle diameter in the bidisperse simulation is db ∼ ds, and dm = dl for the monodispserse case. Equation 14 becomes
ds˙γb pPp/ρp ∼
dl˙γm
pPp/ρp. (15)
The granular pressure being the same in both configurations (see figure 6a), gives ˙γb ∼
dl ds
˙γm. (16)
Integrating equation 16 from z1 to z ≤ zi, and assuming that the velocities are zero in z1, yields
vbp(z) ∼ dl ds
and therefore the velocity is higher in the bidisperse case than in the monodisperse case. This is perfectly observed in figure 6d. It means that for the same granular stress state, small particles are transported more easily than larger particles.
For z > zi, the particle diameter is dl in both configurations and equation (15) simplifies to
˙γb ∼ ˙γm, (18)
and by integration from depth zi to z,
vpb(z) ∼ vpm(z) + (vbp(zi) − vmp(zi)) ∼ vmp(z) + ∆v, (19)
meaning that the particle velocity profile in the bidisperse case is just a translation of the velocity profile in the monodisperse case. In figure 6d is plotted, in the upper part of the bed, vp
m(z) + ∆v, with ∆v = 0.383 √
gdl measured in the DEM simulation. The obtained curve is completely superimposed on the velocity profile in the bidisperse configuration. In both configurations, the large particles at the top have exactly the same behaviour.
The proposed granular analysis explains the observation made previously in figure 4, in which a layer of small particles was observed to be transported faster than larger parti-cles at the same depth. Small partiparti-cles consequentely play the role of a conveyor belt for the overlying particles and ∆v represents a slip velocity. It additionally shows that the enhanced mobility is not a roughness effect, due to the reduction of roughness by smaller particles below the large particle layer. Indeed, if particles do not move at the interface, ∆v = vbp(zi) − vmp(zi) is zero and no enhanced mobility is observed, as in figure 4a. The fluid origin for the increased mobility can be discarded because the fluid shear stress is already fully transferred to the granular shear stress below z = 0 (see appendix A). This analysis confirms that the enhanced mobility originates in the granular rheological properties of bidisperse beds.
This rheological analysis gives a qualitative understanding of the granular bed behaviour in the bidisperse configuration. To be more quantitative, the previous conclusions are used to predict analytically the additional transport in the bidisperse case.
V. A PREDICTIVE MODEL FOR THE ADDITIONAL TRANSPORT
In this section, a simple model is derived, the purpose of which is to predict the additional transport observed in the bidisperse case. To obtain a predictive model, the additional transport will be expressed as a function of the monodisperse quantities (φm, vmp, etc...). The configuration is ideally simplified as a two layer problem in which small and large particles are completely separated at the interface depth zi. The mixed layer of small and large particles, observed in the bidisperse DEM simulations, is here neglected. Therefore it is assumed that the mixture concentration profiles are identical in the bidisperse and in the monodisperse configuration, ie. φm(z) = φb(z).
The transport in the bidisperse case is expressed as, Qb =
Z +∞
−∞
vpb(z)φb(z)dz. (20)
Below the interface between large and small particles, i.e. z ≤ zi, the previous analysis has shown that vpb(z) = dl/dsvmp (z), while for z > zi, vpb(z) = vmp(z) + ∆v. Splitting the integral into two parts, below and above zi, placing the velocity expression into equation 20 and recalling that φb(z) = φl(z) + φs(z) is assumed to be equal to φm(z), one obtains
Qb = Z zi −∞ dl ds vmp(z)φm(z)dz + Z +∞ zi (vmp(z) + ∆v)φm(z)dz. (21) Distributing the second term and combining it with the first term, it comes
Qb = Qm+ (dl ds − 1) Z zi −∞ vmp(z)φm(z)dz + Z +∞ zi ∆vφm(z)dz. (22) where Qm = R+∞ −∞ v p
m(z)φm(z)dz is the monodisperse transport rate. Recalling that ∆v is independent of z, the additional transport due to the presence of small particles can therefore be expressed as ∆Q = (dl ds − 1) Z zi −∞ vmp(z)φm(z)dz + ∆v Z +∞ zi φm(z)dz = ∆Q1+ ∆Q2. (23) The term ∆Q1 represents the additional transport below the interface of the small particles, more mobile than larger particles. The term ∆Q2 represents the additional transport of the large particles at the surface due to the conveyor belt effect. Note that in the monodisperse limit (i.e. ds = dl), both terms vanish. This is obvious for ∆Q1. For ∆Q2, it is ∆v = v
p b−v
p m, which cancels in the monodisperse limit (vbp = vp
(a) (b)
Figure 7: (a) Dimensionless additional transport measured in the DEM simulations (full symbols) and predicted by equation (23) (empty symbols), for different values of the Shields number and Nl. Only cases for which the surface is exclusively composed of large particles are presented for readability. (b) Error between the total transport predicted by
equation (23) and the transport computed with the DEM simulations.
the bidisperse configuration (equation (23)) is expressed only as a function of monodisperse variables.
In order to verify that the model is consistent with the transport mechanisms at play, equation (23) is first tested using DEM monodisperse simulations as inputs. The additional transport terms ∆Q1 and ∆Q2 are computed using the DEM velocity and concentration profiles vp
m, φm and estimating the slip velocity ∆v directly on the DEM simulations. The predicted dimensionless additional transport rates are plotted in figure 7. The additional transport in the bidisperse case is very well predicted by equation (23) for all values of Shields number and for all numbers of layers of large particles. The small errors obtained with equation (23) show that the model contains the significant physical ingredients acting in this transport process.
In practice, the concentration and velocity profiles, as well as the slip velocity, are difficult to obtain, and computing the additional transport due to the presence of small particles is
(a) (b) (c) (d)
Figure 8: Comparison between idealized (dotted lines) and DEM profiles (full lines) in the monodisperse configuration for θ ∼ 0.45. (a) Concentration profiles, (b) granular pressure
and shear stress profiles, (c) friction coefficient profiles and (d) velocity profiles.
not straightforward. In the following, a method to compute the two additional transport terms is proposed. The particles are assumed to be transported without dilatation of the bed. The concentration is therefore hypothesied constant and equal to φmax = 0.61 in the bed with the top of the bed exactly at z = 0 (see figure 8a).
To compute the ∆Q1 additional small particle transport term, the monodisperse veloc-ity profile for z ≤ zi needs to be estimated. It can be derived using the µ(I) rheology (equation 4). The stress state (normal and shear stresses) of the granular bed needs also to be computed. Based on the two-phase volume-averaged equations for turbulent bedload transport [40, 48] and for the idealized step concentration profile (figure 8a), the granular pressure and shear stress profiles can be expressed as (see appendix A)
Pp(z) = ρp− ρf g cos(α)φ
maxz, (24)
τp = τb+ ρf + (ρp− ρf)φmax z, (25)
where τb = ρfghwsin(α) is the fluid bed shear stress. The friction coefficient can then be computed analytically as µp = τp/Pp with these profiles. Inverting the µ(I) rheology (equation 4), replacing the inertial number I by its expression (equation 3) with the large
particle diameter and integrating, a velocity profile is obtained vmp(z) = 0, µp(z) < µ 1, Z z z1 s Pp(ζ) ρp I0 dl µp(ζ) − µ 1 µ2− µp(ζ) ! dζ, µ1 ≤ µp(z) < µ2, (26)
where µ1 = 0.35, µ2 = 0.97 and I0 = 0.69 are the set of parameters proposed by Maurin et al. [27] for bedload transport. The integral can be computed numerically with the analytical expression of the granular pressure and of the friction coefficient and without any data from the DEM simulations.
To verify that this derivation is consistent with the DEM simulations, figure 8 compares, for the monodisperse simulation at θ ∼ 0.45, (a) the idealized concentration, (b) the pressure and shear stress, (c) the friction coefficient and (d) the velocity profile with the DEM results. The idealized step concentration profile obviously does not reproduce the dilatation of the bed at the surface. As a result, the pressure and shear stresses correspond with the DEM results in most part of the bed but differ close to the surface. Similarly discrepancies near the bed surface appear for the friction coefficient and the velocity profiles. However, in the expression of ∆Q1, the velocity and concentration profiles are needed only for z ≤ zi, where the idealized concentration and stresses agree very well with the DEM ones. Concerning the velocity profile (figure 8d), the µ(I) rheology can not predict the quasi-static regime as already mentioned (see inset). The velocity profile is well predicted in the dense regime but the rheology fails to predict the velocity in the upper part of the bed for µp ≥ µ2, which corresponds to a more dilute flow regime. In order to use the predictive model, it is therefore necessary that µp(z
i) < µ2, which is the case in all our simulations and should be the case in classical bedload transport configurations. Otherwise, it would mean that small particles are in the dilute flow regime and would be present at the bed surface, configuration which has already been discarded. With the velocity profile (26), it is now possible to compute the first additional transport term ∆Q1 without any data from the DEM simulations.
To compute the second additional transport term ∆Q2, both the ∆v slip velocity and the R+∞
zi φm(z)dz term need to be estimated. The second term represents the amount of large
be directly computed as
Z +∞
zi
φm(z)dz = φmaxNldl. (27) Lastly, the slip velocity remains to be estimated. By definition, for z ≥ zi, ∆v = vbp(z) − vp
m(z). It is therefore valid in z = zi, where vbp(zi) = dl/dsvmp(zi). The slip velocity is therefore finally given by
∆v = dl ds − 1 vmp(zi), (28) with vp
m(zi) which can be computed from the velocity profile equation (26) derived previously. All additional transport terms can now be computed and the total additional transport can be expressed as ∆Q = (dl ds − 1)φmax Z zi 0 vpm(z)dz + Nldlvmp(zi) , (29)
with vmp(z) given by equation (26). This additional transport term can be computed without any DEM data and uses only the µ(I) rheology.
Equation (29) is tested and compared with the additional transport rate directly obtained with the DEM simulations in figure 9. The model predicts well the additional transport with a maximum error around 20%, remaining smaller than 10% in most cases. The error is generally smaller when Nl is larger. For each configuration, there is a region where the error is maximum. The Shields number at which the maximum error is reached seems to depend on the large particle number of layers. These results are discussed and interpreted in the next section.
VI. DISCUSSION AND CONCLUSION
This study has shown that the additional transport evidenced in an inversely graded bidispersed bed is a granular process. In a granular flow, small particles, being more mobile than larger ones, play the role of a conveyor belt for the overlying large particles. Assuming that large and small particles are completely separated and are transported without dilata-tion of the bed, a model for the enhanced transport has been derived based on rheological arguments. The results have shown that our model contains the significant physical ingredi-ents of the transport process and is able to predict acccurately the additional transport due to bidispersity in bedload transport. The developed model allows improving upon classical
(a) (b)
Figure 9: (a) Dimensionless additional transport in the bidisperse case obtained with the DEM simulations (full symbols) and computed with equation (29) (empty symbols), for different values of Shields number and Nl. Only cases for which the surface is composed of
large particles only are presented for readability. (b) Error between the total bidisperse transport predicted by equation (29) and the measured transport with the DEM
simulations.
transport laws by taking into account not only the classical bed surface state, but the entire mobile granular bed structure.
This model can also be used as a tool to interpret the different transport mechanisms observed in this bidisperse granular flow configuration. The different regimes observed are summarized in figure 10. The map has been built from the regions of validity of the model, the blue squares showing regions where the error between the model prediction and the DEM is less than 10% while the brown ones show regions where the error is higher. This criterion enables us to define four different regimes of granular flows, corresponding to differ-ent granular depth structure and flowing mechanisms. Regime 1 corresponds to cases where small and large particles are well mixed, with small particles present at the bed surface. In those cases, the additional transport is a combination of granular and fluid processes. Indeed, smaller particles at the surface are more easily entrained by the fluid flow and the mixture of small and large particles can affect the flowing properties of the granular mobile

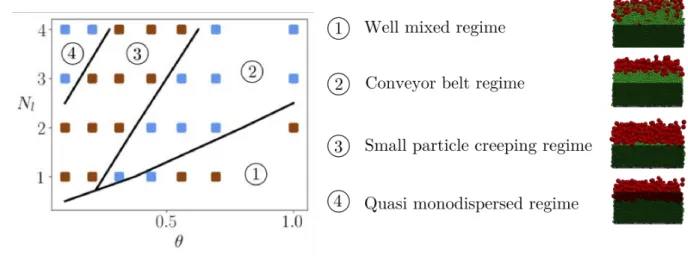

Figure 10: Mapping of the four different observed phenomenologies in the bidisperse transport process. Each regime is illustrated with a typical simulation picture where the creeping flow has been shaded in gray. Results are plotted in colored squares and split into
two classes : blue (predicted transport error less than 10%) and brown (larger error).
layer. Regime 2 corresponds to the domain of validity of the proposed model, where all assumptions are verified. In this regime, the fluid-driven large particles entrain the small ones, which create a so-called conveyor belt effect, due to their higher mobility. The tran-sition depth between small and large particles is here located in the dense granular flow region. When the transition is located deeper in the bed, near or inside the creeping flow region, the µ(I) rheology is no longer valid and the model predicts erroneously a zero veloc-ity inside the small particle layer (see inset figure 8d). This third regime therefore leads to small (< 25%) but non negligible errors in the model predictions, due to the absence of slip velocity and additional transport. This indicates that the quasi-static part of the bed may play a non neglible role in the sediment transport process [47, 49]. Regime 4 corresponds to cases where the transition depth is very deep in the bed and no additional transport due to the presence of small particles is observed in the DEM simulations or predicted by our model. The bidisperse nature of the bed can be neglected in this regime.
The model and the phenomenology map have been derived considering assumptions a priori valid for any granular flow on a pile. Therefore, this analysis should remain valid for other flow configurations of bidisperse mixtures with larger particles on top of smaller ones. In addition, the mechanisms described herein rely only on rheological arguments and one can expect the analysis to hold for any granular flow. Indeed, when submitted to the same
(a) (b)
Figure 11: (a) Additional transport rate predicted by equation (29) (orange crosses) and computed from the DEM simulations (blue squares) for different size ratios at θ ∼ 0.45 and Nl = 2. (b) Non-dimensional surface diameter in the DEM simulations as defined in equation (12) as a function of the size ratio. Cases r = 2.5 and r = 4 are illustrated with a
picture from the DEM simulation.
stress, small particles are more mobile than larger particles and the effect observed for poly-disperse granular collapses [17, 19] or granular avalanches, for example, can be interpreted similarly. During the collapse, the small particles segregate and form a basal flowing layer, setting up a conveyor belt effect and increasing the runout distance of the collapse.
The results obtained in this study can be put into perspective by considering the depen-dency of the results on the size ratio. Varying the size ratio between r = 1.5 and r = 4 for a given configuration (θ = 0.45, Nl = 2), one can evidence that the transport predicted by the model is valid up to r = 2.5 (see figure 11a). For a larger size ratio, the increased transport observed in the DEM is much higher than predicted by the model. This effect seems to be related to a drastic change in the granular flow structure. Indeed, the mean surface particle diameter, representative of the mixing of small and large particles changes drastically between a size ratio of r = 3 and r = 4 (see figure 11b). This indicates that diffusion remixing increases significantly, and can be related to the onset of inverse segrega-tion as observed in this range of size ratio by Thomas [50]. This link between diffusion and
inverse size segregation challenges our understanding of size segregation and deserves future work.
ACKNOWLEDGEMENTS
This research was funded by the French Agence nationale de la recherche, project ANR-16-CE01-0005 SegSed ’size segregation in sediment transport’. The authors acknowledge the support of INRAE (formerly Irstea and Cemagref). INRAE, ETNA is member of Labex Osug@2020 (Investissements dAvenir Grant Agreement ANR-10-LABX-0056) and Labex TEC21 (Investissements dAvenir Grant Agreement ANR-11-LABX-0030).
We are grateful to M. Church for reviewing and English corrections.
Appendix A: Derivation of the granular stress profiles
The two phase flow equations of bedload transport developed by [35] and [40] are con-sidered. For a unidirectional flow and for steady state condition, they read
0 = ∂Sxz ∂z + ∂Rxz ∂z + ρf(1 − φ)g sin(α) − nf p fx s , (A1) 0 = ∂τ p ∂z + ρ p φg sin α + nffpx s, (A2) 0 = ∂P f ∂z + ρ f g cos α, (A3) 0 = ∂P p ∂z + (ρ p− ρf)φg cos α, (A4)
where Sxz and Rxz are the viscous and turbulent fluid shear stresses, τp is the granular shear stress, nffp
x
s
represents the transfer of momentum from the fluid to the solid phase and Pf and Pp are the fluid and granular pressure. [30] showed that the viscous fluid shear stress Sxz is negligible in the bedload configuration and it will therefore not be taken into account. Considering the following idealized concentration profile
φ = φmax = 0.61, if z ≤ 0, 0, if z > 0, (A5)
and by integration of equation (A4) between an elevation z and 0 where Pp(0) is assumed to vanish, the two phase flow model predicts hydrostatic pressure for the granular phase
Pp(z) = −(ρp− ρf)φmaxg cos(α)z. (A6) Summing equation (A1) and (A2), a mixture momentum balance is obtained
0 = ∂Rxz ∂z +
∂τp ∂z + ρ
f + (ρp− ρf)φ g sin(α). (A7)
In order to understand the partition between the fluid and granular stresses, equation (A7) is integrated between an elevation z and the free water surface hw where both shear stresses are assumed to vanish, leading to
Rxz(z) + τp(z) = ρf(hw− z) + (ρp− ρf) Z hw z φ(ξ)dξ g sin(α). (A8) In the pure fluid phase, where φ = 0 and therefore τp(z) = 0, equation (A8) simplifies to
Rxz(z) = ρfg sin(α)(hw− z), (A9) the classical expression of the turbulent fluid shear stress in a free surface flow. In the granular bed the fluid shear stress rapidly decreases to zero and only the granular shear stress holds the mixture shear stress. With the idealized concentration profile (A5), equation (A8) simplifies to
τp(z) =ρf(hw− z) − (ρp− ρf)φmaxz g sin(α), (A10) which can be rewritten as
τp(z) = ρfg sin(α)hw−ρpφmax+ (1 − φmax)ρf gsin(α)z. (A11) The expressions of the granular pressure, fluid shear stress and granular shear stress obtained for the idealized step concentration are compared with the DEM profiles in figure 12. They agree in most parts except in the transition from the compacted granular bed to the pure fluid phase that is not modeled by the idealized concentration profile. This step concentra-tion profile corresponds to an idealized situaconcentra-tion where the fluid shear stress is completely transmitted to the granular bed at the discontinuity (z = 0). Focusing on the granular shear stress, the DEM and analytical profiles correspond almost perfectly as soon as z ≤ 0 meaning that the fluid stress is indeed completely transmitted to the granular bed over a depth much smaller than a particle diameter.
(a) (b)
Figure 12: Monodisperse case at θ ∼ 0.45. (a) Granular pressure from DEM simulation (full line) and computed with analytical expression (A6) (dashed line). (b) Fluid and
granular shear stress from DEM simulation (full line) and computed from analytical expression A9 (dotted line) and expression (A11) (dashed line)
[1] J.C. Bathurst, “Effect of Coarse Surface Layer on Bed-Load Transport,” Journal of Hydraulic Engineering 133, 1192–1205 (2007).
[2] P. Frey and M. Church, “Bedload: A granular phenomenon,” Earth Surface Processes and Landforms 36, 58–69 (2011).
[3] A. Dudill, H. Lafaye de Micheaux, P. Frey, and M. Church, “Introducing Finer Grains Into Bedload: The Transition to a New Equilibrium,” Journal of Geophysical Research: Earth Surface 123, 2602–2619 (2018).
[4] G. V. Middleton, “Experimental studies related to problems of flysch sedimentation,” in Flysch Sedimentology in North America, Special Paper No. 7 (Business and Economics Science Ltd., 1970) j. lajoie ed., pp. 253–72.
[5] S. B. Savage and C. K. K. Lun, “Particle size segregation in inclined chute flow of dry cohe-sionless granular solids,” Journal of Fluid Mechanics 189, 311–335 (1988).
[6] J. M. N. T. Gray, “Particle Segregation in Dense Granular Flows,” Annual Review of Fluid Mechanics 50, 407–433 (2018).
[7] G. K. Gilbert, “The transportation of d´ebris by running water,” USGS Professional paper 86 US Geological Survey: Washington DC (1914), 10.1130/0-8137-2338-8.253.
[8] K. M. Hill, J. Gaffney, S. Baumgardner, P. Wilcock, and C. Paola, “Experimental study of the effect of grain sizes in a bimodal mixture on bed slope, bed texture, and the transition to washload,” Water Resources Research 53, 923–941 (2017).
[9] A. Dudill, P. Frey, and M. Church, “Infiltration of fine sediment into a coarse mobile bed: A phenomenological study,” Earth Surface Processes and Landforms 42, 1171–1185 (2017). [10] A. Mangeney, O. Roche, O. Hungr, N. Mangold, G. Faccanoni, and A. Lucas, “Erosion
and mobility in granular collapse over sloping beds,” Journal of Geophysical Research: Earth Surface 115, F3 (2010).
[11] M. Farin, A. Mangeney, and O. Roche, “Fundamental changes of granular flow dynamics, deposition, and erosion processes at high slope angles: Insights from laboratory experiments,” Journal of Geophysical Research: Earth Surface 119, 504–532 (2014).
[12] R. Maurin, J. Chauchat, and P. Frey, “Revisiting slope influence in turbulent bedload trans-port: Consequences for vertical flow structure and transport rate scaling,” Journal of Fluid Mechanics 839, 135–156 (2018).
[13] C. Chedeville and O. Roche, “Autofluidization of pyroclastic flows propagating on rough substrates as shown by laboratory experiments,” Journal of Geophysical Research: Solid Earth 119, 1764–1776 (2014).
[14] A. N. Edwards, S. Viroulet, B. P. Kokelaar, and J. M. N. T. Gray, “Formation of levees, troughs and elevated channels by avalanches on erodible slopes,” Journal of Fluid Mechanics 823, 278–315 (2017).
[15] L. Staron and E. Lajeunesse, “Understanding how volume affects the mobility of dry debris flows,” Geophysical Research Letters 36, 12 (2009).
[16] J. C. Phillips, A. J. Hogg, R. R. Kerswell, and N. H. Thomas, “Enhanced mobility of granular mixtures of fine and coarse particles,” Earth and Planetary Science Letters 246, 466–480 (2006).
[17] E. Linares-Guerrero, C. Goujon, and R. Zenit, “Increased mobility of bidisperse granular avalanches,” Journal of Fluid Mechanics 593, 475–504 (2007).
[18] R. M. Iverson, M. Logan, R. G. LaHusen, and M. Berti, “The perfect debris flow? Aggregated results from 28 large-scale experiments,” Journal of Geophysical Research: Earth Surface 115,
F3 (2010).
[19] Z. Lai, L. E. Vallejo, W. Zhou, G. Ma, J. M. Espitia, B. Caicedo, and X. Chang, “Collapse of Granular Columns With Fractal Particle Size Distribution: Implications for Understanding the Role of Small Particles in Granular Flows,” Geophysical Research Letters 44, 12,181–12,189 (2017).
[20] V. Bacchi, A. Recking, N. Eckert, P. Frey, G. Piton, and M. Naaim, “The effects of kinetic sorting on sediment mobility on steep slopes,” Earth Surface Processes and Landforms 39, 1075–1086 (2014).
[21] A. Recking, “An analysis of nonlinearity effects on bed load transport prediction,” Journal of Geophysical Research: Earth Surface 118, 1264–1281 (2013).
[22] GDR MiDi, “On dense granular flows,” The European Physical Journal E 14, 341–365 (2004). [23] P. Jop, Y. Forterre, and O. Pouliquen, “A constitutive law for dense granular flows,” Nature
441, 727–730 (2006).
[24] Y. Forterre and O. Pouliquen, “Flows of Dense Granular Media,” Annual Review of Fluid Mechanics 40, 1–24 (2008).
[25] P. G. Rognon, J.N. Roux, M. Naa¨ım, and F. Chevoir, “Dense flows of bidisperse assemblies of disks down an inclined plane,” Physics of Fluids 19, 058101 (2007).
[26] A. Tripathi and D. V. Khakhar, “Rheology of binary granular mixtures in the dense flow regime,” Physics of Fluids 23, 113302 (2011).
[27] R. Maurin, J. Chauchat, and P. Frey, “Dense granular flow rheology in turbulent bedload transport,” Journal of Fluid Mechanics 804, 490–512 (2016).
[28] V. Smilauer et al., Yade Documentation 2nd Ed. The Yade Project. (Zenodo, 2015).
[29] P. Frey, “Particle velocity and concentration profiles in bedload experiments on a steep slope,” Earth Surface Processes and Landforms 39, 646–655 (2014).
[30] R. Maurin, J. Chauchat, B. Chareyre, and P. Frey, “A minimal coupled fluid-discrete element model for bedload transport,” Physics of Fluids 27, 113302 (2015).
[31] R. Chassagne, R. Maurin, J. Chauchat, J. M. N. T. Gray, and P. Frey, “Discrete and contin-uum modelling of grain size segregation during bedload transport,” Journal of Fluid Mechanics 895 (2020), 10.1017/jfm.2020.274.
[32] T. Schwager and T. Poschel, “Coefficient of restitution and linear–dashpot model revisited,” Granular Matter 9, 465–469 (2007).
[33] J.N. Roux and G. Combe, “Quasistatic rheology and the origins of strain,” Comptes Rendus Physique 3, 131–140 (2002).
[34] J. F. Richardson and W. N. Zaki, “The sedimentation of a suspension of uniform spheres under conditions of viscous flow,” Chemical Engineering Science 3, 65–73 (1954).
[35] T. Revil-Baudard and J. Chauchat, “A two-phase model for sheet flow regime based on dense granular flow rheology,” Journal of Geophysical Research: Oceans 118, 619–634 (2013). [36] L. Li and M. Sawamoto, “Multi-Phase Model on Sediment Transport in Sheet-Flow Regime
Under Oscillatory Flow,” Coastal Engineering in Japan 38, 157–178 (1995).
[37] T. G. Drake and J. Calantoni, “Discrete particle model for sheet flow sediment transport in the nearshore,” Journal of Geophysical Research: Oceans 106, 19859–19868 (2001).
[38] T.-J. Hsu and P. L.-F. Liu, “Toward modeling turbulent suspension of sand in the nearshore,” Journal of Geophysical Research: Oceans 109, C6 (2004).
[39] O. Dur´an, B. Andreotti, and P. Claudin, “Numerical simulation of turbulent sediment trans-port, from bed load to saltation,” Physics of Fluids 24, 103306 (2012).
[40] J. Chauchat, “A comprehensive two-phase flow model for unidirectional sheet-flows,” Journal of Hydraulic Research 56, 15–28 (2018).
[41] R. Maurin, Investigation of Granular Behavior in Bedload Transport Using a Eulerian-Lagragian Model., PhD thesis, Univ. Grenoble Alpes (2015).
[42] M. Ouriemi, P. Aussillous, and E. Guazzelli, “Sediment dynamics. Part 1. Bed-load transport by laminar shearing flows,” Journal of Fluid Mechanics 636, 295–319 (2009).
[43] I. Goldhirsch, “Stress, stress asymmetry and couple stress: From discrete particles to contin-uous fields,” Granular Matter 12, 239–252 (2010).
[44] B. Andreotti, Y. Forterre, and O. Pouliquen, “Granular Media: Between Fluid and Solid,” /core/books/granular-media/E1D234B8D868A9856C9E95B4750470AB (2013).
[45] K. Kamrin and G. Koval, “Nonlocal Constitutive Relation for Steady Granular Flow,” Physical Review Letters 108, 178301 (2012).
[46] M. Bouzid, M. Trulsson, P. Claudin, E. Cl´ement, and B. Andreotti, “Nonlocal Rheology of Granular Flows across Yield Conditions,” Physical Review Letters 111, 238301 (2013). [47] B. Ferdowsi, C. P. Ortiz, M. Houssais, and D. J. Jerolmack, “River-bed armouring as a
granular segregation phenomenon,” Nature Communications 8, 1363 (2017).
[49] M. Houssais, C. P. Ortiz, D. J. Durian, and D. J. Jerolmack, “Onset of sediment transport is a continuous transition driven by fluid shear and granular creep,” Nature Communications 6, 6527 (2015).
[50] N. Thomas, “Reverse and intermediate segregation of large beads in dry granular media,” Physical Review. E, Statistical Physics, Plasmas, Fluids, and Related Interdisciplinary Topics 62, 961–974 (2000).
