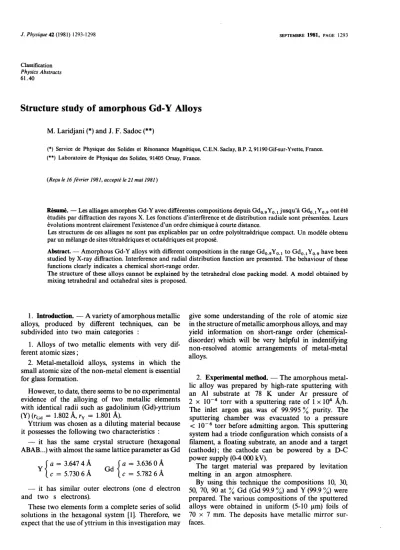

Structure study of amorphous Gd-Y Alloys
M. Laridjani (*) and J. F. Sadoc (**)
(*) Service de Physique des Solides et Résonance Magnétique, C.E.N. Saclay, B.P. 2, 91190 Gif-sur-Yvette, France.
(**) Laboratoire de Physique des Solides, 91405 Orsay, France.
(Reçu le 16 février 1981, accepté le 21 mai 1981)
Résumé. 2014 Les alliages amorphes Gd-Y avec différentes compositions depuis Gd0,9Y0,1 jusqu’à Gd0,1 Y0,9 ont été
étudiés par diffraction des rayons X. Les fonctions d’interférence et de distribution radiale sont présentées. Leurs
évolutions montrent clairement l’existence d’un ordre chimique à courte distance.
Les structures de ces alliages ne sont pas explicables par un ordre polytétraédrique compact. Un modèle obtenu par un mélange de sites tétraédriques et octaédriques est proposé.
Abstract.
2014Amorphous Gd-Y alloys with different compositions in the range Gd0.9Y0.1 to Gd0.1Y0.9 have been
studied by X-ray diffraction. Interference and radial distribution function are presented. The behaviour of these
functions clearly indicates a chemical short-range order.
The structure of these alloys cannot be explained by the tetrahedral close packing model. A model obtained by mixing tetrahedral and octahedral sites is proposed.
Classification Physics Abstracts 61.40
1. Introduction.
-A variety of amorphous metallic alloys, produced by dif’erent techniques, can be
subdivided into two main categories :
1. Alloys of two metallic elements with very dif- ferent atomic sizes ;
2. Metal-metalloid alloys, systems in which the small atomic size of the non-metal element is essential for glass formation.
However, to date, there seems to be no experimental
evidence of the alloying of two metallic elements with identical radii such as gadolinium (Gd)-yttrium (Y) (rGd
=1.802 Â, r,
=1.801 Â).
Yttrium was chosen as a diluting material because it possesses the following two characteristics :
-
it has the same crystal structure (hexagonal ABAB...) with almost the same lattice parameter as Gd
-
it has similar outer electrons (one d electron
and two s electrons).
These two elements form a complete series of solid solutions in the hexagonal system [1]. Therefore, we expect that the use of yttrium in this investigation may
give some understanding of the role of atomic size in the structure of metallic amorphous alloys, and may
yield information on short-range order (chemical- disorder) which will be very helpful in indentifying
non-resolved atomic arrangements of metal-metal
alloys.
2. Expérimental method.
-The amorphous metal-
lic alloy was prepared by high-rate sputtering with
an AI substrate at 78 K under Ar pressure of 2 x 10-4 torr with a sputtering rate of 1 x 104 Â/h.
The inlet argon gas was of 99.995 % purity. The sputtering chamber was evacuated to a pressure 10-6 torr before admitting argon. This sputtering system had a triode configuration which consists of a
hlament, a floating substrate, an anode and a target (cathode); the cathode can be powered by a D-C
power supply (0-4 000 kV).
The target material was prepared by levitation melting in an argon atmosphere.
By using this technique the compositions 10, 30, 50, 70, 90 at % Gd (Gd 99.9 %) and Y (99.9 %) were prepared. The various compositions of the sputtered alloys were obtained in uniform (5-10 gm) foils of
70 x 7 mm. The deposits have metallic mirror sur-
faces.
Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphys:019810042090129300
The purity of the samples was checked by X-ray
emission spectroscopy (fluorescence analysis). This analysis did not show any metallic impurities or gas contamination such as argon. Moreover, a similar experiment on amorphous rare earth-transition metals and Pd-Si alloys did not show argon gas or any metal- lic impurities. The latter were also tested by ionic micro-analysis with again no sign of any contami- nation.
All foils used were first checked by a diffraction pattern with a Debye-Scherrer technique.
A single foil of each sample was glued to the top of
a glass capillary and the sample was exposed to an X-ray beam. By using this method, the effects of
shadowing by Gd did not affect the picture. CoKa
radiation was used at 30 kV, 28 mA. The length of
exposure was 34 hrs.
In order to reduce the fluorescence background we interposed a thin foil (20 y) of iron between the spe- cimen and film.
These diffraction patterns were characteristic of
amorphous solids without any evidence of Bragg
lines.
The X-ray pictures of sputtered films of pure Gd and Y indicate a single phase H.C.P. structure which
is similar to that of Gd and Y. The absence of (100)
and (110) reflections shows that this phase is a H.C.P.
textured structure and that, therefore, we do not
observe any oxide phases in pure Gd and Y sputtered
films.
Subsequent quantitative X-ray measurements were
obtained with a CGR diffractometer using Ag radia- tion ; each sample was scanned from 2 0
=40 to 130°
at 0.010 per min. in the reflection and transmission geometry. This angular range corresponds (for K1
=4 7c sin 0/À and K2
=4 7r sin O/Â2 in which
À1KpAg = 0.561 and À1KexAg
=0.497) to :
In order to avoid fluorescence, the scattered beam
was recorded by an energy-dispersive detector of lithium-drifted silicon {(Si(Li)}, and its pulses accu-
mulated in a multichannel energy analyser comprising
512 channels.
3. Results and discussion.
-Figure 1 shows the
reduced interference function F(K) derived from the measured intensities for Gd x Y 1 - x alloys (0.1 X x 0.9). Although the F(K) of the Gd-Y
alloys look similar, detailed observation shows clear differences between the F(K) corresponding to the
different compositions :
-
The first peak appears sharper in Gdo.sYo.s
than in any other composition and it is asymmetrical
for Gd0.1Y0.9.
-
The second rings resemblé each other but there is no evidence of a second ring shoulder which is
Fig. 1.
2013Five reduced interférence functions F(K), derived from measured intensity data with five different compositions of Gd-Y alloys.
characteristic of the tetrahedral packing in the clas-
sical metallic amorphous alloys, such as Ni0.75-P0.25
and COO.75-PO.25 [2]. Previously, the absence of a
second peak shoulder has been interpreted by Sinha
and Duwez [3] in terms of a high degree of disorder and a large difference in atomic size between the elements. This explanation is thus inconsistent with
our present results given the equivalent radii in the
case of Gd-Y alloys.
Later Dixmier and Sadoc [4] predicted that amor- phous alloys such as Au-Si seem to have a short-range
order which generates such random networks without
giving a shoulder in the second peak.
3.1 1 THE REDUCED RADIAL DISTRIBUTION FUNCTION
( W(r)).
-In order to clarify this apparent discrepancy
the interference functions for all the compositions were
Fourier analysed to obtain reduced radial distribu- tion functions (R.D.F.). Figure 2 shows that the features of the five radial distribution functions vary somewhat with the composition. They are characte-
rized by a first peak (2 r
=0") corresponding to approximately 12 neighbours and by the second ring exhibiting an asymmetric profile.
The radial distribution functions of Gd0.1Y0.9 and Gdo.3yO.7 (Fig. 2a) have one common feature which is a shoulder on the small r side of the first peak which
indicates that there is a small interatomic distance of about 3 A. Changing the upper limit of integration (Kmax) produces no qualitative changes in the R.D.F.
of these compositions and their subpeaks remain
visible under termination ripples. Thus it is concluded
that these subpeaks have physical meaning.
Fig. 2.
-Experimental reduced radial distribution functions, W(r)
of different alloy compositions
a
=Gdo.i Yo.9-Gdo.3 Y 0,7’ b
=Gdo.7 Yo.3-Gdo.9 Yo i,
c
=Gdo.s Y0.5.
When the concentration is increased the shoulder at 3 A becomes less pronounced.
The radial distribution functions obtained with different compositions of Gd-Y alloys show some
evolution of the second ring. The second ring of Gd0.9Yo.1 1 and Gd0.1Yo.9 are very similar, increasing slowly as r increases and falling just after the maximum value. This second peak is very different from the second peak in the R.D.F. of the tetrahedral close
packing structure in which there is a shoulder cor-
responding to twice the first interatomic distance.
Figure 2c shows the R.D.F. of Gdo.5YD._, which is quite different. The first peak is sharper and the second ring more symmetrical than for the other composi-
tions. The other noticeable characteristic of this
curve is the appearance of the light shoulder on the high r spider of the second. As the concentration of Gd increases this shoulder becomes less and less pro- nounced and finally disappears. Note also that the subpeak at 3 A is not observed for this composition.
The value of the distance, .J2 u, corresponding to
the small r side of the 2nd ring appears to have a
minimum value for the Gdo.5 y 0.5 composition. Hence
it seems to us that the structure of Gdo.5 y 0.5 might
be an intermediate case between tetrahedral close
packing (R.D.F. curve with splittings, Fig. 5) and
other structures more appropriate for the Gdx y 1- X alloys (with X 0.5 or X > 0.5).
3.2 DIscussION.
-An attempt will now be made
to describe the evolution of the R.D.F. resulting from changes in the composition.
-
In the crystalline phase Gd-Y is a solid solution for all compositions. Therefore it seemed a reasonable first hypothesis to consider the structure of this alloy
as a pure metallic structure for the study of the R.D.F.
in the amorphous state. In such a case a tetrahedral
packing model would seem to be a good starting point
to describe the R.D.F. but the experimental results
show that this hypothesis is wrong (Figs. 2a, b, c).
All the Gd-Y, R.D.F. are characterized by 4 inter-
atomic distances : the first distance Q which corres-
ponds to the first peak, and three other distances which contribute to the 2nd ring (J2 Q, 1.75 cr and
2 (j). The distance.J2 (j is characteristic of octahedra ;
the distance 1.75 u is associated with pentagonal bi- pyramids (Fig. 7a). The profile of the 2nd ring of the
R.D.F. suggests the occurrence of octahedral sites
mainly for compositions different from Gdo.5yo.5 (Figs. 2a, b). The structure cannot be explained by a
pure tetrahedral packing.
-
