$LDA+U$ and tight-binding electronic structure of InN nanowires

(1)

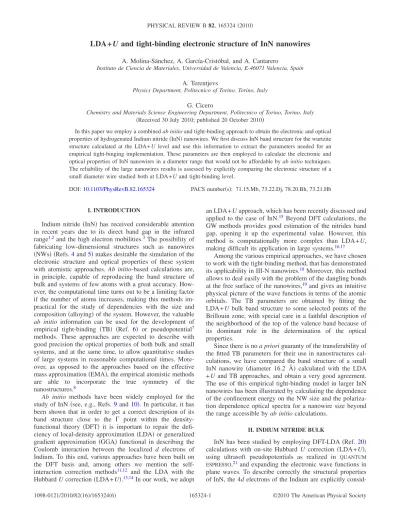

LDA+ U and tight-binding electronic structure of InN nanowires

A. Molina-Sánchez, A. García-Cristóbal, and A. Cantarero

Instituto de Ciencia de Materiales, Universidad de Valencia, E-46071 Valencia, Spain A. Terentjevs

Physics Department, Politecnico of Torino, Torino, Italy G. Cicero

Chemistry and Materials Science Engineering Department, Politecnico of Torino, Torino, Italy 共Received 30 July 2010; published 20 October 2010兲

In this paper we employ a combined ab initio and tight-binding approach to obtain the electronic and optical properties of hydrogenated Indium nitride共InN兲 nanowires. We first discuss InN band structure for the wurtzite structure calculated at the LDA+ U level and use this information to extract the parameters needed for an empirical tight-binging implementation. These parameters are then employed to calculate the electronic and optical properties of InN nanowires in a diameter range that would not be affordable by ab initio techniques.

The reliability of the large nanowires results is assessed by explicitly comparing the electronic structure of a small diameter wire studied both at LDA+ U and tight-binding level.

DOI:10.1103/PhysRevB.82.165324 PACS number共s兲: 71.15.Mb, 73.22.Dj, 78.20.Bh, 73.21.Hb

I. INTRODUCTION

Indium nitride 共InN兲 has received considerable attention in recent years due to its direct band gap in the infrared range^1,2and the high electron mobilities.³The possibility of fabricating low-dimensional structures such as nanowires 共NWs兲共Refs.4and5兲 makes desirable the simulation of the electronic structure and optical properties of these system with atomistic approaches. Ab initio-based calculations are, in principle, capable of reproducing the band structure of bulk and systems of few atoms with a great accuracy. How- ever, the computational time turns out to be a limiting factor if the number of atoms increases, making this methods im- practical for the study of dependencies with the size and composition共alloying兲 of the system. However, the valuable ab initio information can be used for the development of empirical tight-binding 共TB兲共Ref. 6兲 or pseudopotential⁷ methods. These approaches are expected to describe with good precision the optical properties of both bulk and small systems, and at the same time, to allow quantitative studies of large systems in reasonable computational times. More- over, as opposed to the approaches based on the effective mass approximation共EMA兲, the empirical atomistic methods are able to incorporate the true symmetry of the nanostructures.⁸

Ab initio methods have been widely employed for the study of InN共see, e.g., Refs.9 and10兲. In particular, it has been shown that in order to get a correct description of its band structure close to the ⌫ point within the density- functional theory 共DFT兲 it is important to repair the deficiency of local-density approximation共LDA兲 or generalized gradient approximation 共GGA兲 functional in describing the Coulomb interaction between the localized d electrons of Indium. To this end, various approaches have been built on the DFT basis and, among others we mention the self- interaction correction methods^11,12 and the LDA with the Hubbard U correction共LDA+U兲.^13,14In our work, we adopt

an LDA+ U approach, which has been recently discussed and applied to the case of InN.¹⁵ Beyond DFT calculations, the GW methods provides good estimation of the nitrides band gap, opening it up the experimental value. However, this method is computationally more complex than LDA+ U, making difficult its application in large systems.^16,17

Among the various empirical approaches, we have chosen to work with the tight-binding method, that has demonstrated its applicability in III-N nanowires.¹⁸Moreover, this method allows to deal easily with the problem of the dangling bonds at the free surface of the nanowires,¹⁹and gives an intuitive physical picture of the wave functions in terms of the atomic orbitals. The TB parameters are obtained by fitting the LDA+ U bulk band structure to some selected points of the Brillouin zone, with special care in a faithful description of the neighborhood of the top of the valence band because of its dominant role in the determination of the optical properties.

Since there is no a priori guaranty of the transferability of the fitted TB parameters for their use in nanostructures calculations, we have compared the band structure of a small InN nanowire 共diameter 16.2 Å兲 calculated with the LDA + U and TB approaches, and obtain a very good agreement.

The use of this empirical tight-binding model in larger InN nanowires has been illustrated by calculating the dependence of the confinement energy on the NW size and the polarization dependence optical spectra for a nanowire size beyond the range accessible by ab initio calculations.

II. INDIUM NITRIDE BULK

InN has been studied by employing DFT-LDA共Ref. 20兲 calculations with on-site Hubbard U correction 共LDA+U兲, using ultrasoft pseudopotentials as realized in QUANTUM ESPRESSO,²¹ and expanding the electronic wave functions in plane waves. To describe correctly the structural properties of InN, the 4d electrons of the Indium are explicitly consid-

(2)

ered as valence electrons.²² For all calculations, the plane wave cutoff is 30 Ry, and a 共8⫻8⫻8兲 Monkhorst-Pack mesh is used.

It is known that LDA and GGA underestimate the binding energy of the cation semicore d states and overestimate their hybridization with the anion p valence states. As a result, an artificially large p-d coupling pushes up the valence band maximum共VBM兲 reducing the calculated band gap; in particular, in the case of InN, DFT-LDA gives null or negative band gap关the experimental band gap is ⬃0.67 eV 共Refs.2 and23兲兴. In this work we use the LDA+U 共Refs.13,14, and 24兲 method to correct this deficiency. To describe correctly the main InN band features, we have applied the U correc- tion both to indium 4d electrons and to nitrogen 2p electrons.

We note that in the case of InN, similarly to some oxides compounds,²⁵ the inclusion of the U correction on the anion 共the N p-shell兲 is important for a better description of p-d interaction and, besides inducing the band gap opening, it

gives the correct symmetry of the states close to the top of the valence band. The spin-orbit interaction is not taken into account in these calculations. The selected U parameters are Ud= 6.0 eV for In, Up= 1.5 eV for N, as discussed in details elsewhere.¹⁵Within this computational scheme, we obtained equilibrium lattice parameters for InN bulk in the wurtzite structure of a = 3.505 Å, c/a=1.616, and u=0.378. These values are close to the experimental data 关a=3.538 Å, c/a

= 1.612, and u = 0.377共Ref.26兲兴. In Fig.1共a兲the band structure for the InN bulk is presented: the band gap at⌫ is 0.34 eV, the valence band width is about 6.3 eV and the 4d in- dium states lie 16 eV below the VBM. The band gap be- comes positive but it is still underestimated as compared with the experimental value. Another remarkable improve- ment with respect to LDA consists of the correct description of the energy-level ordering and symmetry at the top of the valence band, which are essential to derive reliable TB parameters.

Concerning the empirical TB method, we have selected a basis of four orbital per atom, s , p_x, p_y, p_z 共sp³ model兲, as described in Refs.27. It is known that a better description of the conduction bands far from the⌫ point would require at least the use of an sp³s^ⴱ.²⁸However, we will focus our study in the optical properties near ⌫, and to keep the number of fitting parameters reduced, we avoid the addition of the s^ⴱ excited orbital. As we only include interaction between near- est neighbors, the crystal-field splitting at the top of the valence band cannot be reproduced since this is an effect caused by the interaction with second and third neighbors.

This limitation is corrected by the introduction of one ad hoc asymmetry between px− py and pz orbitals.²⁹ Moreover, the deviation from the ideal wurtzite has been introduced with the Harrison’s rule, applied to the interatomic parameters³⁰

V共d兲 =

冉

^dd⁰

冊

^␩^V共d⁰^兲, ^共1兲

where d is the relaxed LDA+ U distance, d₀the ideal wurtzite distance, and␩ an exponent that depends on the orbital.

In most of the literature, the accepted value for the exponent is around 2,³¹ although some authors make a discretionary use of such exponents in order to obtain a good description of the band structure under deformation共see Ref. 32兲 or a better agreement over the whole Brillouin zone共see in Ref.

33兲. In an attempt to limit the number of additional parameters we restrict the␩ to be different only for the overlap s

− pz. A optimized set of TB parameters fitted with this pro- cedure against the LDA+ U band structure is shown in Table

TABLE I. TB parameters共in electron volt兲 of InN proposed in this work. We follow the standard TB notation also used in Ref.27.

E_s^c E_p^c E_s^a E_p^a E_p

z

a ␩

−5.5247 9.6179 −6.7910 0.0461 −0.0076 1.8

V_ss␴ V_s

cp_a V_s

ap_c V_pp␴ V_pp␲ ␩s,p_z,␴

−1.7500 2.5981 −0.1083 −1.3000 3.0700 2.5

-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6

Energy(eV)

Γ_1c Γ_3v Γ_3v Γ_3c

Γ_5v

Γ K H A Γ M L A

Γ_1c

(a)

-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6

Γ K H A Γ M L A

Energy(eV)

(b)

FIG. 1.共Color online兲 Band structure of InN bulk obtained with 共a兲 LDA+U and 共b兲 TB approaches. The symmetry group labels of some relevant states are indicated in共a兲.

(3)

I, and the corresponding TB band structure is represented in Fig.1共b兲. Nevertheless, the band gap has been fixed to the experimental value.¹The obtained valence band reproduces well the LDA+ U results. The discrepancies at around −6 eV below the top of the valence band are attributed to the small basis set used in the sp³TB method.²⁷

In Fig.2 we report the details of the top of the valence band at⌫, comparing LDA+U 共open circles兲 with TB calculations 共lines兲, along the ⌫A and ⌫M directions. We ob- serve a very accurate fitting for the A-C bands whereas the B-band shows a slight deviation for k⬎0.1 in the M direc- tion. Along the⌫A direction, A and B bands are degenerate and both calculations match perfectly. The anticrossing between B and C bands is also well captured by the TB

method. The TB effective mass of the top of the valence band at ⌫ are m_⬜^A= 2.80, m_z^A= 1.86, m_⬜^B= 0.07, m_z^B= 1.86, m_⬜^C= 0.57, and m_z^C= 0.07. Regarding the symmetry of the wave functions at ⌫,³⁴ the degenerate states belong to the representation⌫6v. They have a pure composition of pxand pyorbitals, that coincides with both LDA+ U and TB results.

The second state in energy belongs to the representation⌫1v, being here 100% p_zfor both calculations. Note that the bot- tom of the conduction band state also belongs to this repre- sentation, although the predominant orbital is in this case s type. The TB conduction effective masses are m_⬜^c= 0.07 and m_z^c= 0.08, in agreement with the data of Ref. 35. The achieved good agreement at⌫ is of special relevance for the eventual use of the TB band structure in the analysis of optical and transport experiments.

III. INDIUM NITRIDE NANOWIRES

To asses the behavior of the TB parametrization in nanostructures, a comparison between the electronic states, calcu- lated with LDA+ U and TB approaches, has been performed, for a thin NW. Afterwards, a study in larger NWs with the TB method has been carried out, by exploring the band gap evolution with the NWs diameter and examining the optical response for a selected diameter.

The nanowire employed in the comparison has a diameter of 16.2 Å共see sketch in the left upper part of Fig.3兲, and the dangling bonds at the free surfaces are passivated with hydrogen atoms in order to avoid the presence of surface states within the gap.³⁶ In the ab initio calculation, the nanowire structure has been fully optimized until forces on atoms are less than 0.001 Ry/bohr per atom. We use a Monkhorst-Pack mesh of 6 points for the one dimensional nanowire Brillouin zone. The indium and nitrogen atoms placed at the surface FIG. 2. 共Color online兲 Top of the InN valence band. The empty

circles correspond to the LDA+ U bands, and the lines represent the TB bands. The component k_zof the wave vector k is normalized to

␲

c, such that k_z= 1 correspond to A. The wave vector in the M direction is expressed as^␲_a共␰,冑¹3␰,0兲, where 0ⱕ␰ⱕ1. The symmetry group of the states at⌫ are indicated and the bands are denoted as A, B, and C.

-0.15 -0.10 -0.05 0.00

-0.30 -0.25 -0.20 -0.15

InNNWValenceBand(eV)

Γ Α/4

v₄

v₃ v₃

v₁-v₂

Γ Α/4

v₁-v₂

LDA+U TB

v3 v4

v2

v1

(a) (b)

xˆ

yˆ

diameter

LDA+U

v4

v3

v2

v1

TB

FIG. 3. 共Color online兲 In the left upper part, nanowire represented with ball-and-sticks of diameter 16.2 Å. As well in the upper part, top of the valence band calculated with共a兲 LDAU and 共b兲 TB method. In the lower part, we represent the square of the wave function for the valence band statesv₁,v₂,v₃, andv₄calculated with both approaches.

(4)

modify slightly its tetragonal bond due to the presence of the passivant hydrogen atoms, changing slightly their interatomic distances. This surface reconstruction is not taken into account in the TB calculation, which assumes a perfect wurtzite everywhere.³⁷ The topmost valence band states, la- beled in increasing energy asv₁,v₂, . . ., are shown in Fig.3 关共a兲 LDA+U and 共b兲 TB method兴. The states v1 to v₄ are within a range of 150 meV in both calculation. The TB result yields in addition the value of −130 meV for the confinement energy of the statesv₁andv₂with respect to the top of bulk valence band. In the case of the LDA+ U calculation, the degeneracy betweenv₁andv₂is broken due to the exact consideration of the atomic distances when we relax the structure, an effect that the TB method ignores共such splitting has the small value of 3 meV兲. In any case, the portion of the band structure framed by a dashed green line, that contains thev₁,v₂, andv₃ subbands, exhibit a remarkable similarity in both calculations. In particular, the curvature of the bands are identical and only a slight difference between thev₁and v₃states 共26 meV and 18 meV for LDA+U and TB calcu- lation, respectively兲 is observed. Concerning the v4state, one can perceive that is closer in energy tov₃in the TB calcula- tions than in the LDA+ U approximation. Despite that energy is underestimated, v₄ has the same curvature in both approaches. Another difference between both methods is the existence of more states in the range of −150 meV from the statev₁, in the case of TB valence band. In order to exclude the relaxation as a source of error in our comparison, calcu- lations with LDA+ U in a nanowire, assuming perfect wurtz- ite everywhere were performed, without finding any substan- tial difference.

In the lower part of Fig.3 we show the square of the⌫ wave function,具⌿兩⌿典, for the valence band states, v1tov₄. The TB wave function can be expressed as

⌿_⌫共r兲 =

兺

_␣,j^A^␣,j^␾^j^{共r − r}^␣^兲 ^共2兲

here the index␣runs over atoms and j over orbitals. For the sake of simplicity, the orbitals are represented here with the hydrogen wave functions that share the same symmetry.³⁸ Fig.3 shows that the density is localized on the indium and nitrogen atoms, without spreading on the hydrogen atoms.

The first two degenerate valence band states共v1andv₂兲 exhibit the electron density elongated along two perpendicular directions 共x and y兲. Moreover, by looking closely to the density of each atom, it is evident that it comes from the px

and pyorbitals, for the x-elongated共v1兲 and y-elongated 共v2兲 states, respectively. In the next valence band state, v₃, the wave function is notably confined at the center of the NW, being the pz-orbital component predominant. In the case of thev₄state, we find that the wave function has a node in the nanowire center, and a mixed composition of px− pyorbitals.

One can distinguish that TB charge densities are more delo- calized toward the NW surface if compared to the LDA+ U picture. Even so, TB method reproduces exactly the qualita- tive features of the charge density in terms of symmetry and orbital composition. The observed differences are acceptable because of the restricted TB basis and the small sizes of the NW. For larger NWs, these small differences between the TB

method and the LDA+ U approximation are expected to be attenuated. We thus conclude that the TB parameters obtained and tested here are suitable to be used in the calculation of optical properties of InN-based nanostructures.

Once demonstrated the reliability of the TB approach and the quality of the parameters, we have performed TB calculations for larger NWs. In the first place, we show in Fig.4 the confinement energy, defined as the difference between the nanowire and bulk band gap, versus 1/r, being r the NW radius. The full circles correspond to the TB results and the band gap energies calculated with LDA+ U for two NWs are drawn with full rectangles. The confinement energy calculated with the effective mass approximation, assuming para- bolic bands, is

␧EMA=

冉

^2m^ប²_⬜^c ⁺^2m^ប²_⬜^A

冊冉

^k^r¹⁰

冊

²^, ^共3兲

k₁⁰= 2.4048, being the first zero of the Bessel function J₀共x兲, and the effective masses are reported in Sec. II. For large radii, when 1/r⬍0.03 Å⁻¹, the TB method and the EMA follow the same trend, proportional to 1/r². For decreasing radii 共1/r⬎0.03 Å⁻¹兲 EMA overestimate the confinement energy as compared with the TB results, that changes in this range the⬃1/r²behavior to⬃1/r. Moreover, the TB results connect perfectly with the ab initio computed values, repre- sented by full squares, at radii 8.1 and 5.1 Å. This smooth interpolation confirms the suitability of the TB method to link the NWs size ranges of 10 Å, where ab initio are prac- tical and 100 Å, where the共EMA兲 start to be applicable. In this intermediate size range the TB approach has the advan- tages of keeping the atomistic nature of the system and be efficient in terms of computational effort.

In addition the TB method offers the possibility of calculating the optical absorption spectra without introducing new parameters in the model. The absorption coefficient for light with polarization vector e can be written as³⁹

␣^e共ប␻兲 ⬀

冕

BZ

f_c,v^e 共k兲␦共Ec,k− E_v,k−ប␻兲, 共4兲

where we integrate over the one-dimensional Brillouin zone, and the oscillator strength is calculated as

FIG. 4. 共Color online兲 Dependence of the confinement energy on the nanowire size. The limit of 1/r→0 is the bulk band gap.

(5)

f_c,v^e 共k兲 ⬀兩具⌿c兩e · p兩⌿v典兩²

E_c,k− E_v,k . 共5兲 The momentum matrix element, 具⌿c兩e·p兩⌿v典, is calculated as in Ref.40, for two light polarizations: in-plane共per- pendicular to NW axis兲, e_⬜= 1/

冑

2共xˆ+iyˆ兲, and in-axis 共paral- lel to NW axis兲, ez= zˆ. The delta function is replaced by a Lorentz function of width 7 meV. In Fig.5 we represent the absorption spectrum of a NW of diameter 70.8 Å for the defined light polarizations. The valence and conduction wave functions that participate in the transitions at the absorption edge are also shown. In both spectra it is recognized the one-dimensional density of states共modulated by the oscillator strength兲, the ez spectra exhibiting a larger separation between the absorption peaks. By analyzing more in more detail the e_⬜spectra, one can appreciate that absorption edge does not take place at the energy of the fundamental band gap共corresponding to the transition v₁− c₁兲. This is because the symmetry valence state v₁ 共see Fig. 5兲, whose charge density has a node in the at the NW center, making negligible the spatial overlap between the states v₁ and c₁. The first optically active transition, blueshifted 10 meV with respect

to the fundamental gap, involves the degenerate statesv₂and v₃, shown in Fig.5. On the other hand, the absorption edge of the ezspectra is shifted 24 meV with respect the e_⬜spec- tra since the first state with significant pzorbital component isv₈.

IV. CONCLUSIONS

In this work, we have obtained an InN band structure with a fundamental band gap of 0.34 eV, by means of LDA+ U calculations. The Hubbard U correction to the d orbitals of indium and p orbitals of nitrogen has palliated the zero band gap problem of InN, present in LDA or GGA calculations.

The LDA+ U band structure has been fitted with a sp³ tight- binding model obtaining a very reasonable overall agreement despite the small size of the TB basis. It is specially notice- able the satisfactory coincidence between the energy and symmetry of the wave functions at⌫ point.

This fitted set of TB parameters is, in principle, usable for calculations of the electronic structure of quantum wells, wires or/and dots. In order to test the suitability of this empirical approach, a band-structure calculation is performed of a InN NW of 16.2 Å diameter and compare with the corre- sponding LDA+ U calculation, which includes a previous re- laxation of the atomic positions. This comparison shows that, without any additional fitting, the TB band structure and wave functions matches adequately with their ab initio coun- terparts. Possibly, the remaining differences between the two models could be reduced by employing a TB model with an extended orbital basis set, although this would increase the number of parameters and computational time. The study the evolution of the NW band gap with the radius confirms the adequacy of TB method to connect efficiently very small sizes nanoobjects共a few angstrom兲 accessible with ab initio approaches, with large sizes nanostructures 共hundreds of angstrom兲, where continuous methods are commonly employed. Finally, the potential of this empirical atomistic approach is illustrated by the analysis of the absorption of a large nanowire.

ACKNOWLEDGMENTS

This work has been supported by the NANOLICHT project共NanoSci-ERA兲 and the Ministry of Science and In- novation 共under Grant No. MAT2009-10350兲. Computer time was provided by CINECA through the CNR-INFM

“Iniziativa Calcolo Parallelo” and by Tirant Supercomputer of the Red Española de Supercomputación共RES兲, hosted in the University of Valencia.

1V. Y. Davydov, A. A. Klochikhin, R. P. Seisyan, V. V. Emtsev, S.

V. Ivanov, F. Bechstedt, J. Furthmüller, H. Harima, A. V.

Mudryi, J. Aderhold, O. Semchinova, and J. Graul,Phys. Status Solidi B 229, R1共2002兲.

2J. Wu, W. Walukiewicz, K. M. Yu, J. W. Ager III, E. E. Haller, H.

Lu, W. J. Schaff, Y. Saito, and Y. Nanishi,Appl. Phys. Lett. 80, 3967共2002兲.

3W. Walukiewicz, J. W. Ager III, K. M. Yu, Z. Liliental-Weber, J.

Wu, S. X. Li, R. E. Jones, and J. D. Denlinger,J. Phys. D 39, R83共2006兲.

arb.units)

er⊥ 1

1 c

v − v₂,v₃−c₁

1 3 2,v c

v −

1

1 c

v −

×2

0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4

Energy (eV)

absorption(a

erz

⊥ 1

8 c

v −

1

8 c

v −

FIG. 5. 共Color online兲 Optical absorption spectra for in-plane 共e⬜multiplied by two兲 and on-axis 共ez兲 light polarization 共see main text兲. The wave functions that participate in the relevant optical transitions are also represented共both spectra are displayed in the same scale兲.

(6)

4E. Calleja, J. Ristic, S. Fernandez-Garrido, L. Ceruffi, M. A.

Sánchez-García, J. Grandal, A. Trampert, U. Jahn, G. Sánchez, A. Griol, and B. Sánchez, Phys. Status Solidi B 244, 2816 共2007兲.

5B. Pal, K. Goto, M. Ikezawa, Y. Masumoto, P. Mohan, J. Moto- hisa, and T. Fukui,Appl. Phys. Lett. 93, 073105共2008兲.

6A. Di Carlo,Semicond. Sci. Technol. 18, R1共2003兲.

7G. Bester,J. Phys.: Condens. Matter 21, 023202共2009兲.

8G. Bester and A. Zunger,Phys. Rev. B 71, 045318共2005兲.

9C. Stampfl and C. G. Van de Walle, Phys. Rev. B 59, 5521 共1999兲.

10J. Furthmüller, P. H. Hahn, F. Fuchs, and F. Bechstedt,Phys.

Rev. B 72, 205106共2005兲.

11M. M. Rieger and P. Vogl,Phys. Rev. B 52, 16567共1995兲.

12D. Vogel, P. Krüger, and J. Pollmann,Phys. Rev. B 55, 12836 共1997兲.

13V. I. Anisimov, F. Aryasetiawan, and A. I. Lichtenstein,J. Phys.:

Condens. Matter 9, 767共1997兲.

14M. Cococcioni and S. de Gironcoli,Phys. Rev. B 71, 035105 共2005兲.

15A. Terentjevs, A. Catellani, D. Prendergast, and G. Cicero, Phys.

Rev. B 82, 165307共2010兲.

16P. Rinke, M. Winkelnkemper, A. Qteish, D. Bimberg, J. Neuge- bauer, and M. Scheffler,Phys. Rev. B 77, 075202共2008兲.

17A. Svane, N. E. Christensen, I. Gorczcyca, M. van Schilfgaarde, A. N. Chantis, and T. Kotani,Phys. Rev. B 82, 115102共2010兲.

18D. Camacho Mojica and Y. M. Niquet,Phys. Rev. B 81, 195313 共2010兲.

19Y. M. Niquet, C. Delerue, G. Allan, and M. Lannoo,Phys. Rev.

B 62, 5109共2000兲.

20J. P. Perdew and A. Zunger,Phys. Rev. B 23, 5048共1981兲.

21P. Giannozzi, S. Baroni, N. Bonini, M. Calandra, R. Car, C.

Cavazzoni, D. Ceresoli, G. L. Chiarotti, M. Cococcioni, I. Dabo, A. Dal Corso, S. de Gironcoli, S. Fabris, G. Fratesi, R. Gebauer, U. Gerstmann, C. Gougoussis, A. Kokalj, M. Lazzeri, L. Martin- Samos, N. Marzari, F. Mauri, R. Mazzarello, S. Paolini, A. Pas- quarello, L. Paulatto, C. Sbraccia, S. Scandolo, G. Sclauzero, A.

P. Seitsonen, A. Smogunov, P. Umari, and R. M. Wentzcovitch,

J. Phys.: Condens. Matter 21, 395502共2009兲.

22A. F. Wright and J. S. Nelson,Phys. Rev. B 51, 7866共1995兲.

23J. S. Thakur, Y. V. Danylyuk, D. Haddad, V. M. Naik, R. Naik, and G. W. Auner,Phys. Rev. B 76, 035309共2007兲.

24A. Janotti, D. Segev, and C. G. Van de Walle,Phys. Rev. B 74, 045202共2006兲.

25M. Korotin, T. Fujiwara, and V. Anisimov, Phys. Rev. B 62, 5696共2000兲.

26W. Paszkowicz, R. Cerný, and S. Krukowski,Powder Diffr. 18, 114共2003兲.

27A. Kobayashi, O. F. Sankey, S. M. Volz, and J. D. Dow,Phys.

Rev. B 28, 935共1983兲.

28P. Vogl, H. P. Hjalmarson, and J. D. Dow,J. Phys. Chem. Solids 44, 365共1983兲.

29S. Schulz, S. Schumacher, and G. Czycholl,Eur. Phys. J. B 64, 51共2008兲.

30W. A. Harrison, Electronic Structure and the Properties of Solids 共Dover, New York, 1989兲.

31G. H. Li, A. R. Goñi, C. Abraham, K. Syassen, P. V. Santos, A.

Cantarero, O. Brandt, and K. Ploog, Phys. Rev. B 50, 1575 共1994兲.

32T. B. Boykin, G. Klimeck, R. C. Bowen, and F. Oyafuso,Phys.

Rev. B 66, 125207共2002兲.

33J. Jancu, F. Bassani, F. D. Sala, and R. Scholz,Appl. Phys. Lett.

81, 4838共2002兲.

34L. C. Lew Yan Voon, M. Willatzen, M. Cardona, and N. E.

Christensen,Phys. Rev. B 53, 10703共1996兲.

35J. Wu,J. Appl. Phys. 106, 011101共2009兲.

36X. Huang, E. Lindgren, and J. R. Chelikowsky,Phys. Rev. B 71, 165328共2005兲.

37M. P. Persson and A. Di Carlo, J. Appl. Phys. 104, 073718 共2008兲.

38A. Galindo and P. Pascual, Quantum Mechanics I 共Springer- Verlag, Berlin, 1990兲.

39M. Virgilio and G. Grosso,Phys. Rev. B 77, 165315共2008兲.

40L. C. Lew Yan Voon and L. R. Ram-Mohan,Phys. Rev. B 47, 15500共1993兲.
