Name : Date : How to explain a mechanism

The steam machine

Course Note : 1ère – Tale

Page 1 on 4

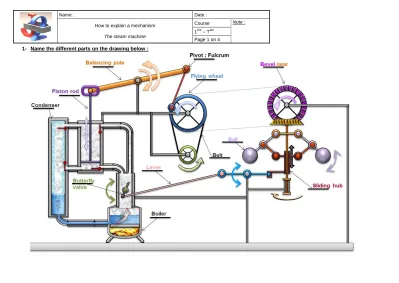

1- Name the different parts on the drawing below :

(2)

Name : Date : How to explain a mechanism

The steam machine

Course Note : 1ère – Tale

Page 2 on 4

2- Explain, first in French, synthetically the working of this steam machine :

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

3- Translate in English the process of functioning :

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

_________________________________________________________________________________________________

(3)

Name : Date : How to explain a mechanism

The steam machine

Course Note : 1ère – Tale

Page 3 on 4

The James Watt’s steam machine:

(4)

Name : Date : How to explain a mechanism

The steam machine

Course Note : 1ère – Tale

Page 4 on 4

The steam machine in application (blueprint):
