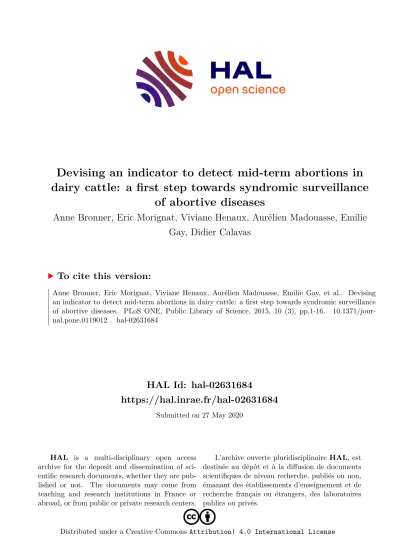

Devising an indicator to detect mid-term abortions in dairy cattle: a first step towards syndromic surveillance of abortive diseases

HAL Id: hal-02631684

https://hal.inrae.fr/hal-02631684

Submitted on 27 May 2020

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

dairy cattle: a first step towards syndromic surveillance of abortive diseases

Anne Bronner, Eric Morignat, Viviane Henaux, Aurélien Madouasse, Emilie Gay, Didier Calavas

To cite this version:

Anne Bronner, Eric Morignat, Viviane Henaux, Aurélien Madouasse, Emilie Gay, et al.. Devising

an indicator to detect mid-term abortions in dairy cattle: a first step towards syndromic surveillance

of abortive diseases. PLoS ONE, Public Library of Science, 2015, 10 (3), pp.1-16. �10.1371/jour-

nal.pone.0119012�. �hal-02631684�

Devising an Indicator to Detect Mid-Term Abortions in Dairy Cattle: A First Step

Towards Syndromic Surveillance of Abortive Diseases

Anne Bronner

* , Eric Morignat

, Viviane Hénaux

, Aurélien Madouasse

, Emilie Gay

, Didier Calavas

1 ANSES-Lyon, Unité Epidémiologie, 31 avenue Tony Garnier, 69364 Lyon Cedex 07, France, 2 INRA, UMR1300 Biologie, Epidémiologie et Analyse de Risque en santé animale, CS 40706, 44307 Nantes, France, 3 LUNAM Université, Oniris, Ecole nationale vétérinaire, agroalimentaire et de l ’ alimentation Nantes Atlantique, UMR BioEpAR, 44307 Nantes, France

* [email protected]

Abstract

Bovine abortion surveillance is essential for human and animal health because it plays an important role in the early warning of several diseases. Due to the limited sensitivity of tradi- tional surveillance systems, there is a growing interest for the development of syndromic surveillance. Our objective was to assess whether, routinely collected, artificial insemination (AI) data could be used, as part of a syndromic surveillance system, to devise an indicator of mid-term abortions in dairy cattle herds in France. A mid-term abortion incidence rate (MAIR) was computed as the ratio of the number of mid-term abortions to the number of fe- male-weeks at risk. A mid-term abortion was defined as a return-to-service (i.e. a new AI) taking place 90 to 180 days after the previous AI. Weekly variations in the MAIR in heifers and parous cows were modeled with a time-dependent Poisson model at the département level (French administrative division) during the period of 2004 to 2010. The usefulness of monitoring this indicator to detect a disease-related increase in mid-term abortions was evaluated using data from the 2007 – 2008 episode of bluetongue serotype 8 (BT8) in France. An increase in the MAIR was identified in heifers and parous cows in 47% (n = 24) and 71% (n = 39) of the départements . On average, the weekly MAIR among heifers in- creased by 3.8% (min-max: 0.02 – 57.9%) when the mean number of BT8 cases that oc- curred in the previous 8 to 13 weeks increased by one. The weekly MAIR among parous cows increased by 1.4% (0.01 – 8.5%) when the mean number of BT8 cases occurring in the previous 6 to 12 weeks increased by one. These results underline the potential of the MAIR to identify an increase in mid-term abortions and suggest that it is a good candidate for the implementation of a syndromic surveillance system for bovine abortions.

OPEN ACCESS

Citation: Bronner A, Morignat E, Hénaux V, Madouasse A, Gay E, Calavas D (2015) Devising an Indicator to Detect Mid-Term Abortions in Dairy Cattle: A First Step Towards Syndromic Surveillance of Abortive Diseases. PLoS ONE 10(3): e0119012.

doi:10.1371/journal.pone.0119012 Received: June 4, 2014 Accepted: January 8, 2015 Published: March 6, 2015

Copyright: © 2015 Bronner et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Data Availability Statement: Data used in this study are not freely available due to legal restrictions.

Demographic and reproductive data were obtained from INRA (the French National Institute for Agricultural Research — Institut national de recherche agronomique, contact: [email protected].

fr), and notifications of BT8 clinical cases from the French Ministry of Agriculture (contact: bsa.sdspa.

[email protected]).

Funding: The authors received no specific funding for this work.

Competing Interests: The authors have declared

that no competing interests exist.

Introduction

Over the past years, several major abortive disease outbreaks and epizootics have occurred in ruminant livestock in Europe. Notable examples include zoonotic diseases, such as Q fever in the Netherlands between 2007 and 2010 [1], and bovine brucellosis in Belgium and France in 2012 [2,3]. In addition to the concern for public health, epizootics of abortive diseases may also cause severe economic losses. For example, in August 2006, bluetongue serotype 8 (BT8) was detected for the first time in the Netherlands with indirect costs to the Dutch farming industry estimated at about 50 million euros per year [4]. Moreover, there is a risk that Rift Valley Fever, a major zoonotic viral disease that currently circulates in most African countries and the Arabian Peninsula [5], will spread to the southern Mediterranean Basin. In this context, bovine abortion surveillance is critical for human and animal health because it plays an important role in the early warning for several diseases.

In France, bovine abortion surveillance consists in mandatory notification. It aims to detect as early as possible any resurgence of bovine brucellosis, of which the country has been de- clared officially free since 2005 [6]. According to European regulations, in cases of bovine abor- tion, farmers must consult their veterinarian who reports it to State veterinary services and samples the aborted cow for serological analysis of Brucella [7,8]. Abortion is defined by na- tional regulations as the expulsion of the fetus or calf, either stillborn or which dies less than 48 hours after being born [9]. However, only some abortions are notified. First, reported abortions are mainly late abortions because early abortions are usually considered as fertility problems and mid-term abortions, which occur between the third and sixth month of pregnancy, are rarely detected by farmers. Moreover, in a previous study using capture-recapture methods, we estimated that the overall sensitivity of the system, i.e. the proportion of farmers who reported abortion(s) among farmers who were assumed to have detected abortion(s), was about 20% for beef and 39% for dairy cattle herds [10].

Lack of sensitivity is often cited as one of the main limitations of event-driven surveillance systems (i.e. “ clinical ” or “ passive ” surveillance systems) [11], and raises concern about the ability of such systems to effectively provide early detection of health events. In this context, there is a need to improve traditional surveillance systems, but also to explore other ways to im- prove animal and public health surveillance. One of these ways is syndromic surveillance [12], defined as “ the real-time (or near real-time) collection, analysis, interpretation, and dissemina- tion of health-related data to enable the early identification of the impact (or absence of im- pact) of potential human or veterinary public-health threats which require effective public health action” [13]. Syndromic surveillance is not based on laboratory-confirmed diagnoses but on non-specific clinical signs, symptoms and proxy measures (or “ syndromes ” ) [13]. In re- gard to abortive diseases, we evaluated the possibility of using artificial insemination (AI) data to develop an indicator for syndromic surveillance. These data, routinely collected for purposes other than surveillance, have already been used to analyze the influence of several diseases on reproductive disorders [14 – 17]. In particular, an analysis of the time elapsed between succes- sive AIs confirmed the influence of BT8 exposure during gestation on return-to-service [16,17], previously suggested by field observations [18,19] and supported by the transplacental transmission capacity of BT8 [20,21]. More recently, a study highlighted that reproduction data can be used prospectively as indicators of disease emergences [22].

In this context, our objective was to assess whether AI data could be used, as part of a syn-

dromic surveillance system, to devise an indicator of mid-term abortions in dairy cattle herds

in France in order to assess retrospectively the impact of an abortive disease. Based on the

availability of data on the BT8 epizootic that emerged in France in 2006 and then spread across

the country, we assessed the capacity of the indicator to identify a BT8-related increase in

abortion rates, and quantify the influence of the BT8 epizootic on this indicator. We discuss the potential of the monitoring of this syndromic indicator as a complementary system for the surveillance of abortive diseases.

Materials and Methods Data

Demographic and reproduction data were extracted from the French National Genetic Infor- mation System (SNIG). SNIG is a database managed by the French National Institute for Agri- cultural Research (INRA—Institut national de la recherche agronomique), in collaboration with the French Livestock Institute (Institut de l ’ Elevage). The compiled data include animal identifications and pedigrees, performance testing, insemination centers, herd books, laborato- ries, slaughterhouses, etc. These data were provided by INRA and obtained from herds regis- tered for monitoring milk production volumes and in which artificial insemination (AI) is practiced; these herds represent about 60% of French dairy cattle herds. For each female, data included farm location (i.e. département, an intermediate French administrative division with a mean area of 5,800 km

), individual characteristics (identification number, birth date), repro- ductive events (AI and calving dates), and death date if the animal had died. Females were di- vided into two groups according to the number of calvings: heifers (females with no calving reported before the considered AI date) and parous cows (females with at least one calving re- ported before the considered AI date). Data have been gathered since 2001 but cattle registered since 1 January 2004 were selected for the study, because the notification system is considered to have been fully operational since then. Six reproductive seasons between 1 August 2004 and 31 July 2010 were used to follow the seasonality of calvings which peak in September/October.

Each reproductive season X/X+1 starts on 1 August of year X and ends on 31 July of year X+1:

e.g. the first reproductive season 2004/2005 started on 1 August 2004 and ended on 31 July 2005 and the last reproductive season 2009/2010 started on 1 August 2009 and ended on 31 July 2010.

During the BT8 epizootic, BT8 surveillance relied on active surveillance (based on serologi- cal sampling in herds randomly selected) and event-driven surveillance (or “passive” surveil- lance, based on the mandatory notification of suspected cases of BT8). Notifications of BT8 clinical cases from 2007 to 2009 in France were provided by the French Ministry of Agriculture.

In contrast to active surveillance, event-driven surveillance identifies (a proxy of) the date of exposure of herds. The event-driven surveillance system requires each cattle owner to report every clinically suspect case to their veterinarian, who samples the suspected animal for confir- mation. Data included the farm location (département), and dates of clinical suspicion and of confirmation of each BT8 case.

Indicator of mid-term abortions

Mid-term abortion in a female was defined as the occurrence of an AI 90 to 180 days after a previous AI. For each studied département and female parity group (heifers versus parous cows), the number of mid-term abortions on day d of the study period was estimated as the number of females inseminated on day d who had previously been inseminated 90 to 180 days prior; the number of females at risk of having a mid-term abortion was estimated as the num- ber of females still alive on day d and having been inseminated 90 to 180 days prior.

To avoid the weekday effect in the modeling process, data were aggregated for each départe-

ment and female parity group on a weekly timescale. Most of the females are inseminated on a

week day and the number of AIs decreases sharply on Sundays and legal holidays. The number

of female-weeks at risk of having a mid-term abortion in a given week was obtained by adding

together the number of days of presence of each female that week divided by 7. The mid-term abortion incidence rate (MAIR) was computed on a weekly timescale as follows:

MAIR

¼ Y

N

where Y

is the number of mid-term abortions over week w in département i and female pari- ty group j and N

is the number of female-weeks at risk of having a mid-term abortion. The principle behind the computation is explained in Fig. 1.

The study focused on those départements that reported at least 60,000 heifer-weeks and 180,000 cow-weeks at risk of having a mid-term abortion during the study period. To specifi- cally study the effect of the BT8 epizootic, the study focused on départements where at least one clinical case due to BT8 had been reported in 2007 or 2008 but none due to BT1, another blue- tongue serotype that emerged in the same period in the South of France [23].

Modeling of MAIR time series

Fluctuations in MAIRs for each département and female parity group over the study period were modeled using a Poisson regression model with over-dispersion. All statistical analyses were computed using R [24]. The development of the regression model was carried out in two steps: the MAIR time series were first analyzed by integrating time covariates in the model and then a BT8 covariate.

Time covariates. For each département and female parity group, three models were tested successively including: (1) a linear trend with annual periodicity, (2) a linear trend with annual and six-month periodicities, and (3) a linear trend with annual, six-month and three-month periodicities. To reduce the effect of outliers on the estimate of covariate coefficients, a second round of estimations was performed, weighting the observations by the inverse of their residu- als, as proposed by Farrington et al. [25]. Reweighting was conducted using the R “surveillance”

package [26]. The most complete model included time covariates as follows:

Logðm

Þ ¼ b

þ b

w þ b

sinð2p w=52Þ þ b

cosð2p w=52Þ þ b

sinð2p w 2=52Þ þ b

cosð2p w 2=52Þ þ b

sinð2p w 4=52Þ þ b

cosð2p w 4=52Þ þ logðN

Þ

with μ

representing the mean number of mid-term abortions for each week w, département i and parity group j, log(N

) as the number of female-weeks at risk of having a mid-term abor- tion, and β the covariate coef fi cients.

Model selection was conducted using the R “bblme” package where the quasi-AIC criterion (QAIC) was chosen for model parsimony [27,28]. For each département and female parity group, the QAICs of the three models were calculated by using the quasi-likelihood, which was the likelihood divided by the over-dispersion parameter estimated from the most complex model, i.e. the model that included a linear trend with annual, six-month and three-month pe- riodicities [28]. The model with the lowest QAIC was selected and named M1.

BT8 covariate. The associations between the observed MAIR and the mean number of BT8 cases were investigated over alternative time intervals. To meet this objective, we adapted cross-correlation maps introduced by Curriero et al. [29]. This method is used to study associa- tions between a time series of a dependent variable Y

and a covariate X̅

averaged over the time interval ranging from t − ℓ to t − k, with ℓ k [29–31].

In our study, for each département and female parity group, we studied associations between

the time series of the dependent variable MAIR

and a bluetongue covariate B̅t

that

corresponded to the number of BT8 cases averaged over the time interval ranging from week w - ℓ

to week w - k

(with ℓ

k

). This bluetongue covariate was computed for all cattle herds (whatever their production type) to reflect the level of exposure of cattle herds included in the study and overcome the issue of the under-reporting of BT8 clinical cases. This covariate was included in the pre-selected model M1 as follows:

Logðm

Þ ¼ M1 þ b Bt

Time lags ℓ

and k

ranging from 0 to 24 weeks were tested. The BT8 virus does not cause abor- tions in females infected before the AI [16], and the MAIR included females up to 180 days (24 weeks) after AI. When ℓ

= k

, the MAIR over week w depended on the number of BT8 clinical cases reported during the ℓ

week (or the k

week) preceding week w.

Model selection. In total, for each département and female parity group, 300 models m

were implemented with alternative ℓ

and k

values ranging from 0 to 24 weeks and ℓ

k

. As for model M1, a second round of estimations was performed for each model m

, weighting the observations by the inverse of their residuals [25]. The most parsimonious model (i.e. with the lowest QAIC) for each département and female parity group was named M2. Partial autocorre- lations between residuals of the most parsimonious models M2 were examined in order to

Fig 1. Weekly calculation of the MAIR. Suppose a situation in which five females A, B, C, D and E are recorded over week w at different stages of reproduction (with the same parity and in the same département ). The period between D

and D

starts 90 days and ends 180 days after the first AI. By aggregating the number of mid-term abortions and the number of females at risk of having a mid-term abortion on a weekly timescale, one mid- term abortion was identified out of three female-weeks (i.e. 21 female-days/7) at risk.

doi:10.1371/journal.pone.0119012.g001

identify any signs of non-randomness [32]. Moreover, the fit of the M2 models was assessed graphically by verifying that the weekly observed abortion rates overlapped with the 95% pre- diction intervals of the MAIR, computed using the method proposed by Farrington et al. [25].

To incorporate the uncertainty of model selection into the process of time lag selection, the QAIC value of each model m

was compared to QAIC

as follows: Δ

= QAIC

− QAIC

. Candidate models were defined as models with Δ

2. Their relative quasi-likelihood Δ

was computed and normalized to unity by [33]:

wg

¼ expðD

=2Þ X

nm ij

expðD

=2Þ

where n

denotes the number of candidate models for département i and female parity group j.

The resulting weights wg

can be interpreted as the weight of evidence in favor of model m

being most appropriate, given both the data and the model set [34]. They were used to incorpo- rate the uncertainty of model selection into the process of selection of time lags ℓ

and k

. Time lags ℓ

and k

selected by each candidate model m

to compute the BT8 covariate were weighted by wg

as follows:

‘

¼ wg

‘

and k

¼ wg

k

Within each parity group, départements for which the marginal probability density functions of weighted time lags ‘

and k

were multimodal, with the probability value of the second best mode higher than half of the value of the major mode, were excluded.

Evaluation of the effect of BT8 on the MAIR. To study the influence of the mean number of BT8 cases computed over département-specific time intervals on the MAIR, the aggregate BT8 covariate effect for département i and female parity group j corresponded to the effect esti- mated by candidate models (i.e. positive: an increase in the MAIR; negative: an decrease in the MAIR; non–significant: no change in the MAIR) when all candidate models estimated the same BT8 covariate effect. When the BT8 covariate effect differed among candidate models, the aggregate BT8 covariate effect was considered as inconclusive.

To compare the influence of the number of BT8 cases on the MAIR among départements, the mean of weighted time lags ‘

and k

computed for each département were averaged among départements, distinguishing between heifers and parous cows, resulting in average time lags ℓ

̅ and k

̅ . Then, for each département, the effect of the mean number of BT8 cases be- tween w − ℓ̅

and w − k̅

on the MAIR was predicted from a model (named M3) that included the BT8 covariate B̅t

for the corresponding female parity group. The relative risk of bluetongue on the MAIR was then estimated for département i and female parity group j as RR

= exp(β

) [35].

Results

Population characteristics

The study population included 147,517,197 female-weeks from 59 départements that met the

inclusion criteria (varying from 268,906 to 12,629,289 female-weeks among départements),

30% of which were heifers. During the study period, 847,991 mid-term abortions were estimat-

ed: 176,306 among heifers and 671,685 among parous cows. Among heifers, the observed

MAIR averaged over the study period was less than 0.32 per 100 female-weeks in 25% of the

départements, less than 0.38 per 100 female-weeks in 50% of the départements, and less than

0.44 per 100 female-weeks in 75% of the départements (with a mean value of 0.38 per 100 fe- male-weeks). Among parous cows, the observed MAIR averaged over the study period was less than 0.55 per 100 female-weeks in 25% of the départements, less than 0.67 per 100 female- weeks in 50% of the départements, and less than 0.75 per 100 female-weeks in 75% of the dépar- tements. For each département and female parity group, the observed MAIR varied periodically with higher values in November and December (Fig. 2).

In total, 29,696 BT8 clinical cases were notified in the 59 départements during the study pe- riod. The first epizootic wave spread across 36 out of the 59 selected départements, peaking in September 2007 (with 3,778 outbreaks). All 59 départements were infected during the second epizootic wave, peaking in August 2008 with 7,596 outbreaks.

Selection of candidate models

The pre-selected model M1 included a linear trend with an annual periodicity in 16 départe- ments for heifers and 9 départements for parous cows; a linear trend with annual and six- month periodicities in 18 départements for heifers and 11 départements for parous cows; a line- ar trend with annual, six-month and three-month periodicities in 25 départements for heifers and 39 départements for parous cows.

Among heifers, between 1 and 300 models provided a good fit to the data ( Δ

2), 45 départements having less than 50 candidate models. Among parous cows, 1 to 174 models were

Fig 2. Observed and predicted weekly MAIR and number of BT8 cases in the Aisne département . The observed mid-term abortion incidence rate, MAIR

(in grey), was computed for heifers (Fig. 2A, on the left) and parous cows (Fig. 2B, on the right) as the ratio of the observed number of mid-term abortions to the number of at-risk female-weeks. The predicted MAIR (solid pink line) and predictive intervals (dashed pink line) were estimated by modeling the MAIR according to time and the BT8 covariate averaged over a département -specific time interval (with the candidate model having the lowest QAIC, M2). The number of clinical BT8 cases is plotted in black.

doi:10.1371/journal.pone.0119012.g002

selected per département, 48 départements having less than 50 candidate models. Residuals from the most parsimonious M2 models were not auto-correlated. Comparison of the weekly observed and predicted MAIR confirmed their good fit (Fig. 2); however, the observed MAIR exceeded the 95% prediction intervals over a few weeks (between 1 and 13 out of the 312 weeks included in the study period, depending on départements). Eight départements were excluded for heifers and four départements for parous cows because the marginal probability density functions of ‘

and k

were multimodal, and the probability value of the second-best mode was higher than half of the value of the major mode.

Influence of the BT8 covariate on the MAIR

The effect of the mean number of BT8 cases computed over département-specific time intervals showed an increase in the MAIR in 47% out of the 51 départements among heifers and 71% out of the 55 départements among parous cows (Table 1 and Fig. 3). It showed an increase in the MAIR in 18 départements among both groups of females, as illustrated by the Aisne départe- ment (Fig. 2A and 2B). Among heifers, the mean of weighted time lags ranged from 0 to 22 weeks for ‘

and from 0 to 20 weeks for k

among départements (Fig. 4); weighted mean of time intervals varied from 0 to 15 weeks. Among parous cows, the mean of weighted time lags ranged from 0 to 22 weeks for ‘

and for 0 to 19 weeks for k

among départements (Fig. 4);

weighted mean of time intervals varied from 0 to 14 weeks.

This contingency table illustrates, for each female parity group, the distribution of results on the bluetongue effect on the MAIR among départements based on département-specific time in- tervals (from w − ℓ

to w − k

before week w) versus the common time interval (from w − ℓ

̅ to w − k̅

). The common time interval ranged from 8 to 13 weeks before week w for heifers and from 6 to 12 weeks for parous cows. See Methods for details.

Among heifers, time lags ℓ

̅ and k̅

averaged among départements were of 13 and 8 weeks (Fig. 4). The number of BT8 cases averaged over a common time interval ranging between 8 and 13 weeks prior to week w (B̅t

) had a positive effect in 61% of départements (Table 1), with a relative risk (RR) ranging from 1.002 to 1.579 and a median and mean of 1.013 and 1.038, respectively (Fig. 5). Among parous cows, average time lags ℓ

̅ and k̅

estimated among départements were of 12 and 6 weeks (Fig. 4). The number of BT8 cases averaged over a common time interval ranging between 6 and 12 weeks prior to week w (B̅t

) had a

Table 1. Qualitative effect of the BT8 covariate on the MAIR computed over département -speci fi c and common time intervals.

BT8 covariate effect computed over a common time interval

Heifers Parous cows

Positive Non- signi fi cant

Total Positive Non- signi fi cant

Total

BT8 covariate effect computed over département - speci fi c time intervals

Positive 19 5 24 (47%) 36 3 39 (71%)

Non- signi fi cant

1 4 5 (10%) 0 4 4 (7%)

Negative 0 0 0% 0 1 1 (2%)

Inconclusive 11 11 22 (43%) 0 11 11 (20%)

Total 31

(61%)

20 (39%) 51

(100%) 36 (65%)

19 (35%) 55

(100%)

doi:10.1371/journal.pone.0119012.t001

positive effect in 65% of départements (Table 1), with an RR ranging from 1.001 to 1.085 and a median and mean value of 1.008 and 1.014, respectively (Fig. 5).

Discussion

Using AI data, we studied the incidence rate of mid-term abortions, a potential indicator for developing and implementing a syndromic surveillance system of abortive diseases in cattle.

We modeled temporal variations of the MAIR in heifers and parous cows during 2004–2010 in the 59 départements that were impacted by the BT8 epizootic in 2007 – 2008. Our retrospective approach highlighted that the mean number of BT8 cases over a département-specific time in- terval was related to an increase in the weekly MAIR in 47% of the départements for heifers and 71% of the départements for parous cows. Overall, we found that the MAIR in heifers was most likely influenced by the mean number of BT8 cases reported 13 to 8 weeks prior, with a mean increase of 3.8% of the MAIR (min-max: 0.02–57.9%). In parous cows, the MAIR increased by 1.4% on average (0.01 – 8.5%) when the number of BT8 cases averaged over the preceding 12 to 6 weeks increased by one.

Limitations of using AI data for syndromic surveillance

The MAIR can be used as a proxy of the actual rate of mid-term abortion occurrence in the population. Nonetheless, several types of abortion events are not captured in the MAIR. For ex- ample, based on the analysis of the mandatory abortion notification data, we estimated that 25% to 40% of cows who abort between the sixth and the ninth month of pregnancy are slaugh- tered without any re-insemination (data not shown). In addition, the MAIR does not include

Fig 3. Effect of BT8 on the MAIR by département . Département -level effects are shown for heifers (Fig. 3A, on the left) and parous cows (Fig. 3B, on the right). Départements in dark gray were excluded because they reported BT8 and BT1 cases; départements in light gray are those excluded from the study because the marginal probability density functions of ‘

and k

were multimodal, with the probability value of the second best mode higher than half of the value of the major mode. The effect of the mean number of BT8 cases during the département -specific weighted average time interval on the weekly MAIR was positive in départements in dark pink, non-significant in départements in light pink, and negative in départements in pale pink.

doi:10.1371/journal.pone.0119012.g003

mid-term abortions that are followed by an extended delay before re-insemination. On the other hand, the return-to-service period between 90 to 180 days may include some embryonic mortalities or early abortions, because re-insemination occurs at least 21 days after the abortion (minimum time for the cow to return to estrus). Time lapses between a reproductive disorder and re-insemination also depend on herd management. The increase in the MAIR in Novem- ber-December, i.e. about two months after the peak of the calving season, reflects the willing- ness of farmers to re-inseminate aborting cows at the same time as other cows.

As a candidate indicator for syndromic surveillance, the MAIR should be sensitive and spe- cific to changes in the number of mid-term abortions in the population [36,37]. In particular, we made the assumption that seasonal variation due to events other than mid-term abortions (such as the probability for a cow to be re-inseminated or culled) is constant over years. How- ever, during the second semester of 2007, the probability of a dairy cow being culled (possibly including females inseminated over the 90 to 180 previous days) likely decreased with an in- crease in milk quotas (the amount that farmers are allowed to produce) [38]. This seasonal var- iation may have slightly altered the sensitivity of the MAIR if the decrease in the probability of being culled differed between aborting cows (especially dry cows) and non-aborting cows. The weak influence of this seasonal variation on the MAIR was partially confirmed by the absence of residual auto-correlation and by the good fit of the models.

Fig 4. Distribution of départements according to their weighted mean of time lags ℓ

and k

. Each graph represents the distribution of the 51 départements (among heifers, Fig. 4A, on the left) and 55 départements (among parous cows, Fig. 4B, on the right) depending on their weighted mean of time lags ℓ

and k

. Time lags ℓ

̅ and k

̅ averaged among départements are also plotted (black triangle).

doi:10.1371/journal.pone.0119012.g004

Our objective was to assess whether MAIR could identify the introduction or spread of an abortive event with a significant economic impact, i.e. that affects a large number of cattle herds. We used the BT8 epizootic in France in 2007 and 2008 to assess the ability of the MAIR to identify an increase in abortions. Some variations in the MAIR may have been due to other abortive diseases (such as neosporosis, salmonellosis that are enzootic in France) and thus, re- mained unexplained by our model. Nonetheless, because BT8 clinical cases are under-reported [39,40], the influence of BT8 on the MAIR was likely under-estimated.

Ability of the MAIR to reflect BT8-related increases in abortion

By using a multiplicative Poisson model, we assumed that the relationship between the number of mid-term abortions and the number of cattle herds clinically infected by BT8 was exponen- tial. Indeed, the prevalence of infected animals estimated in département i during a week w equaled the prevalence of infected herds multiplied by the within-herd prevalence. Based on a previous study, within-herd seroprevalence rate increased as herd-level seroprevalence rate in- creased during the BT8 epizootic [39]. Indeed, the disease certainly continued spreading within infected herds after their identification. In our study, the number of mid-term abortions was likely to be proportional to the number of infected animals, and the number of cattle herds

Fig 5. Relative risk and confidence interval of the bluetongue covariate computed over common time intervals. Relative risks (RR) and confidence intervals of the bluetongue covariate are displayed for the départements in which the bluetongue covariate had a positive effect, for heifers (Fig. 5A, on the left, 31 départements ), and for parous cows (Fig. 5B, on the right, 36 départements ). Départements are sorted in the ascending order of their RR. In the other départements , the bluetongue covariate had a non-significant effect.

doi:10.1371/journal.pone.0119012.g005

clinically infected by BT8 to be proportional to the total number of infected cattle herds. There- fore, as BT8 spread across département i, the number of clinical herds increased, and the num- ber of mid-term abortions increased exponentially (as within-herd prevalence also increased).

Our results indicated that BT8 cases had a delayed effect of about 13 to 8 weeks in heifers and 12 to 6 weeks in parous cows. This increase in the MAIR of at least six weeks (i.e. 42 days) for parous cows and eight weeks (i.e. 56 days) for heifers after the occurrence of BT8 cases con- cerns females inseminated up to 180 days prior to week w. Thus, the risk of mid-term abortion increased for females infected by BT8 during the 19–20 weeks following insemination in heifers or during the 17 – 18 weeks following AI in parous cows. This level of risk is consistent with a previous case-control study that concluded that BT8 exposure during the first three months of gestation was associated with a higher increase in return-to-service 90 to 200 days after an ini- tial AI compared to BT8 exposure after the third month of gestation [16].

On average, we found that the MAIR computed for heifers increased by 3.8% when the aver- age number of BT8 cases in the preceding 8 to 13 weeks increased by one, and by 1.4% in par- ous cows. These effects did not differ much from those estimated by Nusinovici et al. [16], who estimated that the mean effect in BT8-exposed areas corresponded to an increase of 1.16 to 1.78% of return-to-service 90 to 200 days after a previous AI for cows with no return within 90 days, compared to cows in non-infected herds.

Our results showed that the BT8 effect varied among départements, in terms of the amount of time elapsed (when the BT8 covariate was computed over département-specific time inter- vals, Fig. 4) and the force of the effect (when the BT8 covariate was computed over a common time interval). These variations may be due to differences in under-reporting of BT8 clinical cases among départements. Even if farmers were required to report every clinically suspect case to their veterinarian, we supposed that farmers’ awareness about disease risk differs among départements. Moreover, some farmers are reluctant to report BT8 clinical suspicions because they fear social and economic consequences [41]. In addition, the probability of infected herds being reported was certainly higher in 2008 than at the onset of the epizootic in 2007, due to the implementation of a financial compensation plan for deceased animals in late 2007 that was increased in 2008. On the other hand, the amount of time elapsed between a first AI and re-insemination after a mid-term abortion depends on the timing between the first AI and BT8 exposure, which varied among départements. Thus, the effect of BT8 cases is likely to be over- estimated in départements with high under-reporting of BT8 cases, and further delayed in départements with a long period between AI and BT8 exposure, or between exposure and re- insemination.

Heterogeneity of the BT8 effect on MAIR among départements

Our study showed that, in some départements (eight in heifers and four in parous cows), long

time lags provided a similar fit to the data (models with Δ AIC 2), and in some cases, the re-

sults related to the effect of the number of BT8 cases on the MAIR diverged (i.e. from positive

to non-significant or negative). It is possible that for some time lags the effect on MAIR was

not due to the bluetongue epizootic but to other factors (such as the occurrence of other dis-

eases or a modification in herd management). In addition, given the high number of time lags

tested (n = 300), type I errors were expected and may explain the divergence observed in results

among models for these départements. However, results from alternative suitable models were

convergent in the majority of départements and the flexibility of our approach regarding the se-

lection of the value for the BT8 covariate made it possible to select the most appropriate time

lag for each département.

Second, we found that the BT8 effect was not significant or was negative in a few départe- ments. Départements where no effect was predicted had not reported a high number of BT8 cases (less than 837 BT8 cases), suggesting a lack of statistical power. The negative effect is diffi- cult to explain but might be due to modifications in herd management during the BT8 epizoot- ic that caused an increase in the lag between reproductive disorders and re-insemination (exceeding 180 days).

Third, the common time lag for all départements, computed as the mean of the départe- ment-selected time lags, may not be the most appropriate in some départements; however, the QAIC difference between models M3 and M2 was less than 10 in 90% of the départements.

Implications of our findings for syndromic surveillance

Previous studies based on the Cox model have suggested that AI data could be used to evidence an increase in reproductive disorders or under-reporting during an epidemic [16,22,40]. How- ever, to our knowledge, our study is the first to suggest that AI data could be used for imple- mentation of a syndromic surveillance system retrospectively. This type of system can contribute to the assessment or early identification of a health impact or absence of an impact of potentially health-threatening incidents [42]. There are however some caveats.

First, as previously underlined, the MAIR is not necessarily related to a specific abortive event and can identify any reproductive disorder. Abortions can be due to exotic (such as bru- cellosis, Rift Valley Fever) or enzootic (such as neosporosis, salmonellosis, [43]) diseases, or to intoxications or metabolic disorders [44–47]. Any increase in MAIR must be investigated in the field to confirm the actual increase in mid-term abortions and identify the cause.

Second, our indicator cannot cover the entire bovine population at risk in France because it would focus only on calvings registered with the SNIG, representing about 50% of calvings and 60% of French dairy cattle herds. Last, although AI data are automatically and routinely collect- ed in real time, the MAIR detects mid-term abortions and thus, any introduction of an exotic abortive disease with a time lag of at least three weeks (necessary time for the cow to return to estrus). Timeliness depends on the time between exposure to the abortive agent and re-insemi- nation of the aborted cow, which is a combination of several time lags. The incubation period (i.e. between exposure and abortion occurrence) is disease-specific and also depends on the gestation stage [16]. Thus, this lag varies from 2 to 18 days after BT8 exposure [48] and is high- ly variable in cases of brucellosis infection [49]. The lag between abortion occurrence and de- tection depends on farmers’ practices, herd management, and the stage of pregnancy of aborting females (with a higher ability to detect late abortions in dairy than beef cattle herds).

Finally, based on mandatory abortion notification data, the mean lag between abortion occur- rence and re-insemination is less than 105 days for 75% of aborted cows.

Despite these limitations, a syndromic surveillance system based on our indicator can con- tribute to improving bovine abortion surveillance. Theoretically, the current event-driven sur- veillance system covers the entire bovine population; however, it lacks sensitivity [10]. An evaluation of the ability of such a system to detect brucellosis in Japan (where the disease is be- lieved to be eradicated) predicted that abortion surveillance would identify a first brucellosis outbreak within a median delay of 19 to 33 months depending on the reporting rate [50]. De- spite some improvements, the effectiveness of the current mandatory abortion surveillance sys- tem will always depend on farmers ’ and veterinarians ’ willingness to participate and

consequently under-reporting will remain its major limitation [51]. Moreover, event-driven

surveillance is currently brucellosis-oriented, while the MAIR is a non-specific indicator that

can detect anomalies associated with a wide range of abortive diseases [43].

With the objective of implementing a prospective syndromic surveillance system based on the MAIR, the next step requires careful investigation of the performances of the algorithm under alternative scenarios of disease patterns in order to maximize the sensitivity of the sys- tem and minimize the number of false alerts [42]. Further studies are also needed to extend this approach to late abortions.

According to the CDC, the timely monitoring of non-specific health indicators, so-called syndromic surveillance, is one of the ways to improve early detection of health events [52]. In animal health, AI data are collected in many countries according to cattle performance record- ing programs [53,54]. Our study indicates that they can be used to implement syndromic sur- veillance for mid-term abortions in cattle, with no additional workload for data providers.

Such a system would complement the existing event-driven surveillance system by detecting changes or events that would otherwise not have been detected by traditional surveillance.

Acknowledgments

The authors wish to thank the Ministry of Agriculture’s General Directorate for Food for pro- viding data on BT8 cases and the Centre de Traitement de l ’ Information Génétique (INRA, Jouy-en-Josas, France) for providing the breeding performance data.

Author Contributions

Conceived and designed the experiments: AB EM EG DC VH AM. Performed the experiments:

AB. Analyzed the data: AB. Wrote the paper: AB EM DC EG VH AM.

References

1. VandenWijngaard C, Dijkstra F, Pelt WV, Asten LV, Kretzschmar M, Schimmer B, et al. In search of hid- den Q fever outbreaks: linking syndromic hospital clusters to infected goat farms. Epidemiol Infect.

2011; 139: 19 – 26. doi: 10.1017/S0950268810001032 PMID: 20478085

2. OIE. Country reports. 2012. Available: http://www.oie.int/wahis_2/public/wahid.php/

Countryinformation/Countryreports

3. Mailles A, Rautureau S, Le Horgne JM, Poignet-Leroux B, d'Arnoux C, Dennetiere G, et al. Re-emer- gence of brucellosis in cattle in France and risk for human health. Euro Surveill. 2012; 17: pii = 20227.

4. Wilson A, Mellor P. Bluetongue in Europe: past, present and future. Philos Trans R Soc Lond B Biol Sci. 2009; 364: 2669 – 2681. doi: 10.1098/rstb.2009.0091 PMID: 19687037

5. Efsa Opinion of the Scientific Panel on Animal Health and Welfare on a request from the Commission related to "The risk of rift valley fever incursion and its persistence within the Community". 2005; 130 p.

6. Fediaevsky A, Dufour B, Garin-Bastuji B. Maintaining vigilance against bovine brucellosis in France in 2010. Bull Epidemiol Santé Anim Aliment. 2011; 46: 10 – 14.

7. Anonymous. Regulation of 22 April 2008 on technical and administrative measures related to surveil- lance and eradication of bovine brucellosis. 2008; JORF 2 May 2008. Available: http://www.legifrance.

gouv.fr/

8. Anonymous. Council Directive 64/432/EEC of 26 June 1964 on animal health problems affecting intra- Community trade in bovine animals and swine. 1964; OJEU 29 July 1964. Available: http://eur-lex.

europa.eu/homepage.html?locale = fr

9. Anonymous Article R. 223 – 79 du Code rural et de la p ê che maritime 2003; JORF 07.08.2003.

10. Bronner A, Hénaux V, Vergne T, Vinard J-L, Morignat E, Hendrikx P, et al. Assessing the mandatory bo- vine abortion notification system in France using unilist capture-recapture approach. PloS One. 2013;

8: e63246. doi: 10.1371/journal.pone.0063246 PMID: 23691004

11. Doyle TJ, Glynn MK, Groseclose SL. Completeness of notifiable infectious disease reporting in the United States: an analytical literature review. Am J Epidemiol. 2002; 155: 866 – 874. PMID: 11978592 12. InVS. Rapport annuel 2007. 2008. Available: http://www.invs.sante.fr/publications/2008/rapport_

annuel_2007.

13. Triple-S Assessment of syndromic surveillance in Europe. Lancet. 2011; 378: 1833 – 1834. doi: 10.

1016/S0140-6736(11)60834-9 PMID: 22118433

14. Malher X, Beaudeau F, Philipot J. Effects of sire and dam genotype for complex vertebral malformation on risk of return-to-service in Holstein dairy cows and heifers Theriogenology. 2006; 65: 1215 – 1225.

PMID: 16168472

15. Marce C, Beaudeau F, Bareille N, Seegers H, Fourichon C. Higher non-return rate associated with My- cobacterium avium subspecies paratuberculosis infection at early stage in Holstein dairy cows Therio- genology. 2009; 71: 807 – 816. doi: 10.1016/j.theriogenology.2008.10.017 PMID: 19117602

16. Nusinovici S, Seegers H, Joly A, Beaudeau F, Fourichon C. Increase in the occurence of abortions as- sociated with exposure to the bluetongue virus serotype 8 in na ï ve dairy herds. Theriogenology. 2012;

78: 1140 – 1151. doi: 10.1016/j.theriogenology.2012.05.010 PMID: 22763077

17. Santman-Berends I, Hage J, Rijn P, Stegeman J, Schaik G. Bluetongue virus serotype 8 (BTV-8) infec- tion reduces fertility of Dutch dairy cattle and is vertically transmitted to offspring Theriogenology. 2010;

74: 1377 – 1384. doi: 10.1016/j.theriogenology.2010.06.008 PMID: 20688368

18. Elbers A, Backx A, Meroc E, Gerbier G, Staubach C, Hendrickx G, et al. Field observations during the bluetongue serotype 8 epidemic in 2006. I. Detection of first outbreaks and clinical signs in sheep and cattle in Belgium, France and the Netherlands. Prev Vet Med. 2008; 87: 21 – 30. doi: 10.1016/j.

prevetmed.2008.06.004 PMID: 18620767

19. Fabiana Dal Pozzo, Saegerman C, Thiry E. Bovine infection with bluetongue virus with special empha- sis on European serotype 8. Vet J. 2009; 182: 142 – 151. doi: 10.1016/j.tvjl.2009.05.004 PMID:

19477665

20. Kris De Clercq, Leeuw ID, Verheyden B, Vandemeulebroucke E, Vanbinst T, Herr C, et al. Transpla- cental infection and apparently immunotolerance induced by a wild-type bluetongue virus serotype 8 natural infection. Transbound Emerg Dis. 2008; 55: 352 – 359. doi: 10.1111/j.1865-1682.2008.01044.x PMID: 18673339

21. Menzies F, McCullough S, McKeown I, Forster J, Jess S, Batten C, et al. Evidence for transplacental and contact transmission of bluetongue virus in cattle Vet Rec. 2008; 163: 203 – 209. PMID: 18708653 22. Marceau A, Madouasse A, Lehébel A, Van Schalk G, Veldhuis A, Stede YVd, et al. Can routinely re-

corded reproductive events be used as indicators of disease emergence in dairy cattle? An evaluation of 5 indicators during the emergence of bluetongue virus in France in 2007 and 2008. J Dairy Sci. 2014;

97: 1 – 16. doi: 10.3168/jds.2012-6228 PMID: 24183685

23. Zientara S Historique des introductions successives de la FCO en Europe. Bull Epidémiol Santé Anim Aliment. 2010; 35: 2 – 4. doi: 10.3945/jn.111.146258 PMID: 24737153

24. R-Development-Core-Team. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria, ISBN 3-900051-07-0. 2011.

25. Farrington C, Andrews N, Beale A, Catchpole M. A statistical algorithm for the early detection of out- breaks of infectious disease. J R Stat Soc Ser A Stat Soc. 1996; 159: 547 – 563.

26. Höhle M. Surveillance: an R package for the monitoring of infectious diseases. Comput Stat. 2007; 22:

571 – 582.

27. Bolker B. Package bbmle. 2013. Available: http://cran.r-project.org/web/packages/bbmle/bbmle.pdf.

28. Richards S. Dealing with overdispersed count data in applied ecology. J Appl Ecol. 2008; 45: 218 – 227.

29. Curriero F, Shone S, Glass G. Cross correlation maps: a tool for visualizing and modeling time lagged associations. Vector Borne Zoonotic Dis. 2005; 5: 267 – 275. PMID: 16187896

30. Brugger K, Rubel F. Bluetongue disease risk assessment based on observed and projected Culicoides obsoletus spp. vector densities. PLoS One. 2013; 8(4): e60330. doi: 10.1371/journal.pone.0060330 PMID: 23560090

31. Shone S, Curriero F, Lesser C, Glass G. Characterizing population dynamics of Aedes sollicitans (Dip- tera: Culicidea) using metetorological data. J Med Entomol. 2006; 43: 393 – 402. PMID: 16619626 32. Box G, Jenkins G, Reinsel G. Time series analysis: forecasting and control. New Jersey: John Wiley &

Sons; 1994.

33. Burnham K, Anderson D. Model selection and inference: a practical information — theroretic approach.

New York: Springer; 1998.

34. Williams B, Nichols J, Conroy M. Analysis and management of animal populations. San Diego, CA:

Academic Press; 2002.

35. Bouyer J, Hémon D, Cordier S, Derriennic F, Stücker I, Stengel B, et al. Epidémiologie: Principes et méthodes quantitatives. Paris: Inserm; 1995.

36. Dorea FC, Sanchez J, Revie CW. Veterinary syndromic surveillance: Current initiatives and potential for development. Prev Vet Med. 2011; 101: 1 – 17. doi: 10.1016/j.prevetmed.2011.05.004 PMID:

21640415

37. Yahav I, Shmueli G. Algorithm combination for improved performance in biosurveillance systems. In:

Zeng D, Gotham I, Komatsu K, Lynch C, Thurmond M et al., editors. Intelligence and Security Informat- ics: Biosurveillance Springer Berlin Heidelberg; 2007. pp. 91 – 102.

38. Mounaix B, David V, Lucbert J. Impact technico économique de la FCO dans les élevages ovins et bovins français — bilan de l'épizootie de 2007. Institut de l'élevage. 2008.

39. Durand B, Zanella G, Biteau-Coroller F, Locatelli C, Simon C, Le Dréan E, et al. Anatomy of Bluetongue virus serotype 8 epizootic wave, France, 2007 – 2008. Emerg Infect Dis. 2010; 16: 1861 – 1868. doi: 10.

3201/eid1612.100412 PMID: 21122214

40. Nusinocivi S, Monestiez P, Seegers H, Beaudeau F, Fourichon C. Using animal performance data to evidence the under-reporting of case herds during an epizootic: application to an outbreak of Blue- tongue in cattle. PLoS One. 2014; 9: e100137. doi: 10.1371/journal.pone.0100137 PMID: 24937630 41. Elbers A, Mintiens K, Staubach C, Gerbier G, Meroc E, Ekker H, et al. Nature and severity of disease in

sheep and cattle. Appendix II. Epidemiological analysis of the 2006 bluetongue virus serotype 8 epi- demic in north-western Europe. EFSA. 2007.

42. Triple-S. Syndromic surveillance systems in Europe. 2014. Available: http://www.

syndromicsurveillance.eu/.

43. Anderson M. Infectious causes of bovine abortion during mid- to late-gestation. Theriogenology. 2007;

68: 474 – 486. PMID: 17467787

44. Riet-Correa F, Medeiros R, Schild AL. A review of poisonous plants that cause reproductive failure and malformations in the ruminants of Brazil. J Appl Toxicol. 2012; 32: 245 – 254. doi: 10.1002/jat.1754 PMID: 22147504

45. Still P, Macklin A, Ribelin W, Smalley E. Relationship of ochratoxin A to foetal death in laboratory and domestic animals. Nature. 1971; 234: 563 – 564. PMID: 4946116

46. Ray A, Abbitt B, Cotter S, Murphy M, Reagor J, Robinson R, et al. Bovine abortion and death associat- ed with consumption of aflatoxin-contaminated peanuts. J Am Vet Med Assoc. 1986; 188: 1187 – 1188.

PMID: 3721970

47. Kallela K, Ettala E. The oestrogenic Fusarium toxin (zearalenone) in hay as a cause of early abortions in the cow. Nord Vet Med. 1984; 36: 305 – 309. PMID: 6240023

48. Nusinovici S. Infection par le virus de la Bluetongue sérotype 8 et performances dans les troupeaux bovins laitiers: Thesis, Université de Nantes Angers Le Mans. 2011.

49. Nicoletti P. The epidemiology of bovine brucellosis. Adv Vet Sci Comp Med. 1980; 24: 69 – 98. PMID:

6779513

50. Yamamoto T, Tsutsui T, Nishiguchi A, Kobayashi S. Evaluation of surveillance strategies for bovine brucellosis in Japan using a simulation model. Prev Vet Med. 2008; 86: 57 – 74. doi: 10.1016/j.

prevetmed.2008.03.004 PMID: 18440660

51. Bronner A, Hénaux V, Fortané N, Hendrikx P, Calavas D. Why farmers and veterinarians do not report all bovine abortions, as requested by the clinical brucellosis surveillance system in France? BMC Vet Res. 2014; 10: 93. doi: 10.1186/1746-6148-10-93 PMID: 24762103

52. Buehler JW, Hopkins RS, Overhage JM, Sosin DM, Tong V, Group CW. Framework for evaluating pub- lic health surveillance systems for early detection of outbreaks: recommendations from the CDC work- ing group. CDC. 2004.

53. Haile-Mariam M, Bowman P, Pryce J. Genetic analyses of fertility and predictor traits in Holstein herds with low and high mean calving intervals and in Jersey herds. J Dairy Sci. 2013; 96: 655 – 667. doi: 10.

3168/jds.2012-5671 PMID: 23127912

54. Robinson D. Days to calving in artificially inseminated beef cows: comparison of potential traits. Livest

Sci. 2007; 110: 174 – 180.
