• Aucun résultat trouvé

MAGNETIC BEHAVIOUR OF Y(Fe,Mn)2

N/A
N/A
Protected

Academic year: 2021

Partager "MAGNETIC BEHAVIOUR OF Y(Fe,Mn)2"

Copied!
2
0
0

Texte intégral

(1)

JOURNAL DE PHYSIQUE

Colloque

C1,

suppldment au n

O 1 ,

Tome

41,

janvier 1980,page C1-197

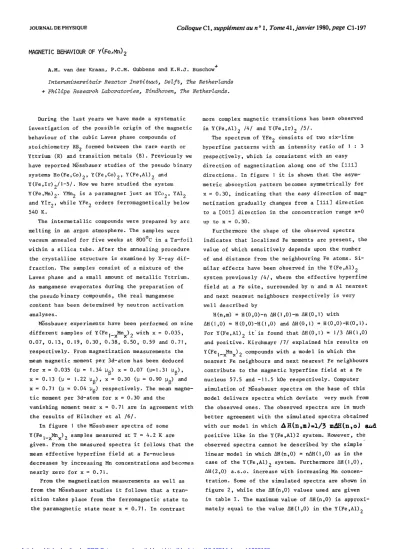

MAGNETIC BEHAVIOUR OF

Y ( F ~ , M ~ ) ~

A.M. van d e r Kraan, P.C.M. Gubbens and K . H . J . Buschow i

~ n t e r u n i v e r s i t a i r Reactor I n s t i t u u t , Delft, The Netherlands

i

Philips Research Laboratories, Eindhoven, The Netherlands.

During t h e l a s t y e a r s we have made a s y s t e m a t i c i n v e s t i g a t i o n of t h e ~ o s s i b l e w i g i n of t h e magnetic behaviour of t h e cubic Laves phase compounds of s t o i c h i o m e t r y RB2 formed between t h e r a r e e a r t h o r Yttrium (R) and t r a n s i t i o n metals (B). P r e v i o u s l y we have r e p o r t e d ~ G s s b a u e r s t u d i e s of t h e pseudo b i n a r y systems H ~ ( F e , c o ) ~ , Y ( F ~ , C O ) ~ , Y(Fe,A1)2 and

Y ( F e , I r ) 2 / 1 - 5 / . Now we have s t u d i e d t h e system Y (Fe,Mn)2. YMn2 i s a paramagnet j u s t a s YCo2, YA12

and Y I r 2 , w h i l e YFe2 o r d e r s f e r r o m a g n e t i c a l l y below 540 K .

The i n t e r m e t a l l i c compounds were prepared by a r c m e l t i n g i n an argon atmosphere. The samples were vacuum annealed f o r f i v e weeks a t 8 0 0 ' ~ i n a T a - f o i l w i t h i n a s i l i c a tube. A f t e r t h e a n n e a l i n g procedure

t h e c r y s t a l l i n e s t r u c t u r e i s examined by X-ray d i f - f r a c t i o n . The samples c o n s i s t of a m i x t u r e of t h e Laves phase and a small amount of m e t a l l i c Yttrium.

A s manganese e v a p o r a t e s d u r i n g t h e p r e p a r a t i o n of t h e p s e u d o b i n a r y compounds, t h e r e a l manganese c o n t e n t h a s been determined by n e u t r o n a c t i v a t i o n a n a l y s e s .

MEssbauer experiments have been performed on n i n e d i f f e r e n t samples of Y(Fel-xMnx)g w i t h x = 0.035, 0.07, 0.13, 0.19, 0.30, 0.38, 0.50, 0.59 and 0 . 7 1 , r e s p e c t i v e l y . From m a g n e t i z a t i o n measurements t h e mean magnetic moment p e r 3d-atom h a s been deduced f o r x = 0.035 (p = 1.34 ) x = 0.07 (11=1.31

u

) ,

B B

x = 0.13 ( u = 1.22 y ) , x = 0.30 ( u = 0.90 p ) and

B B

x = 0.71 ( p = 0.04 IJ ) r e s p e c t i v e l y . The mean magne- 6

t i c moment p e r 3d-atom f o r x = 0.30 and t h e

v a n i s h i n g moment n e a r x = 0.71 a r e i n agreement w i t h t h e r e s u l t s of H i l s c h e r e t a1 161.

I n f i g u r e 1 t h e MGssbauer s p e c t r a of some Y (Fel,xMnx)2 samples measured a t T = 4.2 K a r e g i v e n . From t h e measured s p e c t r a i t f o l l o w s t h a t t h e mean e f f e c t i v e h y p e r f i n e f i e l d a t a Fe-nucleus d e c r e a s e s by i n c r e a s i n g Mn c o n c e n t r a t i o n s and becones n e a r l y z e r o f o r x = 0.71.

From t h e m a g n e t i z a t i o n measurements a s w e l l a s from t h e ~ E s s b a u e r s t u d i e s i t f o l l o w s t h a t a t r a n - s i t i o n t a k e s p l a c e from t h e f e r r o m a g n e t i c s t a t e t o t h e paramagnetic s t a t e n e a r x = 0.71. I n c o n t r a s t

more complex magnetic t r a n s i t i o n s h a s been observed i n Y(Fe,A1)2 /4/ and Y ( F e , I r I 2 151.

The spectrum of YFe2 c o n s i s t s of two s i x - l i n e h y p e r f i n e p a t t e r n s w i t h an i n t e n s i t y r a t i o of 1 : 3 r e s p e c t i v e l y , which i s c o n s i s t e n t w i t h an e a s y d i r e c t i o n of magnetization along one of t h e Cllll d i r e c t i o n s . I n f i g u r e 1 i t i s shown t h a t t h e asym- m e t r i c a b s o r p t i o n p a t t e r n becomes symmetrically f o r x = 0.30, i n d i c a t i n g t h a t t h e easy d i r e c t i o n of mag- n e t i z a t i o n g r a d u a l l y changes from a Cllll d i r e c t i o n t o a [0011 d i r e c t i o n i n t h e c o n c e n t r a t i o n range x=O up t o x = 0.30.

Furthermore t h e shape of t h e observed s p e c t r a i n d i c a t e s t h a t l o c a l i z e d Fe moments a r e p r e s e n t , t h e v a l u e of which s e n s i t i v e l y depends upon t h e number of and d i s t a n c e from t h e neighbouring Fe atoms. S i - m i l a r e f f e c t s have been observed i n t h e Y(Fe,Al)2 system p r e v i o u s l y 141, where t h e e f f e c t i v e h y p e r f i n e f i e l d a t a Fe s i t e , surrounded by n and m A 1 n e a r e s t and n e x t n e a r e s t neighbours r e s p e c t i v e l y i s v e r y w e l l d e s c r i b e d by

H(n,m) = H(0,O)-n AH(1,O)-m AH(0,I) w i t h

AH(1 ,0) = H(0,O)-H(1 ,0) and AH(0, I) = H(0,O)-H(0,I).

For Y(Fe,A1)2 i t ' i s found t h a t AH(0,I) = 113 AH(1,O) and p o s i t i v e . Kirchmayr /7/ e x p l a i n e d h i s r e s u l t s on Y(Fel-xMnx)2 compounds with a model i n which t h e n e a r e s t Fe neighbours and n e x t n e a r e s t Fe neighbours c o n t r i b u t e t o t h e magnetic h y p e r f i n e f i e l d a t a Fe nucleus 57.5 and -11.5 kOe r e s p e c t i v e l y . Computer s i m u l a t i o n of M k s b a u e r s p e c t r a on t h e base of t h i s model d e l i v e r s s p e c t r a which d e v i a t e very much from t h e observed ones. The observed s p e c t r a a r e i n much b e t t e r agreement w i t h t h e s i m u l a t e d s p e c t r a o b t a i n e d w i t h our model i n which

AH(n,rn)=l/3 &(n,o)

&LCB p o s i t i v e l i k e i n t h e Y(Fe,A1)2 system. However, t h e observed s p e c t r a cannot b e d e s c r i b e d by t h e simple l i n e a r model i n which AH(n,O) = nAH(1,O) a s i n t h e c a s e of t h e Y (Fe ,A1) sys tem. Furthermore AH( I ,O)

,

AH(2,O) a . s.0. i n c r e a s e w i t h i n c r e a s i n g Mn concen- t r a t i o n . Some of t h e s i m u l a t e d s p e c t r a a r e shown i n f i g u r e 2 , w h i l e t h e AH(n,O) v a l u e s used a r e given i n t a b l e I . The maximum v a l u e of AH(n,O) i s approxi- mately e q u a l t o t h e v a l u e AH(1,O) i n t h e Y (Fe,A1)2

Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphyscol:1980160

(2)

(21-198 JOURNAL DE PHYSIQUE

I

I I 1-'-

- 6 - 4 - 2 0 2 4 6

DOPPLER VELOCITY m m s-'

F i g . 1: ~ E s s b a u e r s p e c t r a o f some Y ( F e l - x ~ n x ) 2 com- pounds a t T = 4.2 K.

s y s t e m / 4 / which v a l u e i s e q u a l t o 116

*

H(0,O). As i n t h e c u b i c Laves p h a s e compounds a Fe atom h a s s i x n e i g h b o u r i n g atoms i n t h e f i r s t c o o r d i n a t i o n s h e l l , t h e v a l u e AH(1,O) i n t h e Y (Fe,A1)2 compounds c a n b e c o n s i d e r e d a s t h e l a r g e s t p o s s i b l e magnetic i n - f l u e n c e o f a s u b s t i t u t e d atom on t h e h y p e r f i n e ' f i e l d a t a Fe n u c l e u s . Although computer s i m u l a t i o n of

~ E s s b a ~ e r s p e c t r a can n o t proof t h a t t h e u s e d model d e s c r i b e d t h e o b s e r v e d s p e c t r a i n t h e r i g h t way, we b e l i e v e t h a t i t s t i l l g i v e s i n s i g h t i n t h e main f e a t u r e s o f t h e i n v e s t i g a t e d compounds. I t i s ob- v i o u s t h a t t h e d i s c r e t e v a l u e s of AH(n,o) g i v e n i n t a b l e I , a r e a rough a p p r o x i m a t i o n of t h e r e a l i t y , however t h e y c l e a r l y show t h a t t h e Y (Fe ,Mn) s y s t e m t e n d s t o t h e Y (Fe,A1)2 system b y i n c r e a s i n g Mn con- c e n t r a t i o n .

As a Mn atom i n YMn2 h a s no magnetic moment we suppose t h a t t h e non l i n e a r composition dependence of t h e mean magnetic h y p e r f i n e f i e l d a t a Fe n u c l e u s is due t o an i n c r e a s i n g magnetic moment a t t h e Mn atom by an i n c r e a s i n g Fe c o n c e n t r a t i o n .

F i n a l l y , we h a v e found t h a t t h e s u b s t i t u t i o n of Fe by Mn i s not, f u l l y random. D e v i a t i o n s of t h e random d i s t r i b u t i o n h a * c l e a r l y b e e n found i n t h e

DOPPLER VELOCITY mm s-'

Fig.2: Computer s i m u l a t e d MEssbauer s p e c t r a o f some

Y (Fe compounds.

c o n c e n t r a t i o n r a n g e x = 0.035 up t o x = 0.30 i n s u c h a way t h a t t h e p r o b a b i l i t y P(0,O) i s approxi- m a t e l y twice a s much a s f o l l o w s from a random d i s - t r i b u t i o n of Mn atoms.

T a b l e I.

AH(l.0) AH(2,O) AH(3,O) aH(4,O) aH(5,O)

(kOe) (kOe) (kOe) (kOe) W e )

x P 0 + 0 . 4 0 11.5 17 23 34.5 34.5

R e f e r e n c e s

=

9

J

/

1'1 Van d e r Kraan, A.M. and Gubbens

,

.P. C.M.

,

J .Phys

.

C6(1974)469.

-

/ 2 / L u i j p e n , M.G., Gubbens, P.C.M., Van d e r Kraan, A.M. a& Buschow, K.H.J., P h y s i c a 86-88B(1977)

141.

/ 3 / Corson, M.R., Kolk, B., Hoy,G., Zimmerman,G.O.,

.

Van d e r Kraan, A.M. and Gubbens

,

P. C .M.

,

Hyp.

I n t . 5 ( 1 9 7 8 ) 4 1 1 .

/ 4 / Van d e r Kraan, A.M., Gubbens, P.C.M. andBuschow, K.H. J . , Proc.Int.Conf .M;ssb . s p e c t r . B u c h a r e s t , Romania(1977) 121.

/ 5 / Van d e r Kraan, A.M., Gubbens, P.C.M. andBuschow, K . H . J . , J . P h y s . z ( 1 9 7 9 ) 190.

/ 6 / H i l s c h e r , G. and Kirchmayr, H . , J.Phys. g ( 1 9 7 9 ) 196.

/ 7 / Kirchmayr, H.R., Z . angew.Phys. z ( 1 9 6 9 ) 1 8 .

Références

Documents relatifs

A magnetic granular solid is a unique artificial struc- ture consisting of ultrafine single-domain ferromag- netic particles of nanometer sizes embedded in an insu-

From the observations made from RSW failures between HM and ULA steels: (i) the area of interest is located at the melted zone / ULA steel interface; this zone corresponds to the end

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des

and thus the hyperfine parameters for Fe2P are those given in table I ; the attribution of the doublets to iron sites being immediate, if the local environments of the

field observed in the Y(Fel-xIrx)2 compounds, it follows that apparently for x < 0.60 an Ir atom gets a magnetic moment most likely induced by the surroun- ding iron

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come

(site b) : ces deux types d'interstices permettent d'expli- quer l'existence de trois pics de frottement intérieur. On voit que ces interstices privilégiés sont

The success of the model in predicting the observed hfs in other (random fcc) alloys with less Mn also suggests that the calculation described below does describe
