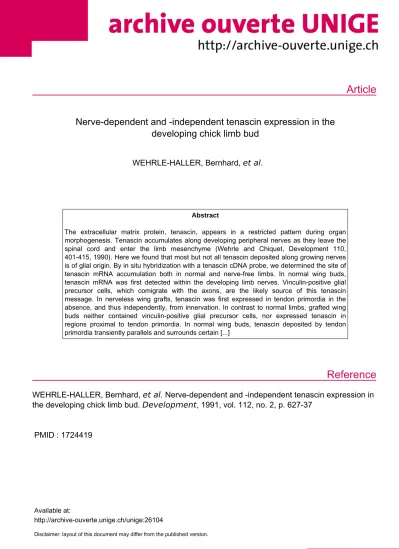

Article
Reference
Nerve-dependent and -independent tenascin expression in the developing chick limb bud
WEHRLE-HALLER, Bernhard, et al.
Abstract
The extracellular matrix protein, tenascin, appears in a restricted pattern during organ morphogenesis. Tenascin accumulates along developing peripheral nerves as they leave the spinal cord and enter the limb mesenchyme (Wehrle and Chiquet, Development 110, 401-415, 1990). Here we found that most but not all tenascin deposited along growing nerves is of glial origin. By in situ hybridization with a tenascin cDNA probe, we determined the site of tenascin mRNA accumulation both in normal and nerve-free limbs. In normal wing buds, tenascin mRNA was first detected within the developing limb nerves. Vinculin-positive glial precursor cells, which comigrate with the axons, are the likely source of this tenascin message. In nerveless wing grafts, tenascin was first expressed in tendon primordia in the absence, and thus independently, from innervation. In contrast to normal limbs, grafted wing buds neither contained vinculin-positive glial precursor cells, nor expressed tenascin in regions proximal to tendon primordia. In normal wing buds, tenascin deposited by tendon primordia transiently parallels and surrounds certain [...]
WEHRLE-HALLER, Bernhard, et al. Nerve-dependent and -independent tenascin expression in the developing chick limb bud. Development, 1991, vol. 112, no. 2, p. 627-37
PMID : 1724419
Available at:
http://archive-ouverte.unige.ch/unige:26104
Disclaimer: layout of this document may differ from the published version.
1 / 1
Development 112, 627-637 (1991)
Printed in Great Britain © The Company of Biologists Limited 1991 627
Nerve-dependent and -independent tenascin expression in the developing chick limb bud
BERNHARD WEHRLE-HALLER1, MANUEL KOCH1, STEFAN BAUMGARTNER2, JURG SPRING2 and MATTHIAS CHIQUET1 •*
1 Department of Biophysical Chemistry, Biocemer of the University, Klingelbergstrasse 70, CH-4056 Basel, Switzerland
2Friedrich-Miescher-Institut, Basel, Switzerland
* Author for correspondence
Summary
The extracellular matrix protein, tenascin, appears in a restricted pattern during organ morphogenesis. Ten- ascin accumulates along developing peripheral nerves as they leave the spinal cord and enter the limb mesen- chyme (Wehrle and Chiquet, Development 110, 401-415, 1990). Here we found that most but not all tenascin deposited along growing nerves is of glial origin. By in situ hybridization with a tenascin cDNA probe, we determined the site of tenascin mRNA accumulation both in normal and nerve-free limbs. In normal wing buds, tenascin mRNA was first detected within the developing limb nerves. Vinculin-positive glial precursor cells, which comigrate with the axons, are the likely source of this tenascin message. In nerveless wing grafts, tenascin was first expressed in tendon primordia in the absence, and thus indepen- dently, from innervation. In contrast to normal limbs, grafted wing buds neither contained vinculin-positive glial precursor cells, nor expressed tenascin in regions proximal to tendon primordia. In normal wing buds,
tenascin deposited by tendon primordia transiently parallels and surrounds certain developing nerves. After the major nerve pattern is established, tenascin mRNA disappears from nerves in the upper limb, but is expressed in perichondrium and tendons. We propose that glial tenascin facilitates the penetration of axons into the limb bud and is important for nerve fascicu- lation. In some places, early tendon primordia might help to guide the migration of axons and glial precursor cells towards their target.
Abbreviations: ECM, extracellular matrix; TBS, Tris buffered saline; mAb, monoclonal antibody, IgG, immunoglobulin gamma; SDS, sodium dodecyl sulfate;
TGF-/3, transforming growth factor-/?; FCS, fetal calf serum.
Key words: tenascin, in situ hybridization, peripheral nerve, tendons, chick limb bud.
Introduction
The pattern of peripheral nerve innervation in limb buds of chick embryos has been the subject of many investigations (for references, see Hollyday, 1983).
Independently of their origin, the nerves, which consist of motor and sensory axons and satellite cells (glial precursor cells), grow along common pathways into the limb bud. The spatial and temporal pattern of nerves is specified by the limb mesenchyme, while developing bone and cartilage is avoided by growing nerves (Lewis etal. 1983; Tosney and Landmesser, 1984). Neural tube rotation (Lance-Jones and Landmesser, 1981) and rotation of the wing bud (Stirling and Summerbell, 1985) do not alter the proximal nerve pattern.
However, distally to these fixed tracks, growth cones are able to reach their displaced target muscles by following new pathways within the limb. Experiments
suggest that the migrating growth cones have the ability to guide the nerves to their targets. After removing the motor neurons and their axons, glial precursor cells and sensory fibers avoid migration on motor nerve pathways (Landmesser and Honig, 1986; Swanson and Lewis, 1986). In addition, motor axons devoid of sensory axons and glial precursor cells are not able to penetrate into the limb mesenchyme and remain at the plexus region (Noakes et al. 1988), suggesting an important function for the nerve satellite cells in establishing the nerve pattern (Noakes and Bennett, 1987; for review see Keynes, 1987). The question remains which factors are required for guiding neurons and glial precursor cells through the limb mesenchyme. Such cues are known to be provided locally by the limb connective tissue (Lewis et al. 1983; Tosney and Landmesser, 1984). Since ECM glycoproteins are found along specific migratory path- ways in the embryo (Boucaut et al. 1984; Wehrle and
Chiquet, 1990), and are able to promote neurite outgrowth in vitro (Edgar et al. 1984; Humphries et al.
1988; Wehrle and Chiquet, 1990), they appear as candidates for transmitting local signals in the develop- ing limb.
Tenascin is a large oligomeric extracellular matrix molecule (for reviews see Erickson and Bourdon, 1989;
Chiquet, 1989; Chiquet-Ehrismann, 1990) with a higly restricted and regulated pattern of expression during morphogenesis (Chiquet and Fambrough, 1984a;
Chiquet-Ehrismann et al. 1986; Crossin et al. 1986).
During development of the peripheral nervous system, tenascin is accumulated in denned areas by mesenchy- mal and glial cells (Crossin et al. 1986; Rieger et al.
1986). It is re-expressed during nerve regeneration (Sanes et al. 1986; Daniloff et al. 1989; Martini et al.
1990). At the time when the limb buds are innervated, tenascin is accumulated along ingrowing peripheral nerves which form a bracket-like structure around the cartilage primordia (Wehrle and Chiquet, 1990; Martini and Schachner, 1991). In addition, an early tenascin expression in the limb bud can be localized to ligament and tendon anlagen (Chiquet and Fambrough, 1984a;
Hurle et al. 1990). At later stages, tenascin disappears from nerves, but continues to accumulate in perichon- drium and tendons (Chiquet and Fambrough, 1984a;
Wehrle and Chiquet, 1990).
In this paper, we asked whether tenascin is produced by the ingrowing limb nerves themselves, or by the limb mesenchyme along nerve pathways. In the latter case, tenascin could have a role in axonal pathfinding, whereas the former possibility would point to a function in morphogenesis and maturation of limb nerves. To answer this question, we determined the sites of tenascin mRNA production in normal limbs as well as in grafted wing buds, which were free of invading nerves and hence only expressed mesenchymal ten- ascin. Specific immunological markers allowed us to correlate the positions of axons and satellite cells in normal limbs with the location of accumulated tenascin mRNA and protein.
Materials and methods
Antibodies and immunocytochemistry
The following monoclonal antibodies (mAbs) were used: Ml against chick tenascin (Chiquet and Fambrough, 1984a); M6 against chick fibronectin (Pearson et al. 1988); and ID-5 against the C-terminal peptide of de-tyrosinated mouse alpha- tubulin (Wehland and Weber, 1987; gift of Dr Juergen Wehland, Braunschweig). In the developing limb buds, this antibody stains exclusively axonal fibers and their growth cones; background staining in other tissues in the limb is extremely low (Wehrle and Chiquet, 1990). All three mAbs are mouse IgGs. A culture supernatant of ID-5 was used; the other mAbs were partially purified from ascites fluid by ammonium sulfate precipitation and dialysis against TBS (Chiquet and Fambrough, 1984a).
The characterization of polyclonal antisera against chick fibroblast tenascin and human plasma fibronectin has been published (Chiquet and Fambrough, 1984a). A rabbit antiserum against chick gizzard vinculin was obtained as
205
29
1 2 3 4 5 6 7
8 910
Fig. 1. Analysis of the specificity of the anti-chick gizzard vinculin antiserum used in this study to label nerve satellite cells. The following chick embryonic tissues were
solubilized with SDS and run on 7.5%
polyacrylamide-SDS gels under reducing conditions: day 10 brain (lanes 2, 5: 100^g; lanes 3, 6: 10 fig; lanes 4, 7:
l,itg), day 5 hindlimb bud (lane 8: 10 fig), day 5 spinal cord (lane 9: 10fig) and day 5 heart muscle (lane 10: 10^g).
Lanes 1-4 were stained with Coomassie, lanes 5-10 were blotted to nitrocellulose and probed with anti-vinculin antiserum diluted 1:300. In all tissue extracts, a single prominent (Mr=116000) band corresponding to vinculin is recognized by the antiserum. Molecular weights of marker proteins (lane 1) are indicated at left (Mrxl0~3) or by corresponding markings at right (lanes 8-10).
follows. Adult chick gizzard vinculin was purified according to O'Halloran et al. (1986). Purity of the vinculin (Mr=116000) was judged by SDS-polyacrylamide gel electrophoresis. A rabbit was injected with 300^g vinculin and boosted twice.
The serum was tested by immunoblotting (Chiquet et al. 1988) on purified vinculin (not shown) and on SDS extracts of tissues (Fig. 1). We used this vinculin antiserum to detect Schwann precursor cells associated with the outgrowing peripheral axons (Duband and Thiery, 1990). IgGs were precipitated from antisera with ammonium sulfate, redis- solved in the original volume, and dialyzed against TBS (Chiquet and Fambrough, 1984a).
Embryos were staged according to Hamburger and Hamilton (1951); fixation, cryostat sectioning and immunoflu- orescence with the appropriate antibodies was done as described in Wehrle and Chiquet (1990). The distribution of tenascin and fibronectin was compared with neuronal and glial markers by double immunofluorescence on tissue sections. Trie following antibody pairs were used: anti- tenascin mAb Ml/anti-fibronectin antiserum; anti-tenascin antiserum/anti-tubulin mAb ID5; anti-vinculin antiserum/
anti-fibronectin mAb M6.
Tenascin expression in limb buds 629 Chick tenascin cDNA clones and in situ hybridization
A labeled cDNA probe specific for tenascin mRNA was obtained as follows. Chick tenascin cDNA clones were isolated from Agtll libraries and subcloned into plasmids (Spring et al. 1989). Five fragments were selected that span the entire coding region of the 190xl03 MT tenascin variant (Spring et al. 1989). Gel-purified DNA fragments were mixed in an equimolar ratio, and nick translation was performed with tritiated nucleotides (Hafen et al. 1983; Baumgartner et al. 1987). Paraformaldehyde-fixed cryostat sections of 10f<m were incubated with labeled cDNA probe, washed and autoradiographed as described by Baumgartner et al. (1987).
Sections were photographed under dark-field illumination
A
and phase contrast on a Zeiss Photomicroscope III using Ilford Pan F film.
To test whether the hybridization patterns obtained with the described cDNA probe are specific, a second 330 bp long cDNA probe was prepared from the extra fibronectin type III repeats of tenascin which are present only in the largest, 230xl03Mr splicing variant (Spring et al. 1989). This cDNA had no sequence overlap with the probe described above, yet showed an identical hybridization pattern in the developing limb nerves (data not shown).
Grafting
Grafting was essentially performed as described in Pardanaud
Fig. 2. Cross sections through a normal stage 26 embryo at the wing bud level. Consecutive sections were either hybridized with tenascin cDNA probe (A) or double labeled with anti-tenascin mAb Ml (B) and anti-fibronectin antiserum (C). Black and white arrow pair in A indicate the plane of the cross sections shown in Fig. 5A-H. Note the high expression of tenascin mRNA (A) overlapping with tenascin positive (B), fibronectin-negative (C) outgrowing limb nerves. In addition, tenascin mRNA can be located to precartilage of the vertrebral column and to the aortic wall, whereas the chorda appears negative at this stage and level in the embryo (cf. Fig. 7). TN, tenascin; FN, fibronectin; nt, neural tube; ch, chorda; ao, aorta; p, brachial plexus; bis, brachialis longus superior nerve; bli, brachialis longus inferior nerve; r, radialis nerve; h, humerus primordium. Bar, 500^m.
et al. (1989). Eggs were incubated with their pointed end down in a humified chamber at 37°C for 3 to 3 1/4 days. The egg was opened at the blunt end. The egg membrane and the underlying vitelline membrane were opened, and the embryos were staged according to Hamburger and Hamilton (1951).
The amnion of a chosen embryo (stage 18-19) was slit open with watchmaker forceps over the right wing bud. The limb bud was cut away with a scalpel and pushed through a slit in the flank into the coelomic cavity of the same embryo. The egg was sealed with Scotch tape and returned to the incubator. 2 or 3 days later the graft and the contralateral control wing were staged and fixed. Successful grafts were examined by immunocytochemistry and in situ hybridization.
The possible innervation of grafts by ectopic nerves was checked routinely by staining for mAb ID-5-positive axons and vinculin-positive nerve satellite cells.
Results
Nerve-dependent tenascin expression in the normal wing bud
During embryonic day 5 of chick development (stages 24-25), the peripheral axons that have accumulated in a plexus at the hip and shoulder region start to invade the limb mesenchyme as large nerve bundles. At stage 26, they have formed bracket-like structures that encircle the femur or humerus primordia at their dorsal and ventral surfaces. These nerves are positive for tenascin and exclude fibronectin (cf. Wehrle and Chiquet, 1990;
Fig. 2B,C). In situ hybridization during nerve invasion of the wing bud showed that tenascin mRNA is associated with the brachial plexus, with the proximal wing nerves (brachialis longus superior and inferior) and with the radialis nerve, which runs dorsally of the humerus anlage (Fig. 2A; see Fig. 3 for a scheme).
Since the hybridization signal is high throughout the nerves and sharply outlines their borders, the likely source of tenascin mRNA in this case is nerve satellite cells, i.e. glial precursors (cf. Tosney and Landmesser, 1985; Fig. 5), rather than mesenchymal cells that surround the nerve.
Expression of tenascin mRNA and protein in nerveless wing grafts
To distinguish between nerve-dependent versus -inde- pendent tenascin expression in the developing wing bud, we wanted to compare the pattern of tenascin mRNA and protein in normal limbs with the one in nerve-free limbs. To obtain nerveless wings, we grafted stage 18-19 wing buds into the coelomic cavity of the same embryos. We operated on 22 embryos of which 13 have grown successful grafts. Typically the grafts were smaller than the contralateral control wing and were also developmentally delayed by about half a day. Of the 13 grafts, two were innervated by ectopic peripheral nerves. These nerves could be detected by using two antibodies as markers: mAb ID5 against detyrosinated o--tubulin (Wehland and Weber, 1987) specifically labels peripheral axons (Wehrle and Chiquet, 1990), whereas anti-vinculin antiserum (Fig. 1) stains neural-crest- derived nerve satellite cells strongly compared to mesenchymal cells (Duband and Thiery, 1990). The
brachialis longus superior n.
humerus p.
brachial plexus
brachialis longus
inferior n.
pectoralis n.
ulnaris n.
interosseus n.
trizeps brachii n.
dorsal tendon p.
radialis n.
ventral tendon p.
radius p.
ulna p.
Fig. 3. Schematic drawing of a right wing bud of stage 26-27, modified from Hollyday (1983) and Noakes and Bennett (1987), with additional information from Fig. 4 about the location of tendon primordia. The wing is viewed from posterior; p, primordium; n, nerve.
innervation pattern of these two grafts was basically the same as in ungrafted controls (not shown). The remaining grafts were judged nerveless because neither axons nor satellite cells could be detected with the respective marker antibodies (not shown). Of these grafts, three at stage 24-25 and three at stage 26 were sectioned and stained for tenascin and fibronectin.
Three grafts at stage 27 were sectioned and in situ hybridization for tenascin mRNA as well as immuno- fluoresence staining for tenascin and fibronectin were performed.
In wing grafts at stage 24-25, no staining with anti- tenascin could be detected, except where the graft was attached to the host tissue. Fibronectin-positive precar- tilage condensations could be observed (data not shown). Wing grafts at stage 26 exhibited tenascin- positive stripes on the surface of the fibronectin- positive humerus primordium (Figs4A,B)- Two such structures, of which the dorsal is seen in Fig. 4A, were oriented in a proximal to distal direction. They are the first tendon primordia. However, no tenascin was detected in regions proximal to the humerus primor- dium, where the cenascin-positive plexus and the upper brachial nerves are found in normal limbs (Fig. 2B;
Wehrle and Chiquet, 1990).
At stage 27, the anti-tenascin staining of the tendon primordia in nerveless wing grafts had increased in intensity and diameter (Figs4C,D). Ventrally, the tenascin-positive material lay close to the main blood vessel (Fig. 4C) and ended at the mid forewing level (not shown). Dorsally, the staining extended along the humerus (Fig. 4C) to the proximal end of the ulna, disappeared and started again a bit more distally in between radius and ulna (not shown). In situ hybridiz-
Tenascin expression in limb buds 631
Fig. 4. Protein distribution of tenascin (A,C) and fibronectin (B,D) and localization of tenascin mRNA (E) in cryosections of chick coelomic wing grafts. A longitudinal section of a stage 26 grafted wing bud was double stained with anti-tenascin mAb Ml (A) and anti-fibronectin antiserum (B). A cross section through a stage 27 wing graft at the mid-humerus level was double labeled with anti-tenascin mAb Ml (C) and anti-fibronectin antiserum (D). A longitudinal section of a stage 27 wing graft was hybridized with tenascin cDNA probe (E). Dorsal is up; in the cross section, anterior is oriented to the right, and in longitudinal sections, distal is to the right. TN, tenascin; FN, fibronectin; dt, dorsal tendon primordium; vt, ventral tendon primordium; h, humerus primordium; bv, blood vessel; c, coracoid primordium. Bar, 400 fim (A,B) and 500 urn (C-E).
ation (Fig. 4E) revealed the same location of tenascin mRNA in tendon primordia as detected for the protein by staining with anti-tenascin.
In the grafts, anti-tenascin staining was restricted to perichondrium, ligament and tendon anlagen at this stage. Mesenchyme proximal to the tendon primordia, which normally accumulates tenascin protein along the developing nerve, was devoid of tenascin in nerveless wings. Wing grafts lacked both vinculin-positive satel- lite cells (not shown) and tenascin mRNA expression (Fig. 4E) in the region where the plexus and brachial nerves would form. This supports the notion that
tenascin mRNA accumulated throughout proximal nerves in normal wing buds (Fig. 2A) is synthesized by these satellite cells.
Relationship between the growing radialis nerve and the dorsal tendon primordium
It seems clear from the last paragraph that tendon primordia are the only tenascin-positive structures in the developing limb which appear at the same time and about the same place as two of the peripheral limb nerves, namely the radialis and the interosseus (see Fig. 3). This tenascin expression is mesenchymal and is
not triggered by innervation. Since tendon primordia might provide guidance to these two developing nerves, we wanted to look at their spatial and temporal relationship more closely. Growing axons of the radialis nerve were detected with anti-tubulin mAb ID5 (Wehland and Weber, 1987; Wehrle and Chiquet, 1990). Comigrating nerve satellite cells were specifically labeled by anti-vinculin antiserum (Fig. 1; Duband and Thiery, 1990). By double immunofluorescence labeling, it was possible to correlate the positions of the dorsal tendon primordium with the developing radialis nerve.
At stage 26 in the wing, the upper brachial nerves have a large diameter, whereas the radialis nerve is long and tall (Fig. 2). Examination of cross sections at the same stage (26) by immunofluorescence revealed tenascin staining between the nerve fascicles of the brachialis longus inferior (Fig. 5A). ID-5-positive axons (Fig. 5B) were encircled by vinculin-positive nerve satellite cells, i.e. glial precursor cells (Fig. 5C).
Fibronectin was excluded from nerve fascicles but stained the precartilage condensation of the humerus (Fig. 5D). On the same section, tenascin staining was distributed in the mesenchyme around the radialis nerve (Figs 5A,E). As for tenascin, staining for fibronectin was prominent adjacent to the nerve (Figs 5D,H). The enhanced staining for tenascin and fibronectin around the nerve is due to the dorsal tendon primordium which could be detected in the grafted nerve-free limbs (Fig. 4) and which in normal limbs partially overlaps with the radialis nerve at this stage.
One stage later in development (stage 27), the now strongly tenascin- and fibronectin-positive tendon pri- mordium, which parallels the radialis nerve, has increased in diameter, and the axons with their glial sheet are detached from it (Figs 5I-L; Tosney and Landmesser, 1985).
At the tip of the deep branch of the radialis nerve (Figs 5M-P), the most-distal tenascin-positive ECM fibers (Fig. 5M) were detected within 20 nm from the tip of the nerve as determined by ID5 (Fig. 5N) and vinculin (Fig. 5O) staining. The vinculin-positive satel- lite cells were always found in close association with axonal fibers and growth cones (Figs 5N,O). Fibronec- tin staining is homogeneous throughout the limb mesenchyme at this distal level (Fig. 5P).
It should be stressed that the association of growing nerves with tendon primordia cannot be generalized.
Of the ventral wing nerves, for example, the ulnaris penetrates into tenascin-free mesenchyme but itself expresses tenascin. Interestingly, however, this nerve advances more slowly than the interosseus nerve which runs parallel to the ventral tendon primordium (data not shown). A summary of findings concerning the stage 26 wing bud is shown in a schematic drawing (Fig. 3).
Cessation of tenascin mRNA accumulation within nerves at later stages
At stages 28 and later, detectable tenascin mRNA has disappeared completely from the plexus region (not shown) and within the nerves at the upper wing level
Fig. 5. Cross sections through normal left wing buds of stage 26 (A-H) and stage 27 (I-P) embryos. Every row shows two pairs of pictures derived from two consecutive sections. Sections in A/B, E/F, I/J, and M/N were double labeled with anti-tenascin antiserum (A,E,I,M) and axon- specific anti-tubulin mAb ID5 (B,F,J,N). Sections in C/D, G/H, K/L, and O/P were double stained with satellite cell-specific anti-vinculin antiserum (C,G,K,O) and anti- fibronectin mAb M6 (D,H,L,P). Sections were viewed both under rhodamine (for the antisera) and fluoresceine (for the mAbs) optics, and paired photographs are shown.
A-D shows an overview of a stage 26 wing bud at a proximal level (indicated by arrow pair in Fig. 2A). The boxed area includes the radialis nerve which is enlarged in E-H. I-L are cross sections through the radialis nerve of a stage 27 wing bud, at a similar level and at the same magnification as shown for E-H. M-P represent cross sections through the deep branch of the radialis nerve (stage 27) at its distal tip. Anterior is to the left and central is up, except for sections I-L which are rotated counter-clockwise by 60°. TN, tenascin; TUB, tubulin;
VTN, vinculin; FN, fibronectin; bli, brachialis longus inferior nerve; h, humerus; rn, radialis nerve; dt, dorsal tendon primordium; rnp, radialis nerve ramus profundus.
Bar, 200 fan (A-D); Bar, 50fim (E-P).
(Figs 6A-D). However, the tenascin protein that has accumulated around the nerves is still visible (Fig. 6E).
Expression of tenascin mRNA in perichondrium (Figs 6A,B) and tendon primordia (Figs 6A-D) is now clearly, although weakly, detectable. This seems to contrast with the strong labeling of tendon primordia by anti-tenascin (Fig. 6E). Apparently, low but constant levels of tenascin mRNA synthesis lead to a high protein accumulation in tendons. In contrast, a short but transient burst of tenascin mRNA is found in growing nerves.
Expression of tenascin in the hindlimb bud
In the hindlimb bud at stages 24-25, the nerves have not yet left the plexus region; however, tenascin mRNA can be detected in ventral as well as in dorsal regions of the femural precartilage cell condensation (Fig. 7A). This expression is obviously independent of the presence of nerves, as is the case in nerveless wing grafts of stage 26.
Thus, tenascin expression in tendon primordia starts earlier in the leg than in the wing. At stage 26, the dorsal and ventral branches of the sciatic nerve have reached these tenascin mRNA positive pretendinous structures (Figs 7B,C). The dorsal tendon primordium parallels the dorsal sciatic nerve branch anteriorly. In the hindlimb bud, tenascin expression by peripheral nerves (Figs 7B,C) is similar to that observed in the wing bud, however, the tendon primordia are formed prior to nerve innervation.
In conclusion, when the peripheral nerves start to innervate the limb bud, satellite cells, which are likely to be glial precursor cells, accumulate high amounts of tenascin mRNA. Newly synthesized tenascin is de- posited at the interface between the glial cell sheet and the mesenchyme, which in most places does not express tenascin mRNA. However, specialized mesenchyme,
Tenascin expression in limb buds 633
stage 26
stage 27
like the tendon primordia, produce and accumulate tenascin basically at the same time when some limb nerves (radialis and interosseus in the wing, sciatic in
the leg) are formed. These nerves are first tightly associated with tendon primordia, but later separate from them and finally run parallel to the tendons. After
f/ I
Fig. 6. Longitudinal (A,B) and cross (C-E) sections through stage 28 wing buds. Section plane of cross sections (C-E) is indicated by arrowheads in B. Sections (A,B) and (C,D) were hybridized with labeled tenascin cDNA probe,
autoradiographed and photographed under dark (A,C) or phase contrast (B,D) optics. A section consecutive to (C,D) was processed for immunofluorescence with anti-tenascin mAb Ml (E). In sections C-E, anterior is to the left and dorsal is up.
rn, radialis nerve; h, humerus; dt, dorsal tendon primordium; vt, ventral tendon primordium; bv, blood vessel; int, interosseus nerve; un, ulnaris nerve; j , elbow joint. Bar, 250^m.
the major growth phase of peripheral nerves, tenascin mRNA accumulation by nerve satellite cells ceases, but continues in mesenchymal structures.
Discussion
During invasion of embryonic chick limbs by peripheral nerves, tenascin is deposited between axons at their growing tips, and more proximally around developing axon fascicles (Wehrle and Chiquet, 1990). In contrast, the mesenchyme not in contact with nerves is mostly free of tenascin at this stage. The specific accumulation of tenascin along growing peripheral nerves peaks during the main growth period, whereas later the molecule is found only in the perineurium (Chiquet and Fambrough, 1984a) and at the nodes of Ranvier (Rieger et al. 1986). Looking for a function of tenascin in nerve morphogenesis, it is important to know which
cells synthesize the protein. We could think of the following possibilities: Either, tenascin is synthesized by mesenchyme along prospective nerve pathways independently from the growing nerves. In this case, tenascin might be involved in axonal pathfinding.
Alternatively, the ingrowing nerves could induce tenascin production in the neighboring mesenchyme, or the protein could be made by nerve satellite cells (i.e., prospective Schwann cells; Noakes et al. 1988), which accompany the growing axons. In the latter two cases, tenascin could have a function in nerve morphogenesis and maturation rather than in establishing the nerve pattern. To distinguish between these possibilities, we determined the sites of tenascin mRNA accumulation in normal as well as in grafted nerve-free limbs. Since in the absence of nerves only the tendon primordia express tenascin mRNA at the relevant stages, we can conclude that all other tenascin associated with nerves
Tenascin expression in limb buds 635
B
Fig. 7. Cross sections through embryos of stage 25 (A) and 26 (B,C), respectively at the level of the hindlimb bud.
Sections were hybridized with labeled tenascin cDNA probe, autoradiographed and photographed under dark-field
illumination (A,B)- C is an enlarged phase-contrast picture of the same section shown in B. The dorsal tendon primordium is visible in A and the dorsal sciatic nerve branch in B,C. nt, neural tube; c, chorda; a, aorta; p, neuronal plexus; dt, dorsal tendon primordia; vt, ventral tendon primordia; vp, vertebral primordium; dsn, dorsal branch of the sciatic nerve.
Bar, 250 fim.
is deposited as a consequence of nerve invasion in normal limbs. For the following reasons, we strongly believe that neural-crest-derived nerve satellite cells are the main source of tenascin that is associated with growing nerves. These glial precursor cells are positive for neural crest markers (Vincent and Thiery, 1984) and have been shown to express high levels of cytoskeletal vinculin (Duband and Thiery, 1990), which we used as a marker in this study. In most cases, we found an exact overlap between the vinculin-positive, fibronectin- negative area of growing nerves and the in situ hybridization pattern obtained with tenascin cDNA.
The border of the labeling between nerves and mesenchyme was very sharp; except in the few cases where nerves follow tendon primordia, no tenascin mRNA could be detected in the adjacent tissue at this stage. Thus, nerves are not likely to induce tenascin synthesis in the surrounding mesenchyme, but them- selves produce most of the protein. Since axons contain little if any mRNA (Davis et al. 1987), vinculin-positive satellite cells are the only candidates to accumulate tenascin mRNA within the nerve proper. In accordance with our conclusion, Martini and Schachner (1991) have found intracellular tenascin immunoreactivity in Schwann precursor cells by electron microscopy.
Moreover, primary glial cells (Grumet et al. 1985) and glial cell lines (Bourdon et al. 1985) are known to produce the protein.
It is an open question how the highly restricted expression pattern of tenascin is controlled. It seems
from our results that tendon cells produce relatively low amounts of tenascin mRNA over prolonged periods of time, which results in the accumulation of a lot of the protein as the tendon matures. This process might be regulated by factors such as TGF-/J, which is known to stimulate tenascin mRNA transcription in cultured fibroblasts (Pearson et al. 1988) and which is expressed in embryonic tendons (Pelton et al. 1989). In contrast, expression of tenascin mRNA in nerve satellite cells seems to be high but lasts for only about one day. This leads to a delayed, transient accumulation of the protein around axon fascicles. It is known that direct contact with growing axons induces Schwann cells to deposit laminin (Bunge et al. 1989), and such cell contacts might also be important for the expression of tenascin mRNA in these cells. On the other hand, the short burst of tenascin expression, which is also found in some growing epithelia (Prieto et al. 1990), might be coupled to an endogenous developmental program of glial precursor cells.
Could any of the tenascin that is expressed in developing limbs be involved in axonal guidance? We found that most of the tenascin at the tips of growing peripheral nerves is produced by nerve satellite cells and not by mesenchymal cells along prospective axonal pathways. Therefore, other molecules or structures at the interface between the central cartilage condensation and the peripheral limb mesenchyme must be respon- sible for guiding the nerves. The early tendon primor- dia, for which tenascin happens to be an early
mesenchymal marker, are candidates for guiding two of the wing nerves, the radialis and the interosseus. For a short period of time, the developing radialis nerve is embedded into the tendon primordium, which is consistent with a guiding function of this structure. The molecules involved have yet to be identified. Since tenascin is accumulated here by tendon mesenchyme as well as by nerve satellite cells, it is not likely to act as a vectorial signal between the two tissues. Certain monoclonal antibodies (Tanaka et al. 1989) might recognize putative candidates for a guiding function which are present in prospective nerve pathways.
Tenascin is produced by nerve satellite cells during the main growth phase of peripheral axons and is therefore likely to be essential for the morphogenesis of limb nerves. For example, tenascin is much more protease resistant than fibronectin (Chiquet and Fam- brough, 1984fc). Since growing axons are known to secrete proteases (McGuire and Seeds, 1990), the growing nerve might digest mesenchymal fibronectin, which is then replaced by tenascin secreted by the satellite cells. In vitro, tenascin inhibits the spreading of cells of mesenchymal origin (Chiquet-Ehrismann et al.
1988). It is a non-adhesive substratum for most cell types except for some of glial origin (Lotz et al. 1989).
Thus, tenascin might be used to demarcate the boundaries of developing axon fascicles. Such a boundary function has been proposed for tenascin during development of the somatosensory barrel fields in the cortex (Steindler etal. 1989). However, we do not believe that tenascin exerts such a function by being a general inhibitor of axonal attachment and growth (Caroni and Schwab, 1988; Faissner and Kruse, 1990).
From our observations, it does not seem that growing axons are deflected away from tenascin-containing tendon primordia, as it has been suggested (Martini and Schachner, 1991). We have shown that tenascin does allow growth cone attachment and movement, although it is a poor adhesive substratum for the neurites of developing motor neurons (Wehrle and Chiquet, 1990).
Therefore, tenascin-containing matrix around axons might facilitate the formation of fascicles, but still allow the sorting of axons between them during final nerve morphogenesis. Tenascin could thus allow the plasticity that is necessary for a refinement of neuronal projec- tions during development of the nervous system. More experiments both in vitro and in vivo are needed to support this hypothesis.
We are grateful to Juergen Wehland for the gift of anti- tubulin ID-5 mAb. We would like to thank Carlo Bernasconi for technical assistance, Dorothee Brubacher, Monique Wehrle-Haller and Ruth Chiquet-Ehrismann for critical reading of the manuscript, Cynthia Lance-Jones for sugges- ting the coelomic grafting of limb buds, and Juergen Engel for discussion and continuing support. This work is funded by grants from the Swiss National Science Foundation to M.C.
References
BAUMGARTNER, S., BOPP, D . , BURJU, M. AND NOLL, M. (1987).
Structure of two genes at the gooseberry locus related to the paired'gene and their spatial expression during Drosophda embryogenesis. Genes Devi. 1, 1247-1267.
BOUCAUT, J. C , DARRIBERE, T., POOLE, T. J., AOYAMA, H. AND
YAMADA, K. M. (1984). Biologically active synthetic peptides as probes of embryonic development: a competitive inhibitor of fibronectin function inhibits gastrulation in amphibian embryos and neural crest cell migration in avian embryos. J. Cell Biol.
99, 1822-1830.
BOURDON, M. A., MATTHEWS, T. J., Pizzo, S. V. AND BIGNER, D.
D. (1985). Immunochemical and biochemical characterization of a glioma-associated extracellular matrix glycoprotein. J. cell.
Biochem. 28, 183-195.
BUNGE, M. B., BUNGE, R. P., KLEITMAN, N. AND DEAN, A. C.
(1989). Role of peripheral nerve extracellular matrix in Schwann cell function and in neurite regeneration. Devi Neurdsa. 11, 348-360.
CARONI, P. AND SCHWAB, M. E. (1988). Antibody against myelin- associated inhibitor of neurite growth neutralizes nonpermissive substrate properties of CNS white matter. Neuron 1, 8 5 - % . CHIQUET, M. (1989). Tenascin/Jl/cytotactin: the potential function
of hexabrachion proteins in neural development. Devi Neurosci.
11, 266-275.
CHIQUET, M. AND FAMBROUGH, D. M. (1984a). Chick
myotendinous antigen. I. A monoclonal antibody as a marker for tendon and muscle morphogenesis. J. Cell Biol. 98, 1926-1936.
CHIQUET, M. AND FAMBROUGH, D . M. (1984fc). Chick
myotendinous antigen. II. A novel extracellular glycoprotein complex consisting of large disulfide-linked subunits. / . Cell Biol. 98, 1937-1946.
CHIQUET, M., MASUDA-NAKAGAWA, L. AND BECK, K. (1988).
Attachment to an endogenous laminin-like protein initiates sprouting by leech neurons. J. Cell Biol. 107, 1189-1198.
CHIQUET-EHRISMANN, R. (1990). What distinguishes tenascin from fibronectin? FASEB J. 4, 2598-2604.
CHIQUET-EHRISMANN, R., KALLA, P., PEARSON, C. A., BECK, K.
AND CHIQUET, M. (1988). Tenascin interferes with fibronectin action. Cell 53, 383-390.
CHIQUET-EHRISMANN, R., MACKIE, E. J., PEARSON, C. A. AND
SAKAKURA, T. (1986). Tenascin: an extracellular matrix protein involved in tissue interactions during fetal development and oncogenesis. Cell 47, 131-139.
CROSSIN, K. L., HOFFMAN, S., GRUMET, M., THIERY, J.-P. AND
EDELMAN, G. M. (1986). Site-restricted expression of cytotactin during development of the chicken embryo. J. Cell Biol. 102, 1917-1930.
DANILOFF, J. K., CROSSIN, K. L., PINCON-RAYMOND, M., MURAWSKY, M., RIEGER, F. AND EDELMAN, G. M. (1989).
Expression of cytotactin in the normal and regenerating neuromuscular system. / . Cell Biol. 108, 625-635.
DAVIS, L., BANKER, G. A. AND STEWARD, O. (1987). Selective
dendritic transport of RNA in hippocampal neurons in culture.
Nature 330, 477-479.
DUBAND, J-L. AND THIERY, J. P. (1990). Spatial and temporal distribution of vinculin and talin in migrating avian neural crest cells and their derivatives. Development 108, 421—433.
EDGAR, D., TIMPL, R. AND THOENEN, H. (1984). The heparin
binding domain of laminin is responsible for its effects on neurite outgrowth and neuronal survival. EMBO J. 3, 1463-1468.
ERICKSON, H. P. AND BOURDON, M. A. (1989). Tenascin: an extracellular matrix protein prominent in specialized embryonic tissues and tumors. Ann. Rev. Cell Biol. 5, 71-92.
FAJSSNER, A. AND KRUSE, J. (1990). Jl/tenascin is a repulsive substrate for central nervous system neurons. Neuron 5, 627-637.
GRUMET, M., HOFFMAN, S., CROSSIN, K. L. AND EDELMAN, G. M.
(1985). Cytotactin, an extracellular matrix protein of neural and non-neural tissues that mediates glia-neuron interaction. Proc.
nam. Acad. Sci. U.S.A. 82, 8075-8079.
HAFEN, E., LEVINE, M., GARBER, R. L. AND GEHRING, W. J.
(1983). An improved in situ hybridization method for the detection of cellular RNAs in Drosophila tissue sections and its
Tenascin expression in limb buds 637
application for localizing transcripts of the homeotic antennapedia gene complex. EMBO J. 2, 617-623.
HAMBURGER, V. AND HAMILTON, H. L. (1951). A series of normal stages in the development of the chick embryo. J. Embryol. exp.
Morph. 88, 29-92.
HOLLYDAY, M. (1983). Development of motor innervation of chick limbs. In Limb Development and Regeneration (ed. J. F. Fallon and A. I. Caplan) Part A, pp. 183-193. New York: Alan Liss.
HUMPHRIES, M. J., AKTYAMA, S. K., KOMORIYA, A., OLDEN, K.
AND YAMADA, K. M. (1988). Neurite extension of chick peripheral nervous system neurons on fibronectin: relative importance of specific adhesion sites in the central cell binding domain and the altenatively spliced type III connecting segment.
/. Cell Biol. 106, 1289-1297.
HURLE, J. M., Ros, M. A., GANAN, Y., MACIAS, D . , CRTTCHLOW,
M. AND HINCHLIFFE, J. R. (1990). Experimental analysis of the role of ECM in the patterning of the distal tendons of the developing limb bud. Cell Diff. and Devel. 30, 97-108.
KEYNES, R. J. (1987). Schwann cells during neural development and regeneration: leaders or followers? TINS 10, 137-139.
LANCE-JONES, C. AND LANDMESSER, L. (1981). Pathway selection by embryonic chick motorneurons in an experimentally altered environment. Proc. R. Soc. Lond. B 214, 19-52.
LANDMESSER, L. AND HONIG, M. G. (1986). Altered sensory projections in the chick hind limb following the early removal of motoneurons. Devi Biol. 118, 511-531.
LEWIS, J., AL-GAITH, L., SWANSON, G. AND KHAN, A. (1983). The
control of axon outgrowth in the developing chick wing. In Limb Development and Regeneration (ed. J. F. Fallon and A. I.
Caplan) Part A, pp. 195-205. New York: Alan Liss.
LOTZ, M. M., BURDSAL, C. A., ERICKSON, H. P. AND MCCLAY, D.
R. (1989). Cell adhesion to fibronectin and tenascin: quantitative measurements of initial binding and subsequent strengthening response. J. Cell Biol. 109, 1795-1805.
MARTINI, R. AND SCHACHNER, M. (1991). Complex expression pattern of tenascin during innervation of the posterior limb buds of the developing chicken. J. Neurosci. Res. (in press).
MARTINI, R., SCHACHNER, M. AND FAISSNER, A. (1990). Enhanced
expression of the extracellular matrix molecule Jl/tenascin in the regenerating adult mouse sciatic nerve. J. Neurocytol. 19, 601-616.
MCGUIRE, P. G. AND SEEDS, N. W. (1990). Degradation of underlying extracellular matrix by sensory neurons during neurite outgrowth. Neuron 4, 633-642.
NOAKES, P. G. AND BENNETT, M. R. (1987). Growth of axons in developing muscles of the chick forehmb is preceded by cells that stain with Schwann cell antibodies. J. comp. Neurol. 259, 330-347.
NOAKES, P. G., BENNETT, M. R. AND STRATFORD, J. (1988).
Migration of Schwann cells and axons into developing chick forelimb muscles following removal of either the neural tube or the neural crest. J. comp. Neurol. 277, 214-233.
O'HALLORAN, T., MOLONY, L. AND BURRIDGE, K. (1986).
Purification and assay of vinculin, metavinculin, and talin. Meth.
Enzymol. 134, 69-77.
PARDANAUD, L., YASSINE, F. AND DIETERLEN-LIEVRE, F. (1989).
Relationship between vasculogenesis, angiogenesis and
haemopoiesis during avian ontogeny. Development 105, 473-485.
PEARSON, C. A., PEARSON, D., SHIBAHARA, S., HOFSTEENGE, J. AND
CHIQUET-EHRISMANN, R. (1988). Tenascin: cDNA cloning and induction by TGF-/3. EMBO J. 7, 2977-2981.
PELTON, R. W., NOMURA, S., MOSES, H. L. AND HOGAN, B. L. M.
(1989). Expression of transforming growth factor 82 RNA during murine embryogenesis. Development 106, 759-767.
PRIETO, A. L., JONES, F. S., CUNNINGHAM, B. A., CROSSIN, K. L.
AND EDELMAN, G. M. (1990). Localization during development of alternatively spliced forms of cytotactin mRNA by in situ hybridization. / . Cell Biol. I l l , 685-698.
RIEGER, F . , DANILOFF, J. K., PINCON-RAYMOND, M., CROSSIN, K.
L., GRUMET, M. AND EDELMAN, G. M. (1986). Neural cell adhesion molecules and cytotactin are colocalized at the node of Ranvier. J. Cell Biol. 103, 379-391.
SANES, J. R., SCHACHNER, M. AND COUVAULT, J. (1986).
Expression of several adhesive macromolecules, N-CAM, L I , Jl, NILE, uvomoruhn, laminin, fibronectin, and a heparan sulfate proteoglycan in embryonic, adult, and denervated adult skeletal muscle. / . Cell Biol 102, 420-431.
SPRING, J., BECK, K. AND CHIQUET-EHRISMANN, R. (1989). Two
contrary functions of tenascin: dissection of the active sites by recombinant tenascin fragments. Cell 59, 325-334.
STEINDLER, D. A. , COOPER, N. G. F., FAJSSNER, A. AND
SCHACHNER, M. (1989). Bounderies defined by adhesion molecules during development of the cerebral cortex: the Jl/tenascin glycoprotein in the mouse somatosensory cortical barrel field. Devi Biol. 131, 243-260.
STIRLING, V. R. AND SUMMERBELL, D. (1985). The behavior of growing axons invading developing chick wing buds with dorsoventral or anteroposterior axis reversed. J. Embryol. exp.
Morph. 85, 251-269.
SWANSON, G. J. AND LEWIS, J. (1986). Sensory nerve routes in chick wing buds deprived of motor innervation. / . Embryol.
exp. Morph. 95, 37-52.
TANAKA, H., AGATA, A. AND OBATA, K. (1989). A new membrane
antigen revealed by monoclonal antibodies is associated with motoneuron axonal pathways. Devi Biol. 132, 419-435.
TOSNEY, K. W. AND LANDMESSER, L. T. (1984). Pattern and specificity of axonal outgrowth following varying degrees of chick limb bud ablation. J. Neurosci. 4, 2518-2527.
TOSNEY, K. W. AND LANDMESSER, L. T. (1985). Development of the major pathways for neurite outgrowth in the chick hindlimb.
Devi Biol. 109, 193-214.
VINCENT, M. AND THIERY, J. P. (1984). A cell surface marker for neural crest and placodal cells: Further evolution in peripheral and central nervous system. Devi Biol. 103, 468-481.
WEHLAND, J. AND WEBER, K. (1987). Turnover of the carboxy- terminal tyrosine of alpha-tubuhn and means of reaching elevated levels of detyrosination in living cells. J. Cell Sci. 88, 185-203.
WEHRLE, B. AND CHIQUET, M. (1990). Tenascin is accumulated along developing peripheral nerves and allows neurite outgrowth in vitro. Development 110, 401-415.
(Accepted 22 February 1991)
