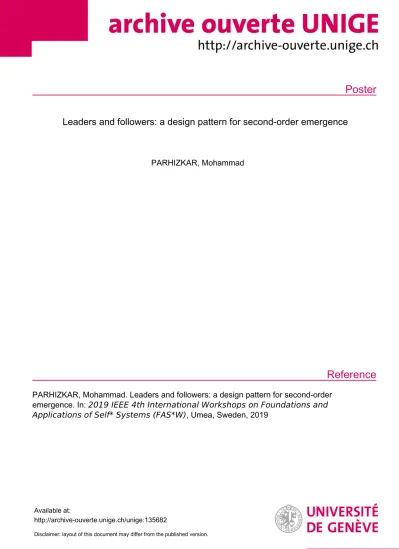

Poster
Reference
Leaders and followers: a design pattern for second-order emergence
PARHIZKAR, Mohammad
PARHIZKAR, Mohammad. Leaders and followers: a design pattern for second-order emergence. In: 2019 IEEE 4th International Workshops on Foundations and Applications of Self* Systems (FAS*W) , Umea, Sweden, 2019
Available at:
http://archive-ouverte.unige.ch/unige:135682
Disclaimer: layout of this document may differ from the published version.
1 / 1
i. vegetative ii. aggregation iii. slugs formationiv. slugs behaviours
a. First-order b. Second-order
a. b.
1 2 3
4
{ { { {
0{
43 21 0c.
Umeå, Sweden June, 2019
Mohammad Parhizkar
Centre Universitaire d’Informatique (CUI) University of Geneva, Switzerland Email: mohammad.parhizkar@unige.ch
Giovanna Di Marzo Serugendo Centre Universitaire d’Informatique (CUI) University of Geneva, Switzerland Email: giovanna.dimarzo@unige.ch
Salima Hassas LIRIS-CNRS
University Claude Bernard-Lyon1, France Email: salima.hassas@liris.cnrs.fr
- Centre Universitaire d’Informatique (CUI), Geneva, Switzerland
- LIRIS-CNRS Université Claude Bernard-Lyon1, France
Project’s website for the videos:https://www.unige.ch/cui/cas/research/dicty Short-term objectives
•
Understand, simulate and visualize the intercellular activities of individual cells (growth, division, movement, secretion, differentiation, etc.).•
Modeling and simulating the emergence of slug behaviors:-
Phototaxis-
Ammonia effect-
Merging of two small slugs-
The relationship between slug’s speed, age, length•
Appealing to inspire the engineering of swarm roboticsThis project is supported by the Swiss National Science Foundation (SNSF), Grant: Dicty Project - 205321 179023.
Acknowledgment
• Validation of all models and simulations with biologists.
• Improving the first-order and second-order models.
• Continue the work on stream breaking mechanism.
• Continue the work on slugs properties such as speed, age, size
• Cell-cell adhesion: considering the cells more than one discrete point, simulation of the gap between first-order and the second-order collective behaviors.
• Translating the models and mechanisms to swarms of Kilobots.
Future works
Publications
1.M. Parhizkar and G. D. M. Serugendo, Social Amoeba Dictyostelium discoideum as an Inspiration for Swarm Robotics, IEEE 9th International Conference on Self-Adaptive and Self-Organizing Systems, 2015 , USA . 2.M. Parhizkar and G. D. M. Serugendo, An Agent-Based Model for Collective Behaviors of Social Amoeba
Dictyostelium discoideum Morphogenesis: Aggregation Phase, SWARM- The 2nd International Symposium on Swarm Behavior and Bio-Inspired Robotics, 2017, Japan.
3.Mohammad Parhizkar and Giovanna Di Marzo Serugendo, Agent-based models for first- and second-order emergent collective behaviors of social amoeba Dictyostelium discoideum aggregation and migration phases, Artif. Life Robotics, 2018, Volume 23, Issue 4, pp. 498–507.
Leader and Follower Design Pattern
Name Leaders and Followers
Achieving higher-order collective group motion of indi- Problem vidual entities, through local interactions only. The different
groups or super-organisms themselves act like a swarm.
An emergent property triggers a behaviour change, some entities take new roles, i.e. leaders, other entities of the same group follow a leader. Entities know to which group Solution they belong and follow their respective leader. The design of the whole system consists in designing the behaviour of the leaders as a swarm-based (first-order emergence).
By following the leaders, the individual entities achieve second-order emergent emergence.
Individual entities belonging to the different groups. Diffe- Entities rentiation of the entities into leaders and followers. Each
group is formed of one or more leaders and followers.
During motion, followers entities take the place of the entities in front of them. Leaders release signals to provide the direction of movement. Leaders apply a voting process Dynamics to decide on the direction of movement. The behaviour
of the leaders in the different groups corresponds to a first- order behaviour (e.g. uniform distribution).
D. discoideumslugs formation and sensitivity to light/heat.
Known Cells in the tip change their behaviour, they lead the uses remaining cells. Behaviour of the cells in the tip (leaders)
is a ”traditional” swarm behaviour (first-order).
Other cells follow leaders.
TABLE I LEADERS ANDFOLLOWERSDESIGNPATTERN
(a2) (b2)
(c2) (d2)
{
4 (a1)
0 1 2 3 4
(b1) (c1)
{ { { {
3 2 1 0
Fig. 1. Block division and uniform distribution around light source
directional sensing and leading of the slug tip which is made by pre-stalk cells [11], [12]. In our current model, as shown on the top part ofFigure 1, each slug is made of five blocks.
Block zero (red dots), which consists of pre-stalk cells (also known as anterior or
supreme-leaderor tip of the slug) is the
leaderfor the Block 1 (blue dots, followers). Block 1 is the leader for Block 2 and so on. Each block consists of
25 cellsof the same cell type (a1). A
major voting processallows the blocks to decide on which direction to go (c1). In the case of the tip cells (c1), most of the cells observe that the light gradient is “UP” so they will move up. Therefore, the whole red block will relocate towards up. The different cells/blocks follow their predecessor (b1), and they take their places afterwards, inside a whole slug [12]. In each slug, the supreme-leader block becomes attracted to light/heat and also
applies a repulsion algorithm to avoid other slugs.
Our models are successful in reproducing the essential features of this phase, namely, leader signalling, phototaxis, merging and ammonia affect. The bottom part of
Figure 1shows a series of second-order emergent behaviour: attraction of the slugs to light/heat; merging of small slugs (orange and green slugs merge in
(a2)and
(b2)); and repulsion amongslugs to reach a uniform distribution around the light source
(c2)and(d2). Videos of simulations and biological validations can be found at the project’s web-page
1.
IV. C
ONCLUSIONThis paper discusses a novel design pattern, called “Leaders and Followers”, for reaching second-order emergence from in- dividual agents modelling, inspired by our agent-based model for the second-order behaviour ofD. discoideum. Current work involves: biological validation; modelling other phases of
D.discoideum
life cycle; describing the framework and method we developed to identify first- and second-order in
D. dis- coideum; and experimenting second-order emergent behaviourin swarm robotics. R
EFERENCES[1] Matthias Becker. A simulation study of mechanisms of group selection of the slime mold Dictyostelium discoideum. In2010 IEEE 14th International Conference on Intelligent Engineering Systems, pages 321–
326. IEEE, 2010.
[2] A. Bucchiarone, D. Furelos-Blanco, A. Jonsson, F. Khandokar, and M. M. Mourshed. Collective adaptation through concurrent planning:
the case of sustainable urban mobility. InProceedings of the 17th In- ternational Conference on Autonomous Agents and MultiAgent Systems, AAMAS 2018, Stockholm, Sweden, July 10-15, 2018, page 18801882. In- ternational Foundation for Autonomous Agents and Multiagent Systems, Richland, SC, USA / ACM, 2018.
[3] John Dallon, Wonhee Jang, and Richard H Gomer. Mathematically modelling the effects of counting factor in Dictyostelium discoideum.
Mathematical Medicine and Biology, 23(1):45–62, 2006.
[4] John C Dallon, Brittany Dalton, and Chelsea Malani. Understanding streaming in Dictyostelium discoideum: theory versus experiments.
Bulletin of mathematical biology, 73(7):1603–1626, 2011.
[5] J L Fernandez-Marquez, G Di Marzo Serugendo, S Montagna, M Viroli, and J L Arcos. Description and composition of bio-inspired design patterns: a complete overview.Natural Computing, pages 1–25, 2012.
[6] Serge Kernbach. From robot swarm to artificial organisms: Self- organization of structures, adaptivity and self-development.Symbiotic Multi-Robot Organisms: Reliability, Adaptability, Evolution, pages 5–25, 2010.
[7] Richard H Kessin. Dictyostelium: evolution, cell biology, and the development of multicellularity, volume 38. Cambridge, 2001.
[8] A F M Maree.From Pattern Formation to Morphogenesis. Multicellular Coordination in Dictyostelium discoideum. Utrecht, 2000. 152 p. PhD thesis, Tese de Doutorado, Departament of Theoretical Biology and Bioinformatics, 2000.
[9] Alex Mogilner. Mathematics of cell motility: have we got its number?
Journal of mathematical biology, 58(1-2):105–134, 2009.
[10] Mohammad Parhizkar and Giovanna Di Marzo Serugendo. So- cial Amoeba Dictyostelium Discoideum as an Inspiration for Swarm Robotics. InIEEE 9th International Conference on Self-Adaptive and Self-Organizing Systems (SASO), 2015, pages 162–163, 2015.
[11] Mohammad Parhizkar and Giovanna Di Marzo Serugendo. An Agent- Based Model for Collective Behaviors of Social Amoeba Dictyostelium discoideum Morphogenesis: Aggregation Phase. InInternational Con- ference on : SWARM’17, 2017.
[12] Mohammad Parhizkar and Giovanna Di Marzo Serugendo. Agent- based models for first- and second-order emergent collective behaviours of social amoeba Dictyostelium discoideum aggregation and migration phases.Artificial Life and Robotics-Springer, 23(4):498–507, 2018.
