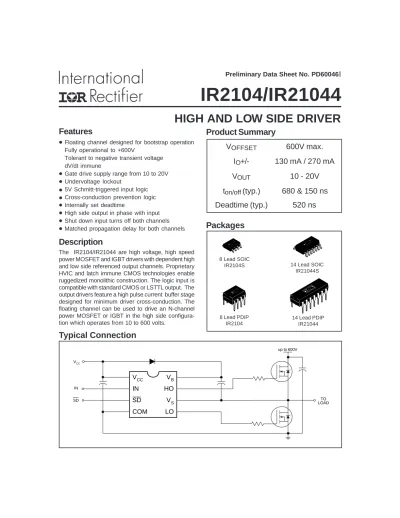

HIGH AND LOW SIDE DRIVER IR2104/IR21044

(1)

IR2104/IR21044

Typical Connection

Packages

Product Summary

V OFFSET 600V max.

I O +/- 130 mA / 270 mA

V OUT 10 - 20V

t on/off (typ.) 680 & 150 ns Deadtime (typ.) 520 ns

HIGH AND LOW SIDE DRIVER

Features

•

Floating channel designed for bootstrap operation Fully operational to +600V

Tolerant to negative transient voltage dV/dt immune

•

Gate drive supply range from 10 to 20V

•

Undervoltage lockout

•

5V Schmitt-triggered input logic

•

Cross-conduction prevention logic

•

Internally set deadtime

•

High side output in phase with input

•

Shut down input turns off both channels

•

Matched propagation delay for both channels

Description

The IR2104/IR21044 are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configura- tion which operates from 10 to 600 volts.

V_CC V_B

V_S HO

LO COM

IN SD

SD IN

up to 600V

TO LOAD V_CC

8 Lead PDIP IR2104 8 Lead SOIC

IR2104S

14 Lead PDIP IR21044 14 Lead SOIC

IR21044S

(2)

Symbol Definition Min. Max. Units

V_B High side floating absolute voltage -0.3 625

V_S High side floating supply offset voltage V_B - 25 V_B + 0.3

V_HO High side floating output voltage V_S - 0.3 V_B+ 0.3

V_CC Low side and logic fixed supply voltage -0.3 25

V_LO Low side output voltage -0.3 V_CC + 0.3

V_IN Logic input voltage (IN & SD) -0.3 V_CC+ 0.3

dV_s/dt Allowable offset supply voltage transient — 50 V/ns

P_D Package power dissipation @ T_A ≤ +25°C (8 lead PDIP) — 1.0

(8 lead SOIC) — 0.625

(14 lead PDIP) — 1.6 (14 lead SOIC) — 1.0 Rth_JA Thermal resistance, junction to ambient (8 lead PDIP) — 125

(8 lead SOIC) — 200

(14 lead PDIP) — 75

(14 lead SOIC) — 120

T_J Junction temperature — 150

T_S Storage temperature -55 150

T_L Lead temperature (soldering, 10 seconds) — 300

Absolute Maximum Ratings

Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions.

Symbol Definition Min. Max. Units

V_B High side floating supply absolute voltage V_S + 10 V_S + 20

V_S High side floating supply offset voltage Note 1 600

V_HO High side floating output voltage V_S V_B

V_CC Low side and logic fixed supply voltage 10 20

V_LO Low side output voltage 0 V_CC

V_IN Logic input voltage (IN & SD) 0 V_CC

T_A Ambient temperature -40 125

Note 1: Logic operational for V_S of -5 to +600V. Logic state held for V_S of -5V to -V_BS.

Recommended Operating Conditions

The Input/Output logic timing diagram is shown in Figure 1. For proper operation the device should be used within the recommended conditions. The V_S offset rating is tested with all supplies biased at 15V differential.

°C V V

W

°C/W

°C

(3)

Symbol Definition Min. Typ. Max. Units Test Conditions

V_IH Logic “1” (HO) & Logic “0” (LO) input voltage 3 — — V_CC = 10V to 20V V_IL Logic “0” (HO) & Logic “1” (LO) input voltage — — 0.8 V_CC = 10V to 20V

V_SD,TH+ SD input positive going threshold 3 — — V_CC = 10V to 20V

V_SD,TH- SD input negative going threshold — — 0.8 V_CC = 10V to 20V

V_OH High level output voltage, V_BIAS - V_O — — 100 I_O = 0A

V_OL Low level output voltage, V_O — — 100 I_O = 0A

I_LK Offset supply leakage current — — 50 V_B = V_S = 600V

I_QBS Quiescent V_BS supply current — 30 55 V_IN= 0V or 5V

I_QCC Quiescent V_CC supply current — 150 270 V_IN = 0V or 5V

I_IN+ Logic “1” input bias current — 3 10 V_IN = 5V

I_IN- Logic “0” input bias current — — 1 V_IN = 0V

V_CCUV+ V_CC supply undervoltage positive going 8 8.9 9.8 threshold

V_CCUV- V_CC supply undervoltage negative going 7.4 8.2 9 threshold

I_O+ Output high short circuit pulsed current 130 210 — V_O = 0V

PW ≤ 10 µs

I_O- Output low short circuit pulsed current 270 360 — V_O = 15V

PW ≤ 10 µs

Symbol Definition Min. Typ. Max. Units Test Conditions

ton Turn-on propagation delay — 680 820 V_S = 0V

toff Turn-off propagation delay — 150 220 V_S= 600V

tsd Shutdown propagation delay — 160 220

tr Turn-on rise time — 100 170

tf Turn-off fall time — 50 90

DT Deadtime, LS turn-off to HS turn-on & 400 520 650 HS turn-on to LS turn-off

Static Electrical Characteristics

V_BIAS (V_CC, V_BS) = 15V and T_A = 25°C unless otherwise specified. The V_IN, V_TH and I_IN parameters are referenced to COM. The V_O and I_O parameters are referenced to COM and are applicable to the respective output leads: HO or LO.

Dynamic Electrical Characteristics

V_BIAS (V_CC, V_BS) = 15V, C_L = 1000 pF and T_A = 25°C unless otherwise specified.

V

mV

V

mA

MT Delay matching, HS & LS turn-on/off — — 60

ns

µA

(4)

Functional Block Diagram

PULSE GEN IN

UV DETECT

SD

COM HO

V_S

V_CC

LO V_B

R Q S PULSE FILTER HV

LEVEL SHIFT

v_cc

DEAD TIME

DEAD TIME 15V

(5)

Lead Definitions

Symbol Description

IN Logic input for high and low side gate driver outputs (HO and LO), in phase with HO Logic input for shutdown

V_B High side floating supply HO High side gate drive output V_S High side floating supply return V_CC Low side and logic fixed supply LO Low side gate drive output COM Low side return

SD

Lead Assignments

14 Lead PDIP 14 Lead SOIC

IR21044 IR21044S

8 Lead PDIP 8 Lead SOIC

IR2104 IR2104S

1 2 3 4 5 6 7

14 13 12 11 10 9 8 VCC

IN SD COM LO

VB HO VS

1 2 3 4 5 6 7

14 13 12 11 10 9 8 VCC

IN SD COM LO

VB HO VS 1

2 3 4

8 7 6 5 VCC

IN SD COM

VB HO VS LO

1 2 3 4

8 7 6 5 VCC

IN SD COM

VB HO VS LO

(6)

8 Lead PDIP

01-3003 01

8 Lead SOIC

01-0021 08

(7)

01-3002 03

14 Lead PDIP

01-3063 00

14 Lead SOIC (narrow body)

(8)

Figure 5. Delay Matching Waveform Definitions HO

50% 50%

10%

LO

90%

MT

HO LO

MT IN(LO)

IN(HO)

Figure 4. Deadtime Waveform Definitions HIN

LIN

HO

50% 50%

90%

10%

LO _90%

10%

DT DT

Figure 3. Shutdown Waveform Definitions SD

tsd

HO LO

50%

90%

Figure 1. Input/Output Timing Diagram SD

IN

HO

LO

Figure 2. Switching Time Waveform Definitions

IN

(HO)

tr

ton toff tf

LO HO

50% 50%

90% 90%

10% 10%

IN

(LO)

(9)

Figure 6A. Turn-On Time vs Voltage Figure 6B. Turn-On Time vs Voltage

Figure 7A. Turn-Off Time vs Temperature Figure 7B. Turn-Off Time vs Voltage

Figure 8A. Shutdown Time vs Temperature Figure 8B. Shutdown Time vs Voltage

Temperature (°C) VBIAS Supply Voltage (V)

VBIAS Supply Voltage (V)

Turn-Off Delay Time (ns)

0 100 200 300 400 500

10 12 14 16 18 20

Max.

Typ.

Turn-Off Delay Time (ns)

0 200 400 600 800 1000 1200 1400

-50 -25 0 25 50 75 100 125

Turn-On Delay Time (ns)

Ma x.

Typ .

Turn-On Delay Time (ns)

Temperature (°C)

Shutdown Delay Time (ns)

0 100 200 300 400 500

10 12 14 16 18 20

Max.

Typ.

Shutdown Delay Time (ns)

0 200 400 600 800 1000 1200 1400

10 12 14 16 18 20

Max.

Typ.

0 1 0 0 2 0 0 3 0 0 4 0 0 5 0 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5 Ma x .

Ty p .

0 100 200 300 400 500

- 50 - 25 0 25 50 75 100 125

Ty p.

Max .

(10)

Figure 10A. Turn-Off Fall Time vs Temperature

Figure 10B. Turn-Off Fall Time vs Voltage

Turn-Off Fall Time (ns)

0 5 0 1 0 0 1 5 0 2 0 0

1 0 1 2 1 4 1 6 1 8 2 0

Ma x .

Ty p .

Turn-Off Fall Time (ns)

Figure 9A. Turn-On Rise Time vs Temperature

Figure 9B. Turn-On Rise Time vs Voltage

0 1 0 0 2 0 0 3 0 0 4 0 0 5 0 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5 Ma x .

Ty p .

Turn-On Rise Time (ns)

0 1 0 0 2 0 0 3 0 0 4 0 0 5 0 0

1 0 1 2 1 4 1 6 1 8 2 0

Ma x .

Ty p .

Turn-On Rise Time (ns)

Deadtime (ns)

Figure 11A. Deadtime vs Temperature

Deadtime (ns)

Figure 11B. Deadtime vs Voltage

0 5 0 1 0 0 1 5 0 2 0 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x .

Ty p .

0 2 0 0 4 0 0 6 0 0 8 0 0 1 0 0 0 1 2 0 0 1 4 0 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x .

Ty p . Min .

0 2 0 0 4 0 0 6 0 0 8 0 0 1 0 0 0 1 2 0 0 1 4 0 0

1 0 1 2 1 4 1 6 1 8 2 0

Ma x .

Ty p . Min .

(11)

Temperature (°C) Vcc Supply Voltage (V)

Figure 14A. High Level Output vs Temperature

Figure 14B. High Level Output vs Voltage

0 0 .2 0 .4 0 .6 0 .8 1

1 0 1 2 1 4 1 6 1 8 2 0

Ma x .

High Level Output Voltage (V)

Temperature (°C)

Figure 12A. Logic "1" (HO) & Logic “0” (LO)

& Inactive SD Input Voltage vs Temperature

Figure 12B. Logic "1" (HO) & Logic “0” (LO)

& Inactive SD Input Voltage vs Voltage

Figure 13A. Logic "0" (HO) & Logic “1” (LO)

& Active SD Input Voltage vs Temperature

Figure 13B. Logic "0" (HO) & Logic “1” (LO)

& Active SD Input Voltage vs Voltage

Vcc Supply Voltage (V) 0

1 2 3 4 5 6 7 8

-50 -25 0 25 50 75 100 125

Input Voltage (V)

Min.

0 0.8 1.6 2.4 3.2 4

10 12 14 16 18 20

Input Voltage (V)

Max.

0 1 2 3 4 5 6 7 8

10 12 14 16 18 20

Input Voltage (V)

Min.

0 0.8 1.6 2.4 3.2 4

-50 -25 0 25 50 75 100 125

Input Voltage (V)

Max.

0 0 .2 0 .4 0 .6 0 .8 1

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x .

High Level Output Voltage (V)

(12)

Figure 15A. Low Level Output vs Temperature

Figure 15B. Low level Output vs Voltage

Offset Supply Leakage Current (µA)

Temperature (°C)

Figure 16A. Offset Supply Current vs Temperature

Low Level Output Voltage (V)

0 0 .2 0 .4 0 .6 0 .8 1

1 0 1 2 1 4 1 6 1 8 2 0

M a x .

Offset Supply Leakage Current (µA)

Figure 16B. Offset Supply Current vs Voltage

Figure 17A. VBS Supply Current vs Temperature

Figure 17B. VBS Supply Current vs Voltage

VBS Floating Supply Voltage (V) Temperature (°C)

VBS Supply Current (µA) VBS Supply Current (µA)

0 30 60 90 120 150

10 12 14 16 18 20

Max .

Ty p.

0 3 0 6 0 9 0 1 2 0 1 5 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x .

Ty p . 0 0 .2 0 .4 0 .6 0 .8 1

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x .

Low Level Output Voltage (V)

0 10 0 20 0 30 0 40 0 50 0

-50 -25 0 25 50 75 10 0 12 5

Max .

0 100 200 300 400 500

0 100 200 300 400 500 600

Max .

VB Boost Voltage (V)

(13)

Logic “0” Input Current (µA)

Figure 20A. Logic "0" Input Current vs Temperature

Temperature (°C) VCC Supply Voltage (V)

Figure 20B. Logic "0" Input Current vs Voltage

0 1 2 3 4 5

10 12 14 16 18 20

Logic "0" Input Current (uA)

Max.

Figure 18A. Vcc Supply Current vs Temperature

Vcc Supply Current (µA) Vcc Supply Current (µA)

Figure 18B. Vcc Supply Current vs Voltage

Vcc Supply Voltage (V)

Figure 19A. Logic"1" Input Current vs Temperature

Temperature (°C)

Logic 1” Input Current (µA) Logic 1” Input Current (µA)

Figure 19B. Logic"1" Input Current vs Voltage

0 1 0 0 2 0 0 3 0 0 4 0 0 5 0 0 6 0 0 7 0 0

1 0 1 2 1 4 1 6 1 8 2 0

Ma x .

Ty p .

0 5 1 0 1 5 2 0 2 5 3 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x . Ty p .

0 5 1 0 1 5 2 0 2 5 3 0

1 0 1 2 1 4 1 6 1 8 2 0

Ma x . Ty p .

Vcc Supply Voltage (V) 0

1 0 0 2 0 0 3 0 0 4 0 0 5 0 0 6 0 0 7 0 0

- 5 0 - 2 5 0 2 5 5 0 7 5 1 0 0 1 2 5

Ma x .

Ty p .

Temperature (°C)

0 1 2 3 4 5

-50 -25 0 25 50 75 100 125

Max.

(14)

VCC UVLO Threshold +(V)

Figure 21A. Vcc Undervoltage Threshold(+) vs Temperature

Temperature (°C)

Figure 21B. Vcc Undervoltage Threshold(-) vs Temperature

VCC UVLO Threshold - (V)

Output Source Current (mA)

Figure 22A. Output Source Current vs Temperature

Temperature (°C)

Figure 22B. Output Source Current vs Voltage

Output Source Current (mA)

6 7 8 9 10 11

-50 -25 0 25 50 75 100 125

Max.

Min.

Typ.

0 100 200 300 400 500

-50 -25 0 25 50 75 100 125

Typ.

Min.

6 7 8 9 10 11

- 50 - 25 0 25 50 75 10 0 12 5

Max .

Min . Ty p.

Temperature (°C)

0 100 200 300 400 500

10 12 14 16 18 20

Typ.

Min.

Output Sink Current (mA)

Temperature (°C)

Figure 23A. Output Sink Current vs Temperature

Figure 23B. Output Sink Current vs Voltage

Output Sink Current (mA)

0 10 0 20 0 30 0 40 0 50 0 60 0 70 0

- 50 - 25 0 25 50 75 10 0 12 5

Ty p.

Min.

0 100 200 300 400 500 600 700

10 12 14 16 18 20

Typ.

Min.

(15)
