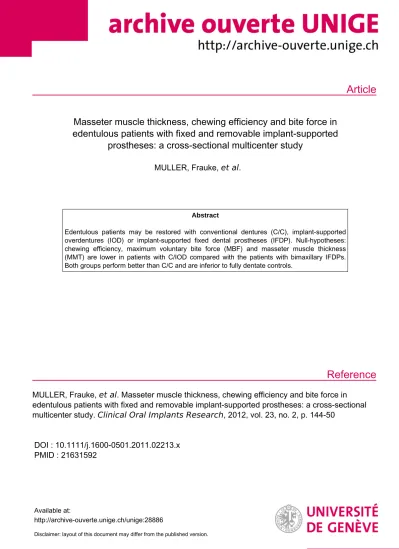

Article
Reference
Masseter muscle thickness, chewing efficiency and bite force in edentulous patients with fixed and removable implant-supported
prostheses: a cross-sectional multicenter study
MULLER, Frauke, et al .
Abstract
Edentulous patients may be restored with conventional dentures (C/C), implant-supported overdentures (IOD) or implant-supported fixed dental prostheses (IFDP). Null-hypotheses:
chewing efficiency, maximum voluntary bite force (MBF) and masseter muscle thickness (MMT) are lower in patients with C/IOD compared with the patients with bimaxillary IFDPs.
Both groups perform better than C/C and are inferior to fully dentate controls.
MULLER, Frauke, et al . Masseter muscle thickness, chewing efficiency and bite force in edentulous patients with fixed and removable implant-supported prostheses: a cross-sectional multicenter study. Clinical Oral Implants Research , 2012, vol. 23, no. 2, p. 144-50
DOI : 10.1111/j.1600-0501.2011.02213.x PMID : 21631592
Available at:
http://archive-ouverte.unige.ch/unige:28886
Disclaimer: layout of this document may differ from the published version.
1 / 1
Masseter muscle thickness, chewing efficiency and bite force in edentulous patients with fixed and removable
implant-supported prostheses: a cross- sectional multicenter study
Marta Hernandez Linda Gru¨tter Luis Aracil-Kessler Dieter Weingart Martin Schimmel
Authors’ affiliations:
Frauke Mu¨ller, Martin Schimmel, Division of Gerodontology and Removable Prosthodontics, University of Geneva, Geneva, Switzerland Frauke Mu¨ller, Department of Rehabilitation and Geriatrics, University Hospitals of Geneva, Thonex, Switzerland
Marta Hernandez, Luis Aracil-Kessler, Department of Periodontology, Oral Surgery, Oral Medicine, University Complutense Madrid, Madrid, Spain Marta Hernandez, Dieter Weingart, Department of Maxillofacial Surgery, Plastic Surgery and Centre of Oral Implantology, Katharinen Hospital, Stuttgart, Germany
Linda Gru¨tter, Division of Fixed Prosthodontics and Occlusion, University of Geneva, Geneva, Switzerland
Corresponding author:
Martin Schimmel, Dr Med Dent, MAS Oral Biol Division of Gerodontology and Removable Prosthodontics
University of Geneva 19, Rue Barthe´lemy-Menn CH-1205
Geneva Switzerland
Tel.:þ41 22 379 4060 Fax:þ41 22 379 4052
e-mail: [email protected]
Key words:implant-supported fixed dental prostheses, implant-supported overdenture, masseter muscle thickness, masticatory efficiency, maximum voluntary bite force, ultrasound
Abstract
Objectives:Edentulous patients may be restored with conventional dentures (C/C), implant-supported overdentures (IOD) or implant-supported fixed dental prostheses (IFDP). Null-hypotheses: chewing efficiency, maximum voluntary bite force (MBF) and masseter muscle thickness (MMT) are lower in patients with C/IOD compared with the patients with bimaxillary IFDPs. Both groups perform better than C/C and are inferior to fully dentate controls.
Material and methods:Ethical approval was obtained. For this multicenter cross-sectional study, 80 patients were recruited. Four groups of different dental states comprised of either implant-supported prostheses (C/IOD and IFDP/IFDP) or served as control-groups (C/C and fully dentate D/D). Chewing efficiency was assessed with a two-colour mixing ability test. MBF was measured bilaterally with a force gauge. Two dimensional ultrasonography was used to measure MMT bilaterally.
Results:Chewing efficiency in C/IOD and IFDP/IFDP (difference NS) was better than in C/C, but not as good as in D/D. MBF in C/IOD was lower than in IFDP/IFDP. Chewing efficiency and MBF were significantly lower in IFDP/IFDP, who had experienced chipping or fracture of the prosthetic superstructure. Median MMT of patients with implant-supported prostheses was between those with C/C and fully dentate participants. There was no significant difference in MMT between C/IOD and IFDP/IFDP.
Conclusion:Supporting complete prostheses with oral implants seems to have positive effects on the thickness of the masseter muscle, maximum bite force as well as chewing efficiency. The type of implant-supported prostheses may have an influence on the magnitude of the effect.
Compared with conventional complete dentures, implant-supported overdentures (IOD) and im- plant-supported fixed dental prostheses (IFDP) seem to offer substantial psycho-social and func- tional benefits to the edentulous individuals (Feine et al. 1994a; Brennan et al. 2010). Once all teeth are lost, the stabilization of the lower denture with two implants placed in the inter- foraminal region was recommended as treatment of first choice (Thomason et al. 2009). The improvements of orofacial functions with IOD comprises of increased bite force (van der Bilt et al. 2010a), larger chewing cycles, better coordi- nation of the chewing sequence (Benzig et al.
1994) as well as improved masticatory efficiency and ability (van Kampen et al. 2004). In addition, they seem to provide better oral health-related quality of life (Rashid et al. 2011) and might even
be more cost effective (Emami et al. 2009) than conventional full dentures. Also, dental implants seem to slow down the peri-implant alveolar bone loss in the edentulous mandible and thus show tertiary preventive properties (Behneke 1994).
The patient’s age and years of the edentulism have a negative impact on the macro- and micro- scopic structure of the chewing muscles (Raustia et al. 1996). The cross-sectional area as well as radiographic density of the masseter and medial pterygoid muscle decrease with age and these effects are significantly aggravated by edentulism (Newton et al. 1993). In an animal model the change from a hard to a soft texture diet reduced the weight of the masseter muscle significantly.
Mice fed with a soft diet lost 19% of the muscle weight within 1 week (Urushiyama et al. 2004).
Date:
Accepted 31 March 2011 To cite this article:
Mu¨ller F, Hernandez M, Gru¨tter L, Aracil-Kessler L, Weingart D, Schimmel M. Masseter muscle thickness, chewing efficiency and bite force in edentulous patients with fixed and removable implant-supported prostheses: a cross- sectional multicenter study.
Clin. Oral Impl. Res.23,2012 144–150 doi: 10.1111/j.1600-0501.2011.02213.x
©
; .
These findings are particularly relevant for com- plete denture wearers who often compensate the lack of masticatory ability by changing to a softer diet (Millwood & Heath 2000). The observed atrophy of the muscle tissues in edentulous patients with conventional complete dentures may therefore be caused by a ‘‘de-training’’ effect.
Newton et al. (2004) have demonstrated that overdentures supported by natural roots seem to counteract atrophy of the jaw closing muscles.
For implant-supported dental prostheses evidence on their effect on masticatory muscle atrophy remains scarce (Schimmel et al. 2010). Also, it remains unclear if IFDP provide better function and show a superior effect on the macroscopic structure of the jaw closing muscles than IOD (Feine et al. 1994b). Such findings would under- line the preventive value of placing fixed implant- supported restorations rather than removable IODs.
The aim of the study was to test the hypoth- eses: Edentulous patients who were restored with maxillary complete dentures and mandibular IOD show lower masticatory efficiency (first H0), lower maximum voluntary bite force (MBF) (second H0) and reduced masseter muscle thickness (MMT) (third H0) compared with pa- tients with upper and lower IFDP.
Concerning these investigated parameters, both implant-born reconstructions perform better than controls with conventional complete den- tures (fourth H0) and are inferior to volunteers with a natural dentition (fifth H0).
Materials and methods
Approval was obtained from the ethics commit- tees of the University Hospitals of Geneva, Switzerland (Ref.: 08-162/Psy 08-020) and the Medical Association of Baden-Wu¨rttemberg, Germany (Ref.: 2009-084-f-z). Written informed consent was obtained before the experiments.
Subjects
For this multicenter cross-sectional study, 80 patients with similar age were recruited (four sites: two clinics, two private practices). Inclu- sion criteria comprised of edentulism and the provision of maxillary complete dentures and mandibular implant-supported overdentures (C/
IOD), upper and lower implant-supported fixed dental prostheses (IFDP/IFDP) or conventional complete dentures (C/C, first control-group) at least 1 year before the experiments. Furthermore, participants were selected to be similar in gender, wearing period of the current prostheses and the time of edentulism. The second control-group (D/D) consisted of fully dentate participants.
Exclusion criteria were history of neuromuscular
disease, radiotherapy and clinically relevant TMJ dysfunction.
Chewing efficiency
Chewing efficiency was evaluated with a pre- viously described two-colour mixing ability test (Schimmel et al. 2007). Commercially available chewing gum in azure and pink colour (The Wrig- ley Company Ltd, Plymouth, Devon, UK) served as test food. The specimen (30183 mm) was placed on the tongue and the participant was asked to masticate the gum for 20 chewing cycles on his/
her preferred chewing side. It was then retrieved from the oral cavity, placed into a transparent plastic bag and flattened to a 1-mm-thick wafer.
The wafer was scanned with a flatbed scanner and the images subsequently copied into a template of fixed size. Using the ‘‘magic wand tool’’ and
‘‘histogram’’ function (Adobe Photoshop Elements 2.0, Adobe Systems Inc., San Jose, CA, USA) the total number of pixels of unmixed azure colour was evaluated and subsequently, the ratio of azure pixels to the total pixels of the original template was calculated (unmixed fraction [UF]).
UF shows characteristics of a logarithmic func- tion (log10) on the base of chewing cycles and will decrease for two reasons: a higher degree of colour mixture (lower ratio of unmixed azure) and a reduction in volume of the specimen due to sweetener extraction (Schimmel et al. 2007, 2011). Both are measures for chewing efficiency (Anastassiadou & Heath 2001; van der Bilt et al.
2010b); thus the smaller the UF, the higher is the individual chewing efficiency.
MBF
The Occlusal Force-Meter GM 10s(Nagano Keiki Co. Ltd; 1-30-4 Higashimagome, Ohta-ku, To- kyo, Japan) was utilized (Nakatsuka et al. 2006). It is a digital force gauge with an 8.6-mm-thick bite element. MBF was assessed bilaterally between the upper and lower first molar. The participant
was asked to bite as hard as possible on the force gauge, but to stop clenching when she/he started feeling uncomfortable. The mean of six recordings (3right, 3left) was used for analysis. Further- more, participants with IFDP/IFDP were asked if they had experienced a fracture of the framework and/or chipping of the veneering material since their prosthesis had been provided.
MMT
MMT was evaluated bilaterally with real time ultrasound scanners (FALCO 100 [PieMedical, Imaging BV, Maastricht, The Netherlands] or MyLab25 [Esaote, Genova, Italy]) and linear array transducers (6–8 or 4–13 MHz, respectively). The two examiners (M. H., M. S.) had been calibrated by the experienced operator, who had developed the method (Kiliaridis & Kalebo 1991). The parti- cipants sat upright with no head support. The anterior border and subsequently the origin as well as insertion of the masseter muscle were palpated to locate the thickest part of the muscle as site for the measurement. To avoid compression of the muscle a generous amount of ultrasound contact gel was applied to the probe (Kendall Meditec, Mirandola (MO), Italy). The transducer was oriented perpendicular to the mandibular ra- mus to avoid oblique scanning, as this would result in artificially elevated readings (Fig. 1). The probe was then tilted until the reflection of the bone was depicted as a sharp white line. The thickest part of the muscle close to the occlusal plane level was measured (distance between ramus and fascia, resolution of 0.1 mm). For MMT the mean of the four readings in contracted muscle condition (2right, 2left) was used for analysis. The error of the method ranged from 0.2 to 0.4 mm (Kiliaridis & Kalebo 1991; Botteron et al. 2009).
Statistical analysis
Categorical variables were compared usingw2- tests or Fisher’s exact test.A prioricomparisons
Fig. 1. Example of an image of a masseter muscle obtained with ultrasonography. The distance between the thickest part of the muscle between ramus mandibularis and muscle fascia (white arrow) in contracted muscle condition was used for evaluation of masseter muscle thickness.
Mu¨ller et alMasseter muscle thickness and bite force
©2011 John Wiley & Sons A/S
145 |
Clin. Oral Impl. Res.23,2012/ 144–150between C/IOD and IFDP/IFDP were performed using Mann–WhitneyU-tests to assess the first, second and third H0. Continuous data of all investigated groups of different dental state were then compared using Kruskal–Wallis tests to investigate the fourth and fifth H0;post hoctests were performed with adjustedP-values for multi- ple comparisons between groups (Siegel & Cas- tellan 1988). Non-parametric 95% confidence intervals (95% CI) for the difference between medians of two groups C/IOD and IFDP/IFDP (point estimate of shift: y¼pop2pop1) was computed using the Hodges–Lehmann estimates of shift parameters. The level of significance for type 1 errors was set atao0.05. Hypothetical sample size calculation was performed for type 2 errors with a power of 1b40.9 using GnPower 3.1 (Faul et al. 2009). All statistical tests were performed using Stata Statistical Software release 11 (Stata Corporation, College Station, TX, USA). Figures were drawn with StatView for Windows 5.0 (SAS Institute Inc., Carry, NC, USA).
Results
Subjects
The four groups were not significantly different regarding gender (P¼0.85, Fisher’s exact test), time of edentulism (P¼0.557, Kruskall–Wallis) and wearing period of the present prosthesis (P¼0.334, Kruskall–Wallis) (Table 1). All pa- tients were satisfied with their prostheses to the degree that they did not actively seek dental treatment.
In the C/IOD-group all participants wore max- illary conventional complete dentures, six had mandibular IOD with bar-attachments on four implants, and further 14 presented with ball or Locatorsattachments on two implants. All IODs were placed on Straumanns implants (Basel, Switzerland). The IFDP/IFDP-group comprised one patient with 16 implants, 10 patients with 14 implants, six patients with 12 implants, one patient with 13 implants, one patient with 10 implants and one patient with eight implants.
Seven patients presented with composite ve- neered bridges and further 13 had ceramic-fused metal prostheses. Of the 20 IFDP/IFDP patients, 13 were restored with single-unit prostheses, whereas seven patients presented with three to six unit restorations. Six patients had Nobel Biocares (Gothenburg, Sweden) and further 14 Straumannsimplants.
Chewing efficiency
Chewing efficiency as evaluated with the two- colour mixing ability test was significantly dif- ferent between the four groups (P¼0.0001, Krus-
kal–Wallis). The lowest chewing performance was found in the conventional complete denture control-group with the highest ratio of unmixed colour and the highest efficiency in the fully dentate control-group. The groups with im- plant-supported restorations showed median chewing efficiencies between the control-groups (Fig. 2). No difference was found between C/IOD and IFDP/IFDP (P¼0.339, Mann–Whitney, y¼ 0.01055: 95% CI for y: [0.0264, 0.0093]). In each of the groups with implant- supported restorations C/IOD and IFDP/IFDP a sample size of n¼536 (total n¼1072) would have to be realized to demonstrate a significant difference (a¼0.05, power¼0.9,m1¼0.05706, m2¼0.0507, SD1¼0.028532, SD2¼0.035315, n2/n1¼1). The dentate control-group (D/D) showed a significantly better masticatory effi- ciency than all other groups except for IFDP/
IFDP. The conventional complete denture wear- ers chewed significantly less efficient than all other groups (Fig. 3).
MBF
MBF was significantly different between groups (P¼0.0001, Kruskal–Wallis). The lowest forces were found in the C/C-group, the highest values were measured in the D/D-group. The partici-
pants, who were restored with C/IOD, showed significantly lower forces than those with IFDP/
IFDP (P¼0.0002, Mann–Whitney,y¼118.165:
95% CI fory: [70.33, 196.84]). The IFDP/IFDP- group showed a lower median MBF than the fully dentate control-group, however, this difference was not significant. The mean MBF in the C/C- group was only 69.7% of the mean MBF in the C/IOD-group, but again the difference was not significant (Fig. 4).
Fracture experience in IFDP/IFDP and its influence on UF and MBF
Of the 20 participants with IFDP/IFDP, 10 had experienced a chipping of the veneering material or fracture of the bridge framework of their prosthetic superstructure during time in function.
The participants with such fracture occurrence showed a significantly lower chewing efficiency (with fracture: UF¼mean 0.0740.035, with- out fracture: UF¼mean 0.030.02,P¼0.004, Mann–Whitney) as well as a significantly lower MBF (with fracture: mean 176.4112.57 N, without fracture: mean 363.6249.85 N, P¼0.041, Mann–Whitney).
MMT
There was a significant difference in MMT be- tween the four groups (P¼0.002, Kruskal–
Table 1. Descriptive of the study population: maxillary complete dentures and mandibular implant- supported overdentures (C/IOD), bimaxillary implant-supported fixed dental prostheses (IFDP/IFDP), complete full dentures (C/C), fully dentate (D/D)
C/IOD IFDP/IFDP C/C D/D
N 20 20 20 20
Age (yearsSD) 68.14.6 61.58.3 68.26.2 66.48
Gender 9#, 11~ 8#, 12~ 6#, 14~ 8#, 12~
Edentulous since (yearsSD) 7.35.9 7.66.5 911.2 NA
Prostheses in function (yearsSD) 42.6 3.892.1 3.33 NA NA, not applicable.
0.001 0.01 0.1 1
0 5 10 20 30 50
log UF
Chewing cycles
C/C C/IOD IFDP/IFDP D/D
Fig. 2. Nomogram of 20 fully dentate, healthy, young adults: data taken from a previous study (Schimmel et al. 2007). The unmixed fraction (UF) of azure colour follows an almost logarithmic function on the base of chewing cycles and is thus a measure for chewing efficiency. A high UF correlates to a low chewing performance and vice versa. Complete denture wearers (C/C: UF¼0.1060.041,n¼20) showed the lowest and dentate participants (D/D: UF¼0.0280.014,n¼20) the highest chewing efficiency. Participants with maxillary complete dentures and mandibular implant-supported overdentures (C/IOD: UF¼0.0570.029,n¼20) were not different from participants with bimaxillary implant-supported fixed dental prostheses (IFDP/IFDP: UF¼0.0510.035,n¼20,P¼0.339, Mann–Whitney).
146 |
©Wallis). The thinnest masseter muscles were found in the C/C-group, the thickest muscles in the D/D-group. The results for MMT in the C/
IOD-group were statistically not different from those in the IFDP/IFDP-group (P¼0.536, Mann–
Whitney,y¼0.3625002: 95% CI fory: [1.075, 1.925]). To each group C/IOD and IFDP/IFDP a sample size ofn¼271 (totaln¼542) would have to be attributed in order to demonstrate a sig- nificant difference (a¼0.05, power ¼0.9, m1¼13.2875, m2¼13.9039, SD1¼2.07162,
SD2¼2.34623, n2/n1¼1). MMT in the two groups with implant-supported dental prostheses was higher than in the control-group of edentu- lous participants with conventional full dentures, nevertheless this result was not significant when the P-value for significance was adjusted for multiple comparisons between the groups (Krus- kal–Wallis, adjusted P¼0.004). Furthermore, MMT in the IFDP/IFDP-group were not signifi- cantly different from those in the fully dentate control-group (Fig. 5).
Discussion
The benefits of stabilizing complete dentures by means of oral implants are largely documented (Thomason et al. 2009). Fixed implant-supported dental prostheses seem to be a valid treatment option especially for younger patients, yet the clinical effort and cost are considerably higher (Feine et al. 1994a; Lambert et al. 2009). Little is known if fixed restorations offer superior func- tional and structural benefits to IOD (Brennan et al. 2010, Carlsson & Lindquist 1994).
Chewing efficiency
As expected, study participants with conven- tional full dentures showed the lowest chewing efficiency and fully dentate ones the highest.
This result is intuitive and corresponds to evi- dence from the literature (Manly & Braley 1950;
Ikebe et al. 2010). However, no difference be- tween edentulous patients with C/IOD and IFDP/IFDP was found. Statistically this may be explained either by the absence of a difference or a lack of power of the current study. Aspost hoc power analyses are subject to controversial dis- cussion (Thomas 1997) a hypothetical sample size calculation, to avoid type II errors on the basis of the current results, was performed. In each implant-group a sample size of 536 partici- pants would have to be included to demonstrate a significant difference with a power of 90%. It can thus be concluded that, if there were a difference, it would be extremely small and of no clinical relevance. The first null-hypothesis must there- fore be rejected. Chewing with removable pros- theses may be limited by a displacement or loosening of the denture during unfavourable loading or food getting caught underneath the denture base. When the upper complete denture and the posterior parts of the lower denture are mucosa-born, chewing forces may be limited by pain from the denture bearing tissues. Removable denture wearers may further chew more cau- tiously, as they may be aware that the denture resin can fracture while chewing hard food-stuffs.
However, the total occlusal surface area is sig- nificantly correlated with chewing efficiency (Bourdiol & Mioche 2000); and removable den- tures frequently replace the second molars and restore the posterior denture teeth in their full oro-vestibular dimension. The total occlusal sur- face available for chewing may therefore be larger in C/IOD than in patients with fixed reconstruc- tions. These opposed effects may have finally eliminated any differences in UF between C/IOD and IFDP/IFDP participants in the present study.
Reports in the literature on the masticatory efficiency of bimaxillary implant-supported pros- theses are scarce. Carlsson and Lindquist com- 0
100 200 300 400 500 600 700 800 900
MBF [N]
[p<0.0001]
[p<0.0001]
[p=0.129]
[p<0.0001]
[p=0.0002*]
[p=0.181]
Fig. 4. Abbreviations as in Fig. 2. Box plot of maximum voluntary bite force measured in the four groups of participants.
(nMann–Whitney test for second H0, all otherP-values: Kruskall–Wallis for multiple comparisons between groups, adjustedP- value for significance: 0.004, each groupn¼20, mean values with standard deviation below group descriptive.)
0 .02 .04 .06 .08 .1 .12 .14 .16 .18 .2
UF
[p=0.00006]
[p=0.0006]
[p=0.011]
[p<0.0001]
[p=0.339*]
[p=0.001]
C/IOD 0.057±0.029
IFDP/IFDP 0.051±0.035
C/C 0.106±0.041
D/D 0.028±0.014
Fig. 3. Abbreviations as in Fig. 2. Box plot of unmixed fraction (UF), which is a measure for chewing efficiency. A high UF correlates to a low chewing performance and vice versa. (nMann–Whitney test for first H0, all otherP-values: Kruskall–Wallis for multiple comparisons between groups, adjustedP-value for significance: 0.004, each groupn¼20, mean values with standard deviation below group descriptive.)
Mu¨ller et alMasseter muscle thickness and bite force
©2011 John Wiley & Sons A/S
147 |
Clin. Oral Impl. Res.23,2012/ 144–150pared in a 10 year follow-up study patients with maxillary complete dentures/mandibular IFDP to those with bimaxillary IFDP. In their study, no difference in masticatory efficiency between those two groups was found which is in agree- ment with the results of the current study.
Interestingly, the subjective perception of masti- catory function was significantly higher in pa- tients with bimaxillary IFDP, so that the gain for such treatment may mainly be psychological (Carlsson & Lindquist 1994).
MBF
Albeit a similar chewing efficiency, in the pre- sent study MBF was significantly lower in parti- cipants with C/IOD than with IFDP/IFDP. Both groups lack periodontal receptors in the surround- ings of the dental implants and subsequently projections on the primary sensory and motor cortex (Abarca et al. 2006). But in contrast to the fixed restorations the C/IOD provide a close contact of the denture base with the underlying mucosa. Previous experiments with complete dentures showed, that a good retention of a lower denture and thus an intimate contact between the denture base and the denture bearing tissues allows for a higher inter-occlusal tactile sensitiv- ity than in edentulous patients with poor lower denture retention (Mu¨ller et al. 1995). It is likely that the quantity and/or quality of stimuli to the mechanoreceptors in the mucosa account for this finding. The higher MBF in patients restored with IFDP/IFDP may therefore be related to a
reduced peripheral input, which is necessary to tune muscle force during oral function. Harald- son (1983) reported that the reduction of muscle force during a chewing sequence along with the softening of the food bolus was less in patients with fixed implant-bridges than in dentate indi- viduals. There seems to be unique activation patterns of the jaw closing muscles in patients with oral implants which implies a less graduated contraction of the jaw closing muscles if biting is performed on implant-supported prostheses (Gartner et al. 2000). In the current study, the fixed implant-supported dental restorations var- ied with regard to the number of implants and type of the superstructures used. This implies differences in the total implant–bone contact surface between the patients who might have influenced the inter-occlusal perception and con- sequently the fine motor control. If osseopercep- tion is caused by vibration (Klineberg et al. 2005), the different damping characteristics of the ve- neering materials (ceramic/composite) would have influenced the results.
Although in the current study MBF in patients with C/IOD proved higher than patients with conventional full dentures, the difference was not significant which contrasts with previous find- ings reported in the literature (van der Bilt et al.
2010a). This result may be related to the applied measuring technique as MBF was assessed uni- laterally with an 8.6-mm-thick gauge. The use of thinner pressure sensitive foils would have re- duced the gape and allowed for higher MBF in both groups (Pro¨schel et al. 2008). Higher forces
might have possibly accentuated a possible dif- ference in MBF between the C/C and C/IOD groups.
A further interesting finding is the discrepancy in chewing efficiency and MBF between partici- pants who experienced a fracture of their fixed dental prostheses and those who did not. These fractures may have resulted from an impaired mechanosensation with IFDP/IFDP (Luraschi 2009) and consequently a poor motor control (Trulsson & Gunne 1998). Another possible ex- planation would be technical shortcomings of the reconstructions as clear differences in fracture prevalence had occurred between the different centres. Thus particular attention should be paid to technical execution and occlusion of implant-supported prostheses. Patients might have also lost confidence in the durability of their IFDPs and consequently avoided applying maximum forces when asked during the experi- ments; a presumption confirmed qualitatively by several participants with fracture experience.
MMT
In the current study, MMT was assessed with ultrasound as described by Kiliaridis & Kalebo (1991). The method shows only small errors (in contracted muscle condition 0.2–0.4 mm), does not use electromagnetic radiation like computed tomography and does not necessitate supervision and interpretation of a specialist radiologist. For this multicenter study, which also included pa- tients from private practice an added advantage was the portability of the ultrasound equipment.
Although atrophy of the masseter and medial pterygoid muscles related to age and edentulism is well documented (Newton et al. 1993), there is little evidence on the morphological effects of dental prostheses on the masticatory muscles.
Newton et al. (2004) had demonstrated that the retention of natural roots covered by overdentures was associated with less atrophied chewing mus- cles than in subjects with conventional full den- tures. Schimmel et al. (2010) had described the case of a patient who had regained MMT after the stabilization of the lower denture with two im- plants. The current study demonstrated, with the conceptual limitations of any cross-sectional study, the positive structural effects of mastica- tory muscles of implant placement in edentulous patients. Because of the cross-sectional study design, it remains unclear if the placing of im- plants prevented atrophy of the masseter muscles or if the patients regained muscle mass through improved function.
Prolonged low activity of muscles will result in atrophy both on a macroscopic and microscopic level. Consequently, the cross-sectional area of the masticatory muscles is reduced in edentulous 8
10 12 14 16 18 20 22
MMT [mm]
C/IOD 13.29±2.07
IFDP/IFDP 13.90±2.35
C/C 11.98±1.84
D/D 15.05±2.68 [p=0.011]
[p=0.021]
[p=0.082]
[p<0.0001]
[p=0.536*]
[p=0.043]
Fig. 5. Abbreviations as in Fig. 2. Box plot of masseter muscle thickness measured in the four groups of different dental state.
(nMann–Whitney test for third H0, all otherP-values: Kruskall–Wallis for multiple comparisons between groups, adjustedP- value for significance: 0.004, each groupn¼20, mean values with standard deviation below group descriptive.)
148 |
©patients compared with dentate subjects, regard- less of their age (Newton et al. 1993), a finding that was confirmed by the current study. Also, the radiographic density of these muscles is reduced after a long wearing time of conventional full dentures (Raustia et al. 1996). On a micro- scopic level ageing muscle tissue shows a de- creased fibre diameter, a degenerated sarcoplasm and a replacement of muscle fibres by fat and connective tissue (Larsson 1995). Temporal mus- cle type II fibres in denture wearers, who rate their dentures as insufficient, are smaller than the corresponding fibres in the dentate patients (Ringqvist 1974). She suggested that the low percentage and small size of these fibres in denture wearers might be attributed to reduced functional demands. The described studies may only in part explain the age- and function-related changes in the masticatory muscles. Findings from other muscles may not apply to the chewing muscles as their functioning, their embryo-ge- netic origin and the fibre composition are unique in the human body (Monemi et al. 1998).
Edentulous patients benefit from an improved muscle activity by stabilizing the lower denture with two implants, but there seems to be no further improvement of these parameters by providing bimaxillary IFDPs (Ferrario et al.
2004; Heckmann et al. 2009). The current study confirmed these results on a morphological level.
The third null-hypothesis must be rejected, as MMT between the two implant-groups was not statistically different. Patients with implant-sup- ported dental prostheses showed thicker masseter muscles than edentulous patients with conven- tional full dentures, although the result was no longer significant when the statistical test was corrected for multiple comparisons between groups.
Summary and conclusion
Although the stabilization of conventional man- dibular dentures with dental implants improves chewing efficiency significantly, the effect might not be improved further by providing edentulous patients with bimaxillary implant-supported fixed prostheses.
A fracture experience with the dental recon- struction may limit the functional benefit.
In edentulous patients, supporting or stabiliz- ing dental prostheses by placing oral implants seems to have positive effects on the training level and dimension of the masseter muscle.
The type of implant prostheses may have an
influence on the magnitude of the effect. The functional advantages of implant reconstructions and their tertiary preventive properties on the masseter muscle should be considered in treat- ment planning.
Acknowledgements:
The study was supported by the ITI Foundation (grant no.552_2008). The contributions of Prof Dr Jean- Pierre Bernard, Prof Dr Urs Belser and Dr German Gallucci (University of Geneva, Switzerland), Dr Manfred Imsand (Sion, Switzerland), Dr Kamel Salem (Morges, Switzerland), Le´onard Brazzola (Lausanne, Switzerland) and the staff of the Divisions of fixed and removable Prosthodontics of the University of Geneva to the clinical care and recruitment of study participants is greatly acknowledged. Furthermore the authors want to express their gratitude to Priv. Doc. Dr Franc¸ois R Herrmann, MPH (University Hospitals of Geneva, Switzerland) for his help with the statistical analysis. Thanks are also due to Prof Dr Stavros Kiliaridis (University of Geneva, Switzerland) for teaching the ultrasound method and calibrating the two examiners of the study.
References
Abarca, M., Van Steenberghe, D., Malevez, C. & Jacobs, R. (2006) The neurophysiology of osseointegrated oral implants. A clinically underestimated aspect.Journal of Oral Rehabilitation33: 161–169.
Anastassiadou, V. & Heath, M.R. (2001) The develop- ment of a simple objective test of mastication suitable for older people, using chewing gums.Gerodontology 18: 79–86.
Behneke, N. (1994) Klinische Erfahrungen mit enossa- len Implantaten im zahnlosen Unterkiefer. Dr Med Dent Habil Thesis, Johannes Gutenberg-University, Mainz, Germany.
Benzig, U., Weber, H., Simonis, A. & Engel, E. (1994) Changes in chewing patterns after implantation in the edentulous mandible.The International Journal of Oral & Maxillofacial Implants9: 207–213.
Botteron, S., Verdebout, C.M., Jeannet, P.Y. & Kiliar- idis, S. (2009) Orofacial dysfunction in Duchenne muscular dystrophy. Archives of Oral Biology54:
26–31.
Bourdiol, P. & Mioche, L. (2000) Correlations between functional and occlusal tooth-surface areas and food texture during natural chewing sequences in humans.
Archives of Oral Biology45: 691–699.
Brennan, M., Houston, F., O’Sullivan, M. & O’Connell, B. (2010) Patient satisfaction and oral health-related quality of life outcomes of implant overdentures and fixed complete dentures.The International Journal of Oral & Maxillofacial Implants25: 791–800.
Carlsson, G.E. & Lindquist, L.W. (1994) Ten-year long- itudinal study of masticatory function in edentulous patients treated with fixed complete dentures on
osseointegrated implants. International Journal of Prosthodontics7: 448–453.
Emami, E., Heydecke, G., Rompre, P.H., de Grand- mont, P. & Feine, J.S. (2009) Impact of implant support for mandibular dentures on satisfaction, oral and general health-related quality of life: a meta- analysis of randomized-controlled trials. Clinical Oral Implants Research20: 533–544.
Faul, F., Erdfelder, E., Buchner, A. & Lang, A.G. (2009) Statistical power analyses using Gnpower 3.1: tests for correlation and regression analyses. Behavior Re- search Methods41: 1149–1160.
Feine, J.S., de Grandmont, P., Boudrias, P., Brien, N., LaMarche, C., Tache, R. & Lund, J.P. (1994a) Within-subject comparisons of implant-supported mandibular prostheses: choice of prosthesis.Journal of Dental Research73: 1105–1111.
Feine, J.S., Maskawi, K., de Grandmont, P., Donohue, W.B., Tanguay, R. & Lund, J.P. (1994b) Within- subject comparisons of implant-supported mandibular prostheses: evaluation of masticatory function.Jour- nal of Dental Research73: 1646–1656.
Ferrario, V.F., Tartaglia, G.M., Maglione, M., Simion, M. & Sforza, C. (2004) Neuromuscular coordination of masticatory muscles in subjects with two types of implant-supported prostheses. Clinical Oral Im- plants Research15: 219–225.
Gartner, J.L., Mushimoto, K., Weber, H.P. & Nishi- mura, I. (2000) Effect of osseointegrated implants on the coordination of masticatory muscles: a pilot study. Journal of Prosthetic Dentistry 84:
185–193.
Haraldson, T. (1983) Comparisons of chewing patterns in patients with bridges supported on osseointegrated implants and subjects with natural dentitions.Acta Odontology Scandinavica41: 203–208.
Heckmann, S.M., Heussinger, S., Linke, J.J., Graef, F.
& Pro¨schel, P. (2009) Improvement and long-term stability of neuromuscular adaptation in implant- supported overdentures.Clinical Oral Implants Re- search20: 1200–1205.
Ikebe, K., Matsuda, K., Murai, S., Maeda, Y. & Nokubi, T. (2010) Validation of the Eichner index in relation to occlusal force and masticatory performance.Interna- tional Journal of Prosthodontics23: 521–524.
Kiliaridis, S. & Kalebo, P. (1991) Masseter muscle thickness measured by ultrasonography and its rela- tion to facial morphology.Journal of Dental Research 70: 1262–1265.
Klineberg, I., Calford, M.B., Dreher, B., Henry, P., Macefield, V., Miles, T., Rowe, M., Sessle, B. &
Trulsson, M. (2005) A consensus statement on osseo- perception.Clinical and Experimental Pharmacology and Physiology32: 145–146.
Lambert, F.E., Weber, H.P., Susarla, S.M., Belser, U.C.
& Gallucci, G.O. (2009) Descriptive analysis of implant and prosthodontic survival rates with fixed implant-supported rehabilitations in the edentulous maxilla. Journal of Periodontology80:
1220–1230.
Larsson, L. (1995) Motor units: remodeling in aged animals.The Journals of Gerontology Series A:
Biological Sciences and Medical Sciences 50:
91–95.
Mu¨ller et alMasseter muscle thickness and bite force
©2011 John Wiley & Sons A/S
149 |
Clin. Oral Impl. Res.23,2012/ 144–150Luraschi, J. (2009) Mechanosensation in totally edentu- lous persons rehabilitated by means of implant-sup- ported fixed dental prostheses. Dr Med Dent, Thesis, University of Geneva, Geneva, Switzerland.
Manly, R.S & Braley, L. (1950) Masticatory perfor- mance and efficiency. Journal of Dental Research 29: 448–462.
Millwood, J. & Heath, M.R. (2000) Food choice by older people: the use of semi-structured interviews with open and closed questions.Gerodontology17: 25–32.
Monemi, M., Eriksson, P.O., Eriksson, A. & Thornell, L.E. (1998) Adverse changes in fibre type composition of the human masseter versus biceps brachii muscle during aging. Journal of the Neurological Sciences 154: 35–48.
Mu¨ller, F., Link, I., Fuhr, K. & Utz, K.H. (1995) Studies on adaptation to complete dentures. Part ii: oral stereognosis and tactile sensibility.Journal of Oral Rehabilitation22: 759–767.
Nakatsuka, K., Usui, T., Masuda, Y., Rugh, J. &
Kurihara, S. (2006) Accuracy and repeatability of the GM10 occlusal force-meter. Nihon Kyosei Shika Gakkai Taikai Puroguramu, Shorokushu65: 336.
Newton, J., Yemm, R., Abel, R. & Menhinick, S. (1993) Changes in human jaw muscles with age and dental state.Gerodontology10: 16–22.
Newton, J.P., McManus, F.C. & Menhenick, S. (2004) Jaw muscles in older overdenture patients.Gerodon- tology21: 37–42.
Pro¨schel, P.A., Jamal, T. & Morneburg, T.R. (2008) Motor control of jaw muscles in chewing and in isometric biting with graded narrowing of jaw gape.
Journal of Oral Rehabilitation35: 722–728.
Rashid, F., Awad, M.A., Thomason, J.M., Piovano, A., Spielberg, G.P., Scilingo, E., Mojon, P., Mu¨ller, F., Spielberg, M., Heydecke, G., Stoker, G., Wismeijer, D., Allen, F. & Feine, J.S. (2011) The effectiveness of 2-implant overdentures – a pragmatic international multicentre study.Journal of Oral Rehabilitation38:
176–184.
Raustia, A.M., Salonen, M.A. & Pyhtinen, J. (1996) Evaluation of masticatory muscles of edentulous patients by computed tomography and electromyo- graphy.Journal of Oral Rehabilitation23: 11–16.
Ringqvist, M. (1974) A histochemical study of temporal muscle fibers in denture wearers and subjects with natural dentition. Scandinavian Journal of Dental Research82: 28–39.
Schimmel, M., Christou, P., Herrmann, F. & Mu¨ller, F.
(2007) A two-colour chewing gum test for mastica- tory efficiency: development of different assessment methods. Journal of Oral Rehabilitation34: 671–
678.
Schimmel, M., Leemann, B., Herrmann, F.R., Kiliar- idis, S., Schnider, A. & Mu¨ller, F. (2011) Masticatory function and bite force in stroke patients.Journal of Dental Research90: 230–234.
Schimmel, M., Loup, A., Duvernay, E., Gaydarov, N.
& Mu¨ller, F. (2010) The effect of lower denture abstention on masseter muscle thickness in a 97 year-old patient: a case report.International Journal of Prosthodontics23: 418–420.
Siegel, S. & Castellan, N.J. (1988) Nonparametric Statistics for the Behavioral Sciences. Singapore:
McGraw-Hill.
Thomas, L. (1997) Retrospective power analysis.Con- servation Biology11: 276–280.
Thomason, J.M., Feine, J., Exley, C., Moynihan, P., Mu¨ller, F., Naert, I., Ellis, J.S., Barclay, C., Butter- worth, C., Scott, B., Lynch, C., Stewardson, D., Smith, P., Welfare, R., Hyde, P. & McAndrew, R.
(2009) Mandibular two implant-supported overden- tures as the first choice standard of care for edentulous patients-the York consensus statement.British Den- tal Journal207: 185–186.
Trulsson, M. & Gunne, H.S. (1998) Food-holding and -biting behavior in human subjects lacking periodontal receptors. Journal of Dental Research 77: 574–582.
Urushiyama, T., Akutsu, S., Miyazaki, J., Fukui, T., Diekwisch, T. & Yamane, A. (2004) Change from a hard to soft diet alters the expression of insulin-like growth factors, their receptors, and binding proteins in association with atrophy in adult mouse masseter muscle.Cell and Tissue Research315: 97–105.
van der Bilt, A., Burgers, M., van Kampen, F.M. &
Cune, M.S. (2010a) Mandibular implant-supported overdentures and oral function.Clinical Oral Im- plants Research21: 1209–1213.
van der Bilt, A., Mojet, J., Tekamp, F.A. & Abbink, J.H.
(2010b) Comparing masticatory performance and mixing ability. Journal of Oral Rehabilitation 37:
79–84.
van Kampen, F.M., van der Bilt, A., Cune, M.S., Fontijn-Tekamp, F.A. & Bosman, F. (2004) Mastica- tory function with implant-supported overdentures.
Journal of Dental Research83: 708–711.
