Approaching the Symbol Grounding Problem with Probabilistic Graphical Models
Stefanie Tellex
1and Thomas Kollar
1and Steven Dickerson and
Matthew R. Walter
andAshis Gopal Banerjee
andSeth Teller
andNicholas Roy
Computer Science and Artificial Intelligence Laboratory Massachusetts Institute of Technology
Cambridge, MA 02139
Abstract
In order for robots to engage in dialog with human team-mates, they must have the ability to identify correspondences between elements of language and aspects of the external world. A solution to this symbol grounding problem (Har-nad, 1990) would enable a robot to interpret commands such as “Drive over to receiving and pick up the tire pallet.” This article describes several of our results that use probabilistic inference to address the symbol grounding problem. Our ap-proach is to develop models that factor according to the lin-guistic structure of a command. We first describe an early re-sult, a generative model that factors according to the sequen-tial structure of language, then discuss our new framework, Generalized Grounding Graphs (G3). The G3framework dy-namically instantiates a probabilistic graphical model for a natural language input, enabling a mapping between words in language and concrete objects, places, paths and events in the external world. We report on corpus-based experiments in which the robot is able to learn and use word meanings in three real-world tasks: indoor navigation, spatial language video retrieval, and mobile manipulation.
1
Introduction
As robots move out of the lab and into the real world, it is critical to develop ways for human users to easily and flexi-bly command them. Natural language dialog is a compelling solution to this problem because the operator can flexibly express complex requirements, enabling interaction as if it were another human. In order to effectively engage in dia-log, a robot must be able to interpret natural language com-mands. For example, a human supervisor might tell an au-tonomous forklift, “Put the tire pallet on the truck” (Fig-ure 1a), or an operator might command a humanoid robot, “Drive down the hall past the elevators.” (Figure 1b).
A critical component to understanding commands like these is ability to map words in the language to aspects of the external world. This mapping, which Harnad (1990) called the symbol grounding problem, has been studied since the early days of artificial intelligence. There are broadly three different ways people have approached the symbol ground-ing problem in robotics. Startground-ing with Winograd (1970),
Copyright c 2011, Association for the Advancement of Artificial
Intelligence (www.aaai.org). All rights reserved.
1
The first two authors contributed equally to this paper.
Pick up the pallet of boxes in the middle and place them on the trailer to the left.
(a) Robotic Forklift.
Go down the hall past the elevators to the kitchen.
(b) Humanoid Robot.
Figure 1: Target robotic platforms and example mobile ma-nipulation and navigation commands.
many have manually created symbol systems that map be-tween language and the external world, connecting each term onto a pre-specified action space and set of environ-mental features (Bugmann et al., 2004; Dzifcak et al., 2009; Hsiao, Mavridis, and Roy, 2003; Kress-Gazit and Fainekos, 2008; MacMahon, Stankiewicz, and Kuipers, 2006; Roy, Hsiao, and Mavridis, 2003; Roy, 2005). This class of sys-tems takes advantage of the structure of spatial language, but usually do not involve learning, have little perceptual feed-back, and have a fixed action space. A second approach involves learning the meaning of words in the sensorimotor space (e.g., joint angles and images) of the robot (Marocco et al., 2010; Modayil and Kuipers, 2007; Sugita and Tani, 2005). By treating linguistic terms as a sensory input, these systems must learn directly from complex features extracted by perceptual systems, resulting in a limited set of com-mands that they can robustly understand. A third approach is to use learning to convert from language onto aspects of the environment. These approaches may use only lin-guistic features (Ge and Mooney, 2005; Shimizu and Haas, 2009), spatial features (Regier, 1992) or linguistic, spatial and semantic features (Branavan et al., 2009; Branavan, Sil-ver, and Barzilay, 2011; Kollar et al., 2010b; Matuszek, Fox, and Koscher, 2010; Vogel and Jurafsky, 2010). These approaches learn the meaning of spatial prepositions (e.g.,
“above” Regier 1992), verbs of manipulation (e.g., “push” and “shove” Bailey 1997), and verbs of motion (e.g., “fol-low” and “meet” Kollar et al. 2010a) and landmarks (e.g., “the doors” Kollar et al. 2010b).
In this paper, we give an overview of our probabilistic approach to the symbol grounding problem. By taking a probabilistic approach, we are able to build systems that learn word meanings from large corpora of examples and use those meanings to find good groundings in the external world, despite uncertainty. Our first approach uses a gen-erative model that factors according to the sequential struc-ture of language. This model can be used to follow natural language route instructions and to perform spatial language video retrieval. However, the generative approach requires explicit corpora for each modeled factor, rather than learn-ing word meanlearn-ings directly from in-domain language. It can not represent complex linguistic structures such as referring expressions (e.g., “the door across from the elevators”) and multi-argument verbs (e.g., “put the pallet on the truck.”) To address these limitations, we developed a new framework, called Generalized Grounding Graphs (G3
), introduced in Tellex et al. (2011). The G3framework dynamically instan-tiates a conditional probabilistic graphical model that fac-tors according to the compositional and hierarchical struc-ture of a natural language phrase. Using the new model, we created a system that successfully follows many mobile-manipulation commands from a corpus created by untrained annotators using crowd sourcing.
Several earlier publications describe the primary technical contributions of the models (Kollar et al., 2010a,b; Tellex et al., 2010, 2011). This paper provides an integrated overview of results and lessons learned for the generative model and the G3
framework in three domains: navigation in indoor environments, spatial language video retrieval, and mobile manipulation.
2
Approach
Our goal is a framework that can map between language and the external world. We assume a natural language utterence
Λ has a corresponding set of groundings, Γ, in the external
world. Groundings can be objects (e.g., a truck or a door), places (e.g., a particular location in the world), paths (e.g., a trajectory through the environment), and events (e.g., a se-quence of robot actions). We additionally assume a semantic map m, consisting of the locations and labels of other ob-jects in the environment. The distribution we want to model is:
p(Λ, Γ, m) (1)
We explicitly represent the joint distribution rather than the conditional because it can be used to solve several types of problems. To interpret commands, one can optimize over candidate groundings; this paper describes our work in this area. Furthermore, the model could be used to generate nat-ural language descriptions of objects or events by searching for for a descriptionΛ. Finally it could also be used to
recog-nize events by directly computing the probability of a partic-ular set of values and thresholding. The challenge in making
this approach practical for any of these problems is factoring the distribution and providing models for each factor.
2.1
Generative Model
In our previous work (Kollar et al., 2010b), we approached this problem by factoring Equation 1 to give p(Λ|Γ, m) × p(Γ, m). This formulation allowed us to make independence
assumptions corresponding to the sequential clause structure of the language, yielding:
p(Λ|Γ, m) =Y
i
p(λi|Γ, m) (2)
where λi are the words associated with each clause. We
assumed that each factor had a fixed structure: a verb v, a spatial relation, sr, and a landmark, l. Furthermore, we as-sumed that each clause had a fixed set of groundings, con-sisting of a path fragment, p, and an object, o:
p(λi|Γ, m) = p(v, sr, l|p, o, m) (3)
We then made independence assumptions based on this structure.
p(v, sr, l|p, o, m) = p(v|p) × p(sr|p, o) × p(l|p, m) (4)
This approach allowed us to define individual models for each term in the factorization. We defined models for pre-specified verbs and adverbs such as “left,” “right,” and “straight,” and we trained models for spatial relations such as “to,” “past,” and “through.” For the landmark factor, we exploited co-occurrence statistics from a large online database of labeled images (Flickr) to estimate the probabil-ity of an unknown landmark phrase given objects detected in the semantic map (Kollar and Roy, 2009). These statis-tics enabled the robot to estimate the probability of seeing a landmark phrase such as “the kitchen” using a limited set of existing object detectors, such as a refrigerator and a sink.
We tested our generative model in two real-world do-mains: following natural language directions through real-world environments and spatial language video retrieval. The model can be used to follow natural language directions by finding the path through the environment, γpath ∈ Γ,
that maximizes the distribution in Equation 3. To evaluate the system at following natural language directions, we col-lected from 15 subjects a corpus of 150 directions through a large office environment. Our system successfully followed 67% of the directions in the corpus, compared to human per-formance of 85%.
For video retrieval, the task was to find video clips from a large corpus (Roy et al., 2006) that match a spatial language description of a person’s motion, such as “Show me peo-ple walking into the kitchen.” The system performed ranked retrieval by scoring video clips according to how well they matched a spatial language query according to Equation 3. We demonstrated that our system could effectively retrieve video clips, evaluating on a large corpus of natural language queries created by untrained users. Figure 2 shows a sample query result for the system.
However, the generative framework has several limita-tions. First, because it only models the flat sequential struc-ture of language, rather than the hierarchical strucstruc-ture, it
Highest-ranked clip Low-ranked clips
Figure 2: Results from the generative model (Tellex et al., 2010) for the query “from the couches in the living room to the dining room table.” The person’s start location is marked with a green dot; the end location is marked with a red dot, and their trajectory is marked in white.
cannot handle commands such as “Go to the door across from the elevators.” The phrase “the door across from the elevators” is treated as a bag of words, and the system is unable to distinguish whether to approach the door or the elevators. Second, we assumed that each clause has a fixed structure consisting of a path and a landmark, but language has variable, hierarchical structure. The flat structure cannot support two-argument verbs like “Put the tire pallet on the truck,” or nested arguments. Third, it is difficult to obtain models for the meanings of words in the individual factors. In our route directions dataset, people often used “thru” in-stead of “through.” Since the system learned word meanings from a separate, curated corpus that did not contain “thru,” we manually encoded this synonymy. The system was un-able to learn word meanings directly from the corpus.
2.2
Generalized Grounding Graphs
Our aim in creating the G3
framework was to address the challenges from the previous section by modeling the hi-erarchical, compositional structure of language in a frame-work that could learn word meanings from data. To facili-tate learning, we converted the distribution in Equation 1 to a discriminative model (Kollar, Tellex, and Roy, 2010) by introducing a correspondence vector,Φ:
p(Φ|Γ, Λ, m) (5)
The correspondence vectorΦ contains a boolean variable φ for each linguistic constituent λ ∈ Λ and corresponding
grounding γ ∈ Γ, such that φ is true if λ and γ correspond
and false otherwise. The G3
framework factors the model according to the structure of the language, allowing explicit inference over groundings for each linguistic constituent:
p(Φ|Λ, Γ, m) =Y
i
p(φi|λi,Γ, m) (6)
OBJ(f =the truck)
(a) SDC Tree
λ=“the truck”
γ=
φ=T rue
Figure 3: SDCs and grounding graph for the phrase “the truck” showing one set of values for the variables. This graph corresponds to the probability distribution
p(Φ|Λ, Γ, m) = p(φ|γ, λ, m).
This factorization can be represented graphically as a
fac-tor graph (Kschischang, Frey, and Loeliger, 2001). A facfac-tor
graph is a bipartite graph with two types of nodes: random variables and factors. Each factor node corresponds to a fac-tor in the distribution and connects to variable nodes, which are its arguments. For example, Figure 3 shows a factor graph for the phrase “the truck,” consisting of a single factor and three variables: γ, which is a vector of features corre-sponding to an object in the external world with a particu-lar appearance and location, λ, the words “the truck,” and
φ, which is true if γ corresponds to λ, and false otherwise.
The graph corresponds to the distribution p(φ|γ, λ, m). (If λ in Figure 3 were the words “the tire pallet,” then p(φ = F alse|γ, λ) would have higher probability.) Since the
se-mantic map m appears in all factors, we omit it from the graphical representation. We refer to factor graphs created by the G3
framework as grounding graphs. Word models in each factor can be learned discriminatively, and the resulting factorization allows the system to compose them in order to follow novel commands that may have never been seen in training.
In order to precisely define the factorization in Equation 6, we use Spatial Description Clauses (SDCs). SDCs were in-troduced by Kollar et al. (2010b) and refined by Tellex et al. (2011); they correspond to the parse structure of a natural language command. An SDC consists of a figure phrase f , a
relation r, and a variable number of landmark noun phrases
li. We assign a type to each SDC following the system
de-fined by Jackendoff (1983):
• EVENT Something that takes place (or should take place)
in the world (e.g., “Move the tire pallet” or “Turn right”).
• OBJECT A thing in the world. This category includes
people and the robot as well as physical objects (e.g., “Forklift,” “the tire pallet,” “the hallway,” “the person”).
• PLACE Places in the world (e.g., “on the truck,” “next to
the tire pallet” or “in the kitchen”).
• PATH Paths through the world (e.g., “past the truck,” or
“down the hall”).
P LACE2(r =on
l1 = OBJ1(f =the truck))
(a) SDC Tree λ1=“on” γ1 φ1 λ2=“the truck” γ2 φ2 (b) Induced Model
Figure 4: SDCs and grounding graph for the phrase “on the truck.” This graph corresponds to the probability distribu-tion p(Φ|Λ, Γ, m) = p(φ1|λ1, γ1, γ2, m) × p(φ2|λ2, γ2, m).
Since almost all relations take two core arguments or less, we use at most two landmark fields l1and l2. Given this
def-inition, a general natural language command is represented as a sequence of SDC trees. An SDC tree for the command “Put the pallet on the truck” appears in Figure 5a. Leaf SDCs in the tree contain only text in the figure field, such as “the truck” (Figure 3a). Internal SDCs contain text in the relation field and child SDCs in the figure and landmark fields.
The system automatically extracts SDCs from the Stan-ford dependency parse structure(de Marneffe, MacCartney, and Manning, 2006). The SDC extraction algorithm maps between particular dependency types and fields in the SDCs, putting verbs and prepositions in the relation field, their ar-guments in the landmark field, and their subjects in the fig-ure field. In cases of ambiguity the algorithm outputs mul-tiple candidate SDCs for a single parse. We obtain addi-tional candidates by running the extractor on the n-best list of parse candidates. The system then performs discrimina-tive reranking using a model trained from annotated SDCs.
Using SDCs, we can rewrite the inner term from Equa-tion 6 as:
p(φi|λi,Γ, m) = p(φi|SDCi,Γ, m) (7)
Further independence assumptions can be made in the product terms based on the structure of the language. To specify these factors, we first define the variables in the model as follows:
• φiTrue if the grounding γicorresponds to ithSDC.
• λfi The text of the figure field of the ithSDC.
• λr
i The text of the relation field of the ithSDC.
• γif, γ l1 i , γ
l2
i ∈ Γ The groundings associated with the
cor-responding field of the ithSDC: the robot or object state
sequence, or a location in the semantic map.
Looking at Equation 7, we can see that the model has a factor for each SDC in the parse. The dynamically generated factors fall into two types:
• p(φi|λfi, γi, m) for leaf SDCs. • p(φi|λri, γ f i, γil1, m) or p(φi|λri, γ f i, γil1, γil2, m) for inter-nal SDCs.
Leaf factors always correspond to an OBJECT or PLACE SDC and operate over the correspondence variable φi, the
figure text λfi and a unique grounding γi. An internal
fac-tor corresponds to an OBJECT, PLACE, PATH, or EVENT SDC which has text in the relation field. The arguments to these factors are the correspondence variable φi, relation text
λr
i, and the candidate groundings γ f i and γ
l1
i (and optionally
γil2) corresponding to the figure and landmark fields of an
SDC.
For example, Figure 4 shows the grounding graph for the phrase “on the truck.” It contains a subgraph correspond-ing to “the truck” which is identical to the one shown in Figure 3. The value of the correspondence variable φ1
de-pends only on the values of λ1 (“on”) and the groundings
γ1(a place in the world) and γ2(an object), and not on the
specific words “the truck.” This independence assumption enables the model to represent a general meaning for “on” that does not depend on specific text in its argument phrase. Each factor in Equation 7 is a log-linear model with the following form (Lafferty, McCallum, and Pereira, 2001):
p(φi|SDCi,Γ, m) = 1 Zexp X k µksk(φi, SDCi,Γ, m) ! (8) Here, sk are feature functions (described more fully in
Tellex et al. 2011) that take as input a correspondence vari-able, an SDC and a set of groundings and output a binary value. For example, one of the many feature functions corre-sponds to whether the landmark grounding γilis supporting the figure grounding γif and the word “on” is in the relation field of the SDC: f(γif, γ l i, λ r i) ≡ supports(γ f i, γ l i) ∧ (“on” ∈ λ r i) (9)
We use features relating the distance between the figure and the landmark groundings, as well as the change in state at the beginning and end of the robot’s trajectory. Features are created based on the syntactic role of the words in the lan-guage: whether it appears as a figure, relation, or landmark in the SDC. To ground noun phrases, the system assumes ac-cess to an object detector that can recognize certain classes of objects, such as pallets and trucks. The system learns to map between these labels and words that actually appeared in the command, such as “skid” or “trailer.” We also use fea-tures derived from co-occurrence statistics from large web corpora, such as Flickr, as described by Kollar et al. (2010b). The µk are the weights corresponding to the output of
a particular feature function. At training time, we observe SDCs, groundingsΓ, and the output vector Φ. In order to
EV EN T1(r =Put,
l= OBJ2(f =the pallet),
l2 = P LACE3(r =on,
l= OBJ4(f =the truck)))
(a) SDC tree λr 1 “Put” γ1 φ1 λf2 “the pallet” γ2 φ2 λr 3 “on” γ3 φ3 λf4 “the truck” γ4 φ4 (b) Induced Model p(Φ|Γ,SDCs, m) = p(φ1|γ1, γ2, γ3, λr1=Put, m)× p(φ2|γ2, λ f 2 =the pallet, m) × p(φ3|γ3, γ4, λr3=on, m)× p(φ4|γ4, λ f 4 =the truck, m) (c) Factorization

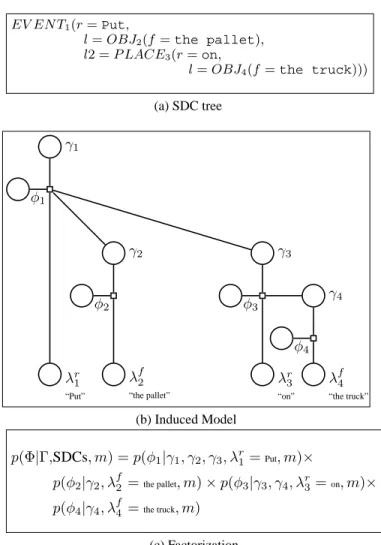

Figure 5: In (a) is SDC tree for “Put the pallet on the truck.” In (b) is the induced graphical model and in (c) is the factor-ization.
training dataset, we use L-BFGS (Andrew and Gao, 2007) to optimize the parameters of the model via gradient descent.
Figure 5 shows an entire worked example for the com-mand “Put the pallet on the truck,” beginning with SDCs, the grounding graph, and finally the factorization of the dis-tribution. Note that the factor graph contains subgraphs cor-responding to the constituents “on the truck” (shown in Fig-ure 4) and “the truck” (shown in FigFig-ure 3). This decompo-sition allows the model to learn word meanings from each factor and flexibly compose them together in order to under-stand novel commands.
3
Results
We present results from experiments with the G3
framework using three corpora of natural language commands paired with robot actions and environment state sequences. Exam-ples from the corpora appear in Figure 6. We used one part of these corpora to train the G3
model to learn the meanings of words and used a held-out test set to evaluate the end-to-end performance of the system at composing word meanings
in order to follow commands.
The first corpus focuses on spatial prepositions describ-ing paths, such as “across,” “to,” “toward,” and “along.” Each example in the corpus consists of a trajectory, a land-mark object, and a phrase such as “Go to the door” or “Go across the conference room;” the corpus includes both pos-itive and negative examples of each spatial relation. One of the authors created the corpus by drawing a sequence of waypoints that corresponded to a phrase such as “down the hallway.” Negative examples were created by treating pos-itive examples of one spatial relation as negative examples of another, with some exceptions such as “to” and “toward.” This dataset provides a simple test bed to demonstrate the model’s performance, as well as providing training exam-ples for bootstrapping the model on this important class of words. Figure 6a shows a sample prepositional phrase from this corpus, paired with a path and landmark.
The second corpus consists of natural language route in-structions. We collected a corpus of 150 natural language route instructions from fifteen people, through one floor of two adjoining office buildings. An example set of directions from the corpus is shown in Figure 6b. Following these di-rections is challenging because they consist of natural lan-guage constrained only by the task and as a result may use any of the complicated linguistic structures associated with free-form natural language. This corpus provides a complex sample of spatial language for a real-world task. To train the model, we annotated each constituent in the corpus with a corresponding path segment or landmark. We constructed negative examples by randomizing these annotations. Fig-ure 6b shows a sample command from the corpus.
The third corpus consists of mobile-manipulation com-mands given to a robotic forklift. Annotators on Amazon Mechanical Turk watched a video of a simulated forklift per-forming an action, then wrote natural language commands they would give to an expert human operator in order to command them to carry out the actions in the video. This corpus consists of a rich variety of mobile-manipulation commands such as “Pick up the pallet of tires directly in front of the forklift.” Figure 6c shows an example command from this dataset.
3.1
Meanings For Words
Next, we trained models for each of the corpora and evalu-ated their performance for specific words in a held-out test set, using the same features for all models and annotated parses. Table 1a shows the performance on words from the spatial relations corpus. Not surprisingly, it learned good models for the meanings of words in this simple corpus. To illustrate the learned models for individual words, we present the probability distribution as a heat map, where red is high probability and blue is low probability. Figure 7 shows maps for “to the truck,” “past the truck” and “toward the truck,” demonstrating that the system has learned nu-anced models for these different words.
Table 1b shows the performance of the trained system on individual examples from the route directions corpus. Per-formance is lower because this corpus contained fewer ex-amples of individual spatial relations and was noisier in
gen-Go to the door.
(a) Spatial Relations.
With your back to the windows, walk straight through the door near the elevators. Continue to walk straight, going through one door until you come to an intersection just past a white board.
(b) Route Directions.
Lift the tire pallet in the air, then proceed to deposit it to the right of the tire pallet already on the table right in front of you.
(c) Mobile Manipulation.
Figure 6: Commands paired with environments from corpora used in our experiments.

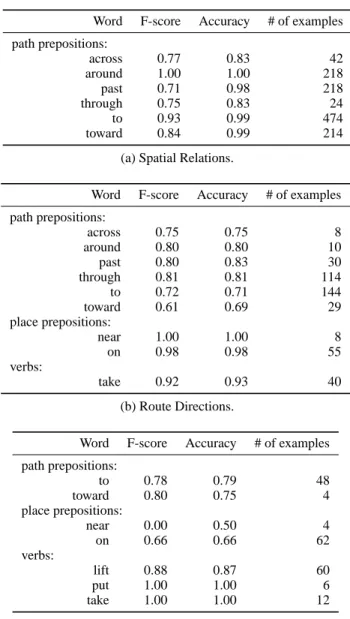

Word F-score Accuracy # of examples path prepositions: across 0.77 0.83 42 around 1.00 1.00 218 past 0.71 0.98 218 through 0.75 0.83 24 to 0.93 0.99 474 toward 0.84 0.99 214
(a) Spatial Relations.
Word F-score Accuracy # of examples path prepositions: across 0.75 0.75 8 around 0.80 0.80 10 past 0.80 0.83 30 through 0.81 0.81 114 to 0.72 0.71 144 toward 0.61 0.69 29 place prepositions: near 1.00 1.00 8 on 0.98 0.98 55 verbs: take 0.92 0.93 40 (b) Route Directions.
Word F-score Accuracy # of examples path prepositions: to 0.78 0.79 48 toward 0.80 0.75 4 place prepositions: near 0.00 0.50 4 on 0.66 0.66 62 verbs: lift 0.88 0.87 60 put 1.00 1.00 6 take 1.00 1.00 12 (c) Mobile Manipulation.
Table 1: Performance of the learned model in terms of rec-ognizing the right actions for various words (i.e., correctly predicting φ). The final column shows the number of exam-ples in the test set, with a 70%-30% training-testing split.
eral. The effects of this noise can be seen in the heat map shown in Figure 9b.
Finally, Table 1c shows the performance of the system when trained on the mobile manipulation corpus. The
sys-(a)“to the truck” (b)“past the truck” (c)“toward the truck”
Figure 7: Heat maps showing high and low probability end-ing locations for various phrases accordend-ing to our learned model trained on the spatial relations dataset. The path is constrained to be a straight line starting at the left edge of the image. The highest probability path is drawn in white.
tem was able to learn good models for verbs such as “put” and “take” as well as spatial relations such as “to,” “toward” and “on” from relatively few training examples.
The word “take” appeared in both the mobile manipula-tion corpus and the route direcmanipula-tions corpus, but it was used in different ways. In the route directions corpus, it was used in phrases such as “Take your first left,” while in the mobile manipulation corpus, it was used in commands like “Take the pallet of tires to the trailer on the left.” Although the system learned these two senses separately, learning from a single corpus that contained both would be challenging be-cause the same feature weights would be trained for both word senses simultaneously.
Figure 8a shows the distribution of locations for “on” as learned from the mobile manipulation corpus from phrases such as “put the pallet on the truck.” (The target locations are a constant height above the ground.) The system gives high weight to locations that are supported by the truck, be-cause features related to “support” have the highest weight among the learned features for “on.” Figure 8b shows the distributions for the phrase “near the truck,” which is not as peaked as strongly as “on.” The distributions are asymmet-ric with respect to the truck because of frame-of-reference features which take into account the position and orientation of the robot. We intended these features to capture phrases like “on your left” and “to the left of,” but the system also weights them for “on” and “near.”
Figure 9 shows maps for “to the truck” from models trained on each of the three datasets. The system is able to learn good models from both the spatial relation and mo-bile manipulation datasets. The momo-bile manipulation dataset
(a)“on the truck.” (b)“near the truck.”

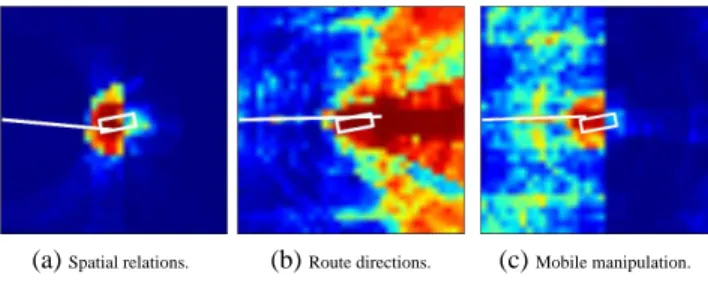

Figure 8: Heat map showing high probability (red) and low probability (blue) locations for “on the truck” and “near the truck” according to our learned model trained on the mobile manipulation corpus. The location of the truck is drawn in white.
is noisier because it contains fewer training examples, and many of the examples were part of compound prepositional phrases such as “to the left of the truck.” The route instruc-tions corpus is biased to go past the landmark object, prob-ably because examples of “to” often occurred in the context of longer phrases such as “walk to the end of the hall and turn left.”
3.2
End-to-end Evaluation
The fact that the model performed well at predicting the cor-respondence variable from annotated SDCs and groundings is promising but does not necessarily translate to good end-to-end performance when using the model to follow natural language commands.
To assess end-to-end performance, we evaluated the sys-tem in the mobile manipulation domain as described by Tellex et al. (2011). For each command in the corpus, the system inferred a plan and executed it in a realistic robot simulator. Then, annotators ranked whether the robot’s be-havior was correct or incorrect given the command. By this metric, our system correctly followed 54% of the thirty most confident commands in the corpus. When using a ground-truth parse instead of an automatic parse, the system fol-lowed 47% of commands from the entire corpus, and 63% of the thirty most confident commands.
The system qualitatively produced compelling end-to-end performance. When the system did make mistakes, it was often partially correct. For example, it might pick up the left tire pallet instead of the right one. Other problems stemmed from ambiguous or unusual language in the corpus com-mands, such as “remove the goods” or “then swing to the right,” that make the inference particularly challenging. De-spite these limitations, however, the system successfully fol-lowed commands such as “put the tire pallet on the truck,” “pick up the tire pallet” “put down the tire pallet” and “go to the truck,” using only data from the corpus to learn the model.
An enabling technology for our approach to mobile-manipulation is the availability of infrastructure for reliably simulating and logging robot actions. We useed these tech-nologies to collect corpora of language paired with robot ac-tions to train the system. We were then able to simulate the
(a)Spatial relations. (b)Route directions. (c)Mobile manipulation.
Figure 9: Heat maps showing high and low probability end-ing locations for a path correspondend-ing to “to the truck.” The path is constrained to be a straight line starting at the left edge of the image. The highest probability path is drawn in white.
robot and automatically produce videos of the system fol-lowing each command in the corpus, which we used for the end-to-end evaluation.
4
Lessons Learned
An important next step is to leverage larger corpora of lan-guage paired with robot actions. Children hear millions of words in many different contexts as they acquire language. The relative lack of data was the cause of many of the errors our system made. For example, annotator referred to a pallet that was separated from other pallets as “the lonely pallet,” but the word “lonely” did not appear in the training set. As a result, the system was unable to learn a model for this word. Our learning framework requires detailed alignment anno-tation between linguistic constituents and groundings in the world, which limits our ability to leverage larger datasets. Our next goal is to reduce the amount of annotation required by using algorithms that alternate between picking labels and learning models using the inferred labels. A second ap-proach to this problem would be to acquire word meanings from existing large corpora (Kollar and Roy, 2009). The challenge here is to identify datasets that would allow the system to map from words such as “pick up” or “lonely” to actions and perceptual features accessible to the robot.
A second challenge is interpreting high-level commands such as “unload the truck” that might require long sequences of primitive actions, as well as low-level commands such as “drive forward six inches.” An action space detailed enough to represent actions such as driving forward a small distance will require extremely long action sequences to generate be-havior like unloading a truck. This problem was made con-crete by one of our annotators, who posted instructions for picking up a dime with a forklift:
Raise the forks 12 inches. Line up either fork in front of the dime. Tilt the forks forward 15 degrees. Pull the truck forward until one fork is directly over the dime. Completely lower the forks. Put the truck in reverse and gently travel backward a foot. The dime will flip up backwards onto the fork. Level the forks back to 90 degrees. Raise the dime with the forks 12 inches.
develop-ing a hierarchical action space and new search algorithms that will enable the robot to efficiently search among both large-scale and small-scale actions when following a com-mand.
A third challenge is learning word meanings that gener-alize across different domains without retraining the model. Figure 9 shows three different meanings for the word “to” learned from three different datasets. A further challenge is modifying learned models in response to modifiers, such as “half-way to the truck.” Modeling nuanced changes of meaning in different contexts remains a challenging prob-lem.
The ability to understand spatial language discourse and engage in dialog is critical to enable robots to robustly in-teract with humans using language. The model described here represents an early step toward a framework for ac-quiring word meanings, but much remains to be done. A system that can understand the full complexity of language must be able to handle ellipsis (when words are omitted from sentences), conditional expressions (e.g., “if a truck comes in, unload it”), and quantifiers (e.g., “move all the tire pal-lets”). It must also reason about uncertainty from the speech recognizer about what the person actually said, as well as uncertainty in the parser, such as ambiguous prepositional phrase attachment. We envision a joint search over speech recognition candidates, parse structures, and groundings in the world, applying information from multiple modalities to jointly reduce uncertainty. Furthermore the system must be able to combine multiple utterances into higher-level seman-tic units. Finally, it must be embedded in a higher-level dia-log understanding framework that can reason about the sys-tem’s uncertainty and take actions to reduce it, such as ask-ing questions. Groundask-ing graphs provide a buildask-ing block to address these problems, but a more sophisticated framework must be developed to utilize them effectively.
5
Conclusion
This paper describes our probabilistic approach to the sym-bol grounding problem. We first reviewed a generative model that factors according to the sequential structure of language. Next we presented a hierarchical model, called Generalized Grounding Graphs (G3), that is able to learn word meanings from corpora and compose them to under-stand novel commands. We described applications of the G3
framework to several different domains and presented re-sults demonstrating that it has learned the meanings of com-plex spatial prepositions and verbs.
6
Acknowledgments
We would like to thank Dimitar Simeonov, Alejandro Perez, and Nick dePalma as well as the annotators on Amazon Me-chanical Turk and the members of the Turker Nation forum. This work was sponsored by the Robotics Consortium of the U.S Army Research Laboratory under the Collabora-tive Technology Alliance Program, CooperaCollabora-tive Agreement W911NF-10-2-0016, and by the Office of Naval Research under MURI N00014-07-1-0749.
References
Andrew, G., and Gao, J. 2007. Scalable training of L1-regularized log-linear models. In Proc. Int’l
Conf. on Machine Learning (ICML).
Bailey, D. 1997. When Push Comes to Shove: A Computational Model of the Role of Motor Control
in the Acquisition of Action Verbs. Ph.D. Dissertation.
Branavan, S. R. K.; Chen, H.; Zettlemoyer, L. S.; and Barzilay, R. 2009. Reinforcement learning for mapping instructions to actions. In Proceedings of ACL, 82–90.
Branavan, S.; Silver, D.; and Barzilay, R. 2011. Learning to win by reading manuals in a Monte-Carlo framework. In Proceedings of ACL.
Bugmann, G.; Klein, E.; Lauria, S.; and Kyriacou, T. 2004. Corpus-based robotics: A route instruc-tion example. Proceedings of Intelligent Autonomous Systems 96—103.
de Marneffe, M.; MacCartney, B.; and Manning, C. 2006. Generating typed dependency parses from phrase structure parses. In Proc. Int’l Conf. on Language Resources and Evaluation (LREC), 449–454.
Dzifcak, J.; Scheutz, M.; Baral, C.; and Schermerhorn, P. 2009. What to do and how to do it: Trans-lating natural language directives into temporal and dynamic logic representation for goal man-agement and action execution. In Proc. IEEE Int’l Conf. on Robotics and Automation (ICRA), 4163–4168.
Flickr. http://www.flickr.com.

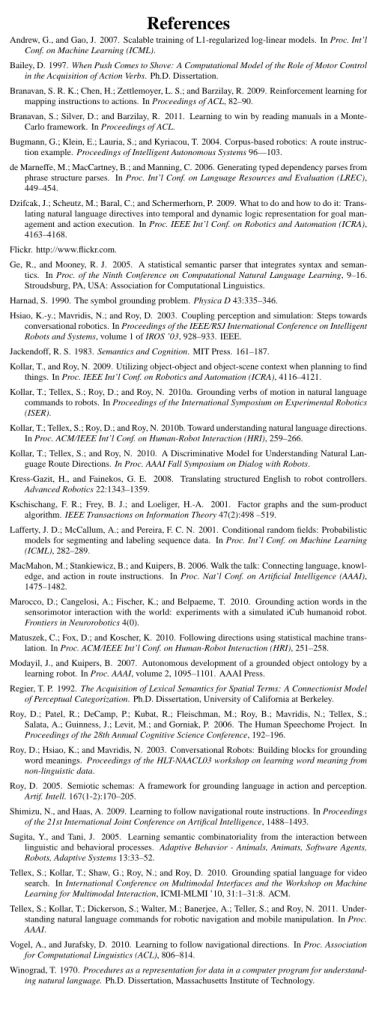

Ge, R., and Mooney, R. J. 2005. A statistical semantic parser that integrates syntax and seman-tics. In Proc. of the Ninth Conference on Computational Natural Language Learning, 9–16. Stroudsburg, PA, USA: Association for Computational Linguistics.
Harnad, S. 1990. The symbol grounding problem. Physica D 43:335–346.
Hsiao, K.-y.; Mavridis, N.; and Roy, D. 2003. Coupling perception and simulation: Steps towards conversational robotics. In Proceedings of the IEEE/RSJ International Conference on Intelligent
Robots and Systems, volume 1 of IROS ’03, 928–933. IEEE.
Jackendoff, R. S. 1983. Semantics and Cognition. MIT Press. 161–187.
Kollar, T., and Roy, N. 2009. Utilizing object-object and object-scene context when planning to find things. In Proc. IEEE Int’l Conf. on Robotics and Automation (ICRA), 4116–4121. Kollar, T.; Tellex, S.; Roy, D.; and Roy, N. 2010a. Grounding verbs of motion in natural language
commands to robots. In Proceedings of the International Symposium on Experimental Robotics
(ISER).
Kollar, T.; Tellex, S.; Roy, D.; and Roy, N. 2010b. Toward understanding natural language directions. In Proc. ACM/IEEE Int’l Conf. on Human-Robot Interaction (HRI), 259–266.
Kollar, T.; Tellex, S.; and Roy, N. 2010. A Discriminative Model for Understanding Natural Lan-guage Route Directions. In Proc. AAAI Fall Symposium on Dialog with Robots.
Kress-Gazit, H., and Fainekos, G. E. 2008. Translating structured English to robot controllers.
Advanced Robotics 22:1343–1359.
Kschischang, F. R.; Frey, B. J.; and Loeliger, H.-A. 2001. Factor graphs and the sum-product algorithm. IEEE Transactions on Information Theory 47(2):498 –519.
Lafferty, J. D.; McCallum, A.; and Pereira, F. C. N. 2001. Conditional random fields: Probabilistic models for segmenting and labeling sequence data. In Proc. Int’l Conf. on Machine Learning
(ICML), 282–289.
MacMahon, M.; Stankiewicz, B.; and Kuipers, B. 2006. Walk the talk: Connecting language, knowl-edge, and action in route instructions. In Proc. Nat’l Conf. on Artificial Intelligence (AAAI), 1475–1482.
Marocco, D.; Cangelosi, A.; Fischer, K.; and Belpaeme, T. 2010. Grounding action words in the sensorimotor interaction with the world: experiments with a simulated iCub humanoid robot.
Frontiers in Neurorobotics 4(0).
Matuszek, C.; Fox, D.; and Koscher, K. 2010. Following directions using statistical machine trans-lation. In Proc. ACM/IEEE Int’l Conf. on Human-Robot Interaction (HRI), 251–258. Modayil, J., and Kuipers, B. 2007. Autonomous development of a grounded object ontology by a
learning robot. In Proc. AAAI, volume 2, 1095–1101. AAAI Press.
Regier, T. P. 1992. The Acquisition of Lexical Semantics for Spatial Terms: A Connectionist Model
of Perceptual Categorization. Ph.D. Dissertation, University of California at Berkeley.
Roy, D.; Patel, R.; DeCamp, P.; Kubat, R.; Fleischman, M.; Roy, B.; Mavridis, N.; Tellex, S.; Salata, A.; Guinness, J.; Levit, M.; and Gorniak, P. 2006. The Human Speechome Project. In
Proceedings of the 28th Annual Cognitive Science Conference, 192–196.
Roy, D.; Hsiao, K.; and Mavridis, N. 2003. Conversational Robots: Building blocks for grounding word meanings. Proceedings of the HLT-NAACL03 workshop on learning word meaning from
non-linguistic data.
Roy, D. 2005. Semiotic schemas: A framework for grounding language in action and perception.
Artif. Intell. 167(1-2):170–205.
Shimizu, N., and Haas, A. 2009. Learning to follow navigational route instructions. In Proceedings
of the 21st International Joint Conference on Artifical Intelligence, 1488–1493.
Sugita, Y., and Tani, J. 2005. Learning semantic combinatoriality from the interaction between linguistic and behavioral processes. Adaptive Behavior - Animals, Animats, Software Agents,
Robots, Adaptive Systems 13:33–52.
Tellex, S.; Kollar, T.; Shaw, G.; Roy, N.; and Roy, D. 2010. Grounding spatial language for video search. In International Conference on Multimodal Interfaces and the Workshop on Machine
Learning for Multimodal Interaction, ICMI-MLMI ’10, 31:1–31:8. ACM.
Tellex, S.; Kollar, T.; Dickerson, S.; Walter, M.; Banerjee, A.; Teller, S.; and Roy, N. 2011. Under-standing natural language commands for robotic navigation and mobile manipulation. In Proc.
AAAI.
Vogel, A., and Jurafsky, D. 2010. Learning to follow navigational directions. In Proc. Association
for Computational Linguistics (ACL), 806–814.
Winograd, T. 1970. Procedures as a representation for data in a computer program for
7
Biographies
Stefanie Tellex is a Research Scientist at the MIT Computer
Science and Artificial Intelligence Laboratory at MIT. As part of her Ph.D. thesis at the MIT Media Lab, Stefanie de-veloped models for the meanings of spatial prepositions and motion verbs. She has presented her work at SIGIR, HRI, AAAI and ICMI, describing systems for searching surveil-lance video with spatial language queries and for giving in-structions to mobile robots.
Thomas Kollar has a Ph.D. in Electrical Engineering and
Computer Science (EECS) from the Massachusetts Insti-tute of Technology (MIT). His thesis concerned learning to understand spatial natural language commands and his re-search interests include robot learning, language grounding, and human-robot interaction. He was the general chair of the HRI Pioneers Workshop at the 6th ACM/IEEE Inter-national Conference on Human-Robot Interaction. He re-ceived his Master of Science in EECS from MIT in 2007 for research in reinforcement learning toward improving the quality of robot mapping. He has a Bachelor of Science in Computer Science (with Honors) and a Bachelor of the Arts in Mathematics from the University of Rochester. As an un-dergraduate, he developed an hors d’oeuvre-serving robot as a part of the AAAI robotics competition and is a member of IEEE, AAAI, and Sigma Xi and has published at HRI, ISER, ICRA, AAAI, IROS and ICMI.
Steven Dickerson graduated from MIT in 2011 with
un-dergraduate degrees in Computer Science and Aerospace Engineering. He is currently employed by Goldman Sachs.
Matthew R. Walter is a Research Scientist in the
Com-puter Science and Artificial Intelligence Laboratory at MIT. He received his Ph. D. in Mechanical Engineering from the
Massachusetts Institute of Technology and the Woods Hole Oceanographic Institution in 2008. His research interests include perception, motion planning, and human-robot in-teraction, so as to enable mobile robots to operate safely and effectively within unstructured environments.
Seth Teller is a Professor in the Department of
Electri-cal Engineering and Computer Science, and a member of the Computer Science and Artificial Intelligence Laboratory, at MIT. He received his Ph. D. in Computer Science from U.C. Berkeley in 1992. Teller’s research interests include machine perception, mobile manipulation, human-robot in-teraction and assistive technology.
Ashis Gopal Banerjee is a Postdoctoral Associate in the
Computer Science and Artificial Intelligence Laboratory at MIT. He completed his Ph.D. in Mechanical Engineering at the University of Maryland (UMD) in 2009. Prior to that, he obtained his Masters Degree in Mechanical Engineering at UMD in 2006 and Bachelors Degree in Manufacturing Sci-ence and Engineering at IIT Kharagpur in 2004. He received the 2009 Best Dissertation Award from the Department of Mechanical Engineering and the 2009 George Harhalakis Outstanding Systems Engineering Graduate Student Award at UMD. His research interests include planning under un-certainty, machine learning, and micro and nano manipula-tion.
Nicholas Roy is an Associate Professor in the
Depart-ment of Aeronautics & Astronautics at the Massachusetts Institute of Technology and a member of the Computer Sci-ence and Artificial IntelligSci-ence Laboratory at MIT. He re-ceived his Ph. D. in Robotics from Carnegie Mellon Univer-sity in 2003. His research interests include mobile robotics, decision-making under uncertainty, human-computer inter-action, and machine learning.
