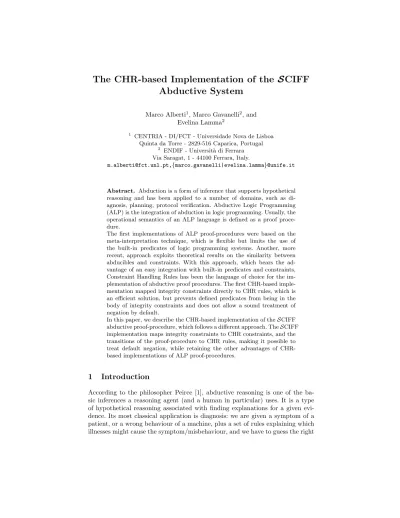

The CHR-based Implementation of the SCIFF Abductive System
Marco Alberti1, Marco Gavanelli2, and Evelina Lamma2
1 CENTRIA - DI/FCT - Universidade Nova de Lisboa Quinta da Torre - 2829-516 Caparica, Portugal
2 ENDIF - Universit`a di Ferrara Via Saragat, 1 - 44100 Ferrara, Italy.
m.alberti@fct.unl.pt,{marco.gavanelli|evelina.lamma}@unife.it
Abstract. Abduction is a form of inference that supports hypothetical reasoning and has been applied to a number of domains, such as di- agnosis, planning, protocol verification. Abductive Logic Programming (ALP) is the integration of abduction in logic programming. Usually, the operational semantics of an ALP language is defined as a proof proce- dure.
The first implementations of ALP proof-procedures were based on the meta-interpretation technique, which is flexible but limits the use of the built-in predicates of logic programming systems. Another, more recent, approach exploits theoretical results on the similarity between abducibles and constraints. With this approach, which bears the ad- vantage of an easy integration with built-in predicates and constraints, Constraint Handling Rules has been the language of choice for the im- plementation of abductive proof procedures. The first CHR-based imple- mentation mapped integrity constraints directly to CHR rules, which is an efficient solution, but prevents defined predicates from being in the body of integrity constraints and does not allow a sound treatment of negation by default.
In this paper, we describe the CHR-based implementation of theSCIFF abductive proof-procedure, which follows a different approach. TheSCIFF implementation maps integrity constraints to CHR constraints, and the transitions of the proof-procedure to CHR rules, making it possible to treat default negation, while retaining the other advantages of CHR- based implementations of ALP proof-procedures.
1 Introduction
According to the philosopher Peirce [1], abductive reasoning is one of the ba- sic inferences a reasoning agent (and a human in particular) uses. It is a type of hypothetical reasoning associated with finding explanations for a given evi- dence. Its most classical application is diagnosis: we are given a symptom of a patient, or a wrong behaviour of a machine, plus a set of rules explaining which illnesses might cause the symptom/misbehaviour, and we have to guess the right
cause. Besides diagnosis, abductive reasoning has been applied to a number of applications, like planning [2], protocol verification [3], etc.
Abductive Logic Programming (ALP) [4] is a language that embeds abduc- tive reasoning into logic programming. In ALP, we have a set of predicates that have no definition, and are calledabducibles. The truth of such predicates cannot be proven, but it can be assumed: the abductive derivation will provide in the computed answer the set of abduced hypotheses, together with the binding (the classical answer of Logic Programming languages). However, in typical applica- tions, not all combinations of assumptions make sense: some illnesses are to be excluded beforehand, depending e.g. on the sex of the patient. For this reason, in ALP the user can typically define a set of rules, calledIntegrity Constraints, that must be satisfied by the set of hypotheses. The operational semantics of an ALP is typically defined as a proof-procedure. A number of proof-procedures have been proposed in the past for performing abductive reasoning; they are typically implemented as Prolog meta-interpreters [5–8].
A number of researchers have become interested in abductive reasoning be- cause it deals in a simple and sound way with negation [9]. Literal not(a) is rewritten as an integrity constrainta→false, and then handled appropriately by the proof procedure. This type of negation is also callednegation by default.
ALP has also been integrated with Constraint Logic Programming [6, 8, 10], in order to use both abductive reasoning and constraint propagation.
Kowalski et al. [11] studied the theoretical similarities between constraints and abducibles. Such similarity was later exploited for the implementation of abductive proof-procedures where abducibles are mapped to CLP constraints.
For this purpose, a promising is Constraint Handling Rules (CHR) [12] a lan- guage designed to implement new constraints and constraint solvers in a simple and efficient way.
The first works on the implementation of abductive reasoning in CHR [13–16]
implemented directly the integrity constraints into CHR rules: in a sense, CHR becomes also the language for writing integrity constraints. Thus, the user can write rules such as
p∧q→r,
where p and q are abducible predicates and r can be either an abducible or a defined predicate. The interest of a CHR implementation is not only theo- retical: thanks to the tight integration of CHR in the host language (which is often Prolog), those proof-procedures can seamlessly access built-in constructs and constraint solvers. This means that they have access to the innumerable li- braries written in Prolog, and they can evenrecursethrough external predicates:
the abductive program can invoke Prolog predicates, and also meta-predicates (e.g., findall, minimize, . . . ), which can in their turn request the abduction of atoms, etc. A proof-procedure written inCHRbenefits immediately from all the improvements ofCHRengines, as recently happened with the Leuven CHR implementation [17]. Finally, those ALP which do not exploit abduction (or use abduction only in a limited subset of the application) do not suffer from the meta-interpretation overhead, but run at full speed.
However, a rule with a defined predicate in the antecedent is not allowed:
these languages sacrifice negation by default on the altar of efficiency, which is a sensible thing to do in some applications, but it is not in others.
TheSCIFF proof-procedure [18] was developed in 2003 with an alternative CHR implementation, in which integrity constraints are first-class objects, and the proof-procedure can actively reason about them. In particular, we map ab- ducibles intoCHRconstraints and implement the transitions of the operational semantics asCHRrules; in this way, the implementation follows very closely the operational semantics. Thanks to the sound operational semantics, SCIFF has a sound treatment of default (and also explicit) negation. Thanks to the CHR implementation,SCIFF is smoothly integrated with a constraint solver. From a language viewpoint,SCIFF has unique features that do not appear in other ab- ductive proof-procedures: it handles universally quantified variables both in the abducibles and in the integrity constraints; CLP constraints (treated as quan- tifier restrictions [19]) can be imposed both on existentially and on universally quantified variables.
SCIFF has been continuously developed and improved in the past few years, and now it is smoothly integrated in graphical interfaces, semantic web applica- tions; it is considerably faster, more robust, and provides more features.
In this paper, we show the implementation in CHR of the abductive proof- procedure SCIFF, and we report about its recent improvements.
The rest of the paper is organised as follows. We first describe theSCIFF abductive framework in Section 2. After some preliminaries onCHR(Section 3), we present the implementation of SCIFF in CHR (Section 4). Discussion of related work (Section 5) and conclusions (Section 6) follow.
2 An abductive framework
Abductive Logic Programming is a family of programming languages that inte- grate abductive reasoning into logic programming. An ALP is a logic program, consisting of a set of clauses, that can contain in the body some distinguished predicates, belonging to a set A and called abducibles, (that will be shown in the following inboldface). The aim is finding a set of abducibles∆⊆ Athat, together with the knowledge base, is an explanation for a given known effect (also calledgoalG):
KB∪∆|=G.
Also,∆should satisfy a set of logic formulae, calledIntegrity ConstraintsIC:
KB∪∆|=IC.
E.g., if a patient has a headache, a physician may consult a knowledge base headache←flu.
headache←migraine.
headache←meningitis.
and the abductive system will return one of the three explanations.
SCIFF [18] is a language in the ALP class. CLP [20] constraints can be imposed on variables (which allows, for instance, to express that an event is expected to happen in a given time interval). For example, we might have an integrity constraint
flu→temp(T), T <39
saying that the explanationfluis acceptable only if the temperature of the pa- tient is less than 39oC. The computed answer includes in general three elements:
a substitution for the variables in the goal (as usual in Prolog), the constraint store (as in CLP), and the set∆of abduced literals.
SCIFF was originally developed for the verification of interaction in multia- gent systems [21, 22] and it is an extension of the IFF proof-procedure [7].
3 A brief introduction to Constraint Handling Rules
Constraint Handling Rules [12] (CHR for brevity hereafter) are essentially a committed-choice language consisting of guarded rules that rewrite constraints in a store into simpler ones until they are solved.CHRdefine bothsimplification (replacing constraints by simpler constraints while preserving logical equiva- lence) and propagation (adding new, logically redundant but computationally useful, constraints) over user-defined constraints.
The main intended use forCHRis to write constraint solvers, or to extend existing ones. However, the computational model ofCHRpresents features that make it a useful tool for the implementation of theSCIFF proof-procedure.
There are three types ofCHRs:simplification,propagation andsimpagation.
Simplification CHRs. Simplification rules are of the form
H1, . . . , Hi⇐⇒G1, . . . , Gj|B1, . . . , Bk (1) with i > 0, j ≥ 0,k ≥0 and where the multi-head H1, . . . , Hi is a nonempty sequence ofCHRconstraints, the guardG1, . . . , Gjis a sequence of built-in con- straints, and the bodyB1, . . . , Bk is a sequence of built-in andCHRconstraints.
Declaratively, a simplification rule states that, if the guard is true, then the left-hand-side and the right-hand-side are equivalent.
Operationally, when constraint instancesH1, . . . , Hi in the head are in the store and the guardG1, . . . , Gjis true, they are replaced by constraintsB1, . . . , Bk in the body.
Propagation CHRs. Propagation rules have the form
H1, . . . , Hi=⇒G1, . . . , Gj|B1, . . . , Bk (2) where the symbols have the same meaning of those in the simplification rules (1).
Declaratively, a propagation rule is an implication, provided that the guard is true. Operationally, when the constraints in the head are in the store, and the guard is true, the constraints in the body are added to the store.
Simpagation CHRs. Simpagation rules have the form
H1, . . . , Hl\Hl+1, . . . , Hi⇐⇒G1, . . . , Gj|B1, . . . , Bk (3) where l > 0 and the other symbols have the same meaning and constraints of those of simplification CHRs (1).
Declaratively, the rule of Eq. (3) is equivalent to
H1, . . . , Hl, Hl+1, . . . , Hi⇐⇒G1, . . . , Gj|B1, . . . , Bk, H1, . . . , Hl (4) Operationally, when the constraints in the head are in the store and the guard is true,H1, . . . , Hlremain in the store, andHl+1, . . . , Hiare replaced byB1, . . . , Bk. For example, the constraint≤can be implemented in CHR by giving its base properties, namely the following rules:
A≤A⇔true (5)
A≤B, B≤A⇔A=B (6)
A≤B, B≤C⇒A≤C (7)
where the symbol ’=’ stands for unification. The CHR engine rewrites the con- straints in the store occurring as in the left-hand-side of the rules; for example, if the constraints X ≤ Y, Y ≤ X are in the store, they are removed from the store and the variables X and Y are unified, as prescribed by rule 6. Note that on the left-hand-side of a CHR rule only constraints defined with CHR can appear: while the right-hand-side can contain any Prolog predicate (including CLP(FD) constraints, unifications, etc.), these elements cannot appear on the left-hand-side.
4 Implementation of the S CIFF proof-procedure
One of the features obtained through a CHR implementation (avoiding meta- interpretation) is that the resolvent of the proof is directly represented as the Prolog resolvent. This allows us to exploit the Prolog stack for depth-first ex- ploration of the tree of states. More importantly, this means that we extensively reuse the Prolog machinery, and that built-in predicates in the host Prolog sys- tem can be called from the user’s Abductive Logic Programs. We remark again that this feature comes for free together with the CHR implementation, and is not easily available in metainterpreter-based implementations of abductive proof-procedures.
In the same way, the constraint store of the constrained abductive proof- procedure3 is represented as the union of the CLP constraint stores. For the implementation of the proof-procedure, we used the CLP(FD) and CLP(B) li- braries, available both on SICStus [23] and SWI Prolog [24] We also have a
3 This constraint store, which contains CLP constraints over variables, should not be confused with theCHRconstraint store, which is used for the implementation of the other data structures.
CHR-based solver on finite and infinite domains, and we defined anad-hocsolver for reified unification. Recently, the interface betweenSCIFF and the constraint solver has been re-engineered, and now it allows the developer to adopt any con- straint solver that implements a given interface. In this way, the user can choose for each application which solver he/she wants to use; moreover, new solvers can be added with very limited effort. For example, the constraint solver on the reals, CLP(R) [25] has been integrated into SCIFF: the new solver is based on the simplex algorithm (plus branch-and-bound), which is very efficient for linear constraints.
To the best of our knowledge, the other abductive proof-procedures imple- mented in CHR map abducibles to CHR constraints. Integrity constraints, in- stead, are often represented as CHR rules (typically, propagation rules) [13, 15].
Since a propagation CHR can have only CHR constraints in the multiple heads, the corresponding abductive proof-procedure can contain only abducibles in the precondition. This limitation forbids in the proof-procedure the implementation of default negation, that was one of the main motivations behind Abductive Logic Programming [9]. The operational semantics is then an extension of the operational semantics of CHR.
SCIFF was developed following a different idea: we wanted increased flexibil- ity in our language, while retaining the features that come for free with the CHR implementation. We first defined the declarative and operational semantics of SCIFF as extensions of the IFF [7]. The operational semantics is given through a set of transitions that transform a state into another. The implementation, which maps integrity constraints, as well as the other relevant data strutures, to CHR constraints (rather than CHR rules) and transitions to CHR rules, follows the operational semantics very closely.
In the following, we first show some examples of transitions; the interested reader can find the complete list of transitions in a previous publication [18], together with the proofs of soundness and completeness of the SCIFF proof- procedure. We then describe the implementation of some transitions in Sec- tion 4.2.
4.1 Examples of transitions
Given an abduciblea(X) and an integrity constraint a(Y)∧p(Z)∧Y > Z→r(Z)
transitionpropagationgenerates the following implication (that we callPartially Solved Integrity Constraintor PSIC for short):
X=Y ∧p(Z)∧Y > Z→r(Z) (8)
Now, a transition case analysisgenerates two nodes of an OR-tree: in the first we consider the caseX=Y, so the previous implication is transformed into
p(Z)∧X > Z→r(Z),
in the second node, we consider the case that X 6= Y, and in this case the implication (8) is already satisfied.
Suppose we choose the first node, and that the knowledge base contains the definition of predicate p(Z), e.g., as a factp(1). Transition unfoldinggenerates the following implication:
X >1→r(1)
Now, case analysis is again applied to the implication: in the first node we consider the caseX >1, while in the secondX ≤1. In the first case, the goal r(1) is invoked.
These are just some examples of the transitions. SCIFF contains transi- tions for handling correctly the various items (abducibles, expectations, hap- pened events, CLP constraints, negation by default, explicit negation, etc.) in theSCIFF language.
4.2 CHR implementation
The implementation of the transitions in CHR follows very closely the opera- tional semantics. The various types of data are mapped to CHR constraints, while the transitions are mapped into CHR rules. For example, abducibles are represented asabd(X); this means that abducibles can be directly used in the knowledge base, and CHR will take care of all the machinery necessary to abduce a new literal and propagate its consequences. For example, the clause
g(X) :−a(X), b.
can be written as
g(X) :- abd(a(X)), b.
A (partially solved) integrity constraint
a(X)∧p(Y)→r(Z)∨q(Z) is mapped to the CHR constraint
psic([abd(a(X)),p(Y)],(r(Z);q(Z))).
As a first attempt, the propagation transition (together with case analysis) can be implemented via the CHR rule
abd(X), psic([abd(Y)|Rest],Head)
==>
copy(psic([abd(Y)|Rest],Head),psic([abd(Y1)|Rest1],Head1)), reif_unify(X,Y1,B),
(B#=1, psic(Rest1,Head1) ; B#=0).
(9)
where copy performs a renaming of an atom (which also considers the various types of quantification in theSCIFF [18], as well as CLP constraints attached
to the variables),#=is the finite domain equality constraint andreif_unify is a CHR implementation ofreified unification [26].
reif_unifyis a CHR constraint that declaratively imposes that eitherB= 1 and the first two arguments unify, orB= 0 and the two atoms do not unify; in logics,reif_unify(X,Y,B)is true iff
X =Y ↔B= 1.
Note that some of the details are taken care of directly by CHR: if we have a set of abducibles and a set of PSICs we do not have to remember explicitly which PSICs have been tried with which abducibles (in order to avoid loops), as CHR itself does this work.
Note also that propagation is attempted only with the first element of the partially solved integrity constraint’s antecedent, but this does not impact on what integrity constraints will be completely solved. For instance, given the integrity constrainta,b→c, if band a are abduced in sequence, bwill not be propagated as soon as it is abduced, but only after ahas been abduced and propagated, and the partially solved integrity constraintb→chas been added to the constraint store; in the end, cwill be abduced anyway. In this way, we ensure that each atom is propagated only once with each integrity constraint, without a need to keep track of previous propagations.
A number of improvements can be done to rule (9). First of all, CHR uses efficient indexing and hash tables to avoid checking all the possible pairs of CHR constraints. Sadly, rule (9) does not exploit such features of CHR. Note that the constraints in the antecedent of the propagationCHRdo not share any variable, thus the CHR engine has to try each possible pair of constraints of types abd and psic, while, intuitively, one should try only those pairs whose arguments may unify. A first idea would be to rewrite the transition as:
abd(X), psic([abd(X)|Rest],Head)
==> ...
which would use CHR hash tables much more efficiently, but it would propagate only when the arguments are already ground or bound to the same term. This would be a very lazy propagation, that does not exploit the reified unification algorithm.
However, since abducibles are atoms, they always have a main functor, thus the argument ofabdis always a term, which can contain variables, but it cannot be a variable itself. It is sensible to exploit the main functor for improving the selection of candidates. We represent each abducible as a CHR constraint with two arguments, where the first argument contains a ground term used to improve the hashing: in the current implementation, it is a list containing the main functor and its arity. The code for abducing an atomX is then:
abd(X) :- functor(X,F,A), abd([F,A],X).
Now, thepropagation transitioncan be implemented with theCHRpropagation rule:
abd(F,X), psic([abd(F,Y)|Rest],Head)
==>
fn_ok(X,Y) |
copy(psic([abd(Y)|Rest],Head),psic([abd(Y1)|Rest1],Head1)), reif_unify(X,Y1,B),
(B#=1, psic(Rest1,Head1) ; B#=0).
(10)
i.e., only those pairs with identical first argument (i.e., abducibles that share the same functor and arity) are tried. fn_ok is a predicate that checks if the two arguments can possibly unify, and is also used for improving efficiency.
Many of the transitions ofSCIFF open a choice point, as we can see from the example of Eq. (10). However, in case reif_unify immediately yields 0 or 1, there is no point in opening a choice point. Otherwise, one could delay the disjunction, in order to open choice points as late as possible, hoping that other transitions might constrain the value of theBvariable, possibly making it ground. In other words, it would be more desirable to delay as much as possible the non-deterministic transitions (those opening choice points), while expediting the deterministic ones (those that do not open choice points). One reason is that the deterministic may fail, and in this case the choice points opened by nondeterministic choices would be useless.
In order to implement the delay mechanism, we defined a CHR constraint
’nondeterministic’ that holds, as argument, a non-deterministic goal. In the previous example, the propagation transition is actually rewritten as
abd(F,X), psic([abd(F,Y)|Rest],Head)
==>
fn_ok(X,Y) |
copy(psic([abd(Y)|Rest],Head),psic([abd(RenY)|RenRest],RenHead)), reif_unify(X,RenY,B),
(B == 1 -> psic(RenRest,RenHead) ; B == 0 -> true ;
nondeterministic((B#=1, psic(RenRest,RenHead)) ; B#=0)).
i.e., we check if reified unification imposed a value on the boolean variableB, and we open a choice point only in case it did not. The choice point is not actually opened immediately, but it is declared in a CHR constraint.
Then, we defined a set of CHRs for dealing with nondeterministic con- straints. We alternate a deterministic and a non-deterministic phase: initially, in the derivation, only deterministic transitions can be activated. Later, when the fixed point of the deterministic ones is reached,onenon-deterministic transition can be applied, and we return to the deterministic phase. In CHR:
switch2det @ phase(nondeterministic), nondeterministic(G) <=>
call(G),
phase(deterministic).
switch2nondet @ phase(deterministic) <=> phase(nondeterministic).
where ruleswitch2nondetshould be one of the last rules to be tried.
Transition Unfolding. Differently from HYPROLOG [15], integrity constraints can involve literals built on defined predicates. This allows for a sound treatment of default negation: a negative literal not(a) is converted into an implication a→ f alse. Given a PSIC whose body contains a literal of a predicate defined in theKB, transitionunfoldingunfolds the literal:
psic([Atom|Rest],Head) <=>
is_defined_literal(Atom) |
findall(clause(Atom,Body),clause(Atom,Body),Clauses), unfold(Clauses,psic([Atom|Rest],Head)).
unfold([],_).
unfold([clause(Atom,Body)|Clauses],psic([Atom1|Rest1],Head1)):- ccopy(psic([Atom1,Rest1],Head1),psic([Atom2|Rest2],Head2)), Atom = Atom2,
append(Body,Rest2,NewBody), psic(NewBody,Head2),
unfold(Clauses,psic([Atom1|Rest1],Head1)).
This might pose problems of termination: if the unfolded predicate is recur- sive, there exists an infinite branch in the derivation. For example, consider the IC:
a(List), member(T erm, List)→b(T erm) (11) with the knowledge base:
member(X,[X|T]).
member(X,[Y|T]) :−member(X, T).
g:−a([1,2,3]).
Intuitively, the goalgis true provided that we abducea([1,2,3]) andb(1),b(2), b(3). However, if we unfold predicatemember in the IC (11) before the atom a([1,2,3]) was abduced, the unfolding generates an infinite number of implica- tions. For this reason, early versions of SCIFF delay the unfolding after the other transitions, in the hope of binding some of the variables. In this particular example, if memberis unfolded only after a([1,2,3]) is abduced, the number of implications generated is equal to the number of elements in the listL, which is finite.
However, in other cases defined predicates provide just the value of a param- eter, in this example, a deadline:
start(a, Ta)∧deadline(D)→end(b, Tb)∧Tb≤Ta+D
The knowledge base contains a simple factdeadline(5) stating that the deadline is 5 time units. In this case, if the unfolding of deadline is postponed after propagation of thestart(a, Ta) event, it is repeated as many times as the number of start atoms that will be abduced, which might be a big number. For this reason, recent versions of SCIFF unfold eagerly the predicates defined only by facts, and lazily the other predicates.
Results. The efficiency of SCIFF has greatly improved with respect to earlier versions [27]. The following experiments were run on a 1.5GHz Pentium M 715 processor, 512MB RAM computer running SICStus 4.0.7.
Experiment SCIFF 2005SCIFF 2011
Auction Protocol 2.27s 0.37s
Block World 45.0s 15.7s
AlLoWS Feeble conformance 84.4s 36.8s AlLoWS non-conformant 3.7s 3.3s
The aim of these experiments is not to compete with other abductive proof- procedures, but to show the improvements obtained taking into consideration the features of CHR. The version 2011 features improved hashing, eager unfolding, and other minor improvements. The experiments are real-life applications that we developed inSCIFF: the proof of conformance of agents to an auction proto- col, planning in the abductive event calculus, and AlLoWS [28], a system based onSCIFF for the conformance verification of web services to choreographies.
4.3 SCIFF as a System
From a software engineering perspective, since its first prototypical implemen- tation [27] SCIFF has been greatly improved, and it is now a fully fledged development system (see Fig. 1). An integrated development environment for SCIFF ALPs, implemented as an Eclipse plugin, is now available. Through a RuleML parser, ALPs can be obtained dynamically from the web. Animations of the output are possible through Scalable Vector Graphics (SVG), the W3C standard for vector graphics and animations. A Graphical User Interface dis- plays relevant information to the user [3]. Facts can be added dynamically from a number of sources, including Linda blackboards, Apache log files, Jade Sniffer Agent output.
5 Related work
The SCIFF abductive framework is derived from the IFF proof procedure [7], which it extends in several directions: dynamic update of the knowledge base by
Fig. 1.Architecture of theSCIFF system, illustrating some of the available inputs and outputs.
happening events, confirmation and disconfirmation of hypotheses, hypotheses with universally quantified variables, CLP constraints. Many other abductive proof-procedures have been proposed in the past; the interested reader can refer to the exhaustive survey by Kakas et al. [29].
Other proof-procedures deal with constraints; in particular we mention ACLP [6] and theA-system [8], which are deeply focussed on efficiency issues.
Some conspicuous work has been done with the integration of the IFF proof- procedure with constraints [11]. Endriss et al. [10] present an implementation of an abductive proof-procedure that extends IFF [7] in two ways: by dealing with constraint predicates and with non-allowed abductive logic programs. The cited work, however, does not deal with confirmation and disconfirmation of hypotheses and universally quantified variables in abducibles, as ours does.
All of these proof-procedures are implemented as Prolog meta-interpreters.
However, we believe that a CHR implementation has features that a meta- interpreted version cannot have, as we explained in the introduction.
Abdennadher and Christiansen [13] and Christiansen and Dahl [30] propose to exploit the CHR language to extend SICStus Prolog to support abduction more efficiently than with metainterpretation-based solutions. They represent abducibles asCHRconstraints as we do, but they represent integrity constraints directly asCHRpropagation rules, using the built-inCHRmatching mechanism for propagation: this does not seem possible in our framework, in which we pose no limitations on the type of literals that occur in the conditions of integrity constraints. We also experimented with a similar implementation [14, 16], but it proved insufficient for our needs, as we needed a sound treatment of default negation and more flexibility in the quantification of variables.
6 Conclusions and future work
In this paper, we have presented the implementation of an abductive proof- procedure inCHR. We believe that the use ofCHR in writing abductive proof- procedures has several advantages, compared to traditional approaches based on meta-interpretation. The first advantage is thatSCIFF benefits immediately from new implementations and improvements of CHR engines [31, 32, 17]. An- other advantage is that the proof-procedure does not require meta-interpretation, which lets the user invoke built-in Prolog (meta)predicates within an Abductive Logic Program, without the need of contemplating explicitly their occurrence in the meta-interpreter. Also, Prolog is an instance of ALP (that does not use abduction): in SCIFF, a Prolog program that does not use abduction runs at full speed, without the overhead of meta-interpretation.
An interesting extension of this work would be to integrate the two main ideas for implementing abduction in CHR in a unique framework. Each of the ideas have their own pros and cons: HYPROLOG, that implements integrity constraints asCHR rules, has less overhead, whileSCIFF, that maps integrity constraints into CHR constraints, is able to deal with default negation and is provably sound and complete. We are currently studying the idea of selecting syntactically the integrity constraints in an ALP in a preprocessing phase, and implementing each in the most efficient possible way, i.e., asCHR rules, when- ever possible, or as CHR constraints when they contain defined predicates or CLP(FD) constraints.
Concerning confirmation, there are many possible extensions of this work, which we intend to pursue in the future. For instance, it would be worthwhile to let the user impose the failure of a branch of the reasoning tree, regardless of the confirmation or disconfirmation of the hypotheses made in the branch, in order to explore branches that the user finds more promising. We also intend to support a breadth-first exploration of the computation tree, as an alternative to the depth-first exploration of the current implementation. Besides, we believe that the formal framework would benefit from the introduction of a formalism to express priorities among the possible alternative hypotheses, in a given state of the computation.
Another direction of improvement could be towards better computational performance, possibly exploiting alternative efficientCHRimplementations, such as the one proposed by Wolf [32].
Acknowledgments
This work has been supported by the European Commission within the e-Policy project (n. 288147).
References
1. Hartshorne, C., Weiss, P., eds.: Collected Papers of Charles Sanders Peirce, 1931–
1958. Volume 2. Harvards University Press (1965)
2. Eshghi, K.: Abductive planning with the event calculus. In: Logic Programming, Proceedings of the Fifth International Conference and Symposium, Seattle, Wash- ington, Cambridge, MA, MIT Press (1988)
3. Alberti, M., Chesani, F., Gavanelli, M., Lamma, E., Mello, P., Torroni, P.: Com- pliance verification of agent interaction: a logic-based tool. Applied Artificial In- telligence20(2006) 133–157
4. Kakas, A.C., Kowalski, R.A., Toni, F.: Abductive Logic Programming. Journal of Logic and Computation2(1993) 719–770
5. Denecker, M., Schreye, D.D.: SLDNFA: an abductive procedure for abductive logic programs. Journal of Logic Programming34(1998) 111–167
6. Kakas, A.C., Michael, A., Mourlas, C.: ACLP: Abductive Constraint Logic Pro- gramming. Journal of Logic Programming44(2000) 129–177
7. Fung, T.H., Kowalski, R.A.: The IFF proof procedure for abductive logic program- ming. Journal of Logic Programming33(1997) 151–165
8. Kakas, A.C., van Nuffelen, B., Denecker, M.: A-System: Problem solving through abduction. In Nebel, B., ed.: Proceedings of the Seventeenth International Joint Conference on Artificial Intelligence, Seattle, Washington, USA (IJCAI-01), Seat- tle, Washington, USA, Morgan Kaufmann Publishers (2001) 591–596
9. Eshghi, K., Kowalski, R.A.: Abduction compared with negation by failure. In Levi, G., Martelli, M., eds.: Proceedings of the 6th International Conference on Logic Programming, Cambridge, MA, MIT Press (1989) 234–255
10. Endriss, U., Mancarella, P., Sadri, F., Terreni, G., Toni, F.: The CIFF proof procedure for abductive logic programming with constraints. In Alferes, J.J., Leite, J.A., eds.: Proc. JELIA 2004. Volume 3229 of LNAI., Springer-Verlag (2004) 31–43 11. Kowalski, R., Toni, F., Wetzel, G.: Executing suspended logic programs. Funda-
menta Informaticae34(1998) 203–224
12. Fr¨uhwirth, T.: Theory and practice of constraint handling rules. Journal of Logic Programming 37(1998) 95–138
13. Abdennadher, S., Christiansen, H.: An experimental CLP platform for integrity constraints and abduction. In Larsen, H., Kacprzyk, J., Zadrozny, S., Andreasen, T., Christiansen, H., eds.: FQAS, Flexible Query Answering Systems. LNCS, War- saw, Poland, Springer-Verlag (2000) 141–152
14. Gavanelli, M., Lamma, E., Mello, P., Milano, M., Torroni, P.: Interpreting ab- duction in CLP. In Buccafurri, F., ed.: APPIA-GULP-PRODE Joint Conference on Declarative Programming, Reggio Calabria, Italy, Universit`a Mediterranea di Reggio Calabria (2003) 25–35
15. Christiansen, H., Dahl, V.: HYPROLOG: A new logic programming language with assumptions and abduction. In Gabbrielli, M., Gupta, G., eds.: Proc. ICLP 2005.
Volume 3668 of LNCS., Springer (2005) 159–173
16. Alberti, M., Chesani, F., Daolio, D., Gavanelli, M., Lamma, E., Mello, P., Torroni, P.: Specification and verification of agent interaction protocols in a logic-based system. Scalable Computing: Practice and Experience8(2007) 1–13
17. Schrijvers, T., Demoen, B.: The K.U. Leuven CHR system: implementation and application. In Frhwirth, T., Meister, M., eds.: Proc. CHR’04, Ulm, Germany (2004)
18. Alberti, M., Chesani, F., Gavanelli, M., Lamma, E., Mello, P., Torroni, P.: Ver- ifiable agent interaction in abductive logic programming: the SCIFF framework.
ACM Transactions on Computational Logic9(2008)
19. B¨urckert, H.: A resolution principle for constrained logics. Artificial Intelligence 66(1994) 235–271
20. Jaffar, J., Maher, M.: Constraint logic programming: a survey. Journal of Logic Programming 19-20(1994) 503–582
21. Alberti, M., Gavanelli, M., Lamma, E., Mello, P., Torroni, P.: Specification and verification of agent interactions using social integrity constraints. Electronic Notes in Theoretical Computer Science85(2003)
22. Alberti, M., Gavanelli, M., Lamma, E., Mello, P., Torroni, P.: An Abductive Interpretation for Open Agent Societies. In Cappelli, A., Turini, F., eds.: AI*IA 2003: Advances in Artificial Intelligence, Proceedings of the 8th Congress of the Italian Association for Artificial Intelligence, Pisa. Volume 2829 of Lecture Notes in Artificial Intelligence., Springer-Verlag (2003) 287–299
23. Carlsson, M., et al.: SICStus Prolog user’s manual. Swedish Institute of Computer Science, Kista, Sweden. 4.0.7 edn. (2009)www.sics.se/sicstus/.
24. Wielemaker, J., Schrijvers, T., Triska, M., Lager, T.: SWI-Prolog. Theory and Practice of Logic Programming (2011)http://arxiv.org/abs/1011.5332.
25. Holzbaur, C.: OFAI clp(q,r) Manual. Austrian Research Institute for Artificial Intelligence, Vienna. 1.3.3 edn. (1995) TR-95-09.
26. Nuffelen, B.V.: Abductive Constraint Logic Programming: Implementation and Applications. PhD thesis, Katholieke Universiteit Leuven (2004)
27. Alberti, M., Chesani, F., Gavanelli, M., Lamma, E.: The CHR-based Implementa- tion of a System for Generation and Confirmation of Hypotheses. Number 2005-01 in Ulmer Informatik-Berichte (2005) 111–122
28. Alberti, M., Chesani, F., Gavanelli, M., Lamma, E., Mello, P., Montali, M.: An abductive framework for a-priori verification of web services. In Maher, M., ed.:
Proceedings of the Eighth Symposium on Principles and Practice of Declarative Programming, July 10-12, 2006, Venice, Italy, New York, USA, Association for Computing Machinery (ACM), Special Interest Group on Programming Languages (SIGPLAN), ACM Press (2006) 39–50
29. Kakas, A.C., Kowalski, R.A., Toni, F.: The role of abduction in logic program- ming. In Gabbay, D.M., Hogger, C.J., Robinson, J.A., eds.: Handbook of Logic in Artificial Intelligence and Logic Programming. Volume 5., Oxford University Press (1998) 235–324
30. Christiansen, H., Dahl, V.: Assumptions and abduction in Prolog. In Mu˜noz- Hern´andez, S., G´omez-Perez, J.M., Hofstedt, P., eds.: Workshop on Multiparadigm Constraint Programming Languages (MultiCPL’04), Saint-Malo, France (2004) Workshop notes.
31. Holzbaur, C., Fr¨uhwirth, T.: Compiling constraint handling rules into Prolog with attributed variables. In Nadathur, G., ed.: PPDP. (1999)
32. Wolf, A.: Adaptive constraint handling with CHR in Java. In Walsh, T., ed.:
Principles and Practice of Constraint Programming - CP 2001. Volume 2239 of Lecture Notes in Computer Science., Paphos, Cyprus, Springer Verlag (2001) 256–
270
