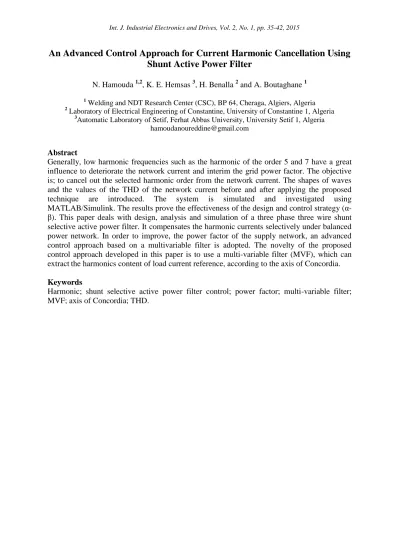

Int. J. Industrial Electronics and Drives, Vol. 2, No. 1, pp. 35-42, 2015
An Advanced Control Approach for Current Harmonic Cancellation Using Shunt Active Power Filter
N. Hamouda 1,2, K. E. Hemsas 3, H. Benalla 2 and A. Boutaghane 1
1 Welding and NDT Research Center (CSC), BP 64, Cheraga, Algiers, Algeria
2 Laboratory of Electrical Engineering of Constantine, University of Constantine 1, Algeria
3Automatic Laboratory of Setif, Ferhat Abbas University, University Setif 1, Algeria hamoudanoureddine@gmail.com
Abstract
Generally, low harmonic frequencies such as the harmonic of the order 5 and 7 have a great influence to deteriorate the network current and interim the grid power factor. The objective is; to cancel out the selected harmonic order from the network current. The shapes of waves and the values of the THD of the network current before and after applying the proposed technique are introduced. The system is simulated and investigated using MATLAB/Simulink. The results prove the effectiveness of the design and control strategy (α- β). This paper deals with design, analysis and simulation of a three phase three wire shunt selective active power filter. It compensates the harmonic currents selectively under balanced power network. In order to improve, the power factor of the supply network, an advanced control approach based on a multivariable filter is adopted. The novelty of the proposed control approach developed in this paper is to use a multi-variable filter (MVF), which can extractthe harmonics content of load current reference, according to the axis of Concordia.
Keywords
Harmonic; shunt selective active power filter control; power factor; multi-variable filter;
MVF; axis of Concordia; THD.
