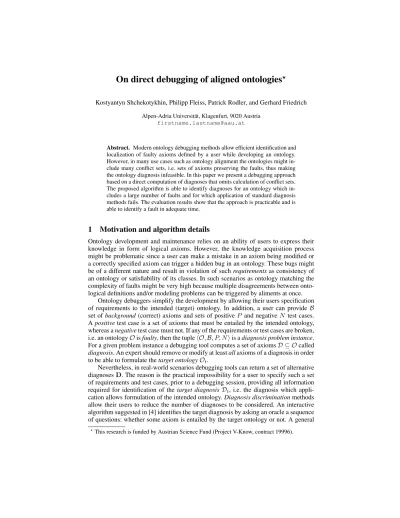

On direct debugging of aligned ontologies
?Kostyantyn Shchekotykhin, Philipp Fleiss, Patrick Rodler, and Gerhard Friedrich
Alpen-Adria Universit¨at, Klagenfurt, 9020 Austria firstname.lastname@aau.at
Abstract. Modern ontology debugging methods allow efficient identification and localization of faulty axioms defined by a user while developing an ontology.
However, in many use cases such as ontology alignment the ontologies might in- clude many conflict sets, i.e. sets of axioms preserving the faults, thus making the ontology diagnosis infeasible. In this paper we present a debugging approach based on a direct computation of diagnoses that omits calculation of conflict sets.
The proposed algorithm is able to identify diagnoses for an ontology which in- cludes a large number of faults and for which application of standard diagnosis methods fails. The evaluation results show that the approach is practicable and is able to identify a fault in adequate time.
1 Motivation and algorithm details
Ontology development and maintenance relies on an ability of users to express their knowledge in form of logical axioms. However, the knowledge acquisition process might be problematic since a user can make a mistake in an axiom being modified or a correctly specified axiom can trigger a hidden bug in an ontology. These bugs might be of a different nature and result in violation of suchrequirementsas consistency of an ontology or satisfiability of its classes. In such scenarios as ontology matching the complexity of faults might be very high because multiple disagreements between onto- logical definitions and/or modeling problems can be triggered by aliments at once.
Ontology debuggers simplify the development by allowing their users specification of requirements to the intended (target) ontology. In addition, a user can provide B set ofbackground (correct) axioms and sets of positiveP and negativeN test cases.
Apositive test case is a set of axioms that must be entailed by the intended ontology, whereas anegativetest case must not. If any of the requirements or test cases are broken, i.e. an ontologyOisfaulty, then the tuplehO,B, P, Niis adiagnosis problem instance.
For a given problem instance a debugging tool computes a set of axiomsD ⊆ Ocalled diagnosis. An expert should remove or modify at leastallaxioms of a diagnosis in order to be able to formulate thetarget ontologyOt.
Nevertheless, in real-world scenarios debugging tools can return a set of alternative diagnosesD. The reason is the practical impossibility for a user to specify such a set of requirements and test cases, prior to a debugging session, providing all information required for identification of the target diagnosisDt, i.e. the diagnosis which appli- cation allows formulation of the intended ontology.Diagnosis discriminationmethods allow their users to reduce the number of diagnoses to be considered. An interactive algorithm suggested in [4] identifies the target diagnosis by asking an oracle a sequence of questions: whether some axiom is entailed by the target ontology or not. A general
?This research is funded by Austrian Science Fund (Project V-Know, contract 19996).
interactive ontology diagnosis algorithm can be described as follows: (1) Generate a set of diagnosesDincluding at mostndiagnoses. (2) Compute a set of queries and select the best one using a predefined measure. (3) Ask the oracle and, depending on the an- swer, add the query either toPor toN. (4) Update the set of diagnosesDand remove the ones that do not comply with the newly acquired test case. (5) Update the tree and repeat from Step 1 if the tree contains open nodes. (6) Return the set of diagnosesD.
The resulting setDincludes only diagnoses that are not differentiable in terms of their entailments, but have some syntactical differences. The preferred target diagnosisDt, in this case, should be selected by the user using some ontology editor such as Prot´eg´e.
Most of the debugging approaches, including [4], follow the standard model-based diagnosis approach [3] and compute diagnoses usingconflict setsCS, i.e. irreducible sets of axiomsaxi ∈ O that preserve violation of at least one requirement. The com- putation of one conflict set can be done within a polynomial number of calls to the reasoner, e.g. by QUICKXPLAINalgorithm [2]. To identify a diagnosis of cardinality
|D|=mthe hitting set algorithm suggested in [3] requires computation ofmconflict sets. In some practical scenarios, such ontology matching, the number of conflict sets mcan be large, thus making the ontology debugging practically infeasible.
In this paper we present two algorithms INV-HS-TREEand INV-QUICKXPLAIN, which inverse the standard model-based approach to ontology debugging and compute diagnoses directly, rather than by means of conflict sets (see [5] for a detailed descrip- tion of the algorithms). The main function of the latter algorithm splits recursively the initial diagnosis problem instance into two sub-problems by partitioning the axioms of a given faulty ontology into two subsets. In many casesSPLITsimply partitions the set of axioms into two sets of equal cardinality. The algorithm continues to divide diagno- sis problems until it identifies a setD0 such thatO \ D0 fulfills all the requirements, butO \ Di0, whereDi0are partitions ofD0, not. In further iterations the algorithm min- imizes theD0by splitting it into sub-problems of the formD0 =D ∪ O∆, whereO∆ contains only one axiom. In the case whenD0is a diagnosis andDis not, the algorithm decides thatO∆is a subset of the sought diagnosis. Just as the original algorithm, INV- QUICKXPLAINalways terminates and returns either a diagnosisDor “no diagnosis”.
In order to enumerate all possible diagnoses we modified the HS-TREEalgorithm [3]
to accept diagnoses as node labels instead of conflict sets. The INV-HS-TREEalgorithm constructs a directed tree from root to the leaves, where each nodendis labeled either with a diagnosisD(nd)orX(closed) or×(pruned). The latter two labels indicate that the node cannot be extended. Each edge outgoing from the open node ndis labeled with an elements∈ D(nd).HS(nd)is a set of edge labels on the path from the root to the node nd. Initially the algorithm creates an empty root node and adds it to the queue, thus, implementing a breadth-first search strategy. Until the queue is empty, the algorithm retrieves the first nodendfrom the queue and labels it with either:
1. ×if there is a nodend0, labeled with eitherXor×, such thatH(nd0) ⊆H(nd) (pruning non-minimal paths), or
2. D(nd0)if a nodend0exists such that its labelD(nd0)∩H(nd) =∅(reuse), or 3. Dif Dis a diagnosis for the diagnosis problem instance hO,B ∪H(nd), P, Ni
computed by INV-QUICKXPLAIN(compute), or 4. X (closed).
The leaf nodes of a complete tree are either pruned (×) or closed (X) nodes.
In the diagnosis discrimination settings the ontology debugger acquires new knowl- edge that can invalidate some of the diagnoses labeling the tree nodes. During the tree
update INV-HS-TREEsearches for the nodes with invalid labels, removes its label and places it to the list of open nodes. Moreover, the algorithm removes all the nodes of a subtree originating from this node. After all nodes with invalid labels are cleaned- up, the algorithm attempts to reconstruct the tree by reusing the remaining valid min- imal diagnoses (rule 2, INV-HS-TREE). Such aggressive pruning of the tree is feasi- ble since a) the tree never contains more thannnodes that were computed with INV- QUICKXPLAINand b) computation of a possible modification to the minimal diag- nosis, that can restore its validness, requires invocation of INV-QUICKXPLAIN and, therefore, as hard as computation of a new diagnosis. Note also, that in a common diag- nosis discrimination settingnis often set to a small number, e.g.10, in order to achieve good responsiveness of the system. In the direct approach this setting limits the num- ber of calls to INV-QUICKXPLAINtonand results in a small size of the search tree.
The latter is another advantage of the direct method as it requires much less memory in comparison to a debugger based on original HS-TREE.
2 Evaluation
We evaluated the direct ontology debugging technique using aligned ontologies gen- erated in the framework of OAEI 2011 [1]. These ontologies represent a real-world scenario in which a user generated ontology alignments by means of (semi-)automatic tools. All ontologies used in the experiments are available online, together with detailed evaluation results1.
In the first experiment we applied the debugging technique to the set of aligned on- tologies resulting from “Conference” set of problems, which is characterized by lower precision and recall of the applied systems (the best F-measure 0.65) in comparison, for instance, to the “Anatomy” problem (average F-measure 0.8). The Conference test suite includes 286 ontology alignments generated by 14 ontology matching systems includ- ing: a) 140 ontologies are consistent and coherent; b) 122 ontologies are incoherent;
c) 26 ontologies are inconsistent; and in 8 cases a reasoner was unable to classify in two hours2. Note that only two systemsCODIandMaasMtchout of 14 were able to generate consistent and coherent alignments. This observation confirms the importance of high-performance ontology debugging methods.
The 146 ontologies of the cases b) and c) were analyzed with both HS-TREEand INV-HS-TREE. The results of the experiment show that for 133 ontologies out of 146 both approaches were able to compute the required amount of diagnoses. HT-TREE
required 49, 61 and 80 sec. on average to find 1, 9 and 30 leading minimal diagnoses.
The direct algorithm required less time and returned the requested number of diagnoses on average in 27, 52 and 72 sec. respectively. In the 13 cases HS-TREEwas unable to find all requested diagnoses in each experiment. Within 2 hours the algorithm calculated only 1 diagnosis forcsa-conference-ekawand forldoa-conference-confofit was able to find 1 and 9 diagnoses, whereas INV-HS-TREErequired 9 sec. for 1, 40 sec. for 9 and 107 sec. for 30 diagnoses on average.
Moreover, in the first experiment we evaluated the efficiency of the interactive di- rect debugging approach applied to the cases listed in Table 1. We selected the target diagnosis randomly among all diagnoses of the following diagnosis problem instance hMf,Oi∪ Oj∪Mt,∅,∅i, whereMf andMtare the sets of falseand truepositive
1http://code.google.com/p/rmbd/wiki/DirectDiagnosis
2Core-i7 (3930K) 3.2Ghz, 32GB RAM running Ubuntu 11.04, Java 6 and HetmiT 1.3.6.
Matcher Ontology 1 Ontology 2 Time (sec) #Query React (sec) #CC CC (ms)
ldoa conference confof 11.6 6 1.4 430 3
ldoa cmt ekaw 48.5 21 2.2 603 16
mappso confof ekaw 9.9 5 1.8 341 7
optima conference ekaw 16.7 5 2.5 553 8
optima confof ekaw 23.9 20 1.1 313 14
ldoa conference ekaw 56.6 35 1.4 253 53
csa conference ekaw 6.7 2 2.7 499 3
mappso conference ekaw 27.4 13 1.8 274 28
ldoa cmt edas 24.7 22 1.1 303 8
csa conference edas 18.4 6 2.7 419 5
csa edas iasted 1744.6 3 349.2 1021 1333
ldoa ekaw iasted 23871.4 10 1885.9 287 72607
mappso edas iasted 18400.2 5 2028.2 723 17844
Table 1.Diagnosis discrimination using direct ontology debugging and Entropy scoring function.
Reacttime required to compute 9 diagnoses and a query,#CCnumber of consistency checks, CCgives average time needed for one consistency check.
alignments computed from the set of correct alignmentsMc, provided by the organiz- ers of OAEI 2011, and the setMij generated by a ontology matching system. In the experiment the used the Entropy scoring function [4] with prior fault probabilities of axioms corresponding to aliments set to1−v, wherevis the confidence value of the matcher for an axiom. All axioms ofOi andOj were assumed to be correct and were assigned small probabilities. The results presented in Table 1 were computed for the diagnosis problem instancehMij,Oi∪ Oj,∅,∅i. The experiment shows that the sys- tem was able to identify the target diagnosis efficiently with small reaction times. The system’s performance decreased only in the cases when a reasoner required much time to verify the consistency of an ontology.
In the second scenario we applied the direct method to unsatisfiable and classifiable within 2 hours ontologies, generated for the Anatomy problem. The source ontologies O1 andO2include 11545 and 4838 axioms correspondingly, whereas the size of the alignments varies between 1147 and 1461 axioms. The target diagnosis selection pro- cess was performed in the same way as in the first experiment. The results of the exper- iment show that the target diagnosis can be computed within 40 second in an average case. Moreover, INV-HS-TREEslightly outperformed HS-TREE.
References
1. Euzenat, J., Ferrara, A., van Hage, W.R., Hollink, L., Meilicke, C., Nikolov, A., Ritze, D., Scharffe, F., Shvaiko, P., Stuckenschmidt, H., Sv´ab-Zamazal, O., dos Santos, C.T.: Final re- sults of the Ontology Alignment Evaluation Initiative 2011. In: Proceedings of the 6th Inter- national Workshop on Ontology Matching. pp. 1–29. CEUR-WS.org (2011)
2. Junker, U.: QUICKXPLAIN: Preferred Explanations and Relaxations for Over-Constrained Problems. In: Proc. 19th National Conference on Artificial Intelligence. pp. 167–172 (2004) 3. Reiter, R.: A Theory of Diagnosis from First Principles. Artificial Intelligence 32(1), 57–95
(1987)
4. Shchekotykhin, K., Friedrich, G., Fleiss, P., Rodler, P.: Interactive ontology debugging : two query strategies for efficient fault localization. Web Semantics: Science, Services and Agents on the World Wide Web 12-13, 88–103 (2012)
5. Shchekotykhin, K., Friedrich, G., Fleiss, P., Rodler, P.: Direct computation of diagnoses for ontology debugging. arXiv 1–16 (2012) http://arxiv.org/abs/1209.0997
