O R I G I N A L P A P E R

Analysis of the enhancer-blocking function of the TBS element

from Petunia hybrida in transgenic Arabidopsis thaliana

and Nicotiana tabacum

Received: 20 April 2011 / Revised: 1 June 2011 / Accepted: 13 June 2011 / Published online: 26 June 2011 Ó Springer-Verlag 2011

Abstract Transcriptional enhancers possess the ability to override the tissue-specificity and efficiency of nearby promoters, which is of concern when generating transgenic constructs bearing multiple cassettes. One means of pre-venting these inappropriate interactions is through the use of enhancer-blocking insulators. The 2-kb transformation booster sequence (TBS) from Petunia hybrida has been shown previously to exhibit this function when inserted between an enhancer and promoter in transgenic Arabid-opsis thaliana. In this study, we attempted to further characterize the ability of this fragment to impede enhan-cer–promoter interference through an analysis of trans-genic Arabidopsis and Nicotiana tabacum lines bearing various permutations of the TBS element between the cauliflower mosaic virus (CaMV) 35S enhancer and an assortment of tissue-specific promoters fused to the b-glucuronidase (GUS) reporter gene. The full-length TBS fragment was found to function in both orientations, although to a significantly lesser degree in the reverse orientation, and was operational in both plant species tes-ted. While multiple deletion fragments were found to exhibit activity, it appeared that several regions of the TBS were required for maximal enhancer-blocking function. Furthermore, we found that this element exhibited pro-moter-like activity, which has implications in terms of possible mechanisms behind its ability to impede enhan-cer–promoter communication in plants.

Keywords TBS element Enhancer-blocking insulator  CaMV 35S promoter/enhancer Arabidopsis thaliana  Nicotiana tabacum Enhancer–promoter interference

Introduction

The use of plant biotechnology is a necessity for both basic research and the enhancement of agronomic traits in crop species. While the majority of transgenic research is con-cerned with the improvement of a single trait, it is often the case that crops in field conditions must cope with a rela-tively large array of challenges that could be dealt with using genetic manipulation. Therefore, the implementation of broader approaches to improve the performance of several traits simultaneously using transformation vectors that harbor multiple transcriptional units is becoming more commonplace. This is often accomplished using a strong, constitutive promoter/enhancer to drive the expression of the selectable marker combined with tissue-, organ- or developmental stage-specific promoters to initiate the expression of transgenes solely in targeted tissues. How-ever, this strategy is often problematic due to the position-and orientation-independent ability of enhancers to trigger enhancer–promoter interference and disturb the expression of the transgene of interest. This phenomenon is particu-larly prevalent in transgenic plants harboring constructs in which the enhancer from the CaMV 35S promoter (Odell et al.1988) is in relatively close proximity to the promoter of another transgene, and results in both a loss of specificity and an increase in the level of expression induced by the transgenic promoter (Hily et al.2009; Zheng et al. 2007). Interestingly, this enhancer-mediated activation of proxi-mal promoters appears to be a fairly common property of a wide range of enhancers, and as a result, has incited interest

Communicated by R. Schmidt.

S. D. Singer J.-M. Hily  K. D. Cox (&)

Department of Plant Pathology and Plant-Microbe Biology, New York State Agricultural Experiment Station,

Cornell University, Geneva, NY 14456, USA e-mail: [email protected]

in the development of strategies with which to prevent such interactions (Gudynaite-Savitch et al. 2009; Hily et al.

2009; Singer et al.2010b).

Although mechanisms exist in eukaryotic genomes to prevent inappropriate enhancer–promoter interactions (reviewed by Kadauke and Blobel2009), transgenic con-structs lack this ability and thus require additional means with which to block enhancer-mediated activation of proximal promoters. Since not all enhancers possess the same activation potential (Gudynaite-Savitch et al.2009), a possible solution to this problem is to generate transgenic constructs utilizing enhancers that do not have an effect on the tissue-specificity or strength of nearby promoters. However, promoters vary in their responsiveness to the activation potential of each enhancer, suggesting that one single enhancer would not necessarily solve the problem. Another possible approach with which to prevent enhan-cer–promoter crosstalk is to physically separate enhancers and promoters within the transgenic construct (Jagannath et al.2001). Unfortunately, since both the strength of the enhancer and the sensitivity of the particular target pro-moter have an effect on the exact length of separation required to inhibit enhancer-mediated mis-expression, the precise length of spacer sequence required will differ from construct to construct, which further complicates this strategy. Enhancer–promoter interference can also be obstructed through the use of enhancer-blocking insulators which inhibit enhancer–promoter communication when situated between the two. A number of these elements have been characterized in metazoan systems and include the gypsy retrotransposon element (Geyer et al. 1986), the cHS4 insulator from the chicken b-globin locus (Chung et al. 1993) and the Drosophila scs/scs’ paired elements (Kellum and Schedl1992). While such extensive research with respect to enhancer-blocking insulators has not been carried out in plant species as of yet, there has recently been a surge of interest in this topic as it may provide a means for minimizing enhancer–promoter crosstalk during plant transformation with composite vectors (reviewed by Singer et al.2011). For example, the 2-kb transformation booster sequence (TBS) from Petunia hybrida was previ-ously found to impede activation of the flower-specific AGAMOUS second intron-derived promoter (AGIP) in vegetative tissues by the partially duplicated 35S enhancer when situated between the two in transgenic Arabidopsis (Hily et al.2009). However, the mean values by which the TBS carries out its function remain unclear as of yet.

To date, several models explaining the mechanism behind enhancer-blocking insulator function in animal systems have been proposed. One such model suggests that they provide a steric effect by separating chromatin into topologically distinct domains through the binding of proteins which form clusters localized at the nuclear

periphery, resulting in loops of DNA across which enhancer–promoter interactions cannot take place (Gaszner and Felsenfeld2006). Alternatively, the binding of proteins to the insulator sequence could result in a physical block-age of an activating signal, such as histone modification or intergenic transcription initiated at the enhancer and pro-gressing toward the target promoter (reviewed by Wallace and Felsenfeld 2007). It has also been suggested that enhancer-blocking insulators may function as decoy pro-moters by directly interacting with the enhancer or through the attenuation of a putative signal that progresses from enhancer to promoter, thus inhibiting communication between the enhancer and target promoter (reviewed by Raab and Kamakaka2010). Since evidence exists to sup-port each of these models, it is probable that one single model is not applicable to all enhancer-blocking activity.

In this study, we endeavored to further characterize the mechanism through which the TBS fragment acts as an enhancer-blocking insulator in plants. First, the full-length TBS was tested in both orientations for its ability to block activation of the petal- and stamen-specific PISTILLATA promoter (PIp) by the partially duplicated CaMV 35S enhancer in the leaves of transgenic Arabidopsis. Similarly, a series of 50 and 30 deletions of the TBS were inserted between the enhancer and target promoter in an attempt to narrow down the precise region required for enhancer-blocking activity. Furthermore, the activity of the TBS fragment was assayed in transgenic Nicotiana tabacum to ascertain its functionality in multiple plant species. To gain insight into the mechanism behind its function, we tested its ability to act as a promoter by fusing the full-length TBS directly to the GUS reporter gene and assaying the resulting transgenic Arabidopsis plants for GUS expression.

Materials and methods Plasmid constructs

Schematic representations of the transforming constructs utilized in this study are shown in Fig.1. All vectors were produced using standard protocols and include pBINplus (van Engelen et al. 1995) with an inserted PZP-RSC1 multiple cloning site (Hajdukiewicz et al. 1994) as a background and verified by sequencing prior to transfor-mation. A positive control vector for constitutive GUS expression was generated that contained the petal- and stamen-specific PI promoter fragment (PIp) upstream of the GUSAint sequence (Ohta et al. 1990) fused to the nopaline synthase transcriptional terminator (nos-t) in a head-to-head orientation with a cassette comprising the partially duplicated 35S promoter (referred to as 35S throughout the text; Kay et al. 1987), enhanced green

fluorescent protein (eGFP) coding sequence and nos-t (p1). The 35S and PIp sequences were separated by 138 bp of intervening vector sequence. This was executed by insert-ing the GUSAint::nos-t cassette into the BamHI/EcoRI site of the background vector and the 35S::eGFP::nos-t cas-sette into the PI-PspI site of the PZP-RSC1 multiple cloning site. A fully functional 30 378-bp fragment of the PIp, which terminates immediately upstream of the trans-lational start codon and drives expression specifically in petals and stamens, was cloned from Arabidopsis ecotype col-0. Primers PIfwdXbaI (TCT AGA CAC ATG CAA AGA GTG TCA TTA AGC A) and PIrevBamHI (GGA TCC CTT TCT CTC TCT ATC TCT CTT TCT CAA TTT T) were utilized for amplification using Platinum PCR SuperMix High Fidelity according to the manufacturer’s instructions (Invitrogen, San Diego, CA, USA). The primers were based on those designed by Honma and Goto (2000), but included restriction sites at their 50 ends to enable cloning into the XbaI/BamHI site immediately upstream of the GUSAint::nos-t cassette. A positive control vector for PIp-conferred petal- and stamen-specific expression was generated by digesting p1 with PI-PspI and re-ligating to remove the 35S::eGFP::nos-t cassette (PIp::GUS). A positive control vector for 35S-specific eGFP expression was produced by digesting PIp::GUS with XbaI and EcoRI, end-filling, and re-ligating to remove the PIp::GUS::nos-t cassette. The resulting vector was subsequently digested with PI-PspI and the 35S::eGFP:: nos-t cassette from p1 was inserted (35S::GFP).

The 2,018-bp TBS fragment from P. hybrida cultivar V26 (Hily et al. 2009; GenBank accession EU864306), which we will subsequently refer to as the full-length TBS sequence, was inserted into the EcoRI site of the pAUX3132 vector (Goderis et al.2002). This element has been found to function previously in one orientation (reverse polarity relative to GenBank accession EU864306) to block enhancer–promoter interactions between the 35S enhancer and AGIP in Arabidopsis (Hily et al.2009). To test whether the sequence was functional in both orienta-tions and with a novel promoter, the full-length TBS fragment was subsequently introduced into the I-CeuI site of p1 between the 35S::eGFP::nos-t and PIp::GUSAint:: nos-t cassettes in forward (p1-TBSF) and reverse orienta-tions (p1-TBSR). A control vector for insert sequence length was also generated, which included a putatively ‘inert’ sequence of similar size to the full-length TBS between the GFP and GUS cassettes in p1. This was accomplished by first cloning a 2,158-bp region of the Atcopia28-like fragment from genomic Arabidopsis DNA with primers AtcopiaF2HindIII (AAG CTT GTA GTG AGT TGA TGT TAT GAA TGA) and AtcopiaR2HindIII (AAG CTT AAC ATG TTT CTT GCT CCA TAT TAC A) and inserting the sequence into the HindIII site of

pAUX3132. The resulting vector was digested with I-CeuI and the Atcopia fragment was introduced into the same site of p1 (p1-Spacer1). A similar length-control vector was generated by inserting a 3,967-bp NcoI fragment of bac-teriophage k (nucleotides 23,901–27,868) between the 35S enhancer and PIp of p1, which had been shown in previous studies to not impede promoter/enhancer interactions (Hily et al. 2009; Singer et al. 2010b), into pAUX3132, and subsequently introducing the fragment into the I-CeuI site of p1 (p1-Spacer2).

To assay the functionality of various portions of the TBS fragment in the forward orientation, a series of 50 and 30 deletions were devised. In each case, a vector containing the full-length TBS in a pAUX3132 background was digested with a specific set of restriction enzymes, end-filled, and re-ligated to generate the deletion. The resulting vectors were then digested with I-CeuI and the fragments were inserted into p1 between the 35S::eGFP::nos-t and PIp::GUSAint::nos-t cassettes. The enzymes StuI and SalI were utilized to produce a 50 827-bp fragment of the TBS (p1-TBSdel1). BlpI and SalI, along with AgeI and StuI, were used to generate a 465-bp fragment comprising the middle of the TBS (p1-TBSdel2), AgeI and BlpI were used to create a 30 726-bp fragment of the TBS (p1-TBSdel3), BlpI and SalI were used to produce a 501,292-bp fragment of the TBS (p1-TBSdel4), and AgeI and StuI were used to produce a 301,191-bp fragment of the TBS (p1-TBSdel5). To test the effectiveness of the full-length forward-ori-ented TBS fragment as an enhancer-blocking insulator within a different species, as well as with another promoter, we generated further constructs in which the PIp was replaced by the phloem-specific SUS1 promoter from Arabidopsis (AtSUS1p; Sadeghi et al.2007). To generate a positive control vector for phloem-specific expression, the PIp::GUS vector was digested with XbaI and BamHI and a 1,515-bp fragment of the AtSUS1p terminating directly upstream of the translational start codon [amplified using primers AtSUS1F1XbaI (TCT AGA GAT ATC ATT TCA TAT CAT CA) and AtSUS1R1BamHI (GGA TCC AAA AGA GAC GCA GAA AAC AG)] was inserted in its place (AtSUS1p::GUS). A positive control vector for constitutive GUS expression (akin to p1) was generated by introducing the 35S::eGFP::nos-t cassette into the PI-PspI site of the AtSUS1p::GUS vector (p2). The function of the TBS ele-ment was assayed by inserting the TBS fragele-ment in the forward orientation into the I-CeuI site of p2 (p2-TBSF). A vector to control for the length of the insert sequence was generated by inserting the 3,967-bp NcoI fragment from bacteriophage k into the I-CeuI site of p2 (p2-Spacer2).

To test the full-length TBS element for promoter activ-ity, the 2,018-bp fragment was cloned into pAUX3166 (Goderis et al. 2002) and subsequently inserted into the Asc I site just upstream of a promoterless GUSAint::

nos-t cassette in both the forward (TBSF::GUS) and reverse (TBSR::GUS) orientations.

Transformation of Arabidopsis and N. tabacum

Constructs were introduced into Agrobacterium tumefac-iens strain GV3101 via electroporation and the resulting bacteria were utilized to transform Arabidopsis thaliana ecotype col-0 and N. tabacum cultivar NC95 (a gift from Dr. Georg Jander, Boyce Thompson Institute for Plant Research, Cornell University). Transformation of Arabid-opsis was conducted using the floral dip method (Clough and Bent1998), which has been shown previously to result in the introduction of a single T-DNA insert in more than 50% of transgenic lines (Alonso et al.2003; Rosso et al.

2003). Subsequently, surface-sterilized seeds were plated on standard Murashige and Skoog (MS) media (Murashige and Skoog1962) containing 60 mg/L kanamycin to allow the selection of transformants. Transformation of tobacco leaves was carried out as described by Horsch et al. (1985) and transformed shoots were selected on standard MS medium containing 1 mg/L benzyl adenine (BA), 300 mg/L timentin and 100 mg/L kanamycin. Rooting was subse-quently induced by plating on the same medium lacking BA. All transgenic plants utilized in this study were phenotypi-cally normal primary transformants.

Histochemical staining and fluorometric assays of GUS activity

Histochemical assays for GUS staining were carried out as described by Jefferson et al. (1987). Leaf and floral tissue from a selection of transgenic Arabidopsis lines bearing each vector, respectively, as well as petiole tissue from transgenic tobacco, were incubated in 1 mM 5-bromo-4-chloro-3-indolyl-b-D-glucuronide (X-gluc; in 100 mM

phosphate buffer, pH 7.0, 10 mM EDTA, 0.5 mM potas-sium ferrocyanide and 0.1% Triton X-100) at 37°C for 24 h. Tissues were subsequently depigmented in a series of 70% ethanol washes and images were acquired using an Olympus BX50 light microscope (Olympus America Inc., Center Valley, PA, USA) outfitted with a SPOT Idea dig-ital camera (Diagnostic Instruments Inc., Sterling Heights, MI, USA). The overall levels of GUS staining observed in the leaves of each transgenic line were compared with those of lines containing the ‘‘insertless’’ control vector, p1, and were scored as similar or reduced on this basis.

Fluorometric assays of GUS activity were carried out to quantify GUS protein levels as described by Hily et al. (2009). Briefly, three 4-week-old leaves were analyzed from a minimum of 12 independent Arabidopsis lines containing each vector tested, respectively, as well as an untransformed control. Concentrations of methylumbelliferone (MU)

generated were established using the linear regression slopes of fluorescence emitted by a series of MU standards. Con-centrations of total protein in each sample were determined using the Bio-Rad protein assay system (Bio-Rad Labora-tories, Hercules, CA, USA) with bovine serum albumin as a standard. Each sample was assayed in duplicate and result-ing GUS activities were expressed as the mean value of pmol MU produced minute-1mg total protein-1 (pmol MU/ min mg). Statistical analyses were conducted between insert-bearing lines and ‘insertless’ p1 lines using the Mann– Whitney test for non-parametric data and differences were considered significant at P B 0.05.

Semi-quantitative RT-PCR and quantitative real-time RT-PCR analysis of GUS expression

Total RNA was extracted from Arabidopsis tissue using the E.Z.N.A. Plant RNA Mini Kit according to the manufac-turer’s instructions (Omega Bio-Tek, Norcross, GA, USA). Contaminating DNA was subsequently removed with the TURBO DNA-free system (Ambion, Austin, TX, USA). In an attempt to determine whether the TBS fragment was capable of initiating transcription of a downstream reporter gene, semi-quantitative RT-PCR assays were conducted on 450 ng total RNA from a mixture of leaf and floral tissues of two independent TBSF::GUS and TBSR::GUS lines (which contain the TBS element fused to GUS in the

Fig. 1 Schematic diagram of constructs utilized in this study. All vectors shown are present in a pBINPLUS background. Arrows indicate the orientation of genetic elements. PIp-based plasmids utilized in the characterization of the enhancer-blocking activity of the TBS element are shown in (a). Vector 35S::GFP is a negative control lacking the GUS reporter gene, while vector PIp::GUS is a control plasmid for PIp-driven petal- and stamen-specific GUS expression. Construct p1 is the base vector, which contains the 35S::eGFP and PIp::GUS cassettes in opposite directions, and is a positive control for 35S enhancer-mediated constitutive GUS expres-sion. Each remaining vector is a derivative of p1, bearing different DNA sequences between the 35S promoter and PIp. AtSUS1p-based vectors utilized in the analysis of enhancer-blocking activity of the TBS element in tobacco are displayed in (b). Vector AtSUS1p::GUS is a control plasmid for AtSUS1p-driven phloem-specific GUS expression, while p2 is the base of the remaining vectors containing the 35S::eGFP and AtSUS1p::GUS cassettes in a head-to-head orientation and is a positive control for 35S enhancer-mediated constitutive GUS expression. Constructs p2-TBSF and p2-Spacer2 are derivatives of p2 bearing the TBS fragment in the forward orientation and a 3,967-bp control k spacer fragment, respectively, between the 35S enhancer and AtSUS1p. Vectors designed to test the ability of the TBS element to initiate transcription are shown in (c). Plasmids TBSF::GUS and TBSR::GUS contain the TBS element in forward and reverse orientations, respectively, fused directly to the GUSAint reporter gene. 35S, CaMV 35S partially duplicated promoter; eGFP, enhanced green fluorescent protein; nt, nopaline synthase transcrip-tional terminator; PIp, PISTILLATA petal- and stamen-specific promoter; GUSAint, b-glucuronidase reporter gene containing an intron; AtSUS1p, Arabidopsis sucrose synthase 1 phloem-specific promoter

forward and reverse orientations), respectively, along with an untransformed control. First-strand cDNA synthesis was carried out using the Superscript III first-strand cDNA synthesis kit (Invitrogen) and an oligo-dT primer in a final volume of 10 ll. Subsequent PCR assays were executed using 1 ll of the resulting cDNA as template with HotStart GoTaq polymerase (Promega, Madison, WI, USA) in a final volume of 25 ll. Primers GUSintF1 (CGT TGG TGG AAA GCG CGT TAC) and GUSintR3 (CTG CGA TGG ATT CCG GCA TAG) were used in an attempt to amplify

a 614-bp fragment of GUS-specific cDNA. These primers anneal on either side of the intronic region of the GUSAint reporter gene and thus allowed for the differentiation of genuine products derived from cDNA and those resulting from any remaining genomic DNA contamination. An EF1a-specific product of 630 bp was used as an internal control and was amplified with primers EF1aF and EF1aR (Hily and Liu 2009). Thermal parameters for the amplifi-cation of GUS-specific product were 95°C for 2 min, fol-lowed by 28 cycles of 95°C for 30 s, 62°C for 30 s, and

72°C for 1 min, with a final elongation step of 72°C for 5 min. The same general conditions were used to amplify EF1a-specific product with the exception of the annealing temperature, which was 58°C, and the utilization of 22 cycles. PCR products were resolved on a 1.5% agarose gel and visualized using ethidium bromide.

Quantitative real-time RT-PCR analysis of GUS expres-sion was carried out on total RNA from the leaves of three independent transgenic Arabidopsis lines bearing each of the constructs, respectively, along with an untransformed control. For each line, 20 ng total RNA were utilized with the IScript One-Step qRT-PCR kit according to the manu-facturer’s recommendations (Bio-Rad Laboratories) in a final volume of 15 ll. Assays were performed in triplicate on an iCycler IQ5 detection system (Bio-Rad Laboratories) using primers GUSRTF2 and GUSRTR2 (Hily et al.2009) to amplify a 183-bp fragment of the GUS transcript and actin-specific primers (Charrier et al. 2002) to amplify a 108-bp fragment of the internal standard transcript, Actin2. Reactions including no template and no reverse transcriptase were included in each trial. Thermal parameters for RT-PCR amplification were 50°C for 10 min, 95°C for 5 min, and 40 cycles of 95°C for 10 s and 60°C for 30 s. Dissociation curves were generated to ascertain that only a single product was produced in each case. Relative levels of gene expres-sion were deduced from standard curves produced using a set of serial dilutions. All GUS expression data represent the mean values normalized to those of Actin2.

Bioinformatic analyses

To further elucidate the mechanism driving the enhancer-blocking activity of the TBS, the fragment was scanned for possible promoter regions. In silico prediction of putative promoter regions was carried out using the Neuronal Net-work Promoter Prediction program (http://www.fruitfly. org/seq_tools/promoter.html; Reese 2001). A minimum cutoff score of 0.8 was utilized for the analysis.

Results

The TBS element inhibits 35S enhancer-mediated activation of PIp-driven GUS expression in non-target tissues to a higher degree in the forward orientation To determine whether the TBS element is capable of inhibiting activation of the PIp in an orientation-indepen-dent manner, vectors were generated in which the 35S::eGFP and PIp::GUS cassettes were present in a head-to-head orientation with the TBS inserted between the two in both orientations, respectively (Fig.1a). Leaves and

flowers from independent lines containing each of the vectors, respectively, were analyzed histochemically for GUS staining (Fig.2a). As expected, negative control lines containing the 35S::eGFP cassette, but no PIp::GUS cas-sette (35S::GFP), exhibited no GUS staining in any tissue type (n = 6, where n is the number of independent trans-genic lines analyzed). Also as anticipated, control lines for PIp-specific petal- and stamen-specific expression con-taining the PIp::GUS cassette, but no 35S::eGFP cassette (PIp::GUS), displayed no GUS staining in leaf tissues but were found to express GUS in the petals and stamens of flowers (n = 16). All positive control lines for the 35S enhancer-mediated activation of PIp::GUS in non-target tissues in which the 35S::eGFP and PIp::GUS cassettes were fused in a head-to-head orientation (p1) exhibited relatively high levels of GUS staining in a constitutive manner in all tissue types analyzed (n = 35). Similarly, insertion of an ‘inert’ 2-kb spacer sequence derived from the Atcopia28-like sequence from Arabidopsis between the 35S enhancer and PIp (p1-Spacer1) did not impede enhancer–promoter interference and constitutive GUS staining was observed in both the leaves and flowers of 95% of lines (n = 37). Conversely, 70% of lines-bearing vectors in which the TBS element was introduced in the forward orientation (p1-TBSF) exhibited blocking of 35S enhancer-mediated activation of the PIp in non-target tis-sues, and GUS staining was only observed in petal and stamen tissues (n = 33). Inclusion of the TBS in the reverse orientation at the same site (p1-TBSR) resulted in 74% of lines exhibiting a similar inhibition of enhancer–promoter interactions, but possibly to a lesser degree (n = 35; Fig.2a).

Both 50and 30fragments of the TBS element confer enhancer-blocking activity in transgenic Arabidopsis To gain insight into which region of the TBS is required for its insulator-blocking activity, we generated a series of vectors-bearing insertions of various 50 and 30deletions of this element in the forward orientation between the 35S::eGFP and PIp::GUS cassettes (Fig.1a). Histochem-ical analyses of leaf tissues indicated that the majority of lines bearing the 50 827 bp of the TBS (p1-TBSdel1; 64%; n = 25), the 50 1,292 bp of the TBS (p1-TBSdel4; 61%; n = 18) and the 301,191 bp of the TBS (p1-TBSdel5; 55%; n = 38) exhibited lower levels of GUS staining in leaf tissues compared with the positive control p1 lines. How-ever, the level of staining in p1-TBSdel1 leaves appeared to be higher than the p1-TBSdel4 and p1-TBSdel5 lines. Conversely, only 24% of transgenic lines bearing the mid 465 bp of the TBS (p1-TBSdel2; n = 50) and 35% of lines containing the 30726 bp of the TBS (p1-TBSdel3; n = 20) exhibited reduced levels of GUS staining in leaf tissues

compared with the positive controls. Furthermore, the levels of GUS staining in the leaves of TBSdel2 and p1-TBSdel3 lines exhibiting reductions in GUS activity appeared to be higher than in p1-TBSdel1, p1-TBSdel4 and p1-TBSdel5 lines (Fig.2b).

Quantification of enhancer-blocking activity in various transgenic Arabidopsis lines

Fluorometric assays for GUS activity were carried out on a selection of independent transgenic lines to quantify the levels of GUS protein in the leaves (Fig.3a). As expected, only minimal levels of background GUS activity were detected in PIp::GUS lines, which lack the 35S::eGFP cas-sette (35.1 ± 6.8 pmol MU/min mg protein), resembling the basal activity displayed by untransformed lines (35.2 ± 5.3 pmol MU/min mg protein). Conversely, both p1 lines, which lack any insert sequence between the 35S::eGFP and PIp::GUS cassettes (4,679.2 ± 2,308.3 pmol MU/min mg protein), and p1-Spacer1 lines, which possess a control ‘inert’ 2-kb spacer sequence between the two cassettes (3,337.0 ± 1,101.2 pmol MU/min mg protein), displayed relatively high levels of GUS protein in leaf tissues. These values were not significantly different from one another (P [ 0.05), indicating that the 35S

enhancer is able to effectively activate the petal- and stamen-specific PIp in non-target tissue even in the presence of an intervening 2-kb fragment. Lines possessing either the full-length TBS in the forward (p1-TBSF) or reverse (p1-TBSR) orientations generated significantly lower (P B 0.001) levels of GUS protein in their leaves (136.9 ± 57.9 and 1,666.6 ± 590.4 pmol MU/min mg protein, respectively) compared with the background p1 vector. While this sug-gests that the TBS is functional in both orientations, these values were significantly different from one another (P = 0.031), which implies that the activity of the TBS in the forward orientation is greater than in the reverse orientation. Similarly, both the 501,292 bp of the TBS (p1-TBSdel4) and the 301,191 bp of the TBS (p1-TBSdel5) were able to impede enhancer–promoter interactions as evidenced by signifi-cantly decreased (P = 0.010 and P = 0.011, respectively) levels of GUS activity in their leaves (873.9 ± 420.4 and 1,536.4 ± 758.3 pmol MU/min mg protein, respectively) compared to p1. However, the levels of GUS protein in the leaves of these lines were significantly higher (P = 0.013 and P = 0.006, respectively) than those lines containing the full-length TBS in the forward orientation (p1-TBSF), which implies that the enhancer-blocking activities of the 50 1,292-bp and 30 1,191-bp fragments of the TBS were somewhat reduced compared with the full-length TBS sequence.

Fig. 2 Histochemical GUS staining in the leaves of transgenic Arabidopsis lines. aImages display leaves and flowers of representative Arabidopsis lines transformed with various constructs utilized to test the ability of the TBS element in forward and reverse orientations to block

constitutive activation of the petal- and stamen-specific PIp in non-target tissues by the 35S enhancer. b Representative leaves from transgenic Arabidopsis lines-bearing constructs testing the enhancer-blocking ability of various deletions of the TBS element

Conversely, lines including the 50827 bp of the TBS (p1-TBSdel1), the mid 465 bp of the TBS (p1-TBSdel2), and the 30726 bp of the TBS (p1-TBSdel3) displayed no significant difference (P [ 0.05) from p1 lines in the level of GUS protein generated in leaf tissues (1,432.3 ± 5,50.9, 3,011.8 ± 765.3 and 2,169.8 ± 672.5 pmol MU/min mg protein, respectively), suggesting that they were unable to consider-ably reduce the levels of enhancer-mediated activation of PIp-driven GUS expression in non-target tissues (Fig.3a). However, in the case of lines bearing the p1-TBSdel1 con-struct, it is possible that this lack of significance may have

been a direct result of the relatively small sample size of p1-TBSdel1 lines utilized in the fluorometric assays (n = 12). Results of quantitative real-time RT-PCR analyses of GUS expression levels in the leaves of three randomly chosen lines containing each vector, respectively, as well as an untransformed control, were in agreement with his-tochemical and fluorometric GUS activity data (Fig. 3b). Lines bearing the p1-TBSF, p1-TBSR, p1-TBSdel4 and p1-TBSdel5 constructs exhibited very little GUS expres-sion in the leaves compared with the remaining lines. These results further indicate that the TBS element is capable of inhibiting enhancer–promoter interference in both the forward and reverse orientations, and that both 50 and 30 fragments are sufficient to confer an enhancer-blocking insulator function.

The TBS element functions as an enhancer-blocking insulator in multiple plant species and

is not promoter-specific

To address whether the TBS element is able to function as an enhancer-blocking insulator in another plant species, we transformed tobacco with a series of vectors containing the 35S::eGFP cassette in a head-to-head orientation with either the petal- and stamen-specific PIp-GUS cassette (Fig.1a) or the phloem-specific AtSUS1p::GUS cassette (Fig.1b). This allowed for the visual differentiation of enhancer-mediated expression (constitutive) from PIp- and AtSUS1p-mediated expression in vegetative tissues. In the case of the PIp-based vectors, histochemical analyses of GUS activity in petiole cross-sections indicated high levels of GUS staining in 56% of lines containing the p1 control vector (n = 9) and 100% of lines containing a 4-kb ‘inert’ spacer sequence derived from bacteriophage k between the 35S::eGFP and PIp::GUS cassettes (p1-Spacer2; n = 7; Fig.4a). Conversely, none of the lines bearing the full-length TBS in the forward orientation (p1-TBSF; n = 4) exhibited any GUS staining in petiole tissues, which resembled PIp::GUS lines lacking the 35S::eGFP cassette (n = 8; Fig.4a). Similarly, 100% of positive control lines bearing the 35S::eGFP and AtSUS1p::GUS cassettes in a head-to-head orientation (p2; n = 8) exhibited strong, constitutive GUS staining throughout the petiole. This was also the case in 89% of p2-Spacer2 lines, which contained the 4-kb k spacer sequence (n = 9). Conversely, 75% of lines lacking the 35S::eGFP cassette (AtSUS1p::GUS) displayed only phloem-specific expression in the petiole (n = 12), while the remainder (25%) generated no GUS activity in the tissues analyzed. Insertion of the full-length TBS fragment in the forward orientation (p2-TBSF) resul-ted in phloem-specific expression in 54% of the lines analyzed (n = 13), while the remaining lines exhibited some degree of leakiness in non-target tissues (Fig.4b).

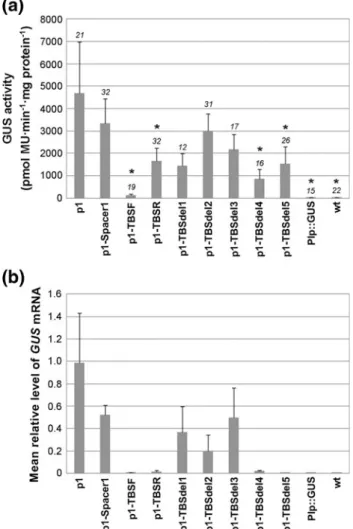

Fig. 3 Quantitative analyses of GUS activity in the leaves of transgenic Arabidopsis lines. a Each block represents the mean and standard error (bar) GUS activity measured fluorometrically in pmol MU generated minute-1mg protein-1from three leaves of indepen-dent T1lines containing each construct respectively or untransformed

controls. Italicized numbers above each block indicate the number of independent lines tested in each case. Asterisks denote mean values of GUS activity that are significantly reduced compared with that of lines containing the base vector p1, which lacks any insert. b Total RNA from the leaves of three independent replicate lines bearing each construct respectively, or the untransformed control, was assayed for levels of GUS transcript and the internal control, actin2. Each block represents the mean normalized value of GUS mRNA for each construct and bars indicate standard errors

The TBS initiates transcription of a downstream GUS gene in both the forward and reverse orientations

It has been suggested previously that one possible mechanism by which enhancer-blocking insulators exert their function is through their inclusion of promoter-like sequences, which either act as a decoy by interacting directly with the enhancer, or through the attenuation of a signal that travels from enhancer to promoter (reviewed by Raab and Kamakaka

2010). To determine whether the TBS element possessed any promoter activity, we generated vectors in which full-length forward- and reverse-oriented TBS fragments were fused directly to a downstream GUS reporter gene (Fig.1c), and transformed them into Arabidopsis. Histochemical assays of leaf and floral tissue from seven lines containing each vector, respectively, did not reveal any visible GUS staining, indi-cating that either the lines analyzed generated no functional GUS protein or the levels of GUS produced were too low to be detected using this method (Fig.5a). In contrast, semi-quantitative RT-PCR assays of GUS transcripts from a mix-ture of leaf and floral tissue from two independent lines bearing each vector, respectively, yielded weak amplification products in every case. Interestingly, the level of GUS expression appeared to be slightly higher when the TBS was present in the reverse orientation (Fig.5b).

In silico sequence analyses

Bioinformatic analysis of the TBS element for putative promoter regions (with a minimum cutoff score of 0.8) indicated the presence of a single putative promoter in each orientation. In the forward orientation, this included the region between nucleotides 533 and 583 with a

transcription start site at nucleotide 574 (score of 0.91). In the reverse orientation, the putative promoter region occurred between nucleotides 791 and 741 with a tran-scription start site at nucleotide 750 (score of 0.80).

Discussion

The need for techniques with which to reduce enhancer– promoter interference in transgenic plants has become a

Fig. 4 Analysis of the enhancer-blocking insulator function of the TBS in transgenic tobacco lines. a Representative petiole cross-sections of lines transformed with various PIp::GUS derived constructs utilized to test the capability of the TBS element to impede constitutive 35S enhancer-mediated activation of

floral-specific PIp in non-target tissues. b Petiole cross-sections of representative lines bearing AtSUS1p::GUS derived constructs designed to evaluate the ability of the TBS element to block constitutive 35S enhancer-induced activation of the phloem-specific AtSUS1 promoter

Fig. 5 Analysis of the TBS element for promoter-like activity. aHistochemical assays for GUS staining of leaves and flowers from representative Arabidopsis lines-bearing TBS-F::GUS (TBSF::GUS) and TBS-R::GUS (TBSR::GUS) cassettes, respectively. b Semi-quantitative RT-PCR analysis of two representative TBSF::GUS and TBSR::GUS lines, respectively, along with an untransformed control, for GUS expression in a mixture of leaf and floral tissues. EF1a was utilized as an internal control. The DNA marker is designated by ‘M’

necessity in recent years due to the increased use of a more comprehensive approach to genetic engineering in which transgenic constructs containing several transcriptional units are utilized for the simultaneous improvement of multiple agronomic traits. Several methods have been proposed to prevent such interactions, including the inclusion of a spacer DNA fragment between enhancer and promoter, or the use of promoters that contain only weak enhancers. However, these techniques have been shown to be relatively unpredictable and their effectiveness often varies from construct to construct (Gudynaite-Savitch et al.

2009). Another means of averting enhancer–promoter communication in transgenic constructs is the use of enhancer-blocking insulators, which impede such interac-tions when situated between enhancer and promoter, and are commonly used during mammalian cell transfection experiments (Steinwaerder and Lieber 2000; Ye et al.

2003). Unfortunately, relatively little is known concerning these elements in plants; however, several sequences exhibiting enhancer-blocking activity in plants have been identified in recent years (Gudynaite-Savitch et al. 2009; Hily et al.2009; Singer et al. 2010b; van der Geest and Hall1997). One such sequence is the TBS fragment from P. hybrida, which has been shown to impede inappropriate enhancer–promoter interference in transgenic Arabidopsis when situated in the reverse orientation (relative to the sequence deposited in GenBank) between the 35S enhancer and the flower-specific AGIP target promoter (Hily et al.

2009). In this study, we further characterized the enhancer-blocking function of this element in an attempt to gain insight into the mechanism behind its activity.

To determine whether the activity of the TBS element was dependent on its polarity, we inserted the full-length fragment in both the forward and reverse orientations, respectively, between the partially duplicated 35S enhancer and the petal- and stamen-specific PIp::GUS cassette (Fig.1a), and transformed the resulting vectors into Ara-bidopsis. We found that the TBS element was capable of reducing enhancer–promoter interference in both orienta-tions (Fig.2a); however, quantitative analyses of GUS activity in leaf tissues (where the PIp is not active unless it is activated by the constitutive 35S enhancer) indicated that the strength of the insulator appeared to be significantly (P \ 0.05) higher when present in the forward orientation (Fig.3a). Conversely, only a small difference was noted between the levels of GUS transcript in the leaves of p1-TBSF and p1-TBSR lines (Fig.3b), but this may have been due to the smaller sample size (three independent lines containing each vector) utilized for quantitative RT-PCR analyses. Interestingly, a recent comparison of the insulation capabilities of the TBS element and a 1-kb fragment of bacteriophage lambda, which has also been found to confer enhancer-blocking function in Arabidopsis

(Singer et al.2010b), revealed that the TBS was the least effective of the two (Yang et al. 2011). However, as was the case in the original study of the insulation function of the TBS element (Hily et al. 2009), the TBS was inserted between enhancer and target promoter in the reverse, and seemingly less efficient, orientation. Therefore, it is likely that the TBS fragment is capable of providing a more effective means of blocking enhancer-blocking communi-cation than previously thought.

While many enhancer-blocking insulators do not appear to exhibit orientation-dependency (for example Tchurikov et al. 2009), this is not the first case in which such an element has been found to exhibit functional polarity (Abhyankar et al. 2007; Barges et al. 2000; Bell and Felsenfeld 2000; Hark et al. 2000). Unfortunately, the mechanism behind such an effect remains elusive. One possible reason for this type of polar behavior is the fact that insulators often also contain additional regulatory elements due to their length. One such regulatory element that has been found in very close proximity to an insulating sequence is an enhancer element, as is the case for the enhancer-blocking insulator situated upstream of the human apoB locus (Antes et al. 2001). Since enhancer-blocking insulators are known to be functional only when situated between an enhancer and promoter, compound elements comprising both enhancer-blocking and enhancer activities would almost certainly display polarity. In such a case, orientation of the insulator–enhancer element with the insulator proximal to the target promoter would block both the internal and external enhancers, while a reversed orientation would still block any external enhancers, but not that contained within the insulator (reviewed by West et al.2002).

Indeed, it would not be wholly unexpected for the full-length TBS fragment to contain other regulatory elements given its relatively large size (2 kb). Intriguingly, we found the TBS element to be capable of driving expression of a downstream GUS reporter gene (Fig.5b). GUS expression was never noted in the same RT-PCR assay using total RNA from lines containing a promoterless GUS reporter gene (data not shown), which suggests that the observed transcripts were not simply due to positional effects of the construct in the genome. While GUS-specific transcripts were present in these transgenic lines, no functional GUS protein was detected (Fig. 5a), which is not surprising, since transcription initiation could have occurred at virtu-ally any site within the 2-kb TBS fragment leading to the generation of non-functional transcripts. Several recent studies have shown that a wide variety of enhancers can initiate transcription autonomously in a range of organisms (Dobi and Winston2007; Kim et al.2007; Ling et al.2005; Routledge and Proudfoot 2002; Tuan et al. 1992; Singer et al.2010a), which raises the possibility that the observed

GUS-specific transcripts initiated by the TBS element in this study result from the presence of a cryptic enhancer element within the full-length TBS fragment. Furthermore, since enhancers function in an orientation-independent manner (for example Banerji et al. 1981), this enhancer-initiated transcription is likely bi-directional, which would correspond to the fact that transcription of a downstream reporter gene was observed when the TBS was in either orientation, but at a seemingly higher level in the reverse orientation (Fig.5b). Therefore, one could speculate that the TBS, like the human apoB insulator, is a composite element containing an internal enhancer upstream of the insulator, which would potentially explain its polarity.

Alternatively, in light of the fact that the TBS appears to initiate transcription of a downstream GUS reporter gene in transgenic Arabidopsis in both orientations (Fig.5), and that putative promoter regions were identified using bioinfor-matic tools in both orientations, it is possible that this sequence contains promoter activity that contributes toward its function as an enhancer-blocking insulator. While it appears that several different mechanisms may exist by which enhancer-blocking insulators function, it has been suggested that the addition of a promoter upstream of the target promoter can result in trapping of the enhancer and will prevent transcriptional activation of the target promoter (Geyer1997). Similarities have been found to exist between insulators and promoters, including distinct chromatin modification signatures, the binding of specific transcription factors and localization to particular nuclear regions (reviewed by Raab and Kamakaka2010), and several Dro-sophila insulators have been found to contain promoters (Bae et al.2002; Drewell et al.2002; Geyer1997). Recently, it has been shown that promoters containing stalled poly-merase II are more likely to display enhancer-blocking insulator activity than non-stalled promoters in Drosophila (Cande et al.2009; Chopra et al.2009), which may result from enhancer preference for components of the stalled transcriptional complex or an inherent selectivity of enhancers for particular types of promoters (Butler and Kadonaga2001; Juven-Gershon et al.2008). It is possible that a similar scenario is occurring in this system; however, further studies will be required to ascertain whether this is the case with the TBS element.

Intriguingly, while both the overlapping 50 1,292 bp (p1-TBSdel4) and 30 1,191 bp (p1-TBSdel5), and to a lesser extent possibly the 50 827 bp (p1-TBSdel1), of the TBS were able to reduce enhancer–promoter communica-tion in transgenic Arabidopsis (Fig.2b), neither fragment achieved the effectiveness of the full-length insulator (Fig.3), which suggests that there may be an additive effect of several elements within the full-length TBS. This is similar to the well-characterized Drosophila insulator, gypsy, which comprises a cluster of 12 repeats that are

bound by the zinc finger Suppressor of Hairy-wing [Su(Hw)] protein (Spana et al.1988). At least four tightly spaced Su(Hw) binding sites are necessary for effective enhancer-blocking function (Scott et al. 1999) and trun-cated versions have been shown to only possess weak enhancer-blocking activity (Hagstrom et al.1996). There-fore, it stands to reason that the TBS contains multiple elements that are required in combination to exert its full activity.

The full-length, forward-oriented, TBS fragment has also been found to be effective for impeding enhancer– promoter interference in transgenic tobacco plants, and is not promoter-specific, suggesting that it may be applicable for use in a broad range of plant species (Fig.4). This resembles the case of many metazoan insulators, which have been found to function in a variety of organisms (Chung et al.1993; Namciu et al. 1998). Similarly, it has recently been found that the BEAD-1 and BEAD-1C insulators from the human T-cell receptor a/d locus (Zhong and Krangel 1997), as well as the UASrpg insulator from Ashbya gossypii (Bi and Broach2006), reduce non-specific enhancer–promoter interactions in transgenic Arabidopsis (Gudynaite-Savitch et al. 2009), which hints at the possi-bility of conserved mechanisms between an array of eukaryotic organisms.

In conclusion, there is an imminent requirement for effective tools with which to block inappropriate interactions between enhancers and promoters in plant transformation vectors due to ever-increasing reports of mis-expression of transgenes as a result of enhancer–pro-moter interference. While further research is still needed to elucidate the exact mechanism behind both enhancer– promoter interactions and enhancer-blocking insulators in plants, the identification of promoter/enhancer activity in the recently identified TBS insulator provides additional insight into this matter. Also, the ability of the forward-oriented TBS insulator to protect a range of tissue-specific plant promoters from the strong, constitutive 35S enhancer in multiple plant species provides further evidence for its potential use as a practical tool in the generation of transgenic crops in the future.

Acknowledgments The authors wish to thank Sara Villani for her invaluable technical assistance and Dr. Zongrang Liu (ARS-USDA, Kearneysville, WV) for his generosity in supplying a sample of the TBS element. This study was supported by state, federal, and insti-tutional funds appropriated to the New York State Agricultural Experiment Station, Cornell University.
