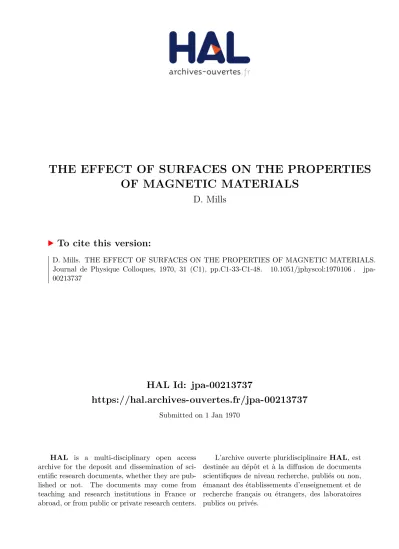

HAL Id: jpa-00213737
https://hal.archives-ouvertes.fr/jpa-00213737
Submitted on 1 Jan 1970
HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
THE EFFECT OF SURFACES ON THE PROPERTIES OF MAGNETIC MATERIALS
D. Mills
To cite this version:
D. Mills. THE EFFECT OF SURFACES ON THE PROPERTIES OF MAGNETIC MATERIALS.
Journal de Physique Colloques, 1970, 31 (C1), pp.C1-33-C1-48. �10.1051/jphyscol:1970106�. �jpa-
00213737�
JOURNAL DE PHYSIQUE Colloque C 1, supplément au no 4 , Tome 31, Avril 1970, page C 1 - 33
THE EFFECT OP SURFACES ON THE PROBERTIES OF MAGNETIC MATERIALS (")
D. L. MILLS (t)
Department of Physics, University of California, Irvine, California, 92664
Résumé. - Dans la première partie de l'article, on établit la forme de la matrice T qui décrit la diffusion d'un magnon par la surface d'un ferromagnétique type Heisenberg. Le modèle utilisé est tel que les constantes d'échange dans la couche de spins superficielle différents de leurs valeurs en volume. On obtient aussi la forme de la matrice sans qu'il soit nécessaire de spécifier l'arrangement géométrique détaillé des spins dans les couches parallèles à la surface où la portée de l'interaction d'échange dans les directions parallèles à la surface. La matrice T et la fonction de Green qui en résultent peuvent aussi être appliquées au calcul des propriétés du cristal semi-infini pour une grande diversité de géométries. Dans ce travail, on obtient la relation de dispersion des magnons de sur- face en examinant les pôles de la matrice T. Les résultats sont illustrés par des applications à un modèle spécifique considéré par Fillipov dans lequel des magnons de surface acoustiques endes sous de la bande des ondes de spin de volume ou des magnons de surface optiques au-dessus de la même bande peuvent apparaître. On utilise alors la matrice T pour calculer la durée de vie des ondes de spin après diffusion sur la surface. La durée de vie z(k) d'une onde de spin de vecteur d'onde k est donnée par l'expression simple z = LI1 G.vG@) 1 où L est l'épaisseur du cristal, 2 un vecteur unité normal à la surface et VG(k) la vitesse de groupe des magnons. Ce résultat est valide même pour les grandes valeurs de k et n'est pas affecté par les changements de constantes d'échange près de la surface.
Dans la seconde partie de l'article on fait une brève revue des travaux théoriques récents sur le ferromagnétique type Heisenberg semi-infini. On étudie également le comportement de la dévia- tion moyenne des spins près de la surface et l'effet sur la chaleur spécifique de surface des champs superficiels et des variations de constantes d'échange près de la surface. On décrit d'autre part quelques aspects de la théorie de la diffusion des électrons de basse énergie à partir des degrés de liberté magnétiques. Enfin, les propriétés des magnons de surface des antiferromagnétiques et la transition de renversements de spin en surface sont brièvement discutées.
Abstract. - In the first portion of the paper, we derive the form of the T-matrix that describes the scattering of a magnon from the surface of a Heisenberg ferromagnet. The model employed allows the exchange constants in the surface layer of spins to differ from the values appropriate to the bulk crystal. We also obtain the form of the T-matrix without the need to specify the detailed geometrical arrangement of spins in the layers parallel to the surface, or the range of the exchange interaction in directions parallel to the surface. The T-matrix, and the resulting Green's function may thus be applied to compute properties of the semi-infinite crystal for a wide variety of geome- tries. In this work, we obtain the surface magnon dispersion relation by examining the poles of the T-matrix. The results are illustrated with applications to a specific model considered by Fillipov, where acoustical surface magnons below the bulk spin wave band, or optical surface magnons above the bulk band may result. We then use the T-matrix to compute the lifetime of spin waves from scattering off the surface. We find the lifetime z(k) of a spin wave of wave vector k is given by the simple expression z = LI( /n: VG@) 1 where L is the crystal thickness, x a unit vector normal to the surface, and V G ( ~ ) the magnon group velocity. This result is valid even for large values of k, and is unaffected by changes in exchange constants near the surface.
In a second portion of the paper, we provide a brief review of recent theoretical studies of the semi-infinite Heisenberg ferromagnet. The behavior of the mean spin deviation near the surface, and the effect of surface pinning fields and changes in the exchange constants near the surface on the surface specific heat will be examined. Some features of the theory of low energy electron scattering from the magnetic degrees of freedom will be described. Finally, the properties of surface magnons in antiferromagnets and the surface spin flop transition will be discussed briefly.
(*) Supported in part by the Air Force Office of Scientific Research, Office of Aerospace Research, U. S. A. F. under AFOSR Grant No. 68-1448.
(t) Alfred P. Sloan Foundation Fellow.
Technical Report No. 69-27.
Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphyscol:1970106
C l - 3 4 D. L. MILLS 1. Introduction. - There has been considerable theoretical interest in recent years on the effects of crystal surfaces on the excitation spectrum of crystals, and on the effect of the surface on the dynamical properties of the region near the surface. One finds that under a variety of conditions, surface modes exist which have the property that when excited, only the region of the crystal near the surface parti- cipate in the resulting motion. The first discussion of such modes is due to Lord Rayleigh [l], who studied surface waves (surface phonons) on the elastic continuum model of solids. As you have heard from Maradudin [2] earlier in this meeting, optical surface modes with complex properties are asso- ciated with free surfaces of polyatomic crystals.
In addition to giving rise to surface waves of various kinds, the presence of a surface leads to corrections to the thermodynamic properties of the material.
These corrections are proportional to the surface area.
The vibrational amplitudes of atoms in or near the surface also differ from the values appropriate to the bulk crystal. One thus has a wide variety of phe- nomena associated with the presence of the crystal surface. At the moment, the experimental study of these phenomena has been limited, because of the obvious difficulties associated with preparation of controlled surfaces, and the problem of probing the surface once it is prepared. Encouraging developments in the technique of low energy electron diffraction leads one to hope that the arnount of information available from experiment may greatly increase in the near future.
As remarked earlier, Maradudin has provided a discussion of recent work on the theory of surface phonons, and the effect of these modes on a number of properties of the crystal. In the present paper, we will examine the effect of surfaces on the spin wave spectrum of magnetic crystals, as well as other phe- nomena associated with the surface region.
We shall confine Our attention to the study of the effect of surfaces on the properties of the Heisen- berg ferromagnet. The effect of dipole interactions between the spins will be ignored. The dipolar inter- actions affect the nature of the excitation spectrum principally in the region of very long wavelengths, where a large fraction of the excitation energy of the spin wave comes from the Zeeman energy of the spin system in an external magnetic field, and from the macroscopic fields generated by the spin motion.
While the effect of dipolar interactions on the nature of surface magnons has been the subject of a consi- derable amount of work [3]-[5], at most temperatures of interest, the contribution from the magnetic degrees of freedom to the thermodynamic properties of magne- tic materials comes from spin waves with wavelength sufficiently short that an adequate description of these modes may be obtained by confining one's attention only to the effect of the short range exchange interactions between the spins. In this paper, we shall
be interested primarily in the effect of the crystal surface on the thermodynamic properties of the crystal, such as the specific heat and the mean spin deviation near the surface.
We shall proceed by finding the T-matrix that describes the scattering of magnons from the surface of a semi-infinite Heisenberg ferromagnet. Since the T-matrix is related to the one-magnon Green's func- tion in a simple manner, these functions allow one to study the effect of the surface on a number of proper- ties of the semi-infinite crystal in the region of low temperatures, where spin wave theory is valid. We find the form of the T-matrix for the case in which the exchange constants in the surface differ from the values appropriate to the bulk crystal. To obtain the general form of the T-matrix, it is not necessary to specify the geometrical arrangement of spins within the atomic Iayers parallel to the surface, nor is it necessary to assume a particular model for the range of the exchange interaction within these planes.
We do assume the interaction has a short range in the directions normal to the surface, in the sense that a given spin is presumed to be coupled only to spins within the same atomic layer, and spins in the layer immediately above and below the given layer. Our model is sufficiently general enough to allow the T-matrix to be applied to a wide range of surface configurations and crystal geometries.
The dispersion relation for surface magnons is obtained by searching for poles of the T-matrix outside the frequency regime associated with bulk excitations. We apply the general form of the disper- sion relation to describe the nature of surface waves in a simple cubic ferromagnet, with nearest neighbor exchange coupling only, a (100) surface, and exchange constants in the surface layer that differ from the values appropriate to the bulk. This geometry has been considered previously by Fillipov 161.
We also calculate the lifetime of bulk spin waves that results from the scattering of a spin wave from the surface. This quantity enters the theory of the spin wave contributions to transport coefficients at low temperatures, where the spin wave mean free path remains finite only by virtue of the scattering of the magnons from the crystal surface. Our discussion is appropriate to the case where the surface is smooth, and the excitations scatter from the surface in a specular manner. We shall see that the lifetime z(k) of a spin wave of wave vector k is given by z(k) = L/(%.V,(~)) , where% is a unit vector normal to the surface, and V,(k) is the group velocity of the spin wave. This result is independent of changes in the exchange constants in the surface layer, and also applies to modes with large wave vector.
As we have discussed in the preceding paragraph,
surface magnon modes exist under a wide variety
of conditions. These modes are eigenstates of the
Hamiltonian of the semi-infinite crystal, in the spin
wave approximation. Thus, there will be a contribu-
THE EFFECT OF SURFACES ON THE PROPERTIES ( 2 1 - 3 5 tion to the specific heat from the surface waves.
At the same time, the mean spin deviation
will increase as one approaches the surface, where the enhancement of the mean spin deviation from the presence of the surface modes is encountered.
A number of theoretical discussions of the surface specific heat and dependence of A upon distance from the surface in ferromagnets 171, [9] and antiferro- magnets [IO] have appeared. In al1 of these calcula- tions, it is important to realize that in addition to giving rise to surface modes, the presence of the sur- face also modifies the distribution in frequency of the bulk modes and the form of the eigenfunctions associated with these excitations. Thus, the contri- bution to the change in A near the surface and the surface specific heat from the change in the nature of the bulk excitations must also be included in the calculation. In general, the contribution from the change in character of the bulk modes tends to partially cancel the surface magnon contribution.
We discuss this phenomena briefly in the present work by summarizing a recent study of the surface specific heat of the Heisenberg ferromagnet, in the presence of altered force constants in the surface layer [9].
I t should be remarked that very similar cancellations occur in the one electron theory of metals, in situations where the electrons move under the influence of a potential that produces very weakly bound states [Il].
In a final section of the paper, a very brief review of studies of other surface phenomena in magnetic crystals is presented, including the magnetic field induced surface spin flop transition in antiferro- magnets.
As mentioned earlier, the amount of experimental information available that bears on the phenomena discussed above is very limited. Recently Meyer and CO-workers [13] have reported studies of the specific heat of small particles of YIG in the liquid He tempe- rature range. These authors find a contribution to the specific heat of their sample that varies linearly with temperature. While the temperature dependence of the observed excess specific heat observed in this work agrees with that predicted for the leading surface contribution 171, 191 (in the absence of pinning fields in the surface [SI), the magnitude of the observed excess is much larger than that predicted by theoreticaI analyses of simple models of the kind described above. It is interesting to note that Meyer and CO-
workers have also measured the longitudinal nuclear relaxation Tl in their sample. They find Tl to be shorter than the bulk value by more than two orders of magnitude. 1 am not aware of any detailed theo- retical study of the expected decrease in Tl that would result from the enhanced values of A near the surface region. Nonetheless, since the theoretical analyses of the models discussed above show A in the surface layer to be twice the bulk value, it is difficult to see
how the very large decrease in Tl can be accounted for within the framework of a mode1 in which the crystalline arrangement of spins in the finite crystal remains perfect, with changes in the exchange cons- tants confined to a region near the surface only a few atomic layers in thickness.
II. The form of the T-Matrix for the semi-infinite Heisenberg ferromagnet. - (a) GENERAL CONSIDERA-
TIONS. - In this section, we shall consider the effect of a pair of free surfaces on the properties of the Heisenberg ferromagnet. The discussion will be carried out within the framework of the spin-wave approximation. In order to establish the notation that will be employed in the discussion, suppose we first consider the infinitely extended lattice of spins.
I t will be convenient to consider a crystal in the form of a large parallelepiped, with periodic boundary conditions applied.
In the spin wave approximation, one introduces the set of single spin deviation states 1 1 > defined by
where 1 O > is the ferromagnetic ground state of the crystal (in which al1 spins are directed in the + z direction), S is the spin angular momentum of each ion in the monatomic Bravais lattice of spins, and S(-,(l) is the lowering operator that creates a spin deviation localized at the lattice site 1. The eigenvalue equation from which the spin wave excitation energies are obtained has the form
The matrix Do(], Y) is a function only of (1 - Y), and assumes the form
In eq. (2.2), J(6) is the exchange interaction between a spin at site 1, and a spin at the site 1 + 6. The sum over the quantity 6 ranges over al1 values of this variable for which J(6) # 0.
The eigenvalue equation in eq. (2.1) is diagonalized by making a unitary transformation from the localized spin deviation states ] 1 > to Bloch wave states 1 k > :
The Bloch state 1 k > is an eigenstate of the operator D,(I, l'), with the eigenvalue Q(k) given by
Eq. (2.3) is the dispersion relation for spin waves
in the infinitely extended crystal. It is well known
that at low temperatures, where the number of spin
C l - 3 6 D. L. MILLS waves thermally excited in the crystal is small, the spin waves may be viewed to be a gas of bosons that interact weakly through the non-linear terms in the equations of motion.
Let us now include the effect of a free surface on the excitation spectrum. In this section of the paper, we employ a device that has been utilized frequently in studies of surface phenomena ; we suppose that two free surfaces are created by passing a ficticious mathematical plane between two adjacent layers of spins, and then reducing to zero the strength of al1 interactions between spins on opposite sides of the plane. For definiteness, we suppose that we consider a crystal constructed of atomic planes parallel to the x-y plane, and we imagine that the surfaces created by the above procedure are associated with the layers labeled by the indices 1, = O and 1, = f 1. After the
«bond breaking » process just described is carried out, one may treat the resulting configuration by the methods that have been developed to study crys- talline defects. 5y breaking the bonds, one has created an extended, two dimensional defect in an otherwise perfect crystal.
The excitation energies of the now imperfect crystal may be obtained by solving an eigenvalue equation of the same form as eq. (2.1) :
SZ 11 > = C D(I,It) Il'>
1'
where the matrix Do(l, 1') is the dynamical matrix appropriate to the pure crystal, and AD(1, 1') describes the changes in the equation of motion that results from the formation of the two surfaces.
An important property of AD(l,ll) is that it depends only on the differences (1, - 1:) and (1, - 1;) in the x and y coordinates of the sites I and 1'. (Recall that the x-y plane is parallel to the two surfaces.) This result follows simply upon noting that the process of forming two surfaces does not destroy the trans- lational invariance of the crystal, as far as transla- tions parallel to the x-y plane are concerned. In gene- ral D ( 1 , 1') will depend on both Z, and Zi, however.
For many purposes it will be convenient to intro- duce the Green's function
G(I,I';z)= < I ~ { z I - D ) - ~ ( ~ ' > , (2.5) where z is a (cornplex) frequency, 1 is the identity matrix on the N x N vector space spanned by the states I I >, and D is the operator constructed from the matrix D(1, 1').
The Green's function G has many useful properties since it may be related to a number of properties of the crystal. To see this, let 1 s > be an eigenstate of the operator D with frequency a,. Then since the exact set of eigenstates form a complete set on Our N x N dimensional space, we write
I l > = C l s > < S I ] > (2.6)
S
