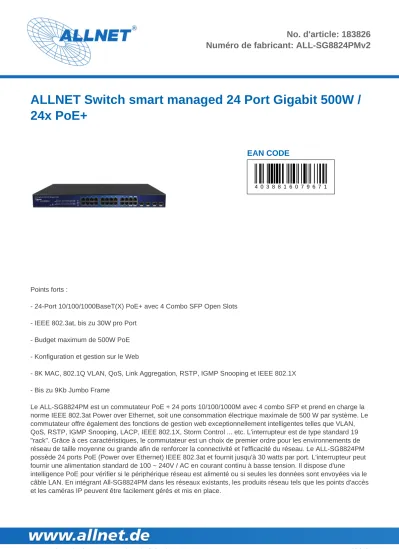

ALLNET Switch smart managed 24 Port Gigabit 500W / 24x PoE+
EAN CODE
4 0 3 8 8 1 6 0 7 9 6 7 1
Points forts :
- 24-Port 10/100/1000BaseT(X) PoE+ avec 4 Combo SFP Open Slots - IEEE 802.3at, bis zu 30W pro Port
- Budget maximum de 500W PoE - Konfiguration et gestion sur le Web
- 8K MAC, 802.1Q VLAN, QoS, Link Aggregation, RSTP, IGMP Snooping et IEEE 802.1X - Bis zu 9Kb Jumbo Frame
Le ALL-SG8824PM est un commutateur PoE + 24 ports 10/100/1000M avec 4 combo SFP et prend en charge la norme IEEE 802.3at Power over Ethernet, soit une consommation électrique maximale de 500 W par système. Le commutateur offre également des fonctions de gestion web exceptionnellement intelligentes telles que VLAN, QoS, RSTP, IGMP Snooping, LACP, IEEE 802.1X, Storm Control ... etc. L'interrupteur est de type standard 19
"rack". Grâce à ces caractéristiques, le commutateur est un choix de premier ordre pour les environnements de réseau de taille moyenne ou grande afin de renforcer la connectivité et l'efficacité du réseau. Le ALL-SG8824PM possède 24 ports PoE (Power over Ethernet) IEEE 802.3at et fournit jusqu'à 30 watts par port. L'interrupteur peut fournir une alimentation standard de 100 ~ 240V / AC en courant continu à basse tension. Il dispose d'une intelligence PoE pour vérifier si le périphérique réseau est alimenté ou si seules les données sont envoyées via le câble LAN. En intégrant All-SG8824PM dans les réseaux existants, les produits réseau tels que les points d'accès et les caméras IP peuvent être facilement gérés et mis en place.
4 slots Combo SFP
ALL-SG8824PM dispose de 4 slots SFP combinés ouverts pour la liaison montante vers le serveur, le stockage ou d'autres commutateurs via le cuivre et la fibre.
Réseaux à haut débit et support des cadres géants
ALL-SG8824PM est une excellente solution pour étendre votre réseau Gigabit. Grâce à la vitesse Gigabit, ce produit offre une grande flexibilité et une connectivité à large bande passante aux serveurs, aux stations de travail et aux autres appareils connectés. Il permet de gagner du temps lors du transfert de fichiers volumineux. De plus, il prend également en charge les trames jumbo jusqu'à 9,6K pour améliorer l'utilisation du réseau lors du transfert de fichiers volumineux.
Exceptionnellement intelligent
L'ALL-SG8824PM possède une interface de gestion qui peut être gérée via des navigateurs web, offrant des fonctions intelligentes pour améliorer l'efficacité du réseau. Grâce à une interface web, un administrateur peut mettre en place des VLAN pour séparer le trafic. QoS pour prioriser les données critiques. RSTP pour éviter les boucles de réseau. Agrégation de liens, contrôle de la bande passante pour limiter les charges de trafic et IEEE 802.1X. Toutes ces caractéristiques offrent une protection supplémentaire à votre réseau.
Sécurité avancée
ALL-SG8824PM prend en charge le filtrage des adresses IP pour chaque port. Le commutateur prend également en charge l'authentification du port IEEE802.1x.
Données techniques :
Network Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX IEEE 802.ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control IEEE 802.3at PoE
IEEE 802.1x Port Authentication IEEE 802.1Q VLAN Tagging IEEE 802.3ad Port aggregation IEEE 802.1d Spanning tree protocol IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1p Class of Service, Priority Protocols
Switch Features RJ-45 Ports: 24x 10/100/1000 Mbps
SFP: 4x combo MAC Address: 8K Buffer Memory: 500KB Jumbo Frames: 9.6KB
Transmission Method: Store and Forward
Smart Features: VLAN: 16
VLAN ID: 1~4094
Rapid Spanning Tree Protocol LACP/Trunk Groups: 8 Tag-Based VLAN
Quality of Service: upt to 4 queues, 802.1o
ALLNET GmbH - Maistraße 2 - 82110 Germering - sales@allnet.de - 089 / 894 222 22 Sous réserve d'erreurs et d'omissions.
Côté 2/5
IGMP Snooping V1 & V2
Storm Control: Broadcast, Multicast, Flood Unicast Port: Port State, Speed/Duplex, Flow Control, Rate Limiting, Port Mirroring
802.1x Port-based Security
Web GUI, SNMP, Password protection
Configuration upload/download, Firmware upgrade
Transmission Media: 10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5E UTP/STP
Management: Web GUI, SNMP, Password protection
Configuration upload/download, Firmware upgrade
Power: 100~240V/AC, 50~60Hz
LED Indicators: Per Port: Link/Act; Per Unit: Power Power Consumption (without PoE) Max. 30 Watt
Power Consumption (with PoE) Max. 500W
Housing and Dimensions : Metallhousing incl. 19" Brackets 44mm x 440mm x 331mm (H x W x D)
Weight: 4,7 kg (ohne. Verpackung)
Operating Temperature: 0 bis 40°
Storage Temperature: -20 bis 90°
Humidity: 10 to 90% (non condensing)
Marks: FCC Class A, CE
Attributs
Attribut Valeur
Anzahl Ports PoE/LAN: 24/0
Belüftung Switch: Mit Lüfter
Einsatzort Switch: 19"
LAN Geschwindigkeit: 1Gbit/s
Management: smart managed (WebGui)
PoE Budget: <500 Watt
PoE Port Leistung: 30W at
SFP Geschwindigkeit: SFP 1GBit
Poids: 4.4 Kg
Garantie: 24 Mois
