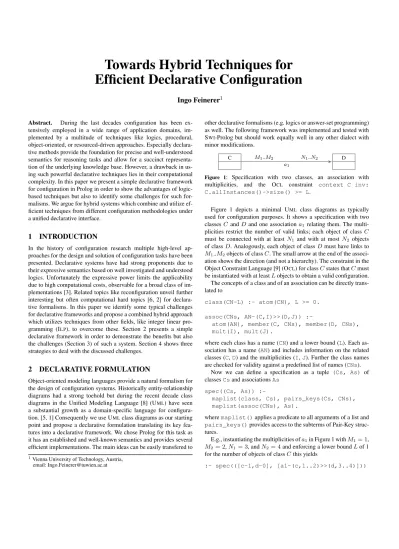

Ingo Feinerer

Abstract. During the last decades configuration has been ex- tensively employed in a wide range of application domains, im- plemented by a multitude of techniques like logics, procedural, object-oriented, or resourced-driven approaches. Especially declara- tive methods provide the foundation for precise and well-understood semantics for reasoning tasks and allow for a succinct representa- tion of the underlying knowledge base. However, a drawback in us- ing such powerful declarative techniques lies in their computational complexity. In this paper we present a simple declarative framework for configuration in Prolog in order to show the advantages of logic- based techniques but also to identify some challenges for such for- malisms. We argue for hybrid systems which combine and utilize ef- ficient techniques from different configuration methodologies under a unified declarative interface.

1 INTRODUCTION

In the history of configuration research multiple high-level ap- proaches for the design and solution of configuration tasks have been presented. Declarative systems have had strong proponents due to their expressive semantics based on well investigated and understood logics. Unfortunately the expressive power limits the applicability due to high computational costs, observable for a broad class of im- plementations [3]. Related topics like reconfiguration unveil further interesting but often computational hard topics [6, 2] for declara- tive formalisms. In this paper we identify some typical challenges for declarative frameworks and propose a combined hybrid approach which utilizes techniques from other fields, like integer linear pro- gramming (ILP), to overcome these. Section 2 presents a simple declarative framework in order to demonstrate the benefits but also the challenges (Section 3) of such a system. Section 4 shows three strategies to deal with the discussed challenges.

2 DECLARATIVE FORMULATION

Object-oriented modeling languages provide a natural formalism for the design of configuration systems. Historically entity-relationship diagrams had a strong toehold but during the recent decade class diagrams in the Unified Modeling Language [8] (UML) have seen a substantial growth as a domain-specific language for configura- tion. [5, 1] Consequently we use UMLclass diagrams as our starting point and propose a declarative formulation translating its key fea- tures into a declarative framework. We chose Prolog for this task as it has an established and well-known semantics and provides several efficient implementations. The main ideas can be easily transfered to

1Vienna University of Technology, Austria, email: [email protected]

other declarative formalisms (e.g. logics or answer-set programming) as well. The following framework was implemented and tested with SWI-Prolog but should work equally well in any other dialect with minor modifications.

C M1..M2 D

a1

N1..N2

Figure 1: Specification with two classes, an association with multiplicities, and the OCL constraint context C inv:

C.allInstances()->size() >= L.

Figure 1 depicts a minimal UML class diagrams as typically used for configuration purposes. It shows a specification with two classesCandD and one associationa1 relating them. The multi- plicities restrict the number of valid links; each object of classC must be connected with at leastN1 and with at most N2 objects of classD. Analogously, each object of classDmust have links to M1..M2objects of classC. The small arrow at the end of the associ- ation shows the direction (and not a hierarchy). The constraint in the Object Constraint Language [9] (OCL) for classCstates thatCmust be instantiated with at leastLobjects to obtain a valid configuration.

The concepts of a class and of an association can be directly trans- lated to

class(CN-L) :- atom(CN), L >= 0.

assoc(CNs, AN-(C,I)>>(D,J)) :-

atom(AN), member(C, CNs), member(D, CNs), mult(I), mult(J).

where each class has a name (CN) and a lower bound (L). Each as- sociation has a name (AN) and includes information on the related classes (C,D) and the multiplicities (I,J). Further the class names are checked for validity against a predefined list of names (CNs).

Now we can define a specification as a tuple (Cs, As) of classesCsand associationsAs

spec((Cs, As)) :-

maplist(class, Cs), pairs_keys(Cs, CNs), maplist(assoc(CNs), As).

wheremaplist()applies a predicate to all arguments of a list and pairs_keys()provides access to the subterms of Pair-Key struc- tures.

E.g., instantiating the multiplicities ofa1in Figure 1 withM1= 1, M2 = 2,N1= 3, andN2 = 4and enforcing a lower boundLof 1 for the number of objects of classCthis yields

:- spec(([c-1,d-0], [a1-(c,1..2)>>(d,3..4)]))

A configuration can be modeled as a tuple(Os, Ls)consist- ing of objectsOsand of links Ls. Each object is identified by its nameOand its corresponding classC. Each link has a nameLand stores information on the corresponding associationAand on the ob- jects[O,P]it consists of.

is_object(CNs, O-C) :- atom(O), member(C, CNs).

is_link(As, Os, L-(A,[O,P])) :-

atom(L), member(A-(C,_)>>(D,_), As), member(O-C, Os), member(P-D, Os).

We call a configuration aninstanceof a specification if all the objects and links have a corresponding class and association, respec- tively.

instance((Os, Ls), (Cs, As)) :- pairs_keys(Cs, CNs),

maplist(is_object(CNs), Os), maplist(is_link(As, Os), Ls).

For each object we check its class and for each link we identify a matching association with compatible participating classes.

In order to handle multiplicities as defined by the UMLstandard, we define a predicategamma()which counts for each association and a given object the number of different partner objects induced by the links of a configuration [4]

gamma(I, P, A, N, Ls) :- reduct(I, Os, P),

findall(Os, member(_-(A,Os), Ls), Bag), list_to_set(Bag, Set), length(Set, N).

whereIdenotes the “position” (index) of the partner objects to be counted for within the given binary or multiary associationA, the list Pcontains the single object to be fixed (in general this could be any partial link), and Lsis a list of links to be considered. The result (count) is unified withN. Thereduct()predicate generates a list of objects (to be used as partial links) such thatPis the projection on all but theI-th component, and findall()collects all such objects forming a link inLs. For example

:- gamma(2, [c1], a1, 3,

[l1-(a1, [c1, d1]), l2-(a1, [c1, d2]), l3-(a1, [c1, d3])]).

fixes a single objectc1(of classC) and counts how many different objects (of classDcorresponding to index 2) can be reached over associationa1when considering the provided links: three.

Now we have all parts to define the notion of a valid configuration.

We say a configurationsatisfiesa specification if it is an instance and both the lower bounds for each class and the multiplicities of each association are respected.

satisfies((Os, Ls), (Cs, As)) :- forall(member(C-LB, Cs),

(findall(ON, member(ON-C, Os), ONs), length(ONs, N), N >= LB)),

forall((member(O-C, Os),

(member(AN-(C,_)>>(_,L..U),As),I=2

;member(AN-(_,L..U)>>(C,_),As),I=1)), (gamma(I, [O], AN, N, Ls),

between(L, U, N))).

The predicatesatisfies()checks whether(Os, Ls)is a valid configuration for the specification(Cs, As). The firstforall() checks the number of objects for each class against the correspond- ing lower bound whereas the secondforall()checks that each objectOof the configuration is linked to the right number of part- ner objects as constrained by all participating associations and their multiplicities. E.g.

:- satisfies(([c1-c, d1-d, d2-d, d3-d], [l1-(a1,[c1,d1]),l2-(a1,[c1,d2]),

l1-(a1,[c1,d3])]),

([c-1,d-0], [a1-(c,1..2)>>(d,3..4)])).

Although simplistic and minimal this framework allow us to model reasonable configurations and will serve the purpose of pre- senting the advantages but also challenges for such a declarative framework. It can be easily extended to cover multiple aspects which are necessary for a more complete handling of configurations in real-world applications (and in fact many features are already im- plemented in a prototype).

A central advantage we observe in the design phase is the clear and straightforward formulation of the underlying terminology. Specifi- cations, configurations, and the notions of instance, validity and sat- isfiability can be defined with just a few lines of code in parallel to the formal definitions of the underlying concepts. Prototyping is rapid and succinct; the visualization of graph structures and configu- rations is straightforward. For the computation of configurations one of the main advantages of this declarative formulation is the semi- automatic search for solutions. Prolog provides efficient algorithms to explore and backtrack within the search space; further it has opti- mizations for tail recursion. E.g., with trivial strategies for object and link creation

:- gen_objects([c-2, d-3],

[c_0-c, c_1-c, d_0-d, d_1-d, d_2-d]).

:- gen_links([a1-1, a2-2],

[a1_0-(a1,_), a2_0-(a2,_), a2_1-(a2,_)]).

we can generate configurations on the fly (we implement the predi- categen_instance()for this purpose) and check if they satisfy a given specification

gen_model(C, S) :-

gen_instance(C, S), satisfies(C, S).

For a small number of classes and associations this strategy works very well, is intuitive, and allow us to explore the whole search space without extra programming.

3 CHALLENGES

For a declarative framework as presented in the previous section chal- lenges typically arise when the search space is large and/or back- tracking is expensive. The former is not a drawback of declarative formulations per se; other formalisms which need to deal with prob- lem instances with a large solution space will suffer from the same performance penalties. However, when backtracking is expensive, i.e., when it takes some computational effort to find out that the cur- rent unification state will never lead to a valid configuration, there is often room for improvement. First of all, it depends whether the computational complexity is inherent to the problem or just induced by the use of expressive logics or other declarative formalisms. Sec- ond, there exists a plethora of methods and algorithms in computer science which are tailored to specific problem classes.

3.1 Equations over association chains

C 1 D E

a1

1..2 2..1

a2

1

1

a3

1

Figure 2: Specification with three classes and the OCL constraint context C inv: C.allInstances()->size() >= 2.

Consider the specification depicted in Figure 2. There are three classesC,D, andE, whereChas a lower bound of two on the num- ber of instantiated objects. Each object of classC should be con- nected via associationa1to one or two objects of classDwhich in turn are uniquely associated with an object of classEviaa2. Finally associationa3enforces a one-to-one relationship between objects of classCand objects of classE.

This poses no severe problem for our declarative implementation yet. We can find a valid configuration by stepwise incrementing the number of instantiated objects and the number of desired links and thesatisfies()predicate will filter out all invalid combinations.

However, the situation gets interesting if we add some constraints;

the specification in Figure 2 probably tells not the full story of the intended semantics. We might want to ensure that each object of classEwhich can be reached from an object of classCover inter- mediary objects of classDvia associationsa1 anda2is in fact the same as linked bya3. This models the concept of a modular com- pound unit which consists of a set of interconnected subcomponents.

We can formalize such constraints by introducing equations on association chains. They restrict the links of valid configurations by imposing limits on valid objects involved. Association chains can be modeled by classical tuple composition, similar to a join in database theory. E.g., for Figure 2 we would add the equationa1◦a2=a3to achieve the semantics mentioned before.

c1 d1 d2

e1

c2 d3 d4

e2

(a) A configuration consisting of two dis- joint partitions sat- isfying the equation a1◦a2=a3.

c1

d1 d2 e1

c2 d3 d4

e2

(b) A configuration violating the con- strainta1◦a2=a3.

Figure 3: Two satisfying configurations for the specification in Fig- ure 2, but only the left one adheres to the constrainta1◦a2=a3.

Figures 3a and 3b both show valid configurations for the specifi- cation 2 before adding the new constraint on the association chain.

Once we enforce the constrainta1◦a2=a3only Figure 3a remains a satisfying instance; Figure 3b is not valid anymore as the configura- tion violates the equation since there is a connection fromc1overd4

toe2which is not reachable via a link of associationa3.

This subtle change makes a significant difference in runtime and backtrack behavior for our declarative formulation. Although the number of objects and links to be considered is still rather small (8 and 10, respectively) the number of combinations to be explored before the equation can be checked is exponential. Backtracking is therefore very expensive as basically a full configuration needs to be built before the equation can be checked. We see a major increase in the runtime (and stopped measuring after 3600 seconds).

3.2 Partial configurations

We would like to use our framework not only for configuration but also for reconfiguration in order to repair existing configurations. A main challenge is a fast way to identify parts of an input configura- tion which cannot be taken as a subcomponent of the overall solution.

This is important to avoid late backtracking where a lot of computa- tion time has been used for building a variety of alternations which can never lead to a valid configuration. Clearly, for arbitrary com- plex input configurations this problem is NP-hard, however for many basic tasks it is not (e.g., checking whether some links will violate certain sets of constraints later on).

3.3 Cost functions

Another limiting factor of logic-based formalisms is finite domain reasoning, especially notable when working with numbers in an in- teger domain. Configuration tasks often need ways to express how expensive certain components or connections are. A natural imple- mentation is to use cost functions which assign costs or other integer numbers to individual objects in a configuration. The aim is now to minimize an objective function which takes into account all compo- nents and their corresponding costs.

4 TOWARDS A HYBRID APPROACH

In the previous section we saw some typical challenges for declara- tive frameworks. These are by far not the only ones but give a sam- ple of relevant problems of various kinds. Fortunately, there has been tremendous progress in configuration research and artificial intelli- gence in general which triggered specialized algorithms and strate- gies for specific problems. In order to tackle the outlined challenges we propose to use specialized algorithms from other formalisms and to include them in a unified declarative framework. Such a hybrid ap- proach, taking the best from multiple worlds and combining them in a consolidated interface, allows us to attack the previously described challenges towards efficient declarative configuration.

4.1 Integer linear programming

We start out with the observation that backtracking can be very ex- pensive if the domain of variables is not restricted or bounded to a specific range. Ideally we would like to compute the exact number of needed components for a configuration and then our declarative framework can concentrate on finding appropriate links to connect the parts. Clearly, this approach cannot always work as some special constraints on the interconnection of components may enforce addi- tional objects which are not required by pure associations (and their multiplicities) in the underlying UMLclass diagram.

For the computation of the needed number of objects for each class we use a highly efficient technique based on integer linear program- ming. [7, 4] The idea is to translate a UMLclass diagram to a system

of inequalities. Its solution indicates whether an instantiation into a valid configuration is possible at all (satisfiability problem) but more interestingly in our context gives also the number of objects for each component. E.g., for the specification in Figure 1 with associationa1

and the lower bound onCwe obtain

M1· |D| ≤N2· |C| |C| ≥M1 |C| ≥L N1· |C| ≤M2· |D| |D| ≥N1

expressing constraints enforced by the multiplicities (left), con- straints on the minimal number of objects due to the association se- mantics (middle), and the lower bound constraint onC(right). This translation is performed for all classes and associations involved in a specification forming an integer linear program. The objective func- tion is typically just the minimum over all classes involved.

SWI-Prolog provides support for integer linear programming via its extension library “simplex” shipped with the standard installa- tion. We added a set of DCG(definite clause grammar) rules which generate ILPconstraints out of each association:

assoc_constraint(

_AN-(C,M1..M2)>>(D,N1..N2)) -->

constraint([M1*D, -N2*C] =< 0), constraint([N1*C, -M2*D] =< 0).

Further constraints like lower bounds or the objective function are added separately forming the whole ILPprogram.

The native integration of ILPinto our declarative framework al- lows us to rule out a broad range of possibilities which do not need to be explored any more. This has a significant effect on backtrack- ing as it cuts the search space into more fine grained areas. With this technique we can scale our framework to a greater number of objects and links when dealing with the challenges “equations on association chains” and “partial configurations”. Costs or weights are an integral part of ILPand can thus easily be handled with this approach; this addresses several aspects of the challenge “cost functions”.

4.2 Procedural link generation

So far we have only identified one possible way to efficiently com- pute the number of necessary components. Still, it might take a long time to find valid links between these objects (as motivated in the challenge on association chains). Therefore it seems a promising ap- proach to optimize the way links are generated. One strategy we found useful for certain classes of configurations is to “balance” links between objects as far as possible. This can be seen as a procedural implementation to form a uniform distribution among the links be- tween the participating classes of a given association:

seq(J, M, N, [X, Y]) :- J >= 0, M > 0, N > 0, X is J mod M,

lcm(M, N, LCM),

Y is (J + floor(J/LCM)) mod N.

The idea of theseq()predicate is to generate a sequence (withJas the index into it) of tuples[X,Y]forMobjects of the first class and Nobjects of the second class (for a binary association) which can be used as links and form a uniform distribution. E.g., forJ= 0, . . . ,3 andM = 2andN = 6we obtain the tuples(0,0),(1,1),(0,2), and(1,3). Consequently we would generate a link from object 0 of classCto object 0 of classD, from object 1 of classCto object 1 of classD, and so on.

Such a strategy is especially suited for finding an initial linking for a whole configuration. This can be both the basis for further investi- gation regarding the challenge “equations on association chains” or provide initial solutions for a reconfiguration problem as necessary for the challenge “partial configurations”.

4.3 Generate and test

Our final suggestion towards hybrid systems is a meta-strategy. Both previous techniques also fall into this category as special cases.

Declarative systems have a strong standing with their efficient and native backtracking as it is at the heart of their operation. This prop- erty is extremely useful for configuration as exploring the solution space is one of the fundamental aspects in a configuration task. The main advantage is that almost arbitrary constraints can be added with minimal changes to the declarative implementation. This allows us fast prototyping and complex constraint checking. We therefore ar- gue in favor of such systems and the simple but effective strategy of

“generate and test”. The generation step is either done by more so- phisticated algorithms implemented by the user in Prolog (as shown in the previous subsections) or by calls to external tools which are specialized on a specific tasks. The declarative framework can then take these parts and combine them into a configuration and test it for validity.

5 CONCLUSION

Declarative formalisms provide a natural environment for the im- plementation of configuration systems as it is easy to write succinct and precise programs with integrated support to explore the solution space with backtracking. We motivated this by a simple declarative framework but showed challenges arising from their use. We argue for hybrid systems which combine specialized techniques from other fields into a unified declarative interface.

REFERENCES

[1] Andreas Falkner, Ingo Feinerer, Gernot Salzer, and Gottfried Schenner,

‘Computing product configurations via UML and integer linear program- ming’,Int. Journal of Mass Customisation,3(4), 351–367, (2010).

[2] Andreas Falkner, Gerhard Friedrich, Alois Haselb¨ock, Anna Ryabokon, Gottfried Schenner, and Herwig Schreiner, ‘(Re)configuration using an- swer set programming’, inIJCAI 2011 Configuration Workshop, (2011).

[3] Andreas Falkner, Alois Haselb¨ock, Gottfried Schenner, and Herwig Schreiner, ‘Modeling and solving technical product configuration prob- lems’,Artificial Intelligence for Engineering Design, Analysis and Man- ufacturing,25, 115–129, (2011).

[4] Ingo Feinerer and Gernot Salzer, ‘Consistency and minimality of UML class specifications with multiplicities and uniqueness constraints’, in Proceedings of the 1st IEEE/IFIP International Symposium on Theoret- ical Aspects of Software Engineering, June 6–8, 2007, Shanghai, China, pp. 411–420. IEEE Computer Society Press, (2007).

[5] Alexander Felfernig, Gerhard Friedrich, and Dietmar Jannach, ‘UML as domain specific language for the construction of knowledge-based con- figuration systems’,International Journal of Software Engineering and Knowledge Engineering,10(4), 449–469, (2000).

[6] Gerhard Friedrich, Anna Ryabokon, Andreas A. Falkner, Alois Haselb¨ock, Gottfried Schenner, and Herwig Schreiner,

‘(Re)configuration based on model generation’, in 2nd LoCoCo Workshop, volume 65 ofEPTCS, pp. 26–35, (2011).

[7] Maurizio Lenzerini and Paolo Nobili, ‘On the satisfiability of depen- dency constraints in entity-relationship schemata’,Information Systems, 15(4), 453–461, (1990).

[8] Object Management Group,Unified Modeling Language 2.4.1, 2011.

[9] Object Management Group,Object Constraint Language 2.3.1, 2012.
