Accelerated sintering in phase-separating

nanostructured alloys

Mansoo Park

1

& Christopher A. Schuh

1

Sintering of powders is a common means of producing bulk materials when melt casting is

impossible or does not achieve a desired microstructure, and has long been pursued for

nanocrystalline materials in particular. Acceleration of sintering is desirable to lower

pro-cessing temperatures and times, and thus to limit undesirable microstructure evolution. Here

we show that markedly enhanced sintering is possible in some nanocrystalline alloys. In a

nanostructured W–Cr alloy, sintering sets on at a very low temperature that is commensurate

with phase separation to form a Cr-rich phase with a nanoscale arrangement that supports

rapid diffusional transport. The method permits bulk full density specimens with nanoscale

grains, produced during a sintering cycle involving no applied stress. We further show that

such accelerated sintering can be evoked by design in other nanocrystalline alloys, opening

the door to a variety of nanostructured bulk materials processed in arbitrary shapes from

powder inputs.

DOI: 10.1038/ncomms7858

OPEN

1_{Department of Materials Science and Engineering, Massachusetts Institute of Technology, 77 Massachusetts Avenue, Cambridge, Massachusetts 02139,}

A

lthough sintering is a common processing method for

manufacturing bulk polycrystalline materials, it can often

require long time-at-temperature cycles that pose

pro-blems for structural stability, for example, grain growth. In fact,

although powder processing and sintering have long been studied

as a route to achieve bulk nanocrystalline materials

1–8

, it is a

challenge to use enough of a thermal cycle to remove all the

porosity without also seeing large changes in grain size. So-called

‘accelerated’ sintering techniques, such as activated sintering

9–11

or liquid phase sintering

12,13

, have been used for decades to lower

the sintering temperature and reduce the cycle time for sintering,

but these methods do not apply to the synthesis of nanocrystalline

materials. Here we show that accelerated sintering is possible in

some nanocrystalline alloys that are designed to exhibit nanoscale

phase separation, which in turn leads to a dual-phase structure

that accelerates sintering.

Results

Nanocrystalline tungsten alloy powders. We first mechanically

alloyed W with 15 at% Cr using a high-energy ball mill. The

resulting powder particles are micron size in diameter as shown

in Fig. 1a (also see Supplementary Fig. 1), each particle being

much larger than the average grain size of about 13 nm, as shown

in the transmission electron microscopy (TEM) micrograph in

Fig. 1b; each powder particle is polycrystalline with nanoscale

grains

14–16

, which is an important distinction as compared with,

for example, nanopowders, where every particle is of nanometre

scale dimension and typically is a single crystal, and where some

interesting sintering phenomena have also been observed

17

. The

selected area diffraction pattern shown in the inset of Fig. 1b

exhibits a Debye–Scherrer ring indexed as being from a

body-centred cubic solid solution, which is in agreement with separate

X-ray diffractometry (XRD) data (Supplementary Fig. 2).

Although chromium has almost no equilibrium solubility in

tungsten at room temperature

18

, high-energy ball milling is

widely known to achieve supersaturation

19–21

and the Cr is fully

dissolved in W here; this supersaturated solution is thus poised to

phase separate on heating.

From the as-milled powder, cylindrical compacts were formed

by cold uniaxial pressing, and pressureless sintering was

conducted while measuring the change in density as a function

of time and temperature using a thermomechanical analyser

(TMA) operated under flowing high-purity argon gas including

3% hydrogen. As shown in Fig. 2 for a typical experiment

involving heating at a constant rate of 10 °C min

 1

, the

compact began to noticeably densify at

B950 °C, lower than

the

B1,100–1,200 °C at which liquid phase or conventional

activated sintering generally sets on in tungsten, and even lower

than the normal sintering onset for pure chromium of the same

particle size, whether nanocrystalline (cyan line) or not (green

line). By the time 1,500 °C is reached at this ramp rate (after a

total time of 155 min.), the compact is nearly fully dense (498%),

although this cycle involved no external applied pressure.

Conditions for rapid densification. The onset of sintering at

950 °C and the rapid rate of sintering seen thereafter in Fig. 2 are

apparently triggered by the combination of two features of our

powders: (i) nanocrystallinity within the microscale powder

particles and (ii) alloy supersaturation that leads to phase

separation on heating. This is established by the series of control

experiments shown by the lines in Fig. 2. All of the powders used

in these control experiments are prepared with similar micron

size powder particles to the W–Cr powder described above, and

thus are comparable in terms of the driving force for sintering

Cr W (211) (200) (110) W Cr-rich phase W

Figure 1 | Pre- and postsintering microstructures of W-15 at% Cr alloy. (a) Scanning electron microscopy (SEM) image of as-milled tungsten alloy powder delineates micron-sized particles (scale bar, 1 mm). (b) The bright-field transmission electron microscopy (TEM) image shows the alloy after 20 h of high-energy milling, with nanoscale grains of about 13 nm characteristic size. The selected area diffraction pattern (inset) is indexed as being from a BCC solid solution (scale bar, 50 nm). (c) SEM in back-scatter mode reveals a chromium-rich phase forming necks between the compact particles on heating up to 1,200°C (scale bar, 500 nm). (d) A direct visualization of a Cr-rich neck adjacent to W-rich particles is shown in the bright-field TEM image with W and Cr elemental maps (superimposed on the micrograph) using scanning TEM with energy dispersive spectroscopy (STEM-EDS) (scale bar, 200 nm). BCC, body-centred cubic. nc-W(Cr) Pure nc-Cr nc-W+15 at% nc-Cr nc-W+15 at% Cr Pure Cr W(Cr) 15 10 Cr in solution (at%) STEM-EDS 5 0 500 1,000 Temperature (°C) 1,500

0.010 _{Lattice parameter} change(Å) XRD

0.005 0.000 0.3 0.2 0.1 0.0

Relative density change

W+15 at% Cr nc-W

Figure 2 | Changes in density and particle properties on heating. Relative density changes are from TMA measurements, chromium content dissolved in the powder particles is measured by STEM-EDS and the lattice parameter change of the BCC tungsten-rich phase is from X-ray diffraction (XRD), and each are shown as a function of temperature. The TMA data are also directly compared with the series of control experiments. Phase separation sets on at about 950°C, which is also the point at which sintering accelerates. The error bars correspond to the s.d. of 410 different composition measurements on a single specimen. BCC, body-centred cubic.

and the length scales for mass transport required to achieve

densification. More details are available in the Methods section.

These control experiments illustrate a lack of significant

densifi-cation in W powders that are milled to a nanocrystalline state

without a Cr addition (magenta), and in powders that contain the

required Cr content but which are not nanocrystalline

super-saturated solid solutions (dark grey, purple, orange and dark

blue). The dark grey line is significant because it shows data for

supersaturated W-15 at% Cr powders prepared through a

quenching route, and verifies that a supersaturated solid solution

alone is insufficient to trigger densification if the powders are not

also nanostructured.

The above data thus show that accelerated sintering occurs in

this system, but only when it is prepared as a supersaturated solid

solution with a nanoscale polycrystalline structure inside each

powder particle. This effect may be traced to unique structural

changes that occur in such a powder during the sintering cycle.

As shown in the scanning electron microscopy (SEM)

micro-graphs in Fig. 1c, a chromium-rich phase precipitated from the

supersaturated nanocrystalline tungsten on heating, forming

necks between the compact particles. A direct visualization of a

Cr-rich neck adjacent to W-rich particles is shown in Fig. 1d,

where scanning TEM with energy dispersive spectroscopy

(STEM-EDS) measurements of local composition are

super-imposed on the micrograph. These images all illustrate that the

metastable solid solution of W(Cr) decomposes on heating, and

the Cr-rich phase precipitates within the particles (see

Supplementary Note 1 and Supplementary Figs 3 and 4), but

also, importantly, at the particle surfaces and interparticle necks.

That such surface and neck sites are thermodynamically

favourable for second phase nucleation and growth is

documen-ted in other systems as well, such as Cu-In and Ag-Au

22,23

.

Owing to the nanocrystalline grain size within the powders, there

are ample short-circuit diffusion pathways that allow the Cr out

of the particle centres to decorate their surfaces.

Kinetics of nanophase separation sintering. The above

obser-vations suggest a possible explanation for the rapid sintering in

this W–Cr alloy: if a second phase precipitates, decorates particle

surfaces and interparticle necks, and thusly provides new and

more rapid diffusional transport pathways, then sintering may be

expected to accelerate. The correlation between sintering and

phase separation is made more explicit using STEM-EDS and

XRD on compacts quenched partway through the densification

cycle of Fig. 2, as shown by the solid black and blue data points in

that figure. The STEM-EDS results present an explicit

measure-ment of the Cr content in the powder particles, which is found to

begin decreasing as the phase separation occurs. The XRD data

are analysed to present the body-centred cubic lattice parameter

for the W-rich phase, and this too begins to change on heating as

the phase separation occurs and Cr is lost from the W-rich

particles. What is noteworthy in these two data sets is that they

both illustrate that phase separation sets on at about 950 °C,

which is the same point at which sintering accelerates.

We expect that the Cr-rich phase that precipitates and forms

interparticle necks should be a rapid diffusional transport layer in

this system: the melting point of Cr is much lower than that of W

and diffusion in the Cr-rich phase is therefore faster

24

. What is

more, Cr has a high solubility for W (B15 at% at 1,200 °C

(ref. 18), in line with STEM-EDS observations of local

composition in Fig. 1d), and the diffusion of W through Cr is

quite rapid at these temperatures

24

. Thus, once it is ejected from

the supersaturated solution, the Cr-rich phase should be capable

of dissolving and transporting W as well. Densification thus may

occur by the transport of W (as well as Cr) from within particles

into the Cr-rich neck region and outward to the neck edges to

accommodate filling of the open space between the particles

(Fig. 3 inset).

To evaluate possible rate-limiting kinetic processes that control

densification in this system, we assessed the sintering activation

energy using the master sintering curve method

25

(see

Supplementary Note 2). This is a method of normalizing

sintering profile curves such as that shown in Fig. 2, but

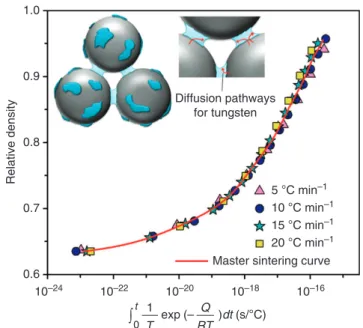

acquired over a range of heating rates. Figure 3 shows a series of

such heating profiles at several heating rates (raw data provided

in the Supplementary Fig. 5), with a normalized x axis of

R

t

0T1

exp

RTQ





dt, where Q is sintering activation energy, R is the

gas constant, T is temperature and t is time. As shown in Fig. 3,

all of our experimental data for the W-15 at% Cr system collapse

onto a single curve given a best-fit sintering activation energy of

373 kJ mol

 1

. While this apparent activation energy is probably

reflective of many processes occurring at once over the range of

temperatures investigated, it is interesting that the value is very

close to the activation energy for diffusion of tungsten in

chromium, 386±33 kJ mol

 1

(ref. 24), and is very different from

both that for self-diffusion of W (550–670 kJ mol

 1

)

26

that

normally controls sintering of W, from that for self-diffusion of

Cr (442 kJ mol

 1

)

27

, and even farther from that for Cr diffusion

in W (547 kJ mol

 1

)

28

, indicating that the flow of Cr itself is

not the source of the enhanced densification. Our examination

of the morphology of the Cr phase at interparticle necks

(Supplementary Note 3) also shows that this phase remains

roughly the same scale throughout densification, also suggesting

that the mechanical flow of Cr is not the source of the enhanced

densification. The kinetics are thus consistent with W diffusion

through Cr as being a kinetically rate-limiting process for

sintering, and are not consistent with any other bulk diffusional

process being dominant. The rates of sintering that might be

expected if densification were dominated by W diffusion through

Cr are also reasonably in line with those measured here (see

1.0 0.9 0.8 Relative density 0.7 Diffusion pathways for tungsten 0.6 10–24 ₁₀–22 ₁₀–20 ₁₀–18 ₁₀–16 Master sintering curve

20 °C min–1 15 °C min–1 10 °C min–1 5 °C min–1 1

∫

exp 0 T (–RT )dt (s/°C) t Q

Figure 3 | Master sintering curve and heating profiles of W-15 at% Cr with a schematic structure for nanophase separation sintering in the inset. All of the heating profiles, using several constant heating rates of 5, 10, 15 and 20°C min 1, collapse onto a single curve at a sintering activation energy of 373 kJ mol 1, which reasonably matches the activation energy for diffusion of W in Cr, but is not consistent with any other bulk diffusional process in the W–Cr system.

Supplementary Note 4 and Supplementary Fig. 7). And of course,

with the scale of the internal structure being of nanometre

dimensions, short-circuit diffusion on interfaces and surfaces

almost certainly also contributes to the structural evolution

during sintering of such samples.

Discussion

Although accelerated sintering schemes usually involve the

introduction of rapid transport paths, our observations for the

nanocrystalline W–Cr system present clear distinctions from

other such sintering methods, including seed-assisted sintering,

liquid phase sintering and solid-state activated sintering. First,

so-called ‘seed-assisted sintering’ involves a second phase that

nucleates during sintering, but makes use of the nucleated phases

in a structural way; a high number density of nucleated seeds

prohibit the formation of a micrometre scale phase, which would

significantly discourage sintering

29,30

. By contrast, nanophase

separation sintering as we report here involves a nucleated phase

that accelerates densification kinetics. Second, the chromium

phase we observe in Fig. 1d is crystalline and not molten at any

temperature studied here; at our composition, the liquid phase

becomes viable only around 2,800 °C, and even pure Cr does not

melt until 1,863 °C

18

. This system thus cannot benefit from

accelerated sintering by liquid phase formation as in liquid phase

sintering. Our measurements on the thickness of the Cr-rich

interparticle necks (Supplementary Fig. 6) also verify that the

mechanical deformation of the Cr phase is not the cause of the

accelerated densification. Third, the Cr phase domains here are

thick, and unlike the disordered grain boundary film (B1 nm)

9

such as forms and provides the rapid transport pathway in

conventional solid-state activated sintering. In fact, a nanometre

thick grain boundary film cannot be stabilized at such a low

sintering temperature in W–Cr alloys, since the free energy

penalty for its formation would not be compensated by a

reduction in interfacial energy

9,10

.

Further comparison of nanophase separation sintering with

liquid phase sintering and solid-state activated sintering is

facilitated by Fig. 4, which compares studies that all employ

powder particles with sizes in the range of 0.2–11 mm

(Supplementary Table 2; Supplementary Fig. 11). Not only is

nanophase separation sintering suitable specifically for

nanos-tructured alloys, the addition of second phases and alloying

elements is generally useful to retain nanocrystalline structures

during a thermal cycle

31–33

. This methodology thus lends itself

naturally to the production of fine-grained material, and in Fig. 4

our data for W alloy sintering attain much smaller grain sizes at

comparable densities as compared with the other methods

(although not all of the prior studies necessarily aimed to

achieve fine grains).

The data sets marked by solid red stars in Fig. 4 all use a

constant heating rate to a relatively arbitrary maximum

temperature in a single alloy (W-15 at% Cr); further optimization

of alloy composition as well as temperature–time cycle should

permit a large measure of control over grain sizes in the

ultrafine-to-nanoscale range in full density sintered products. For example,

the red empty stars show related, more optimized alloys of W–

Ti–Cr, also sintered without applied pressure. Here Ti is added

because it promotes stabilization of the grain structure

31

. The

final sintered structure of W-35Ti-10Cr (at%) is shown in Fig. 4e,

reflecting nearly full density and a grain size of 100 nm. This

particular sample had bulk dimensions of 6 mm diameter and

4 mm height; we are not aware of any prior nanocrystalline alloy

with such a combination of full density and fine grains produced

in bulk through pressureless sintering of powders.

In principle, the enhanced sintering revealed above in the W–

Cr system may be widely accessible in other alloy systems; the

basic requirements are a system that (i) can be prepared as

100 10 Grain size ( μ m) 1 0.1 0.9 1.0 Relative density Liquid phase w w w w w w

Liquid phase sintering

Activated sintering

Nano-phase separation

Activated Nano-phase

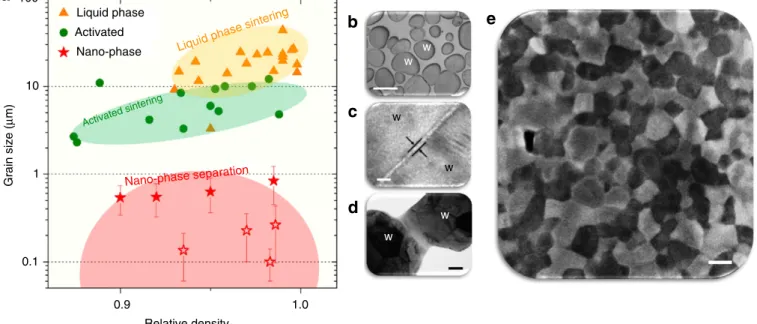

Figure 4 | Comparison of nanophase separation sintering with liquid phase sintering and activated sintering of tungsten alloys. (a) Grain size as a function of relative density achieved using each sintering method shows that nanophase separation sintering lends itself to the production of ultrafine-grained material. Further comparison is illustrated with typical microstructures of (b) liquid phase sintering13, in which W particles are embedded in a liquid matrix that is the rapid transport path (scale bar, 80 mm) (c) activated sintering10, in which the grain boundary has a film on it that is a rapid transport path, and (scale bar, 2 nm) (d) nanophase separation sintering, in which the separation of the supersaturated solution decorates the interparticle necks with a second solid phase that is a rapid diffusion pathway (scale bar, 200 nm). The error bars correspond to the s.d. of more than 1000 different grains on a single specimen. (e) SEM image of a bulk (6 4 mm right cylinder) nanocrystalline W–Ti–Cr alloy shows a grain size of about 100 nm at nearly full density (scale bar, 100 nm).

supersaturated microscale powder with a nanoscale grain size (for

example, by high-energy milling), (ii) will phase separate at a

sintering temperature of interest, producing (iii) a fast transport

layer on particle surfaces and necks. As a second example, we

accelerated the consolidation of chromium with an addition of

nickel through nanophase separation sintering. The system

exhibited accelerated densification, and micrographs with local

chemical mapping show that nickel precipitates around

chro-mium necks (Supplementary Fig. 9). The sintering activation

energy of Cr-15 at% Ni was measured as 258 kJ mol

 1

, close to

the activation energy for diffusion of chromium in nickel,

272 kJ mol

 1

(ref. 34), which is consistent with the precipitated

Ni being a transport path for Cr. A detailed analysis of the Cr–Ni

system is available in the Methods section.

Powder consolidation has long been viewed as a promising

route to form bulk nanocrystalline and ultrafine-grained

materials, but the challenges associated with rampant grain

growth

35

and significant residual porosity

36

have delayed

progress. To overcome such limitations, the field has seen a

focusing tendency towards rapid consolidation methods assisted

by large applied pressures

36–38

or pulsed electric current

39,40

,

although limitations on component size and shape, as well as cost

considerations, present complications for the broad usage of these

techniques. It is our hope that nanophase separation sintering, as

a general new approach to accelerate sintering even in the absence

of external forces, may broaden the opportunity for powder-route

fabrication of bulk ultrafine and nanocrystalline alloys.

Methods

Powder processing

.

Average particle size (APS) 1–5 mm W powder (99.9% purity), APSo10 mm Cr powder (99.2% purity), APS 2–3 mm Ni powders (99.9% purity), and  150 mesh Ti powder (99.9% purity) were used in this study. W and W alloy (W-15 at% Cr, W-35Ti-10Cr), and Cr alloy (Cr-15 at% Ni) powders were produced by mechanical alloying in a SPEX 8000 high-energy mill using tungsten carbide media and a ball-to-powder ratio of 5 to 1, with 1 wt% stearic acid as a process control agent. All synthesized powders used the same milling proce-dures except for milling time: 20 h for W-15 at% Cr, 30 h for W-35Ti-10Cr and 15 h for Cr-15 at% Ni; these times were arrived at through experimentation to achieve full dissolution of solutes, while minimizing impurity contamination. Also, in the spirit of controlling impurities to the extent possible, all of the processing steps in this work were conducted in highly purified atmospheres. For a typical powder of W-15 at% Cr, we used EDS over a broad area in an SEM to verify that the contamination by Co (from the carbide milling equipment) waso1 wt%, while the pickup of tungsten carbide explicitly evaluated by XRD (Supplementary Fig. 2a) waso3 wt%. To counter the possibility of native oxide formation, the sintering cycle was conducted in a reducing atmosphere, as also described below. The par-ticle sizes of all powders including those used in control experiments were mea-sured using a laser diffraction particle size analyser from Horiba.

Supplementary Fig. 2a shows XRD patterns of W-15 at% Cr at different milling times. The main diffraction peak for chromium located at 44.4° disappears after about 4 h milling as shown in Supplementary Fig. 2b, which indicates that chromium is fully dissolved into tungsten. Tungsten carbide, picked up from abrasion of the milling media, starts to appear after 4 h of milling; the amount of tungsten carbide after 20 h, as assessed by Rietveld refinement, is around 1–3 wt% . Powders were compacted at a pressure of 360 MPa into 6 mm diameter and 3–4 mm high cylindrical disks. Each green compact was heated at a constant rate in flowing Ar þ 3% H2using a TMA from Netzsch Instruments to measure its in situ

length changes. The heating rates employed were 5, 10, 15 and 20 °C min 1. The force on the pellet from the alumina push-rod of the TMA was 100 mN. The W–Ti–Cr samples were processed in the same general manner as above, and all samples including those used for control experiments were sintered without applied pressure under a constant heating rate to 1,350–1,500 °C, followed by rapid cooling under flowing gas after the target temperature was reached.

Micro- and nanostructure characterization

.

XRD patterns were measured using a PANalytical X’Pert Pro diffractometer using Cu-Ka radiation at 45 kV and 40 mA. All alloyed powders were scanned from 30 to 120° using a step size of 0.0167° and time per step of 90 s. The phases present, lattice parameters and grain sizes were assessed by Rietveld refinement. An XL30 Environmental FEG SEM from Philips and FEI Helios were used for imaging of the powders. The samples for TEM were prepared by a Fischione ion mill maintained at  110 °C by liquid nitrogen. Bright-field images and diffraction patterns were acquired using a JEOL

2010F TEM, and EDS was used to construct elemental maps and perform local composition measurements.

Control experiments in the W–Cr system

.

We designed the series of control experiments in Fig. 2 to establish that nanophase separation sintering only occurs when powders with both nanocrystalline internal grain sizes and alloy super-saturation are used. The control samples were intended to systematically test various W–Cr materials featuring nanocrystallinity or supersaturation, but not both. All controls have micron-sized particles (Supplementary Table 1) in order to remove particle size effects on the driving force and kinetics of sintering. Each alloyed powder was compacted and sintered following the same procedures described above.

First, pure nanocrystalline W (labeled nc-W in Fig. 2) was mechanically milled in the SPEX 8000 high-energy mill for 20 h using tungsten carbide media and a ball-to-powder ratio of 5 to 1, with 1 wt% stearic acid as a process control agent. The resulting sample had a grain size of 10 nm as revealed by Rietveld refinement, but no Cr, and thus met the condition of being nanocrystalline, but was not supersaturated. This powder was then compacted into 6 mm diameter and 3–4 mm high cylindrical disks of 0.62 relative density.

Second, nanocrystalline W with 15 at% Cr (not dissolved; labeled nc-W þ 15 at% Cr in Fig. 2) was produced by adding pure Cr powder to pure nanocrystalline W (produced by high-energy milling for 20 h) using a dry mixing method; 15 at% Cr was mixed with nanocrystalline W without milling or mechanical alloying, for B15 min. The resulting sample comprised W with a grain size of 10 nm as revealed by Rietveld refinement, and contained chromium, but not in an alloyed or supersaturated condition; this sample thus featured nanocrystallinity but not supersaturation. This powder was then compacted into 6 mm diameter and 3–4 mm high cylindrical disks of 0.63 relative density.

Third, W-15 at% Cr unalloyed and without nanostructure (labeled W þ 15 at% Cr in Fig. 2) was produced by dry mixing 15 at% Cr with W forB15 min without mechanical alloying or milling. The resulting sample was a mixture of W-15at% Cr, but had neither nanoscale grain structure nor supersaturation. This powder was then compacted into 6 mm diameter and 3–4 mm high cylindrical disks of 0.67 relative density.

Fourth, nanocrystalline W with 15 at% nanocrystalline Cr (not dissolved; labeled nc-W þ 15 at% nc-Cr in Fig. 2) was produced by adding nanocrystalline Cr powder to pure nanocrystalline W powder, both produced by high-energy ball milling for 20 h and then dry mixing. The resulting sample comprised W particles with a grain size of 10 nm and Cr particles with a grain size of 17 nm as revealed by Rietveld refinement; it was nanocrystalline but not in an alloyed or supersaturated condition. This powder was then compacted into 6 mm diameter and 3–4 mm high cylindrical disks of 0.65 relative density.

Fifth, supersaturated W-15 at% Cr (labeled W(Cr) powder in Fig. 2) were produced by mechanical milling in a SPEX 8000 high-energy mill for 30 min using tungsten carbide media without any process control agent. The resultant powder was then sealed in a quartz tube, first evacuated to 10 6Torr using a turbo pump and then backfilled with high-purity argon gas to 120 Torr. The sealed ampoule was annealed in a furnace at 1,400 °C for 20 h and then quenched. The resulting powder was a supersaturated W(Cr) solution, but with a coarse grain size in excess of 1 mm; it was supersaturated with chromium but not nanocrystalline. This tungsten solid solution powder was then compacted into 6 mm diameter and 2–3 mm high cylindrical disks of 0.65 relative density.

Sixth, pure Cr with a conventional microscale grain structure was produced by compacting powder into 6 mm diameter and 3–4 mm high cylindrical disks of 0.67 relative density.

Finally, nanocrystalline Cr (labeled nc-Cr in Fig. 2) was produced by mechanically milling pure chromium in the SPEX 8000 high-energy mill for 20 h using tungsten carbide media and a ball-to-powder ratio of 5 to 1, with 1 wt% stearic acid as a process control agent. The resulting sample had a grain size of 17 nm as revealed by Rietveld refinement; it was nanocrystalline but contained no alloying additions. It also contained no tungsten and provides a limiting case if the kinetics of densification were dominated by transport in the low melting point Cr phase in W–Cr systems. This powder was compacted into 6 mm diameter and 3–4 mm high cylindrical disks of 0.66 relative density.

Sintering of larger specimens of W-15 at% Cr

.

A bulk specimen of W-15 at% Cr, of 15 mm diameter and 11 mm height, was sintered in a conventional high temperature furnace under Ar þ 3% H2atmosphere. The sample shown in

Supplementary Fig. 8 achieved full density under the same conditions specified in the paper, verifying that accelerated sintering is possible in this system at larger sample sizes and in a conventional furnace.

Nanophase separation sintering in the Cr–Ni system

.

The Cr–Ni system was also studied as a second candidate to exhibit nanophase separation enhanced sintering. We accelerated the consolidation of chromium with additions of 5 and 15 at% Ni. The system exhibited accelerated densification as shown in Supplementary Fig. 9a, and micrographs show that nickel precipitates around chromium necks as shown in an SEM micrograph with the inset EDS map showing the local nickel content (Supplementary Fig. 9b). The master sintering curve method was employed to assess the sintering activation energy. The heating profiles

employed for nanocrystalline Cr-15 at% Ni with 3, 5, 10, 15 and 20 °C min 1 heating rates are shown in Supplementary Fig. 10a. All of our experimental data for the Cr-15 at% Ni system collapse onto a single curve given a best-fit sintering activation energy of 258 kJ mol 1as shown in Supplementary Fig. 10b, aligning with the activation energy for diffusion of chromium in nickel, 272 kJ mol 1(ref. 34) and very different from that for self-diffusion of Cr (442 kJ mol 1₎27_that

normally controls sintering of Cr.

References

1. Orru, R., Licheri, R., Locci, A. M., Cincotti, A. & Cao, G. C. Consolidation/ synthesis of materials by electric current activated/assisted sintering. Mater. Sci. Eng. Rep. 63, 127–287 (2009).

2. Sirinivasarao, B., Oh-Ishi, K., Ohkubo, T. & Hono, K. Bimodally grained high-strength Fe fabricated by mechanical alloying and spark plasma sintering. Acta Mater. 57, 3277–3286 (2009).

3. Chen, I. W. & Wang, X. H. Sintering dense nanocrystalline ceramics without final-stage grain growth. Nature 404, 168–171 (2000).

4. Reddy, K. M. et al. Enhanced mechanical properties of nanocrystalline boron carbide by nanoporosity and interface phases. Nat. Commun. 3, 1052 (2012). 5. Zhang, Q. et al. High thermoelectric performance by resonant dopant indium in nanostructured SnTe. Proc. Natl Acad. Sci. USA 110, 13261–13266 (2013). 6. Zhang, H. W., Gopalan, R., Mukai, T. & Hono, K. Fabrication of bulk

nanocrystalline Fe-C alloy by spark plasma sintering of mechanically milled powder. Scripta Mater. 53, 863–868 (2005).

7. Zhang, Z. H. et al. Microstructure characteristic, mechanical properties and sintering mechanism of nanocrystalline copper obtained by SPS process. Mater. Sci. Eng. A 523, 134–138 (2009).

8. Sanders, P. G., Fougere, G. E., Thompson, L. J., Eastman, J. A. & Weertman, J. R. Improvements in the synthesis and compaction of nanocrystalline materials. Nanostruct. Mater. 8, 243–252 (1997).

9. Luo, J., Gupta, V. K., Yoon, D. H. & Meyer, H. M. Segregation-induced grain boundary premelting in nickel-doped tungsten. Appl. Phys. Lett. 87, 231902 (2005).

10. Gupta, V. K., Yoon, D. H., Meyer, H. M. & Luo, J. Thin intergranular films and solid-state activated sintering in nickel-doped tungsten. Acta Mater. 55, 3131–3142 (2007).

11. Luo, J., Cheng, H. K., Asl, K. M., Kiely, C. J. & Harmer, M. P. The role of a bilayer interfacial phase on liquid metal embrittlement. Science 333, 1730–1733 (2011).

12. Lee, S. M. & Kang, S. J. L. Theoretical analysis of liquid-phase sintering: pore filling theory. Acta Mater. 46, 3191–3202 (1998).

13. German, R. M. Microstructure of the gravitationally settled region in a liquid-phase sintered dilute tungsten heavy alloy. Metall. Mater. Trans. A 26, 279–288 (1995).

14. Fecht, H. J. Nanostructure formation by mechanical attrition. Nanostruct. Mater. 6, 33–42 (1995).

15. Witkin, D. B. & Lavernia, E. J. Synthesis and mechanical behavior of nanostructured materials via cryomilling. Prog. Mater. Sci. 51, 1–60 (2006). 16. Chookajorn, T., Park, M. & Schuh, C. A. Duplex nanocrystalline alloys:

entropic nanostructure stabilization and a case study on W–Cr. J. Mater. Res. 30,151–163 (2015).

17. Telu, S., Patra, A., Sankaranarayana, M., Mitra, R. & Pabi, S. K. Microstructure and cyclic oxidation behavior of W-Cr alloys prepared by sintering of mechanically alloyed nanocrystalline powders. Int. J. Refract. Met. Hard Mater. 36,191–203 (2013).

18. Turchi, P. E. A., Kaufman, L. & Liu, Z. K. Modeling of Ni-Cr-Mo based alloys: part I - phase stability. Calphad 30, 70–87 (2006).

19. Yavari, A. R., Desre, P. J. & Benameur, T. Mechanically driven alloying of immiscible elements. Phys. Rev. Lett. 68, 2235–2238 (1992).

20. Uenishi, K., Kobayashi, K. F., Ishihara, K. N. & Shingu, P. H. Formation of a super-saturated solid-solution in the Ag-Cu system by mechanical alloying. Mater. Sci. Eng. A 134, 1342–1345 (1991).

21. Gente, C., Oehring, M. & Bormann, R. Formation of thermodynamically unstable solid-solutions in the Cu-Co system by mechanical alloying. Phys. Rev. B Condense. Matter 48, 13244–13252 (1993).

22. Kuczynski, G. C., Matsumura, G. & Cullity, B. D. Segregation in homogeneous alloys during sintering. Acta Metall. 8, 209–215 (1960).

23. Hausner, H. H.Metal Powder Industries Federation. Modern Developments in Powder Metallurgy (Plenum Press, 1966).

24. Park, M., Alexander, K. C. & Schuh, C. A. Tungsten diffusion in chromium: experiments and atomistic modeling. J. Alloy Compd. 611, 433–439 (2014). 25. Su, H. H. & Johnson, D. L. Master sintering curve: a practical approach to

sintering. J. Am. Ceram. Soc. 79, 3211–3217 (1996).

26. Mundy, J. N., Rothman, S. J., Lam, N. Q., Hoff, H. A. & Nowicki, L. J. Self-diffusion in tungsten. Phys. Rev. B 18, 6566–6575 (1978).

27. Mundy, J. N. et al. Self-diffusion in chromium. Phys. Rev. B 24, 658–665 (1981). 28. Klotsman, S. M. et al. Chromium and molybdenum diffusion in tungsten

single-crystals. Fiz. Met. Metalloved 67, 767–774 (1989).

29. Nordahl, C. S. & Messing, G. L. Sintering of alpha-Al2O3-seeded nano-crystalline gamma-Al2O3 powders. J. Eur. Ceram. Soc. 22, 415–422 (2002). 30. Kumagai, M. & Messing, G. L. Controlled transformation and sintering of a

boehmite sol-gel by alpha-alumina seeding. J. Am. Ceram. Soc. 68, 500–505 (1985).

31. Chookajorn, T., Murdoch, H. A. & Schuh, C. A. Design of stable nanocrystalline alloys. Science 337, 951–954 (2012).

32. Weissmuller, J. Alloy effects in nanostructures. Nanostruct. Mater. 3, 261–272 (1993).

33. Kirchheim, R. Grain coarsening inhibited by solute segregation. Acta Mater. 50, 413–419 (2002).

34. Monma, K., Suto, H. & Oikawa, H. Diffussion of Ni63and Cr51in nickelchromium alloys. J. Jpn Inst. Metals 28, 188–192 (1964). 35. Lian, J. S., Valiev, R. Z. & Baudelet, B. On the enhanced grain-growth in

ultrafine grained metals. Acta Metall. Mater. 43, 4165–4170 (1995). 36. Gleiter, H. Nanocrystalline materials. Prog. Mater. Sci. 33, 223–315 (1989). 37. Liao, S. C., Mayo, W. E. & Pae, K. D. Theory of high pressure low

temperature sintering of bulk nanocrystalline TiO2. Acta Mater. 45, 4027–4040 (1997).

38. Wang, H., Pei, Y. Z., LaLonde, A. D. & Snyder, G. J. Weak electron-phonon coupling contributing to high thermoelectric performance in n-type PbSe. Proc. Natl Acad. Sci. USA 109, 9705–9709 (2012).

39. Zhan, G. D., Kuntz, J. D., Wan, J. L. & Mukherjee, A. K. Single-wall carbon nanotubes as attractive toughening agents in alumina-based nanocomposites. Nat. Mater. 2, 38–42 (2003).

40. Lee, Y. et al. Contrasting role of antimony and bismuth dopants on the thermoelectric performance of lead selenide. Nat. Commun. 5, 3640 (2014).

Acknowledgements

This study was supported by the US Defense Threat Reduction Agency under Grant No. HDTRA1-11-1-0062 and by the US Army Research Office under Grants No. W911NF-09-1-0422 and W911NF-14-1-0539. M.P. acknowledges support through a Kwan-Jung scholarship. We thank Dr Tongjai Chookajorn, Dr Samuel Arthur Humphry-Baker, Michael Gibson, Zack Cordero, Eung-Kwan Lee, Dr Hyon-Jee Lee Voigt, Professor Yet-Ming Chiang and Dr Kisub Cho (all of MIT) for valuable discussions.

Author contributions

M.P. and C.A.S. proposed the idea and designed the experiments. M.P. conducted all experiments and co-wrote the paper. C.A.S. provided guidance and co-wrote the paper. All authors analysed the data, discussed the results and reviewed the manuscript.

Additional information

Supplementary Informationaccompanies this paper at http://www.nature.com/

naturecommunications

Competing financial interests:The authors declare no competing financial interests.

Reprints and permissioninformation is available online at http://npg.nature.com/

reprintsandpermissions/

How to cite this article:Park, M. & Schuh C. A. Accelerated sintering in

phase-separating nanostructured alloys. Nat. Commun. 6:6858 doi: 10.1038/ncomms7858 (2015).

This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/
