An analysis of performance in human locomotion

O R I G I N A L A R T I C L E

An analysis of performance in human locomotion

Renza Perini

Accepted: 9 April 2010 / Published online: 1 May 2010 Ó Springer-Verlag 2010

Abstract This paper reports an analysis of the principles underlying human performances on the basis of the work initiated by Pietro Enrico di Prampero. Starting from the concept that the maximal speed that can be attained over a given distance with a given locomotion mode is directly proportional to the maximal sustainable power and inver-sely proportional to the energy cost of locomotion, we discuss the maximal powers (and capacities) of anaerobic (lactic and alactic) and aerobic metabolisms and the factors that limit them, and the factors affecting the energy cost of various locomotion modes. Special attention is given to the role of air resistance and frictional forces. Finally, com-putation of performance speed is discussed along the approach originally developed by di Prampero.

Keywords Energy cost  Maximal power  Maximal oxygen consumption

Aerobic and anaerobic metabolism

Introduction

When a car is driven on a highway, the car performs mechanical work. If the road is flat, the centre of mass of the car does not move vertically, and all the mechanical work is used to move along the highway as kinetic energy (external work). However, since the car does not move into empty space, energy must continuously be injected into the car to overcome aero-dynamic forces and keep the speed invariant. This comes from the transformation of chemical energy into mechanical energy, via fuel oxidation in the engine. Only a fraction of chemical energy, however, can be transformed into mechanical energy, the remainder being transformed into heat: that fraction cor-responds to the mechanical efficiency (g) of the engine. Maximal power is the maximal rate at which the chemical energy transformation occurs, maximal capacity the maximal quantity of chemical energy that can be made available to the car, corresponding to the volume of the fuel tank.

The maximal mechanical power is directly proportional to the maximal speed of the car through a constant F with the dimension of force. This force opposes the movement of the car and has two components: the friction of road and gearing (non-aerodynamic forces), and the air resistance (drag). At the speeds attained by cars, the latter is by far predominant. Chemical power also is directly proportional to speed, but through a constant F0which is much greater than F, being equal to the ratio of F to g. Constant F0 corresponds to fuel consumption and indicates the amount of fuel consumed to cover a given distance. Generally, it is expressed in litre of fuel per 100 km covered. In the case of cars, fuel consumption varies with speed and among cars. For a given maximal power, the maximal speed attained is inversely proportional to F0. In the history of car manu-facturing, great attention was paid to the aerodynamics of cars, in order to reduce F and thus F0.

Communicated by Susan Ward.

This article is published as part of the Special Issue dedicated to Pietro di Prampero, formerly Editor-in-Chief of EJAP.

G. Ferretti (&)  A. Bringard

De´partement des Neurosciences Fondamentales, Centre Me´dical Universitaire, Universite´ de Gene`ve, Rue Michel Servet 1, 1211 Geneve 4, Switzerland

e-mail: [email protected] G. Ferretti R. Perini

Dipartimento di Scienze Biomediche e Biotecnologie, Sezione di Fisiologia Umana, Universita` di Brescia, Brescia, Italy

The above principles apply to all engines. Muscles are engines, thus these principles also apply to muscle con-traction and animal locomotion. However, whereas human-made engines rely on one source of energy only (gasoline, electricity or whatever), muscles rely on three substrates (glycogen, free fatty acids and phosphocreatine) intermin-gled in three simultaneous energetic pathways (aerobic metabolism, anaerobic lactic metabolism and anaerobic alactic metabolism). This allows animals (humans) to cover a wide spectrum of running performances, as exemplified on one side by Usain Bolt running the 100 m dash, on the other by Haile Gebreselassie running the marathon. The present knowledge of the energetics of muscular exercise is still essentially funded on the work of the great old master, Rodolfo Margaria (1901–1983) that Pietro Enrico di Prampero, the heir and continuator of Margaria’s cultural tradition in the field, splendidly reviewed in 1981 (di Prampero1981).

di Prampero was the first who comprehensively exploited the analogy between car motion and animal motion in the study of human locomotion. He was the first to express the relation of speed (v) to power E_
in terms of energy cost (C, the human analogue of F0), as follows:

v¼ _EC1: ð1Þ

Starting from this concept, di Prampero analysed the energetics of running, cycling, skating, swimming and the maximal performances (records) that can be attained in each mode of locomotion (Celentano et al. 1974; di Prampero1986; di Prampero et al.1971,1974,1976,1979,

1986; Pendergast et al. 1977, to cite only the pioneering papers). More recently, he used this knowledge to develop a quantitative model of best performances in human locomotion (di Prampero et al.1993). His work has been highly influential, especially for younger physiologists coming from the same School. In this article, moving from Eq.1, we discuss the concepts of maximal power and energy cost as applied to human locomotion and we analyse the concept of best performance, and in so doing track the cultural heritage of Pietro Enrico di Prampero.

Maximal metabolic power

When we deal with the maximal speed that a human can reach in any given type of locomotion, Eq.1can be written as follows:

vmax¼ _EmaxC1: ð2Þ

Therefore, what is _Emax in the case of human locomotion?

Considering that three types of energy metabolisms are available to our muscles, it depends. For explosive exercise, lasting at most a few seconds, E_max is the

maximal anaerobic alactic power ( _Almax; di Prampero 1981; Ferretti et al. 1987). For supramaximal exercise, lasting some tenths of seconds, it is the sum of maximal aerobic power (as reflected by the maximal oxygen consumption, _VO2max) plus the maximal anaerobic lactic

power ( _Lamax, di Prampero and Ferretti 1999; Margaria

et al.1964): _

Emax¼ VO_ 2maxþ _Lamax

ð3Þ whence, after substitution of Eq.3 into Eq.2:

vmax¼ VO_ 2maxþ _Lamax

C1: ð4Þ

For prolonged exercise, relying on aerobic metabolism, _

Emax should correspond to _VO2max: Yet _VO2max can be

sustained only for some 8–10 min (Lacour et al. 1990; Padilla et al. 1992), although di Prampero et al (1993) assumed 14 min in their modelling of middle-distance running. For longer exercise duration, _Emax is lower than

_

VO2max; and we must account for the fraction of _VO2max

actually sustainable over a given time (fractional utilisation of VO_ 2max, Fu). Of course, when _Emax _VO2max; then

Fu= 1 and cancels out. On the other hand, when _

Emax\ _VO2max and Fu\ 1, anaerobic metabolisms do not intervene as long as the metabolic steady state has been attained, after some 3 min. So we have:

_

Emax¼ FuVO_ 2max: ð5Þ

Submaximal aerobic exercise has a great advantage from the experimental viewpoint, that a simple measure of oxygen consumption VO_ 2

is sufficient to provide an overall measure of _E: Thus, the study of aerobic exercise and the prediction of best long-distance performances have largely prevailed in the literature. It is in that context that Eq. 5has gained large diffusion, thanks to its simplicity. It is worth mentioning, however, that Eqs.2and5rely on the assumptions that _Emaxand C do not vary with time during

running, which is not exactly the case (Bru¨ckner et al.

1991), so that they can be considered also as nice experi-mental shortcuts.

It follows that _Emax decreases with the total exercise

duration, and thus with the distance to be covered. As a corollary, for any given subject’s _VO2max; Fuis lower the longer the sustainable exercise time (tlim). The relation of the maximal sustainable power to tlimwas investigated by Wilkie (1980) for an exercise duration up to 10 min, thus implying Fu= 1 and _La [ 0 (Fig.1). In fact Wilkie applied nothing but the hyperbolic model firstly suggested by Hill (1925), further developed by Scherrer and Monod (1960), and later modified by Lloyd (1966). Starting from Wilkie’s analysis, di Prampero et al (1993) calculated the overall amount of energy used to cover a given distance in a given time, and took into account not only the three energy sources for muscular exercise, but also the fact that

_

VO2max is not reached instantaneously at the onset of

exercise, but with a delay. A similar, although slightly more complex, approach was previously used by others (Pe´ronnet and Thibault 1989) to analyse running perfor-mance and records over a wider panel of distances.

The kinetics of O2 consumption inside contracting muscles can be conveniently described with a single-exponential equation, the time constant of which may range from 10 s (e.g. Francescato et al.2003) to 23 s (e.g. Binzoni et al.1992) in normal fit subjects. This allows a precise distinction of the contribution of aerobic and anaerobic alactic energy sources to energy expenditure. At first approximation, however, since the fraction of energy derived from anaerobic alactic energy sources, which are used in the exercise transient only, decreases with exercise duration, it can be neglected at least for endurance exer-cise, when Emax\ _VO2max. Moreover, in this condition, a

simple measure of steady state _VO2 informs on the entire

metabolic power sustaining exercise, so that _Emax can

indeed be derived from measures of _VO2 only.

Maximal metabolic capacity

In contrast to power, capacity (in kJ or in L of O2 equiv-alents, di Prampero 1981) deals with the quantity of available energy (tank volume, in the case of cars). Thus, the maximal capacity of a given energy metabolism cor-responds to the maximal amount of energy that can be derived from the available energy metabolism.

The maximal capacity of anaerobic alactic metabolism is set by the contracting muscle mass and by the concentration of ATP and phosphocreatine in muscles. On average, ATP concentration is 5–8 mmol kg-1 of wet muscle mass (di Prampero et al.1969; Sahlin et al.1975). Thanks to the fact that the equilibrium constant of the Lohmann’s reaction is *20 (Carlson and Siger1960), ATP concentration remains unchanged over a wide variety of situations, decreasing only when phosphocreatine concentration becomes criti-cally low. In resting muscles, phosphocreatine concentra-tion is about 20 mM kg-1of wet muscle mass (di Prampero

1981). The overall amount of high-energy phosphates is small, insufficient to allow prolongation of exercise at _Almax

beyond a few seconds: a very high power is inevitably coupled with a rather small capacity.

Anaerobic lactic capacity is not limited by substrate availability, but by the ability of skeletal muscles to accu-mulate lactate. When performing supramaximal exercise, exercise is stopped when blood lactate concentration reaches some 16–20 mM in most cases (di Prampero1981; di Prampero and Ferretti1999). The time necessary to reach such lactate concentration in blood, and thus exhaustion, during supramaximal exercise varies with power. At _Lamax;

it is some 40 s (Margaria et al.1964; Grassi et al. 1995). Note that the 20 mM lactate concentration is not an upper limit in blood lactate accumulation: this value is somewhat higher in power athletes (Lacour et al. 1990), has been overtaken after bicarbonate administration (Nielsen et al.

2002), and does not correspond to the maximal blood lactate concentration attained at the end of intermittent supra-maximal exercise bouts (Osnes and Hermansen1972).

More complex is the subject of aerobic exercise capacity, because two metabolic pathways interact in determining it, differing in substrate availability. The oxidation of free fatty acids relies on a huge amount of lipids stored in the body. However, mobilisation of free fatty acids is a complex, slow phenomenon, with considerable inertia. Oxidation of intra-muscular glycogen is faster, but the amount of glycogen in the body is much less than that of lipids. As a consequence, the capacity of aerobic metabolism is much less when gly-cogen only acts as energy source than when lipids only are used. Both pathways are simultaneously active in exercise, but the fraction of aerobic energy derived from glycogen oxidation is greater the higher the exercise intensity relative to _VO2max (di Prampero 1981). This implies that aerobic Fig. 1 aMaximal mechanical power sustainable on a cycle

ergom-eter ( _we, kW) as a function of exercise duration. The interpolating function is described by: w_e¼ 0:273 þ 16t1 0:273 tð 1Þ

1 et=s
_{; where _w}

eis in kW, t is in s and s = 10 s (from Wilkie 1980). b Maximal sustainable metabolic power ( _Emax, in kW) as a function of exercise duration on cycle ergometer in a top-level athlete. The dashed horizontal line indicates the metabolic power corre-sponding to _VO2max. The inferior curve describes the power actually sustained by aerobic metabolism. The superior curve represents _Emax; and reproduces the curve of panel a after accounting for the efficiency of exercise. Thus, the vertical distance between the two curves corresponds to the power contributed by anaerobic metabolism (lactic and alactic) (from di Prampero1985b)

capacity declines with increasing metabolic power relative to _VO2max. At powers corresponding to 85–90% of _VO2max;

all aerobic energy is provided by glycogen and glucose oxidation, and when glycogen stores are almost exhausted, exercise is stopped (Blom et al. 1986; Hermansen et al.

1967). At lower powers, not only is the rate of glycogen oxidation less, but also lipids contribute to energy produc-tion, and the more the lower is the exercise intensity.

Table1provides an overview of the power (in Watts) and capacity (in Joules) of each of the three main metabolic energy sources. Note that capacity is maximal when power is minimal and vice versa. _Lamaxis some 1.5 times higher than

_

VO2max in non-athletes. _VO2max; however, is higher in

endurance athletes than in non-athletes and sprint athletes, whereas _Lamaxis higher in sprint athletes than in non-athletes

and endurance athletes. The same is true for _Almax. So,

endurance athletes have similar _VO2maxand _Lamax; whereas

sprint athletes have a larger difference between _Lamax and

_

VO2max (di Prampero 1981). In fact, there is a negative

relationship between maximal aerobic and anaerobic powers (Crielaard and Pirnay1981). All maximal metabolic powers (aerobic and anaerobic) decrease with age. _Lamaxand _Almax

are lower in subjects acclimatized to altitude (di Prampero and Ferretti1999). _VO2max decreases in hypoxia (see e.g.

Cerretelli and di Prampero 1987; Ferretti 1990) and can obviously be trained (Ekblom et al.1968; Hoppeler et al.

1985). Trainable should also be _Lamaxand _Almax; although no

study has yet been carried out in support of this assertion.

The limits of power _

Almax is limited by the maximal rate at which ATP is

re-synthesized via Lohmann’s reaction. This is about one half

of the maximal rate of ATP utilisation, which, however, is maintained only over a few milliseconds, when the maxi-mal instantaneous muscular power is developed (Ferretti et al.1987). In turn, the maximal rate of ATP utilisation is related to the maximal muscle contraction velocity, which is set by the isoform of myosin heavy chain that is expressed in a given muscle fibre type (Bottinelli 2001). This explains why, for instance, the highest values of maximal instantaneous muscular power are found in sprint athletes, who are characterised by elevated fraction of type IIx fibres in their lower limb muscles. Similarly, we can assert that _Lamax corresponds to the maximal rate of

gly-colytic activity. This corresponds to the maximal rate at which lactate is accumulated in muscle and is reflected by the maximal rate at which lactate is accumulated in blood (Margaria et al.1964; di Prampero and Ferretti1999).

By contrast, when we deal with the subject of _VO2maxin

terms of limitation, we have to take into account the fact that _VO2maxis an overall integrated parameter, which relies

not only on biochemical pathways, but also and mostly on O2flow from ambient air to mitochondria. Thus it has to do with pulmonary ventilation, gas-to-blood O2transfer, blood O2 transport and peripheral O2 diffusion and utilisation. The multifactorial models of _VO2maxlimitation are perhaps

the most satisfactory tools available nowadays for dis-cussing this subject in quantitative terms. Two models can be considered, the details of which can be found in the original publications and thus are not reported here: the one developed by Wagner (1992, 1993), and the other origi-nally proposed by di Prampero (1985a; di Prampero and Ferretti1990; Ferretti and di Prampero 1995; di Prampero

2003). Both models are algebraic tools that move from the O2 conductance equation as applied to maximal exercise (Taylor and Weibel1981). They differ under one respect: how they deal with O2transport by the circulation.1

According to Wagner, blood O2 transport is a mere convective step. As a consequence, (1) an analogous of resistances in-series is not applicable; (2) O2 flows from alveoli to blood are supported by the difference between alveolar and mean capillary O2partial pressure (PO2); (3) there is no PO2difference between pulmonary capillaries and peripheral capillaries; (4) mean capillary PO2 is the driving force of O2diffusion into muscles. The attention is centered on diffusion, and the diffusion–perfusion inter-action equations of Piiper and Scheid (1981) are used to describe O2 transfer. So, no limitation to O2flow by the

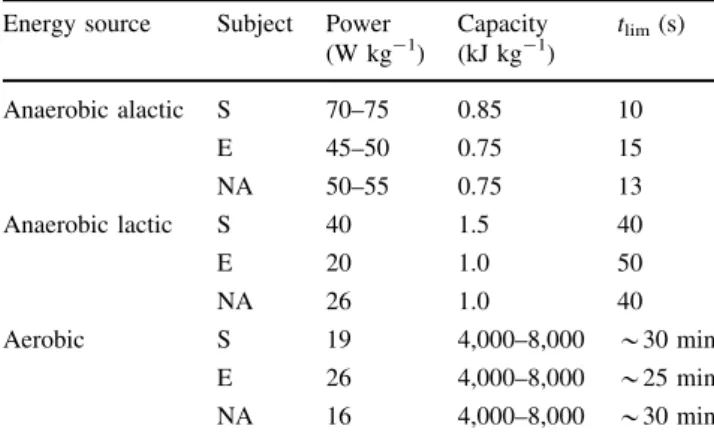

Table 1 Maximal power and capacity of three main energetic path-ways sustaining muscular contraction in humans, and the corre-sponding exhaustion time (tlim) at the maximal power

Energy source Subject Power (W kg-1) Capacity (kJ kg-1) tlim(s) Anaerobic alactic S 70–75 0.85 10 E 45–50 0.75 15 NA 50–55 0.75 13 Anaerobic lactic S 40 1.5 40 E 20 1.0 50 NA 26 1.0 40 Aerobic S 19 4,000–8,000 *30 min E 26 4,000–8,000 *25 min NA 16 4,000–8,000 *30 min

Data from di Prampero (1985b), di Prampero and Ferretti (1999) and Ferretti and Capelli (2008)

S sprint athlete, E endurance athlete, NA non-athlete

1 _{In 1740, Johann Sebastian Bach, starting from a clavier theme,} wrote 30 celebrated variations known as the Goldberg variations. Starting from a biophysical theme (the oxygen conductance equa-tions), physiologists were able to create and write only two variations (Wagner’s and di Prampero’s on oxygen flow limitation). According to some wise men, this demonstrates the inferiority of physiology to music.

circulation, described by means of the Fick equation, is included.

On the other hand, di Prampero looked at circulatory O2 transfer as one of the numerous in-series resistances along the respiratory system. As a consequence, (1) a physio-logical analogue of the model of resistances in-series is applicable indeed; (2) O2 flow from alveoli to blood is supported by the difference between alveolar and arterial PO2; (3) the driving force of O2flow in blood circulation is the difference between arterial and mixed venous PO2; (4) mixed venous PO2is the driving force of O2diffusion into muscles. Attention is centered on blood flow, which pro-vides most of the limit to _VO2max.

The above differences of course have led to markedly different experimental conceptions in testing di Prampero’s (Bringard et al.2010; Esposito and Ferretti1997; Ferretti et al.1997a,b; but see also Brink-Elfegoun et al.2007) and Wagner’s (Knight et al.1993; Richardson et al.1995a,b; Schaffartzik et al. 1993) _VO2max limitation models. Both

models have drawbacks, but they share a great advantage with respect to other approaches proposed so far: i.e. they provide clear quantitative analysis of the limits of an integrative parameter. Unfortunately, this appears not always to be sufficiently recognized, as exemplified by the enduring mere qualitative analyses of _VO2max limitation

(e.g. Levine2008).

Moreover, di Prampero’s model provides a solution of the O2conductance equation for the specific case in which only one resistance to O2flow is permitted to vary. This allows a precise quantitative determination of the fraction of the _VO2max limitation provided by the single resistance

in question. On this basis, the conclusion was attained that circulatory O2 flow is responsible for some 70% of the overall limitation of _VO2max (di Prampero and Ferretti 1990), a figure that has however resisted robust experi-mental testing so far (e.g. Bringard et al.2010).

Energy cost of human locomotion on land

As detailed analyses of the energy cost of the different types of human locomotion on land appear in several exhaustive reviews (Taylor and Heglund1982; di Pramp-ero1986,2000,2003; Saibene and Minetti2003), so only general principles are reported here. These principles in fact apply to all types of locomotion, whether in air or in water, but water locomotion faces specific problems that are discussed elsewhere in this issue (Zamparo2010).

Let us recall, as already pointed out, that a body moving on land must overcome frictional forces and aerodynamic forces (air resistance or drag, see, e.g. di Prampero1986). Drag (D) is proportional to the square of speed:

D¼ k v2 _ð6Þ

where constant k is proportional to air density q, the drag coefficient (Cx), and the projection area on the frontal plane (A):

k¼1_{=2qCxA ð7Þ}

q is some 800 times greater for water than for air, which largely explains the much slower speeds attained in swimming than in terrestrial locomotion. In air, it is directly proportional to barometric pressure (PB) and inversely proportional to temperature. Cx is a non-dimensional number depending on the surface characteristics and on the geometrical shape of the moving body, as well as on the characteristics of the surrounding air flow. In the speed range of physiological relevance, it can be considered independent of fluid speed. A is the frontal surface area facing air on the direction of movement. Combining Eqs. 6and7and rearranging, we have:

DA1¼ Pd¼1=2qCxv2 ð8Þ

where Pdis the dynamic pressure exerted on the moving body. It is noteworthy that, ceteris paribus, Pd is directly proportional to Cx. As a consequence, dynamically favourable shapes are characterised by low Cxvalues, with a value well below 1, such as aerodynamic contemporary cars or track bicycles used for record trials (Capelli et al.

1993; di Prampero2000).

Since D is a force, it can also be expressed as mechanical work per unit of distance, so that:

D¼ Cdg¼ kv2 ð9Þ

where Cd is the fraction of the energy cost necessary to overcome air resistance. As a consequence,

Cd ¼ kg1v2¼ k0v2: ð10Þ

Because of Eq.1, we can also write: _

Ed ¼ Cdv¼ k0v3 ð11Þ

which indicates that the metabolic power overcoming air resistance E_d

is directly proportional to the cube of speed. If we take into account also the metabolic power against frictional forces E_f

, we then obtain: _

E¼ _Edþ _Ef ¼ k0v3þ _Ef: ð12Þ

A comprehensive analysis of the relationships between _E and v in several types of locomotion on flat terrain in air at sea level was carried out by di Prampero (1986) and is presented in Fig.2. In this figure, the bold curve describes the metabolic power to be dissipated against drag. Its slope corresponds to Cd. It is constructed for a k0 value of 0.774 J s2m-3(di Prampero1985b). Note that the curve is

flattened, and thus apparently displaced rightward and downward when k0is lowered, as when riding aerodynamic bicycles (Capelli et al.1993); it is more curved when k0 is increased, as on ancient bicycles (Minetti et al. 2001). It represents a limit that cannot be trespassed on its right side. All other curves in Fig.2 are displaced leftward with respect to the bold curve, because in all cases metabolic power is to be used against frictional forces as well E_f

. In Fig.2, _Ef corresponds to the vertical distance between the

bold curve and the experimental curve describing each type of locomotion. For skating and cycling, the energy cost against frictional forces (Cf) is a constant independent of speed, at least in the range 2–20 m s-1, thus _Ef is directly

proportional to speed. Of course Cfvaries depending on the interaction between the terrain and the foot or device (wheel, skates, skis). In cycling, Cf depends on the width and type of the tyres, their inflation pressure and on the characteristics of the terrain, and is proportional to the overall weight of bicycle plus human (di Prampero2000). Walking takes place in a speed range where Cd is negli-gible, so that _E¼ _Ef. For running and competitive walking,

Cfvaries linearly with speed, so that _Ef increases with v2.

Average values for k0, Cxand Cfare reported in Table2for different types of locomotion.

Some practical consequences of Fig.2 are that: (1) the fraction of C represented by Cdand Cfvaries with speed and with the locomotion type; (2) because of the striking although fortuitous similarity of k0, _Edat any given speed is

similar among locomotion modes; (3) differences in vmax are essentially due to differences in _Ef. Particularly in

cycling, _Ef is minimized by the rotational movement of the

wheel and by the absence of work against gravity due to body stabilisation by the bike, so that most of _E can indeed be used to overcome air resistance. This is why cycling leads to reach the highest speeds in human locomotion.

Maximal running speed

In athletics, track competitions occur over given distances to be covered at the fastest possible speed. This speed obviously is lower the longer the distance to be covered, in agreement with the empirical model of Wilkie (1980) and following evolutions (Pe´ronnet and Thibault 1989; di Prampero et al. 1993). Equations4 and 5 describe the evolution of _Emax with time. Let us now define _Er as the

metabolic power required to run a given distance in a given time, and vrthe corresponding mean running speed. Since the distance is fixed, vr, and thus _Er (C in running is

independent of speed), is inversely proportional to the running time. Let us now plot the relationships between _Er

and time, a quadratic hyperbola for each given running distance, and between _Emax and time; Wilkie’s empirical

model. The two curves have different concavity, so they cross on a specific point. That point indicates the sustain-able metabolic power and the record time (trec, di Prampero et al.1993, Fig.3). In fact, at shorter times (faster speeds),

Fig. 2 The thin curves represent the metabolic power above resting (left ordinate _E; in kW, or right ordinate _VO2; in L min-1) as a function of speed (v, in m s-1). They are established for a 70-kg heavy and 175-cm tall subject who moves on flat terrain at sea level (PB= 760 mmHg) on a windless day with an air temperature of 20°C (m walking, m* competitive walking, c running, p skating, b bicycling). The thick curve on the right indicates the power necessary to overcome the air resistance and is constructed for a constant k0 value of 0.774 J s2m-3: the same curve applies to all types of human locomotion on land. The vertical distance between the thick curve and each of the thin curves represents the power necessary to overcome non-aerodynamic, frictional forces in each type of locomotion. The horizontal dashed line on top describes the _VO2maxof a top endurance athlete (1.8 kW in this case). The intersection of the dashed line with the thin curves indicates the maximal velocity that the athlete can attain in aerobic conditions (indicated in km h-1_{on top).} Below each of these intersections a histogram is drawn. The dotted part of the histograms indicates the fraction of _E used to overcome air resistance (from di Prampero (1985b))

Table 2 Parameters describing various types of human locomotion on land Locomotion mode k0 (J s2m-3) Cx Cf(J m-1kg-1) Running 0.72 1.10 3.9* Skating 0.79 0.50 1.0 Cycling, race 0.77 0.75 0.17 Cycling, traditional 1.14 1.00 0.27 Cycling, aerodynamics 0.58 0.65 0.15

Data derived from di Prampero (1985b, 2000) and Capelli et al (1993). The values refer to a subject 175 cm tall and with a 75 kg body, studied at sea level (PB760 mmHg, ambient temperature 20°C,

relative humidity 50%). For cycling, a total mass (cyclist plus bicycle) of 85 kg was assumed

k0constant relating the energy cost to overcome aerodynamic forces to the square of speed, Cxaerodynamic (drag) coefficient, Cfenergy cost against frictional forces

the athlete would be unable to provide all the required metabolic power, because _Er[ _Emax; whereas for longer

times (slower speeds) the athlete could deliver more

metabolic power than requested to run at that speed, because _Er[ _Emax: the best performance time occurs when

_

Er ¼ _Emax. This approach, whose detailed quantitative

analysis can be found elsewhere (di Prampero et al.1993; di Prampero 2003), applies to any type of locomotion (Capelli1999).

It is also noteworthy that, the shorter the distance, the greater is the role played by acceleration at running start. di Prampero et al (2005) have considered acceleration in sprint running analogous to running uphill at constant speed, with slope proportional to acceleration. This implies a further increase in C with respect to running at constant speed on the level, so that the Wilkie’s relation between _Emaxand time, for

time shorter than 5 min, deviates upward.

An improvement of trecis attained when the _Emaxcurve

is shifted upward. This can be achieved either by increas-ing _VO2maxand/or maximal anaerobic power and capacity,

or by reducing C. Capelli (1999) investigated the quanti-tative role of these variables in determining trec(Fig.4). He computed the percent changes in trec induced by given percent changes in each of the variables at stake. Figure4

shows that (1) C is the main physiological determinant of performance; (2) the role of aerobic power increases with

Fig. 3 Metabolic power ( _E; in kW) as a function of time. The _Er curve describes how the power required to run the 800 m distance varies with exercise time. The _Emaxcurve describes the variations of the maximal sustainable metabolic power as a function of exercise time. The best performance of the athlete at stake (trec) is indicated by the intersection of the two curves (after di Prampero et al.1993)

Fig. 4 Percent improvement or deterioration of record time as a function of percent variations of aerobic power, anaerobic lactic capacity, anaerobic alactic capacity and energy cost of running on the three indicated distances (after Capelli1999)

the distance covered, and thus with the performance time; (3) the role of anaerobic capacity decreases with the dis-tance covered, becoming negligible in running at disdis-tances above 5 km. Note that, whereas C is barely modifiable in running, it can undergo remarkable reductions in cycling, when aerodynamic bicycles are used. Moreover, remark-able reductions of C can be obtained in swimming through improvement of the swimming technique and through the improvement of floating by means of contemporary buoyant suites (Chatard and Wilson2008).

The effects of altitude

Barometric pressure is the pressure exerted on the Earth surface by the air column above it. Thus, its value depends on the height of the air column, so that PBdecreases with alti-tude. Because of Dalton’s law, and because the composition of dry air is constant around the Earth, with 20.94% O2, the decrease in PBentails a decrease in the inspired PO2(PIO2). In fact the decrease in PIO₂is even larger than that in P_B,

because the water vapour pressure to be subtracted to obtain dry air at body temperature (conventionally 37°C) is invariant (47 mmHg) and independent of the overall pres-sure. For example, whereas at sea level (PB= 760 mmHg) PIO₂ equals 149 mmHg, on top of Mount Everest

(PB= 253 mmHg, one third of that at sea level) PIO2 is 43 mmHg (less than one third of that at sea level) (West et al.

1983). The reduction of PB, and thus of PIO2, is the cause of the reduction of _VO2maxat altitude (Cerretelli and Margaria 1961; Cerretelli1980; Ferretti1990). On the other hand, the decrease in PBis accompanied by a proportional decrease in q, which is only partially corrected for by the concomitant decrease in ambient temperature. What is the final effect on vmax of these two effects of PB, which act in opposite directions, since the former reduces _Emaxwhereas the latter

reduces Cd? It depends on (1) the type of locomotion; (2) the exercise intensity; and (3) the intrinsic characteristics of the effects of altitude on _VO2max.

Concerning the first item, Fig.2clearly shows that the fraction of C represented by Cdincreases with the speed. Thus the role of Cdin establishing vmaxis minimal in running, nil in walking, and maximal in cycling. As a consequence, vmaxin endurance running at altitude is affected essentially by the decrease in _VO2max: This explains for instance the

results obtained at the Olympic Games in Mexico City (2,200 m above sea level), when all runners competing at distances from 5 km and above had significant reductions in performances. Noteworthy at this purpose is the progressive decrease in the average speed on the marathon with altitude, which parallels that in _VO2max(Roi et al.1999). Of course,

when exercise intensity goes up, vmaxalso increases, so that the relative role of Cdin determining vmaxbecomes higher.

So the effects of q reduction become more and more evident, whereas the shorter duration of supramaximal exercise reduces the impact of the _VO2max reduction. This explains

why at the Olympic Games in Mexico world records were established in all running events shorter than 800 m.

Cycling is the locomotion mode in which most influen-tial is the effect of Cd on vmax, and thus in which most efficient is the reduction of q in counterbalancing the neg-ative effects of the VO_ 2max decrease on performance.

Because of the non-linearity of the _VO2max decrease at

altitude, due to the effects of the O2equilibrium curve on _

VO2max in hypoxia (Ferretti et al.1997b), at relatively low

altitudes the beneficial effects of q reduction on Cdprevail on the negative effects of _VO2max reduction on _Emax in

determining long-lasting aerobic performance. Thus, as altitude is increased, vmaxfirstly increases to reach a peak, and then it decreases (di Prampero et al.1979; Capelli and di Prampero1995). The decrease in vmaxtakes place as soon as the athlete operates on the linear part of the oxygen equilibrium curve, where the decline of _VO2max becomes

more important than that of q. Based on the classical rela-tionship between _VO2max and altitude, di Prampero et al

(1979) estimated that the optimal altitude for best perfor-mances in 1 h track cycling was about 3,600 m above sea level (Fig.5). Incidentally there is a velodrome at such altitude, in La Paz, Bolivia, but all 1 h record attempts in La

Fig. 5 Evolution of the maximal cycling speed at altitude. Speed is expressed relative to the maximal speed at sea level, set equal to 1 (vrecalt/vrecsl , ordinate). The top curve represents the predictions made after di Prampero et al (1979), based on the classical description of the VO_ 2max decrease at altitude. The lower curve modifies the previous prediction by accounting for the fact that athletes undergo greater _VO2max decrease than non-athletes (Ferretti et al. 1997b), because of the ‘‘Dempsey’’ effect (Dempsey et al. 1984). The two experimental points refer to the actual performances of the two athletes (right Francesco Moser from Italy, left Jeannie Longo from France) who in the eighties established world records of 1 h unaccompanied cycling on track at sea level and at altitude with equivalent bicycles (after Ferretti and Capelli2008)

Paz have to date failed. Moreover, the two athletes who established 1 h records at sea level and at altitude with similar bikes attained lesser performances at altitude than predicted. The discrepancy between prediction and actual performance may rely on the ‘‘Dempsey’’ effect (Dempsey et al. 1984; Dempsey and Wagner 1999). In fact when endurance athletes with high _VO2max values perform

max-imal exercise at sea level, they typically undergo desatu-ration of arterial blood, so that they operate closer to the steep part of the O2equilibrium curve. As a consequence, when they are exposed to hypoxia, they undergo a greater

_

VO2max decrease than those who do not desaturate (e.g.

non-athletes), since the decline of _VO2max in hypoxia is a

mirror image of the O2 equilibrium curve (Ferretti et al.

1997b). If the greater decrease in _VO2maxin athletes than in

non-athletes is accounted for in predicting the maximal cycling performance at altitude, a closer correspondence between prediction and performance is observed (see Fig.5).

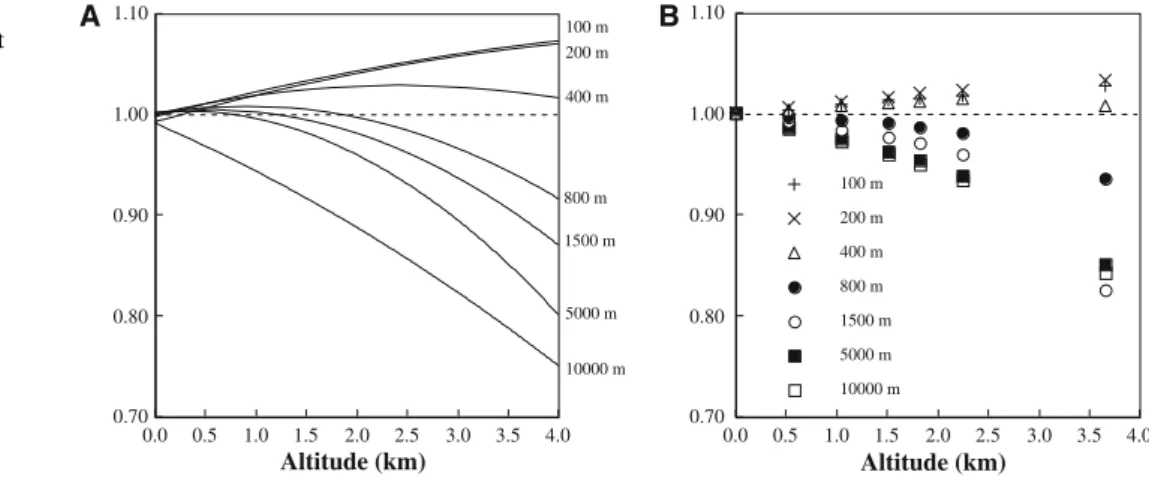

Similar approaches to the investigation of maximal performance at altitude can be applied to any type of locomotion. However, the benefits of q reduction, and thus the positive effect of altitude on vmax, become less evident as _Efis increased. The effects of altitude on performance in

running different distances were modelled by Pe´ronnet et al (1991) and their results are reported in Fig.6. It appears that, at least with aerobic exercise (e.g. 5 and 10 km events), there is an almost immediate decrease in vmax at altitude. However, the benefits of altitude on performance become more and more evident, as long as the distance is shortened, the speed is increased and anaerobic energy sources prevail.

Conclusions

The analytical approach of di Prampero et al (1993) to the study of best performances in human locomotion is perhaps

the best quantitative tool available nowadays for our understanding of human performance. In practice, it implies that performance can be improved as far as we succeed in improving vmax, which, according to Eq.1in its various specific versions, can be achieved essentially along two ways: (1) increasing _Emax; (2) decreasing C. The

physiological determinants of both have been discussed in this article. Sudden decreases in C have provided the most dramatic changes in performance, as occurred in cycling, for example when aerodynamic bicycles were introduced, or more recently in swimming with contemporary buoyant suites. Also, the evolution of track elasticity has contrib-uted to improving performance in running.

Acknowledgments This study was supported by grants of the University of Brescia to Guido Ferretti and Renza Perini, and by grants from Swiss National Science Foundation to Guido Ferretti.

References

Binzoni T, Ferretti G, Schenker K, Cerretelli P (1992) Phosphocre-atine hydrolysis by 31P-NMR at the onset of constant-load exercise in humans. J Appl Physiol 73:1644–1649

Blom PC, Vøllestad NK, Costill DL (1986) Factors affecting changes in muscle glycogen concentration during and after prolonged exercise. Acta Physiol Scand Suppl 556:67–74

Bottinelli R (2001) Functional heterogeneity of mammalian single muscle fibres: do myosin isoforms tell the whole story? Pflugers Arch 443:6–17

Bringard A, Pogliaghi S, Adami A, De Roia G, Lador F, Lucini D, Pizzinelli P, Capelli C, Ferretti G (2010) Cardiovascular determinants of maximal oxygen consumption in upright and supine posture at the end of prolonged bed rest in humans. Respir Physiol Neurobiol. doi:10.1016/j.resp.2010.03.018

Brink-Elfegoun T, Kaijser L, Gustafsson T, Ekblom B (2007) Maximal oxygen uptake is not limited by a central nervous system governor. J Appl Physiol 102:781–786

Bru¨ckner JC, Atchou G, Capelli C, Duvallet A, Barrault D, Jousselin E, Rieu M, di Prampero PE (1991) The energy cost of running increases with the distance covered. Eur J Appl Physiol 62:385– 389

Capelli C (1999) Physiological determinants of best performances in human locomotion. Eur J Appl Physiol 80:298–307

Altitude (km) Altitude (km) 0.70 0.80 0.90 1.00 1.10 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 10000 m 5000 m 1500 m 800 m 400 m 200 m 100 m 0.70 0.80 0.90 1.00 1.10 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 10000 m 5000 m 1500 m 800 m 200 m 100 m 400 m A B

Fig. 6 Relative changes in record speed with respect to that at sea level (vrecalt/vrecsl) as a function of altitude in various athletics distances, from 100 m to 10 km. a Results of theoretical analysis. bExperimental data points derived from world record tables before 1991, for records established at altitudes comprised between sea level and 3,600 m. Data after Pe´ronnet et al (1991)

Capelli C, di Prampero PE (1995) Effects of altitude on top speeds during 1 h unaccompanied cycling. Eur J Appl Physiol 71:469– 471

Capelli C, Rosa G, Butti F, Ferretti G, Veicsteinas A, di Prampero PE (1993) Energy cost and efficiency of riding aerodynamic bicycles. Eur J Appl Physiol 65:144–149

Carlson FD, Siger A (1960) The creatine phosphoryltransfer reaction in iodoacetate poisoned muscle. J Gen Physiol 43:301–313 Celentano F, Cortili G, di Prampero PE, Cerretelli P (1974)

Mechanical aspects of rowing. J Appl Physiol 36:642–647 Cerretelli P (1980) Gas exchange at high altitude. In: West JB (ed)

Pulmonary gas exchange. Volume II: Oxygen and environment. Academic Press, New York, pp 97–147

Cerretelli P, di Prampero PE (1987) Gas exchange in exercise. In: Farhi LE, Tenney SM (eds) Handbook of physiology. The respiratory system III. Vol 4: Gas exchange. The American Physiological Society, Bethesda, MD, pp 297–339

Cerretelli P, Margaria R (1961) Maximum oxygen consumption at altitude. Int Z Angew Physiol 18:460–464

Chatard JC, Wilson B (2008) Effect of fast skin suits on performance, drag, and energy cost of swimming. Med Sci Sports Exerc 40:1149–1154

Crielaard JM, Pirnay F (1981) Anaerobic and aerobic power of top athletes. Eur J Appl Physiol 47:295–300

Dempsey JA, Wagner PD (1999) Exercise-induced arterial hypox-emia. J Appl Physiol 87:1997–2006

Dempsey JA, Hanson PG, Henderson KS (1984) Exercise-induced arterial hypoxaemia in healthy human subjects at sea level. J Physiol Lond 355:161–175

di Prampero PE (1981) Energetics of muscular exercise. Rev Physiol Biochem Pharmacol 89:143–222

di Prampero PE (1985a) Metabolic and circulatory limitations to VO2max at the whole animal level. J Exp Biol 115:319–331 di Prampero PE (1985b) La locomozione umana su terra, in acqua, in

aria: fatti e teorie. Edi Ermes, Milano

di Prampero PE (1986) The energy cost of human locomotion on land and in water. Int J Sports Med 7:55–72

di Prampero PE (2000) Cycling on earth, in space, on the moon. Eur J Appl Physiol 82:345–360

di Prampero PE (2003) Factors limiting maximal human performance. Eur J Appl Physiol 90:420–429

di Prampero PE, Ferretti G (1990) Factors limiting maximal oxygen consumption in humans. Respir Physiol 80:113–128

di Prampero PE, Ferretti G (1999) The energetics of anaerobic muscle metabolism: a reappraisal of older and recent concepts. Respir Physiol 118:103–115

di Prampero PE, Cerretelli P, Piiper J (1969) O2consumption and metabolite balance in the dog gastrocnemius at rest and during exercise. Pflu¨gers Arch 309:38–47

di Prampero PE, Cortili G, Celentano F, Cerretelli P (1971) Physiological aspects of rowing. J Appl Physiol 31:853–857 di Prampero PE, Pendergast DR, Wilson DW, Rennie DW (1974)

Energetics of swimming in man. J Appl Physiol 37:1–5 di Prampero PE, Mognoni P, Cortili G, Saibene F (1976) The energy

cost of speed skating and the efficiency of work against the air resistance. J Appl Physiol 40:584–591

di Prampero PE, Cortili G, Mognoni P, Saibene F (1979) Equation of motion of a cyclist. J Appl Physiol 47:201–206

di Prampero PE, Atchou G, Bru¨ckner JC, Moia C (1986) The energetics of endurance running. Eur J Appl Physiol 55:259–266 di Prampero PE, Capelli C, Pagliaro P, Antonutto G, Girardis M, Zamparo P, Soule GR (1993) Energetics of best performances in middle-distance running. J Appl Physiol 74:2318–2324 di Prampero PE, Fusi S, Sepulcri L, Morin JB, Belli A, Antonutto G

(2005) Sprint running: a new energetic approach. J Exp Biol 208:2809–2816

Ekblom B, A˚ strand PO, Saltin B, Stenberg J, Wallstro¨m B (1968) Effect of training on circulatory response to exercise. J Appl Physiol 25:619–625

Esposito F, Ferretti G (1997) The effects of breathing He–O2mixtures on maximal oxygen consumption in normoxic and hypoxic men. J Physiol Lond 503:215–221

Ferretti G (1990) On maximal oxygen consumption in hypoxic humans. Experientia 46:1188–1194

Ferretti G, Capelli C (2008) Dagli abissi allo spazio. Cap.1: Ambiente esercizio, massime prestazioni nell’uomo. Edi Ermes, Milano, pp 1–38

Ferretti G, di Prampero PE (1995) Factors limiting maximal O2 consumption: effects of acute changes in ventilation. Respir Physiol 99:259–271

Ferretti G, Gussoni M, di Prampero PE, Cerretelli P (1987) Effects of exercise on maximal instantaneous muscular power of humans. J Appl Physiol 62:2288–2294

Ferretti G, Antonutto G, Denis C, Hoppeler H, Minetti AE, Narici MV, Desplanches D (1997a) The interplay of central and peripheral factors in limiting maximal O2consumption in man: the effects of prolonged bed rest. J Physiol Lond 501:677–686 Ferretti G, Moia C, Thomet JM, Kayser B (1997b) The decrease of

maximal oxygen consumption during hypoxia in man: a mirror image of the oxygen equilibrium curve. J Physiol Lond 498:231–237 Francescato MP, Cettolo V, di Prampero PE (2003) Relationship

between mechanical power, O2consumption, O2deficit and high energy phosphates during calf exercise in humans. Pflugers Arch 445:622–628

Grassi B, Ferretti G, Kayser B, Marzorati M, Colombini A, Marconi C, Cerretelli P (1995) Maximal rate of blood lactate accumu-lation during exercise at altitude in humans. J Appl Physiol 79:331–339

Hermansen L, Hultman E, Saltin B (1967) Muscle glycogen during prolonged severe exercise. Acta Physiol Scand 71:129–139 Hill AV (1925) The physiological basis of athletic records. Nature

116:544–548

Hoppeler H, Howald H, Conley KE, Lindstedt SL, Claassen H, Vock P, Weibel ER (1985) Endurance training in humans: aerobic capacity and structure of skeletal muscle. J Appl Physiol 59:320– 327

Knight DR, Schaffartzik W, Poole DC, Hogan MC, Bebout DE, Wagner PD (1993) Effects of hyperoxia on maximal leg O2 supply and utilization in men. J Appl Physiol 75:2586–2594 Lacour JR, Bouvat E, Barthe´le´my JC (1990) Post-competition blood

lactate concentrations as indicators of anaerobic energy expen-diture during 400-m and 800-m races. Eur J Appl Physiol 61:172–176

Levine BD (2008) VO2max: what do we know, and what do we still need to know? J Physiol Lond 586:25–34

Lloyd BB (1966) The energetics of running: an analysis of world records. Adv Sci 103:515–530

Margaria R, Cerretelli P, Mangili F (1964) Balance and kinetics of anaerobic energy release during strenuous exercise in man. J Appl Physiol 19:623–628

Minetti AE, Pinkerton J, Zamparo P (2001) From bipedalism to bicyclism: evolution in energetics and biomechanics of historic bicycles. Proc R Soc Lond B 268:1351–1360

Nielsen HB, Bredmose PP, Strømstad M, Volianitis S, Quistorff B, Secher NH (2002) Bicarbonate attenuates arterial desaturation during maximal exercise in humans. J Appl Physiol 93:724–731 Osnes JB, Hermansen L (1972) Acid base balance after maximal

exercise of short duration. J Appl Physiol 32:59–63

Padilla S, Bourdin M, Barthe´le´my JC, Lacour JR (1992) Physiolog-ical correlates of middle-distance running performance. A comparative study between men and women. Eur J Appl Physiol 65:561–566

Pendergast DR, di Prampero PE, Craig AB, Rennie DW, Wilson DW (1977) Quantitative analysis of the front crawl in men and women. J Appl Physiol 43:474–479

Pe´ronnet F, Thibault G (1989) Mathematical analysis of running performance and world running records. J Appl Physiol 67:453– 465

Pe´ronnet F, Thibault G, Cousineau DL (1991) A theoretical analysis of the effect of altitude on running performance. J Appl Physiol 70:399–404

Piiper J, Scheid P (1981) Model for capillary-alveolar equilibration with special reference to O2uptake in hypoxia. Respir Physiol 46:193–208

Richardson RS, Kennedy B, Knight DR, Wagner PD (1995a) High muscle blood flows are not attenuated by recruitment of additional muscle mass. Am J Physiol 269:H1545–H1552 Richardson RS, Knight DR, Poole DC, Kurdak SS, Hogan MC, Grassi

B, Wagner PD (1995b) Determinants of maximal exercise VO2 during single leg knee-extensor exercise in humans. Am J Physiol 268:H1453–H1461

Roi GS, Giacometti M, von Duvillard SP (1999) Marathons in altitude. Med Sci Sports Exerc 31:723–728

Sahlin K, Harris RC, Hultman E (1975) Creatine kinase equilibrium and lactate content compared with muscle pH in tissue samples obtained after isometric exercise. Biochem J 152:173–180 Saibene F, Minetti AE (2003) Biomechanical and physiological

aspects of legged locomotion. Eur J Appl Physiol 88:297–316

Schaffartzik W, Barton ED, Poole DC, Tsukimoto K, Hogan MC, Bebout DE, Wagner PD (1993) Effect of reduced hemoglobin concentration on leg oxygen uptake during maximal exercise in humans. J Appl Physiol 75:491–498

Scherrer J, Monod H (1960) Le travail musculaire local et la fatigue chez l’homme. J Physiol Paris 52:419–501

Taylor CR, Heglund NC (1982) Energetics and mechanics of terrestrial locomotion. Annu Rev Physiol 44:97–107

Taylor CR, Weibel ER (1981) Design of the mammalian respiratory system. I. Problem and strategy. Respir Physiol 44:1–10 Wagner PD (1992) Gas exchange and peripheral diffusion limitation.

Med Sci Sports Exerc 24:54–58

Wagner PD (1993) Algebraic analysis of the determinants of VO2max. Respir Physiol 93:221–237

West PD, Lahiri S, Maret KH, Peters RM, Pizzo CJ Jr (1983) Barometric pressures at extreme altitudes on Mount Everest: physiological significance. J Appl Physiol 54:1188–1194 Wilkie DR (1980) Equations describing power input by humans as a

function of duration of exercise. In: Cerretelli P, Whipp BJ (eds) Exercise bioenergetics and gas exchange. Elsevier, Amsterdam, pp 75–80

Zamparo P, Capelli C, Pendergast D (2010) Energetics of swimming: a historical perspective. Eur J Appl Physiol. doi:10.1007/ s00421-010-1433-7
