Conductive Terrazzo Flooring

Publisher’s version / Version de l'éditeur:

Vous avez des questions? Nous pouvons vous aider. Pour communiquer directement avec un auteur, consultez la

première page de la revue dans laquelle son article a été publié afin de trouver ses coordonnées. Si vous n’arrivez pas à les repérer, communiquez avec nous à [email protected].

Questions? Contact the NRC Publications Archive team at

[email protected]. If you wish to email the authors directly, please see the first page of the publication for their contact information.

https://publications-cnrc.canada.ca/fra/droits

L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.

Report (National Research Council of Canada. Division of Building Research), 1956-06-01

READ THESE TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS WEBSITE.

https://nrc-publications.canada.ca/eng/copyright

NRC Publications Archive Record / Notice des Archives des publications du CNRC :

https://nrc-publications.canada.ca/eng/view/object/?id=6e137040-a098-486a-b9cd-e2a335aecb48 https://publications-cnrc.canada.ca/fra/voir/objet/?id=6e137040-a098-486a-b9cd-e2a335aecb48

NRC Publications Archive

Archives des publications du CNRC

For the publisher’s version, please access the DOI link below./ Pour consulter la version de l’éditeur, utilisez le lien DOI ci-dessous.

https://doi.org/10.4224/20331290

Access and use of this website and the material on it are subject to the Terms and Conditions set forth at Conductive Terrazzo Flooring

NATIONAL RESEARCH COUNCIL CANADA

DIVISION OF BUILDING RESEARCH

CONDUCTIVE TERRAZZO FLOORING

by P.J. Sereda

bu his

r e p o r t has been prepared f o r information and r e c o r d purposes and i s not t o be

r e f e r e n c e d i n any p u b l i c a t i o n ) Report N o .

88

of t h e D i v i s i o n of B u i l d i n g Research Ottawa June

1956

PREFACE

Requests f o r i n f o r m a t i o n on e l e c t r i c a l l y conducting f l o o r s f o r h o s p i t a l o p e r a t i n g rooms d i r e c t e d t h e a t t e n t i o n of t h e D i v i s i o n t o t h i s s p e c i a l f l o o r i n g problem and t o t h e need f o r r e s e a r c h . Most of t h e common f l o o r i n g m a t e r i a l s a r e n o t s u f f i c i e n t l y conducting a s normally used, and must be modified through t h e use of a d d i t i v z s such a s carbon b l a c k which a r e i n c o r p o r a t e d d u r i n g manufacture. Conduc- t i v e t e r r a z z o , which must be manufactured i n p l a c e ,

p r e s e n t s s p e c i a l problems and has been t h e s u b j e c t of s p e c i a l s t u d i e s . T h i s r e p o r t which i s one of s e v e r a l i n p r e p a r a t i o n , d e s c r i b e s t h e r e s u l t s o b t a i n e d w i t h c e r t a i n m o d i f i c a t i o n s which were introduced i n t h e manufacture of

conductive t e r r a z z o i n t h e l a b o r a t o r y .

Ottawa,

CONDUCTIVE TERRAZZO FLOOR~AQLA by

P . J . S e r e d a

The r e a s o n s f o r t h e need of s e m i - c o n d u c t i n g f l o o r i n g i n h a z a r d o u s l o c a t i o n s s u c h a s h o s p i t a l o p e r a t i n g rooms have a l r e a d y been d i s c u s s e d ( 1 ) " The p r o p e r t i e s of a number of commercially a v a i l a b l e c o n d u c t i v e f l o o r i n g m a t e r i a l s have

a l s o been p r e s e n t e d ( 2 ) . A s n o t e d i n ( 2 ) , c o n d u c t i v e t e r r a z z o p r e s e n t s s p e c i a l problems and t h e r e f o r e , some r e s e a r c h on

t h i s m a t e r i a l was done i n a n a t t e m p t t o answer t h e f o l l o w i n g q u e s t i o n s : 1. What i s t h e s t a b i l i t y and r e p r o d u c i b i f i t y of t h e e l e c t r i c a l r e s i s t a n c e of c a r b o n t e r r a z z o f l o o r i n g ; 2 . Can a w e t t i n g a g e n t such a s i s o p r o p y l a l c o h o l be used t o d i s p e r s e t h e a c e t y l e n e c a r b o n ' i n t h e cement and w a t e r mix; 3. Would t h e a d d i t i o n of m e t a l f i l i n g s i n t h e s u r f a c e of t h e f l o o r succeed i n d e c r e a s i n g o r e l i m i n a t i n g t h e h i g h c o n t a c t r e s i s t a n c e t o t h e m a t e r i a l ;

4 .

Can t e r r a z z o s e a l e r s be used i n t h e s u r f a c e of c o n d u c t i v e t e r r a g z o f l o o r i n g w i t h o u t i m p a i r i n g i t s c o n d u c t i v i t y ;

5.

Are s u p e r a b r a s i o n f u r n a c e b l a c k s s u i t a b l e f o r u s e i n t e r r a z z o f l o o r i n g t o i m p a r t c o n d u c t i v i t y . M a t e r i a l s and Samples T e r r a z z o f l o o r i n g samples m s a s u r i n g by 18 i n c h e s were made from p o r t l a n d cement and K O . 1 and No. 2 w h i t e

marble c h i p s i n t h e p r o p o r t i o n s of 1 of cement and 2 of c h i p s . A c e l y t e n e c a r b o n b l a c k s u p p l i e d by Shawinigan Chemicals,

b r a s s f i l i n g s , s u p e r a b r a s i o n f u r n a c e b l a c k d e s i g n a t e d a s P h i l b a c k E s u p p l i e d by P h i l l i p s Chemical Company were t h e a d d i t i v e s used t o i m p a r t e l e c t r i c a l c o n d u c t i v i t y

.

These were p r o p o r t i o n e d by w e i g h t based on t h e weight of cement u s e d . Chemically p u r e i s o p r o p y l a l c o h o l w a s used as a

w e t t i n g a g e n t i n t h e s e e x p e r i m e n t s . Chicken w i r e mesh w i t h 1 - i n c h openings was used i n t h e base of t h e s a m p l e s ,

Samples were made by mixing t h e i n g r e d i e n t s i n a Hobbart mixer i n s m a l l b a t c h e s . Each b a t c h made one sample.

When t h e w e t t i n g a g e n t w a s n o t used, t h e b l a c k was mixed w i t h t h e d r y cement and c h i p s , t h e n w a t e r was added and mixed

t h o r o u g h l y . When t h e w e t t i n g a g e n t was u s e d , t h e cement and c h i p s were mixed w i t h one h a l f of t h e t o t a l w a t e r r e q u i r e d . The i s o p r o p y l a l c o h o l was added t o t h e r e m a i n d e r of t h e w a t e r i n c o n c e n t r a t i o n of

1.5

p e r c e n t t h e n t h e b l a c k was mixed i n t o t h i s s o l u t i o n making a p a s t e . T h i s p a s t e was t h e n added t o t h e cement mix and t h e t o t a l mixed f o r n o t more t h a n

3 mlnut e s

.

The f i r s t s e r i e s of samples c o n s i s t e d of t h e t o p p i n g mix c o n t a i n i n g 2 p p r c e n t a c e l y t e n e c a r b o n b l a c k t r o w e l l e d t o a t h i c k n e s s of ii i n c h o v e r a $ - i n c h m o r t a r underbed c o n t a i n i n g 3 p e r c e n t a c e t y l e n e b l a c k . The w i r e mesh was used i n t h e underbed, S u b s e q u e n t l y t h e underbed was l e f t o u t and t h e to2p:ng mix a l o n e w a s t r o w e l l e d i n t o forms 9 by

18

i n c h e s by

,,

l n c h deep w i t h t h e w i r e mesh a t t h e bottom of t h e f o r m s . The samples were c o v e r e d w i t h p o l y t h e n e membrane and a l l o w e d t o c u r e f o r two weeks. They were t h e n ground and p o l i s h e d u s i n g wet s t o n e s i n a r o t a r y p o l i s h i n g machine. R e s u l t s and D i s c u s s i o n

A l l samples of t e r r a z z o made w i t h 2 p e r c e n t a c e l y t e n e carbon b l a c k showed a remarkable r e p r o d u c i b i l i t y i n e l e c t r i c a l r e s i s t a n c e even though t h e t e c h n i q u e of f a b r i c a t i o n w a s

v a r i e d . T a b l e s I and I1 show t h a t even d r y i n g t h e samples f o r p e r i o d s of 10 d a y s a t 1 3 0 ~ ~ . and 2 2 0 ~ ~ . and d r y i n g i n a room c o n t r o l l e d below 15 p e r c e n t r e l a t i v e h u m i d i t y f o r

s e v e r a l months had l i t t l e e f f e c t on t h e c o n d u c t i u i t y . The low v a l u e of r e s i s t a n c e o b t a i n e d w i t h t h e sample d r i e d slowly i n a room c o n d i t i o n e d below

15

p e r c e n t r e l a t i v e h u m i d i t y may be e x p l a i n e d by t h e f a c t t h a t t h i s sample was n o t washed and some e f f l o r e s c i n g s a l t s may have been brought o u t from t h e sample d u r i n g slow d r y i n g .

T a b l e I11 i n d i c a t e s t h a t t h e c o n d u c t i v i t y of t e r r a z z o was n o t changed a p p r e c i a b l y a s t h e c o n c e n t r a t i o n of a c e t y l e n e

b l a c k was d e c r e a s e d t o

li

p e r c e n t .

Acetylene c a r b o n b l a c k was found most d i f f i c u l t t o d i s p e r s e i n t h e cement and w a t e r mix of t h e t e r r a z z o because

i t i s n o t w e t t e d by w a t e r and h a s a v e r y low a p p a r e n t d e n s i t y . The N a t i o n a l T e r r a z z o and Mosaic A s s o c i a t i o n recommends

i s o p r o p y l a l c o h o l as a w e t t i n g a g e n t . T h i s a g e n t was t h e r e - f o r e i n v e s t i g a t e d w i t h r e s u l t s a s f o l l o w s . A number of samples of t e r r a z z o c o n t a i n i n g 2 p e r c e n t a c e t y l e n e b l a c k were p r e p a r e d u s i n g i s o p r o p y l a l c o h o l a s w e t t i n g a g e n t . T h i s w e t t i n g a g e n t was e f f e c t i v e i n a i d i n g t h e d i s p e r s i o n of a c e t y l e n e b l a c k i n t h e wet t e r r a z z o mix.

When a c e t y l e n e c a r b o n b l a c k was added t o cement i n t h e t e r r a z z o mix, more w a t e r was r e q u i r e d t o make t h e mix workable t h a n was needed f o r t e r r a z z o w i t h o u t t h e b l a c k . When i s o p r o p y l a l c o h o l was used as a w e t t i n g a g e n t f o r t h e

b l a c k , s t i l l more w a t e r was needed t o make t h e mix workable. 'l'he compressive s t r e n g t h (jf t h e t h r e e mixes of about t h e

same w o r k a b i l i t y was d e t e r m i n e d and t h e r e s u l t s p r e s e n t e d i n F i g . 1. It w i l l be n o t e d t h a t t h e a d d i t i o n c f 2 p e r c e n t a c e t y l e n e b l a c k by weight of cement r e s u l t e d i n a d e c r e a s e i n t h e s t r e n g t h of t h e t e r r a z z o as would be e x p e c t e d from t h e i n c r e a s e d water-to-ct.n;ent r a t i o , The a d d i t i o n of a w e t t i n g a g e n t f u r t h e r debcreased t h e s t r e n g t h p r o p o r t i o n a l t o t h e i n c r e a s e i n t h e water-to-cement r a t i o . S i n c e t h e t h r e e p o i n t s l i e i n 2 s t r a i g h t l i n e it can be r e a s o n e d t h a t

t h e e f f e c t of i s u p r o p , i l alcohol. a s such upon t h e s t r e n g t h of hardened cement was n e g l i g i b l e ,

Samples made w i t h 2 p e r c e n t a c e t y l e n e b l a c k and i s o p r o p y l a l c o h o l a s w e t t , i n g a g e n t gave r e s u l t s of conduc- t i v i t y q u i t e s i m i l a r t o the samples madn w i t h o u t the

w e t t i n g a g e n t ( T a b l e 11). T t k r i l l . be n o ~ e d t h a t sample A-3

was i n t e n t i o n a l l y overmixed f o r I;, m r i n ~ ~ . L e s . 'The e l e c t r i c a l r e s i s t a n c e of t h i s . sample w a s somewhat hi.gher but i t would a p p e a r t h a t t h e mixing time w a s n o t a c r i t i c a l f a c t o r .

When measuring r e s i s t a n c e of t e r r a z z o c o n t a i n i n g

a c e t y l e n e b l a c k by t h s NFPA method

( 3 )

t h e c o n t a c t r e s i s t a n c e between t h e p o s i t i v e e l e c t r o d e and t h e s u r f a c e i s a b o u t t e n t i m e s t h e volurne r e s i s t a n c e of t h e ma.l;e.rial i t s e l f . (The c o n t a c t r e s i s t a n c e of t h e n e g a t i v e e l e c t r o d e i s u s u a l 1 jr small because of t h e p r o c e s s o f e l e c t r o - o s m o s i s a s s o c i a t e d w i t h d - c . p o t e n t i a l s i n such s y s t e m s , ) It h a s been found t h a t b r a s s f i l i n g s i n t h e s u r f a c e of t e r r a z z o c o n t a i n i n g 2 p e r c e n t a c e t y l e n e b l a c k reduced t h e c o n t a c t r e s i s t a n c e of t h e p o s i t i v e e l e c t r o d e t o t h e s u r f a c e . 'This e f f e c t was l e s s pronounced a s t h e c o n c e n t r a t i o n of a c e t y l e n e b l a c k was reduced

a able

111). The b r a s s f i l i n g s a r e r e q u i r e d j u s t i n t h e s u r f a c e of t h e t e r r a z z o and a n a t t e m p t was made t o

s p r i n k l e t h e b r a s s on t h e s u r f a c e w h i l e t h e mix was b e i n g t r o w e l l e d . T h i s was n o t : ; l ~ ~ - c e s s f " u l because most of t h e b r a s s f i l i n g s were removed i n t h e p r o c e s s of g r i n d i n g t h e t e r r a z z o . Some samples were made by i n c o r p o r a t i n g t h e b r a s s f i l i n g s i n t h e mix. A t l e a s t 2 p e r c e n t of brass f i l i n g s by weight of cement was r e q u i r e d t o have a s e a s o n a b l e c o n c e n t r a t i o n i n t h e s u r f a c e which would produce t h e d e s i r e d effect,, T h i s

a d d i t i o n of b r a s s f i l i n g s t o t e r r a z z o c o n t a i n i n g 2 p e r c e n t a c e t y l e n e b l a c k r e s u l t e d i n v a l u e s of r e s i s t a n c e below t h e lower l i m i t . The e f f e c t , ' . o f b r a s s f i l i n g s was l e s s pronounced a s t h e c o n c e n t r a t i o n of S l a c k was d e c r e a s e d whereas t h e

volume r e s i s t a n c e of t h e s a l ~ l p l e s i n c r e a s e d and became more dependent upon t h e m o i s t u r e c o n t e n t , T e r r a z z o c o n t a i n i f i g 1 p e r c e n t a c e t y l e n e b l a c k and 2 p e r c e n t b r a s s f i l i n g s

might be s u i t a b l e but t h e advantage o v e r t e r r a z z o c o n t a i n i n g 2 p e r c e n t a c e t y l e n e b l a c k a l o n e i s n o t e v i d e n t from t h e r e s u l t s . S i x p r o p r i e t a r y t e r r a z z o s e a l e r s were a p p l i e d on one h a l f of t h e samples of t e r r a z z o c o n t a i n i n g 2 p e r c e n t a c e t y l e n e b l a c k t o observe t h e i r e f f e c t upon e l e c t r i c a l r e s i s t a n c e . These s e a l e r s p e n e t r a t e d i n t o t h e t e r r a z z o and d i d n o t form t h i c k c o a t i n g s on t h e s u r f a c e . In a l l c a s e s t h e s e s e a l e r s caused o n l y a s l i g h t d e c r e a s e i n t h e r e s i s t a n c e of t h e c o n d u c t i v e t e r r a z z o f l o o r i n g . T h i s was c h a r a c t e r i s t i c of t h e s e m a t e r i a l s under a l l c o n d i t i o n s of t e s t i n c l u d i n g d r y i n g t o 220°F. Acetylene c a r b o n b l a c k h a s s o f a r been t h e o n l y c o n d u c t i v e i n g r e d i e n t used i n t e r r a z z o f l o o r s . T h e r e f o r e samples of t e r r a z z o were made c o n t a i n i n g one s p e c i f i c t y p e of t h e s u p e r a b r a s i o n f u r n a c e b l a c k s made by P h i l l i p s Chemical Company. It was found t h a t t h i s b l a c k was s l i g h t l y w e t t a b l e by w a t e r and c o u l d be d i s p e r s e d i n t h e w a t e r and cement mix w i t h o u t much d i f f i c u l t y . The e l e c t r i c a l r e s i s t a n c e s of t h e s e

samples a r e g i v e n i n T a b l e

IV.

It i s a p p a r e n t t h a t t h e f u r n a c e b l a c k s e r v e d a s a n e f f e c t i v e c o n d u c t i n g a g e n t . The compressive s t r e n g t h of one b a t c h of t e r r a z z o c o n t a i n i n g t h e f u r n a c e b l a c k was checked and t h e r e s u l t i n d i c a t e d a d e c r e a s e of s t r e n g t h compared t o t e r r a z z o made w i t h a c e t y l e n e b l a c k . T h i s s h o u l d be checked a g a i n s i n c e t h i s r e s u l t i s based on

o n l y one b a t c h .

Swnmary and Conc l u s i o n s

1. S u c c e s s i v e b a t c h e s of t e r r a z z o w i t h 2 p e r c e n t a c e t y l e n e carbon b l a c k from which samples were made, showed remarkable r e p r o d u c i b i l i t y of e l e c t r i c a l r e s i s t a n c e a s measured by

NFPA method. The r e s i s t a n c e of t h e s e samples remained below 1 megohm even a f t e r d r y i n g i n t h e oven a t 2 2 0 " ~ . ; 2 . I s o p r o p y l a l c o h o l i n c c n c e n t r a t i o n of 1* p e r c e n t i n w a t e r

was found s u i t a b l e a s a w e t t i n g a g e n t f o r a c e t y l e n e carbon b l a c k . T h i s w e t t i n g a g e n t as s u c h d i d n o t a f f e c t t h e

s t r e n g t h of t h e hardened cement. It d i d , however, r e q u i r e more w a t e r t o be used i n t h e mix r e s u l t i n g i n a d e c r e a s e

i n compressive s t r e n g t h of t h e sample;

3 . B r a s s f i l i n g s i n t h e s u r f a c e of t e r r a z ~ o c o n t a i n i n g 2 p e r

c e n t a c e t y l e n e b l a c k d i d reduce t h e c o n t a c t r e s i s t a n c e between t h e e l e c t r o d e and t e r r a z z o s u r f a c e . T e r r a z z o f l o o r i n g h a v i n g a r e s i s t a n c e (NFPA method) l e s s t h a n 10,000 ohms can be o b t a i n e d i n t h i s way. T h i s e f f e c t d e c r e a s e d a s t h e c o n c e n t r a t i o n of b l a c k i n t e r r a z z o was d e c r e a s e d . I n a d d i t i o n when t h e c o n c e n t r a t i o n of a c e t y l e n e

black was decreased i n t h e samples c o n t a i n i n g b r a s s f i l i n g s , t h e r e s i s t a n c e became l e s s s t a b l e . These r e s u l t s could not j u s t i f y t h e use of b r a s s f i l i n g s a l o n g w i t h a c e t y l e n e

carbon black i n t e r r a z z o f l o o r i n g u n l e s s a f l o o r w i t h very low r e s i s t a n c e was d e s i r a b l e ;

4. Terrazzo s e a l e r s of t h e p e n e t r a t i n g type were found t o have no i n j u r i o u s e f f e c t upon t h e e l e c t r i c a l r e s i s t a n c e

of conductive t e r r a z z o f l o o r i n g samples;

5.

I n d i c a t i o n s a r e t h a t super a b r a s i o n f u r n a c e b l a c k s can be used as t h e conductive i n g r e d i e n t i n t e r r a z z o . However, t h e r e i s some evidence t h a t t h e one type t e s t e d had some d e l e t e r i o u s e f f e c t upon t h e s t r e n g t h of t h e hardened cement.

A number of t e r r a z z o f l o o r s , s p e c i f i e d t o c o n t a i n 2 p e r c e n t a c e t y l e n e b l a c k , when i n s t a l l e d i n h o s p i t a l s d i d n o t meet t h e requirements of c o n d u c t i v i t y

.

Present l a b o r a t o r y r e s u l t s i n d i c a t e t h a t t h e c o n d u c t i v i t y of t e r r a z z o is s a t i s - f a c t o r y over a r a t h e r wide range of eoncentsat ions of a c e t y l e n e black. It a p p e a r s , t h e r e f o r e , t h a t t h e d i s p e r s i n g and propor- t i o n i n g of a c e t y l e n e black i n t e r r a z z o on t h e jobs was

p a r t i c u l a r l y poor and t h a t t h e r e were a r e a s of f l o o r i n g c o n t a i n i n g l e s s t h a n 1 p e r c e n t a c e t y l e n e black.

It i s recommended, t h e r e f o r e , t h a t i s o p r o p y l a l c o h o l be used as a w e t t i n g agent t o d i s p e r s e a c e t y l e n e b l a c k i n t h e t e r r a z z o mix and t h a t a l l i n g r e d i e n t s be c a r e f u l l y proportioned and mixed thoroughly. The m i x should be of

such c o n s i s t e n c y t h a t i t could be t r o w e l l e d on t o t h e s u b f l o o r .

References

1. Legget, R.F. and P.J. Seseda. Conductive f l o o r s f o r s a f e t y i n h o s p i t a l s . J o u r n a l , Royal A r c h i t e c t u r a l I n s t i t u t e of Canada, v o l , 31, no. 11, November 1954. ( ~ e p r i n t e d a s NRC 34671,

2 . Sereda, P. J

.

Propert i e a of commercial conductive f l o o r i n g s f o r h o s p i t a l o p e r a t i n g rooms. National Research Council, D i v i s i o n of Building Research. A p r i l

1956.

3. Recommended s a f e s a c t i c e f o r h o s p i t a l o p e r a t i n g rooms. N.F.P.A. No.

5

g

of t h e National F i r e P r o t e c t i o n A s s o c i a t i o n , Boston, 40p.

TABLE I

E l e c t r i c a l R e s i s t a n c e of T e r r a z z o C o n t a i n i n g 2% Acetylene Carbon Black by Weight of Cement ( N O w e t t i n g a g e n t )

*

T h i s h i g h r e s i s t a n c e d e c r e a s e d t o i n i t i a l low v a l u e i n v e r y few minutes a f t e r t h e sample was brought i n t o a room c o n d i t i o n e d t o 5076 R.H. Sample No. 1 2

3

10 11

**

T h i s v a l u e was o b t a i n e d a f t e r sample was l e f t t o d r y f o r two months i n a room c o n d i t i o n e d below 15% R . H .

R e s i s t a n c e ( t h o u s a n d s of ohms) - C o n d i t i o n e r t o

5G$

R . H ,

175

190

130 200 190 Washed w i t h = € e r g e n t s o l u t i o n e v e r y working d a y f o r

3

months 60

55

65

~r iz-Xmy' f o r t e n days 440

*

380

30

**

.

TABLE I1

E l e c t r i c a l R e s i s t a n c e of T e r r a z z o Containing

25

Acetylene Carbon Black Dispersed by Means of I s o p r o p y l Alcohol

*

A - 3 was mixed f o r 1 5 minutes a f t e r t h e carbon p a s t e was added. Other samples were mixed f o r 3 minutes a s recommended i n t h e s p e c i f i c a t i o n of N a t i o n a l Terrazzo and Mosaic A s s o c i a t i o n .

Sample No. A - 1 A - 2 *A-3 B-1

**

T h i s h i g h v a l u e decreased t o 150 a f t e r t h e sample had been i n t h e room c o n d i t i o n e d a t 50% R . H . f o r 20 minutes. R e s i s t a n c e ( t h o u s a n d s of ohms) Dried i n oven a t 2 2 0 ' ~ . f o r 10 days 300 3,000

"*

Conditioned t o

50%

_{R . H .} 100 110 250 150 Washed w i t h d e t e r g e n t s o l u t i o n e v e r y working day f o r 1 month 80 70 90

TABLE 111

E l e c t r i c a l R e s i s t a n c e of Terrazzo Containing Various C o n c e n t r a t i o n s of Acetylene Carbon and Brass F i l i n g s

Brass f i l i n g s $ by w t . of cement i n s u r f a c e I 1 I I I1 1 1 11 0 i n s u r f a c e It I I 11 1 2 Sample No. 4 5 A - 4 A-5 A -6 A - 8 A - 7 A-ll A-12 A - 1 3 A - 1 4 B-2 B-3 1 R e s i s t a n c e ( t h o u s a n d s of ohms) $ Carbon by w t . of cement 2 2 1s 1

4

O O 1% 1* 1

3

1 1 Conditioned t o

50s

R.H. 13 7 10 45 330 2,000 1,500 4 25 35 300 350 325 , Dried a t 220°F. 47 250

5

000 5,000 5,000 8 350 5 000 5,000 5 000

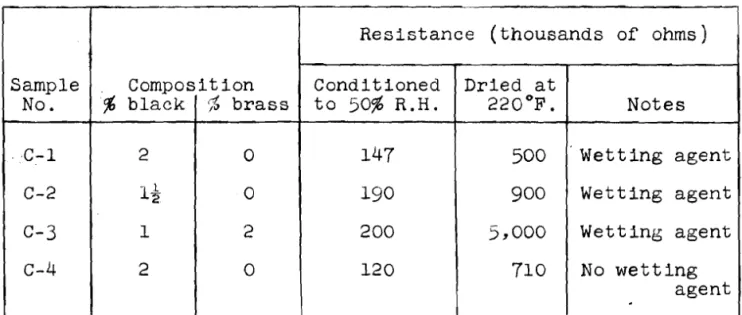

TABLE

IV

E l e c t r i c a l R e s i s t a n c e of T e r r a z z o C o n t a i n i n g V a r i o u s C o n c e n t r a t i o n s of Super Abrasion Furnace B l a c k s and B r a s s F i l i n g s Sample No. C - 1 C - 2

c-3

C - 4 R e s i s t a n c e ( t h o u s a n d s of ohms) Conditioned t o 50% R . H . 147 190 200 120 Cornposit i o n $ b l a c k 2

15

1 2 Dried a t 220°F. 500 900 5,000 710 $ b r a s s 0 0 2 0 Notes W e t t i n g a g e n t W e t t i n g a g e n t W e t t i n g a g e n t N o w e t t i n g a g e n t

WATER T O CEMENT RATIO LEGEND;

X

_{PORTLAND CEMENT TERRAZZO}

0

I fi I I 1 a

+ 2 %

ACETYLENE BLACK

A

I I I I I I

+

2

O l e I I I I

+

WETTING AGENT

V

I I I I 1s

+2'/0

S A F BLACK

FIGURE I

COMPRESSIVE STRENGTH OF TERRAZZO

MIXES

OF ABOUT THE SAME

WORKABILITY
