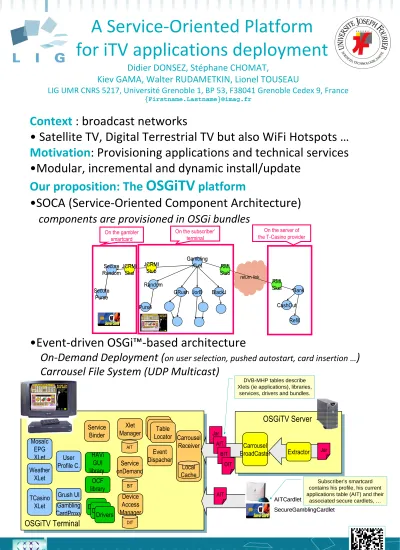

A Service-Oriented Platform
for iTV applications deployment
Didier DONSEZ, Stéphane CHOMAT,
Kiev GAMA, Walter RUDAMETKIN, Lionel TOUSEAU
LIG UMR CNRS 5217, Université Grenoble 1, BP 53, F38041 Grenoble Cedex 9, France
{Firstname.Lastname}@imag.fr
Context : broadcast networks
• Satellite TV, Digital Terrestrial TV but also WiFi Hotspots … Motivation: Provisioning applications and technical services
•Modular, incremental and dynamic install/update Our proposition: The OSGiTV platform
•SOCA (Service-Oriented Component Architecture)
components are provisioned in OSGi bundles
•Event-driven OSGi™-based architecture
On-Demand Deployment ( on user selection, pushed autostart, card insertion … ) Carrousel File System (UDP Multicast)
return link
Secure Random
GRush
Gambling XLet
Secure Purse
CashOut Refill
Bank Random
JorB BlackJ Purse
On the gambler smartcard
On the subscriber’
terminal
On the server of the T-Casino provider
JCRMI
Stub RMI
Stub
RMI Skel JCRMI
Skel return link
Secure Random
GRush
Gambling XLet
Secure Purse
CashOut Refill
Bank Random
JorB BlackJ Purse
On the gambler smartcard
On the subscriber’
terminal
On the server of the T-Casino provider
JCRMI
Stub RMI
Stub
RMI Skel JCRMI
Skel
DVB-MHP tables describe Xlets (ie applications), libraries,
services, drivers and bundles.
Subscriber’s smartcard contains his profile, his current applications table (AIT) and their
associated secure cardlets, …
