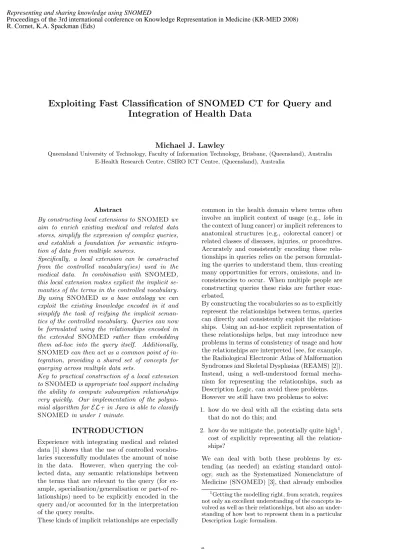

Exploiting Fast Classification of SNOMED CT for Query and Integration of Health Data
Michael J. Lawley
Queensland University of Technology, Faculty of Information Technology, Brisbane, (Queensland), Australia E-Health Research Centre, CSIRO ICT Centre, (Queensland), Australia
Abstract
By constructing local extensions toSNOMEDwe aim to enrich existing medical and related data stores, simplify the expression of complex queries, and establish a foundation for semantic integra- tion of data from multiple sources.
Specifically, a local extension can be constructed from the controlled vocabulary(ies) used in the medical data. In combination with SNOMED, this local extension makes explicit the implicit se- mantics of the terms in the controlled vocabulary.
By using SNOMED as a base ontology we can exploit the existing knowledge encoded in it and simplify the task of reifying the implicit seman- tics of the controlled vocabulary. Queries can now be formulated using the relationships encoded in the extended SNOMED rather than embedding them ad-hoc into the query itself. Additionally, SNOMEDcan then act as a common point of in- tegration, providing a shared set of concepts for querying across multiple data sets.
Key to practical construction of a local extension toSNOMEDis appropriate tool support including the ability to compute subsumption relationships very quickly. Our implementation of the polyno- mial algorithm forEL+ in Java is able to classify SNOMEDin under 1 minute.
INTRODUCTION
Experience with integrating medical and related data [1] shows that the use of controlled vocabu- laries successfully modulates the amount of noise in the data. However, when querying the col- lected data, any semantic relationships between the terms that are relevant to the query (for ex- ample, specialisation/generalisation or part-of re- lationships) need to be explicitly encoded in the query and/or accounted for in the interpretation of the query results.
These kinds of implicit relationships are especially
common in the health domain where terms often involve an implicit context of usage (e.g., lobe in the context of lung cancer) or implicit references to anatomical structures (e.g., colorectal cancer) or related classes of diseases, injuries, or procedures.
Accurately and consistently encoding these rela- tionships in queries relies on the person formulat- ing the queries to understand them, thus creating many opportunities for errors, omissions, and in- consistencies to occur. When multiple people are constructing queries these risks are further exac- erbated.
By constructing the vocabularies so as to explicitly represent the relationships between terms, queries can directly and consistently exploit the relation- ships. Using an ad-hoc explicit representation of these relationships helps, but may introduce new problems in terms of consistency of usage and how the relationships are interpreted (see, for example, the Radiological Electronic Atlas of Malformation Syndromes and Skeletal Dysplasias (REAMS) [2]).
Instead, using a well-understood formal mecha- nism for representing the relationships, such as Description Logic, can avoid these problems.
However we still have two problems to solve:
1. how do we deal with all the existing data sets that do not do this; and
2. how do we mitigate the, potentially quite high1, cost of explicitly representing all the relation- ships?
We can deal with both these problems by ex- tending (as needed) an existing standard ontol- ogy, such as the Systematized Nomenclature of Medicine (SNOMED) [3], that already embodies
1Getting the modelling right, from scratch, requires not only an excellent understanding of the concepts in- volved as well as their relationships, but also an under- standing of how best to represent them in a particular Description Logic formalism.
many of the relationships we need. However, one of the main difficulties with this approach is that building an extension toSNOMEDis not dissim- ilar to maintaining and developingSNOMEDit- self. That is, the sheer size of SNOMED has meant that, until recently, very few tools could compute all of its subsumption relationships, and even those that could would reportedly take sev- eral hours.
Fortunately, recent work by Baader et al. [4, 5]
on the tractable family of description logics EL has shown that polynomial time classification al- gorithms exist and are practical. Moreover despite their relatively low expressive power, theELfam- ily of description logics is suitable for represent- ing such real-world ontologies asSNOMED and offer additional expressiveness suitable for prop- erly representing partOf relationships and suffi- cient conditions.2 Their implementation of this algorithm in Lisp is able to classifySNOMEDin 1,782 seconds [5] (approx. 30 minutes) which sug- gests an optimised implementation in a lower-level language may be fast enough for near real-time feedback in an editing tool.
Thus, our goal is to provide tool support for defin- ing alocal extensionto an existing standard formal ontology; a mapping from an existing set of terms that characterise an informal ontology to concepts in the formal ontology. In doing so we effectively realise latent semantics in the existing medical data via the standard ontology. This should facil- itate simpler and more robust queries and in turn aid data integration, a special-case application of querying where related medical data sets use se- mantically overlapping, but distinct term sets.
RELATED WORK
There is a great deal of published work on using ontologies for data integration (see Wache et al. [6]
for an overview), but it is mostly focussed on their use at the meta-data level; ontologies are used to describe, reason about and integrate database schemas. While related to our goals, we are ad- dressing the more specific problem of semantic data integration or semantic translation. Stucken- schmidt et al. [7] discuss an approach to this prob- lem in the context of their Ontology Interchange Language (OIL) [8]. In particular they raise the question of whether it is feasible to find or cre- ate a sufficient shared terminology. In our domain of medical data we believe thatSNOMEDrepre- sents such a shared terminology. A possibly more
2See also http://webont.org/owl/1.1/
tractable.html#2
important problem, and one identified in our work with skeletal dysplasias [2], is how to cope with er- rors in the shared terminology.
Wade and Rosenbloom [9] report on the man- ual construction of what is almost a local exten- sion toSNOMED (they conceived the task as a semi-formal mapping). In this work 2002 terms were mapped to combination of single and post- coordinated concepts of which about 75% were equivalencies (20% of these were to single con- cepts) and only 1% (26) were, in their words,“not mappable”. It is unclear why these terms were cat- egorized as such since they include, for example, presyncope which could reasonably be related to 3006004|disturbance of consciousness|, but it may be that the context of use of the terms was unavail- able in order to properly discern their meaning.
However, their work does demonstrate that the goal of producing a local extension toSNOMED is feasible.
PROBLEM DESCRIPTION
The problem of embedding domain semantics such as specialisation/generalisation or part-of relation- ships into queries is illustrated in the following.
For example, a query to find all performed proce- dures involving a colectomy might enumerate all such procedures:
SELECT S.*
FROM Surgery S
WHERE S.procedure = ’32003-00’
OR S.procedure = ’32003-01’
OR S.procedure = ’32012-00’
...
which has the potential to accidently omit certain codes and will require updating if the terminology is updated with additional forms of colectomy.
Alternatively, some kind of heuristic query could be used:
SELECT S.*
FROM Surgery S, ProcedureCodes C WHERE S.procedure = C.code
AND C.text LIKE ’%colectomy%’;
which has the potential to miss a term that doesn’t follow the expected naming pattern (e.g., epiploec- tomy) or provide false matches where a compound or composite name does not reflect a valid special- isation.
If, however, the terms were encoded as concepts in an ontology, the query is simple3:
3We envisage that the complete set of subsumption relationships would be stored in a database table to support fast subsumption-based queries using only two
SELECT S.*
FROM Surgery S, Ontology O WHERE O.ancestor = 23968004
AND S.procedure = O.descendant;
Note also that SNOMED, unlike classification schemes such as ICD-9 and ICD-10, support a multi-parented generalisation hierarchy.
CONSTRUCTING LOCAL EXTENSIONS
In order to construct an ontology from an exist- ing terminology (or collection of terminologies) we take a multi-step approach:
1. Map each term from the controlled vocabulary to a concept, factoring out any synonyms, to produce P.
This is often a simple one-to-one mapping, but it may be necessary to extend the mapping to include disambiguating data values when the same term is used to mean different things in different contexts.
2. Make any simple implicit relationships explicit, adding them toP.
For example, generalisation,partOf, orhasLoca- tionrelationships. It may be necessary to intro- duce new concepts to act as the generalisation of two or more sibling concepts.
3. Specify relationships between these (local) con- cepts and those in the chosen standard ontology Q, adding them toP.
To be able to answer queries involving our new ontology we first need to classifyQ ∪ P to identify all the subsumption relationships it entails.
Note that, we should be careful thatQ ∪ Prepre- sents a conservative extension [10] ofQ. That is, Q ∪ P produces the same consequences over the set of concepts inQasQdoes by itself. We also need to ensure various integrity constraints (such as disjointness) are preserved inQ ∪ P. Thus we would like to be able to interactively editP while exploiting the consequences ofQ ∪ P in live feed- back through the mapping tool. These kinds of checks can be performed by classification ofQ ∪ P but this may not be viable ifQ ∪ P is large, as is the case whenQisSNOMED.
Colorectal Cancer Example
In this section we consider a sample set of ICD-10- AM [11] terms for procedures relating to colorectal joins.
cancer, shown in Figure 1. We can map these, one- to-one, to a set of concepts for a local ontology.
Procedure Code (ICD-10-AM)
Meaning
32000-00 Sig colectomy with stoma formation
32003-00 Sig colectomy with anasto- mosis
32003-01 Right hemicolectomy 32005-00 Subtotal colectomy 32005-01 Ext right hemicolectomy 32006-00 Left hemicolectomy 32012-00 Total colectomy 32024-00 High anterior resection 32025-00 Low anterior resection ex-
traperitoneal
32026-00 Low anterior resection coloanal anastomosis 32028-00 Ultra low anterior resection 32030-00 Hartmann’s procedure 32039-00 Abdomino-perineal excision 32051-00 Total proctocolectomy with
ileo-anal anastomosis
Figure 1: A Term-Set of Colorectal Cancer Proce- dures
The next step is to make any simple relationship explicit. In our case there are none that can be ex- pressed using just the concepts we have currently identified.
Figure 2 describes the identified relationships be- tween these terms and selected SNOMED con- cepts as per step 3. Note that several concepts (for example, 32028-00|ultra low anterior resection|), have no exact equivalent inSNOMED, and that one, 32051|total proctocolectomy with ileo-anal anastomosis|implies a composite of concepts.
Figure 3 shows a visualisation of the results of classifyingSNOMEDaugmented with the ontol- ogy from Figure 2. As can be seen, unifying generalisation concepts such as 84604002|sigmoid colectomy|have been identified, and thus provide a strong foundation for constructing queries that span the various procedures. Additionally, since SNOMEDincludes detailed anatomical concepts, queries can now be composed in terms of anatom- ical features even though they did not exist in the original terminology.
Procedure Relation SNOMED
32000-00 ≡ 315327002
32003-00 ≡ 315326006
32003-01 ≡ 235326000
32005-00 ≡ 43075005
32005-01 ≡ 174071004
32006-00 ≡ 82619000
32012-00 ≡ 26390003
32024-00 ≡ 400988008
32025-00 314592008
32026-00 314592008
32028-00 314592008
32030-00 ≡ 16564004
32039-00 ≡ 265414003
32051-00 17405900570172002
Figure 2: Identified Relationships withSNOMED Concepts
COMPLEX QUERIES AND CONTEXT
So far we have only considered simple query scenarios where a single database column represents the concept we wish to query (e.g., Surgery.procedure) and there already ex- ists a concept that characterises the bound of the query (e.g., 2396804).
Consider instead a table, as shown in Figure 4, that stores both scheduled and performed proce- dures while using another column to distinguish them, and which encodes laterality, if any, of the procedure in yet another column. Now imagine we wish to query for all patients who have had an amputation including the left hand.
Patient Date Status . . . .
Procedure Laterality . . . .
Figure 4: Table storing records with contextual information split across columns
Patient Date . . . Laterality Code
. . . .
Code Equivalent SNOMED Expression
. . . .
Figure 5: Augmented table for representing con- textualised concepts
To support this kind of problem with reasonable generality and decent query speed, we need to generate a new column containing codes that are mapped to the set of compound concepts that correspond to the contextualised meaning of each database row. Hence, as shown in Figure 5, the ta- ble from Figure 4 would be extended with aCode foreign-key column, and an additional table con- taining theSNOMEDexpressions of the form4:
∃associatedProcedure.P
∃laterality.L
∃procedureContext.S
which gives us another ontology extension that we can add toSNOMED.
Finally, in order to be able to pose a subsumption- based complex query involving composite concepts and have it evaluated at database join speeds, we can employ the same strategy: extend the ontol- ogy with a new fully-defined concept correspond- ing to our query expression, re-classify, and per- form a join-based query using the new concept.
The need to construct compound expressions that explicitly represent the context associated with a record in a database occurs any time the data needs to be queried outside its original context.
This may happen in as trivial a case as when one table in a database is joined with another, but the more general scenario occurs when integrating data from multiple data sources.
RESULTS
Classifying SNOMEDThe practicality of creating local extensions of SNOMEDis dependent on sufficient tool support and, as mentioned previously, a cornerstone of this is fast classification. Indeed we believe that near real-time feedback in an editing environment, be it an IDE for programming or a 3D architectural modelling tool, can have a transformational effect on the authoring and editing process.
To this end, we have implementedsnorocket, using a slightly altered form of the algorithm in [5] writ- ten in Java. We use several optimised Map and Set data-structures tailored for ontologies with roughly the same number of concepts and roles as SNOMED. This implementation is able to classify
4Note that considerable experience withSNOMED and all its documentation may be required to construct suitable valid post-coordinated expressions like those above. Tool support for this is clearly an important issue and recent work in the IHTSDO Concept Model SIG on producing a Machine Readable Concept Model will be valuable for this.
Figure 3: Visualisation of part of an extendedSNOMEDontology
SNOMEDin 54 seconds on a modern 2.4GHz In- tel Core 2 Duo running Windows XP and Sun’s Java 1.6.0 03.
For a fairer comparison with CEL, which only runs under Linux, we ran both snorocket and CEL on an older four-CPU Xeon 3.6GHz ma- chine running RedHat Linux 2.6.9 and Sun’s Java 1.6.0 04. The results, for several of the ontologies available fromhttp://lat.inf.tu-dresden.de/
~meng/toyont.html, are in Table 1.
Clearly, being able to classifySNOMEDin close to a minute is a substantial improvement over roughly 23 minutes and brings us much closer to the near real-time feedback we are seeking.
Incremental Classification
In our mapping scenario we observe that SNOMED(Q) is unchanging while the local ex- tension (P) is modified. If we can classifyQonce and record the resultC(Q) then, due to the mono- tonicity of the description logic, the classification ofQ ∪ P, C(Q ∪ P), is a superset ofC(Q). The goal is then to deriveC(Q ∪ P) givenC(Q) (and, of course,Qand P) which should be much faster than derivingC(Q ∪ P) from scratch.
Suntisrivaraporn [12] calls this Duo-Ontology Classification and presents a variation of the al- gorithm in [5] to do just this. We have indepen- dently derived our own variant of this algorithm along similar lines; the queue-processing core is essentially unchanged but the initialisation of the queues is different to account for the work that has already been done.
Currently this work is in a preliminary state and the correspondence with the variant described in [12] is unknown. However the performance of this incremental algorithm is very promising.
WithP consisting of the 14 new concepts as de- fined as in Figure 2, incremental classification takes around 0.9s using our un-optimised imple- mentation.
DISCUSSION
Ideally, as a term set is developed, it would be ex- plicitly constructed as an ontology and, to avoid re-invention and promote interoperability, could be developed as an extension of an existing stan- dard ontology such as SNOMED. These exten- sion ontologies could then be shared and evolved within their specialist community while still being useful and usable in more general communities.
One such example is an ontology for skeletal dys- plasias extracted from REAMS [13].
It is thus useful to be able to represent these on- tologies in a standard format such as OWL so that they can be shared or manipulated using ex- isting toolsets. Currently we use the OWL 1.1 proposal [14] rather than OWL 1.0 since it sup- ports the expression of the role axioms (to de- scribe role transitivity and right-identity). The particular subset we use is characterised by the description logic EL+⊥. OWL 1.1 is supported by, for example, the latest development-release of Prot´eg´e (4.0 alpha).
Unfortunately, OWL is not practical for represent- ing large ontologies likeSNOMEDwhere an OWL
SNOMED FULL-GALEN NOT-GALEN NCI
CEL 1391.9 368.9 5.4 1.8
snorocket 72.8 15.1 0.4 0.4
Table 1: Comparison of classification time for snorocket and CEL running on the same hardware.
XML representation is approximately 240MB [15], about eight times the size of the equivalent KRSS representation. Moreover, due to the complexities inherent in parsing XML, it is much slower to load and parse than a simpler format such as KRSS.
One work-around for this, and something that would greatly benefit the e-health community, would be for the International Health Terminology Standards Development Organisation, the newly formed governing body ofSNOMED, to formally publish URIs for the concepts inSNOMED. This would allow tool vendors to “bake in”SNOMED to their tools, while still allowing other OWL- based ontologies to referenceSNOMEDconcepts in a consistent and interoperable manner in order to describe extensions toSNOMED.
CONCLUSION
Our preliminary work on producing local exten- sions to SNOMED for semantic data integra- tion is promising as is the performance of our classifier. The current implementation is single- threaded and we anticipate a further speed in- crease from a multi-threaded implementation run- ning on a multi-core CPU.
We are currently integrating snorocket with a 3rd- partySNOMEDediting tool which requires spe- cific support forSNOMED’s use of role grouping and the ability to distinguish between stated and inferred relationships in the output of the clas- sifier, although this adds little overhead to the classification time. In addition, we are prototyp- ing mapping tools specifically targeting the task of constructing local extensions of SNOMED from existing data.
Finally, we are continuing work on our incremental form of the algorithm but have not yet tuned or verified the implementation. Preliminary results indicate that this approach should be very useable when integrated with our mapping tool.
