Individual Brain Charting dataset extension, second
release of high-resolution fMRI data for cognitive
mapping
Ana Luísa Pinho, Alexis Amadon, Baptiste Gauthier, Nicolas Clairis, André
Knops, Sarah Genon, Elvis Dohmatob, Juan Jesús Torre, Chantal Ginisty,
Séverine Becuwe-Desmidt, et al.
To cite this version:
Ana Luísa Pinho, Alexis Amadon, Baptiste Gauthier, Nicolas Clairis, André Knops, et al.. Individual
Brain Charting dataset extension, second release of high-resolution fMRI data for cognitive mapping.
Scientific Data , Nature Publishing Group, 2020, 7 (1), �10.1038/s41597-020-00670-4�. �hal-02973046�
Individual Brain Charting dataset extension,
second release of high-resolution fMRI data for
cognitive mapping
Ana Luísa Pinho
1,*, Alexis Amadon
2, Baptiste Gauthier
3,4, Nicolas
Clairis
5, André Knops
6,7, Sarah Genon
8,9, Elvis Dohmatob
1,10,
Juan Jesús Torre
1, Chantal Ginisty
11, Séverine Becuwe-Desmidt
11,
Séverine Roger
11, Yann Lecomte
11, Valérie Berland
11, Laurence
Laurier
11, Véronique Joly-Testault
11, Gaëlle Médiouni-Cloarec
11,
Christine Doublé
11, Bernadette Martins
11, Eric Salmon
8, Manuela
Piazza
6, David Melcher
6, Mathias Pessiglione
5, Virginie van
Wassenhove
3, Evelyn Eger
3, Gaël Varoquaux
1, Stanislas
Dehaene
3,12, Lucie Hertz-Pannier
11,13, and Bertrand Thirion
1 1Université Paris-Saclay, Inria, CEA, Palaiseau, 91120, France2Université Paris-Saclay, CEA, CNRS, BAOBAB, NeuroSpin, 91191, Gif-sur-Yvette,
France
3Cognitive Neuroimaging Unit, INSERM, CEA, Université Paris-Saclay, NeuroSpin
center, 91191 Gif/Yvette, France
4Laboratory of Cognitive Neuroscience, Brain Mind Institute, School of Life Sciences
and Center for Neuroprosthetics, Swiss Federal Institute of Technology (EPFL), Campus Biotech, Geneva, Switzerland
5Motivation, Brain and Behavior (MBB) team, Institut du Cerveau (ICM), Inserm
UMRS 1127, CNS UMR 7225, Sorbonne Université, Paris, France
6Center for Mind/Brain Sciences, University of Trento, I-38068 Rovereto, Italy 7LaPsyDÉ, UMR CNRS 8240, Université de Paris, Paris, France
8GIGA-CRC In vivo Imaging, University of Liège, Belgium
9Institute of Neuroscience and Medicine, Brain & Behaviour (INM-7) Research
Centre Jülich, Germany
10Criteo AI Lab, France
11Université Paris-Saclay, CEA, UNIACT, NeuroSpin, 91191, Gif-sur-Yvette, France 12Collège de France, Université Paris-Sciences-Lettres, Paris, France
13UMR 1141, NeuroDiderot, Université de Paris, France *corresponding author: Ana Luísa Pinho (ana.pinho@inria.fr)
Abstract
We present an extension of the Individual Brain Charting dataset a high spatial-resolution, multi-task, functional Magnetic Resonance Imag-ing dataset, intended to support the investigation on the functional prin-ciples governing cognition in the human brain. The concomitant data ac-quisition from the same 12 participants, in the same environment, allows to obtain in the long run ner cognitive topographies, free from inter-subject and inter-site variability. This second release provides more data from psychological domains present in the rst release, and also yields data featuring new ones. It includes tasks on e.g. mental time travel, reward, theory-of-mind, pain, numerosity, self-reference eect and speech recognition. In total, 13 tasks with 86 contrasts were added to the dataset and 63 new components were included in the cognitive description of the ensuing contrasts. As the dataset becomes larger, the collection of the corresponding topographies becomes more comprehensive, leading to bet-ter brain-atlasing frameworks. This dataset is an open-access facility; raw data and derivatives are publicly available in neuroimaging repositories.
Background & Summary
Understanding the fundamental principles that govern human cognition requires mapping the brain in terms of functional segregation of specialized regions. This is achieved by measuring local dierences of brain activation related to behavior. Functional Magnetic Resonance Imaging (fMRI) has been used for this purpose as an attempt to better understand the neural correlates underlying cognition. However, while there is a rich literature concerning performance of isolated tasks, little is still known about the overall functional organization of the brain. Meta- and mega-analyses constitute active eorts at providing accumulated knowledge on brain systems, wherein data from dierent studies are pooled to map regions consistently linked to mental functions [1, 2, 3, 4, 5, 6, 7, 8, 9] Because data are impacted by both intra- and inter-subject plus inter-site vari-ability, these approaches still limit the exact demarcation of functional territo-ries and, consequently, formal generalizations about brain mechanisms. Several large-scale brain-imaging datasets are suitable for atlasing, wherein dierences can be mitigated across subjects and protocols together with standardized data-processing routines. Yet, as they have dierent scopes, not all requirements are met for cognitive mapping. For instance, the Human Connectome Project (HCP) [10, 11] and CONNECT/Archi [12, 13] datasets provide large subject samples as they are focused in population analysis across dierent modali-ties; task-fMRI data combine here 24 and 28 conditions, respectively, which is scarce for functional atlasing. Another example is the studyforrest dataset [14, 15, 16, 17], that includes a variety of task data on complex auditory and visual information, but restricted to naturalistic stimuli. Additionally, one shall note that within-subject variability reduces task-fMRI replicability; thus, more data per subject can in fact facilitate reliability of group-level results [18].
To obtain as many cognitive signatures as possible and simultaneously achieve a wide brain coverage at a ne scale, extensive functional mapping of individual brains over dierent psychological domains is necessary. Within this context, the Individual Brain Charting (IBC) project pertains to the development of a 1.5mm-resolution, task-fMRI dataset acquired in a xed environment, on a per-manent cohort of 12 participants. Data collection from a broad range of tasks, at high spatial resolution, yields a sharp characterization of the neurocognitive components common to the dierent tasks. This extension corresponds to the second release of the IBC dataset, meant to increase the number of psychological domains of the rst one [19]. It both aims at a consistent mapping of elementary spatial components, extracted from all tasks, and a ne characterization of the individual architecture underlying this topographic information.
The rst release encompassed a sample of modules ranging from percep-tion to higher-level cognipercep-tion, e.g. retinotopy, calculapercep-tion, language and social reasoning [12, 10, 20]. The second release refers to tasks predominantly fo-cused on higher-level functions, like mental time travel, reward, theory-of-mind, self-reference eect and speech recognition. Nonetheless, a subset dedicated to lower-level processes is also included, covering pain, action perception and nu-merosity. These tasks are intended to complement those from the rst release,
such that a considerable cognitive overlap is attained, while new components are introduced. For instance, components concerning social cognition, already found in ARCHI Standard, ARCHI Social and HCP Social tasks from the pre-vious release, are now present in tasks about theory-of-mind and self-reference eect. Likewise, components on incentive salience, already tackled in the HCP Gambling task, are now included in a task battery addressing positive-incentive value. Yet also, a battery on mental time travel brings in new modules per-taining to time orientation and cardinal-direction judgment. Data from both releases are organized in 25 tasks most of them reproduced from other studies and they amount for 205 contrasts described on the basis of 110 cognitive atoms, extracted from the Cognitive Atlas [21].
Here, we give an account focused on the second release of the experimental procedures and the dataset organization and show that raw task-fMRI data and their derivatives represent functional activity in direct response to behavior. Data collection is ongoing and more releases are planned for the next years. Despite being a long-term project, IBC is not dedicated to longitudinal surveys; acquisitions of the same tasks will not be conducted systematically.
The IBC dataset is an open-access facility devoted to providing high-resolution, functional maps of individual brains as basis to support investigations in human cognition.
Methods
To avoid ambiguity with MRI-related terms used throughout this manuscript, de nitions of such terms follow the Brain-Imaging-Data-Structure (BIDS) Spec-i cation version 1.2.1 [22].
Complementary information about dataset organization and MRI-acquisition protocols can be found in the IBC documentation available online: https: //project.inria.fr/IBC/data/
Participants
The present release of the IBC dataset consists of brain fMRI data from eleven individuals (one female), acquired between April 2017 and July 2019. The two dierences from the cohort of the rst release are: (1) the replacement of participant 2 (sub-02) by participant 15 (sub-15); and (2) the absence of data from participant 8 (sub-08). Regarding the latter, data will be acquired in the future and included in one of the upcoming releases.
Age, sex and handedness of this group of participants is given on Table 1. Handedness was determined with the Edinburgh Handedness Inventory [23].
All experimental procedures were approved by a regional ethical commit-tee for medical protocols in Île-de-France (Comité de Protection des Person-nes - no. 14-031) and a committee to ensure compliance with data-protection rules (Commission Nationale de l'Informatique et des Libertés - DR-2016-033).
They were undertaken with the informed written consent of each participant ac-cording to the Helsinki declaration and the French public health regulation. For more information, consult [19].
Subject ID Year of recruitment Age Sex Handedness score
sub-01 2015 39.5 M 0.3 sub-04 2015 26.9 M 0.8 sub-05 2015 27.4 M 0.6 sub-06 2015 33.1 M 0.7 sub-07 2015 38.8 M 1 sub-09 2015 38.5 F 1 sub-11 2016 35.8 M 1 sub-12 2016 40.8 M 1 sub-13 2016 28.2 M 0.6 sub-14 2016 28.3 M 0.7 sub-15 2017 30.3 M 0.9
Table 1: Demographic data of the participants. Age stands for the partic-ipants' age upon recruitment. All acquisitions of the present release took place between April 2017 and July 2019.
Materials
Stimulation
For all tasks (see SectionExperimental Paradigmsfor details), the stimuli were delivered through custom-made scripts that ensure a fully automated environ-ment and computer-controlled collection of the behavioral data. Two software tools were used for the development of such protocols: (1) Expyriment (versions 0.7.0 and 0.9.0, Python 2.7); and (2) Psychophysics Toolbox Version 3 for GNU Octave version 4.2.1. The visual and auditory stimuli presented in the Theory-of-Mind and Pain Matrices battery as well as in the Bang task (see respectively Sections Theory-of-Mind and Pain Matrices task battery and Bang task for details) were translated into French. The corresponding material is publicly available, as described in SectionCode Availability.
MRI Equipment
The fMRI data were acquired using an MRI scanner Siemens 3T Magnetom Prisma talong with a Siemens Head/Neck 64-channel coil. Behavioral responses were obtained with two MR-compatible, optic- ber response devices that were interchangeably used according to the type of task employed: (1) a ve-button ergonomic pad (Current Designs, Package 932 with Pyka HHSC-1x5-N4); and
(2) a pair of in-house custom-made sticks featuring one-top button. MR-Confon package was used as audio system in the MRI environment.
All sessions were conducted at the NeuroSpin platform of the CEA Research Institute, Saclay, France.
Experimental Procedure
Upon arrival to the research institute, participants were instructed about the execution and timing of the tasks referring to the upcoming session.
All sessions were composed of several runs dedicated to one or a group of tasks as described in Section Experimental Paradigms. The structure of the sessions according to the MRI modality employed at every run is detailed in Table 2. Speci cations about imaging parameters of the referred modalities as well as procedures undertaken toward recruitment of participant 15 plus handling and training of all participants are described in [19]. As a side note, data pertaining to tasks of the rst release were also acquired for participant 15.
Experimental Paradigms
Tasks were aggregated in dierent sessions according to their original studies [24,25,26,27, 28,29,30,31, 32, 33]. Most of the paradigms are composed by trials usually separated by the display of a xation cross. All trials within each task were randomized in order to avoid the extensively consecutive repetition of trials containing conditions of the same kind. For some tasks, trials were in fact pseudo-randomized by following speci c criteria relative to the experimental design of those tasks.
The following sections are thus dedicated to a full description of the set of paradigms employed for each task, including description of the experimental con-ditions, temporal organization of the trials and their (pseudo-)randomization. Moreover, Table 3 provides an overview of the tasks, which includes a short description and motivation of their inclusion in terms of psychological domains covered. Ideally and as mentioned in SectionBackground & Summary, the main purpose of each release is to provide the dataset with a greater variety of cogni-tive modules from as many new psychological domains as possible, at the same time that a better coverage with the already existing ones is also attained.
All material used for stimulus presentation have been made publicly available (see Section Code Availability), together with video annotations of the corre-sponding protocols. Video annotations refer to video records of complete runs that are meant to be consulted for a better comprehension of the task paradigms. For each subject, the paradigm-descriptors' les describing the occurrence of the events are part of the dataset, following BIDS Speci cation.
Session Modality Task∗ Duration∗∗ Repetitions
(min:sec)
MTT1 2D Spin-EchoBOLD fMRI MTT WE- † 00:3113:08 PA(×2) + AP(×2)PA(×2) + AP
MTT2 2D Spin-EchoBOLD fMRI MTT SN- ‡ 00:3113:08 PA(×2) + AP(×2)PA(×2) + AP
Preference
2D Spin-Echo - 00:31 PA(×2) + AP(×2)
BOLD fMRI Food 08:16 PA + AP
BOLD fMRI Painting 08:16 PA + AP
BOLD fMRI Face 08:16 PA + AP
BOLD fMRI House 08:16 PA + AP
TOM
2D Spin-Echo - 00:31 PA(×2) + AP(×2)
BOLD fMRI TOM localizer 06:12 PA + AP
BOLD fMRI Emotional Pain localizer 05:12 PA + AP BOLD fMRI Pain Movie localizer 05:56 PA + AP Enumeration 2D Spin-EchoBOLD fMRI VSTM- 00:3108:40 PA(×2) + AP(×2)PA(×2) + AP(×2)
BOLD fMRI Enumeration 16:20 PA + AP
Self
2D Spin-Echo - 00:31 PA(×2) + AP(×2)
BOLD fMRI Self 1-2 12:00 PA(×2)
BOLD fMRI Self 3 12:00 AP
BOLD fMRI Self 4 15:58 AP
BOLD fMRI Bang 08:06 PA
Table 2: Plan of the MRI-data acquisitions for the sessions pertaining the second release of the IBC dataset. A BOLD-fMRI run refers to the acquisition of fMRI data on one single task. At least, there were two BOLD runs, corresponding to PA- and AP- phase-encoding directions for each task during a session. The 2D Spin-Echo PA/AP maps were always acquired before the runs dedicated to the collection of BOLD-fMRI data and repeated afterwards.
∗Full descriptions of task siglas are provided in SectionExperimental Paradigms. ∗∗ For BOLD fMRI sequences, the durations presented here account only for the
period of the actual acquisition. The full duration of each run also included ∼45s of calibration scans, always performed at their beginning.
†Mental Time Travel task featuring West-East island stimuli. ‡Mental Time Travel task featuring South-North island stimuli.
The run Self 4 relates to a longer version of the others runs of the same task. Thus,
Self 4 contains four pairs of Encoding+Recognition phases, whereas the remaining runs contain only three pairs.
Tasks Description Psychological Domains covered References MTT battery
assess the mental time and space shifts Existing: auditory cognition, spatial cognition
[24,25,26] involved in the allocentric mapping of memory
ctional events described in terms of New: temporal cognition (e.g. time orientation) audio narratives spatial cognition (e.g. cardinal orientation) Preference battery
assess decision-making associated Existing: incentive salience, visual cognition
[27] with the positive-incentive value perception
and level of con dence in the New: con dence, food-cue responsiveness evaluation of visual constructs
TOM battery assess theory-of-mind andpain-matrix networks Existing: language, social cognition, theory-of-mindNew: pain [28,29,30] VSTM + Enumeration assess numerosity with and withoutencoding of object features Existing: numerical cognition, visual cognitionNew: numerical cognition (e.g. numerosity) [31] Self assess the Self-Reference Eect Existing: recognitionNew: Self (e.g. self-reference eect, episodic memory) [32] Bang assess speech comprehensionduring movie watching Existing: languageNew: perception (e.g. action perception) [33]
auditory cognition (e.g. auditory-scene analysis) Table 3: Overview of the tasks featuring the second release of the
IBC dataset. The list contains a short description of every task along with a brief summary of the psychological domains addressed by its experimental conditions. The bibliographic references pertaining to their original studies are also provided in the right most column.
Mental Time Travel (MTT) task battery
The Mental Time Travel (MTT) task battery was developed following previous studies conducted at the NeuroSpin platform on chronosthesia and mental space navigation [24, 25, 26]. In these studies, participants judged the ordinality of real historical events in time and space by mentally project oneself, i.e. through egocentric mapping. In contrast, the present task was intended to assess the neural correlates underlying both mental time and space judgment involved in allocentric mapping implemented in narratives. To this end, and in order to remove confounds associated with prior subject-speci c mental representations linked to the historical events, ctional scenarios were created with fabricated stories and characters.
Concretely, this battery is composed of two tasks MTT WE and MTT SN that were employed, each of them, in two dierent sessions. The stimuli of each task referred to a dierent island plotting dierent stories and characters. There were two stories per island and they were created based on a two-dimensional mesh of nodes. Each node corresponded to a speci c action. The stories of each island evolved both in time and in one single cardinal direction. The cardinal directions, cued in the task, diered between sessions. Thus, space judgment was performed according to the cardinal directions West-East and South-North for tasks MTT WE and MTT SN, respectively. In addition, the stories of each island evolved spatially in opposite ways. For instance, the two stories plotted in the West-East island evolved across time from west to east and east to west, respectively.
Prior to each session, participants were to learn the story of the correspond-ing session. To prevent any retrieval of graphical memories referrcorrespond-ing to the schematic representation of the stories, they were presented as audio narratives. Additionally, the participants were also instructed to learn the stories chrono-graphically, i.e. as they were progressively referred to in the narrative, and to refrain from doing (visual) notes, which could be encoded as mental judgments. The task was organized as a block-design paradigm, composed of trials with three conditions of audio stimuli: (1) Reference, statement of an action in the story to serve as reference for the time or space judgment in the same trial; (2) Cue, question concerning the type of mental judgment to be performed in the same trial, i.e. Before or After? for the time judgment or West or East? and South or North? for the space judgment in the rst and second sessions, respectively; and (3) Event, statement of an action to be judged with respect to the Reference and according to the Cue.
Every trial started with an audio presentation of the Reference followed by silence, with a duration of two and four seconds, respectively. The audio presen-tation of the Cue came next, followed by a silence period; they had respectively a duration of two and four seconds. Afterwards, a series of four Events were presented for two seconds each; all of them were interspersed by a Response con-dition of three seconds. Every trial ended with a silent period of seven seconds, thus lasting thirty nine seconds in total.
con-ditions and the participants were instructed to never close their eyes. At the very end of each trial, the cross turned to red during half of a second in order to signal the beginning of the next trial; such cue facilitated the identi cation of the next audio stimulus as the upcoming Reference to be judged.
During the Response period, the participants had to press one of the two possible buttons, placed in their respective left and right hand. If the Cue presented in the given trial hinted at time judgment, the participants were to judge whether the previous Event occurred before the Reference, by pressing the button of the left hand, or after the Reference, by pressing the button of the right hand. If the Cue concerned with space judgment, the participants were to judge, in the same way, whether the Event occurred west or east of the Reference in the rst session and south or north of the Reference in the second session.
One session of data collection comprised three runs; each of them included twenty trials. Half of the trials for a given run were about time navigation and the other half, space navigation. Five dierent references were shared by both types of navigation and, thus, there were two trials with the same reference for each type of navigation. Within trials, half of the Events related to past or western/southern actions and the other half to future or eastern/northen actions with respect to the Reference.
The order of the trials was shu ed within runs, only to ensure that each run would feature a unique sequence of trials according to type of reference (both in time and space) and cue. No pseudo-randomization criterion was imposed as the trials' characterization was already very rich. Since there were only two types of answers, we also randomized events according to their correct answer within each trial. The same randomized sequence for each run was employed for all participants. The code of this randomization is provided together with the protocol of the task in a public repository on GitHub (see Section Code Availability). Note that the randomized sequence of trials for all runs is pre-determined and, thus, provided as inputs to the protocol for a speci c session.
For sake of clarity, Online-only Table 1 contains a full description of all conditions employed in the experimental design of this task.
Preference task battery
The Preference task battery was adapted from the Pleasantness Rating task (Study 1a) described in [27], in order to capture the neural correlates underly-ing decision-makunderly-ing for potentially rewardunderly-ing outcomes (aka positive-incentive value) as well as the corresponding level of con dence.
The whole task battery is composed of four tasks, each of them pertaining to the presentation of items of a certain kind. Therefore, Food, Painting, Face and House tasks were dedicated to food items, paintings, human faces and houses, respectively.
All tasks were organized as a block-design experiment with one condition per trial. Every trial started with a xation cross, whose duration was jittered between 0.5 seconds and 4.5 seconds, after which a picture of an item was
displayed on the screen together with a rating scale and a cursor. Participants were to indicate how pleasant the presented stimulus was, by sliding the cursor along the scale. Such scale ranged between 1 and 100. The value 1 corresponded to the choices unpleasant or indierent; the middle of the scale corresponded to the choice pleasant; and the value 100 corresponded to the choice very pleasant. Therefore, the ratings related only to the estimation of the positive-incentive value of the items displayed.
One full session was dedicated to the data collection of all tasks. It comprised eight runs with sixty trials each. Although each trial had a variable duration, according to the time spent by the participant in the assessment, no run lasted longer than eight minutes and sixteen seconds. Every task was presented twice in two fully dedicated runs. The stimuli were always dierent between runs of the same task. As a consequence, no stimulus was ever repeated in any trial and, thus, no item was ever assessed more than once by the participants. To avoid any selection bias in the sequence of stimuli, the order of their presentation was shu ed across trials and between runs of the same type. This shu e is embedded in the code of the protocol and, thus, the sequence was determined upon launching it. Consequently, the sequence of stimuli was also random across subjects. For each run (of each session), this sequence was properly registered in the log le generated by the protocol.
Theory-of-Mind and Pain Matrices task battery
This battery of tasks was adapted from the original task-fMRI localizers of Saxe Lab, intended to identify functional regions-of-interest in the Theory-of-Mind network and Pain Matrix regions. These localizers rely on a set of protocols along with verbal and non-verbal stimuli, whose material was obtained from
https://saxelab.mit.edu/localizers.
Minor changes were employed in the present versions of the tasks herein described. Because the cohort of this dataset is composed solely of native French speakers, the verbal stimuli were thus translated to French. Therefore, the durations of the reading period and the response period within conditions were slightly increased.
Theory-of-Mind Localizer (TOM localizer) The Theory-of-Mind Local-izer (TOM localLocal-izer) was intended to identify brain regions involved in theory-of-mind and social cognition, by contrasting activation during two distinct story conditions: (1) belief judgments, reading a false-belief story that portrayed char-acters with false beliefs about their own reality; and (2) fact judgments, reading a story about a false photograph, map or sign [28].
The task was organized as a block-design experiment with one condition per trial. Every trial started with a xation cross of twelve seconds, followed by the main condition that comprised a reading period of eighteen seconds and a response period of six seconds. Its total duration amounted to thirty six seconds. There were ten trials in a run, followed by an extra-period of xation cross for
twelve seconds at the end of the run. Two runs were dedicated to this task in one single session.
The designs, i.e. the sequence of conditions across trials, for two possible runs were pre-determined by the authors of the original study and hard-coded in the original protocol (see Section Theory-of-Mind and Pain Matrices task battery). The IBC-adapted protocols contain the exactly same designs. For all subjects, design #1 was employed for the PA-run and design #2 for the AP-run. Theory-of-Mind and Pain-Matrix Narrative Localizer (Emotional Pain localizer) The Theory-of-Mind and Pain-Matrix Narrative Localizer (Emo-tional Pain localizer) was intended to identify brain regions involved in theory-of-mind and Pain Matrix areas, by contrasting activation during two distinct story conditions: reading a story that portrayed characters suering from (1) emotional pain and (2) physical pain [29].
The experimental design of this task is identical to the one employed for the TOM localizer, except that the reading period lasted twelve seconds instead of eighteen seconds. Two dierent designs were pre-determined by the authors of the original study and they were employed across runs and participants, also in the same way as described for the TOM localizer (see SectionTheory-of-Mind Localizer (TOM localizer)).
Theory-of-Mind and Pain Matrix Movie Localizer (Pain Movie lo-calizer) The Theory-of-Mind and Pain Matrix Movie Localizer (Pain Movie localizer) consisted in the display of Partly Cloud, a 6-minute movie from Dis-ney Pixar, in order to study the responses implicated in theory-of-mind and pain-matrix brain regions [29,30].
Two main conditions were thus hand-coded in the movie, according to [30], as follows: (1) mental movie, in which characters were experiencing changes in beliefs, desires, and/or emotions; and (2) physical pain movie, in which charac-ters were experiencing physical pain. Such conditions were intended to evoke brain responses from theory-of-mind and pain-matrix networks, respectively. All moments in the movie not focused on the direct interaction of the main characters were considered as a baseline period.
Visual Short-Term Memory (VSTM) and Enumeration task battery This battery of tasks was adapted from the control experiment described in [31]. They were intended to investigate the role of the Posterior Parietal Cortex (PPC) involved in the concurrent processing of a variable number of items. Be-cause subjects can only process three or four items at a time, this phenomenon may re ect a general mechanism of object individuation [34,35]. On the other hand, PPC has been implicated in studies of capacity limits, during Visual Short-Term Memory (VSTM) [36] and Enumeration [35]. While the former requires high encoding precision of items due to their multiple features, like location and orientation, the latter requires no encoding of object features. By comparing the neural response of the PPC with respect to the two tasks, the
original study demonstrated a non-linear increase of activation, in this region, along with the increasing number of items. Besides, this relationship was dier-ent in the two tasks. Concretely, PPC activation started to increase from two items onward in the VSTM task, whereas such increase only happened from three items onward in the Enumeration task.
For both tasks, the stimuli consisted of sets of tilted dark-gray bars displayed on a light-gray background. Additionally, minor changes were employed in their present versions herein described: (1) both the response period and the period of the xation dot at the end of each trial were made constant in both tasks; and (2) for the Enumeration task, answers were registered via a button-press response box instead of an audio registration of oral responses as in the original study.
Visual Short-Term Memory task (VSTM) In the VSTM task, partici-pants were presented with a certain number of bars, varying from one to six.
Every trial started with the presentation of a black xation dot in the center of the screen for 0.5 seconds. While still on the screen, the black xation dot was then displayed together with a certain number of tilted bars variable between trials from one to six for 0.15 seconds. Afterwards, a white xation dot was shown for 1 second. It was next replaced by the presentation of the test stimulus for 1.7 seconds, displaying identical number of tilted bars in identical positions together with a green xation dot. The participants were to remember the orientation of the bars from the previous sample, and answer with one of the two possible button presses, depending on whether one of the bars in the current display had changed orientation by 90◦, which was the case in half of the trials. The test display was replaced by another black xation dot for a xed duration of 3.8 seconds. Thus, the trial was 7.15 seconds long. There were 72 trials in a run and four runs in one single session. Pairs of runs were launched consecutively. To avoid selection bias in the sequence of stimuli, the order of the trials was shu ed according to numerosity and change of orientation within runs and across participants.
Enumeration task In the Enumeration task, participants were presented with a certain number of bars, varying from one to eight.
Every trial started with the presentation of a black xation dot in the center of the screen for 0.5 seconds. While still on the screen, the black xation dot was then displayed together with a certain number of tilted bars variable between trials from one to eight for 0.15 seconds. It was followed by a response period of 1.7s, in which only a green xation dot was being displayed on the screen. The participants were to remember the number of the bars that were shown right before and answer accordingly, by pressing the corresponding button. Af-terwards, another black xation dot was displayed for a xed duration of 7.8 seconds. The trial length was thus 9.95 seconds. There were ninety six trials in a run and two (consecutive) runs in one single session. To avoid selection bias in the sequence of stimuli, the order of the trials was shu ed according to
numerosity within runs and across participants. Self task
The Self task was adapted from the study [32], originally developed to investi-gate the Self-Reference Eect in older adults. This eect pertains to the encod-ing mechanism of information referrencod-ing to the self, characterized as a memory-advantaged process. Consequently, memory-retrieval performance is also better for information encoded in reference to the self than to other people, objects or concepts.
The present task was thus composed of two phases, each of them relying on encoding and recognition procedures. The encoding phase was intended to map brain regions related to the encoding of items in reference to the self, whereas the recognition one was conceived to isolate the memory network speci cally involved in the retrieval of those items. The phases were interspersed, so that the recognition phase was always related to the encoding phase presented im-mediately before.
The encoding phase had two blocks. Each block was composed of a set of trials pertaining to the same condition. For both conditions, a dierent adjective was presented at every trial on the screen. The participants were to judge whether or not the adjective described themselves self-reference encoding condition or another person other-reference encoding condition. The other person was a public gure in France around the same age range as the cohort, whose gender matched the gender of every participant. Two public gures were mentioned, one at the time, across all runs; four public gures two of each gender were selected beforehand. By this way, we ensured that all participants were able to successfully characterize the same individuals, holding equal the levels of familiarity and aective attributes with respect to these individuals.
In the recognition phase, participants were to remember whether or not the adjectives had also been displayed during the previous encoding phase. This phase was composed of a single block of trials, pertaining to three categories of conditions. New adjectives were presented during one half of the trials whereas the other half were in reference to the adjectives displayed in the previous phase. Thus, trials referring to the adjectives from self-reference encoding were part of the self-reference recognition category and trials referring to the other-reference encoding were part of the other-reference recognition category. Conditions were then de ned according to the type of answer provided by the participant for each of these categories (see Online-only Table1for details).
There were four runs in one session. The rst three ones had three phases; the fourth and last run had four phases (see Table 2). Their total durations were twelve and 15.97 seconds, respectively. Blocks of both phases started with an instruction condition of ve seconds, containing a visual cue. The cue was related to the judgment that should be performed next, according to the type of condition featured in that block. A set of trials, showing dierent adjectives, were presented afterwards. Each trial had a duration of ve seconds, in which a response was to be provided by the participant. During the trials
of the encoding blocks, participants had to press the button with their left or right hand, depending on whether they believed or not the adjective on display described someone (i.e. self or other, respectively for self-reference encoding or other-reference encoding conditions). During the trials of the recognition block, participants had to answer in the same way, depending on whether they believed or not the adjective had been presented before. A xation cross was always presented between trials, whose duration was jittered between 0.3seconds and 0.5 seconds. A rest period was introduced between encoding and recognition phases, whose duration was also jittered between ten and fourteen seconds. Long intervals between these two phases, i.e. longer than ten seconds, ensured the measurement of long-term memory processes during the recognition phase, at the age range of the cohort [37, 38]. Fixation-cross periods of three and fteen seconds were also introduced in the beginning and end of each run, respectively.
All adjectives were presented in the lexical form according to the gender of the participant. There were also two sets of adjectives. One set was presented as new adjectives during the recognition phase and the other set for all remain-ing conditions of both phases. To avoid cognitive bias across the cohort, sets were switched for the other half of the participants. Plus, adjectives never re-peated across runs but their sequence was xed for the same runs and across participants from the same set. Yet, pseudo-randomization of the trials for the recognition phase was pre-determined by the authors of the original study, according to their category (i.e. self-reference recognition, other-reference recognition or new), such that no more than three consecutive trials of the same category were presented within a block.
For sake of clarity, Online-only Table1contains a full description of all main conditions employed in the experimental design of this task.
Bang task
The Bang task was adapted from the study [33], dedicated to investigate aging eects on neural responsiveness during naturalistic viewing.
The task relies on watching viewing and listening of an edited version of the episode Bang! You're Dead from the TV series Alfred Hitchcock Presents. The original black-and-white, 25-minute episode was condensed to seven minutes and fty ve seconds while preserving its narrative. The plot of the nal movie includes scenes with characters talking to each other as well as scenes with no verbal communication. Conditions of this task were thus set by contiguous scenes of speech and no speech.
This task was performed during a single run in one unique session. Partici-pants were never informed of the title of the movie before the end of the session. Ten seconds of acquisition were added at the end of the run. The total duration of the run was thus eight minutes and ve seconds.
Data Acquisition
Data across participants were acquired throughout six MRI sessions, whose structure is described in Table2. Deviations from this structure were registered for two MRI sessions. Besides and as referred in SectionData qualityas well as Figure1, a drop of the tSNR was identi ed for some MRI sessions. Additionally, data of the tasks featuring this release were not yet collected for subject 8 (consult SectionParticipants for further details). These anomalies in the data are summarized on Online-only Table2.
Behavioral Data
Active responses were required from the participants in all tasks. The registry of all behavioral data, such as the qualitative responses to dierent conditions and corresponding response times, was held in log les generated by the stimulus-delivery software.
Imaging Data
FMRI data were collected using a Gradient-Echo (GE) pulse, whole-brain Multi-Band (MB) accelerated [39,40] Echo-Planar Imaging (EPI) T2*-weighted se-quence with Blood-Oxygenation-Level-Dependent (BOLD) contrasts. Two dif-ferent acquisitions for the same run were always performed using two oppo-site phase-encoding directions: one from Posterior to Anterior (PA) and the other from Anterior to Posterior (AP). The main purpose was to ensure within-subject replication of the same tasks, while mitigating potential limitations con-cerning the distortion-correction procedure.
Spin-Echo (SE) EPI-2D image volumes were acquired in order to compensate for spatial distortions. Similarly to the GE-EPI sequences, two dierent phase-encoding directions, i.e. PA and AP, were employed in dierent runs pertaining to this sequence. There were four runs per session: one pair of PA and AP SE EPI-2D before the start of the GE-EPI sequences and another pair at the end. The parameters for all types of sequences employed are provided in [19] as well as in the documentation available on the IBC website: https://project. inria.fr/IBC/data/
Data Analysis
Image conversion
The acquired DICOM images were converted to NIfTI format using the dcm2nii tool, which can be found athttps://www.nitrc.org/projects/dcm2nii. Dur-ing conversion to NIfTI, all images were fully anonymized, i.e. pseudonyms were removed and images were defaced using the mri_deface command line from the Freesurfer-6.0.0 library.
Preprocessing
Source data were preprocessed using the same pipeline employed for the rst release of the IBC dataset. Thus, refer to [19] for more complete information about procedures undertaken during this stage.
In summary, raw data were preprocessed using PyPreprocess
(https://github.com/neurospin/pypreprocess), dedicated to launch in the python ecosystem pre-compiled functions of SPM12 software package v6685 and FSL library v5.0.
Firstly, susceptibility-induced o-resonance eld was estimated from four SE EPI-2D volumes, each half acquired in opposite phase-encoding directions (see Section Imaging Data for details). The images were corrected based on the estimated deformation model, using the topup tool [41] implemented in FSL [42].
GE-EPI volumes of each participant were then aligned to each other, using a rigid body transformation, in which the average volume of all images across runs (per session) was used as reference [43].
The mean EPI volume was also co-registered onto the T1-weighted MPRAGE (anatomical) volume of the corresponding participant [44], acquired during the Screening session (consult [19] for details).
The individual anatomical volumes were then segmented into tissue types in order to allow for the normalization of both anatomical and functional data into the standard MNI152 space, which was performed using the Uni ed Seg-mentation probabilistic framework [45]. Concretely, the segmented volumes were used to compute the deformation eld for normalization to the standard MNI152 space.
FMRI Model Speci cation
FMRI data were analyzed using the General Linear Model (GLM). Regressors-of-interest in the model were designed to capture variations in BOLD signal, which are in turn coupled to neuronal activity pertaining to task performance. To this end, the temporal pro le of task stimuli is convolved with the Hemo-dynamic Response Function (HRF) de ned according to [46, 47] in order to obtain the theoretical neurophysiological pro le of brain activity in response to behavior. The temporal pro les of stimuli, for block-design experiments, are typically characterized by boxcar functions de ned by triplets onset time, du-ration and trial type that can be extracted from log les' registries generated by the stimulus-delivery software.
Because the present release encompasses tasks with dierent types of ex-perimental designs, regressors-of-interest can refer to either conditions, wherein main eects of stimuli span a relatively long period, or parametric eects of those stimuli. Online-only Table 1 contains a complete description of all regressors-of-interest implemented in the models of every task.
Nuisance regressors were also modeled in order to account for dierent types of spurious eects arising during acquisition time, such as uctuations
due to latency in the HRF peak response, movements, physiological noise and slow drifts within run. We also account for another type of regressors-of-no-interest, referring to either no responses or non-correct behavioral responses, implemented in the model of the Self task. Concretely, the regressors en-code_self_no_response, encode_other_no_response,
recognition_self_no_response and recognition_other_no_response related to absence of responses in each condition plus recognition_self_miss and recognition_other_miss related to the unsuccessful recognition of an adjec-tive previously presented as well as false_alarm related to the misrecognition of a new adjective as one already presented were modeled separately as means to grant an accurate isolation of the eects pertaining to recognition and self reference in the regressors-of-interest (see SectionSelf taskfor further details about the design of this task).
A complete description of the general procedures concerned with the GLM implementation of the IBC data can be found in the rst data-descriptor article [19]. Such implementation was performed using Nistats python module v0.0.1b (https://nistats.github.io), leveraging Nilearn python module v0.6.0 [48] (https://nilearn.github.io/).
Regressor-of-Interest Description of the eect modeled MTT task battery∗
we/sn_average_reference action in the story to serve as reference for the time or space judgment in the same trial in the west-east/south-north island
we/sn_all_space_cue cue indicating a question about spatial orienta-tion in the west-east/south-north island
we/sn_all_time_cue cue indicating a question about time orientation in the west-east/south-north island
westside/southside_event action to be judged whether it takes place west/south or east/north from this reference, that actually takes place west/south from this refer-ence
eastside/northside_event action to be judged whether it takes place west/south or east/north from this reference, that actually takes place east/north from this refer-ence
we/sn_before_event action to be judged whether it takes place before or after this reference, that actually takes place before this reference, in the west-east/south-north island
we/sn_after_event action to be judged whether it takes place before or after this reference, that actually takes place after this reference, in the west-east/south-north island
we/sn_all_event_response motor responses performed after every event con-dition in the west-east/south-north island Preference task battery§
preference_constant main eect of condition concerning the classi ca-tion of the level of pleasantness of an item dis-played on the screen
preference_linear parametric eect concerning the rating provided by the participant
preference_quadratic parametric eect of the squared rating TOM localizer
belief main eect of condition concerning the reading of a false-belief story, that portrayed characters with false beliefs about their own reality
photo main eect of condition concerning the reading of a story related to a false photograph, map or sign Emotional Pain localizer
emotional_pain main eect of condition concerning the reading of a story that portrayed characters suering from emotional pain
physical_pain main eect of condition concerning the reading of a story that portrayed characters suering from physical pain
Pain Movie localizer
movie_mental main eect of condition concerned with watch-ing a movie scene whose characters experience changes in beliefs, desires and/or emotions movie_pain main eect of condition concerned with watching
a movie scene whose characters experience phys-ical pain
VSTM task
vstm_constant main eect of condition concerned with judging whether any bar changed orientation within two consecutive displays of bar sets on the screen vstm_linear parametric eect of the number of bars displayed
during two consecutive displays† vstm_quadratic quadratic eect of the number of bars
Enumeration task
enumeration_constant main eect of condition concerned with judging the number of bars displayed on the screen enumeration_linear parametric eect of the number of bars displayed enumeration_quadratic quadratic eect of the number of bars
instruction main eect of condition concerning the presenta-tion of a quespresenta-tion related to the succeeding block‡ encode_self1 main eect of condition concerned with judg-ing whether a certain adjective displayed on the screen quali es oneself
encode_other1 main eect of condition concerned with judg-ing whether a certain adjective displayed on the screen quali es someone else
recognition_self_hit2 main eect of condition concerning the success-ful recognition of an adjective displayed on the screen as having been already presented during one encode_self trial of the preceding encoding phase
recognition_other_hit2 main eect of condition concerning the success-ful recognition of an adjective displayed on the screen as having been already presented during one encode_other trial of the preceding encod-ing phase
correct_rejection2 main eect of condition concerning the successful identi cation that a new adjective has never been presented before
Bang task
talk main eect of condition concerned with watching contiguous scenes of speech
no_talk main eect of condition concerned with watching contiguous scenes of non-speech
Online-only Table 1: Regressors-of-Interest implemented in the design matrices of the tasks for the main contrasts of this dataset release.
∗MTT-task battery comprises two tasks that dier in their cardinal-orientation
judg-ment West-East and South-North as detailed in SectionMental Time Travel (MTT) task battery. The experimental paradigm is the same and regressors-of-interest are equivalent with respect to cardinality.
§ Preferences task battery comprises fours dierent tasks: Food, Painting, Face and
House. The same regressors were employed in each task. Additionally, all tasks were also treated together in a single linear model.
† In every trial, the same number of bars was kept between the two consecutive
dis-plays.
‡Questions were according to the type of the succeeding block. Thus, encode_self
blocks were preceded by the question Are you?; encode_other blocks were preceded by the question Is <name_of_famous_person>?; and recognition-phase blocks were preceded by the question Have you seen?.
1Regressor modeling condition from the Encoding phase. 2Regressor modeling condition from the Recognition phase.
Tasks sub-01 sub-04 sub-05 sub-06 sub-07 sub-08 sub-09 sub-11 sub-12 sub-13 sub-14 sub-15 MTT 1 bottom of cerebellumtSNR drop at the No data bottom of cerebellumtSNR drop at the bottom of cerebellumtSNR drop at the
MTT 2 bottom of cerebellum bottom of cerebellumtSNR drop at the tSNR drop at the bottom of cerebellumtSNR drop at the No data Preference
tSNR drop at the tSNR drop at the tSNR drop at the No data tSNR drop at the tSNR drop at the tSNR drop at the tSNR drop at the tSNR drop at the Run Food-PA contains only the rst 50 trials bottom of cerebellum bottom of cerebellum bottom of cerebellum bottom of cerebellum bottom of cerebellum bottom of cerebellum bottom of cerebellum bottom of cerebellum
Run Painting-AP is missing and Run Faces-AP was acquired twice TOM bottom of cerebellumtSNR drop at the No data
Enumeration bottom of cerebellumtSNR drop at the No data bottom of cerebellumtSNR drop at the bottom of cerebellumtSNR drop at the
Self No data
Online-only Table 2: Data anomalies. Four anomalies are summarized over MRI sessions and participants: tSNR drop at the bottom of the cerebellum; acquisition of two Runs Faces-AP in detriment of no acquisition of Run Painting-AP of the Preference battery for subject 11; only the rst fty trials of Run Food-PA of the Preference battery were registered for subject 15, since this participant could not complete the sixty trials within the pre-established duration of the run; no data for the tasks featuring this release were collected for subject 8, which will integrate a future release upon announcement. Model Estimation
In order to restrict GLM parameters estimation to voxels inside functional brain regions, a brain mask was extracted from the normalized mean GE-EPI volume thresholded at a liberal level of 0.25, using Nilearn. This corresponds to a 25% average probability of nding gray matter in a particular voxel across subjects. A mass-univariate GLM t was then applied to the preprocessed EPI data, for every run in every task, using Nistats. For this t, we set a spatial smoothing of 5mm full-width-at-half-maximum as a regularization term of the model; spatial smoothing is a standard procedure that ensures an increase of the Signal-to-Noise Ratio (SNR) at the same time that facilitates between-subject compar-ison. Parameter estimates for all regressors implemented in the model were computed, along with the respective covariance, at every voxel. Linear com-binations between parameter estimates computed for the regressors-of-interest (listed on Online-only Table 1) as well as for the baseline were performed in order to obtain contrast maps with the relevant evoked responses.
More details about model estimation can be found in the rst data-descriptor article [19]. Its implementation and the ensuing statistical analyses were per-formed using Nistats (about Nistats, see SectionFMRI Model Speci cation).
Summary Statistics
Because data were collected per task and subject in at least two acquisi-tions with opposite phase-encoding direcacquisi-tions (see Section Imaging Data for details), statistics of their joint eects were calculated under a Fixed-Eects (FFX) model.
t-tests were then computed at every voxel for each individual contrast, in order to assess for statistical signi cance in dierences among evoked responses. To assure standardized results that are independent from the number of obser-vations, t-values were directly converted into z-values.
Data derivatives are thus delivered as individual contrast maps containing standard scores in all voxels that are con ned to a grey-matter-mask with an average threshold > 25% across subjects. We note that these postprocessed individual maps were obtained from the GLM t of preprocessed EPI maps and, thus, they are represented in the standard MNI152 space. For more information about the access to the data derivatives, refer to Section Derived statistical maps.
Data Records
Both raw fMRI data (aka source data) as well as derived statistical maps of the IBC dataset are publicly available.
Source data
Source data of the present release (plus rst and third releases) can be ac-cessed via the public repository OpenNeuro [49] under the data accession num-ber ds002685 [50]. This collection comprises ∼1.1TB of MRI data. A former collection only referring to source data from the rst release is still available in the same repository [51].
The NIfTI les as well as paradigm descriptors and imaging parameters are organized per run for each session according to BIDS Speci cation:
• the data repository is organized in twelve main directories sub-01 to sub-15; we underline that sub-02, sub-03 and sub-10 are not part of the dataset and corresponding data from sub-08 will be made available in further releases(see Table1);
• data from each subject are numbered on a per-session basis, following the chronological order of the acquisitions; we also note that this order is not the same for all subjects; the IBC documentation can be consulted for the exact correspondence between session number and session id for every subject onhttps://project.inria.fr/IBC/data/(session id's of the rst and second releases are respectively provided on Table 2 of [19] and Table2 of the present article);
• acquisitions are organized within session by modality;
• dierent identi ers are assigned to dierent types of data as follows: gzipped NIfTI 4D image volumes of BOLD fMRI data are named as
sub-XX_ses-YY_task-ZZZ_dir-AA_bold.nii.gz, in which XX and YY refer respectively to the subject and session id, ZZZ refers to the name of the task, and AA can be either `PA' or `AP' depending on the phase-encoding direction;
event les are named as
single-band, reference images are named as
sub-XX_ses-YY_task-ZZZ_dir-AA_sbref.nii.gz.
Although BIDS v1.2.1 does not provide support for data derivatives, a similar directory tree structure was still preserved for this content.
Derived statistical maps
The unthresholded-statistic, contrast maps have been released in the public repository NeuroVault [52] with the id = 6618 [53]. This collection comprises data from both releases. A former collection only referring to data derivatives from the rst release is still available in the same repository (id = 4438, [54]).
Technical Validation
Behavioral Data
Response accuracy of behavioral performance was calculated for those tasks re-quiring overt responses. It aims at providing a quantitative assessment of the quality of the imaging data in terms of subjects' compliance. Because imaging data re ect herein brain activity related to behavior, scores of response accuracy across trials are good indicators of faithful functional representations regarding the cognitive mechanisms involved in the correct performance of the task. In-dividual scores are provided as percentages of correct responses with respect to the total number of responses in every run of a given task. The average of these scores is also provided as an indicator of the overall performance of the participant for that speci c task.
Mental Time Travel task battery
Scores for MTT WE and MTT SN tasks are provided on Online-only Table
3. Participants were to give one answer out of two possible answers during the Response condition (see Section Mental Time Travel (MTT) task battery
for details); one of the answers was the correct one. Nevertheless, trials were composed of one series of four consecutive Events interspersed by the corre-sponding Response. As a result, participants sometimes anticipated or delayed their answers when they were still listening the action during the corresponding Event condition or already in the next Event condition, respectively. To ac-count for correct answers provided under these circumstances, responses given during the rst half of an Event (except for the rst one of the series) were considered as answers pertaining to the previous Event; on the other hand, re-sponses given during the second half of an Event were considered as answers pertaining to the current Event. The average ± SD across participants for the two tasks are 76 ± 13% and, thus, higher than chance level (50%). We conclude that participants not only learnt correctly the stories plotted in both tasks but
also performed successfully the time and space shifts upon listening the Event conditions.
Response accuracy (%) for the Mental-Time Travel task battery during the Event+Response conditions Number of trials per run = 20 / Chance level = 50%
Task Run id sub-01 sub-04 sub-05 sub-06 sub-07 sub-09 sub-11 sub-12 sub-13 sub-14 sub-15∗
0 81 83 76 71 57 82 42 76 57 70 n/a MTT WE 12 8191 10092 7868 8380 6360 8690 5551 7776 6358 7678 9598 Mean 85 92 75 78 60 86 50 77 60 75 97 0 86 93 76 73 62 83 65 71 65 73 n/a MTT SN 12 8891 10096 8056 7382 6872 8792 7067 7076 5753 7268 n/an/a Mean 89 97 71 77 68 88 68 72 59 72 n/a Total 87 94 73 78 64 87 59 75 59 73 97
Online-only Table 3: Response accuracy (%) of behavioral perfor-mance for the MTT tasks during the Event+Response conditions. These scores were estimated considering the answers provided during the Event+Response conditions; the time window of the answers for a certain Event were considered from the second half of presentation of the event itself up to the rst half of presentation of the next event, totalizing a period of 5 seconds. The mean of the individual scores across runs per task is also presented along with the total mean comprising both tasks. The average ± SD comprising both tasks across participants are 76 ± 13%.
∗ Low scores for subject 15 relate to loss of behavioral data during acquisition time
in both tasks; we stress this issue is due to loss of the log les generated by the stimulus-delivery software and, thus, agnostic to subject's performance.
Theory-of-Mind
In the Theory-of-Mind task, participants were to read stories involving either false-beliefs about the state of the world or scenery representations that were misleading or outdated. Afterwards they were to answer a question pertaining to the plot, in which one out of two possible answers was correct (see Section
Theory-of-Mind Localizer (TOM localizer) for details). Online-only Table 4
provides the individual scores achieved for this task. The average ± SD across participants are 74 ± 16%, i.e. higher than chance level (50%). These results show that overall the participants understood the storylines and thus they were able to successfully judge the facts pointed out in the questions.
Visual Short-Term Memory task
In the VSTM task, participants were asked to identify, for every trial, whether there had been a change in the orientation of one of the bars during two consecu-tive displays of the same number of bars (see SectionVisual Short-Term Memory task (VSTM) for details). There were thus two possible answers. Online-only Table5provides the individual scores for every run and the average across runs, grouped by numerosity of the visual stimuli (measured by the number of bars); numerosity ranged from one to six. In line with the behavioral results reported
Response accuracy (%) for the Theory-of-Mind localizer Number of trials per run = 10 / Chance level = 50%
Run id sub-01 sub-04 sub-05 sub-06 sub-07 sub-09 sub-11 sub-12 sub-13 sub-14 sub-15
0 90 90 70 70 80 n/a 90 70 90 80 90
1 80 80 80 90 60 50 70 80 70 70 70
Mean 85 85 75 80 70 50 80 75 80 75 80
Online-only Table 4: Response accuracy (%) of behavioral performance for the Theory-of-Mind localizer. The mean of the scores for the two runs is also provided for every subject. The average ± SD across participants are 74 ± 16%.
in the original study (Figure 2 - plot E of [31]), the scores start decreasing more prominently for numerosity > 3 (see Online-only Table6).
Enumeration task
In the Enumeration task, participants were asked to identify, for every trial, the exact number of bars displayed on the screen (see Section Enumeration task
for details). The number of bars ranged from one to eight; there were thus eight possible answers. Online-only Table7 provides the individual scores for every run and the average across runs, grouped by numerosity of the visual stimuli (measured by the number of bars). Following the overall trend of the behavioral results reported in the original study (Figure 2 - plot D of [31]), the scores decrease substantially for numerosity > 4 (see Online-only Table8).
Self task recognition phase
The Self-task paradigm comprised two dierent phases: the encoding and recog-nition phases (see SectionSelf taskfor details). Both of them pertained to overt responses, although only the recognition phase required correct answers. In this particular phase, participants were to judge whether the adjective under display had already been presented in the previous encoding phase. Online-only Table
9provides the individual scores for every run and the average across runs. The average ± SD across participants are 83 ± 8%, i.e. higher than chance level (50%), showing that participants successfully recognized either familiar or new adjectives in the majority of the recognition trials. Despite some low behav-ioral scores registered (particularly in run 3 for participant 1 and runs 0 and 1 for participant 5), we have only included trials with active and correct responses in the regressors-of-interest and, thus, neuroimaging results are not impacted by spurious eects potentially derived from occasional poor performances.
Imaging Data
Data quality

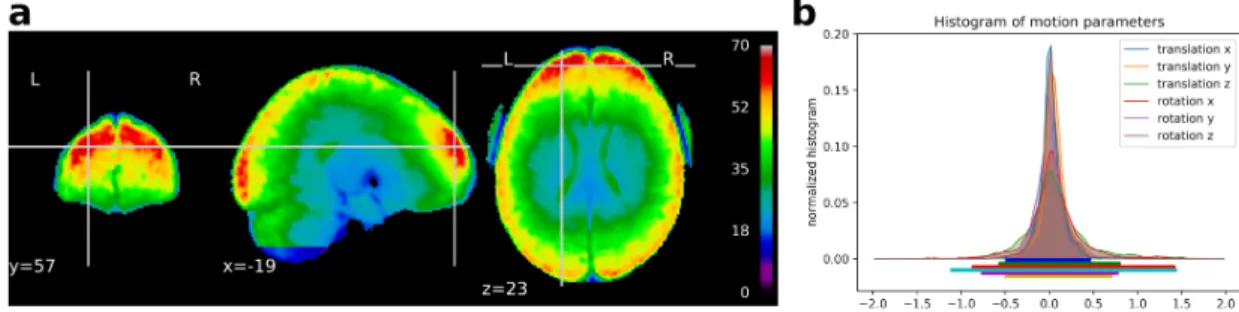

In order to provide an approximate estimate of data quality, measurements of the preprocessed data are presented in Figure1and described as follows:
Response accuracy (%) for the Visual Short-Term Memory task Number of trials per run = 144 / Chance level = 50%
Numerosity Run id sub-01 sub-04 sub-05 sub-06 sub-07 sub-09 sub-11 sub-12 sub-13 sub-14 sub-15
0 36 51 28 53 44 49 58 35 29 33 40 1 49 49 12 57 36 56 50 40 35 18 38 All numerosities 2 40 49 42 58 46 44 56 49 42 39 42 3 43 58 39 57 39 56 57 47 43 43 44 Mean 42 52 30 56 41 51 55 43 37 33 41 0 33 57 38 56 45 78 77 38 36 54 60 1 60 59 6 60 31 60 64 55 31 18 56 1 2 43 62 36 64 58 29 83 44 62 33 25 3 70 73 54 60 50 71 58 88 62 42 50 Mean 52 63 34 60 46 60 70 56 48 37 48 0 50 82 54 54 80 58 59 36 38 43 31 1 58 38 18 55 29 75 57 40 27 40 27 2 2 27 50 58 73 67 41 58 54 31 38 20 3 31 83 17 77 58 43 67 55 45 45 56 Mean 42 63 37 65 58 54 60 46 35 42 34 0 27 50 36 100 64 38 17 46 42 50 50 1 44 64 23 60 54 55 42 82 42 12 42 3 2 42 45 40 62 58 44 75 85 62 33 50 3 58 38 71 45 33 47 50 45 27 27 36 Mean 43 49 42 67 52 46 46 64 43 30 44 0 30 31 20 61 36 25 100 25 20 14 20 1 50 88 11 50 40 67 60 31 21 20 36 4 2 23 42 29 75 22 64 27 50 38 36 38 3 9 67 40 62 27 54 56 43 45 50 45 Mean 28 57 25 62 31 52 61 37 31 30 35 0 50 58 17 33 50 46 62 40 18 14 62 1 42 8 8 50 31 36 55 7 46 0 44 5 2 62 54 33 46 40 40 40 11 23 42 62 3 45 45 33 55 33 67 64 33 36 50 36 Mean 50 41 23 46 38 47 55 23 31 26 51 0 29 44 8 18 17 54 38 21 20 33 21 1 30 38 9 62 33 36 31 40 44 20 20 6 2 44 36 54 38 25 46 55 36 42 50 67 3 47 46 9 36 33 45 46 38 33 50 47 Mean 38 41 20 38 27 45 42 34 35 38 39
Online-only Table 5: Response accuracy (%) of behavioral performance per numerosity for the VSTM task. The number of bars presented in the visual stimuli was dierent trial-by-trial, ranging from 1 to 6. For each level of numerosity, scores in every run are related to the trials referring to visual stimuli matching the speci ed numerosity. The mean of the scores across runs is also provided for every subject and numerosity.
Group scores (%) for the VSTM task Numerosity Mean SD All numerosities 44 8 1 52 10 2 49 11 3 48 10 4 41 14 5 39 11 6 36 7
Online-only Table 6: Group-level scores (%) of behavioral performance per numerosity for the VSTM task. The number of bars presented in the visual stimuli ranged from 1 to 6. For each level of numerosity, the mean of the scores across subjects is provided along with its standard deviation. Although there is a successive decrease of the scores as numerosity increases, one can see a prominent step decrease for numerosity > 3.
Response accuracy (%) for the Enumeration task Number of trials per run = 192 / Chance level = 12.5%
Numerosity Run id sub-01 sub-04 sub-05 sub-06 sub-07 sub-09 sub-11 sub-12 sub-13 sub-14 sub-15
0 72 67 49 58 69 69 58 69 65 34 54 All numerosities 1 70 71 47 69 73 69 51 66 64 48 50 Mean 71 69 48 64 71 69 54 68 64 41 52 0 100 77 93 89 100 93 100 86 100 82 75 1 1 92 100 60 100 92 70 100 100 100 82 83 Mean 96 88 76 94 96 82 100 93 100 82 79 0 100 93 83 80 100 73 92 85 90 80 88 2 1 100 85 92 100 94 78 94 100 100 56 100 Mean 100 89 88 90 97 76 93 92 95 68 94 0 100 78 100 69 83 100 69 92 87 25 77 3 1 100 100 64 73 100 100 42 91 89 80 64 Mean 100 89 82 71 92 100 56 92 88 52 70 0 100 87 33 47 62 90 0 92 89 18 40 4 1 92 89 33 67 88 79 0 83 100 36 64 Mean 96 88 33 57 75 84 0 88 94 27 52 0 17 27 18 23 58 64 45 36 0 18 14 5 1 42 47 31 45 58 80 20 38 17 33 30 Mean 30 37 24 34 58 72 32 37 8 26 22 0 18 31 8 29 54 18 60 45 44 0 11 6 1 23 62 17 20 64 38 44 62 20 27 33 Mean 20 46 12 24 59 28 52 54 32 14 22 0 50 58 13 80 71 55 55 50 69 12 36 7 1 36 60 22 89 60 69 67 36 73 36 8 Mean 43 59 18 84 66 62 61 43 71 24 22 0 67 78 50 71 30 44 38 50 36 50 73 8 1 93 56 50 47 29 47 33 33 10 47 38 Mean 80 67 50 59 30 46 36 42 23 48 56
Online-only Table 7: Response accuracy (%) of behavioral performance per numerosity for the Enumeration task. The number of bars presented in the visual stimuli ranged from 1 to 8. For each level of numerosity, scores in every run are related to the trials referring to visual stimuli matching the speci ed numerosity. The mean of the scores across runs is also provided for every subject and numerosity.
Group scores (%) for the Enumeration task Numerosity Mean SD All numerosities 61 10 1 90 8 2 89 9 3 81 16 4 63 30 5 35 17 6 33 16 7 50 21 8 49 16
Online-only Table 8: Group-level scores (%) of behavioral performance per numerosity for the Enumeration task. The number of bars presented in the visual stimuli ranged from 1 to 8. For each level of numerosity, the mean of the scores across subjects is provided along with its standard deviation. Although there is a successive decrease of the scores as numerosity increases, one can see a prominent step decrease for numerosity > 4.
Response accuracy (%) for the recognition phase of the Self task Chance level = 50%
Run id No. of trials∗ sub-01 sub-04 sub-05 sub-06 sub-07 sub-09 sub-11 sub-12 sub-13 sub-14 sub-15
0 72 100 91 47 91 91 94 87 86 81 87 90
1 72 90 84 50 84 91 90 88 90 72 73 84
2 72 94 87 81 90 90 86 81 84 76 80 83
3 96 2 90 88 79 93 98 82 82 76 81 94
Mean - 72 89 67 86 92 92 85 86 77 81 88
Online-only Table 9: Response accuracy (%) of behavioral performance for the recognition phase of the Self task. The mean of the scores for the four runs is also provided for every subject. The average ± SD across participants are 83 ± 8%.
∗No. of trials refer (in this table) to the number of trials only for the recognition
phase in the speci ed run and, thus, not to the total number of trials in the run. Because run #3 was longer than the remainder ones, the number of trials for the recognition phase was therefore greater. Concretely, this run included four blocks for the recognition phase with twenty four trials each, whereas all others comprised three blocks.
