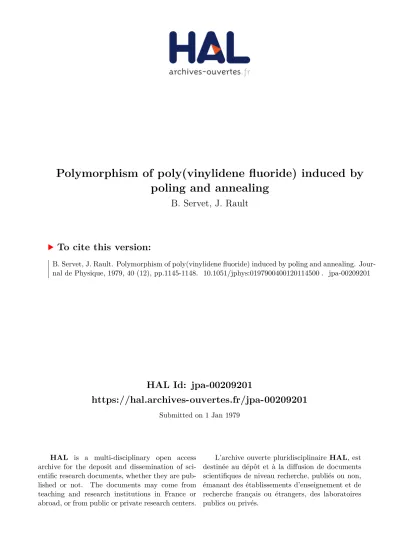

Polymorphism of poly(vinylidene fluoride) induced by poling and annealing

HAL Id: jpa-00209201

https://hal.archives-ouvertes.fr/jpa-00209201

Submitted on 1 Jan 1979

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Polymorphism of poly(vinylidene fluoride) induced by poling and annealing

B. Servet, J. Rault

To cite this version:

B. Servet, J. Rault. Polymorphism of poly(vinylidene fluoride) induced by poling and annealing. Jour-

nal de Physique, 1979, 40 (12), pp.1145-1148. �10.1051/jphys:0197900400120114500�. �jpa-00209201�

Polymorphism ^of poly(vinylidene fluoride) ^induced by poling ^and annealing

B. Servet

L.C.R. Thomson C.S.F. Corbeville, ⁹¹⁴⁰¹ Orsay, ^France

Laboratoire de Physique ^des Solides, Université Paris-Sud, 91405 Orsay, ^France and J. Rault

Laboratoire de Physique ^des Solides, Université Paris-Sud, 91405 Orsay, ^France

(Roçv le l U roui 1979, ut-c,el)ié ^{!017 uoüt} 1979)

Résumé. 2014 Dans les films étirés de fluorure de polyvinylidène, l’application ^d’un champ électrique ^{de 1} MV/cm produit ^une transformation structurale 03B1 non polaire ~ _03B1p polaire. ^La phase 03B1p orientée, ^avec les mêmes para- mètres cristallins _que la phase 03B1, est toujours accompagnée de taches de Bragg diffuses. Cette structure disparaît

par recuit à 170 °C _pour donner une nouvelle phase ^orientée (03B1’) plus ^{stable dans} laquelle ^{la chaîne a une confor-}

mation T3GT3G-.

Abstract.

In stretched poly(vinylidene fluoride) films, ^the transition from unpolar ^{03B1-form to a} polar ^form (03B1p)

is produced by pohng ^at 80 °C by ^an electric field of 1 MV/cm. This oriented form has the same lattice constants as 03B1-form but is associated with extra diffuse reflections. This form and the diffuse reflections disappear by ^anneal- ing above 170 °C and give ^an oriented and more stable form (03B1’) in which the chain has the T3GT3G- ^confor-

mation.

Classification Physics ^Abstracts

80.20S-61.40

Introduction.

It has been established for several years that poly(vinylidene fluoride), PVDF, ^{exists in}

at least three crystalline ^forms designated ^{as oc,} fl, y

or respectively II, I, ^{III and the} transitions _among them under various conditions (high pressure, heat treatment, drawing) ^{have been} extensively ^studied [1-8].

The chain in polar fl-form ^{has the all trans confor-}

mation (planar zigzag ^{like in} polyethylene) ^{with a} high dipole ^moment perpendicular ^{to the} c-axis. The films of fl-form ^PVDF prepared by stretching ^and poling ^{exhibit strong pyro- and} piezoelectric ^effects.

In unpolar ^{a-form the molecule} have the TGTG - conformation and the unit cell consists of two anti-

parallel dipoles, which leads to large interactions with an applied ^field.

Recently pyro- and piezoelectricity ^{have been}

found [9] ⁱⁿ poled a-form of PVDF. Experimental

results obtained with isotropic ^and biaxially ^oriented samples ^{have indicated a} change ^{in the} crystal ^struc-

ture of a-form, ^{after the} poling process. It has been

reported [9] ^{that fields near 1} MV/cm ^{cause a} phase

transition to a polar ^form (ap) ^{with no} significant change in chain conformation (TGTG-) ^{and that} higher ^{fields near 5} MV/cm produce ^the p-form.

This note presents preliminary results of further ’

investigations ^{on the effect of} poling. ^We report ^new structural changes ⁱⁿ uniaxially ^oriented samples

induced by poling ^and subsequent annealing.

Experimental. ^{- The} 100 J.1m thick PVDF films

containing exclusively a-form ’with 5 % of defects of head-to-head and tail-to-tail type (HHTT) ^are sup-

plied by ^{Kureha chemical} industry ^{Co LTD} of Japan.

They ^{are extended to} drawing ^{ratios ô = 4 at}

145 °C and b ⁼ 5.5 at 155 °C. This treatment results in the orientation of the c-axes of the crystallites parallel ^{to the} drawing direction. Aluminium elec- trodes are evaporated ^on both surfaces and the films

are subjected ^{to a} high d.c. field of ¹ MV/cm ^{at 80 °C}

for 10 min, ^{and then cooled to room} temperature with the field applied. Subsequently, ^the poled ^films

are heated and annealed at high temperatures (T. > ^{170 °C) below the} melting point (178 °C).

Differential thermal analysis measurements are per- formed with a Mettler 2000 equipment.

X-Ray ^fibre diagrams ^{are taken with a} cylindrical

camera, with a radius of 58 mm and CuKa mono-

chromatic radiation (Â ^{= 1.54} A) is used with point

collimation.

Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphys:0197900400120114500

1146

Results and discussion. 2013 1. Poled samples ^exhibit’

a strong piezoelectric effect. The measurements of the

piezoelectric coefficient d33 ^have given ^8.5 pC/N ^for

ô ⁼ 4 and 13 pC/N ^{for b = 5.5. A} structural analysis

of these samples ^{was carried out in order to} explain

the effect of poling. ^The X-Ray ^fibre diagrams ^were

taken in the directions : a) perpendicular ^and b) parallel ^{to the} sample (Fig. 1), ^{and then} compared ^to

those of unpoled ^films.

Fig. ^1.

X-Ray ^fibre diagrams ^{of drawn} (5 ⁼ 5.5) ^and poled

PVDF films taken with the incident beam perpendicular ^{to a)} (b*, c*) plane ^{and to} b) (a*, c*) plane. ^{c* is} parallel ^{to the draw-} ing direction and a* is parallel ^{to the} poling ^field. Dl ^and D2 ^reflec-

tions are not seen in the unpoled ^a-form.

[Diagrammes ^{de fibre} d’échantillons étirés (5 ⁼ 5.5) ^et polarisés.

L’axe c* est en moyenne parallèle ^à la direction d’étirement et l’axe a* parallèle ^au champ électrique. ^Les taches diffuses D, ^et D2 ^{ne sont} pas observées avec les échantillons non polarisés.]

The relative change ⁱⁿ intensities of the Bragg

reflections indicates that the lattice of a-form is somewhat oriented with the a-axis parallel ^{to the} applied field : in particular, ^the (020) reflection is much more intense in case a) ^{than in case} b).

Furthermore the (100), (120)’and (121) reflections tend to disappear ^{in both} orientations. They ^are pointed ^out by ^{arrows in} figure ^2b.

Finally, annealing ^{of these} poled ^{films for an hour}

at 100 °C results in a decreasing ^{of about 50} % ⁱⁿ piezoelectric activity, ^{but no} significant change ^is

seen on the X-Ray diagram. ^{Most of the} trapped charges injected during ^the poling process have relaxed at 100 °C (10), therefore it is _very likely ^that

the residual permanent polarisation essentially ^arises

from the oriented crystalline phase. These results confirm the previous observations in poled biaxially

oriented samples ^{and are} consistent with a transition from a-form to a polar ^form (ap) involving ^{the rota-}

tion of TGTG- molecules [9]. ^The permanent pola-

risation in ocp-form ^{is due to the} identical orientations of all TGTG- molecules.

Two types of additional diffuse reflections desi-

gnated Dl 1 and D2 have been observed out of the

layer ^{lines of the} poled ^{a-form. No} corresponding

upper orders appear ^on the X-Ray spectrum. ^Both reflections are located in the reciprocal plane ^{(a*, c*).}

D 1 reflections ^{are seen in} figure ^{1 a when the inci-}

dent beam is perpendicular ^{to the film, but are not}

located on the c*-axis. In orientation lb, ^{the maxi-}

mum intensity is obtained by tilting ^the fibre axis by

15° on the incident beam.

D2 reflections are seen in figure ^{1 b near the} equator.

Their shape suggests ^a decorrelation along ^{the c-axis}

and their angular extension is about of 30° with respect

to the direction of the poling field. This extension does not vary significantly ^{with the} drawing ^{ratio for}

ô = 4 and 5.5. Its high ^value prevents ^us from deter-

mining ^{the exact} type of the disorder giving ^{rise to}

the diffusion (planar ^{or linear).}

No similar reflections have been observed with the

poled p-form ^of PVDF ; ^{therefore these diffuse} reflections are presumed ^to arise from a particular arrangement within the a-crystallites : packing and/or

distorsions of TGTG - chains.

2. In this second part, ^our interest is focused ^on the behaviour of the poled ^{a-form at} high tempera-

tures. The samples ^{are fixed at} both ends and then annealed above room temperature. Annealing ^at

100 °C for several hours does not cause any modifi- cation to the X-Ray spectrum ^{of the} poled ^a-form.

After annealing ^{at 170} °C the diffuse reflections tend to decrease whereas new layer ^lines appear ^on the

X-Ray ^fibre diagrams (Fig. 2).

Changes in intensities of the Bragg reflections are

also observed in both orientations. The (100) ^reflec-

tion _reappears in case b. The new period along ^the

c-axis is found to be twice the period in a-form. The results indicate a phase transition to a new oriented form designated ^{as a’. The} doubling ^{of the c} period

can be interpreted ^{as a} change in chain conformation

arising ^{from a} cooperative motion of molecules in

the poled ^a-form.

Fig. ^2.

X-Ray ^fibre diagrams ^{of drawn} (5 ⁼ 5.5) ^and poled

PVDF films annealed at 170 °C. a) (b*, c*) plane, b) (a*, c*) plane :

arrows point ^to (100), (120) ^and (121) reflections which vanish in figures ^1.

[Diagrammes ^{de fibre} d’échantillons étirés, polarisés ^{et recuits à}

170 °C. Les flèches indiquent les taches (100), (120) ^et (121) ^éteintes

sur les figures 1.]

We suggest ^a T3GT3G- conformation. Figure ³

shows the molecular conformations of TGTG- type and T3GT3G- type. ^{In these exact models the values} of the identity period ^{are 4.4 A for TGTG-} type ^and

8.8 A for T3GT3G- type. ^The proposed ^{chain con-}

formation of a’-form is similar to that of Rubber

hydrochloride ^found by ^Bunn and Garner [11].

The transitions at high temperatures ⁱⁿ poled

a-form have been studied by ^DTA technique. ^The application of Differential Thermal Analysis ^{in the}

case of PVDF is made difficult by :

a) the presence of numerous phases (a, fl, _{ap, OC,)}

in our samples,

b) the effect of annealing which results in thicken-

ing of lamellae and therefore increases the tempera-

tures of the transitions [12],

Fig. ^3.

Molecular conformations of a) TGTG- _type and b) T3GT3G- type. ^The period ^of T3GT3G- ^type in a’-form is exactly

twice the period ^{of TGTG-} type in a-form. Both conformations have a glide plane along the chain axis.

[Modèles de conformation de chaîne. a) TGTG- et b) T3GT3G-.

Les deux conformations ont en commun un plan ^de glissement ^le long ^{de la} chaîne.]

c) ^{and a} possible ^surface phase transition which involves a change ^of folding plane [13].

The unannealed samples (with drawing ^ratio

ô ⁼ 4) ^are heated from 1400C to 200°C. Figure ⁴

shows the melting behaviour of the unpoled ^and poled

a-form at various heating ^rates. Two endotherm

peaks ^at 177-178 OC and 180-181 OC are observed for

poled ^{films whereas} only ^{one exists in} unpoled ^films.

The first peak ^{is common to both} types ^of samples

and coincides with the melting point ^of a-form. The second peak increases with decreasing heating ^rate,

which indicates a conversion from the low temperature

Fig. ^4.

Differential thermal analysis ^of poled (full lines) ^and unpoled (dashed lines) samples ^{at various} heating ^rates.

[Endothermes d’échantillons polarisés ( et non polarisés

(- - - -) ^à différentes vitesses de chauffe.]

1148

Fig. ^5.

X-Ray diffraction pattern ^{of the} poled a-form heated at 0.2 °C/min ^{to 179 °C and} quenched ^{to room} temperature. ^The rings ^of diffraction are due to unoriented a-form recrystallised

from the melt.

[Diagramme ^{de RX} d’un échantillon polarisé, ^{chauffé à} 0,2 °C/min jusqu’à ^{179 °C et} refroidi à la température ambiante. Les anneaux

de diffraction sont caractéristiques ^{de la} phase ^{a non} orientée.]

form to the high temperature form, following ^an

activated _process. The small shift of both peaks ^to

the higher temperatures ^is explained by ^{the well}

known phenomenon of lamellae thickening [12]. ^In

order to identify the second peak, ^a sample ^{has been}

heated at 0,2 °C/min ^{to 170 °C} (just between both

melting peaks) ^{and then} quenched ^{to room} tempe-

rature. The X-Ray spectrum is consistent with the presence of oriented a’-form and unoriented a-form

(i.e. rings ^of diffraction) ^obtained by recrystallisation

from the melt (Fig. 5). ^This result confirms the exis-

tence in PVDF of a new form (a’) ^{more stable than}

a-form (i.e. higher melting). ^{This form must be com-} pared ^{to the} y-form [5-9] which is also more stable than a-form but has only ^been obtained in unoriented

specimen.

Conclusion.

Changes ^{in the} reciprocal space have been examined for the poled ^{a-form of PVDF.}

The results are consistent with a phase ^transition

from a-form to an oriented polar ^form (ap) ^involving

the rotation of the TGTG- chains, ^as reported ⁱⁿ

reference [9]. The additional diffuse reflections are

presumed ^to arise from a particular packing and/or

distorsions of the TGTG - chains.

DTA and X-Ray diffraction analysis ^{have revealed}

the existence of a ^{new more} stable form (a’) ^obtained by annealing ^the poled ^{a-form at} high temperature.

The proposed chain conformation (T3GT3G-) ^is

similar to that of Rubber hydrochloride. ^Further investigations ^are necessary ^to determine the origin

of the diffuse reflections and the mechanisms of molecular deformation during poling ^and annealing.

Present works are in progress ^to determine the crystal

structure of this new form.

Acknowledgments.

^{The authors are} particularly grateful ^to C. Lemonon and F. Micheron of L.C.R.

Thomson C.S.F. Corbeville and M. Lambert,

R. Comès and L. Deschamps of Laboratoire de

Physique des Solides Orsay ^for help ^{and useful}

discussions.

References

[1] LANDO, J. B., OLF, ^H. G., PETERLIN, A., ^J. Polym. ^{Sci. 1A} (1966) 941.

[2] DOLL, W. W., LANDO, J. B., J. Macromol. Sci. 4B (1970) ^309.

[3] KOSMYNIN, ^B. P., GAL’PERIN, ^{Ye. L. and} TSVANKIN, ^D. Ya., Vysokomol. Soyed., ^12A (1970) ¹²⁵⁴ (Translated ⁱⁿ Polymer Sci. USSR 12 6 (1970) 1418).

[4] OKUDA, K., YOSHIDA, T., SUGITA, M., ASAHINA, M., Polym.

Lett. 5 (1967) ^465.

[5] HASEGAWA, R., TAKAHASHI, Y., CHATANI, ^{Y. and TADO-}

KORO, H., Polym. ^{J. 3} (1972) ^600.

[6] HASEGAWA, R., KOBAYASHI, M. and TADOKORO, H., Polym. J., 3 (1972) ^591.

[7] PREST, W. M., LUCA, D. J., J. Appl. Phys. ⁴⁶ (1975) ^4236.

[8] OSAKI, S., ISHIDA, Y., Polym. ^Sci. Phys. 13 (1975) ^1071.

[9] DAVIS, ^G. T., MCKINNEY, ^J. E., BROADHURST, ^M. E., ROTH, ^S. C., ^J. Appl. Phys. ⁴⁹ (1978) ^4998.

[10] CRESWELL, R. A., PERLMAN, M. M. and KABAYAMA, ^M. A., Dielectric properties of Polymers (Plenum Press, ^New York, London) (1972).

[11] BUNN, C. W., GARNER, ^E. V., ^J. Chem. Soc. (1942) ^654.

[12] HOFFMANN, J. D., WEEKS, ^J. J., J. Res. Nat. Bur. Stand. 66A

(1962) 13 ; ^{J. Chem.} Phys. ⁴² (1965) ^4301.

[13] RAULT, J., J. Macromol. Sci. 12B (1976) ^335.
