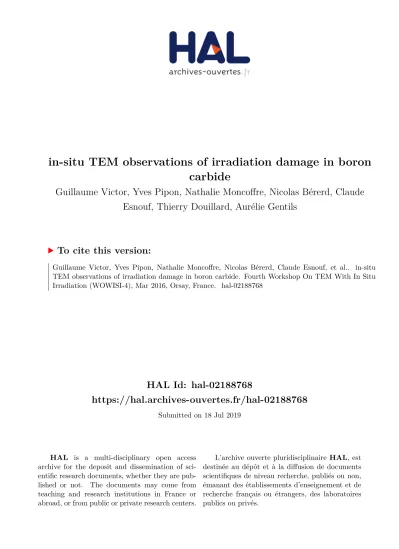

in-situ TEM observations of irradiation damage in boron carbide

(1)

HAL Id: hal-02188768

https://hal.archives-ouvertes.fr/hal-02188768

Submitted on 18 Jul 2019

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

in-situ TEM observations of irradiation damage in boron

carbide

Guillaume Victor, Yves Pipon, Nathalie Moncoffre, Nicolas Bérerd, Claude

Esnouf, Thierry Douillard, Aurélie Gentils

To cite this version:

(2)

In situ TEM observations of irradiation damage in

boron carbide

G. Victor1_{, Y. Pipon}1_{, N. Moncoffre}1_{, N. Bérerd}1_{, C. Esnouf}2_{, T. Douillard}2_{, A. Gentils}3

1 _{Université de Lyon, UCBL, Institut de Physique Nucléaire de Lyon, Villeurbanne, France} 2_{Université de Lyon, INSA de Lyon, MATEIS UMR CNRS 5510, Villeurbanne, France} 3_{CSNSM, Université Paris-Sud, CNRS/IN2P3, Université Paris-Saclay, Orsay, France}

Main results

Experimental protocole

General Background

Observations - Conclusion

→ Lamella preparation using the Focused Ion Beam (FIB) technique

→ Observe the formation of ballistic damage induced by heavy ions (Au+₎

irradiation

→ Observe the crystallographic orientation effects on the damage formation → Identify the amorphisation threshold (comparison with recent results of D.

Gosset et al.*)

Aim of the study

B4C structure

Sodium Fast Reactor

Acknowledgments The authors wish to thank the NEEDS Project for financial support and all the JANNuS-Orsay technical staff for their

assistance during the irradiation 1.3x1015_at.cm-2_{(∼ 2 dpa)}

3.5x1015_at.cm-2_{(∼ 4 dpa)}

4x1015_at.cm-2_{(∼6 dpa)}

Irradiation of lamella L2 (Bright field)

*Reference: D. Gosset et al., Nucl. Instr. Meth. Phys. Res. Sect. B, 365 (2015) 300-304

Generation IV Sodium Fast reactor (SFR)

Neutron absorber: Boron carbide B4C

Behavior under irradiation: role of ballistic and electronic damage

Lamella L1 EELS measurement

(lamella thickness t)

tL1∼ Small to 150 nm tL2∼ 80 nm

→ Crystallographic orientation analysis by TKD

SEM E-T SE imaging

Lamella L2

→ Distribution of the Z0sample direction with respect to crystal reference system → Each color corresponds to a different grain orientation

TEM in-situ observations performed on the grain

G (black circle EBSD) GL1: random orientation GL2: [1-210] // Au+beam

→ 1 MeV Au+_{ions at RT}

→ Fluence: from 1x1013_{to 4x10}15_at.cm-2

Irradiation conditions simulated by SRIM:

1

3

2

Bright field image of the lamella L1 after irradiation 1.3x1015_at.cm-2_{(∼ 2 dpa)} Unirradiated (0 dpa) 1x1014_at.cm-2_{(∼ 0.1 dpa)} 2x1014_at.cm-2_{(∼0.4 dpa)} Damage formation: 0 to 2x1014_at.cm-2_{: 0 to 0.4 dpa}

Local curvature of the sample due to an important stress induced in the material

1

1x1015_at.cm-2_{: ∼ 1.6 dpa}

Growth of the « black dots » until observation of larger stress field of : → Dislocation loops ∼ 20 nm

3

1.2x1014_at.cm-2 _{: ∼ 0.2 dpa}

Appearance of « black dots »

2 2.5x1015 _{< φ < 4x10}15_at.cm-2 _: 4 < x < 6 dpa Amorphisation threshold 4 Random orientation [1-210] Diffraction patterns:

- In the area observed in-situ under constant electron beam irradiation -1

- In a thick part of the lamella (∼ 150 nm) -2

- In a thin part of the lamella (< 100 nm) -3

0 50 100 150 200 250 300 350 400 Depth (nm) Au+_Rp 1,3x1014 at.cm-2 1x1015 at.cm-2 4x1015 at.cm-2 d p a Im p la n te d i o n s ( a .u .) 0 1 2 3 4 5 6 7 Rp = 190 ± 50 nm tL1< Rp tL2< Rp tL2 tL1 max Irradiation of lamella L1:

Damage (dpa) and Au+_{ions implantation profiles}

No crystallographic orientation effect:

→ defects created homogeneously in the whole lamella, whatever the grain orientation

Effect of the electron beam :

→ Self-healing of the material under electron beam combined with the ballistic effect of the ion beam

Effect of the ion implantation:

→ Amorphisation at fluences 2-3x lower when presence of Au atoms:
