Unsteady Aerodynamics and Adjoint Method

Anca Belme

To cite this version:

Anca Belme. Unsteady Aerodynamics and Adjoint Method. Analysis of PDEs [math.AP]. Université Nice Sophia Antipolis, 2011. English. �tel-00671181�

(2)

UNIVERSITÉ DE NICE - SOPHIA ANTIPOLIS - UFR Sciences

ÉCOLE DOCTORALE SFA

SCIENCES FONDAMENTALES ET APPLICATIONS

T H È S E

pour obtenir le titre de

Docteur en Sciences

de l’UNIVERSITE de Nice - Sophia Antipolis

Discipline : Mathématiques

Présentée et soutenue par

Anca Belme

Aérodynamique instationnaire et

méthode adjointe

Thèse dirigée par Alain Dervieux et Frédéric Alauzet

préparée à l’INRIA Sophia Antipolis, Projet Tropics

soutenue le 8 décembre 2011

Jury :

Roland Becker Professeur UPPA Rapporteur

Luca Formaggia Professeur Politecnico Milano Rapporteur Abderrahmane Habbal Maître de Conférences UNSA Examinateur

Remi Abgrall Professeur Bordeaux 1 Examinateur

Jacques Blum Professeur UNSA Examinateur

Frédéric Alauzet Chargé de Recherche INRIA Co-directeur de thèse Alain Dervieux Directeur de Recherche INRIA Directeur de thèse

(3)

(4)

Remerciements

Mes premiers remerciements vont vers mes deux directeurs de thèse, Alain Dervieux et Frédéric Alauzet, avec qui j’ai partagé trois années de recherche passionnantes.

Je remercie Alain Dervieux pour m’avoir permis de commencer la carrière dont j’ai toujours rêvé, pour son soutien et pour la transmission de son savoir et de son experience de chercheur. Je remercie aussi Frédéric Alauzet, qui représente pour moi un exemple d’enthousiasme et de rigueur scientifique, de m’avoir encadré tout au long de notre collaboration.

Je souhaite adresser d’autres remerciements à mes rapporteurs de thèse, Roland Becker et Luca Formaggia, qui ont pris de leur temps pour comprendre et analyser mes travaux, et aussi de faire partie du jury de ma thèse.

Je tiens à remercier également Remi Abgrall et Jacques Blum pour leur par-ticipation à mon jury. Je souhaite adresser un remerciement special pour Ab-derrahmane Habbal, pour ses conseils et sa collaboration au cours de ces années d’enseignement qui m’ont été trés utiles.

A mes collègues de l’équipe Tropics, mais également de l’équipe Gamma3, j’adresse un grand merci pour leur accueil et pour leur disponibilité.

Quant à mon collegue de bureau, Hubert Alcin, je le remercie d’avoir supporté mes humeurs parfois pétillantes.

Mon plus grand remerciement s’adresse à mon collègue de travail et mari, Alexan-dre Carabias, qui m’a soutenu et encouragé 24h/24h, et à ma famille et belle-famille, pour leur soutien et leurs encouragements sans faille.

Mes chers amis, je vous remercie egalement: Carmen, Geraldine, Afaf, Estelle, Audrey .... tout simplement pour avoir été là quand j’ai eu besoin de vous, merci !

(5)

(6)

2.5.1 Introduction. . . 36 2.5.2 Set of equations. . . 37 2.5.3 Spatial discretization . . . 40 2.5.4 Convective fluxes . . . 40 2.5.5 Diffusive fluxes . . . 40 2.5.6 Boundary conditions . . . 41 2.5.7 Time advancing . . . 41 2.6 Conclusion. . . 42 3 Turbulence modelling 43 3.1 Introduction . . . 43

3.2 Variational Multiscale approach for Large Eddy Simulation . . . 48

3.2.1 Classical LES approach . . . 48

3.2.2 Variational Multiscale LES approach . . . 49

(7)

iv Contents

3.3 Hybrid Models . . . 54

3.3.1 Model features and description . . . 54

3.3.2 Detached Eddy Simulation (DES). . . 55

3.3.3 Delayed-Detached Eddy Simulation (DDES) . . . 56

3.3.4 Limited Numerical Scales (LNS) Approach. . . 57

3.4 Our hybrid RANS/VMS-LES model . . . 58

3.4.1 Hybrid RANS/LES Coupling . . . 58

3.4.2 RANS component . . . 60

3.5 LES component : VMS-LES . . . 62

3.5.1 Hybrid Complete Formulation . . . 63

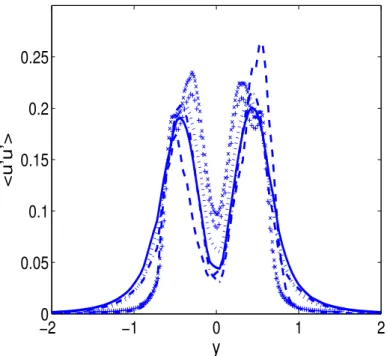

3.6 Consistent Mass Matrix study of a subcritical flow . . . 65

3.6.1 Conclusion . . . 69

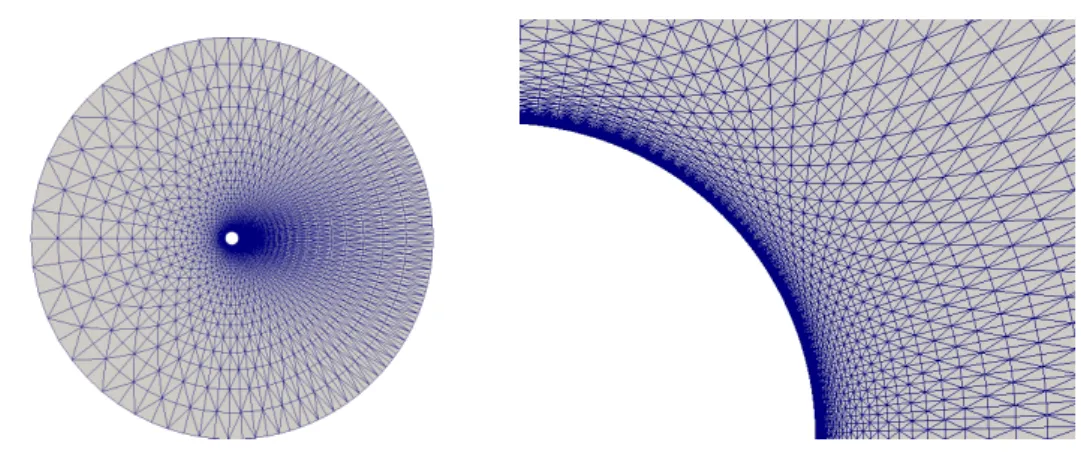

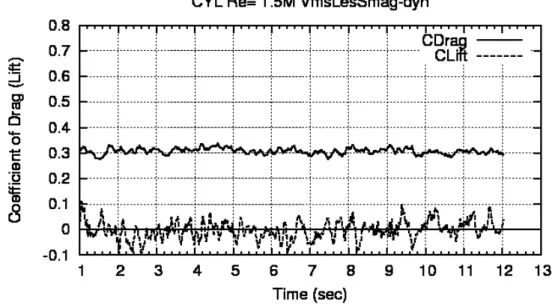

3.7 Hybrid computation of supercritical flow . . . 70

3.7.1 Maximum mixing length in the dynamical model . . . 73

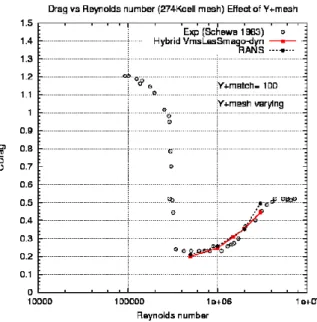

3.7.2 Analysis of the results . . . 74

3.7.3 Conclusion . . . 76

4 Continuous and discrete adjoint systems 81 4.1 Adjoint Methods - State of the Art . . . 81

4.2 Continuous Adjoint System . . . 84

4.2.1 Continuous Adjoint for Euler system . . . 84

4.2.2 Continuous Adjoint Navier-Stokes system . . . 86

4.3 Discrete Adjoint System . . . 87

4.3.1 Discrete Adjoint Euler System . . . 88

4.3.2 Discrete Adjoint Navier-Stokes System . . . 89

4.4 Example of discrete adjoint computation . . . 90

4.4.1 2D blast in a city: Adjoint Euler computation . . . 90

4.5 Some remarks . . . 91

5 Application to a posteriori error estimate 95 5.1 Introduction . . . 95

5.2 Error estimates and correctors. . . 96

5.3 A posteriori analysis issues. . . 98

5.4 Dissipation error correction . . . 102

5.4.1 Corrected dissipation . . . 103

5.4.2 A first example: Steady 2D Euler flow [Martinelli 2010a] . . . 103

5.4.3 Application to unsteady 3D Euler flows . . . 105

5.5 Conclusion. . . 106

6 A priori variational error analysis 109 6.1 Summary . . . 109

6.3 A priori finite-element analysis . . . 110

(8)

Contents v

6.5 3D Truncation error analysis . . . 117

6.6 Inviscid flow of a compressible fluid . . . 118

6.6.1 Interpolation errors. . . 119

6.6.2 Temporary conclusion . . . 121

6.7 Viscous flow of a compressible fluid . . . 121

6.7.1 Notations . . . 121

6.7.2 Study of truncation error terms . . . 123

6.7.3 Conclusion . . . 127

7 Metric-based mesh representation 129 7.1 Summary . . . 129

7.3 Riemannian metric space. . . 131

7.4 Generation of adapted anisotropic meshes . . . 132

7.5 Operations on metrics . . . 135

7.5.1 Metric Intersection . . . 135

7.5.2 Metric Interpolation . . . 137

7.6 Quantifying mesh anisotropy . . . 139

7.7 Orientation . . . 139

8 Goal-oriented anisotropic mesh adaptation method for unsteady Euler flows 141 8.1 Summary . . . 142

8.3 Formal Error Analysis . . . 144

8.4 Unsteady Euler Models. . . 145

8.4.1 Continuous state system and Finite Volume formulation . . . 145

8.4.2 Continuous Adjoint system and discretization . . . 147

8.4.3 Impact of the adjoint: numerical example . . . 149

8.5 Optimal unsteady adjoint-based metric . . . 150

8.5.1 Error analysis (applied to unsteady Euler model) . . . 150

8.5.2 Continuous mesh model . . . 152

8.5.3 Continuous error model . . . 154

8.5.4 Spatial minimization for a fixedt . . . 155

8.5.5 Temporal minimization . . . 155

8.5.6 Temporal minimization for time sub-intervals . . . 158

8.6 Theoretical Mesh Convergence Analysis . . . 161

8.6.1 Smooth flow fields . . . 162

8.6.2 Singular flow fields . . . 163

8.7 From theory to practice . . . 166

8.7.1 Choice of the goal-oriented metric . . . 167

8.7.2 Global fixed-point mesh adaptation algorithm . . . 168

8.7.3 Computing the goal-oriented metric . . . 169

(9)

vi Contents

8.8.1 2D Blast wave propagation . . . 170

8.8.2 2D Acoustic wave propagation . . . 172

8.8.3 3D Blast wave propagation . . . 177

8.9 Conclusion. . . 179

9 Goal-oriented anisotropic mesh adaptation method for unsteady Navier-Stokes flows 183 9.1 Introduction . . . 183

9.2 Adaptation criterion for unsteady Navier-Stokes model . . . 184

9.2.1 Error bound . . . 184

9.2.2 Optimal error model . . . 187

9.3 Numerics . . . 189

9.4 Applications . . . 189

9.5 Concluding remarks . . . 190

10 Conclusion and Perspectives 193

(10)

Chapter 1

Introduction

Contents

1.2 Organisation and Content of thesis . . . 5

1.3 Scientific communications . . . 7

1.1 Introduction

The continuous fascination of scientists towards Fluid Dynamics is due to the fact that many flows that we can observe every day with our unaided senses pose deep scientific problems that have not yet been solved. Those unaided observations have led artists and scientifics wonder at the beauty, majesty and waywardness of flows over centuries.

The surface of any water puddle may be covered by a complex system of wrinkles (Figure 1.1 (left image)), who rudly represents the surrounding acoustic waves world. Other wrinkles, much more violent but still inconspicuous, enclose an engine travelling at a supersonic speed (Figure1.1(right image)) or these might be contained in shock waves produced by explosions. We notice especially the scale difference between the wave and the flow containing the wave.

During centuries the physical evolution of continuous environment has been mod-eled by equations (namely partial differential equations) leaving hope for a moment that their behaviour is fairly well approached by quite simple functions. The first resolution of partial differential equations used only a few degrees of freedom. How-ever, we have to remark that the Fluid Dynamics engineer is now quite skeptic regarding such kind of simplifications.

This is especially true for a second family of multi-scale phenomenon, the tur-bulence. Turbulence was already recognized as a distinct fluid behaviour by at least 500 years ago. Figure1.2 is an interpretation of one found in a sketch book of Da Vinci, along with a remarkably modern description:

"... the smallest eddies are almost numberless, and large things are rotated only by large eddies and not by small ones, and small things are turned by small eddies and large."
