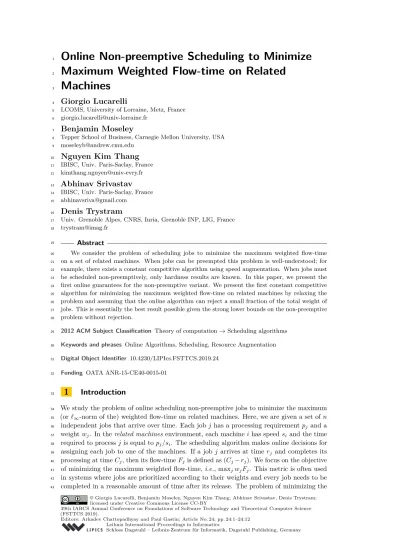

Maximum Weighted Flow-time on Related
2
Machines
3
Giorgio Lucarelli
4
LCOMS, University of Lorraine, Metz, France
5
6
Benjamin Moseley
7
Tepper School of Business, Carnegie Mellon University, USA
8
9
Nguyen Kim Thang
10
IBISC, Univ. Paris-Saclay, France
11
12
Abhinav Srivastav
13
IBISC, Univ. Paris-Saclay, France
14
15
Denis Trystram
16
Univ. Grenoble Alpes, CNRS, Inria, Grenoble INP, LIG, France
17
18
Abstract
19
We consider the problem of scheduling jobs to minimize the maximum weighted flow-time
20
on a set of related machines. When jobs can be preempted this problem is well-understood; for
21
example, there exists a constant competitive algorithm using speed augmentation. When jobs must
22
be scheduled non-preemptively, only hardness results are known. In this paper, we present the
23
first online guarantees for the non-preemptive variant. We present the first constant competitive
24
algorithm for minimizing the maximum weighted flow-time on related machines by relaxing the
25
problem and assuming that the online algorithm can reject a small fraction of the total weight of
26
jobs. This is essentially the best result possible given the strong lower bounds on the non-preemptive
27
problem without rejection.
28
2012 ACM Subject Classification Theory of computation→Scheduling algorithms
29
Keywords and phrases Online Algorithms, Scheduling, Resource Augmentation
30
Digital Object Identifier 10.4230/LIPIcs.FSTTCS.2019.24
31
Funding OATA ANR-15-CE40-0015-01
32
1 Introduction
33
We study the problem of online scheduling non-preemptive jobs to minimize the maximum
34
(or `∞-norm of the) weighted flow-time on related machines. Here, we are given a set ofn
35
independent jobs that arrive over time. Each jobj has a processing requirementpj and a
36
weightwj. In therelated machinesenvironment, each machineihas speedsi and the time
37
required to processj is equal to pj/si. The scheduling algorithm makes online decisions for
38
assigning each job to one of the machines. If a job j arrives at timerj and completes its
39
processing at timeCj, then its flow-timeFj is defined as (Cj−rj). We focus on the objective
40
of minimizing the maximum weighted flow-time,i.e., maxjwjFj. This metric is often used
41
in systems where jobs are prioritized according to their weights and every job needs to be
42
completed in a reasonable amount of time after its release. The problem of minimizing the
43
© Giorgio Lucarelli, Benjamin Moseley, Nguyen Kim Thang, Abhinav Srivastav, Denis Trystram;
licensed under Creative Commons License CC-BY
maximum flow-time is a natural generalization of the load-balancing problem where jobs
44
arrive over time. This problem is also closely related to deadline scheduling problems.
45
In this paper, we are interested in designing a non-preemptive schedule whose performance
46
is bounded in the worst-case model. Innon-preemptivesetting, a job, once started processing,
47
must be executed without interruption until its completion time. This is in contrast to
48
preemptivesetting where a job can be stopped and later continued from where it left off
49
without penalty. Several strong theoretical lower bounds are known for simple instances [9, 4].
50
In order to overcome this lower bounds, Kalyanasundaram and Pruhs [12] and Phillips et
51
al. [15] proposed the analysis of scheduling algorithms in terms of the speed and machine
52
augmentations, respectively. Together these augmentations are commonly referred to as
53
resource augmentation. In a resource augmentation analysis, the idea is to either give the
54
scheduling algorithm faster processors or extra machines in comparison to the adversary.
55
For preemptive problems, these models have been quite successful in establishing theoretical
56
guarantees on algorithms that achieve good performance in practice [5, 11, 3, 10, 17].
57
Choudhury et al. [7, 8] proposed a different model of resource augmentation where the
58
online algorithm is allowed to reject a small fraction of the total weight of the incoming
59
jobs, while the adversary must complete all jobs. Theoretically, this model can lead to
60
the discovery of good online algorithms, even in the face of strong lower bounds [7, 13].
61
Practically, the model is useful for systems where it is assumed that clients loose interest in
62
their job if they wait too long to be completed. Choudhury et al. [7] considered the problem
63
of load balancing as well as the problem of minimizing the maximum weighted flow-time in
64
the restricted assignment setting. In this setting, we are given a set of machines and each
65
jobj can only be scheduled on a subset Mj of the machines while its execution takes pj
66
time units. Even with speed augmentation, these problems admit strong lower bounds in
67
both preemptive and non-preemptive settings. However, online preemptive algorithms that
68
achieve aO(1)-competitive ratio and reject a small fraction of the total weight of jobs have
69
been presented in [7].
70
Prior works have left open the onlinenon-preemptivescheduling problem of minimizing
71
the maximum weighted flow time. Even on a single machine, the problem is not understood
72
and no positive result is known. Moreover, even with speed augmentation, simple examples
73
lead to strong lower bounds. However, recent works on the rejection model [13] give the
74
possibility of creating algorithms with strong guarantees for the non-preemptive setting.
75
Thus, an intriguing open question is whether there exists a constant competitive algorithm
76
for the maximum weighted flow-time objective in the non-preemptive setting assuming that
77
a small fraction of total weight of jobs can be rejected. In this paper, we affirmatively answer
78
this question for the case of related machines by proving the following theorem.
79
I Theorem 1. For the non-preemptive scheduling problem of minimizing the maximum
80
weighted flow-time on related machines, there exists aO(1/9)-competitive algorithm that
81
rejects at mostO()-fraction of the total weight of jobs, where ∈(0,1).
82
1.1 Problem definition and notation.
83
We are given a setMofmmachines and a setJ ofnjobs that arrive online. Each machine
84
iprocesses a job at speedsi. We index the machines such thats1≥s2≥. . . sm. Each job
85
j is characterized by its release time rj, its processing requirement pj and its weight wj.
86
The processing requirement and the weight of j are known at its release time rj. If j is
87
processed on machinei, then it requirespj/si time units. The goal is to schedule the jobs
88
non-preemptively. Given a scheduleS, the completion time of a jobj is denoted byCjS. The
89
weighted flow-time ofj is defined aswjFjS =wj(CjS−rj), which is the weighted amount
90
of time during whichj remains in the system. The objective is to minimize the maximum
91
(`∞-norm of) weighted flow-time,i.e., maxjwjFjS. We omit the superscripts if the schedule
92
S is clearly defined by the context.
93
Let F denote the value of the offline optimal solution. Let be an arbitrary constant
94
such that∈(0,1). We assume that all weightswj are of the form (1/)k, wherek is an
95
integer. This can be assumed byrounding down weights to the nearest power of 1 which
96
affects the competitive ratio by a factor of at most 1
. After rounding, we say that a jobj
97
is ofclass kifwj = 1k
. LetK denote the largest weight class of any job. A jobj isvalid
98
on machinei, iff it takes at most F/wj time units oni, that is psj
i ≤ wF
j.
99
1.2 Organization.
100
In Section 2, we present the works related to our problem. Then, in Section 3, we present an
101
offline algorithm for the scheduling problem of minimizing the maximum weighted flow-time
102
on related machines. This algorithm is inspired by Anand et al. [2] and uses a small look-
103
ahead, allows preemptions and does not respect the release dates. Specifically, we assume that
104
the valueF of the optimal weighted flow time is known to the algorithm. Since release dates
105
are not respected, the algorithm creates an infeasible schedule. Later, in Section 4, we discuss
106
how to convert this offline algorithm to an online algorithm respecting the non-preemptive
107
requirement. Note that the release dates will be respected due to the online nature. Finally,
108
we explain how to remove the assumption about knowing the valueF in Section 5.
109
2 Related Work
110
We discuss first related works for the unweighted case. For a single machine, First-In-First-
111
Out is an optimal algorithm for minimizing the maximum flow-time. For identical machines,
112
Bender et al. [14] and Ambulh and Mastrolilli [1] showed that the algorithm that schedules
113
the incoming jobs on the least loaded machine, is (3−2/m)-competitive. On related machines,
114
Bansal et al. [4] showed that there exists a 13.5-competitive algorithm. This has recently
115
been improved to a 12.5-competitive algorithm by Im et al [16]. All the above algorithms
116
are non-preemptive and their results hold against both the preemptive and non-preemptive
117
adversary. For the more general setting of unrelated machines, Anand et al. [2] gave an
118
O(1/)-competitive algorithm with (1 +)-speed augmentation and this result fundamentally
119
uses preemption.
120
In the presence of weights, only results in the preemptive setting are known for the
121
problem of minimizing the maximum weighted flow-time. Bender et al. [14] showed a lower
122
bound of Ω(P1/3) on the competitive ratio on single machine where P is the ratio of the
123
minimum to maximum job size. This was later improved to Ω(P0.4) in [6]. Both these lower
124
bounds also hold ifP is replaced with the ratio of the maximum to minimum weight. In
125
speed augmentation model, Bansal and Pruhs [5] showed that the Highest Density First
126
policy is (1 +)-speedO(1/2)-competitive on a single machine. Chekuri and Moseley [6]
127
presented a (1 +)-speedO(1/)-competitive algorithm for parallel machines, while Anand
128
et al. [2] proposed a (1 +)-speedO(1/3)-competitive algorithm for related machines. In
129
the rejection model, Choudhury et al. [7] presented anO(1/4)-competitive algorithm for
130
the restricted assignment settings when an-factor of the weight of the jobs can be rejected
131
by the online algorithm.
132
3 An Offline Look-ahead Algorithm with Preemptions
133
In this section we assume that the valueF of the optimal solution is given, preemptions are
134
allowed and the release dates of the jobs are not necessarily respected. Intuitively, we show
135
the following. For ease of explanation assume that all jobs have unit weight. We consider
136
all the jobs released during a long interval of sizeO(F/). Since the maximum weighted
137
flow-time isF, all such jobs must be scheduled within an interval of size O(F/+F) by the
138
optimal solution. We show that by rejecting anO()-fraction of the total weight of jobs,
139
an online algorithm can schedule all the remaining jobs in the interval of sizeO(F/). The
140
algorithm below builds on this idea when jobs have different weights. This is inspired by the
141
work of Anand et al. [2] where speed augmentation is used to achieve a similar effect. Recall
142
that there exists a strong lower bound in the speed augmentation model. In rejection model,
143
one needs to ensure that the algorithm rejects at mostO()-fraction of jobs both in terms of
144
weights and volume.
145
We allow our algorithm to reject some jobs. For each weight classkand integer `, let
146
I(k, `) denote the intervalh
`F k
3 ,(`+1)F 3 k
. We say that a jobj belongs to type (k, `) if it is
147
of classkandrj ∈I(k, `). Observe that intervalsI(k, `) form a nested set of intervals. Note
148
that at least 13
jobs that belong to classkor more, can be scheduled during an interval
149
I(k, `). The online algorithm A is defined to have the following rejection and scheduling
150
policies.
151
Rejection policy: The rejection policy ofAis described in Algorithm 1. The algorithm
152
uses a simple rejection policy where it ensures that for each intervalI(k, `) the algorithm
153
rejects at least2/2-fraction of volume of jobs andO()-fraction of weight of jobs.
Algorithm 1RA(I, F, ) 1: fork=K to 1do 2: for`= 1,2, . . .do
3: J(k, `) := the set of jobs of type (k, `) 4: D:=b2|J(k, `)|+ P
I(k0`0)⊆I(k,`):
k0=k+1
|J(k0, `0)|c+ P
I(k0,`0)⊆I(k,`):
k0≥k+2
|J(k0, `0)|
5: Reject longest-D jobs fromJ(k, `)
154
Scheduling policy: The scheduling policy ofAis described in Algorithm 2. The algorithm
155
uses the following order: it picks jobs in the decreasing order of their class, and within each
156
class it goes by increasing order of its intervals. When considering a jobj, the algorithm
157
schedulesj during the intervalI(k, `) on the slowestvalid machine with enough free space.
158
Jobs may be scheduled preemptively. This completes the description of the algorithmA.
Algorithm 2SA(I, F, ) 1: fork=K to 1 do 2: for`= 1,2, . . .do
3: foreach non-rejected jobj of type (k, `) do 4: mj:= the slowest machine for which j is valid 5: fori:=mj, . . . ,1 do
6: If there is at leastpj/sifree slots (preemptive) on machineiduringI(k, `) then schedulej oniduring the first such free slots.
159
3.1 Analysis of the Offline Algorithm
160
In this section, we prove that AlgorithmSAwill always find enough space to schedule the
161
non-rejected set of jobs inRA.
162
ITheorem 2. AlgorithmSA outputs a preemptive schedule for the set of non-rejected jobs
163
which ensures that each job that belongs to type (k, `)is scheduled duringI(k, `). Note that
164
schedule may process jobs before their release date.
165
We prove this by contradiction. Let j∗ be the first non-rejected job that algorithmA
166
cannot schedule on some machinei. Then we will show that the value of the offline optimal
167
solution is strictly greater thanF, which contradicts our assumption on the knowledge of
168
the value of optimal offline solution,F.
169
Assume that j∗ is of type (k∗, `∗). We build a setS of job recursively. InitiallyS just
170
contains j∗. We addj0 of type (k0, `0) to S if there is already a job j of type (k, l) in S
171
satisfying the following conditions:
172
1. k0≥k.
173
2. Aprocessesj0 on a machineiwhich is valid forj as well.
174
3. Aprocessesj0 during theI(k0, `0) such thatI(k0, `0)⊆I(k, `)
175
For a machine i and interval I(k, `), define the machine-interval Ii(k, `) as the time
176
interval I(k, `) on machinei. We construct a set IM of machine-intervals as follows: For
177
every jobj∈S of type (k, `), we add the intervalIi(k, `) toIM for all machinesisuch that
178
j is valid fori.
179
IDefinition 3. We say that an intervalIi(k, `)∈ IM ismaximalif there is no other interval
180
Ii(k0, `0)which containsIi(k, `).
181
Observe that every job inS exceptj∗ gets processed in one of machine-intervals inIM.
182
LetIX denote the set of maximal intervals inIM. We show that the jobs inS satisfy the
183
following property.
184
ILemma 4. For any maximal intervalIi(k, `)∈ IX, AlgorithmSAprocesses a job on at
185
least(1−3)-fraction of the interval on machinei.
186
Proof. We prove this property holds whenever we add a new maximal interval toIX. Suppose
187
this property holds at some point in time, and we add a new jobj0 toS. Letj, k, `, j0, k0, `0
188
be as in the description ofS. Sincek0 ≥k andj is valid fori, the interval set IX already
189
contains the intervalIi0(k, `) for alli0≤i. Hence the intervalsIi0(k0, `0) cannot be maximal
190
for anyi0 ≤i. Suppose an intervalIi0(k0, `0) is maximal, where i0 > i, andj0 is valid for
191
i0. Our algorithm would have considered scheduling j0 on i0 before going toi. Hence the
192
machinei0 is at least|Ii0(k0, `0)| −pj/si0 amount busy scheduling other jobs fromS. The
193
lemma follows sincepj/si0 ≤F/wj ≤F k. J
194
I Corollary 5. There are at least (13 −1) jobs of class k or more scheduled for every
195
Ii(k, `)∈ IX.
196
Proof. Recall that the size of the interval Ii(k, `) is F 3k and the size of the longest job
197
scheduled in the intervalIi(k, `) iskF. Combining these facts with Lemma 4 shows that
198
the corollary holds. J
199
Next we associate the set of rejected jobs to the maximal intervals. Recall that
200
|I(k, `)| denote the length of the interval I(k, `). Intuitively, we show that for each
201
maximal interval Ii(k, `) ∈ IX, we can associate at least O(2)|Ii(k, `)| volume of jobs
202
that are rejected by the algorithm RA such that these jobs are of type (k0, `0) where
203
I(k0, `0)⊆I(k, `). To this end, letR denote the set of job rejected byRA. Let R(k, `) =
204
{j∈R:j is of type (k0, `0) andI(k0, `0)⊆I(k, `)}.
205
ILemma 6. There exists a functionφ:R→ IX such that for everyIi(k, `)∈ IX, it holds
206
that vol(φ−1(Ii(k, `)))≥ 42|Ii(k, `)| and φ−1(Ii(k, `)) ⊆R(k, `) where vol(Q) denotes the
207
total volume of jobs in the set Q.
208
Proof. Fix a maximum intervalI=Ii(k, `). Letkmaxdenote the maximum weight class of
209
the job scheduled inI. Recall the intervalsIi(k0, `0)⊆Ii(k, `) are nested.
210
We first form an 1/-ary tree where a node v(k0, `0) represents the set of jobs of type
211
(k0, `0) scheduled in the interval I on i. The nodev(k0, `0) is the the ancestor of the node
212
v(k0+ 1, `00) iffIi(k0+ 1, `00)⊆Ii(k0, `0). The height of this tree iskmax−k. Note that some
213
of the leaves can be empty. Therefore, we trim the tree such that leaves are non-empty. For
214
this, we find an empty leave and remove it from the tree. We repeat this procedure until no
215
empty leaves are present. Note that an intermediate node of the tree can be empty. Next,
216
we consider the following cases depending upon the number of jobs in the leaves:
217
Case 1: There are at least1/2-jobs in each leaf. The algorithmRArejects at least 2/2
218
number of jobs at each non-empty node of the tree. Letj be such a job rejected byRAfor
219
some node in the tree, then we defineφ(j) =I (i.e., associate rejected jobj to intervalI).
220
Recall thatRArejects longest jobs among jobs of fixed class. Thus, the total volume of jobs
221
associated with the intervalIis at least2/2 and the lemma holds.
222
Case 2: If the number of jobs in each leaf is between1/and1/2. The algorithmRA
223
rejects at least2/2 fraction of volume of jobs at each non-empty node except leaves. As
224
before, letj be such a job rejected byRA, then we defineφ(j) =I. We show that the total
225
volume of jobs in the leaves are small. Let v(k0, `0) denote jobs corresponding to some leaf.
226
Then|v(k0, `0)|<1/2. The total volume of jobs inv(k0, `0) is at most (F k0)/2=|Ii(k0, `0)|.
227
Observe that the jobs of any two leaves are scheduled independent of each other in separate
228
sub-intervals. Combining this fact with the previous bound on the volume of jobs in leaves
229
implies that the total volume of jobs in leaves is at most|I|. Thus, the total volume of jobs
230
scheduled during the intervalIis at most 2.vol(φ−1(I))/2+|I|. SinceSAprocesses jobs on
231
at least (1−3)-fraction ofI, it holds thatvol(φ−1(I))≥(2/2)(1−3−)|I| ≥(2/4)|I|.
232
Case 3: If the number of jobs in each leaf is strictly less than 1/. If the algorithm
233
rejects2-fraction of total volume of jobs at each non-empty level other than the leaf, then
234
the lemma holds (the proof is similar to Case 2). Thus, we consider the case where the parent
235
of a leaf does not reject2-fraction of the total volume of jobs. This implies that each parent
236
has at most 1/2 number of jobs and the height of the subtree rooted at the parent node is
237
at most 1. The algorithmRArejects 2/2 jobs for each node from the root to the parent
238
of parent of a leaf. As before, letj be such a job rejected byRA, then we defineφ(j) =I.
239
Unlike Case 2 where intervals corresponding to leaves are disjoint, th intervals of parents of
240
two leaves can overlap. Here, we use the top-down approach to count the total volume of
241
jobs. Each job in the parent node is split into 1/-parts. We “virtually force" these parts to
242
be accounted in the leaves of that parent (even though their weight class is strictly smaller
243
than the weight class of the leaves). Thus the number of jobs in each leaf can increase by at
244
most 1/2. Using arguments similar to Case 2, the total volume of jobs in the leaves is at
245
most 2I. SinceSAprocess job on at least (1−3)-fraction ofI, it holds thatvol(φ−1(I)) is
246
at least2/2(1−3−2)|I|-volume of jobs.
247
J
248
I Corollary 7. The total volume of jobs in S0 = S∪R is greater than P
I(k,`)∈IX I(1 +
249
3)|I(k, `)|.
250
ILemma 8. If the value of offline solution is at mostF, then the total volume of jobs inS0
251
is at mostP
I(k,`)∈IX(1 +3)|I(k, `)|.
252
Proof. For any maximal intervalI(k, `) on machinei, letIi(k, `) be the interval of length
253
(1 +3)|I(k, `)|which starts at the same time as I(k, `) on machinei.
254
Let j ∈S be a job of type (k, `). The optimal offline solution must schedule j within
255
F k of its release date. Since rj ∈I(k0, `0)⊆I(k, `), the optimal solution must process a job
256
j during I(k, `). So, the total volume of jobs inS can be at most|S
I(k,`)∈IXIi(k, `)| ≤
257
P
I(k,`)∈IX(1 +3)|I(k, `)|. J
258
Clearly, Corollary 7 contradicts Lemma 8. So, AlgorithmSAmust be able to process all
259
the jobs.
260
ILemma 9. The total weight of jobs rejected by the algorithm RAis O()-fraction of the
261
total weight of jobs in the instanceI.
262
4 The Online Algorithm B
263
The previous algorithmAis an offline preemptive algorithm forI that does not respect the
264
release dates. This section presents an online non-preemptive algorithmB. This algorithm is
265
assumed to know the optimal objectiveF and this algorithm is extended in a later section
266
to when this is not known. The algorithm maintains a queue for each machineiand time
267
t. Unlike the previous algorithm,B rejects the job of type (k, `) at the end of the interval
268
I(k, `). For each non-rejected jobj,Buses SAto figure out the assignment of jobs to the
269
machines. This algorithm differs from the online algorithm mentioned in Anand et al. [2] as
270
it schedules jobs non-preemptively and does not necessarily process jobs in their decreasing
271
order of their weights.
272
The rejection and assignment policies ofBin given Algorithm 3.
273
Algorithm 3 MB(I, F, ) 1: fort= 0,1,2,· · · do
2: LetK denote the largest class of a job.
3: fork=K to 1do
4: if tis the end point of the intervalI(k, `) for some`then
5: Rejection similar to RA
6: J(k, `) := the set of jobs of type (k, `) 7: D:=b2|J(k, `)|+ P
I(k0`0)⊆I(k,`):
k0=k+1
|J(k0, `0)|c+ P
I(k0,`0)⊆I(k,`):
k0≥k+2
|J(k0, `0)|
8: Reject longest-D Tjobs fromJ(k, `) from the remaining jobs inJ(k, `)
9: Assignment similar to SA
10: foreach non-rejected jobj of classk do
11: Letmj denote the machine on whichj is scheduled bySA 12: Assignj to the queue ofmj
After the execution of Algorithm 3, the algorithmBuses two more rejection policies for
274
each machinei. The first policy ensures thatB rejectsO(2)-fraction of new assigned jobs
275
whereas the second policy ensures thatBprocesses jobs in a non-preemptive fashion. At any
276
time if the machineiis idle,Bpicks a job from the highest class according to the ordering
277
given bySA.
278 279
Making B Non-preemptive: We now detail the second rejection policy. During the
280
processing of a job of some class on a machinei, the algorithm maintains a bound on total
281
weight of higher class jobs that are newly assigned to machinei. Letj be the job running at
282
the start of intervalI(k, `+ 1) on machinei. Letkj denote the class ofj. Brejectsj if there
283
is a new jobj0 of type (k0, l0) thatk0≥kj+ 2 and the intervals I(k0, `0) andI(k, `) end at
284
same time. This ensures that the weight of jobj andj0 differ at least by a factor of 1/. It
285
may happen that there is no job classk0≥kj+ 2. In this case, the algorithmB rejectsj
286
if there are at least (1/newly arrived jobs of type (k0, `0) ifk0≥kj+ 1 and the intervals
287
I(k0, `0) andI(k, `) end at same time. Note that this also ensures the weight of newly arrived
288
jobs is at least an (1/) times the weight of current running job. These rejection policies and
289
scheduling policy of the algorithmBfor the machineiat timetis mentioned in Algorithm 4.
290
Algorithm 4SB(I, F, , i, t) 1: Rejection similar toRA 2: fork=K to 1do
3: if tis the end point of the intervalI(k, `) for some `then
4: Ji(k, `) := the set of jobs of type (k, `) assigned toiatt 5: D:=b22|Ji(k, `)|+ 2 P
I(k0`0)⊆I(k,`):
k0=k+1
|Ji(k0, `0)|c+ 2 P
I(k0,`0)⊆I(k,`):
k0≥k+2
|Ji(k0, `0)|
6: RejectD-longest jobs fromJ(k, `, i)
7: Making algorithm non-preemptive 8: Letj∈(k, `) be the job executing oniatt
9: LetJk0 denote the set of jobs of classk0 assigned to iatt 10: if |J(k+1)| ≥1/or∃k00:|J(k00)|>0 andk00≥k+ 2 then 11: Rejectj
12: Scheduling Policy
13: if the machineiis idlethen
14: Start processing the earliest job of highest class in the queue ofi
4.1 Analysis
291
For a classk, letJk be the jobs of class at least k. For a classk, integer`, and machine i,
292
letQ(i, k, `) denote the jobs ofJk which are in the queue of machineiat the beginning of
293
I(k, `). The jobs inQ(i, k, `) could consist of either
294
1. jobs inQ(i, k, `−1), or
295
2. jobs of Jk which get processed by AduringI(k, `−1) on machinei. Indeed, the jobs
296
ofJk which are dispatched to machinei duringI(k, `−1) will complete processing in
297
I(k, `−1) inAand hence may get added (if not rejected) toQ(i, k, `). LetP(i, k, `−1)
298
denotes the volume of such jobs that are added byB to the queue of machinei.
299
Next, we note some properties of the algorithmB:
300
BProperty 1. A jobj gets scheduled inBonly in later slots than those it was scheduled on
301
byA.
302
BProperty 2. For a classk, integer`and machinei, the total processing of jobs inP(i, k, `)
303
is at most (1−33)F k.
304
Proof. If the volume of jobs processed by algorithmAduring the intervalI(k, `) is at most
305
(1−3)F k
3 , then the property holds trivially. Assume that the volume of jobs processed by
306
algorithmAduring the intervalI(k, `) is strictly greater than (1−33)F k. Then it holds that
307
the algorithm rejects at least2/4-fraction of volume of jobs assigned toi(the proof is similar
308
to Lemma 6). Thus the total volume of jobs assigned toi is strictly greater than (1+33)F k.
309
But, this contradicts Theorem 2. J
310
BProperty 3. For a class k, integerland machine i, the total remaining processing time of
311
jobs inQ(i, k, `) is at most (1−33)F k.
312
Proof. We use induction. Suppose this is true for some i, k, l. We show that this holds
313
for i, k, `+ 1 as well. By induction |Q(i, k, `)|is at most (1−33)F k. We consider multiple
314
separate cases based on which job gets processed during the intervalI(k, `) on machinei.
315
1. Suppose the machine iis busy processing jobs fromJk duringI(k, `).
316
Then algorithm either processes job from Q(i, k, `) or P(i, k, `). The total volume of
317
such jobs are bounded by 2(1−33)F k. The property holds since the total volume of job
318
processed byiis|I(k, `)|= F 3k.
319
2. Suppose job j of class smaller thank is processed at the start ofI(k, `)andQ(i, k, `) = 0.
320
In this case, Q(i, k, `+ 1) consists of the jobs of P(i, k, `). The property follows since
321
|P(i, k, `)| ≤ (1−33)F k.
322
3. Suppose jobj of class smaller thankis processing at the start ofI(k, `)andQ(i, k, `)>0.
323
We show that Q(i, k, `) is at most F k. Let σj denote the starting time of job j on
324
machinei. Then we have thatσj> `F 3k−pj/si≥ `F 3k−F k. Since algorithmBprefers
325
jobs of higher class, it must be the case that atσj no job of classkor higher was available
326
with machinei. HenceQ(i, k, `) consists of jobs that were added to the queue of machine
327
i during the interval
σj,`F 3ki
. SinceQ(i, k, `)>0 and the class ofj is strictly smaller
328
than k,j must belong of class (k−1), otherwiseBwould rejectj due to non-preemptive
329
rejection policy. Moreover, there are at most 1/jobs of classk inQ(i, k, `). Hence, the
330
total volume of jobs in Q(i, k, `) is most F k. The property follows from the facts thatB
331
spends at most F k processing time onj.
332
4. SupposeBprocesses a job of class smaller thank at some point inI(k, `).
333
This implies thatQ(i, k, `+ 1) contains jobs that are released during the intervalI(k, `).
334
The property holds due to Claim 2.
335
J
336
ITheorem 10. In the scheduleBa job j of class k has flow-time at most F 8k. Hence the
337
algorithm B is an O(19)-competitive algorithm that rejects at most O()-fraction of total
338
weights of job.
339
Proof. Consider a job j of class (k, `−1). Suppose it gets processed on machine i. The
340
algorithm B addsj to the queueQ(i, k, `). Let j0 be the job running at beginning of the
341
interval I(k, `). Property 3 from above implies that the total remaining processing time of
342
jobs inQ(i, k, `) is at most (1−33)F k = (1−3)|(k, `)|.
343
Consider an interval I that starts at same time asI(k, `) and has length (1−37)F k =
344
|I(k, `)|/4. DuringI, the algorithm process jobs ofJk that are either in (1)Q(i, k, `), or
345
(2) processed byA on machine i. From Property 2, the total processing of jobs in (2) is
346
(1−3)|I|. This leaves us with 3|I| processing time. This is enough of process the jobs
347
inQ(i, k, `) andj0 as (1−3)F 3k +F k−1≤ F 4k =3|I|. So the flow time of j is at most
348
|I|+|I(k, `)|=F k(17 +13). J
349
5 Removing the assumption about knowledge of F
350
In this section, we show how to remove the assumption about knowledge ofF. We apply the
351
standard double trick that is often used in the online algorithms. Recall that our previous
352
look-ahead algorithm assumed that we know the optimalF. Here, we will construct another
353
look-ahead algorithmCwhich will invokeAfor different guesses ofF. Fix an instanceI. Let
354
I(k, `, F) be the interval [`F 3k,(`+1)F 3 k). This is same asI(k, `) except that the intervals
355
are also parameterized byF. Similarly, we say that a job of class k is of type (k, `, F) if
356
rj ∈I(k, `, F).
357
Our algorithm will work with the guesses ofF which are powers of
1+3 3
. Without the
358
loss of generality, we assume that all release dates and processing times are integers. We
359
first generalize the algorithmA. The new algorithm, denoted by A0, will take as parameters
360
an instanceI0, the guessF and a starting timet0- all release dates inI0 will be at least t0.
361
It will runA0 with the understanding that time start att0. The intervalI(k, `, F) will be
362
defined as [t0+`F 3k, t0+(`+1)F 3 k). The algorithmC is described below.
363
Algorithm 5A look-ahead algorithmC 1: InitializeF0= 1, t0= 0,I0=I 2: foru= 0,1,2, . . .do
3: RunA0(Iu, Fu, tu)
4: if All non-rejected jobs are finishedthen 5: Stop and output the scheduled produced.
6: else
7: letj be the first non-rejected job which algorithmA0(Iu, Fu, tu) is not to schedule.
8: Supposej is of type (k, `, Fu).
9: Definetu+1be the end-point of I(k, `, Fu).
10: DefineIu+1 be the jobs inIu which are not scheduled yet.
11: Definerj= max{tu+1, rj},∀j∈ Iu+1. 12: SetFu+1=Fu
1+3 3
.
Note that this algorithm, like AlgorithmA, is preemptive.
364
5.1 Analysis
365
Suppose during some iterationu, we find a jobj∗ that the algorithm is not able to schedule
366
in iterationu. Letj∗be type of (k∗, `∗, Fu). Recall thattu+1is the end point ofI(k∗, `∗, Fu).
367
For a jobj∈ Iuletruj denote its release date inIu.
368
ILemma 11. Any jobj ∈ Iu+1 with ruj < tu+1 must be of class at most k∗. Further, if
369
such a job is of classk, thentu+1−rj ≤Fu+1k.
370
Proof. Suppose j ∈ Iu and ruj < tu+1. If j is of type (k, `, Fu) such that k > k∗, then
371
I(k, `, Fu) ⊆ I(k∗, `∗, Fu). Hence the interval I(k, `, Fu) end at or or before tu+1. By
372
definition ofj∗ the algorithm must have scheduledj inI(k, `, Fu) and so, before the tu+1.
373
This proves the first statement in the lemma.
374
To prove the second statement of lemma, we use induction on u. Suppose the second
375
statement is true for iteration u−1. We show that it holds for u. Let j be job of class
376
k≤k∗ such thatj ∈ Iu+1 and rju < tu+1. Note that intervalI(k, `, Fu) ends on or after
377
tu+1. Hence tu+1 −ruj ≤ |I(k, `, Fu)| = Tu3k. If rj ≥ tu, then ruj = rj, and we have
378
tu+1−rj ≤ |I(k, `, Fu)|=Fu3k = F(1+u+13k) ≤Fu+1k.
379
On the other hand, if ruj =tu. So we gettu+1−tu≤ |I(k∗, `∗, Fu)| ≤ Fuk
∗
3 ≤ Fu3k. By
380
induction hypothesis, we havetu−rj < Fuk. Hence we havetu+1−rj=tu+1−tu+tu−rj ≤
381
1+3 3
Fuk =Fu+1k.
382
J
383
ILemma 12. IfCdoes not finish all jobs in the iterationu, then the value of offline optimal
384
solution is at least Fu.
385
Proof. The proof is similar to Lemma 8. The setS is defined similarly. For each machine
386
and intervalI(k, `, Fu) the algorithm rejects at least2-fraction of volume of jobs. Lemma 4
387
and Lemma 6 remain unchanged.
388
Note that for a jobj of type (k, `, Fu),ruj may lie earlier than the start time ofI(k, `, Fu).
389
So the optimum offline algorithm may complete processingj even before the start of this
390
interval. But Lemma 11 shows that j is released at most 3|I(k, `, Fu)| to the left of
391
I(k, `, Fu). So in the definition of the intervals I(k, `, Fu) in Lemma 4, we consider the
392
intervalI(k, `, Fu) and two segments of length3|I(k, `, Fu)|both before and afterI(k, `, Fu).
393
Rest of the arguments are same as in the proof of Lemma 8. J
394
ICorollary 13. SupposeOP T lies between Fu−1 andFu. Then the algorithm C completes a
395
job of classk with flow-time at most (1+3)F3 uk 396
5.2 Making the algorithm online
397
We now describe the final on-line algorithmD. The above theorem implies that for any job
398
j, we will know the machine on which it get schedules by timerj+ (1+3)F3 uk. At this time,
399
we placej on the queue of the machine to which it gets scheduled on by C. Further each
400
machine prefer the jobs of larger class and within a particular class, it just goes by processing
401
times. We reject at least 22volume of jobs in each interval. To achieve this, the algorithm
402
rejects job 42-jobs (-fraction as inAand 3-fraction on each machinei) in the description
403
of the algorithmB. Hence Property 2 for the algorithmBcan be changed slightly to show
404
that|P(i, k, `)|is at most (1−233)F k.
405
ITheorem 14. In the scheduleD a jobj of class k has flow-time at most F 8k. Hence the
406
algorithm D is an O(19)-competitive algorithm that rejects at most O()-fraction of total
407
weights of job.
408
References
409
1 C. Ambühl and M. Mastrolilli. On-line scheduling to minimize max flow time: an optimal
410
preemptive algorithm. Oper. Res. Lett., 33(6):597–602, 2005.
411
