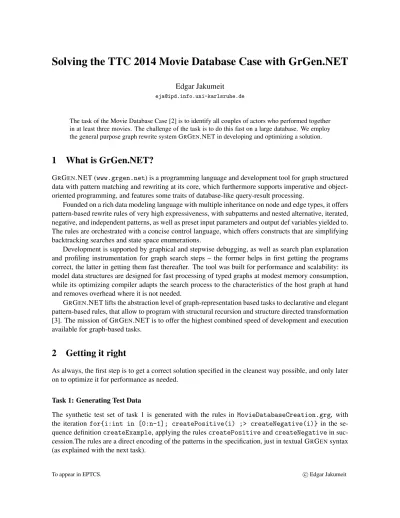

To appear in EPTCS. c Edgar Jakumeit
Edgar Jakumeit
The task of the Movie Database Case [2] is to identify all couples of actors who performed together in at least three movies. The challenge of the task is to do this fast on a large database. We employ the general purpose graph rewrite system GRGEN.NET in developing and optimizing a solution.
1 What is GrGen.NET?
GRGEN.NET (www.grgen.net) is a programming language and development tool for graph structured data with pattern matching and rewriting at its core, which furthermore supports imperative and object- oriented programming, and features some traits of database-like query-result processing.
Founded on a rich data modeling language with multiple inheritance on node and edge types, it offers pattern-based rewrite rules of very high expressiveness, with subpatterns and nested alternative, iterated, negative, and independent patterns, as well as preset input parameters and output def variables yielded to.
The rules are orchestrated with a concise control language, which offers constructs that are simplifying backtracking searches and state space enumerations.
Development is supported by graphical and stepwise debugging, as well as search plan explanation and profiling instrumentation for graph search steps – the former helps in first getting the programs correct, the latter in getting them fast thereafter. The tool was built for performance and scalability: its model data structures are designed for fast processing of typed graphs at modest memory consumption, while its optimizing compiler adapts the search process to the characteristics of the host graph at hand and removes overhead where it is not needed.
GRGEN.NET lifts the abstraction level of graph-representation based tasks to declarative and elegant pattern-based rules, that allow to program with structural recursion and structure directed transformation [3]. The mission of GRGEN.NET is to offer the highest combined speed of development and execution available for graph-based tasks.
2 Getting it right
As always, the first step is to get a correct solution specified in the cleanest way possible, and only later on to optimize it for performance as needed.
Task 1: Generating Test Data
The synthetic test set of task 1 is generated with the rules in MovieDatabaseCreation.grg, with the iterationfor{i:int in [0:n-1]; createPositive(i) ;> createNegative(i)} in the se- quence definitioncreateExample, applying the rulescreatePositiveandcreateNegativein suc- cession.The rules are a direct encoding of the patterns in the specification, just in textual GRGENsyntax (as explained with the next task).
Task 2: Finding Couples
The workhorse rule for finding all pairs of persons which played together in at least three movies is findCouples.
r u l e f i n d C o u p l e s {
pn1 : P e r s o n ; pn2 : P e r s o n ; i n d e p e n d e n t {
pn1 -: p e r s o n T o M o v i e - > m1 : M o v i e < -: p e r s o n T o M o v i e - pn2 ; pn1 -: p e r s o n T o M o v i e - > m2 : M o v i e < -: p e r s o n T o M o v i e - pn2 ; pn1 -: p e r s o n T o M o v i e - > m3 : M o v i e < -: p e r s o n T o M o v i e - pn2 ; }
m o d i f y { c : C o u p l e ; c -: p1 - > pn1 ; c -: p2 - > pn2 ;
e x e c( a d d C o m m o n M o v i e s A n d C o m p u t e A v e r a g e R a n k i n g ( c , pn1 , pn2 ));
} } \ a u t o
Figure 1: findCouples rule
It specifies a pattern of two nodespn1andpn2of typePerson, and anindependentpattern which asks for 3 nodes m1,m2,m3 of typeMovie, each being the target of an edge of typepersonToMovie starting atpn1, and each being also the target of an edge starting atpn2. (Types are given after a colon, the optional name of the entity may be given before the colon, for edges they are inscribed into the edge notation-->).
An independent pattern means for one that its content only needs to be searched and is not available for rewriting, and for the other that for eachpn1andpn2in the graph, it is sufficient to find a single instance of the independent, even if the rule is requested to be executed on all available matches – without the independent we would get all the permutations ofm1,m2, andm3as different matches.
The rewriting is specified as nested pattern inmodifymode, which means that newly declared enti- ties will be created, and all entities from the matched pattern kept unless they are explicitly requested to bedeleted. Here we create a new nodecof typeCouple, link it with edges of the typesp1andp2to the nodespn1andpn2, and thenexecute the helper ruleaddCommonMoviesAndComputeAverageRanking onc,pn1, andpn2. The helper rule is used to create thecommonMoviesedges toallthe moviesboth played in (you find it in Figure 3 in A.1).
The autokeyword after the rule requests GRGEN.NET to generate a symmetry filter for matches from automorphic patterns. The pattern is automorphic (isomorphic to itself) because it may be matched withpn2forpn1andpn1forpn2.
To getallpairs of persons which played together in at least three movies we execute the rule with all- bracketing from a graph rewrite sequence in the GRSHELLscriptMovieDatabase.grs, filtering away automorphic matches, with the syntax:exec [findCouples\auto].
The language constructs are explained in more detail in the extensive GRGEN.NET user manual [1].
Figure 2: Debugging the top match from the 10000 movies file
Task 3: Computing Average Rankings
The helper ruleaddCommonMoviesAndComputeAverageRankingthat was already used for creating the common movies edges is also used for computing the average rankings, you find it in Figure 3 in A.1.
Extension Task 1: Compute Top-15 Couples
The extension task 1 requires to compute the top couples according to the average rating of their common movies, and according to the number of common movies. It is solved with the rulecouplesWithRating that you find in Figure 4 in A.1. We use the rule twice, ordering the matches differently. The sequence [couplesWithRating\orderDescendingBy<avgRating>\keepFirst(15)] executed from the GR- SHELLasks for all matches of the rulecouplesWithRating, then sorts them descendingly by theav- gRatingpattern variable, then throws away all but the first top 15 matches. The other value of interest is handled in exactly the same way.
You can inspect the found results with the debugger of GRGEN.NET, see Figure 2. There, a visualization of the match with most connections is displayed, in layout Circular; take a look at MovieDatabaseLayout.grs to find out about the visualization configuration applied to reach this.
Notably we configured it so it shows only the matched entities plus the one-step connected elements as context, as large graphs are costly (often too costly) to visualize.
Extension Tasks 2, 3, 4
The other extension tasks asking to find cliques of actors are solved with manually coded rules for the sizes 3, 4, and 5 as a straightforward generalization of the couples-based task; higher-order or meta- programming is not supported (and won’t be, you have to employ an external code generator if needed).
3 Getting it fast
The clean pattern-based solution presented in the previous chapter unfortunately scales badly with in- creasing model sizes. Utilizing the built-in search plan explanation and profiling instrumentation, we were able to find out that the most expensive part is the check that there are at least 3 common movies existing, for two persons that are already connected by a common movie. So we replaced it with an imperatively formulated helper function, utilizing hash sets – they scale considerably better for connect- edness checking of a large number of adjacent(/incident) elements (O(n)instead ofO(n∗n)).
In addition to the built-in optimizations of independent inlining to ensure that pattern matching fol- lows connectedness, and search planning, adapting the pattern matching process to the characteristics of the host graph at hand, did we apply some further optimizations of the code.
• We used imperatively formulated hash-set lookup instead of the nested-loops implementation of the pattern matcher for the at-least-3-common-movies-check, to cope well with actors with high numbers of movies.
• We even inspect the number of incident edges in this check (yielding an adaptive algorithm), so the smaller hash set is built; in addition, we utilize an incident edges count index maintained by the engine that gives us direct access to the number of incident edges without having to iterate and count them.
• We applied some search space pruning by early filtering during the matching based on the unique id order of the actors, instead of filtering of permuted matches of automorphic patterns afterwards;
and by checking for actors with fewer than 3 movies early on, to remove the ”long tail” (of actors performing in few movies).
• We separated the computation of the average ranking from the addition of the common movies, this allowed us a reformulation with an all-bracketed rule instead of an iterated pattern, saving us the overhead of the graph parser employed in matching iterated, alternative, and subpatterns.
• Weparallelizedthe pattern matcher with aparallelizeannotation. This does not minimize the amount of work to be carried out for the specification as the other optimizations did, but maximizes the amount of workers thrown on the work. A task with an expensive search like ours – as revealed by profiling – benefits considerably from it.
The final optimized rule is shown in Figure 5, and its helper functions in Figure 6 and Figure 7 (the optimization increased the LOC from about 30 for the original version of task 2 to about 90). The optimization process is described in more detail in [4].
4 Calling from API and Performance Results
The task description asks for a standalone command line version for benchmarking. We supply a C#- Program that employs the GRGEN.NET API towards this end, which can be found inMovieDatabase- Benchmarker.cs(everything else was coded entirely in the GRGEN-languages, and is based on actual
GRGEN.NET-features). It expects as first parameter the name of the rule to apply (findCouplesOpt, findCliquesOf3Opt,findCliqueOf4Opt,findCliqueOf5Opt), and as second parameter either the graph to import (e.g. imdb-0005000-50176.movies.xmi.grs), or the number of iterations to use in generating the synthetic test graph. An additional sequence may be given in quotes, intended for emitting the sorted results.
The standalone version contains a further optimization that can be only applied on API level. After importing the IMDB graphs, it reduces the named graphs to unnamed graphs, throwing away the name information, which saves us a considerable amount of memory (and cache).
On a Core i7 920 with 24GiB, running Windows with MS .NET, the largest synthetic benchmark graph was processed in about 65sec for the couples, the 3 cliques in about 40sec, the 4 cliques in about 36sec, and the 5 cliques in about 20sec1. The entire IMDB was processed on average in about 500sec (searching for all couples performing in at least three movies, linking them to all of their common movies). The cliques (which were outside of the main focus of our optimization work) show a stun- ning computation time explosion, from 5 secs for cliques of 3, over something less than 2 minutes for cliques of 4, to more than 2 hours for cliques of 5, already on the smallest IMDB graph.
The official results (in seconds) measured on an Opteron 8387 with 32GiB, running LINUX with mono are given in Table 1, for the time needed to synthesize the models and the time needed for process- ing the couples on the synthesized models, and in Table 2, for the time needed for processing the couples and 3-cliques on the IMDB models.
5 Conclusion
We first specified a clean and simple solution of the movie database task in the GRGENlanguages, then we optimized it for performance. The tool supported us in validating the solution with its graphical debugger, and in optimizing it with its search plan explanation and profiling instrumentation for search step counting.
GRGEN.NET search planning can be compared to searching straw stars on a freshly harvested field, by looking at the places where the ground is only slightly covered, only reaching into the haystacks when they can’t be circumvented at all. A pattern matcher is generated based on the assumption that search planning worked well in circumventing those haystacks. Here the task consists solely of diving within a hay stack, a particularly large and interwoven one. So we had to supplement the declarative patterns (implemented with loop-nesting behind the scenes, which is optimal for sparse graphs) by imperative hash set based helper functions – at least this highlights that for about any task built on a graph-based representation there are the language constructs available that are needed for solving it.
Once again, GRGEN.NET is among the top performing tools.
References
[1] Jakob Blomer, Rubino Geiß & Edgar Jakumeit (2014):The GrGen.NET User Manual.http://www.grgen.
net/GrGenNET-Manual.pdf.
[2] Tassilo Horn, Christian Krause & Matthias Tichy (2014):The TTC 2014 Movie Database Case.
[3] Edgar Jakumeit (2011):EBNF and SDT for GrGen.NET. Technical Report. Available athttp://www.info.
uni-karlsruhe.de/software/grgen/EBNFandSDT.pdf. Presented at AGTIVE 2011.
1picking the fastest of 3 runs, with considerable variations in between
r u l e a d d C o m m o n M o v i e s A n d C o m p u t e A v e r a g e R a n k i n g ( c : Couple , pn1 : Person , pn2 : P e r s o n ) {
i t e r a t e d it {
pn1 -: p e r s o n T o M o v i e - > m : M o v i e < -: p e r s o n T o M o v i e - pn2 ;
m o d i f y {
c -: c o m m o n M o v i e s - > m ;
e v a l { y i e l d sum = sum + m . r a t i n g ; } }
}
m o d i f y {
def var sum : d o u b l e = 0 . 0 ;
e v a l { c . a v g R a t i n g = sum / c o u n t( it ); } }
}
Figure 3: addCommonMoviesAndComputeAverageRanking rule
[4] Edgar Jakumeit (2014): Optimizing a Solution for the TTC 2014 Movie Database Case. Technical Report.
Available athttp://www.info.uni-karlsruhe.de/software/grgen/OptimizingMovie.pdf.
[5] Edgar Jakumeit (2014): SHARE demo related to the paper Solving the TTC 2014 Movie Database Case with GrGen.NET. http://is.ieis.tue.nl/staff/pvgorp/share/?page=ConfigureNewSession&vdi=
Ubuntu12LTS_TTC14_64bit_grgen_v2.vdi.
A Appendix
A.1 Getting it right Task 2 and 3
The helper ruleaddCommonMoviesAndComputeAverageRankingshown in Figure 3 eats all common movies with an iteratedpattern which is matched as often as possible; in the rewrite part it links theCouplenode to each such movie with acommonMoviesedge. In the eval part used for attribute evaluation, theavgRatingis computed as the sum of the ratings of the movies munched, divided by the countof theiterateds matched. Thedef varis used to define a variable whose content is computed after matching from the matched entities, the yield is used to assign to such variables, from nested patterns up to their containing patterns (normally variables are passed the other way round, from nesting to nested patterns, following the flow of matching).
Extension Task 1: Compute Top-15 Couples
The rulecouplesWithRatingin Figure 4 matches aCoupleand its linkedPersons. Twodefvariables avgRatingandnumMoviesfor the values of interest are created and filled with the average rating stored in the couple nodes, and the number of movies as computed from the size of the set ofcommonMovies edges outgoing from the couple node. We employ ayieldblock to assign the variables (bottom-up)
r u l e c o u p l e s W i t h R a t i n g {
c : C o u p l e ;
c -: p1 - > pn1 : P e r s o n ; c -: p2 - > pn2 : P e r s o n ;
def var a v g R a t i n g : d o u b l e ; def var n u m M o v i e s : int ; y i e l d {
y i e l d a v g R a t i n g = c . a v g R a t i n g ;
y i e l d n u m M o v i e s = o u t g o i n g ( c , c o m m o n M o v i e s ). s i z e ();
}
m o d i f y {
e m i t( " a v g R a t i n g : " + a v g R a t i n g + " n u m M o v i e s : " + n u m M o v i e s + " by " + pn1 . n a m e + " and " + pn2 . n a m e + " \ n " );
}
} \ o r d e r D e s c e n d i n g B y < a v g R a t i n g > , o r d e r D e s c e n d i n g B y < n u m M o v i e s >
Figure 4: couplesWithRating rule
after the (top-down) pattern matching completed. In the rewrite part specified inmodifymode we just emitthe values of interest. Furthermore, we request GRGENto generate sorting code for the def pattern entities avgRatingand numMovieswith the declaration of the auto-generated matches accumulation filtersorderDescendingBy<avgRating>andorderDescendingBy<numMovies>.
A.2 Getting it fast
Figure 5 shows the rulefindCouplesOptwe get after the final optimization step. Figure 6 shows the helper functionatLeastThreeCommonMovies we employ to find out if there are 3 common movies, and Figure 7 shows the helper functiongetCommonMovieswe employ to compute the common movies.
Note that theadjacentOutgoingfunction is built-in.
A.3 Calling from API and Performance Results In Table 1 and Table 2 you find the official measurements.
r u l e f i n d C o u p l e s O p t [ p a r a l l e l i z e = 1 6 ] {
pn1 : P e r s o n ; pn2 : P e r s o n ; hom( pn1 , pn2 );
i n d e p e n d e n t {
pn1 - p 2 m 1 : p e r s o n T o M o v i e - > m1 : M o v i e < - p 2 m 2 : p e r s o n T o M o v i e - pn2 ; hom( pn1 , pn2 ); hom( p2m1 , p 2 m 2 );
if{ a t L e a s t T h r e e C o m m o n M o v i e s ( pn1 , pn2 ); } }
if{ u n i q u e o f ( pn1 ) < u n i q u e o f ( pn2 ); } if{ c o u n t P e r s o n T o M o v i e [ pn1 ] >= 3; } if{ c o u n t P e r s o n T o M o v i e [ pn2 ] >= 3; }
def ref c o m m o n :set< Node >;
y i e l d {
y i e l d c o m m o n = g e t C o m m o n M o v i e s ( pn1 , pn2 );
}
m o d i f y { c : C o u p l e ; c -: p1 - > pn1 ; c -: p2 - > pn2 ;
e v a l {
for( m o v i e : N o d e in c o m m o n ) { add ( c o m m o n M o v i e s , c , m o v i e );
} } } }
Figure 5: findCouplesOpt rule
f u n c t i o n a t L e a s t T h r e e C o m m o n M o v i e s ( pn1 : Person , pn2 : P e r s o n ) : b o o l e a n {
if( c o u n t P e r s o n T o M o v i e [ pn1 ] <= c o u n t P e r s o n T o M o v i e [ pn2 ]) { def var c o m m o n : int = 0;
def ref m o v i e s :set< Node > = a d j a c e n t O u t g o i n g ( pn1 , p e r s o n T o M o v i e );
for( m o v i e : N o d e in a d j a c e n t O u t g o i n g ( pn2 , p e r s o n T o M o v i e )) {
if( m o v i e in m o v i e s ) { c o m m o n = c o m m o n + 1;
if( c o m m o n >= 3) { r e t u r n(t r u e);
} } }
} e l s e { /* pn1 and pn2 r e v e r s e d */ } r e t u r n(f a l s e);
}
Figure 6: atLeastThreeCommonMovies helper function
f u n c t i o n g e t C o m m o n M o v i e s ( pn1 : Person , pn2 : P e r s o n ) : set< Node >
{
def ref c o m m o n :set< Node > = set< Node > { } ;
if( c o u n t P e r s o n T o M o v i e [ pn1 ] >= c o u n t P e r s o n T o M o v i e [ pn2 ]) {
def ref m o v i e s :set< Node > = a d j a c e n t O u t g o i n g ( pn2 , p e r s o n T o M o v i e );
for( m o v i e : N o d e in a d j a c e n t O u t g o i n g ( pn1 , p e r s o n T o M o v i e )) {
if( m o v i e in m o v i e s ) { c o m m o n . add ( m o v i e );
} }
} e l s e { /* pn1 and pn2 r e v e r s e d */ } r e t u r n( c o m m o n );
}
Figure 7: getCommonMovies helper function
Table 1: Synthetic model generation and matching couples N synthesizing matching couples
1000 0.13 0.25
2000 0.21 0.42
3000 0.30 0.59
4000 0.55 0.58
5000 0.62 0.96
10000 1.22 1.82
50000 7.29 9.58
100000 15.88 22.09
200000 34.20 51.13
Table 2: Matching couples and 3-cliques nodes matching couples matching 3-cliques
49930 0.52 5.011
98168 0.99 13.634
207420 1.47 22.794
299504 4.14 33.480
404920 3.51 53.659
499995 9.27 69.194
709551 11.10 129.696
1004463 22.45 222.112
1505143 62.68 797.266
2000900 190.83 1930.327
2501893 318.72 4480.044
3257145 683.66 15616.83
