Improved UART Clocking Techniques on New Generation HPCs

National Semiconductor Application Note 798 Ravi Kumar April 1993

Improved UART Clocking Techniques on New

Generation HPCs

The new generation HPCs have on-chip UARTs with much better baud rate generation techniques and better status reporting capabilities. This article explains in detail, accurate baud rate generation on HPC46400E and HPC^aUARTs with appropriate examples.

UART implemented on the HPC46400E and HPC^ais an upward compatible enhancement of the UART present on the HPC46083. Unlike the UART on HPC46083, the operat- ing mode may be selected as either Asynchronous or Syn- chronous. Here we can also select the baud rate through software in conjunction with both prescalar and baud select registers.

TL/DD/11292 – 1

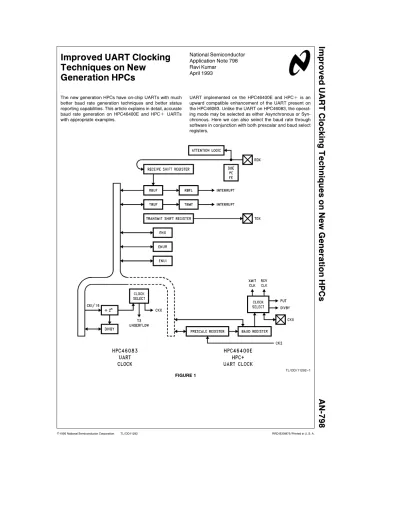

FIGURE 1

(2)

COMMON FEATURES SUPPORTED BY HPC46083 UART AND THE NEWER VERSION OF UART ON HPC46400E AND HPC^a

# Fully programmable serial interface characteristics, in- cluding:

Ð 8- or 9-bit characters Ð 1 or 2 stop bits

# Two interrupt sources (Receiver buffer full, Transmit buffer empty)

# Independent clock inputs (either on-chip or off-chip) for the transmitter and receiver

# Error reporting capabilities (Data overrun error, framing error)

# Attention or wake up mode for receiver to enhance net- working capability

ADDITIONAL UART FEATURES AVAILABLE ON HPC46400E AND HPC^a

# Upwardly compatible from earlier HPC UARTs such as HPC16083

# Fully programmable serial interface characteristics, in- cluding:

Ð Accurate baud rate generation without the penalty of using an expensive crystal up to 625k baud Ð 7-bit characters possible

Ð-/8, 1-/8stop bit lengths

Ð Odd, Even, Mark, Space or no parity bit generation and detection

# Selectable Asynchronous or Synchronous mode of operation

# Loopback Diagnostic test capability

Now lets see various methods of BAUD Rate generation.

First we shall discuss how DIVBY can be used to generate required baud-rate.

1.0 UART CLOCK SOURCE FROM DIVBY REGISTER Clock for DIVBY register can be generated using precise value crystals or T3 underflow. Referring toFigure 2 , we see that baud rate is from internal source for DIVBY register.

(3)

The following is a sample assembly language routine illustrating BAUD Rate generation using DIVBY register through precise value crystal.

;This program will test the HPC16400E UART for 9600 baud.

;using 10.0 MHz crystal and DIVBY (baud clock from internal source).

;************************************************************

;The power-up default setup is:

;a) Baud clock from internal source DIVBY

;b) Frame format is 1 start, 8 dta, and 1 stop bit.

;The clock should be a 10.0 MHz crystal .sect uart, rom16

begin:

sbit 0,0f2,b ;DIRB reg pin 1 outward direction sibit 0,0f4.b ;BFUNL reg, turns on TDX bit

rbit 2,0x122.b ;xtclk

rbit 3,0x122.b ;xrclk

ld 018e.b,#040 ;Load DIVBY from table to generate

;9600 baud (CKI/64)

;The baud clock 4 baud rate * 16

;So, for 9600 baud, bclk 4 9600 * 16 4 153600 Hz

;With 10.0 MHz clock

x

10.0 MHz/64 4 156250 Hz (within 5%)

xmit: ld a,#041 ;load char ‘A‘

st a,0126.b ;Load TBUF reg to transmit

chk: ifbit 0,0120.b

jp xmit ;continue to xmit

jp chk .endsect

.end begin

Hence we see the percentage error of Baud Rate produced is:

% error^e(156250^b153600)/15360 e1.72

which is within the error limits.

(4)

A) Baud Rate Calculation Using DIVBY Register through Precise Value Crystal

Table I gives the bit values to be loaded into UART section of the DIVBY register. This table defines the baud rates for two different crystals at 9.304 MHz and 19.6608 MHz.

We see that more care in selecting the crystal frequency is necessary to generate exact baud rates. Obviously the baud rate generation is restricted by the crystal frequency.

TABLE I Baud Clock (x16 Clock)

Baud Rate Baud Rate

Bit 7 Bit 6 Bit 5 Bit 4 9.8304 MHz 17.6603 MHz

Crystal Crystal

0 0 0 0

w

Not Allowed

x

0 0 0 0

w

Defined by Timer T3 Underflow

x

0 0 1 0 CKI/16 38400 65536

0 0 1 1 CKI/32 19200 32768

0 1 0 0 CKI/64 9600 16384

0 1 0 1 CKI/128 4800 8192

0 1 1 0 CKI/256 2400 4096

0 1 1 1 CKI/512 1200 2048

1 0 0 0 CKI/1024 600 1024

1 0 0 1 CKI/2048 300 512

1 0 1 0 CKI/4096 150 256

1 0 1 1 CKI/8192 75 128

1 1 0 0 CKI/16384 38 64

1 1 0 1 CKI/32768 19 32

1 1 1 0 CKI/65536 9.4 16

1 1 1 1 CKI/131072 4.7 8

(5)

B) Baud Rate Calculation Using DIVBY Register and Timer T3 Underflow

Suppose we want to generate 9600 baud. In the DIVBY register, load the UART bits with value 0001, which means Baud Clock is defined by T3 underflow (refer to Table I).

Once again referring toFigure 2 , we see BAUD clock is from internal source.

Let’s calculate the Pre-Scale value to be loaded into T3 register (0X018C) and R3 register (0X018A)

Baud Clock^eRequired baud rate^c16 Clock Input^eCrystal Freq

16 Pre-Scale Value^eClock Input

Baud Clock In our specific case

required BAUD Rate^e9600 crystal freq^e20 MHz

x

^{Baud Clock}^e⁹⁶⁰⁰^c¹⁶^e¹⁵³⁶⁰

Clock Inputê20/16ê1.25 MHzê1.25^c10⁶Hz Pre-Scale Valueê1.25^c10⁶

153600

&8 Pre-Scale Value^e8

Actual value to be loaded into T3 and R3 register is (Pre- scale value^b1) i.e., 7 in this case.

Percentage error of Baud Rate produced is:

Pre-Scale Value^e8 Baud Rate^eBaud Clock/16

Baud ClockêClock Input/Pre-Scale Value Clock InputêCKI/16ê20 MHz/16

e1.25 MHz Baud Clockê1.25 MHz/8ê156250 Therefore Baud Rateê156250/16ê9765.62 Hence % errorê(9765.62^b9600)/9600

e1.72 Which is within the error limits.

The following is a sample assembly language routine illustrating BAUD Rate generation through DIVBY and T3 underflow.

;******** Generation of BAUD clock through timer3 without triggering timer intrpt ********

.sect uart, rom16

tmr: ld tmmode.w,#0xcccc ;stop timers t3, t2, t1

ld divby.w,#0x2010 ;Clk to T3 thru DIVBY as CKI/16

;with reload val Ton & Toff as 7 ld t3reg.w.#0x7 ;Reload Ton as 7

ld r3reg.w,#0x7 ;Reload Toff as 7

;and BAUD rate 4 9600 rbit 2,0x122.b ;uart internal xmit clk rbit 3,0x122.b ;uart internal rcv clk sbit 0,0x0f2.b ;config BFUN pin as TDX sbit 0,0x0f4.b ;config DIRB pin 1 outward

ld tmmode.w,#0x8ccc ;Start timer T3 & stop T1, T2 & Ack’em.

;Loop to continuously xmit char ‘A‘ at specified baud rate

xmit: ld a,#041 ;load char ‘A‘

st a,0126.b ;load TBUF reg to transmit

chk: ifbit 0, enu.b

jp xmit jp chk .endsect

.end tmr

(6)

2.0 BAUD RATE CALCULATION USING PUT (PRECISION UART TIMER)

The Precision UART Timer (PUT) is now obsolete and kept only for compatibility with software developed for those earlier components. PUT has two registers i.e., BAUDR with 15-bit divisor field and BAUDC, a 15-bit free-running down counter. These can be programmed to divide the CK2 (CKI/2) clock by a factor of from 3 to 32767, in units of CK2, thus yielding a time base to the UART of higher resolution than that available through the DIVBY register.

Referring toFigure 2 we see that BAUD clock source for PUT is external.

Suppose the Clock input is 16 MHz and the required baud rate is 9600, then the value to be loaded into BAUDR register will be

Required Baud Rateê (CK2/16) (BAUDRâ1) Where CK2êCKI/2

Given CKI^e16 MHz Hence CK2^e8 MHz

(BAUDRâ1)ê CK2/16 Required Baud Rate (BAUDRâ1)ê8 MHz/16

(9600)

..

.BAUDR&52^b1 51 in decimal and here value to be loaded into BAUDR register will be 33 hex.

Now to select PUT timer as external clock source MSB of BAUDR register must be 1.

1 0 0 0 0 0 0 0 0 0 1 1 0 0 1 1 Ð Binary

8 0 3 3 Ð Hex

Note:BAUDC must also be loaded with same value (Reload Value).

Percentage error of Baud Rate produced is:

BAUDR^e51 Therefore Baud Rate^e8 MHz/16

(51^a1) e9615.38 Required Baud Rate^e9600

Hence % Error^e(9615.38^b9600)/9600 e0.16

Which is well within the error limits.

The following is a sample assembly language routine illustrating BAUD Rate generation through PUT.

;This program will test the HPC16400E UART for 9600 baud.

;Using PUT for generating 9600 baud at 20 MHz .sect code, rom 16

This is for 20 MHz CKI

;

;Using PUT for generating 9600 baud at 20 MHz .sect code, rom 16

main:

ld 0x017e.w,#0x0000 ;for 9600 baud ^@ 20 MHz

;UDIV w/xtclk or xrclk (baud count) ld 0x017c.w,#0x8033 ;baud div value to generate 9600 baud

;UDIVR (baud div) register sbit 2, 0x122.b ;xtclk

sbit 3, 0x122.b ;xrclk

ld 0f2.b,#0x05 ;DIRB reg pin 1 outward direction.

ld 0f4.b,#0x05 ;BFUNL reg, turns on TDX bit

;char xmission

(7)

3.0 BAUD RATE CALCULATIONS USING BRG (BAUD RATE GENERATOR).

The most flexible and accurate on-chip clocking is provided by the BAUD Rate generator and (BRG). The BAUD Rate generator is controlled by the register pair PSR and BAUD, shown below. The Prescale factor is selected by the upper 5 bits of the PSR register (the PRESCALE field), in units of the CK2 clock from 1 to 16 in(/2step increments. The lower 3

bits of the PSR register, in conjunction with the 8 bits of the baud register, form the 11-bit BAUDRATE field, which defines a baud rate divisor ranging from 1 to 2048, in units of the prescaled clock selected by the PRESCALE field. In As- ynchrnous Mode, the resulting baud rate is(/16of the clocking rate selected through the BRG circuit. The maximum baud rate generated using BRG is 625 kbaud.

TL/DD/11292 – 3

Formula:

Required Baud Rate^e CKI 32 * N * P where CK^eInput Clock

N^eBaud Rate Divisor P^ePrescaler Division Factor

Note:This calculation is for Asynchronous mode of UART operation.

Suppose we need 9600 Baud with given Clock i.e., CKI^e20 MHz

then

Required Baud Rate^e9600 CKI^e20 MHz

From formula stated earlier for required baud rate, we have 9600^e 20 MHz

30 * N * P

x

^{N * P}^e²⁰

c10⁶ 32 * 9600 N * P^e65.1

or N^e65.1/P

P, which is a prescaler factor, should be selected from Ta- ble II in such a way that ‘‘N’’ should be close to an integer.

Therefore substituting values of P in the table and calculat- ing N we have the following table.

(8)

TABLE II

P N

Prescaler N^e(65.104/P)

1 65.104

1.5 43.402

2 32.552

2.5 26.041

3 21.701

3.5 18.601

4 16.276

4.5 14.467

5 13.020

5.5 11.837

6 10.850

6.5 10.016

7 9.300

7.5 8.680

8 8.138

8.5 7.659

9 7.233

9.5 6.853

10 6.510

10.5 6.200

11 6.918

11.5 5.661

12 5.425

12.5 5.203

to an Integer Value Closest

13 5.008

w

13.5 4.822

14 4.650

14.5 4.489

15 4.340

15.5 4.200

16 4.069

Now choose N in such a way that it’s closest to an integer.

Obviously N ^e5.008 is the closest to being an integer therefore, the value of P when N^e5.008 is 13

x

^P^e^{13 and N}^e⁵

Now from the table ‘‘UART Prescaler Factors’’ select the binary ‘‘Prescale field’’ using the value of N derived above.

UART Prescaler Factors Prescale Field

Prescaler Factor (Binary)

00000 (Compatibility Mode)

00001 1

00010 1.5

00011 2

00100 2.5

00101 3

00110 3.5

00111 4

01000 4.5

01001 5

01010 5.5

01011 6

01100 6.5

01101 7

01110 7.5

01111 8

10000 8.5

10001 9

10010 9.5

10011 10

10100 10.5

10101 11

10110 11.5

10111 12

11000 12.5

11010 13.5

11011 14

11100 14.5

11101 15

11110 15.5

11111 16

(9)

in Binary format

P^e11001 (N^b1)^e100

Therefore Prescaler field is P^e11001 and baud rate divisor or baud rate field N^e100

Referring to BRG register format in page 7 we can combine 5 bits of P and 11 bits of baud rate field to load Prescaler bits (PSR) and Baud Rate generate bits (BRG) respectively.

PSR^e11001

Baud Rate field (N^b1)^e0 0 0 0 0 0 0 0 1 0 0 Combined value in binary format is

1 1 0 0 1 0 0 0 0 0 0 0 0 1 0 0 which in hex is

C 8 0 4

therefore load BRG register with C804.

The following is a sample assemble language routine illustrating BAUD Rate generation through BRG.

;Baud rate generation using BRG register

;BAUD RATE 4 CKI/(32 * N * P) where P4 5 bit prescalar value and N 4 11 bit

;baud rate filed. For 9600 baud at 20 MHz

x

^NP ⁴ 52.083 and so P 4 13 and N 4 4

;

;At 16 MHz crystal (CKI) for PSR use #0c8 and for BAUD use #07

;At 20 MHz crystal (CKI) for PSR use #0c8 and for BAUD use #04

;************************************************************

.sect code, rom16

main: ;First exit compatibility mode

;by writing to PSR register ld 012a.b,#0c8 ;load prescalar i.e., PSR reg

ld 012c.b,#04 ;load baudrate field i.e., BAUD at 20 MHz ld 0120.b,#000 ;8 bit data, space (0) parity in ENU register.

ld 0122.b,#080 ;ENUI register, 2 stop bits

ld 0f2.b,#01 ;DIRB register pin 1 outward direction ld 0f4.b,#01 ;BFUNL register, turns on TDX bit

;Loop to continuously xmit chars at specified baud rate.

xmit: ld a,#041 ;load char ×A×

st a,0126.b ;Load TBUF reg to transmit

jp xmit ;Continue to xmit.

.endsect .end main

(10)

Improved UART Clocking Techniques on New Generation HPCs

Performance Comparison of PUT and BRG Regarding Higher Baud Rate Generation.

Let’s take a case where the required Baud rate is 625k baud at 20 MHz.

PUT:

BAUDR^a1^e CK2/16

Required Baud Rate Therefore BAUDR^a1^e10^c10⁶/16

625^c10³ BAUDR^a1^e0.1

BAUDR^{e b}(0.9)

Therefore we see that, PUT can not be used to generate 625k baud. The limit on PUT is 208.3k baud.

BRG:

Baud Rate Required^e CKI 32 * N * P 625k^e20^c10⁶

32 * N * P N^cPê1 Nê1 Pê1

i.e. Prescale fieldê00001 N^b1ê00000000000 i.e., 0000 1000 0000 0000ê0^c0800

Therefore load BRG register with 0x 0800 to generate 625k baud^@20 MHz

Conclusion:

Thus we see that the clocking techniques on new generation HPCs are more accurate and very flexible. Generation of higher rates can be done with relative ease. We can also observe that, using newer UART clocking techniques the percentage error i.e., difference between the required baud rate and the actual baud rate produced goes down signifi- cantly.
