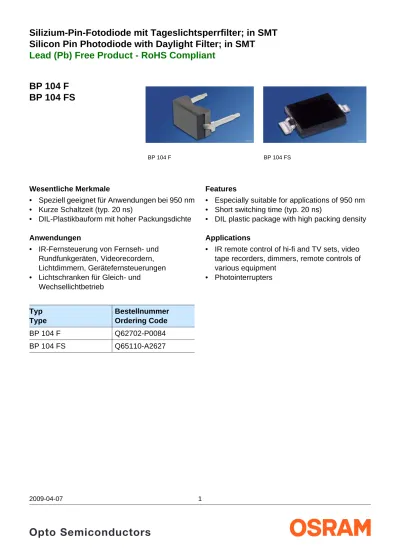

BP 104 F BP 104 FS

BP 104 F BP 104 FS

Lead (Pb) Free Product - RoHS Compliant

BP 104 F BP 104 FS

Wesentliche Merkmale

• Speziell geeignet für Anwendungen bei 950 nm

• Kurze Schaltzeit (typ. 20 ns)

• DIL-Plastikbauform mit hoher Packungsdichte

Anwendungen

• IR-Fernsteuerung von Fernseh- und Rundfunkgeräten, Videorecordern, Lichtdimmern, Gerätefernsteuerungen

• Lichtschranken für Gleich- und Wechsellichtbetrieb

Typ Type

Bestellnummer Ordering Code

BP 104 F Q62702-P0084

BP 104 FS Q65110-A2627

Features

• Especially suitable for applications of 950 nm

• Short switching time (typ. 20 ns)

• DIL plastic package with high packing density

Applications

• IR remote control of hi-fi and TV sets, video tape recorders, dimmers, remote controls of various equipment

• Photointerrupters

Grenzwerte

Maximum Ratings Bezeichnung Parameter

Symbol Symbol

Wert Value

Einheit Unit Betriebs- und Lagertemperatur

Operating and storage temperature range

T_op^; T_stg – 40 … + 100 °C

Sperrspannung Reverse voltage

V_R 20 V

Verlustleistung, TA = 25 °C Total power dissipation

Ptot 150 mW

Kennwerte (T_A = 25 °C, λ = 950 nm) Characteristics

Bezeichnung Parameter

Symbol Symbol

Wert Value

Einheit Unit Fotostrom

Photocurrent

V_R = 5 V, E_e = 1 mW/cm²

I_P ^{34 (≥ 25) μA}

Wellenlänge der max. Fotoempfindlichkeit Wavelength of max. sensitivity

λ_{S max} 950 nm

Spektraler Bereich der Fotoempfindlichkeit S = 10 % von S_max

Spectral range of sensitivity S = 10 % of S_max

λ 800 … 1100 nm

Bestrahlungsempfindliche Fläche Radiant sensitive area

A ^{4.84 mm2}

Abmessung der bestrahlungsempfindlichen Fläche Dimensions of radiant sensitive area

L^×B L^×W

2.20×2.20 mm×mm

Halbwinkel Half angle

ϕ ±60 Grad

deg.

Dunkelstrom, V_R = 10 V Dark current

I_R 2 (≤ 30) nA

Spektrale Fotoempfindlichkeit S_λ ^{0.70 A/W}

Kurzschlussstrom, E_e = 0.5 mW/cm² Short-circuit current

I_SC ¹⁷ μA

Anstiegs- und Abfallzeit des Fotostromes Rise and fall time of the photocurrent

R_L = 50 Ω; V_R = 5 V; λ = 850 nm; I_p = 800 μA

t_r, t_f 20 ns

Durchlassspannung, IF = 100 mA, E ^{= 0} Forward voltage

VF 1.3 V

Kapazität, V_R = 0 V, f ^{= 1 MHz,} E ^{= 0} Capacitance

C₀ ^{48 pF}

Temperaturkoeffizient von V_O Temperature coefficient of V_O

TC_V – 2.6 mV/K

Temperaturkoeffizient von ISC

Temperature coefficient of ISC

TCI 0.18 %/K

Rauschäquivalente Strahlungsleistung Noise equivalent power

V_R = 10 V

NEP ^3.6×10–14

Nachweisgrenze, V_R = 10 V Detection limit

D* 6.1×10¹²

Kennwerte (T_A = 25 °C, λ = 950 nm) Characteristics (cont’d)

Bezeichnung Parameter

Symbol Symbol

Wert Value

Einheit Unit

W Hz ---

cm× Hz ---W

Relative Spectral Sensitivity S_rel= f (λ)

Dark Current I_R= f (V_R), E = 0

Directional Characteristics S_rel= f (ϕ)

λ

OHF00368

0 Srel

700 20 40 60 80

% 100

800 900 1000 nm 1200

OHFD1781

ΙR

0 0

V_R pA

V

5 10 15 20

1000 2000 3000 4000

OHF01402

60 50

40 30 20 10

ϕ

0.6 0.8 1.0 0

Photocurrent I_P= f (E_e), V_R = 5 V Open-Circuit Voltage V_O= f (E_e)

Capacitance

C = f (V_R), f = 1 MHz, E = 0

E

OHF01056

e

100

ΙP

10-1

10¹ 10² 10⁴

10⁰ 10¹ 10²

10³ 10⁴

103

102

101

10⁰ V_O

μA mV

ΙP

V_O

W/cm2

μ

V

OHF01778

R

10-2

C

10^-1 10⁰ 10¹ V 10² 0

10 20 30 40 50 pF 60

Total Power Dissipation P_tot= f (T_A)

Dark Current

I_R= f (T_A), V_R = 10 V, E = 0

T

OHF00958

A

0 Ptot

0 20 40 60 80 ˚C 100

mW

20 40 60 80 100 120 140 160

T

OHF00082

A

10-1

0 ΙR

10⁰ 10¹ 10² 10³ nA

20 40 60 80 ˚C 100

Maßzeichnung Package Outlines

GEOY6075

4.0 (0.157)

3.7 (0.146) 4.3 (0.169)

4.5 (0.177) 5.4 (0.213)

4.9 (0.193)

0.6 (0.024) 0.4 (0.016) 0.6 (0.024) 0.4 (0.016)

1.2 (0.047) 0.7 (0.028) 0.3 (0.012)

0.5 (0.020) 0.8 (0.031) 0.6 (0.024)

Cathode marking

0.6 (0.024)

0.8 (0.031) 1.9 (0.075)2.2 (0.087) 3.0 (0.118)3.5 (0.138)

0.6 (0.024) 0.4 (0.016) Chip position

0.4 (0.016) 0.6 (0.024) 0.35 (0.014)

0.2 (0.008)

0 ... 5˚

5.08 (0.200) spacing

Approx. weight 0.1 g

1.4 (0.055) Photosensitive area

2.20 (0.087) x 2.20 (0.087)

1.8 (0.071)

BP 104 F

4.5 (0.177) 4.3 (0.169)

4.0 (0.157) 3.7 (0.146)

1.5 (0.059)1.7 (0.067)

0.9 (0.035) 0.7 (0.028)

Photosensitive area Cathode lead

GEOY6861

0.3 (0.012)

6.7 (0.264) 6.2 (0.244) 1.2 (0.047) 1.1 (0.043)

Chip position

0...5˚

0.2 (0.008) 0.1 (0.004) 1.1 (0.043) 0.9 (0.035)

2.20 (0.087) x 2.20 (0.087) 1.6 (0.063)

(0...0.004)

±0.2 (0.008)

0...0.1

BP 104 FS

Lötbedingungen BP 104 FS Vorbehandlung nach JEDEC Level 4 Soldering Conditions Preconditioning acc. to JEDEC Level 4

Reflow Lötprofil für bleifreies Löten (nach J-STD-020C) Reflow Soldering Profile for lead free soldering (acc. to J-STD-020C)

Wellenlöten (TTW) BP 104 F (nach CECC 00802)

TTW Soldering (acc. to CECC 00802)

OHLA0687

0 0 T

t

˚C

s 120 s max

50 100 150 200 250 300

Ramp Up

100 s max

50 100 150 200 250 300

Ramp Down 6 K/s (max)

3 K/s (max) 25 ˚C

30 s max

260 ˚C^{+0 ˚C}_{-5 ˚C} 245 ˚C^{±5 ˚C} 240 ˚C

255 ˚C

217 ˚C

Maximum Solder Profile Recommended Solder Profile

235 ˚C_{-0 ˚C}^{+5 ˚C} Minimum Solder Profile

10 s min

OHLY0598

100 150 200 250 300

T C

235 C

10 s

C ... 260

1. Welle 1. wave

2. Welle 2. wave

5 K/s 2 K/s

ca 200 K/s C... 130 C

100

Normalkurve standard curve Grenzkurven limit curves
