Gestion de Crise des Réseaux de Sécurité Civile

Daniel Camara

To cite this version:

Daniel Camara. Techniques Pour le Support des Phases d’Alerte et de Gestion de Crise des Réseaux de Sécurité Civile. Electronique. Télécom ParisTech, 2010. Français. �pastel-00006044�

(2)

THESIS

In Partial Fulllment of the Requirements for the Degree of Doctor of Philosophy

from TELECOM ParisTech

Specialization: Communications and Electronics

Daniel Câmara

Techniques to Support Alert and Crisis

Management in Public Safety Networks

Defense scheduled on the 4th of March 2010 before a committee composed of:

Reviewers Prof. Khaldoun Al Agha, Université Paris-Sud, France

Prof. Marcelo Dias Amorim, Université Pierre et Marie Curie, France Examiner Dr. Paolo Santi, Instituto di Informatica e Telematica, Italy

Thesis supervisors Prof. Christian Bonnet, EURECOM, France

(3)

(4)

THESE

présentée pour obtenir le grade de Docteur de TELECOM ParisTech Spécialité: Communication et Electronique

Daniel Câmara

Techniques Pour le Support des Phases d'Alerte et

de Gestion de Crise des Réseaux de Sécurité Civile

Thèse prévue le 4 mars 2010 devant le jury composé de :

Rapporteurs Prof. Khaldoun Al Agha, Université Paris-Sud, France

Prof. Marcelo Dias Amorim, Université Pierre et Marie Curie, France Examinateur Dr. Paolo Santi, Instituto di Informatica e Telematica, Italy

Directeurs de thèse Prof. Christian Bonnet, EURECOM, France

(5)

(6)

i

To my wife, Wanessa, my son, Arthur, and my daughter, Helena, for their support and undestanding.

(7)

(8)

Acknowledgements

As any research work this thesis is the result of the collaborative work with a number of dierent researchers and research projects. The collaboration with other EURECOM and outside researchers was decisive in the nal quality of the work. For the friendly and uncompromised, yet highly productive environment we have here at EURECOM I must thank to all, students, professors and employees.

However I would like to specially thank, professor Fethi Filali for providing me this opportunity of working here at EURECOM, and professor Christian Bonnet, for the insightful and clear view, not only of the problems we faced, but also of the PhD process as a whole. I learned a lot here during the last three years and without the guidance of professor Bonnet and Filali this work wouldn't be possible. I am rely grateful to all PhD students of EURECOM, but I would like to specially thank some of them. I am sincerely and deeply thankful to Randa Zakhour, for all the endless reviews and for being so patient with me and my stupid jokes during the time we shared the oce. I want also to thank Ikbal Chammakhi Msadaa, for the work we developed together, and the numerous reviews. I am also deeply grateful to Giuliana Iapichino for give me the wonderful opportunity to work with her in a book chapter that greately helped to put this whole thesis together. I would like to thank also all my oce mates, Erhan Yilmaz, Antony Schutz, Agisilaos Papadogiannis and Konstantinos Papakonstantinou, for providing a friendly and productive work environment.

I would also like to thanks to all the secretariat people, mainly Gwenaëlle Le Stir, Christine Mangiapan, Christine Roussel and Emilie Vivier for the guidance, patience and help over the bureaucratic process.

Specially I would like to thank my great friend and co-author Nikolaos Fran-giadakis to whom I owe more than I will be ever able to pay. Nick thanks for the long conversations, reviews and, above all, for jumping with me into all the crazy stu I have proposed to you without blinking even once. I am really and deeply grateful to you my friend.

I would like to express here also my deepest gratitude to my family, Wanessa Nascimento Câmara, Arthur Nascimento Câmara and Helena Nascimento Câmara, for the patience and understanding over the lost weekends. Finally, I would like to acknowledge and thank my mother, Maria Rosa Câmara, and my father, Pedro Izidoro Câmara, for the basis they provided me and that were, surely enough, the seeds to this thesis.

(9)

(10)

Abstract

Public Safety Networks (PSNs) are the kind of networks deployed by the authorities, in case of a natural, or man made, disaster to spread information and coordinate rescue teams. This particular kind of network is mission critical, if it does not work, or works poorly, lives may be lost. This theses aims to help PSNs in two distinct situations: warning message distribution and eld teams network organization.

In the advent of a crisis, normally, authorities have interest in spread-ing warnspread-ings and information about the measures one should take to avoid any danger. These messages have been broadcasted by regular broadcast mediums, e.g. sirens, radio and TV. Unfortunately, in the case of a huge catastrophe, traditional broadcast mediums may fail to reach all the inter-ested people in a given region. However, with the next generation of vehicles developed targeting road safety, the communication devices built into the cars may be used to broaden even more the coverage of these warning mes-sages. We propose here a simple, yet ecient, technique to increase the network coverage using such devices

The second part of this thesis focus on the organization of the rescue nodes on the eld. Having a well dened and stable network is of paramount importance for PSNs. We propose here not only a topology control algorithm to deploy the CHORIST network architecture, but also a generic topology admission control and topology management method that is reliable enough to be used in PSNs. The technique is based on the economy laws of supply and demand leading to a Pareto optimal organization of the nodes.

(11)

(12)

List of Figures

1.1 Disaster management phases . . . 4 2.1 Dierent disaster scenarios. . . 12 2.2 RATCOM project main architecture. . . 18 3.1 A representation of two communication opportunities in a

VDTN . . . 27 3.2 Message transmission example comparing ooding and

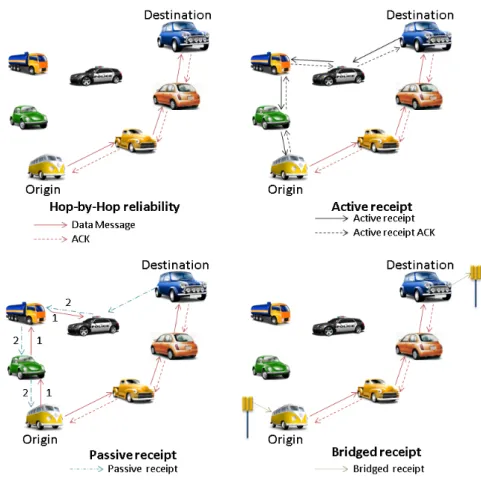

for-warding based strategies . . . 33 3.3 One hop reliability and two hop reliability techniques . . . 33 3.4 Comparison among the reliability approaches messages . . . . 37 4.1 The VAP data dissemination technique . . . 42 4.2 The VAP technique on a road coverage vision . . . 45 4.3 Map showing the Washington D.C. area we use for the

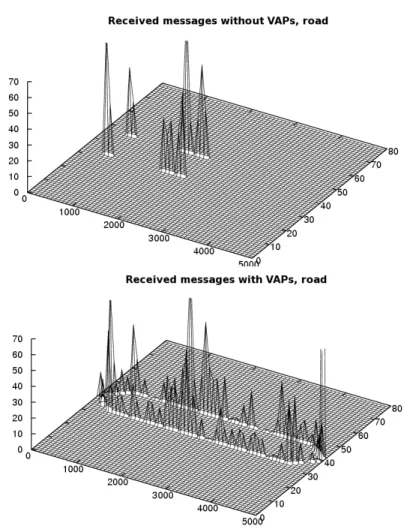

simu-lations . . . 49 4.4 Typical histogram of the messages transmissions over the road

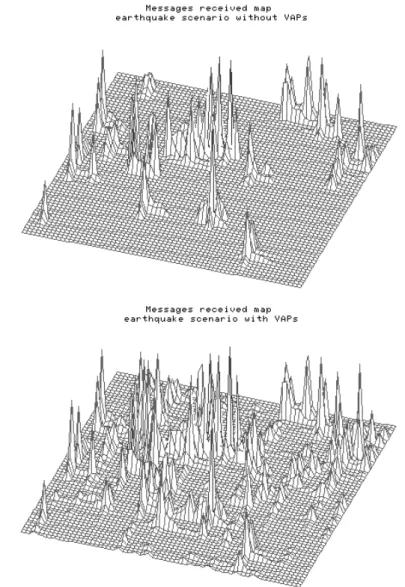

segment observed . . . 51 4.5 Typical histogram of the messages transmissions over the city

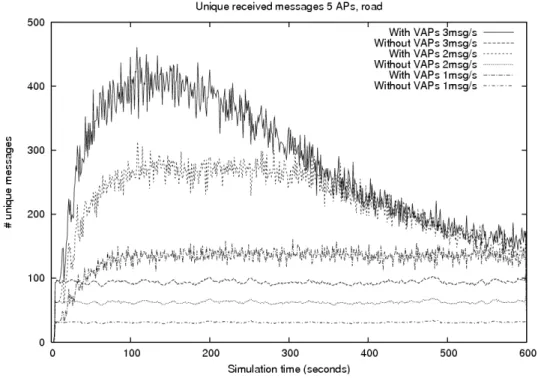

experiment . . . 52 4.6 Unique received messages through the 10 mins of simulation

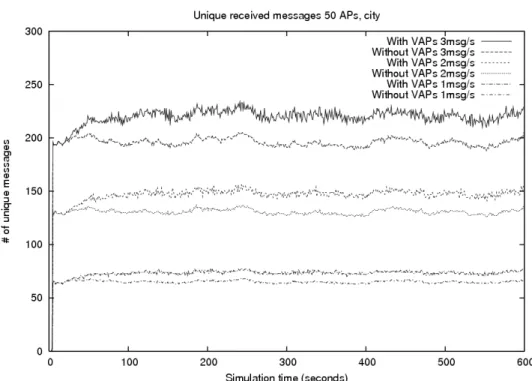

for the road environment with dierent trac rates . . . 53 4.7 Unique received messages through the 10 mins of simulation

for the city environments . . . 54 4.8 Unique received messages through the 10 minutes of

simula-tion for the road environment with dierent number of APs and trac rates . . . 55 4.9 Number of messages rst received from an AP and VAP . . . 56 4.10 Repeated messages for the road environment . . . 57

(17)

4.11 Average percentage of messages received in the network as a function of the initial number of APs for the evaluated disaster

scenarios . . . 58

4.12 Number of duplicated messages received as a function of the initial time of each disaster . . . 60

4.13 Number of duplicated messages as a function of the size of the cache with 100 nodes and the disasters occurring in the beginning of the simulation . . . 61

4.14 Transmission rate and variability . . . 62

4.15 Received unique messages over time for the no disaster, the earthquake and the random failure scenarios . . . 63

4.16 The area in Sophia Antipolis used for this set of tests . . . 64

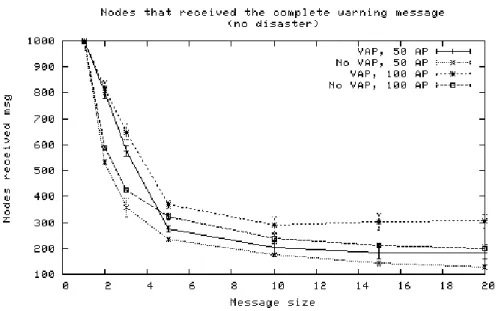

4.17 Number of nodes that received the warning message taking into account the evaluated disaster scenario . . . 65
