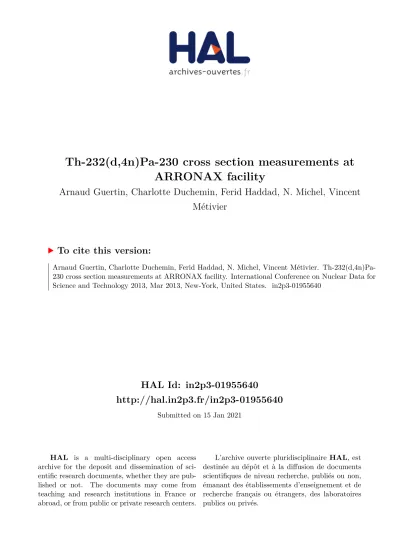

Th-232(d,4n)Pa-230 cross section measurements at ARRONAX facility

HAL Id: in2p3-01955640

http://hal.in2p3.fr/in2p3-01955640

Submitted on 15 Jan 2021

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Th-232(d,4n)Pa-230 cross section measurements at ARRONAX facility

Arnaud Guertin, Charlotte Duchemin, Ferid Haddad, N. Michel, Vincent Métivier

To cite this version:

Arnaud Guertin, Charlotte Duchemin, Ferid Haddad, N. Michel, Vincent Métivier. Th-232(d,4n)Pa-230 cross section measurements at ARRONAX facility. International Conference on Nuclear Data for Science and Technology 2013, Mar 2013, New-York, United States. �in2p3-01955640�

232

_{Th (d, 4n)}

230

_{Pa cross section}

measurements at ARRONAX facility

Nuclear Data for Science and Technology 2013

New York USA

Session HD Cross Section Measurements

GUERTIN Arnaud

SUBATECH Laboratory CNRS Research Officer

Outline

 Motivations

 Experimental set-up and data measurements

 Results and comparisons

Motivations

Innovative radionuclides: PET imaging, β- _and α targeted radiotherapy α RIT: binding an α emitter to an antibody to target and destroy tumor cells

ᴥ high LET ᴥ important cytotoxic effect ᴥ minimizing damage

226_{Th: novel therapeutic nuclide, a more potent} α emitter for leukemia than 213_{Bi (46 min)}

ᴥ decay: 4 α cascade, 27.7 MeV ᴥ generator system: 230_{U(21 d)/}226_{Th(31 min)} Production routes: 231_Pa(p,2n)230_U 232_Th(p,3n)230Pa → 230_U 232_Th(d,4n)230Pa → 230_U

Outline

 Motivations

 Experimental set-up and data measurements

 Results and comparisons

Experimental set-up and data measurements

Th

Ti

Al

Stacked-foil technique:

- target / monitor / degrader pattern - thin foils

Activity and cross section: σ = Act . A Φ . 𝒩𝒩_A . ρ . e . (1 − e−λ.t₎ σ = σ′. Act . A . ρ′ . e′ . (1 − e−λ ′_.t ) Act′ . A′ . ρ . e . (1 − e−λ.t₎

Use of a monitor foil:

 error on e, e’: ≤ 1%  error on t: negligible

IAEA recommended cross sections:

- 5 reactions available for deuteron beam  27_{Al (2),} nat_{Fe (1),} nat_{Ni (1) and}

- nat_Ti(d,x)48_V

 error on σ: ≤ 12%

Capsule and foils

Nice III and beam line

Stacked-foil set-up

- deuteron beam: 22 and 30 MeV - intensity: 100 nA - irradiation time: 30 min

Data measurements

- HPGe coaxial detector - γ spectra recorded on 8192 channels - Dead time: < 10% (sum peak) - FWHM:1.04 keV at 122 keV (57_Co)

- Activity values: FitzPeaks 1.97 keV at 1332 keV (60_Co)

- T_1/2, E_γ, I_γ: Lund/LBNL, NNDC - Energy and efficiency calibrations : Co and Eu - Target and monitor:

 counted twice  during > 24 hrs  2 week delay

Outline

 Motivations

 Experimental set-up and data measurements

 Results and comparisons

Results and comparisons

- TALYS 1.4, default parameters

- Very low cross sections, far from the experimental data

- Eγ 312.17 keV Iγ 38.6%

- Eγ 312 keV Iγ 37%

- Threshold: 0.0 MeV - 233_{Pa: T}

1/2 = 26.967 d

- Same trend

Results and comparisons

- TALYS 1.4, default parameters - Threshold: 3.537 MeV - 232_{Pa: T} 1/2 = 1.31 d - Eγ 969.315 keV Iγ 42.3% (228_{Ac I}γ 15.8%) - Eγ 894 keV Iγ 22%

(Pb X ray 75 keV + 136_{Cs 819 keV)}

- Same trend

Results and comparisons

- Threshold: 16.014 MeV - 230_{Pa: T}

1/2 = 17.4 d - Eγ 951.95 keV Iγ 29.1%

- Eγ 952 keV Iγ 28%

- TALYS 1.4, default parameters

- Neither the shape nor the maximum value are reproduced

- Same trend but a small energy shift and a maximum value slightly higher - Difference not explained by the Iγ update in database since 1986

Outline

 Motivations

 Experimental set-up and data measurements

 Results and comparisons

Conclusions and outlooks

 New data sets obtained: 232_Th(d,xn)230,232,233_Pa

- compared with J. Rama Rao et al.

 232,233_{Pa: same trends, influence of the branching ratio values}

 230_{Pa: same trend, higher amplitude, shift in energy}

- compared with TALYS calculations

 default parameters, no satisfactory results

 Also new data sets extracted from the monitors: nat_Ti(d,x)43,44,44m,46,47,48_Sc Outlooks:

 Yield estimation in Bq/A.h  Production route comparison:

- yields - contaminants - chemistry  TALYS parameter tuning:

- optical models (5) - level density models (5) - pre-equilibrium models (4)

Innovative radio-isotope program for PET imaging, β- _and α targeted radiotherapy

Thank you for your attention

Nuclear Data 2013, Session HB

Acknowledgments to the ND 2013 organization committee

232_Th(d,4n)230_{Pa cross-section measurements}

C.Duchemin,1 _A.Guertin,1 _F.Haddad,1, 2 _N.Michel,2 _{and V.Metivier}1

1_{SUBATECH, Ecole des Mines de Nantes, Université de Nantes, CNRS/IN2P3, Nantes, France}

2_{GIP Arronax, 1 rue Aronnax, 44817 Saint-Herblain, France}

The ARRONAX cyclotron is a project promoted by the Regional Council of Pays de la Loire financed by local authorities, the French government and the European Union
