Flow of polymer fluids through porous media

(1)

Open Archive TOULOUSE Archive Ouverte (OATAO) OATAO is an open access repository that collects the work of Toulouse researchers and makes it freely available over the web where possible.

This is an author-deposited version published in: http://oatao.univ-toulouse.fr/

Eprints ID : 15932

To cite this version :

Zami-Pierre, Frédéric and Davit, Yohan and Loubens, Romain de and Quintard, Michel Flow of polymer fluids through porous media. (2016) In: Pore Scale Modeling Total Workshop, 8 June 2016 - 9 June 2016 (Pau, France). (Unpublished)

Any correspondence concerning this service should be sent to the repository administrator: [email protected]

(2)

solutions through porous media F. Zami-Pierre Introduction Context Rheology Porous Media Permeability prediction Numerical Study Numerical set up Numerical results Modelling Conclusions Perspectives

Flow of polymer solutions through porous

media

F. Zami-Pierre1,2, Y. Davit1, R. de Loubens2 and M. Quintard1

1_{Institut de M´}_{ecanique des Fluides de Toulouse (IMFT) - Universit´}_{e de}

Toulouse, CNRS-INPT-UPS, Toulouse FRANCE

2_{Total, DEV/GIS/SIM}

June 8, 2016

(3)

Overview

Introduction

Context

Rheology

Porous Media

Permeability prediction

Numerical Study

Numerical set up

Numerical results

Modelling

Conclusions

Perspectives

2 / 19

(4)

Scope of work

◮ _{EOR context:}

→ adverse mobility ratio waterflood,

→ hydrodynamic instabilities, → use of polymer.

◮ _{Physics is complex...}

◮ _{Lack of micro-scale observations}

→ real mechanisms remain unclear.

◮ _{Porous media flow is also}

complex, e.g, multi-scale, confinement effects.

˙γ !10−6 s−1

Fig : Power-law fluid flowing through

a Bentheimer sandstone [Zami-Pierre et al., 2016]

Zami-Pierre et al., Transition in the flow of power-law fluids through isotropic porous media, Physical Review Letters, publication under review (2016)

(5)

Context

µ = µ₀ _⇒ _{hUi = −}K·∇p_µ 0 ⇒ hUi ∝ k∆pk ⇒

1

µ = µ_β ˙γn−1 _⇒ _{hUi = −}K(hUi)·∇p_µ 0 ⇒ hUi ∝ k∆pk 1/n _⇒

2 ˙

γ

c 1

2

˙

γ

µ

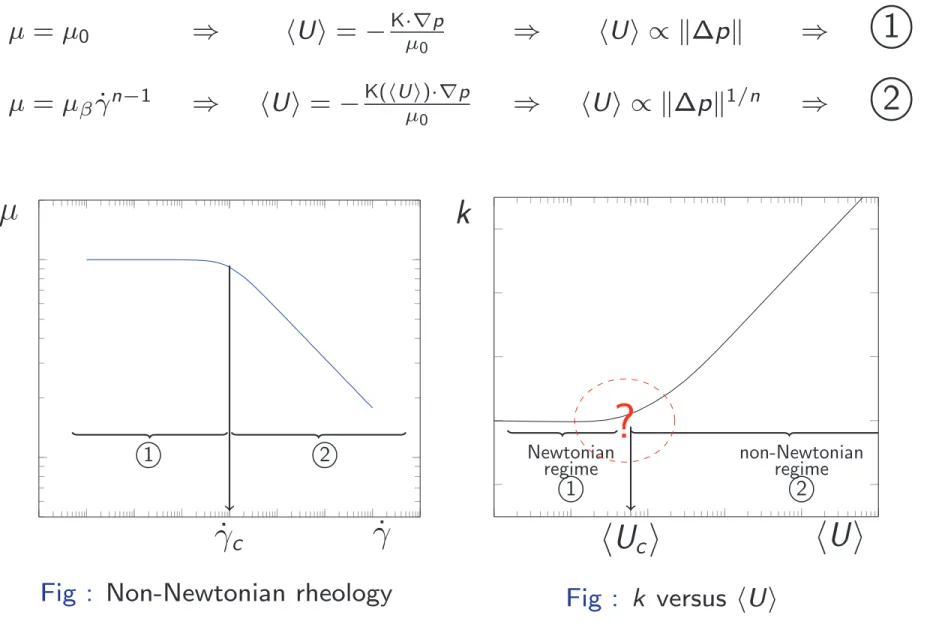

Fig : Non-Newtonian rheology

hU

c

i

non-Newtonian regime 2

Newtonian regime 1

?

hUi

k

Fig : k _{versus hUi}

Refs: [Sorbie and Huang, 1991; Getachew et al., 1998; Sorbie and Huang, 1991; Zitha et al., 1995; Lecourtier and Chauveteau, 1984]

(6)

Context

◮ _{Literature: ˙γ} eq = 4α√hUi/φ 8k/φ, [Chauveteau, 1982].

Two semi-empirical parameters: ◮ _R

eq = p8k/φ, comes from an analogy with a single pipe. Is it

still valid in complex multi-scale porous media?

◮ α: fitting parameter coming from core-flood experiments. Many hidden physical phenomena.

◮ _{Our goal: simulate the flow a non-Newtonian fluid over a wide panel of}

porous media. Can we predict and understand the transition velocity, hUci?

(7)

Rheology

EOR polymer solutions: shear-thinning, no yield, assume time-independent. Common models are,

◮ _plateau _{+ power-law,} µ =    µ₀ if ˙γ < ˙γc, µ₀ _γ_˙γ˙ c n−1 else, (1) ◮ _Carreau, ◮ _{generalized Newtonian.} 10−4₁₀−3₁₀−2₁₀−1 ₁₀0 ₁₀1 ₁₀2 ₁₀3 ₁₀4 10−2 10−1 100

˙

γ/ ˙γ

c

µ/

µ

0 plateau + power-law Carreau generalized Newtonian

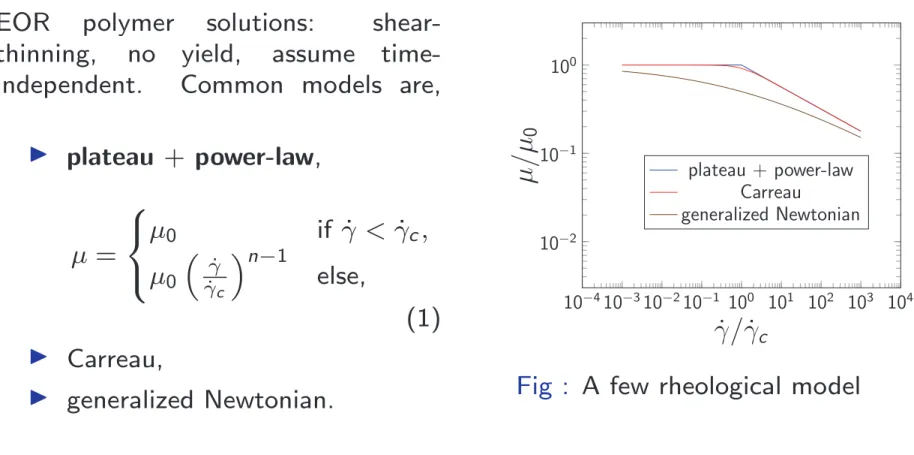

Fig : A few rheological model

Refs: [Bird and Carreau, 1968; Savins, 1969; Collyer, 1973]

(8)

Porous Media

◮ _{2D Arrays media and 3D Packing, Bentheimer and Clashach media.}

(a) A1 (b) P1 (c) C1 (d) B1 (e) Mesh P1

(f) A2 (g) P2 (h) C2 (i) B2 (j) Mesh B1

˙γ!s−1

(k) B1

Fig : Investigated porous media.

Keywords: wide panel, complex 3D structure, isotropic, pore size distribution (PSD), local mesh refinment.

(9)

Permeability prediction

Porous media X-ray micro-tomography Denoising & Thresholding Smoothing Meshing Solver Solution REV? (b) Resolution? Subjectivity? (c) and (d) Error induced? Grid quality Schemes accuracy (a) Workflow 0 200 400 600 800 1,000 0 0.5 1 1.5

l

_(µm)

φ

∗ B1 B2 C1 C2 S1 S2

(b) φ∗ versus cube length

(c) Seg. 1 (d) Seg. 2

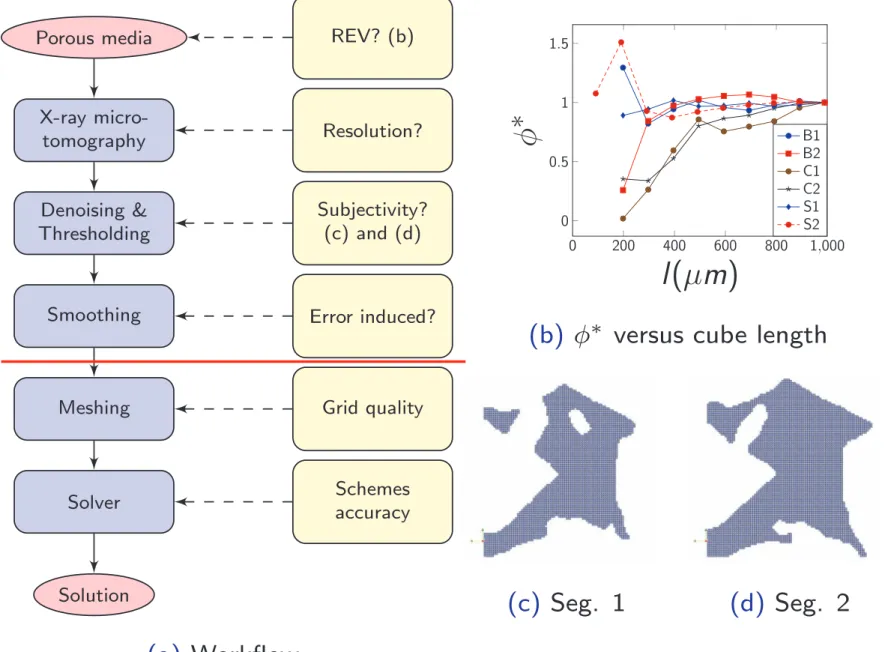

Fig : Permeability prediction issues

(10)

Numerical set up

◮ _{Equations: 0 = −∇p + ∇ · [ν( ˙γ)(∇U + ∇U}T_{)], ∇ · U = 0 .}

◮ _{FVM with OpenFOAM, 2}nd _{order schemes, and the SIMPLE algorithm}

[Patankar, 1980].

◮ _{Permeameter, no-slip conditions.}

◮ _{Grid convergence study, ≃ 100 millions cells, 10}5 _{hours of CPU time,}

use of HPC. Fig : P1 grid 100 101 10−1 100 101 102

1/

_hh 0

e

(h

U

i)

in

%

S C B

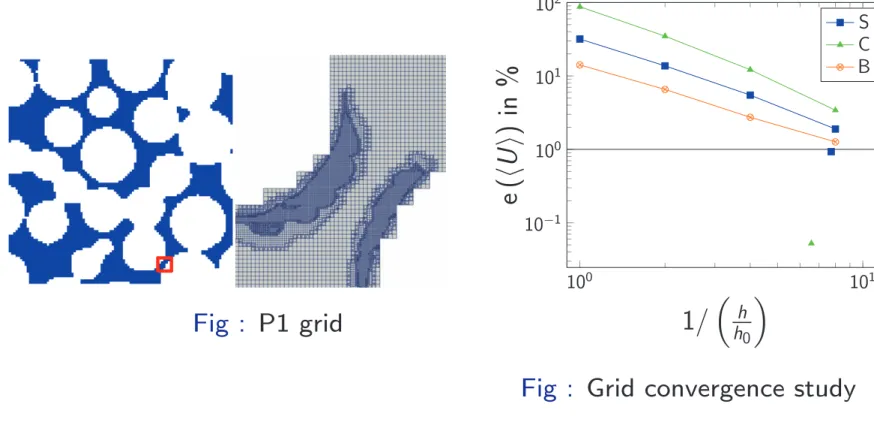

Fig : Grid convergence study

◮ _{Using 1 cell = 1 voxel → factor 2 in final permeability prediction.}

(11)

Numerical results: at the micro-scale

−10 0

20

40

10

−5

10

−4

10

−3

10

−2

10

−1 1 2 10−1 100 (a) PDF of U∗ z

−20 −10

0

10

20

−0_.2 0 .2 10−1 100 (b) PDF of U∗ y A2 n = 1.00 B2 n = 1.00 C2 n = 1.00 P1 n = 1.00 A2 n = 0.75 B2 n = 0.75 C2 n = 0.75 P1 n = 0.75

Fig : PDF of longitudinal and transverse dimensionless velocity (U∗ _{= U/hUi)}

for a Newtonian and a non-Newtonian flow.

Keywords: correlation to geometrical features, different distribution (max velocities, co- and counter-current flow), exponential decay for P1, isotropy, weak impact of nonlinear effects.

(12)

Numerical results: at the macro-scale

10 −2

10

3

10

0

10

1

hU

c

i

FL

10−

2 10−

1

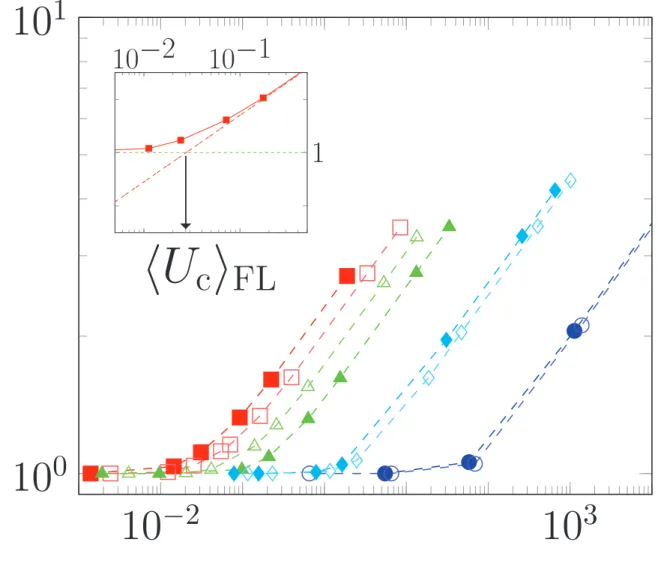

Fig : Apparent dimensionless permeability k∗ = k/k0 vs. the intrinsic average

velocity hUiFL

Keywords: Newtonian and non-Newtonian regime, only φ_PT needed to be non-Newtonian, define a critical velocity hUciFL

(13)

Transition’s model: a remarkable finding

◮ _{Our goal: predict hU}

ci_FL = ˙γcℓeff .

◮ _{Goal: predict ℓ}

eff .

Model for ℓeff :

◮ _{We have tried:} p8k

0/φ, p32k0/φ, pk0/φ (with k0 obtained from

DNS).

◮ _{Use of Kozeny-Carman formulation and equivalent diameter, [du Plessis}

and Roos, 1994; Kozeny, 1927; Sadowski, 1963].

◮ _{Use of volume or surface of the medium (V}

part, Vmedium, Spart) [Ozahi

et al., 2008].

Best results using simply ℓ_eff = √k₀. Leading to: hUci_FL = ˙γc

p

k₀. (2)

(14)

Transition’s model: a remarkable finding

10

−2

10

3

10

0

10

1

hU

c

i

FL 10−2 10−1 1 (a) k∗ vs hU i FL ! µm.s−1

10

−1

1

10

1 A1 A2 C1 C2 B1 B2 P1 P2 (b) k∗ vs U∗

Fig : Apparent dimensionless permeability k∗ = k/k0 against (a): the average

velocity hUiFL and (b): the dimensionless velocity U∗ = hUiFL/! ˙γc√k0.

Keywords: Newtonian and non-Newtonian regime, only φ_PT needed to be non-Newtonian, define a critical velocity, predict simple hUciFL as ˙γc√k0

works!

(15)

Let’s get back to micro-scale results...

hUi = 0

_.1

cm

.

D

−1

hUi = 1 cm

.

D

−1

≃ hU

c

i

hUi = 8 cm

_.

D

−1

hUi = 22 cm

.

D

−1

µ/µ

0

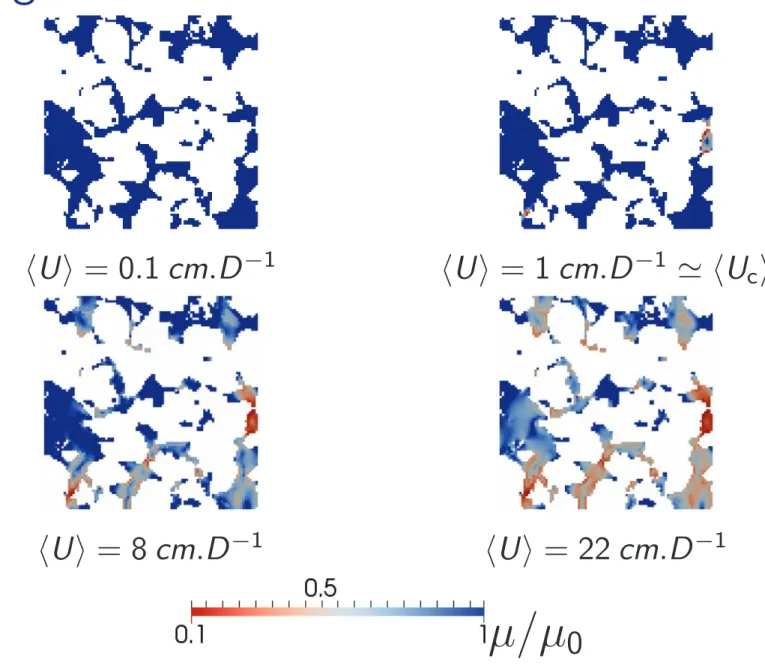

Fig : Viscosity fields at different flow regime for C1 case.

Keywords: domain extension, sources (surfaces and PT), critical region φ_PT.

(16)

Transition’s model: a derivation

hUciFL = ˙γcℓeff

hUciFL ∝ ˙γc hUciFL ⊥⊥ n

The macro-scale behaviour is sensitive to φ_PT

The viscous dis-sipation mainly occurs in φ_PT hUciFL = ˙γc ℓ_βPT √k₀ ≃ √φFL φ_PT ℓ_PT β ℓ_eff _≃ √k₀ β = hUciPT/hUciFL k0 = µ₀_hUi2 hEi

Keywords: small sub domain φ_PT, viscous dissipation, non-Newtonian transition.

(17)

Partial Conclusions

◮ _{Studying cut-off phenomena due to non-Newtonian fluid through}

isotropic porous media.

◮ _{Nonlinear effects weakly impact the flow statistics (PDF).}

◮ _{A small subdomain φ}

PT controls the macro-scale behaviour. It controls

both the viscous dissipation and the non-Newtonian transition.

◮ _{Simple theory provides analytical formulation for the transition velocity.}

◮ _{Explain why ℓ}

eff ≃ √k0. Used in many porous media applications

(core-flood experiments, Bingham fluids, inertial regime) → meaningful length (topology+flow), universal role?

(18)

Perspectives

Previous work based on a simple view of polymer flow, i.e., generalized N.S. A simplified view leads to split the porous medium domain into 3 area;

◮ _{bulk phase, p-phase (→ Justify continuum approach?),}

◮ _{excluded zones (where macro-molecules do not enter), e-phase,} ◮ _{boundary zones (specific arrangements), b-phase.}

p-phase b-phase

e-phase

s-phase

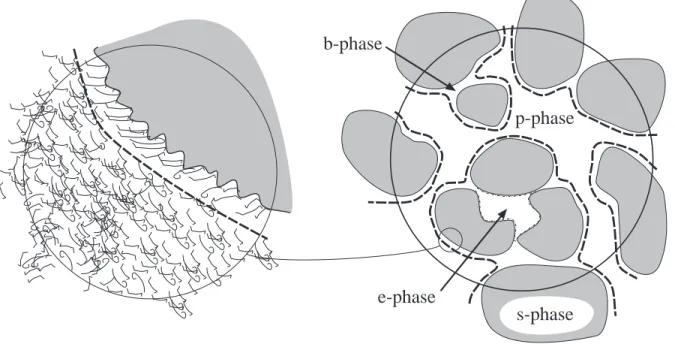

Fig : Sketch of polymer repartition at the pore-scale.

◮ _{Adoption of a continuum approach? → Several conceptual difficulties...}

(19)

Perspectives

Two major mechanisms [Chauveteau, 1984; De Gennes, 1981]:

◮ _{Sorption [Hatzikiriakos, 2012].} ◮ _{Repulsion [Sorbie and Huang,}

1991].

⇒ Need of practical micro-scale ob-servations to quantify slip [Chenneviere et al., 2016]

◮ _{Approach (a): MDS [Rouse Jr,}

1953; Joshi et al., 2000; Cuenca and Bodiguel, 2013].

◮ _{Approach (b): Meso-scale}

model [Wood et al., 2004].

◮ _{Approach (c) and (d): effective}

surface concept [Achdou et al., 1998; Intro¨ıni et al., 2011].

(a)

(b)

(c)

p

b

(d)

Fig : Various models for describing transport near a solid wall.

(20)

This work was performed using HPC resources from CALMIP (Grant 2015-11). This work was supported by Total.

Thank you for your attention. Any question is welcome! PS: I am looking for a job next year :)
