Finding optimal probabilistic generators for XML
collections
Serge Abiteboul, Yael Amsterdamer, Daniel Deutch, Tova Milo, Pierre
Senellart
To cite this version:
Serge Abiteboul, Yael Amsterdamer, Daniel Deutch, Tova Milo, Pierre Senellart. Finding optimal
probabilistic generators for XML collections. ICDT, Mar 2012, Berlin, Germany. pp.127-139.
�hal-00765545�
Finding Optimal Probabilistic Generators
for XML Collections
Serge Abiteboul
INRIA Saclay ENS Cachanserge.abiteboul@inria.fr
Yael Amsterdamer
INRIA Saclay Tel Aviv Universityyaelamst@post.tau.ac.il
Daniel Deutch
Ben Gurion UniversityINRIA Saclay ENS Cachan
deutchd@cs.bgu.ac.il
Tova Milo
Tel Aviv University
milo@cs.tau.ac.il
Pierre Senellart
Institut Télécom; Télécom ParisTech CNRS LTCI
pierre@senellart.com
ABSTRACT
We study the problem of, given a corpus of XML documents and its schema, finding an optimal (generative) probabilistic model, where optimality here means maximizing the like-lihood of the particular corpus to be generated. Focusing first on the structure of documents, we present an efficient algorithm for finding the best generative probabilistic model, in the absence of constraints. We further study the problem in the presence of integrity constraints, namely key, inclusion, and domain constraints. We study in this case two different kinds of generators. First, we consider a continuation-test generator that performs, while generating documents, tests of schema satisfiability; these tests prevent from generating a document violating the constraints but, as we will see, they are computationally expensive. We also study a restart generator that may generate an invalid document and, when this is the case, restarts and tries again. Finally, we consider the injection of data values into the structure, to obtain a full XML document. We study different approaches for generating these values.
Categories and Subject Descriptors
F.2.0 [Analysis of Algorithms and Problem Complex-ity]: General; H.2.1 [Database Management]: Logical Design
General Terms
Algorithms, Theory
Keywords
XML, schema, constraints, generator, probabilistic model
Permission to make digital or hard copies of all or part of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies bear this notice and the full citation on the first page. To copy otherwise, to republish, to post on servers or to redistribute to lists, requires prior specific permission and/or a fee.
ICDT 2012, March 26–30, 2012, Berlin, Germany. Copyright 2012 ACM 978-1-4503-0791-8/12/03 ...$10.00
1.
INTRODUCTION
We are concerned with the following problem: given a corpus of XML documents, find the best model for this corpus. By “model”, we mean a means of generating documents, i.e., a generative model; and by “best”, we mean maximizing the likelihood of the corpus. There are two facets in this problem. The first is to find a schema (e.g., in a language such as DTD or XSD) that the documents conform to. This has been intensively studied; see, e.g., [9, 19, 21, 22, 29, 31]. The second aspect is, given such a schema and a corpus, find probabilities to “guide” this schema, that in some sense maximize the likelihood of the particular corpus. This is the contribution of the present work: given a document corpus and a schema for its documents, we show how to find the optimal probabilistic generator for the schema and corpus.
Such a probabilistic model has a variety of usages: Testing. The model can be used to generate (many) samples
of the documents for test purposes. For instance, the documents may describe some workflow sessions and the samples be used to stress-test a new functionality. Explaining. The schema may be useful for explaining the corpus to users. The probabilities provide extra in-formation on the semantics of data. For example, in DBLP, how many journal vs. conference articles there are, or how many authors a paper has on average. Querying. One can get an approximation of query answers
by evaluating queries on this model in the style of query answering on probabilistic databases. For instance, one can assess the probability that journal articles have more than three authors from a particular institute. Schema mining. Given a corpus, there may be many
possi-ble schemas that accept all the documents in the corpus. To choose between those schemas, one can use measures such as compactness [28] (how small the schema is) or precision (how much it rules out documents outside of the corpus). It turns out one can also use, as a quality measure, how well a probabilistic model for this schema fits the corpus.
These usages are motivations for the present work. We next make precise the notion of schemas as probabilistic generators.
Schemas as probabilistic generators.
We use a very gen-eral notion of schema for XML, essentially based on automata specifying the labels of the children of nodes with a certain label. This classical notion suggests the following nondeter-ministic generator for the documents satisfying a particular schema. Start with a single node whose label is the root label. The children of a node with label a are generated using the automaton Aa: starting from the initial state of Aathe generator nondeterministically chooses an accepting run of the automaton generating some word a1...an$ in L(Aa)
(where $ is a special terminating symbol). Accordingly, the node will have a sequence of n children labeled a1...an.
To obtain a probabilistic generator, it suffices to associate probabilities with the transitions in the different automata. These are the probabilities of the transitions to be selected in the course of generation. The resulting generator provides skeletons of the document. To obtain full documents, one also needs to feed in data values (at the leaves). The entire generation process we describe may also be interpreted as tree rewriting specified as ActiveXML documents [1].
Such a schema together with the probabilities provides a probabilistic generator for documents. Our contribution consists in determining the “best” such generator for a given corpus of documents and a specific schema. More precisely, we need to determine the probabilities to attach to the au-tomata transitions that make the corpus most likely given the generator. We will study the problem with and without semantic constraints on the documents, focusing first on the generation of document skeletons, and then on generating data values for the leaves.
Assigning probabilities.
In the absence of constraints, we introduce a simple and elegant way of determining these probabilities, as follows. The documents of a particular corpus are type-checked (i.e., checked to be valid with respect to the schema). For each automaton, we count the number of times each transition is chosen. We prove that using the relative frequencies of the transitions yields probabilities that optimize the generation of the corpus, and moreover guarantee termination of the generation process.However, real applications often involve (in addition to schemas) semantic constraints, which greatly complicate the issue. We study three main kinds of constraints considered in practice, namely (unary) key, inclusion, and domain con-straints. The main difficulty is that, during generation, we may reach states where some of the transitions do not con-stitute real alternatives: following a particular transition, there is no chance of generating an instance obeying the constraints. This motivates our definition of two kinds of generators, restart generators and continuation-test genera-tors, as follows.
Restart generator.
A run of a restart generator is quite straightforward. Ignore the constraints and generate a skele-ton. Check whether there exists a value assignment for this skeleton so that the resulting document satisfies the constraints. If this fails, restart. Unfortunately, we show that for some input instances, there is virtually no chance of generating a skeleton that can be turned into a docu-ment satisfying the constraints, rendering restart-generators a problematic solution in general although they may be very efficient in some cases.Continuation-test generator.
A run of a continuation-test generator is somewhat more complex. At every point of generation where there is more than one option, we invoke a continuation test to check which of the options are feasible, i.e., for which options there are continuations of the genera-tion that lead to a document satisfying the constraints. Thus we never choose a transition that takes us to a dead end and document generation always succeeds. The price that we pay for this is performing the continuation test, which we show, following the work of [15] on schema satisfiability, to be NP-complete.To compute the optimal continuation-test generator, we have to assume that choices are binary. (We will explain why.) Again, we type-check the documents of the corpus. We count the number of times each transition was chosen, but this time we only count a transition in cases where there was more than one option with continuation. We prove that this gives optimal probabilities. However, we also analyze the termination probability of such generators, and show that termination is not guaranteed even in very simple cases.
Generating data values.
Finally, we consider the genera-tion of data values to be injected at the leaves of the generated document skeletons, following given probabilistic distribu-tions. We present a general algorithm for generating values that conform to the schema constraints. This algorithm is not, in our opinion, closing the problem. We see it as a basis for further research on value generation. We also note that additional information, such as the probabilities of using new or old data values in different leaves may improve the quality of value generation. For that, we consider two algorithms that generate old and new annotations for the document skeleton leaves: an offline algorithm that oper-ates on a document skeleton (generated, e.g., by one of the generators suggested above), and an online algorithm that is embedded into the document skeleton generation process. We prove we can tune both algorithms with optimal proba-bilities, compare the alogrithms and show that, interestingly, there are examples where each type of algorithm achieves better quality w.r.t. different inputs.The present work focuses on establishing formal founda-tions for probabilistic generators for XML. Implementafounda-tions of the techniques presented here, as well as experimental studies, should follow. See future work in Section 8.
Paper organization.
In Section 2, we provide the defini-tions and background for the rest of the paper. Generators are defined in Section 3. In Sections 4 and 5, we study the problem of finding the best probabilistic generators without and with constraints respectively. We discuss value genera-tion in Secgenera-tion 6. Related work is considered in Secgenera-tion 7, and Section 8 is a conclusion. For ease of reading, the models and results are summarized in Table 1.2.
PRELIMINARIES
In this section, we first introduce basic definitions for XML document and document corpora. We then consider schemas and constraints.
2.1
XML Documents and Corpus
An XML document is abstractly modeled as an unranked, ordered, and labeled tree. Given an XML document d =
Model Shorthand Main results Section XML schema with/without
constraints
schema Formalization of the model 2.2, 2.3 Nondeterministic generator nd-generator Definition of the concept of a schema-based generator 3.1 Probabilistic generator p-generator An algorithm for finding the best probabilistic model for a document corpus
based on a given schema, and a proof that termination probability is 1
3.2, 4.2 Restart generator r-generator Definition and discussion about the restart overhead 3.3, 5.2 Continuation-test
generator
ct-generator An algorithm for finding the best probabilistic model for a document corpus based on a given binary schema, and a proof that termination in the general case is not guaranteed
3.3, 5.1
Data value generator An algorithm for probabilistic generation of data values from given distributions 6.1 Offline/online annotation
generators
Two algorithms for using information about old and new values, to improve value generation quality, and comparison between the two
6.2

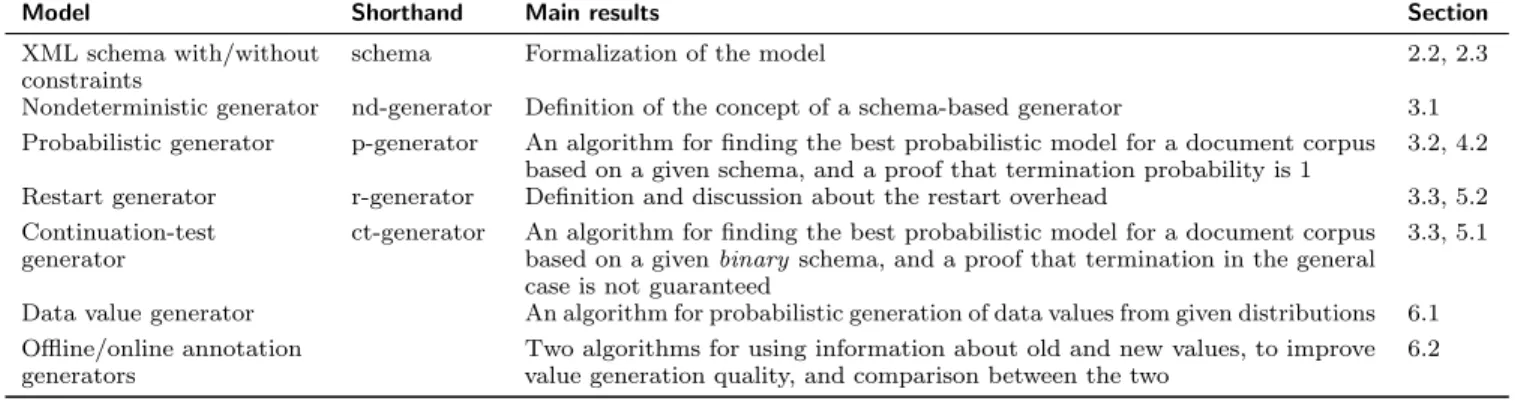

Table 1: Summary of results (V, E), we use root(d) for the root node of d. Let L =
Lleaf∪ Linner be a finite domain of labels, where Lleaf and
Linnerare two disjoint sets of labels for leaves and inner nodes
(i.e., nodes that are not leaves), respectively. We denote by lbl : V → L the labeling function of the nodes, mapping leaf (inner) nodes to leaf (inner) labels. Given a node v ∈ V , lbl↓(v) ∈ L∗$ is the sequence of labels of the children of v,
from left to right, with an additional terminating symbol $ 6∈ L. We assume that (only) the leaves are further assigned values from a countably infinite domain U by the function val.
Example 2.1. Consider the following XML document d0,
viewed as a tree in the standard manner. <Dept> <Head>Martha B .</ Head> < S e n i o r s> <Emp> <Name>Martha B .</Name> <T e l>123 −5234</ T e l> <T e l>123 −5357</ T e l> </Emp> </ S e n i o r s> < J u n i o r s></ J u n i o r s> </ Dept>
This document describes the phone book of a department containing one senior employee as a member (who is also the department head), Martha B.: The root node v0 is the
one labeled with Dept, i.e., root(d0) = v0 and lbl(v0) =
Dept. Let v1 be the node such that lbl(v1) = Emp. Then
lbl↓(v1) = Name Tel Tel $. Similarly, if lbl(v2) = Name, then
lbl↓(v2) = $ (i.e., this is a leaf node with no children), but
this node has a value, val(v2) = “Martha B.”.
An XML corpus is then a finite bag of documents. Let D be the universal domain of all documents over L, U . A corpus is represented by a function D : D → N, which maps each document d to the number of times d appears in the corpus. We denote the bag size (counting duplicates) by |D|, and supp(D) is the set of unique documents in D.
2.2
Schema
We start by recalling the notion of schemas as specifications of valid XML documents. We consider first schemas with no constraints, and then in Section 2.3 we extend our definition to the general case where constraints are allowed. Also, to simplify the definitions, our model follows that of Document Type Definitions (DTDs). However, we stress the model can be extended in a straightforward manner to a schema defined
in the XML Schema language. Let Q be a finite domain of states.
Definition 2.2. A schema S is a tuple (r, A↓), where
r ∈ Linner is the root label, and A↓ is a partial function
mapping an inner label a ∈ Linner to a deterministic
finite-state automaton (DFA) A↓(a) = Aa,1 whose language is
L(Aa) ⊆ L∗$. An XML document d is said to be accepted
by a schema S if lbl(root(d)) = r and for every inner node v of d, a = lbl(v) ∈ Linner and lbl↓(v) ∈ L(Aa).
We refer to the DFA Aa as the deriving automaton of
a, and to the set of all such automata for the labels of a document d as the deriving automata of d.
Remark 2.3. Note that, by the definition, every word accepted by the automata must terminate with a $ and contain no other $’s. We put a few additional restrictions on the model, to simplify further definitions. First, we assume the states of each deriving automaton form a disjoint subset of Q. Second, we assume that the order the automata are called is fixed, Breadth-First Left-To-Right (BF-LTR). The order of invocation is irrelevant for verification but is important for the document generation that is discussed in the sequel.
q5 q6
Emp $
Figure 1: The ASeniors/
AJuniors DFAs
q7 Name q8 q9
Tel $
Figure 2: The AEmp DFA
Example 2.4. Consider the schema S0 for documents
de-scribing a department of employees, like in Example 2.1. In this case, assume that Linner = {Dept, Seniors, Juniors,
Emp}, Lleaf = {Head, Name, Tel}, and r = Dept. ADept
is simply composed of a sequence of states q0 to q4, and
L(ADept) = Head Seniors Juniors $. ASeniors, AJuniors (depicted
in Figure 1), and AEmp (depicted in Figure 2), are such that
L(ASeniors) = L(AJuniors) = Emp∗$
L(AEmp) = Name Tel∗$
Note that S0 accepts the document d0 from Example 2.1. 1It is common to use regular expressions for the allowed
sequences of children labels in a schema [26, 30]; the reasons for our choice of automata instead will become apparent when we discuss generators below.
2.3
Introducing Constraints
We continue by adding global constraints to the model. Following previous work on constraints in XML schema lan-guages, we consider three major types of constraints on the values of the leaves.
Definition 2.5. A schema with constraints is defined by a pair hSu, Ci, where Su is a schema (without constraints) and C is a set of constraints on labels from Lleaf, of the
following three types.
Unary key constraint Given a label a ∈ Lleaf, we denote
by uniq(a) the constraint that the value of each a-labeled leaf is unique (among all values of of a-labeled leaves in the document).2
Inclusion constraint Given two labels a, b ∈ Lleaf, we
de-note by a ⊆ b the constraint that the values of a-labeled leaves are included in those of b-labeled leaves. Domain Constraint Given a label a ∈ Lleaf, we denote by
a ⊆ dom(a) the constraint that in any document, the values of a-labeled nodes are in dom(a), a subset of U . We will assume that inclusion constraints a ⊆ b are only given when dom(a) = dom(b), or when there are no domain constraints on a, b (which is a practical scenario). When that is not the case, the combination of domain and inclusion constraints may change the domain of possible values for some of the labels, e.g., the “actual” domain of a may become dom(a) ∩ dom(b) and must be re-computed.
3.
GENERATORS
In this section, we consider various generators: first non-deterministic generators, then probabilistic ones, and finally generators under constraints.
3.1
Nondeterministic Generator
Schemas are typically considered as acceptors for verifying XML documents. But it is also possible to see a schema as a nondeterministic generator (nd-generator). This is in the same sense that a DFA can be also seen as a word generator. For each node of label a, we can use the automaton Aato
nondeterministically generate the node children. Similarly to a schema not performing verification on the leaf values, an nd-generator generates XML document skeletons, consisting only of the labeled nodes, and into which leaf values can later be injected (see Section 6). Unless stated otherwise, from now on we will refer by documents and corpora to document skeletons and corpora thereof, as this is the main focus of this paper.
More precisely, generating a document skeleton d can be described as follows:
1. Generate a new root root(d) with a label r and add it to a todo queue Q.
2. While Q is not empty, pop the node v at the head of the queue. Let a be the label of v and q the initial state of Aa.
3. Nondeterministically choose one transition (q, b) in Aa.
4. If b = $ (i.e., we have finished generating children for v) return to step 2.
2We are considering here only unary keys, defined on single
values and not combinations thereof.
5. Otherwise b ∈ L. Generate v0, a child for v such that lbl(v0) = b. If b ∈ Linner add v0to Q. Set q ← q0and
return to step 3.
The generation process thus ends when the todo queue at step 2 is empty, i.e., the deriving automata of all the generated inner nodes reached an accepting state. This means that the inner nodes generated last have only leaves as children (since we are going in a BF-LTR order). In what follows, we say that a generator conforms to a schema (also for other types of generators) if they have the same structure (deriving automata and root label).
Example 3.1. Reconsider the automaton AEmp depicted
in Figure 2 as a generator. Assume that we have already generated an Emp-labeled node v, and now we are generating its children. We start from state q7 and when v has no
children. We have only one option for the next transition, moving to q8. Since the transition is annotated with Name,
we generate the first child node and label it with Name. From q8 we have two options: a transition to itself, in which case
we generate an additional child, labeled Tel, and a transition to q9, in which case no more children are generated for v.
Remark 3.2. Given such a nondeterministic generator, one can easily construct an Active XML [1] document that generates the same documents. Active XML is much more general and in particular allows specifying generators that will be introduced later in this paper.
Next, we define the notion of a generation trace, which describes the process of document generation in terms of the nondeterministic choices taken by the generator.
Definition 3.3. A generation trace of a node v, whose deriving automaton is A and where lbl↓(v) = a1...an$, is a
sequence hq0, a1i, hq1, a2i, ..., hqn, $i where q0, ..., qn∈ Q and
the transition function δ of A is such that δ(qi−1, ai) = qifor
all 1 6 i 6 n and δ(qn, $) is an accepting state. A generation
trace of a document is then the concatenation of all the generation traces of all its inner nodes, in the order they were performed.
An nd-generator generates exactly the documents that are accepted by the corresponding schema.
3.2
Probabilistic Generator
For practical purposes, we are not only interested in gen-erating all possible finite documents that match some XML schema, but rather want to generate them according to some probability distribution. For that we introduce the notion of probabilistic generator (a counterpart of the notion of probabilistic automaton [18]), where the nondeterministic choices are associated with probabilities.
Definition 3.4. A probabilistic generator ( p-generator for short) S is a pair hSu, t-probi, where Suis a schema, and t-prob is a function Q × L → [0; 1] mapping the transitions of the deriving automata of d to probabilities, such that for every q ∈ Q,P
a∈Lt-prob(q, a) = 1, and for every transition
(q, a) which is not a part of any automaton, t-prob(q, a) is 0. The probabilistic generation process is then very similar to the nondeterministic one, except that from each automaton state q, the generator randomly chooses the next transition (q, a), according to t-prob, independently of other choices.
Document probability.
Let d be a document skeleton. For each inner node v in d, the probability of lbl↓(v) is the productof probabilities of all transitions in its generation trace; the probability of d is the product of all such probabilities over all its nodes. Note that we assume for now independence of the probabilistic events associated with transitions (and independence in generation of different documents).
Example 3.5. Let us assign probabilities to the transi-tions in the schema described in Example 2.4. Assume that t-prob(q5, Emp) = 0.3, t-prob(q5, $) = 0.7, t-prob(q8, Tel) =
0.6 and t-prob(q8, $) = 0.4 (all other transitions have
proba-bility 1). We can now compute the probaproba-bility of generating the document skeleton d0 in Example 2.1. The following table
shows for each node its generation trace and the computation of generation probability. Since all inner nodes in d0 have
unique labels, we use them here as node identifiers. Node Generation trace Probability Dept hq0, Headi, hq1, Seniorsi,
hq2, Juniorsi, hq3, $i
1 · 1 · 1 · 1 = 1 Seniors hq5, Empi, hq5, $i 0.3 · 0.7 = 0.21
Juniors hq5, $i 0.7
Emp hq7, Namei, hq8, Teli,
hq8, Teli, hq8, $i
1 · 0.6 · 0.6 · 0.4 = 0.144 Total 0.21 · 0.7 · 0.144
≈ 0.021
The last row shows the total probability to generate d0 with
the p-generator, which is the product of the probabilities of the inner nodes.
3.3
Generators with Constraints
In presence of constraints, a generator that only makes independent choices may be unsuitable, as shown next.
Example 3.6. Let us now consider a schema based on S0 from Example 2.4, but with the following additional
con-straints on the values:
(i) uniq(Name): the employee names are unique.
(ii) Tel ∈ 123–5{0,..,9}3: the department phone numbers always start with 123–5, and then some three digits. (iii) Head⊆ Name: the name of the department head must
be a name of an employee in the department.
Note that a document generated according to our schema may list a head but no member employees, in violation of constraint (iii). We can try enforcing there is at least one employee, by setting t-prob(q5, Emp) to 1 (either in ASeniors
or AJuniors). However, such a generator will never halt.
An-other possibility would be to modify the automaton itself to guarantee e.g. at least one junior or senior employee; but the resulting generator will no longer correspond to the schema and in particular will not generate d0 from Example 2.1 (or
a similar document, where Martha B. is a junior employee). We suggest two kinds of generators dealing with this prob-lem: restart generators which try to generate a document, check if it is invalid, and if so start the process over again; and continuation-test generators, which may perform a test for the existence of a continuation that leads to a valid document, to avoid generating invalid documents.
Restart generators.
We start by defining more formally the notion of a restart generator (or r-generator). An r-generatorG is a pair hGp, Ci, where Gp is a p-generator, and C is a
set of constraints. The operation of G is composed of two main steps which may be repeated.
1. Generating, probabilistically, a document skeleton d matching the schema of Gp. This step can be done simply by invoking Gp.
2. Checking, given d and C, whether there exists a valid value assignment to the leaves of d. If not, d is discarded and we start over.
We note that this process is similar in spirit to rejection sampling [18]. An important practical question, in our set-tings, is whether the test in the second step can be performed efficiently. We show that this is the case, in Section 5.2.
An r-generator is very simple, but may generate many invalid documents before generating a valid one. This leads us to consider the next kind of generators.
Continuation-test generators.
We next consider genera-tors that are guaranteed to generate valid documents (with-out restarting). For that, we introduce the notion of continu-ation testing. We say that a partial genercontinu-ation trace is valid for a schema S if it is a prefix of a generation trace of a valid document skeleton by an nd-generator conforming to S.Definition 3.7. Given (1) a schema with constraints S, (2) a partial generation trace ξ valid for S, and (3) a ∈ L∪{$}, a possible next choice, the CONT(S, ξ, a) problem is to decide whether ξ, hq, ai is valid for S, where q is the current state of the nd-generator conforming to S after ξ.
A continuation-test generator (or ct-generator) is then a probabilistic generator that (1) conforms to a given schema, (2) generates only documents that are valid with respect to the schema and constraints, and (3) when reaching a certain (non-accepting) state checks (using a continuation test that solves CONT) which of the transitions from this state may lead to a valid document; all “failing” transitions, i.e. those that lead to a dead end are ignored; then the generator chooses between the remaining transitions with continuations (there must be at least one), according to their assigned probabilities (where these probabilities are normalized to sum up to one).
Intuitively, the continuation test guides the generator by testing if a possible next step can lead (eventually) to a valid document; if not, then the generator will not make this step. In a sense, the continuation test is the only reasonable Boolean test to perform here: if the test returns true when there is no continuation, an invalid document will be gen-erated; in contrast, if the test returns false when there is a continuation, there are some valid documents (that may be in the corpus) that will never be generated, regardless of the probabilities assigned to transitions.
Note that, in the absence of constraints (when C = ∅), there are no invalid document skeletons, which means both r-generators and ct-generators are the same as p-generators.
3.4
Quality and Optimality Measures
For a given XML schema, there are many possible generator instances (for each model described above). We define the quality of a generator instance G based on the likelihood of observing a corpus of example documents, under the assumption that it was generated by G. This follows the general notion of maximum likelihood estimation, commonly used for tuning the parameters of probabilistic models (see [11]). Formally,
Definition 3.8. Given a generator G and for every doc-ument skeleton d, let Pr(d | G) be the probability for G to generate d. Let D be a document skeleton corpus. Then the quality of G with respect to D, denoted quality(G, D), is Q
d∈supp(D)Pr(d | G) D(d)
(recall that D(d) is the number of occurrences of d in D).
Note that if we multiply quality(G, D) by the multinomial coefficient of D as a bag,3the result is exactly the probability
for G to generate D.
Optimal generator.
Given a schema S, a class G of gener-ators conforming to S, and a document corpus D, we then say that a generator G ∈ G is optimal for S, G, D if for each generator G0∈ G, quality(G, D) > quality(G0, D). When G is understood, we say that it is optimal for S, D. We call the problem of finding the optimal generator (for given S and D) OPT-GEN.
4.
THE UNCONSTRAINED CASE
In this section, we first show quality bounds for gener-ators, then study optimal generators for schemas without constraints. The results obtained here are similar to those of [12] for maximum likelihood estimators of PCFGs, but the explicit construction will be useful when we introduce constraints in Section 5.
4.1
An Upper Bound for Quality
We start by considering an upper bound of quality for a corpus. We will later discuss whether this bound can be achieved by the kinds of generators we defined, or by others. Given a corpus D, consider a generator that would generate each document d in D with probability D(d)|D| , i.e., according to its relative frequency. The quality of this generator would be qD =Qd∈supp(D)
D(d)
|D|
D(d)
. We can show that this is indeed an upper bound for the possible quality of a generator for D, independently from the type of generator and the schema it conforms to, as the following prop. holds.
Proposition 4.1. Let D be a corpus and G a generator. Then quality(G, D) 6 qD.
The proof is based on the following lemma, which is in turn an application of the Gibbs lemma [23] on maximization under constraints.4
Lemma 4.2. Let α1. . . αn be n positive integers. We
de-fine the function f : [0; 1]n→ [0; 1] as
(p1, . . . , pn) 7→ f (p1, . . . , pn) = Qni=1pαii. Then the
maxi-mum of f under the constraintPn
i=1pi6 1 is obtained when
pi= Pnαi
k=1αk for 1 6 i 6 n and only then.
Note that if we do not restrict ourselves to a schema, it is easy to design a generator that achieves this optimal quality: ignore any schema information, and simply randomly choose documents from the corpus, according to their relative frequency. We argue that this is not a good generator. First,
3
The multinomial coefficient is the number of distinct per-mutations of the bag elements (specifically, it is |D|! if D is a set).
4We are grateful to T.-H. Hubert Chan for pointing out this
connection.
Input: schema S, corpus D of documents accepted by S Output: p-generator G conforming to S
1 foreach transition (q, a) in an automaton of S do
freq(q, a) ←− 0;
2 foreach d ∈ supp(D) do
ξ ←− the generation trace of d by S; foreach hq, ai in ξ do
3 freq(q, a) ←− freq(q, a) + D(d); 4 foreach state q in an automaton of S do
total(q) ←− 0; out(q) ←− 0;
foreach transition (q, a) in an automaton of S do out(q) ←− out(q) + 1;
5 total(q) ←− total(q) + freq(q, a); 6 G ← hS, t-probi s.t.
∀q ∈ Q, a ∈ L ∪ {$} t-prob(q, a) = 1
out(q) if total(q) = 0,
otherwise t-prob(q, a) =freq(q,a)total(q); return G;
Algorithm 1: Algorithm for OPT-GEN (no constraints)
if the corpus is very large, this generator will be much less compact than the ones we study, so not appropriate for explanation or query evaluation. Furthermore, this generator suffers from over-fitting : it cannot generate any documents other than those already in the corpus, and thus it is not appropriate for, e.g., testing. We want to generate documents that are similar to, yet different from, those in the corpus. This will be achieved by the kinds of generators we study.
4.2
An Optimal Generator
We next consider the problem of finding the optimal prob-abilistic generator out of those conforming to a given schema (see definition of OPT-GEN), in the unconstrained case.
Theorem 4.3. We can solve OPT-GEN (in the absence of constraints) in time O(|S| + |D|) where |S| is the size of the schema S and |D| is the total size of the corpus D. (i.e., the sum of the size of all distinct elements in D, plus a binary encoding of their multiplicity).
Proof. Algorithm 1 takes a schema as input and com-putes a probability for each transition. In lines 2–3 the schema is used for type-checking the corpus documents, and in the process the number of times each transition (q, a) was chosen is recorded in freq(q, a) (also considering the fre-quency of each document in the corpus). Then in lines 4–6 we assign as probability of each transition (q, a) the relative number of times it was chosen after reaching q. If some state was not reached during the verification phase, we give equal probabilities to all transitions from it.
By construction, Algorithm 1 outputs a generator which has the same structure as S. The normalization in line 6 enforces that the sum of probabilities of transitions with the same origin is always 1.
Lines 1, 4–5, and 6 require a time linear in S. The loop in lines 2–3 consists in running the schema on each unique d ∈ D and therefore require a time linear in the size of D.
It is still to be shown that the output G of Algorithm 1 has maximum quality among all generators that conform to
S. The quality of G, quality(G, D) is: Y d∈supp(D) Pr(d | G)D(d) = Y d∈supp(D) Y q in S Y (q,a) in S freq(q, a) total(q) D(d)×#hq,ai in d’s trace by S = Y q in S Y (q,a) in S freq(q, a) P (q,b) in Sfreq(q, b) !freq(q,a)
whereas, similarly, every probabilistic generator G0 conform-ing to S has quality:
quality(G0, D) = Y
q in S
Y
(q, a) in S
p(q, a)freq(q,a)
for some assignment p(q, a) verifying, for each state q of S, P
(q, a) in S p(q, a) = 1. Observe that there is no constraint
between transitions of different origins (q, a) and (q0, b). We can then look independently for each state q which assign-ment of p(q, a) maximizesQ
(q, a) in S p(q, a)
freq(q,a)under the
summing constraint. Lemma 4.2 shows that this is exactly the assignment made by G.5
To be of practical use, the generator returned by Algo-rithm 1 needs a guarantee of almost always termination, which is not a consequence of Theorem 4.3. However, we can show that our construction guarantees termination. (The proof, omitted, is by an adaptation of a corresponding result in [12].)
Theorem 4.4. The generator returned by Algorithm 1 has a termination probability of 1.
5.
THE CASE WITH CONSTRAINTS
We now allow constraints, as defined in Section 3.3. We consider the computation of optimal continuation-test gener-ators (ct-genergener-ators) and restart genergener-ators (r-genergener-ators). We start with ct-generators.
5.1
Continuation-Test Generators
We first study the complexity of continuation tests. To do that, we need to adapt some known result:
Lemma 5.1 (adapted from [15, 17]). The satisfiabil-ity of an XML schema with unary key, inclusion, and domain constraints is NP-complete with respect to the size of the schema.
Proof sketch. A similar claim is proved in [15], which follows, in turn, from the proof in [17]. Both models in [15, 17] are more expressive than ours (which means that NP membership carries over), but the hardness results are given even for a very simple model, a deterministic restriction of DTDs (which is less expressive than ours). One last required adaptation follows from the fact that their results are for key and inclusion constraints but not for domain constraints. To account for domain constraints, we briefly review the proof used in [15]. The proof there is by encoding
5
When total(q) = 0, the value of this term is 1 for any assign-ment of p(q, a), and in particular for the uniform probabilities assigned by Algorithm 1.
the schema with constraints as a Presburger formula, and showing that the formula is satisfiable if and only if the schema with constraints is satisfiable. To extend the proof to also account for domain constraints in our settings, we first observe that a domain constraint on a restricts the set of valid document skeletons only if the domain is finite and there is a key constraint on a; in this case the domain constraint is expressible as an inequality specifying that the number of occurrences of a is smaller than the domain size. So, we add the relevant inequalities to the Presburger formula, and the proof technique of [15] can still be used.
We now have the next proposition, where we test for the existence of a continuation for a partial document using a schema satisfiability test, and complexity results follow from Lemma 5.1.
Proposition 5.2. Let S = hSu, Ci be a schema with con-straints, ξ a partial generation trace valid for Su, and (q, a) a
possible next transition. Solving CONT(S, ξ, a) is NP-complete w.r.t. |S|. Moreover, we can give an algorithm of complexity Opoly(|ξ|)poly(|S|)(i.e., polynomial in the size of the input partial document, if the schema is fixed).
Proof sketch. NP-hardness follows from Lemma 5.1, as the satisfiability test can be reduced to performing a continuation test from a new state with a single transition leading to the initial state of the root deriving automaton.
To prove inclusion in NP, we construct, in time polynomial w.r.t. the schema and partial trace, a new schema with a set of constraints (of the kind considered by [15]) that is satisfiable if and only if the continuation test succeeds. Then we can use the NP algorithm of [15] to decide. The idea behind the construction of the new schema S0is as follows. Let dξ0 be the partial document whose generation trace by
S is ξ0= ξ, hq0, ai. We need to make sure that every skeleton accepted by S0 corresponds to a possible continuation of dξ0 (to a document skeleton accepted by S). For that, the
construction of S0 enforces that every skeleton accepted by S0 contains, as children of its root, (i) the same inner nodes for which children have not been generated yet in dξ0, which
define the possible continuations for dξ0 (ii) the leaves in dξ0,
which affect the continuations to dξ0 that do not violate the
constraints in C. Finally, to make sure that S0 is of size polynomial in S and logarithmic in dξ0, we use constraints to
encode the numbers of nodes in cases (i) and (ii) mentioned above.
Finding an optimal binary ct-generator.
We assume the schema has a particular property, namely that it is binary. A schema is binary if for each state of each automaton in the schema, there are at most two possible transitions. We will discuss the case of non-binary schemas afterwards.Recall that FPNP is the class of problems solvable by polynomial-time computation algorithms that are allowed calls to an NP oracle. We show (the complexity is with respect to the schema size, the algorithm is polynomial with respect to the corpus size):
Theorem 5.3. Given a binary schema with constraints S and a corpus, finding an optimal ct-generator is in FPNP.
Proof. Algorithm 2 computes the optimal ct-generator in time polynomial in the size of S, while making calls to

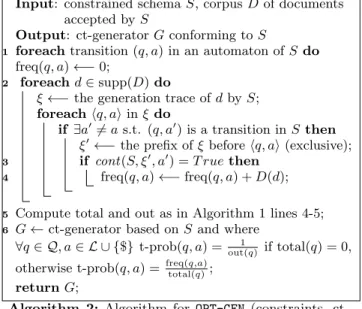

Input: constrained schema S, corpus D of documents accepted by S
Output: ct-generator G conforming to S
1 foreach transition (q, a) in an automaton of S do
freq(q, a) ←− 0;
2 foreach d ∈ supp(D) do
ξ ←− the generation trace of d by S; foreach hq, ai in ξ do
if ∃a06= a s.t. (q, a0) is a transition in S then ξ0←− the prefix of ξ before hq, ai (exclusive);
3 if cont (S, ξ0, a0) = T rue then 4 freq(q, a) ←− freq(q, a) + D(d);
5 Compute total and out as in Algorithm 1 lines 4-5; 6 G ← ct-generator based on S and where
∀q ∈ Q, a ∈ L ∪ {$} t-prob(q, a) = 1
out(q) if total(q) = 0,
otherwise t-prob(q, a) =freq(q,a)total(q); return G;
Algorithm 2: Algorithm for OPT-GEN (constraints, ct-generators)
an oracle cont that performs continuation tests. Generally, Algorithm 2 is very similar to Algorithm 1, except that the frequency of taking a transition is only recorded in situa-tions where there exists another optional transition, which according to the oracle does not lead to a dead end. The time complexity of the algorithm follows from the complexity of Algorithm 1, and the calls to cont in line 3.
It is still to be shown that the output G of Algorithm 1 has maximum quality among all the ct-generators that con-form to S. This proof is similar to that of Proposition 4.1, but this time when we maximize the term quality(G0, D) = Q
(q, a) in Sp(q, a) freq(q,a)
, freq(q, a) refers to the number of times the transition (q, a) was taken when there was a second choice with continuation. In other cases every ct-generator must have chosen the only possibility with probability 1.
Generation time.
Without constraints, it was trivially the case that a document was generated in time linear in its size and the size of the schema. However, for ct-generators the generation time depends on the complexity of the contin-uation test. This means that the generation time will be exponential in the size of the schema (unless there exists a continuation test algorithm with lower complexity, which is unlikely assuming P6=NP).Termination probability.
Unfortunately, it turns out that the constrained setting of ct-generators affects the termi-nation guarantee that we had in the unconstrained case (Theorem 4.4). We can show that, even in simple cases with non-recursive schemas, termination of the optimal generator is not almost certain.Theorem 5.4. For every ε > 0 there exists a binary, non-recursive schema with constraints S and an input corpus D such that the optimal ct-generator G for S, D, has termina-tion probability 6 ε.
Proof. Consider the following schema with constraints S. We have Linner = {r}, Ar is the automaton depicted in
Figure 3, and C = {b ⊆ a, uniq(b)}. The constraints imply,
q0 q1 q2 q3 a c a b $
Figure 3: The Ar DFA
in particular, that there must be at least as many a-labeled leaves in any valid document as b-labeled leaves. Let d be a document such that lbl↓(root(d)) = acb$, and d0such that
lbl↓(root(d0)) = acacb$. Let D be a corpus that contains N −1
copies of d and one of d0. Consider a ct-generator G optimal for S, D. By the optimality of Algorithm 2, t-prob(q2, a)
in G (when both choices from q2have a continuation) must
be ω = 1
N. Similarly, t-prob(q1, c) = N +1
2N +1, and, in general,
since every transition is encountered during the type-check of the corpus, the probability of every transition in an optimal generator is never chosen arbitrarily.
Note that during a generation process of the ct-generator, every continuation test from q2always succeeds. For instance,
after generating n a-labeled leaves and m b-labeled leaves, it is naturally possible to generate another a, but also another b, because there exists a continuation with max(n, m) + 1 a-labeled leaves. Denote by pnthe probability of generating a
document with exactly n c-labeled leaves. We can give an upper bound for this probability by computing the probability of generating n a’s and b’s, in some order, such that at least half of them are a’s (to satisfy the constraints).
bn 2c X k=0 n k ! (1 − ω)kωn−k6 bn 2c X k=0 n k ! ωn−k 6 2nωbn2c6 2 × (4ω)b n 2c
Now we want to compute an upper bound for p, the termi-nation probability of G, which is the sum of probabilities for generating a finite document, that has a finite number of c-labeled leaves: p = ∞ X n=0 pn= N 2N + 1 + ∞ X n=1 pn6 N 2N + 1+ ∞ X n=1 2(4ω)bn2c 6 N 2N + 1+ 2 × ∞ X n=1 2(4ω)n6 N 2N + 1+ 4 × 4ω 1 − 4ω which is arbitrarily close to 12 when N is large enough.
Finally, to create a schema for which the termination probability is 6 ε, we can chain multiple occurrences of S one after the other, as required.
Note, however, that since the probability of generating the corpus is greater than zero, the termination probability of the optimal generator is always strictly greater than zero. There are numerous ways of dealing with the problem of non-termination. One practical such way, following a natural assumption in document sampling [5], is to restrict the size of the generated document. This upper bound on the document size must be at least that of the largest document in the input corpus (to ensure that the probability of generating the corpus is non-zero), and can be estimated based on the corpus. Such a size limit can be encoded as a constraint, by making certain changes to the schema (obtaining a new schema whose
size is linear in the size of original schema and size limit encoded in binary). Thus, it directly follows that we obtain the optimal probabilities for a size-limited ct-generator. A different direction for guaranteeing almost always termination is by restricting the expressiveness of the schema. We leave as an interesting open problem the characterization of what constraints on the schema will guarantee termination, and the question of translating schemas to safe ones which are sure to terminate.
We conclude the discussion on ct-generators by a remark on non-binary choices.
Non-binary choices.
We have assumed so far in this section that the schema is binary. In the non-binary case, additional information on the distribution is required, as we next show. in particular, we consider two approaches for handling the non-binary case: (1) turning the choices into binary choices, and (2) keeping probabilities for all combinations of valid choices. We note that each choice will change the distribution of generated documents, in a different way. We present both options via an example.q0 q1 a b $ q0 q1 a $ Figure 4: A3 - A DFA with 3 choices
Figure 5: The DFA Atradeoff
Consider the following constrained schema. The deriving automaton A3 of the root label r ∈ Linner is shown in Figure
4 with a, b ∈ Lleaf. (A3 accepts (a | b)∗$.) Observe it has a
ternary choice. We also assume that b has a key constraint and domain cardinality 1.
Consider option (1) above. We show two ways of turn-ing the ternary choice into a binary one (there is a third possibility but it is not considered here).
First, one decides whether a is produced or not and then (if an a is not produced) whether b is produced or whether we are done with the children of r. We use a probability assignment t-prob: we choose to produce a with probability t-prob(q0, a)
and to produce b (given that we have not produced a) with probability t-prob(q0, b). As before, we use continuation
tests to avoid reaching dead ends during generation, and in the probability learning, as in Algorithm 2. Alternatively, one can choose whether we are done with r first, and, if we are not done, whether we produce a or b. This yields t-prob0. Take the singleton corpus<r><a/><b/></r>. The transition probabilities are:
(
t-prob(q0, a) =13 t-prob0(q0, $) =13
t-prob(q0, b) = 1 t-prob 0
(q0, a) =12
Then the probability of generating the corpus is13×2 3×1×
2 3 = 4
27 using the first alternative, and 2 3× 1 2× 2 3× 1 2 × 1 3 = 1 27
using the second one: the quality of the generator depends of the way the choice has been made binary.
Now consider (2). We keep the ternary choices but assign a probability to each possible subset of the transitions of size
more than 1. For the example, this yields:
a, b, $ are all available only a, $ are available t-prob(q0, a) =12 t-prob0(q0, a) = 0
t-prob(q0, b) =12
t-prob(q0, $) = 0 t-prob0(q0, $) = 1
which gives a probability of generating the corpus of1 2×
1 2×
1 =14. In both cases, we can obtain an optimal generator for this particular class of generators. For (1), this suffers from the inelegance of the arbitrary ordering of the transitions that is chosen and affects the outcome. For (2), this may result in a large number of parameters.
5.2
Restart Generators
We next consider r-generators. First, we show that given a generated document skeleton, we can check its validity efficiently (and if invalid, restart). Then, however, we show that the number of restarts may be unboundedly large; and this can hold particulary for r-generators that are optimal (i.e., best fit to the corpus). We start by defining the problem of checking validity for document skeletons.
Definition 5.5. Given as input (1) a schema with con-straints S = hSu, Ci, (2) a skeleton d valid for Su, the VALID(S, d) problem is to decide whether d is valid w.r.t. S. Proposition 5.6. VALID(S, d) can be decided in PTIME. Proof. We consider again the schema satisfiability test from [15], which is checked via the satisfiability of a for-mula ϕ ∧ ψ. The variables x1, ..., xn in the formula
rep-resent the numbers of occurrences of nodes labeled with a1, ..., an. In this case, if we want to test the validity of
a skeleton d = (V, E), we take the assignment for each xi
to be #d
i = |{v ∈ V | lbl(v) = ai}|. Since d is valid for Su,
this assignment satisfies ϕ, which is the part of the formula expressing the validity of the document for the schema Su.
It is left to find a satisfying assignment for ψ, that expresses validity with respect to the constraints in C. For that we must also assign values to the variables y1, ..., yn, which represent
the number of unique values for each label. If we find such values we can be sure that there exists a valid assignment for the leaf values, for the generated document skeleton. Let us construct a directed graph G = (V, E), such that there is a node v(yi) for every variable, node v(0) and v(#di) for
1 6 i 6 n, and add the edges (v(0), v(yi)), (v(yi), v(#di)) for
each i. In G a directed edge (a, b) expresses that a 6 b. ψ connects, using ∧, sub-formulas of the 4 following types: (1) yi6 xi (2) yi= 0 ↔ xi= 0 (3) yi= xi (4) yi6 yj
In addition, for each domain constraint ai∈ dom(ai) we add
yi 6 |dom(ai)| (recall that we only need to verify validity
w.r.t. constraints of finite domains).
For each sub-formula, We will replace each xi with its
assigned value, and update G in the process, as follows. Sub-formulas of the first kind can be ignored, as they are already expressed in G; for sub-formulas of the second kind, if indeed xi= 0, we will add the edge (v(yi), v(0)); otherwise we will
add (v(1), v(yi)), creating a new node v(1) if necessary; for
yi= xiwe will add (v(#di), v(yi)); for yi 6 yj we will add
(v(yi), v(yj)); and finally for yi6 k we will add (v(yi), v(k)),
creating v(k) if necessary. Then we will take G∗= (V, E∗), the transitive closure of G.
We claim that ψ is satisfiable iff in G∗there exists no edge (v(k), v(k0)) s.t. k0< k.
For the one direction, assume that there exists no such (v(k), v(k0)), and let us assign to each yithe minimal k s.t.
(v(yi), v(k)) ∈ E∗(i.e., the lowest upper bound for yi). By
construction there must exist such a k. It is straightfor-ward to verify that every sub-formula of ψ is satisfied. E.g., consider sub-formula of the form yi= xi. By construction,
(v(yi), v(#di)) and (v(#di), v(yi)) are in E, E∗. Assume by
con-tradiction that yiis assigned k < #di; then (v(yi), v(k)) ∈ E∗
and thus also (v(#d
i), v(k)), which yields a contradiction.
As-signing yi a value k > #di contradicts the choice of minimal
upper bounds as values.
Now, assume that there exists such (v(k), v(k0)). By the definition of transitive closure there is a path from v(k) to v(k0) in E, representing a sequence of inequalities k 6 z1, z16 z2, ..., zt6 k0, which cannot all be satisfied together.
Thus ψ is not satisfiable.
Finally, generating G and G∗, and checking for an edge (v(k), v(k0)) s.t. k0< k can all be performed in time
polyno-mial w.r.t the size of the schema and document skeleton.
The quality of an r-generator vs. the restart overhead.
We next examine how many times we will restart (i.e., what is the expected number of generated invalid documents). In particular, we show that there is a tradeoff between the optimality of an r-generator, and its restart overhead.
Example 5.7. Consider a simple schema Stradeoff, which
consists of a root label r, whose automaton Atradeoff is
de-picted in Figure 5. The regular language of this automa-ton is a∗$. Let Lleaf = {a} and let the set of constraints
C = {uniq(a), a ∈ {0} } (a can have only one value, 0).6
Con-sider a document corpus which consists only of the document d, whose root has a single child a with value 0.
The only parameter that can be chosen in an r-generator is the probability α to choose the transition from q0 to itself. In
a single invocation, the probability of generating d is α·(1−α), the probability of generating a document with only a root is 1 − α, and the probability of generating an invalid document (and restarting) is α2.
Now, maximizing the quality of the generator means max-imizing the probability for generating d. The probability of generating d is the probability of generating it in the first invocation, in the second one, etc., that is (assuming α < 1, if α = 1 then the probability is 0): P+∞
k=0α(1 − α)(α 2)k= α(1 − α) 1 1−α2 = α 1+α
This function is monotonically increasing for α ∈ [0; 1). Let us choose α to be 1 − ε, for some arbitrarily small ε > 0. The expected number of restarts for this generator can be computed to be 1−(1−α1−α22) =
(1−ε)2
1−(1−ε)2, which shows that the
expected number of restarts tends towards +∞ as ε → 0 (i.e., as the generator gets closer to optimal).
Remark 5.8. A conclusion from the example is that max-imizing the corpus likelihood may not be the best quality measure for r-generators, and finding better measures for such generators will be considered in future research.
6We could also construct more complicated examples, where
the value domains are infinite.
6.
DATA VALUES
So far, we have only considered the generation of document skeletons. To complete the picture, we finally discuss the generation of leaf values, to be injected into such skeletons. While the ideas provided here shed light on value generation, we believe that this is not the final word on the subject, and this direction deserves to be further investigated. We start by considering the generation of values given some probabilistic distribution. Then, we consider additional information that may help us improve the quality of the value generator.
6.1
Generating Values from Distributions
We assume that for each leaf label a ∈ Lleaf we are given
some probabilistic distribution v-distaon values, e.g., uniform
distribution on a finite domain, Zipfian, etc. We also assume that the distribution is discrete. Distributions could be, e.g., learned in practice from the corpus [11]; such a learning process is out of the scope of the present paper.
In the absence of constraints, value generation is rather simple: given a document skeleton, for each a-labeled leaf, randomly choose a value according to v-dista. The difficulty
comes from constraints, that we now consider.
The construction.
For the domain constraints, we can sim-ply assume that the distribution gives non-zero (zero) prob-ability to every value in (out of) the domain. (Otherwise, as mentioned in Section 2.3, the “actual” domain of each a must be computed and this domain must also be considered in the continuation test.)Then what remains is to verify that the value assignment satisfies the key and inclusion constraints. To that end, we propose the following algorithm. For every ai, let yi
be a variable representing the number of unique values for ai-labeled leaves.
1. Create a graph representing the inclusion constraints on leaf labels; split it to strong connectivity components (SCCs) and find a topological order σ on those SCCs. 2. Construct the transitive closure graph G∗representing the constraints sub-formulas as in the proof of Proposi-tion 5.6.
3. Start with a label ai from the “smallest” (i.e., only
included and not including) SCC according to σ. 4. Randomly choose an ai-labeled leaf and a value for it
according to v-distai. Then assign this value to some
(randomly chosen) aj-labeled leaf, for every aj that
(transitively) includes ai, if an aj-labeled leaf with this
value does not exist yet.
5. Update the lower and upper bounds of yj, for every aj
for which a value was generated in the previous step. 6. Treat the new lower and upper bounds as new
sub-formulas and update G∗accordingly; use G∗to perform the PTIME validity test from the proof of Proposi-tion 5.6, on the skeleton with partial value assignment. 7. If the partial assignment is not valid, “rollback” all the
added occurrences of the value, and return to step 4. 8. Repeat for all the ai-labeled leaves, then do the same
for every other member of ai’s SCC, then move on the
next SCC in σ and so on, until all leaves have values. One can show that the algorithm is correct in the sense that it generates a valid document with respect to the constraints, and that termination of the algorithm is guaranteed.
6.2
Old vs. New Values
We note that additional information about the correla-tion between values can be helpful for the generacorrela-tion. In particular, we consider information on the likelihood of val-ues in specific leaves to repeat old valval-ues that were already generated. This information could e.g. be learned during the corpus type-check. We suggest here to encode this in-formation, during the generation of the document skeleton, as additional annotations old or new for each leaf. This information indicates whether the value for this leaf should be drawn out of the values already chosen or whether a new value should be picked. Then the value generation phase follows the technique of Section 6.1, while also respecting these annotations when choosing a value.
The new kind of skeletons with old and new annotations will be referred to as annotated document skeletons, and we denote by Dann the bag of annotated skeletons of all the
documents in Dfull.
We next present and compare two alternative ways of generating annotated skeletons: an offline generator, that adds annotations to skeletons after they have been generated; and an online generator, that generates the skeleton along with annotations. To simplify definitions, we assume in the sequel that both generators are based on an optimal binary ct-generator (we will explain how). In both models, we associate each transition (q, a) in the schema (a ∈ Lleaf), to
a probabilistic word generator A(q,a), that produces either
an old or a new annotation. We denote the probability of A(q,a) to generate new by t-probnew(q, a). We next outline
the two generators, show we can find optimal probabilities for each, and that, interestingly, each generator gives better quality for different inputs. Characterizing when it is better to use each of the generator types is left for future research.
The offline generator.
This kind of generator gets as input a document skeleton (which we assumed is generated by an optimal ct-generator), and annotates its leaves as follows. The generator traverses the leaves of the input skeleton (in a BF-LTR order), and for each leaf performs a validity test for the two possible annotations.7 Assume this leaf wasgenerated by the transition (q, a) of the ct-generator. If both options are valid, the offline generator uses A(q,a)to generate
an annotation for the leaf; otherwise it annotates the leaf with the only valid option.
The online generator.
In this kind of generator, we “embed” each word generator A(q,a)into its corresponding transition(q, a) in the ct-generator. This means that, during generation, after choosing some transition (q, a) (where a ∈ Lleaf) we
also invoke A(q,a) for generating an annotation to this leaf.
Continuation tests are performed both before choosing (q, a) and before choosing the annotation in A(q,a). The key point
here is that the annotations of the partial document can be encoded as constraints, and then the continuation test detailed in the proof of Proposition 5.2 may be used.
The quality of offline and online generators w.r.t. a corpus Danncan be defined, in the same spirit as the optimality of
skeleton generators, as the multiplication of the probabilities to generate the annotated skeletons in Dann. We can then 7Note that the choice of the number of new and old values
determines the number of unique values for each label, thus the validity test may be done in the same way as the algorithm in the previous section.
show the following theorem (proof omitted).
Theorem 6.1. For a given schema with constraints S and an annotated skeletons corpus Dann, we can compute the
optimal offline generator in PTIME in |S| and |Dann|, and
the optimal online generator in FPNP w.r.t. |S| and PTIME w.r.t. |Dann|.
The following proposition states that the offline and online generators are incomparable in terms of their quality.
Proposition 6.2. There exist schemas with constraints S, S0 and annotated skeleton corpora Dann, D0ann, such that
the quality of the optimal offline generator w.r.t. S, Dann
(resp. S0, Dann0 ) is lower (resp. higher) than the quality of
the optimal online generator w.r.t. the same input.
7.
RELATED WORK
Various models for probabilistic XML documents exist in the literature (e.g. [3, 14]); see [4] for a review of such models and a comparison of their expressiveness. The model considered here is not of a probabilistic document but rather of a probabilistic schema; in particular our model allows to define infinitely many documents, in contrast to the finitely many documents (worlds) in the models above. Probabilistic schemas were also considered in [7] that suggested the use of recursive Markov chains [16] for modeling and querying probabilistic XML. The model of [7] can be seen as a straight-forward extension of p-generators where global states and labels are uncoupled; we found the model of p-generators (and in particular the underlying deterministic model) more natural for the learning tasks studied in the present paper. We also note that (lifting the restriction that there is only one type per label, made here to simplify the presentation), the schema model that we use here is equivalent to restrained competition EDTDs [25, 27].
There are also various models for generation of XML doc-uments (e.g., for testing): in [13] the author suggests a language for specifying (manually) desired constraints on generated documents and then shows how to obtain a (non-probabilistic) generator conforming to these (when possible); in [6] the suggested language allows to (again manually) define a probabilistic distribution on local parts of the docu-ments; and the recent [5] suggests a way for uniform sampling of documents conforming to a schema. To our knowledge, no prior work deals with learning a maximum likelihood estimator of a given example XML corpus, in contrast to the present work.
As noted in Remark 3.2, the different models presented in this paper, including probabilistic, and constrained gen-erators, can also be captured by Active XML [2] and tree rewriting. For instance, in AXML a random function can be used to introduce probabilistic choices in the tree rewriting; however, much more complicated functions, including ones performing queries on the tree structure, may also be used. To enforce a BF-LTR order of rewriting, guard functions may be used; the guards may also be used enforce other, more complicated orders. This suggests a variety of interesting research questions that can be studied in future work.
The starting point of this work assumes that we are given a schema; there are many works on schema inference from a corpus of documents (e.g. [8, 10, 20, 22, 29, 31], and the work on key approximation in [21]). These works complement our
work in two senses: first, we can use the inferred schemas as inputs; second, our results can be used to measure the quality of inferred schemas, based on the quality of the optimal generator conforming to them. There are other measurements for schema quality (see suggestions in recent work of [5, 28]), and combining them with our measurement is an interesting research direction.
Our work also has strong connections with the works of [15,17]. They consider satisfiability tests for XML schemas with constraints, and prove these tests are NP-complete; we used an adaptation of this result to show NP-completeness of the continuation tests. Note that in contrast to our work, the works of [15, 17] focus on satisfiability, and thus the models used there are not probabilistic.
On the technical level, our work is also related to other (non-XML) probabilistic models. In particular, Probabilistic Context-Free Grammars (PCFGs) [12, 24] are a common model for the probabilistic generation of strings, used heavily in natural language processing, bioinformatics, and more. We have noted that our algorithm for the non-constrained case is inspired by [12]; we are not aware of an equivalent result in the presence of constraints on strings. Applying our results to this area is an intriguing future research task.
8.
CONCLUSIONS
We have studied the problem of finding an optimal prob-abilistic model for a given schema and corpus of XML doc-uments. We have shown how to view the model as a prob-abilistic generator. We have provided elegant solutions for two cases: with and without constraints. For the former, we have studied two kinds of generators, ct-generators and r-generators, provided algorithms for finding optimal genera-tors, and analyzed the advantages and disadvantages of both kinds. Finally, we have considered the generation of data values, to be fed into the generated XML structure.
We believe that there are still many open problems to be investigated in future research. For example, recall that a ct-generator always generates valid documents (but generation is costly), while an r-generator avoids the cost of continuation test but may restart often. This suggests combining both approaches to obtain better performing generators, that generate faster many valid documents. Another plausible approach is allowing the generation of invalid documents, and introducing the probability of this happening as part of the cost model.
More possibilities for future research lie in, on the one hand, extending our model to consider more expressive constraints (such as in [13,15]), as well as parallelism and different orders of generation, etc. On the other hand, it would be valuable to find more restricted cases that allow efficient document gen-eration. Some of these directions may be studied by further extending our model to full Active XML. For generation of data values we intend to explore and compare other possible methods, using various kinds of information about the values distribution.
In some cases, the schema is not specified by deterministic deriving automata, but rather by nondeterministic ones or by regular expressions. In this case, there are multiple ways of determinizing the automata, and these may yield different generators with different quality. As future work we may explore methods of identifying the determination leading to superior quality, or alternatively study ways of learning optimal probabilities directly for the nondeterministic case.
Last but not least, it would be interesting to experiment with the generators that were formally introduced here. For instance, use our model to compute the quality of schemas resulting from different inference techniques, and compare them; or test our model as a means of explaining and testing on online XML corpora (such as, e.g., the XML version of the DBLP bibliography).
9.
ACKNOWLEDGMENTS
We would like to thank Yann Ollivier, as well as the anonymous reviewers of ICDT, for insightful comments. This work has been supported in part by the Advanced European Research Council grant Webdam on Foundations of Web Data Management, grant agreement 226513 (http://webdam. inria.fr/), the Israeli Centers of Research Excellence (I-CORE) program (Center No. 4/11), and by the US–Israel Binational Science Foundation.
10.
REFERENCES
[1] S. Abiteboul, O. Benjelloun, and T. Milo. The Active XML project: an overview. VLDB J., 17(5), 2008. [2] S. Abiteboul, P. Bourhis, A. Galland, and B. Marinoiu.
The AXML artifact model. In TIME, 2009.
[3] S. Abiteboul, T.-H. H. Chan, E. Kharlamov, W. Nutt, and P. Senellart. Aggregate queries for discrete and continuous probabilistic XML. In ICDT, 2010. [4] S. Abiteboul, B. Kimelfeld, Y. Sagiv, and P. Senellart.
On the expressiveness of probabilistic XML models. VLDB J., 18(5), 2009.
[5] T. Antonopoulos, F. Geerts, W. Martens, and F. Neven. Generating, sampling and counting subclasses of regular tree languages. In ICDT, 2011. [6] D. Barbosa, A. O. Mendelzon, J. Keenleyside, and
K. A. Lyons. ToXgene: An extensible template-based data generator for XML. In WebDB, 2002.
[7] M. Benedikt, E. Kharlamov, D. Olteanu, and P. Senellart. Probabilistic XML via Markov chains. PVLDB, 3(1), 2010.
[8] G. J. Bex, W. Gelade, F. Neven, and S. Vansummeren. Learning deterministic regular expressions for the inference of schemas from XML data. In WWW, 2008. [9] G. J. Bex, F. Neven, T. Schwentick, and K. Tuyls.
Inference of concise DTDs from XML data. In VLDB, 2006.
[10] G. J. Bex, F. Neven, and S. Vansummeren. Inferring XML schema definitions from XML data. In VLDB, 2007.
[11] C. M. Bishop. Pattern Recognition and Machine Learning. Springer, 2006.
[12] Z. Chi and S. Geman. Estimation of probabilistic context-free grammars. Comput. Linguist., 24(2), 1998. [13] S. Cohen. Generating XML structure using examples
and constraints. PVLDB, 1(1), 2008.
[14] S. Cohen, B. Kimelfeld, and Y. Sagiv. Incorporating constraints in probabilistic XML. In PODS, 2008. [15] C. David, L. Libkin, and T. Tan. Efficient reasoning
about data trees via integer linear programming. In ICDT, 2011.
[16] K. Etessami and M. Yannakakis. Recursive Markov chains, stochastic grammars, and monotone systems of nonlinear equations. JACM, 56(1), 2009.
